Avatar SW

Perfect seed embedding due to the SingleDisc seed coulter and the wide range with a hopper capacity of 12 000 l

Working width

12 m

Transport width

4,36 m

Transport height

5,28 m

Hopper capacity double hopper

12000 L

Avatar 3.16 - 8.16 SD

Avatar 8 - 12 SD

Avatar 18 SD

Avatar 18 MD

Avatar SW

Videos

Versatile, robust, precise – the HORSCH Avatar line combines all these characteristics. Maximum precision is achieved due to the SingleDisc coulter and one depth control wheel per seed coulter.

Avatar SW

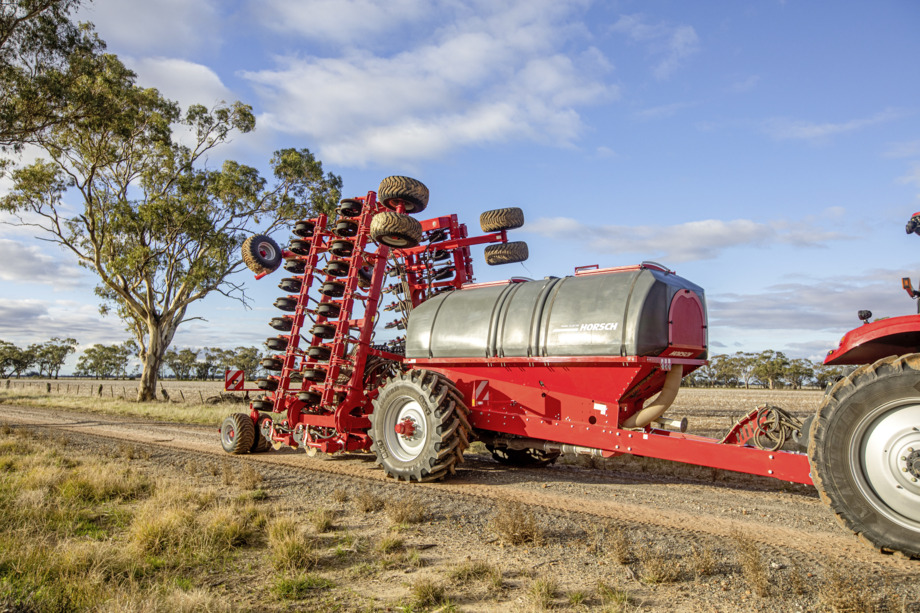

Seed wagon with a capacity of 12 000 l and a working width of 12 m

Impressive technology for large farms

Efficient, versatile, solid

Wide range of applications from direct seeding to mulch seeding and to the offset method
20 cm row spacing – ideal for mechanical population management
High operational speed up to 15 km/h
Coulter pressure up to 350 kg per coulter

SingleDisc

• Individual depth control by means of depth control wheel

• Single disc coulter with seed skid

• Ideal for direct seed, mulch seed and after conventional tillage

• Outstanding for stony, very heavy and clayey soils

• Coulter pressure up to 350 kg

• Maintenance free

Designed for the Avatar line, the maintenance-free SingleDisc coulter offers exceptional versatility across diverse conditions, from direct seeding to heavy clay soils. It utilizes a 6° lateral and 3° vertical angle to ensure precise seed placement, while providing up to 350 kg of adjustable pressure via a robust rubber torsion suspension. By effectively clearing harvest residues and securing seed-to-soil contact, this durable system guarantees uniform emergence even in the most challenging terrain.

SingleDisc in organic conditions

SingleDisc – perfect soil following due to depth control wheel

Finely graduated individual depth adjustment without tools

Low disturbance due to SingleDisc seed coulter

Hopper options

• Seed wagon with a capacity of 12 000 l and a 50:50 partition

• Maximum efficiency due to large capacity

The Avatar 12 SW and the seed waggon SW 12000 SD with a partition of 50:50 provide the possibility to apply seed and fertiliser at the same time. The large hopper capacity reduces filling stops to a minimum, thus ensuring extreme efficiency.

Seed wagon with a capacity of 12 000 l and a 50:50 partition

HORSCH metering system / HORSCH rotors

• Exact application

• Optimum seed distribution

• HORSCH rotor selection – find the optimum rotor for your machine quickly and easily

• Depending on the components, seed rate and operational speed, various options can be selected

• Easily accessible

• Rotor shafts can be replaced without any tools

HORSCH metering systems offer maximum flexibility through a range of interchangeable rotors tailored to specific seed rates, speeds, and machine configurations. For drills with double drop tubes, specialized rotors enable precise distribution and half-width shut-off, while an integrated valve system allows for quick rotor swaps without emptying the hopper. To ensure accuracy, HORSCH provides a rotor selection server for guidance, though a calibration test is always recommended to guarantee an optimum seed rate across the entire working width.

Metering unit – injector hopper system with valve

Pressurised hopper system with locking option

Pressurised hopper system with open valve

Metering unit – pressurised hopper system with valve

Standard metering unit hexagonal shaft drive

Catching roller

• Safe placement of the seed

• Ideal in dry soils

• Remove the catching roller in wet conditions

• Due to the parking position, the catching roller can be lifted

Due to the catching roller, the seed is placed perfectly in the seed furrow to create a connection to capillarity. When sowing in very wet conditions, the catching roller can be set to the parking position with one simple step. Thus, it is possible to continue sowing in wet conditions. If working in wet conditions for a longer time, it makes sense to replace the catching roller with the uniformer.

Perfect fixation of the seed due to rubber catching roller

Fine metering insert kits

• Perfect for microgranular compounds and fine seeds

• Seed rates of 1.5 kg/ha to 60 kg/ha

• Can be used in every machine with a pressurised hopper

• Fine metering insert kit includes:

• A drive shaft with four possible drive pinions

• Three rotors with different sizes

• Individual spacers depending on the drive shaft

The HORSCH fine metering insert kit provides a precise, versatile solution for applying microgranular compounds and fine seeds across all HORSCH machines with pressurized hoppers. By utilizing a modular system of drive shafts, interchangeable rotors of various sizes, and specialized spacers, the kit allows for highly accurate application rates ranging from 1.5 kg/ha to 60 kg/ha. This simple yet flexible design is compatible with models like the Partner, MiniDrill, Pronto, and Focus, offering seamless integration for diverse agricultural needs.

Fine metering insert – rotor

Fine metering insert kits for standard metering unit hexagonal shaft

Fine metering insert kits for double metering unit spline shaft drive

Fine metering insert for double metering unit hexagonal shaft

Closing wheel steel 20 cm

• For sowing in wet conditions

• Closes the seed furrow even in changing conditions

• Ideal with the offset method

• The down force of the closing wheels can be adjusted by means of a spring without any tools

• Depending on the conditions, the angle can be changed

The steel closing wheel is ideal for wet and changing conditions. Even with a lot of organic material, the closing wheel works reliably – a real all-rounder among the closing wheels. In special conditions, the angle of the closing wheel can be adjusted to achieve a perfect result.

Closed closing wheel for all conditions

Closed closing wheel also for cultivated soils

Star roller steel

• For sowing in dry soils

• The star roller produces crumbly fine soil

• The down force of the closing wheels can be adjusted by means of a spring without any tools

• Depending on the conditions, the angle can be changed

The steel star roller is ideal for dry soils. The star profile produces fine soil. It covers the seed and closes the seed furrow. For special conditions, the angle of the star roller can be adjusted to achieve a perfect result.

Steel star roller produces fine soil and closes the seed furrow.

Steel star roller for dry soils

Uniformer

• Safe placement of the seed in the furrow

• Can be used in all situations

• Ideal when sowing into green catch crops

• Ideal in wet conditions

Due to the Uniformer, the seed is pressed in to the seed furrow. This principle is already known from the TurboDisc seed coulters of the Pronto. The Uniformer is also ideal for green catch crops.

Uniformer Avatar

Uniformer to firm the seed in wet soils

Oil cooler

• Heats up the airflow in the pneumatic system

• Maintains the flowability of fertiliser in wet conditions, e.g. dew in the morning, for a longer period

• Lowers the oil temperature in the system and relieves the tractor's oil cooler

The optional oil cooler at the hydraulic fan heats up the air flow in the pneumatic system. This lowers the oil temperature in the system and relieves the tractor's oil cooler. Another very important advantage is that it maintains the flowability of the fertiliser in wet conditions, e.g. dew in the evening.

Oil cooling on the hydraulic fan – heats the air flow in the pneumatic system

Lowers the oil temperature in the system and relieves the tractor's oil cooler

Maintains the flowability of the fertiliser in wet conditions, like dew in the morning

Can be unfolded without tools for optimised accessibility in case of service

WorkLight Pro

• Optimal illumination of the working surroundings at twilight and at night

• Flexibly rotatable LED headlights

• Can be switched on/off via the terminal

• Another headlight illuminates the metering unit

Flexibly adjustable LED headlights in the rear ensure an optimum illumination behind the seed drill combination. Flexibility plays an important role while sowing as you should choose the perfect sowing time for an optimum population. When sowing late or early, WorkLight Pro guarantees an optimum illumination of the area behind the seed drill combination. Another LED headlight perfectly illuminates the metering unit and ensures optimum visibility during the calibration process at a late hour.

WorkLight Pro

Flexibly rotatable LED headlights

Fertiliser and seed flow control

• For a complete monitoring of the seed and fertiliser hoses

• Warning if a pneumatic hose is blocked

• Sowing errors are avoided

• Monitoring of the pneumatic flow at the distribution tower

The fertiliser and seed flow control is a reasonable electronic solution to prevent sowing errors. The sensors control the flow directly behind the distribution tower and detect blockages. Thus, the individual pneumatic hoses are monitored and within seconds you get a notification in the terminal – both acoustic and visual.

Fertiliser and seed flow control – for a permanent monitoring of the seed and fertiliser hoses

Monitoring of the pneumatic flow at the distribution tower

HorschConnect

• Digital solutions exactly where they make sense

• Straightforward out-of-the-box solution with already integrated SIM card, Wi-Fi modem and other interfaces

• HorschConnect Telematics to document the performance of the machine

• HorschConnect Telematics for complete transparency of the working quality, e.g. the application rate of all components

• Targeted and proactive service by remote access to error messages

• Control of machine functions via the smartphone app HORSCH Control: e.g. carrying out nozzle tests for individual sections

Prepare today for tomorrow. Easily control various machine functions via the HORSCH Control app – your smartphone complements the terminal! Gain comprehensive, transparent insight into work rate and work quality with HorschConnect Telematics.

With HorschConnect, telemetry solutions are making their way into the sectors seeding and crop care - exactly where they make sense

The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone

Success factor transparency: position-specific data of all relevant information like error messages, application rate, nozzle status or target area spacing

With the field boundaries import all data can be analysed over the season – even in a site-specific way

HorschConnect

The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone

eosT10/eosT10 Pro

• High-resolution 10" terminal for controlling all ISOBUS devices according to ISO 11783

• Reliable and powerful: high-performance hardware combined with intuitive, user-friendly operation in day or night mode

• Various layout options allow for a simultaneous display of several applications – for an optimum overview.

• Straightforward transfer of application maps with the wireless task data exchange

• A real-time transmission of the terminal display via Remote Support facilitates the technical support.

Due to the high resolution and the well-thought-out user navigation, even complex machine functions can be operated comfortably. The high efficiency and the large (working) memory allow for a smooth handling of large data quantities or application maps. In addition to the traditional import resp. export of data via a USB flash drive, the transfer can also take place easily and comfortably online directly between the PC and the terminal.

Due to its high resolution, the eosT10 offers a state-of-the-art user experience for all ISOBUS-compliant machines.

Due to the WIFI interface, field boundaries, application maps or order data can be exchanged directly between PC and terminal.

The lean design of the 10" display allows for perfect integration into any tractor cabin.

eosT10 – robust hardware with diverse interfaces

In portrait mode, two applications can be optimally displayed and operated.

By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.

TECHNICAL SPECIFICATIONS

Working width

12,00 m

Transport width

4,36 m

Transport height

5,28 m

Length

11,65 m

Weight

19160 kg

Seed hopper capacity double hopper

12000 l

Feed opening double hopper

0.99x0.72 each m

Filling height double hopper

3,34 m

Number of seed coulters

coulter pressure

350 kg

Seed coulter Ø

48 cm

Closing wheels Ø

33 cm

Depth control wheels Ø

40 cm

Row spacing

20 cm

Tyre size seed waggon

650 / 65 R 38

Tyre size seed unit

400 / 60 – 15.5

Operational speed

6 - 15 km/h

Horsepower requirement

205 / 280 kW/hp

DA control devices

Depressurized return flow (max. 5 bar)

Oil quantity hydr. fan

60 - 80

Implement attachment adjustable drawbar

Ring towing eye Ø 58 – 79 mm

Implement attachment ball head

K 80
