Terrano GX

Elegant precision in all its variety

Working width

4 - 5,9 m

Tine spacing

30 cm

Frame height

850 mm

Release force

570 kg

Terrano FX

Terrano GX

Terrano MT

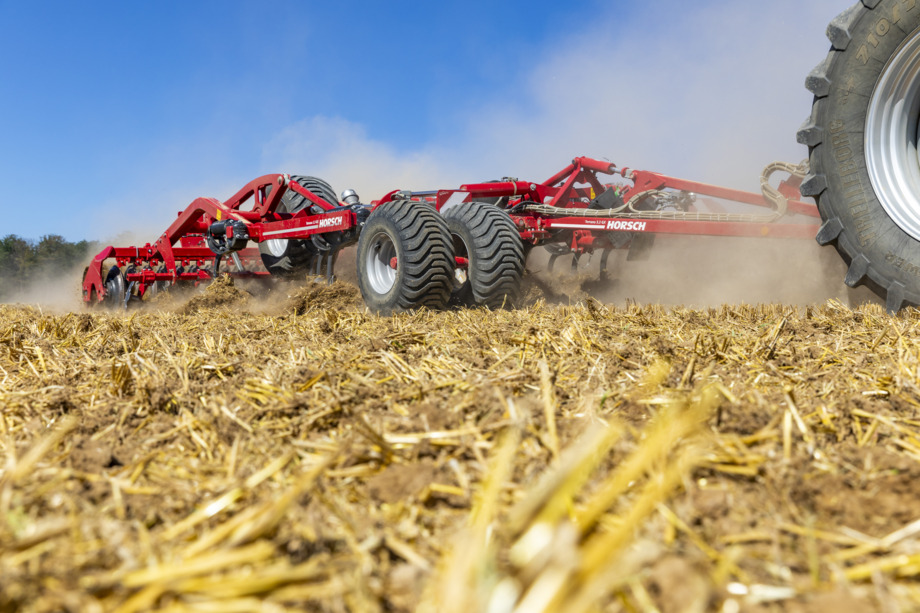

The HORSCH Terrano GX is ideal for shallow tillage and deep loosening at a depth of 25 cm. It breaks plough soles and simultaneously mixes organic matter reliably across the entire working horizon.

Also ideal for shallow stubble cultivation

Optimal mixing of harvest residues

Perfect levelling before seeding

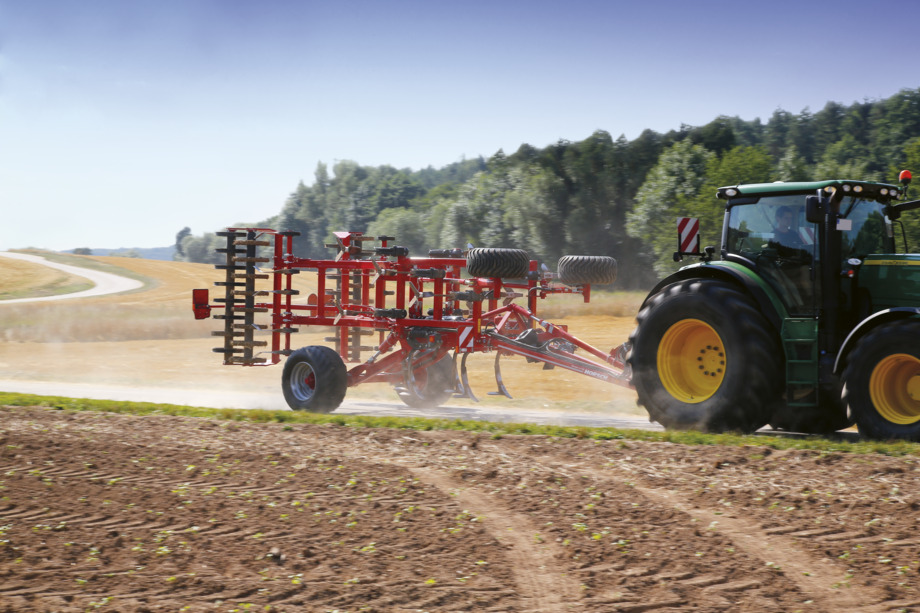

Comfortable road transport due to integrated transport wheels

In working widths from 4 to 6 m

3-bar design

Due to TerraGrip spring kit and tines extremely low horsepower requirement

Wide selection of packers

Intensive mixing and optimum consolidation

Due to the 3-bar and compact design, it can be used on every farm.

3-bar design with a tine spacing of 30 cm for intensive mixing
Robust design for hardest operating conditions and durability
Wide selection of packer options for intensive consolidation
Maintenance-free TerraGrip tine system with a release force of 570 kg and a very long service life

TerraGrip III

• Release force from 500 to 550 kg (depending on the model)

• Flexible mounting of point and wing options

• Low horsepower requirement due to curved tine design

• Optimum residue mixing even at shallow working depths

The TerraGrip tine system impresses due to its flexibility with regard to the various point and wing options. The low horsepower requirement and the excellent mixing characteristics are due to the curved shape and the low angle of the point.

TerraGrip III

TerraGrip III – release effect

Points and wings

• TerraCut wing HM

• MulchMix wing

• MulchMix wing HM

• MulchMix point

• MulchMix point HM

• MulchMix point HM Plus

• Point LD

• Point LD Plus

• Point ULD Plus

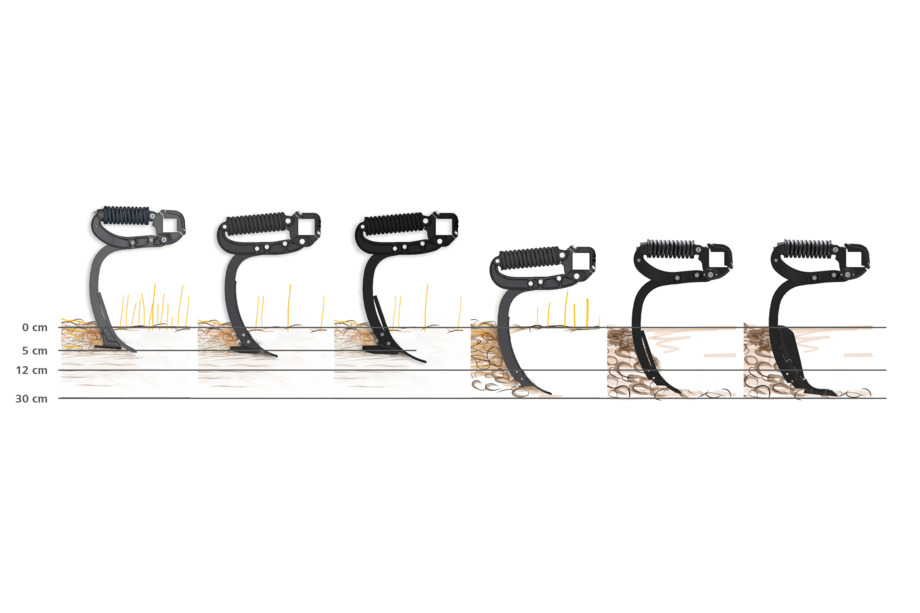

Due to the wide range of point and wing options, the cultivator can be used for almost all cultivation depths from shallow cutting at 3 to 4 cm to primary soil cultivation. This increases the application range enormously.

Points and wings

TerraCut wing

• Wings on the left and right side for all TerraGrip tineS

• Cutting width: 40 cm

• Low setting angle

• Excellent penetration behaviour due to angle of the point

The TerraCut point is the ideal choice if you want to cut deeply rooted material shallow across the whole working width. The cutting width of 40 cm combined with a very stable tine guarantee an all-over cutting even in difficult conditions. The combination of wing and point results in a groove of 30 mm in the area of the point, significantly improving the penetration compared to a duck foot point. The TerraCut wings are carbide covered to guarantee a long service life.

TerraCut winG

MulchMix wing flat

• Wings on the left and right side for all TerraGrip tines

• 34.5 cm wide wings

• Two setting angles depending on the working depth

• Available as standard and carbide version

The MulchMix wings with the shallow angle are used for initial stubble cultivation. The shallow working angle ensures an even shallow cultivation. Thus, a good mixing of the straw can be achieved with less fuel consumption. Volunteer crops are not buried unnecessarily deep.

MulchMix point wing shallow/deep

MulchMix wing deep

• Wings on the left and right side for all TerraGrip tines

• 34.5 cm wide wings

• Two setting angles depending on the working depth

• Available as standard and carbide version

The MulchMix wings with the steep setting position are used for mixing in straw and organic fertiliser. The larger angle of attack results in an intensive mixing. The groove left by the point guarantees an excellent penetration behaviour.

MulchMix point wing shallow/deep

MulchMix without wing

• Deep loosening and intensive mixing of the soil

• Working depths: 15 to 30 cm

• Various carbide versions

The MulchMix point is used without wings if you want to work deeper than 15 cm and achieve an intensive mixing. Organic matter is mixed over the whole cultivation depth. The MulchMix points are available in different carbide versions to meet the most different requirements.

MulchMix point without wing

RingFlex packer Ø 60 cm

• Large contact area due to 7 cm wide ring elements

• Organic matter is mixed in additionally

• Can be retrofitted to a winter packer

• Weight per meter working width: 120 kg

The RingFlex packer convinces due its excellent load-bearing capacity on light and medium soils. Moreover, it ensures good consolidation. Depending on the conditions of use, it can also be used as a winter packer by removing individual rings.

RingFlex packer

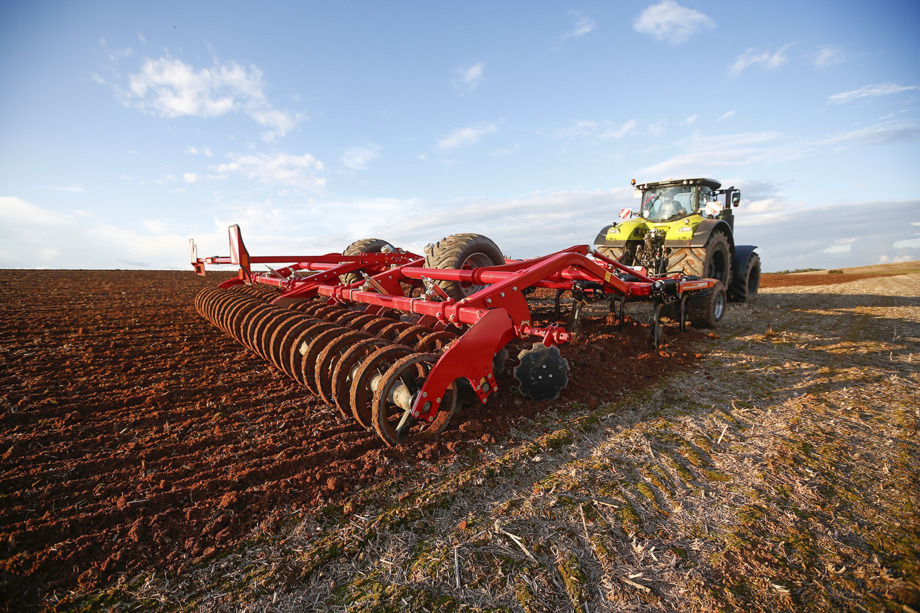

SteelFlex packer

• SteelDisc packer 58 cm Ø for deep consolidation

• RingFlex packer 60 cm Ø for fine soil production on the surface

• Weight per m working width: 442 kg

The SteelFlex packer is ideal for medium and heavy soils. It combines deep consolidation after an intensive loosening with a fine-crumbly finish on the surface. Its strengths are particularly evident in primary soil cultivation.

SteelFlex packer

OptiRoll packer Ø 73 cm

• Very high load capacity and low horsepower requirement

• Ideal for changing sites and conditions

• Partial consolidation in the area of the rings

• Closed design with scraper

• Weight per m working width: 376 kg

The OptiRoll packer is particularly ideal for targeted, strip consolidation and works reliably in varying soil and moisture conditions. While the roller creates consolidated strips with a capillary effect and the spaces in between remain loosened, individually adjustable scrapers always ensure reliable self-cleaning.

OptiRoll packer Ø 73 cm

MiniDrill

• Efficient sowing of cover or catch crops

• Large hopper capacity of 400 l

• 6 or 12 outlets depending on the working width

• Available ex factory

The MiniDrill is the ideal combination for cultivating the soil and sowing catch crops simultaneously in one pass. The seed is distributed pneumatically via baffles in front of the packer and then pressed.

Also available in combination with the MiniDrill

Harrow rear 1-row

• Comb out weeds and remove soil from the roots

• Places organic material loosely on the surface

• Level additionally.

The 1-row harrow reliably combs out weeds and loosely deposits them on the worked horizon. These can subsequently dry out and die. In addition, the harrow levels the surface again and ensures an additional fine soil content on the surface.

Optional with 1-row following harrow

TECHNICAL SPECIFICATIONS

Working width

4.00 m

Transport width

2.99 m

Transport height

2.83 m

Length

8.61 m

Axle load

4,000 – 5,700 kg

Vertical load

500 – 950 kg

Tyre size support wheels

400 / 60 – 15.5

Tyre size transport wheels

550 / 45 – 22.5

Number of tines

Tine spacing in one row

92.00 cm

Tine spacing

31.00 cm

Frame height

850 mm

DA control devices

2 (+1 with hydraulic depth adjustment)

Horsepower requirement

130 – 170 kW / 175 – 230 hp

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar linkage

Towing eye Ø 42 – 51 mm

Adjustable drawbar ball hitch linkage

K 80

Working width

4.90 m

Transport width

2.99 m

Transport height

3.36 m

Length

8.61 m

Axle load

4,700 – 6,900 kg

Vertical load

650 – 1,400 kg

Tyre size support wheels

400 / 60 – 15.5

Tyre size transport wheels

550 / 45 – 22.5

Number of tines

Tine spacing in one row

94.00 cm

Tine spacing

31.00 cm

Frame height

850 mm

DA control devices

2 (+1 with hydraulic depth adjustment)

Horsepower requirement

175 – 210 kW / 240 – 285 hp

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar linkage

Towing eye Ø 42 – 51 mm

Adjustable drawbar ball hitch linkage

K 80

Working width

5.90 m

Transport width

2.99 m

Transport height

3.85 m

Length

8.68 m

Axle load

5,600 – 7,800 kg

Vertical load

750 – 1,500 kg

Tyre size support wheels

400 / 60 – 15.5

Tyre size transport wheels

550 / 45 – 22.5

Number of tines

Tine spacing in one row

95.00 cm

Tine spacing

31.50 cm

Frame height

850 mm

DA control devices

2 (+1 with hydraulic depth adjustment)

Horsepower requirement

220 – 260 kW / 300 – 350 hp

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar linkage

Towing eye Ø 42 – 51 mm

Adjustable drawbar ball hitch linkage

K 80

Terrano GX

Due to the 3-bar and compact design, it can be used on every farm.

TerraGrip III

RollPack packer

Points and wings

TerraCut wing

MulchMix wing flat

MulchMix wing deep

MulchMix without wing

ULD points

LD points

Double RollPack packer Ø 55 cm

RingFlex packer Ø 60 cm

Double RingFlex packer Ø 60 cm

SteelDisc packer Ø 58 cm

SteelFlex packer

OptiRoll packer Ø 73 cm

OptiCover packer Ø 30 cm

Cage drum roller Ø 64 cm

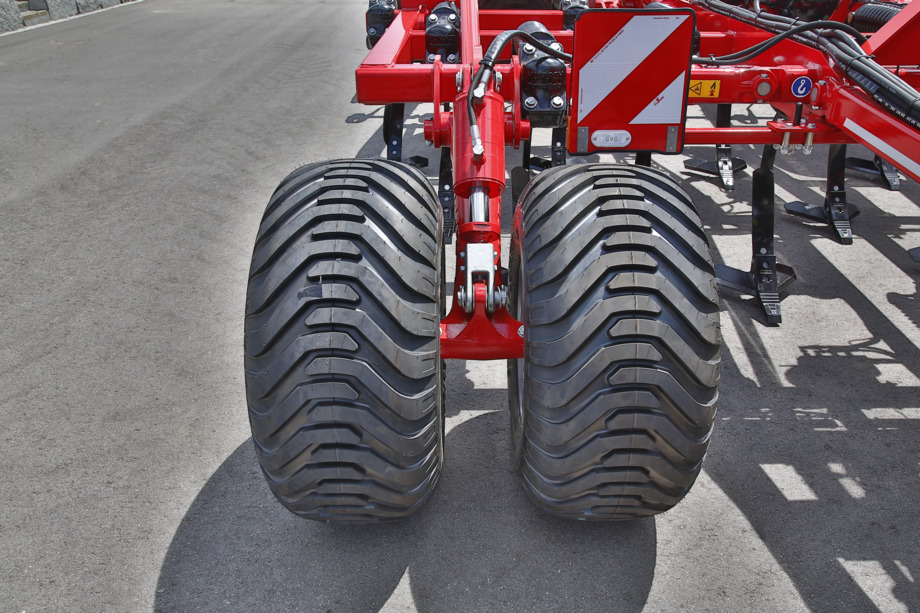

Double support wheels
