Terrano FX

Efficient cultivator technology with an extremely wide range of applications

Working width

3 - 5 m

Tine spacing

30 cm

Frame height

850 mm

Release force

550 kg

Terrano FX

Terrano GX

Terrano MT

Terrano FX Walkaround with Steve Robertson

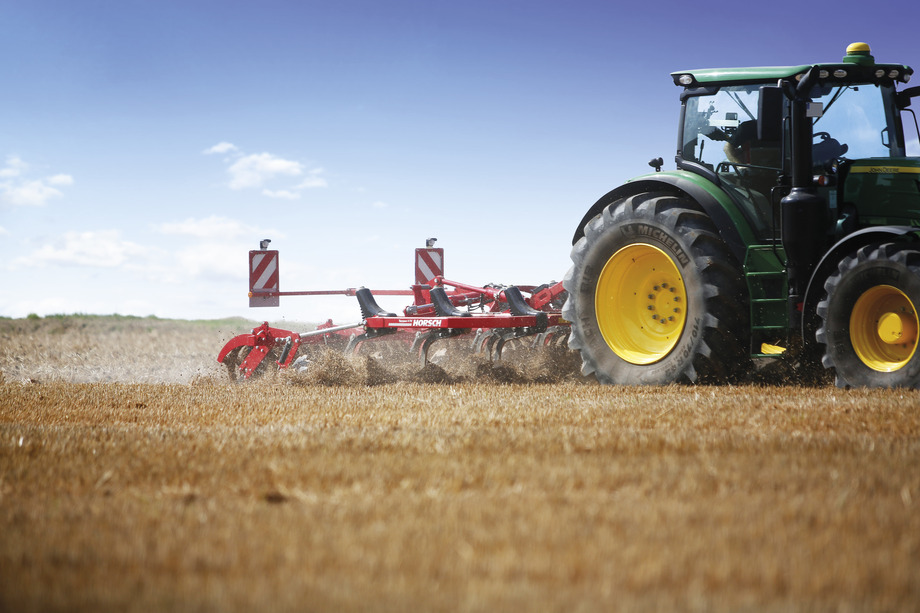

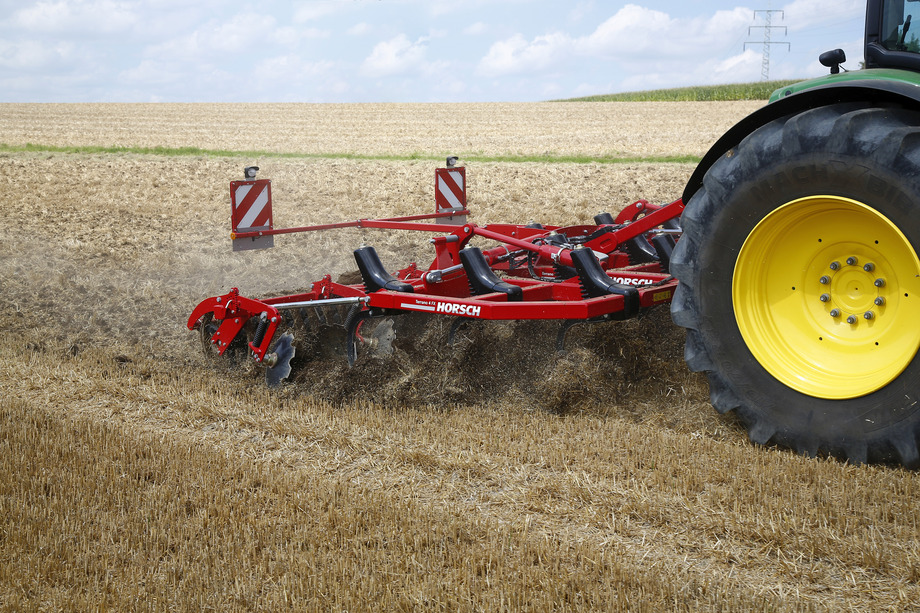

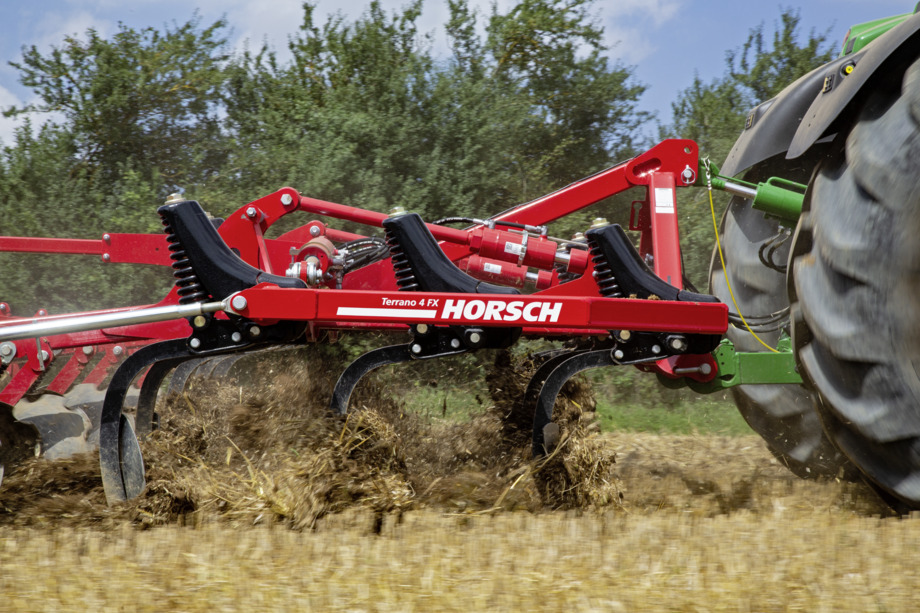

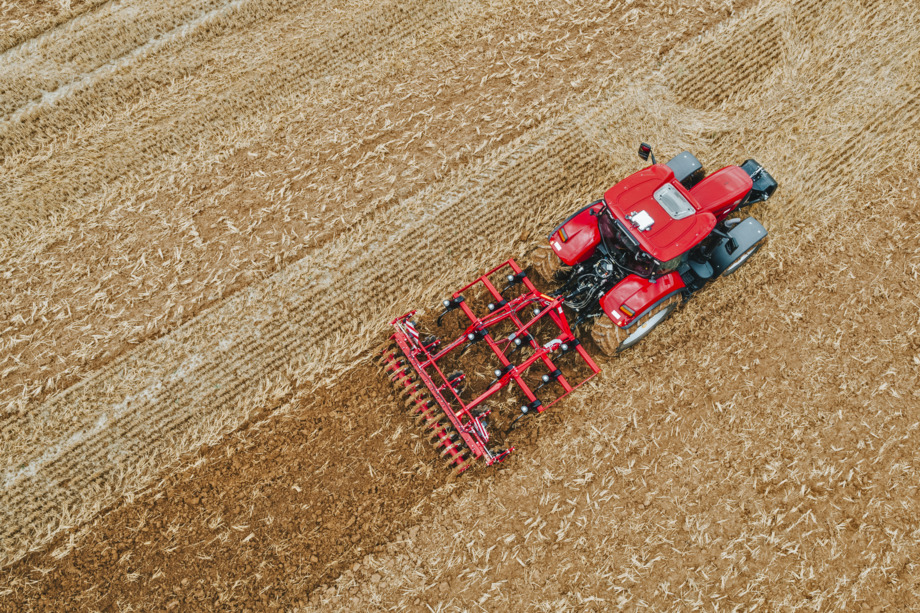

The HORSCH Terrano FX is ideal for shallow tillage to deep loosening at a depth of 30 cm. It breaks plough soles and simultaneously mixes organic matter reliably across the entire working horizon.

The 3-bar universal cultivator with 3-point linkage

3-bar design with a working depth of 5 to 30 cm

Intensive incorporation of organic material

Intensive mixing and perfect levelling

Intensive incorporation from stubble cultivation to primary soil cultivation

Stubble cultivation to primary soil cultivation with up to 30 cm working depth

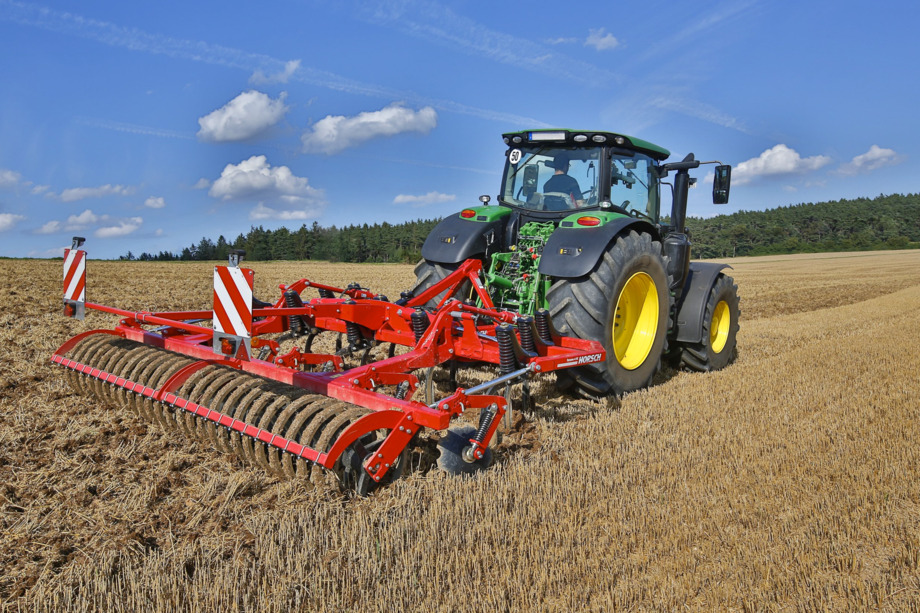

Wide selection of packers

3-bar design and optimal flow of soil

850 mm frame height for maximum clearance

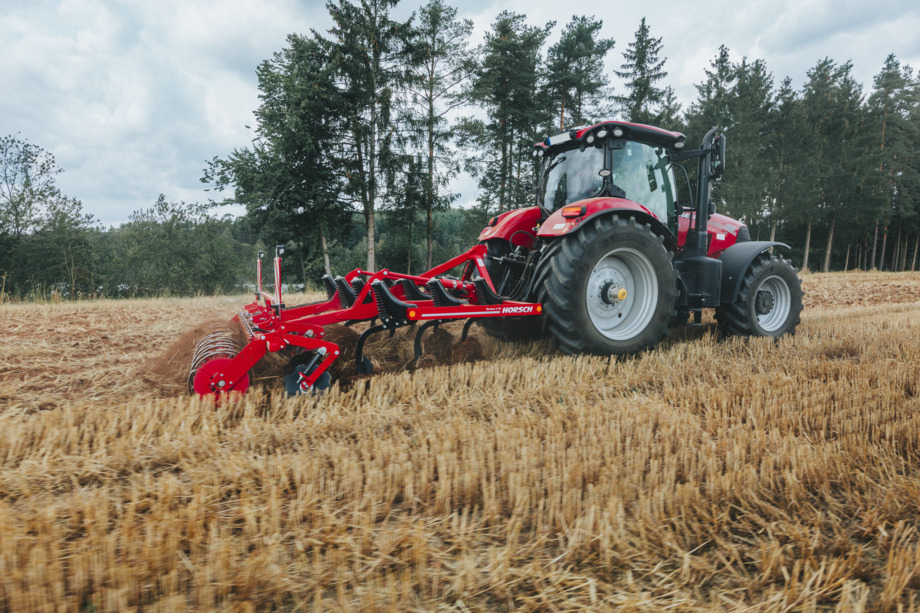

Due to the 3-bar and compact design, it can be used on every farm.

3-bar design with a tine spacing of 30 cm for intensive mixing
Robust design for hardest operating conditions and durability
Wide selection of packer options for intensive consolidation

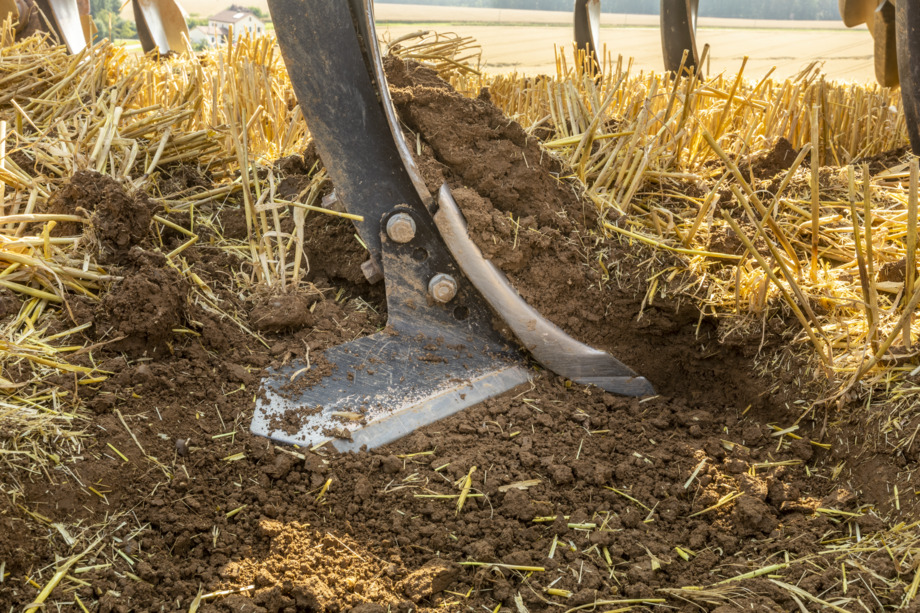

Maintenance-free TerraGrip tine system with a release force of 500 kg and a very long service life

TerraGrip II

• Release force from 500 to 570 kg (model-dependent)

• Flexible mounting of point and wing options

• Low horsepower requirement due to curved tine design

• Optimum residue mixing even at shallow working depths

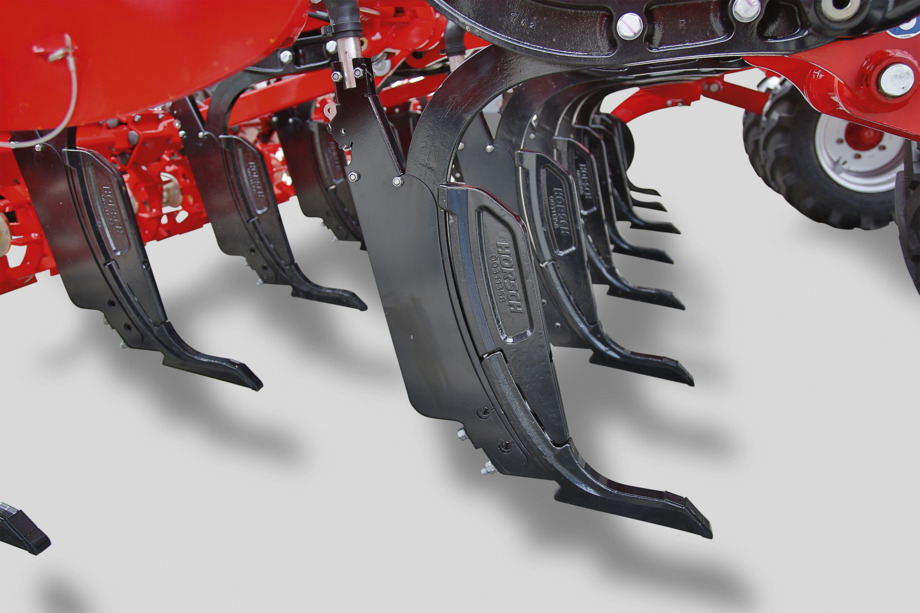

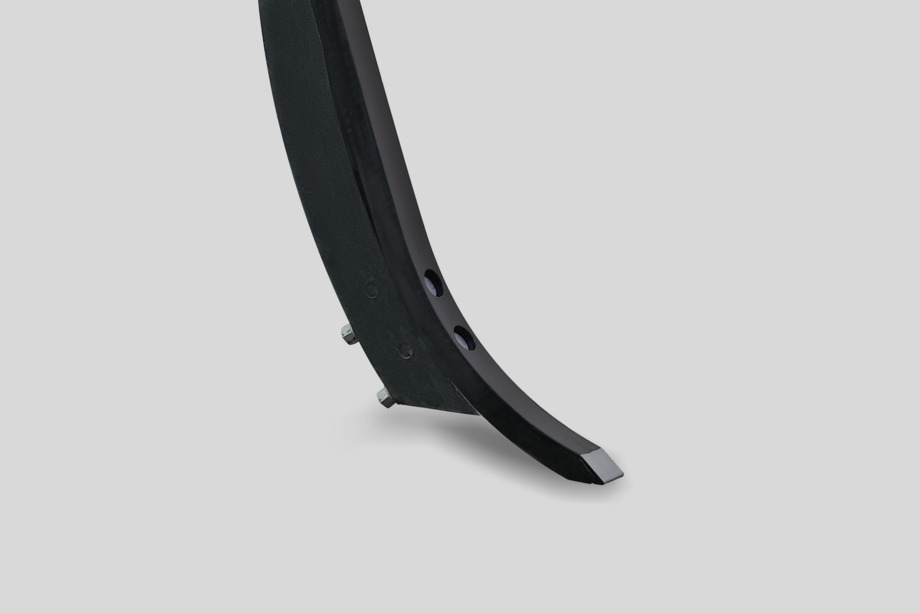

The TerraGrip tine system impresses due to its flexibility with regard to the various point and wing options. The low horsepower requirement and the excellent mixing characteristics are due to the curved shape and the low angle of the point.

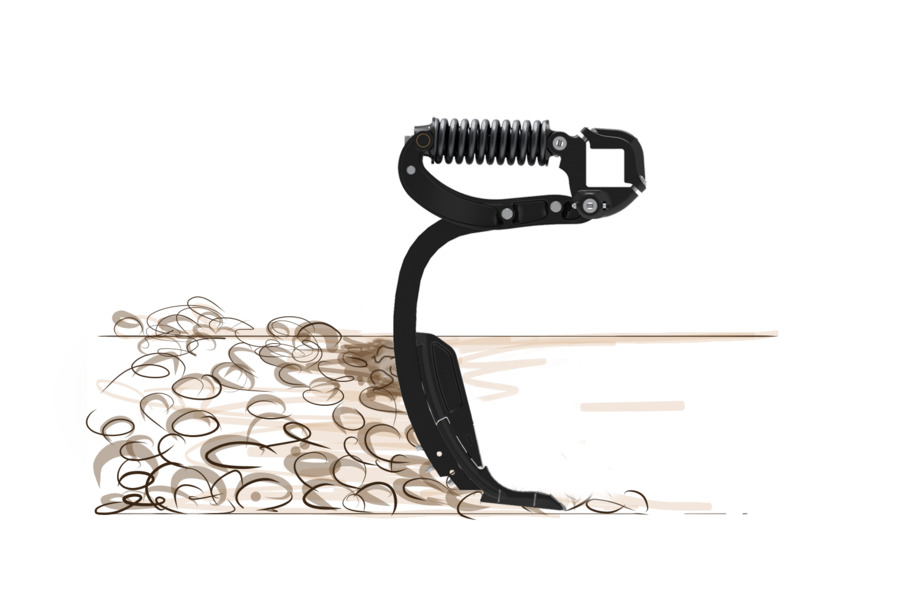

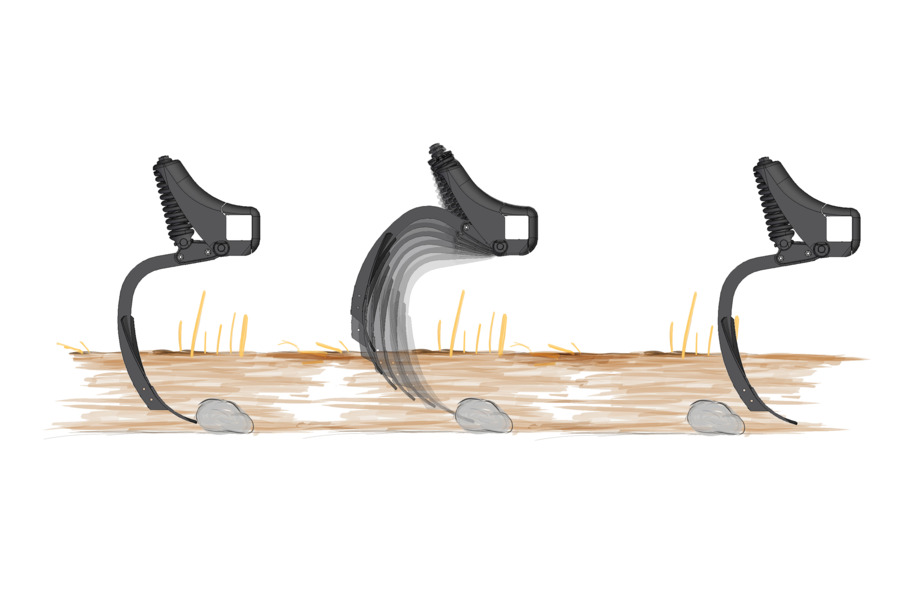

TerraGrip II – release effect

TerraGrip overload element

Points and wings

• TerraCut wing HM

• MulchMix wing

• MulchMix wing HM

• MulchMix point

• MulchMix point HM

• MulchMix point HM Plus

• Point LD

• Point LD Plus

• Point ULD Plus

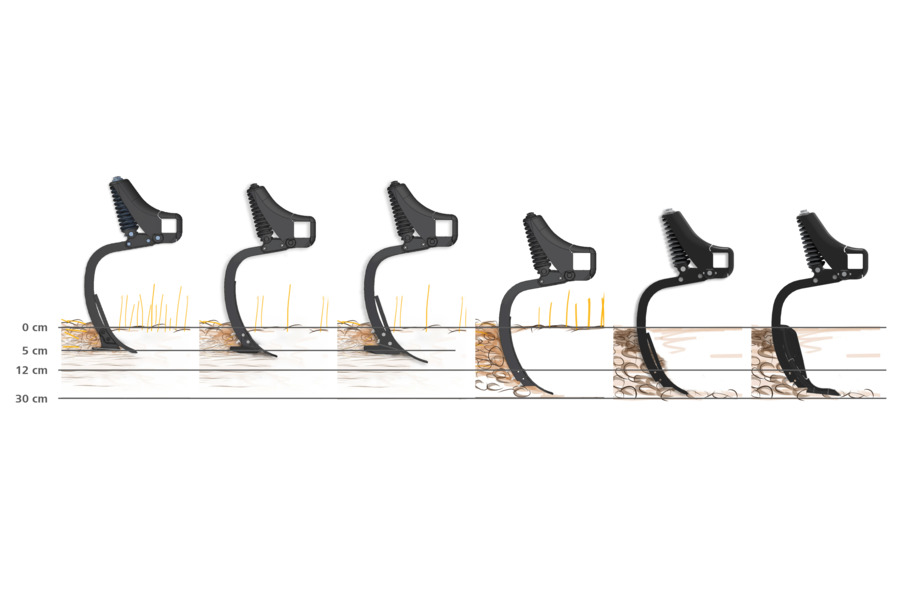

Due to the wide range of point and wing options, the cultivator can be used for almost all cultivation depths from shallow cutting at 3 to 4 cm to primary soil cultivation. This increases the application range enormously.

Points and wings

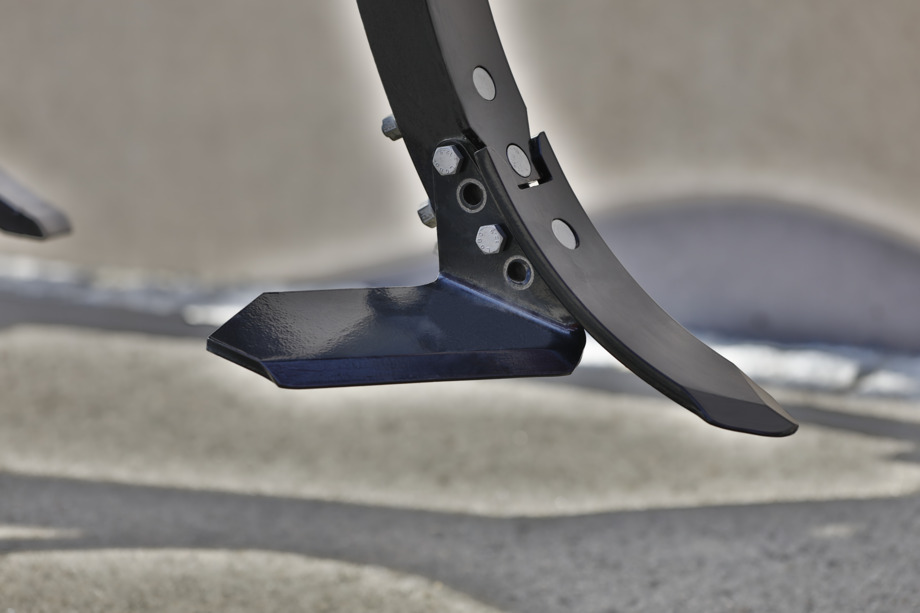

TerraCut wing

• Wings on the left and right side for all TerraGrip tineS

• Cutting width: 40 cm

• Low setting angle

• Excellent penetration behaviour due to angle of the point

The TerraCut point is the ideal choice if you want to cut deeply rooted material shallow across the whole working width. The cutting width of 40 cm combined with a very stable tine guarantee an all-over cutting even in difficult conditions. The combination of wing and point results in a groove of 30 mm in the area of the point, significantly improving the penetration compared to a duck foot point. The TerraCut wings are carbide covered to guarantee a long service life.

TerraCut winG

MulchMix wing flat

• Wings on the left and right side for all TerraGrip tines

• 34.5 cm wide wings

• Two setting angles depending on the working depth

• Available as standard and carbide version

The MulchMix wings with the shallow angle are used for initial stubble cultivation. The shallow working angle ensures an even shallow cultivation. Thus, a good mixing of the straw can be achieved with less fuel consumption. Volunteer crops are not buried unnecessarily deep.

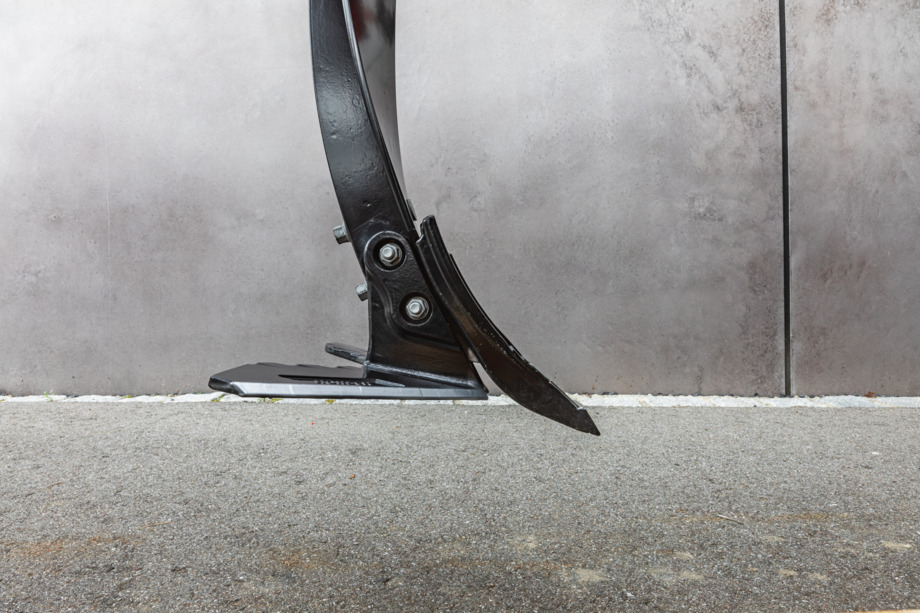

MulchMix point wing shallow/deep

MulchMix wing deep

• Wings on the left and right side for all TerraGrip tines

• 34.5 cm wide wings

• Two setting angles depending on the working depth

• Available as standard and carbide version

The MulchMix wings with the steep setting position are used for mixing in straw and organic fertiliser. The larger angle of attack results in an intensive mixing. The groove left by the point guarantees an excellent penetration behaviour.

MulchMix point wing shallow/deep

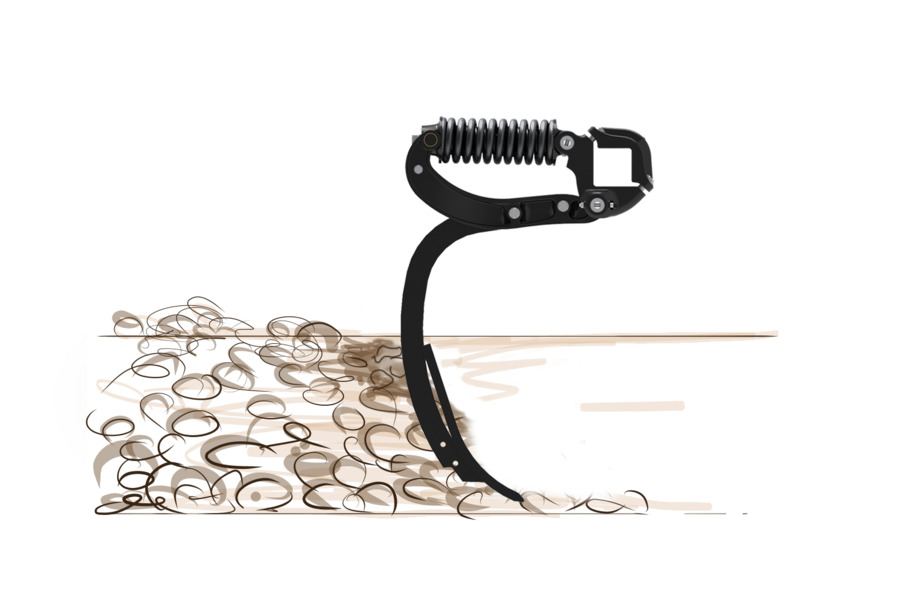

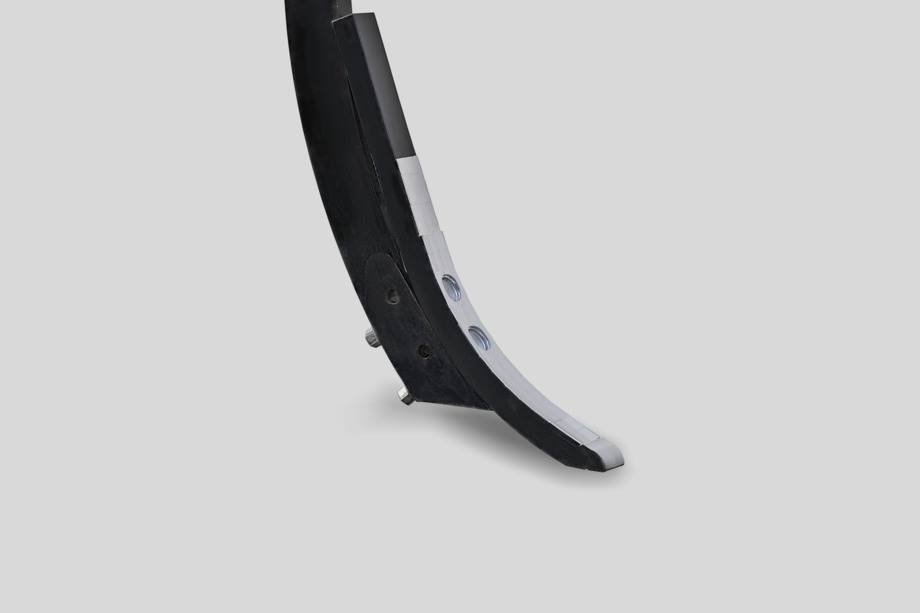

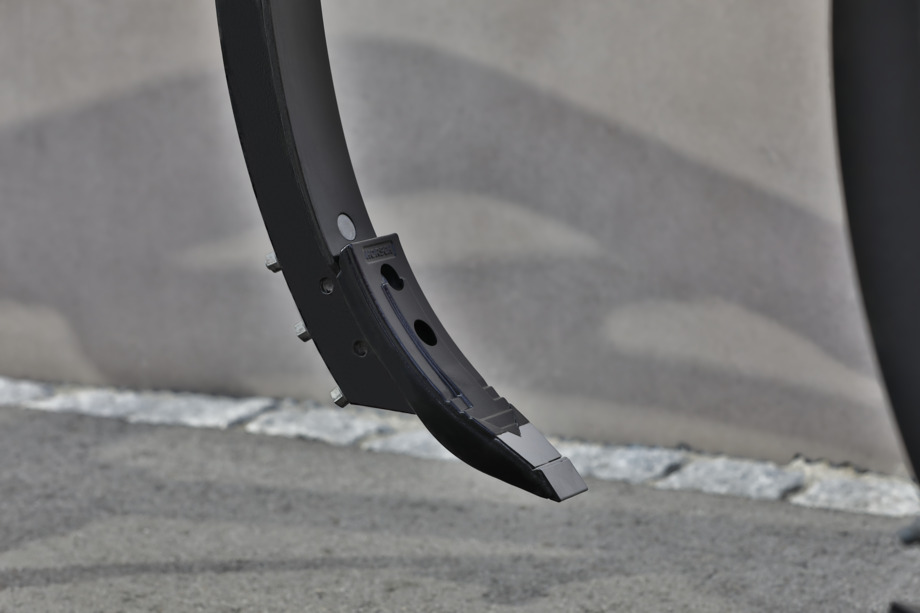

MulchMix without wing

• Deep loosening and intensive mixing of the soil

• Working depths: 15 to 30 cm

• Various carbide versions

The MulchMix point is used without wings if you want to work deeper than 15 cm and achieve an intensive mixing. Organic matter is mixed over the whole cultivation depth. The MulchMix points are available in different carbide versions to meet the most different requirements.

MulchMix point without wing

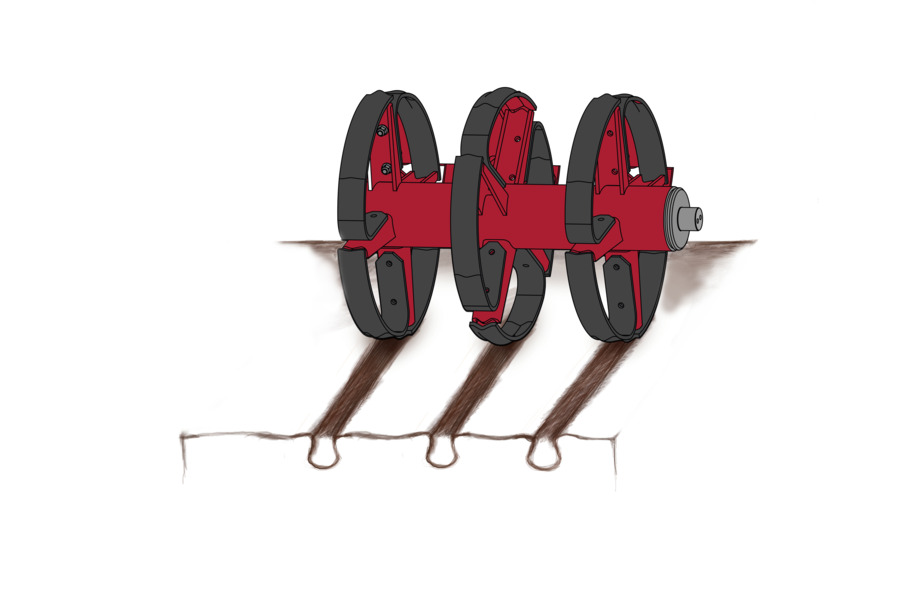

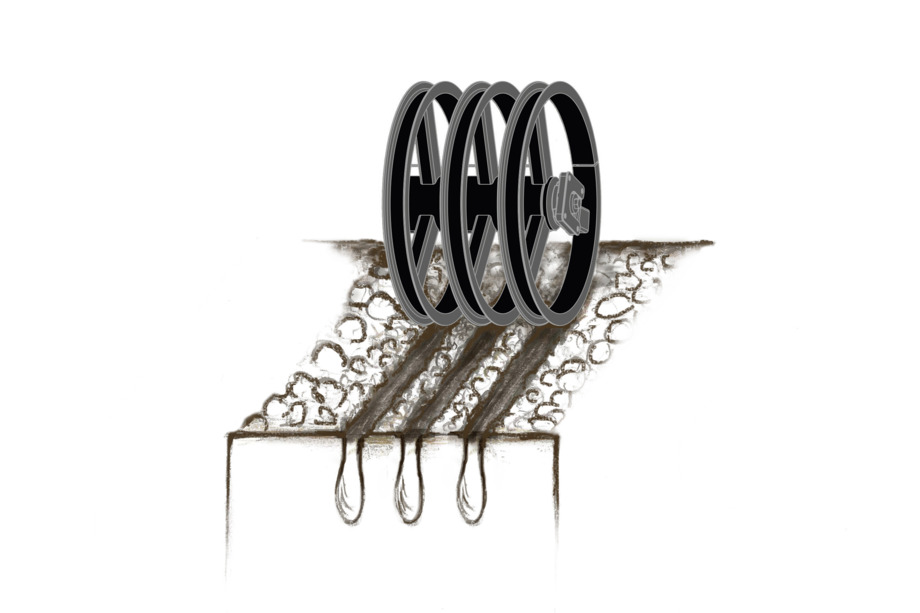

RollFlex packer

• Deep consolidation with loose soil surface

• High levelling capacity due to intermediate springs

• Self-cleaning, without scrapers

• High operational reliability

The RollFlex packer ensures a high reliability on changing soils even in wet conditions. Due to the deep consolidation, loose soil is compacted, clods are crushed and an optimum environment with an optimum ratio of water-bearing and air-ducting pores are created.

RollFlex packer

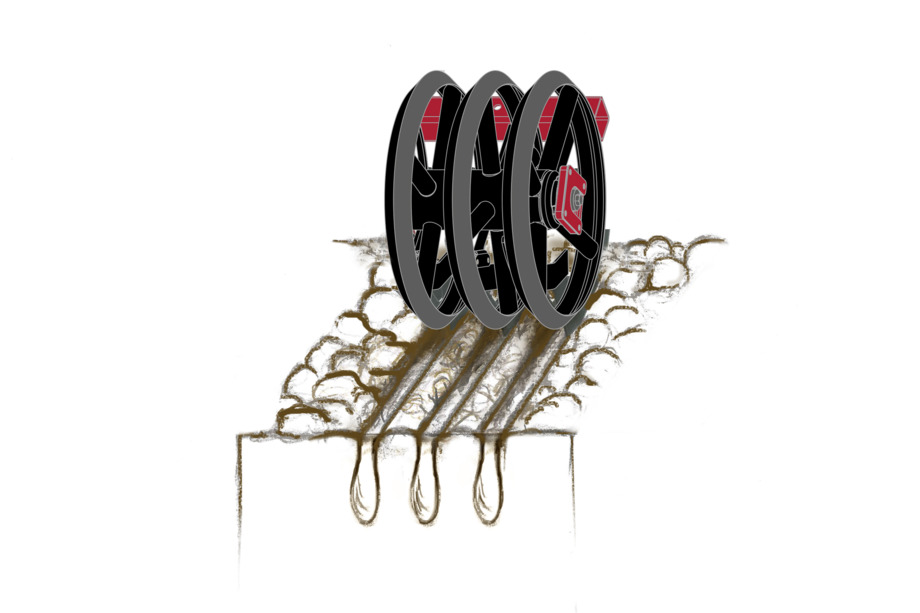

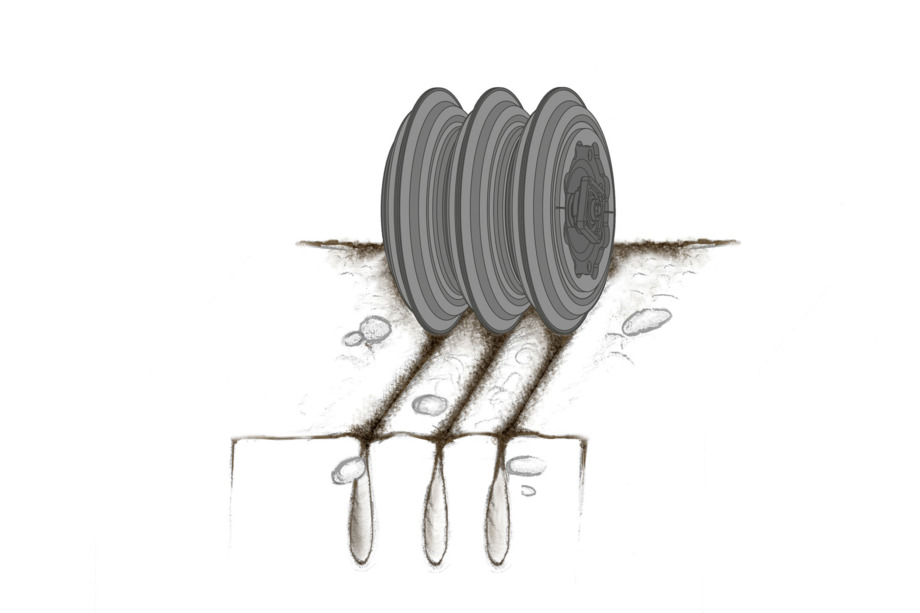

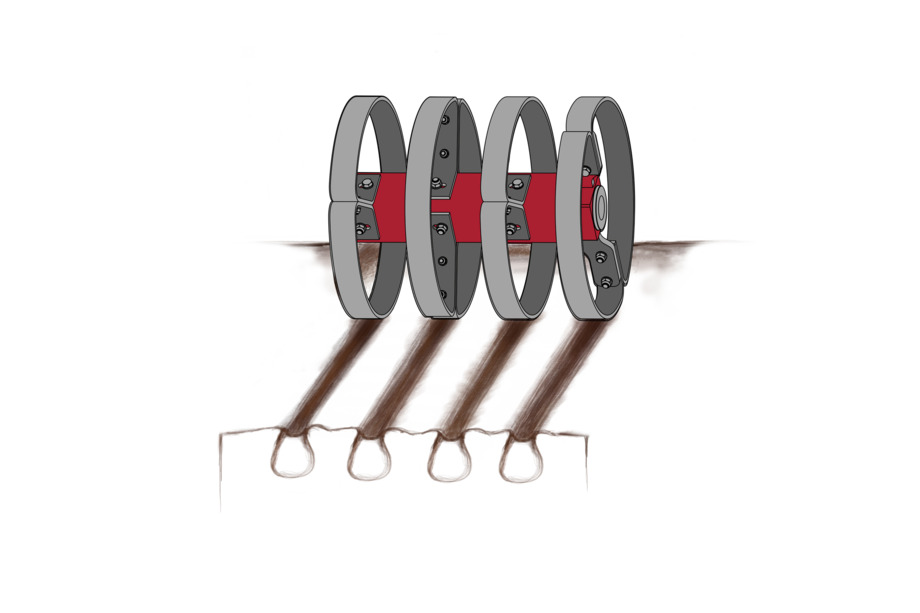

RollCut packer

• Strip consolidation

• Good surface structure on medium-heavy soils

• Ideal packer for medium to heavy soils

• Weight per meter working width: 130 kg

The RollCut packer is perfect for all medium/heavy soils. Due to its cutting rings, it leaves a well-consolidated and finely crumbly surface. Ideal for stimulating the germination of volunteer crops and weeds or for seedbed preparation.

RollCut packer

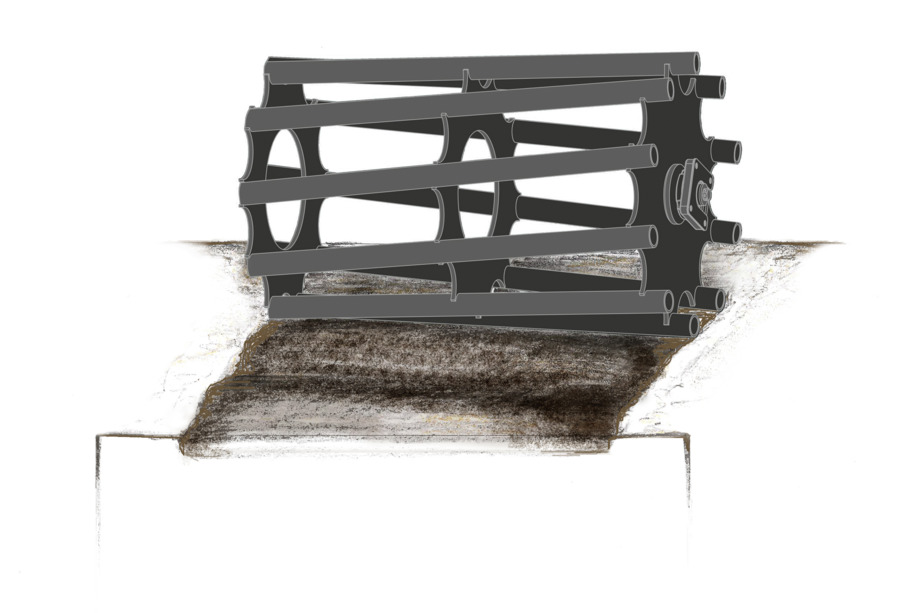

DoubleCage packer

• Perfect, loose surface

• Moves soil and levels

• Places organic material loosely on the surface

• Weight per meter working width: 78 kg

The DoubleCage packer is ideal for producing a lot of fine soil on the surface and at the same time to level the soil even further. Due to the open structure of the rollers, organic material is placed loosely on the surface.

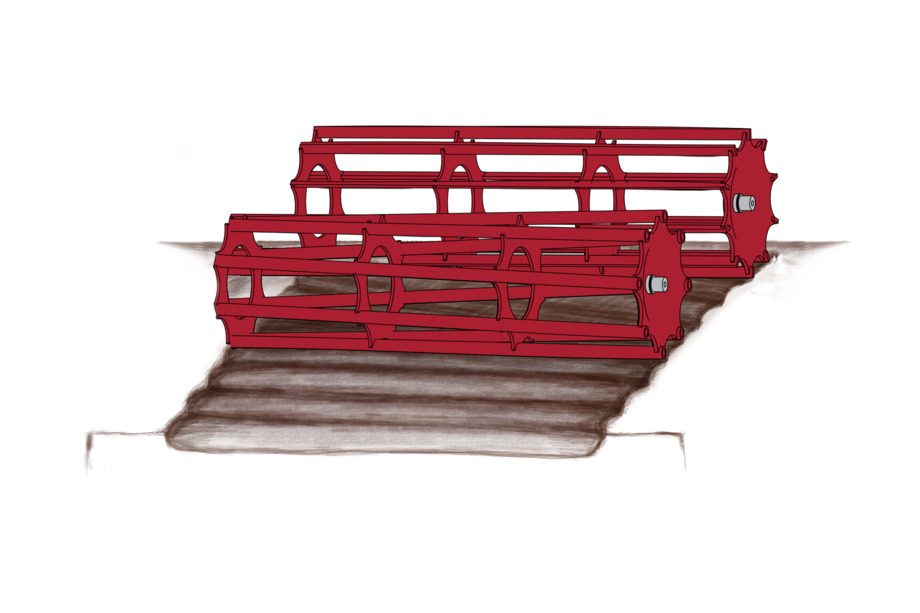

Cage drum roller

RingFlex packer Ø 60 cm

• Large contact area due to 7 cm wide ring elements

• Organic matter is mixed in additionally

• Can be retrofitted to a winter packer

• Weight per meter working width: 120 kg

The RingFlex packer convinces due its excellent load-bearing capacity on light and medium soils. Moreover, it ensures good consolidation. Depending on the conditions of use, it can also be used as a winter packer by removing individual rings.

RingFlex packer

SteelDisc packer Ø 58 cm

• High machine weight for intensive consolidation

• Breaks clods

• Encourages capillarity action

• Weight per meter working width: 175 kg

The SteelDisc packer is ideal for hardest conditions, stony soils, large clods and fields that require deep consolidation. Due to its cutting rings and the high packer weight, it guarantees an excellent consolidation.

SteelDisc packer

DoubleCage packer

• Perfect, loose surface

• Moves soil and levels

• Places organic material loosely on the surface

• Weight per meter working width: 78 kg

DoubleCage packer

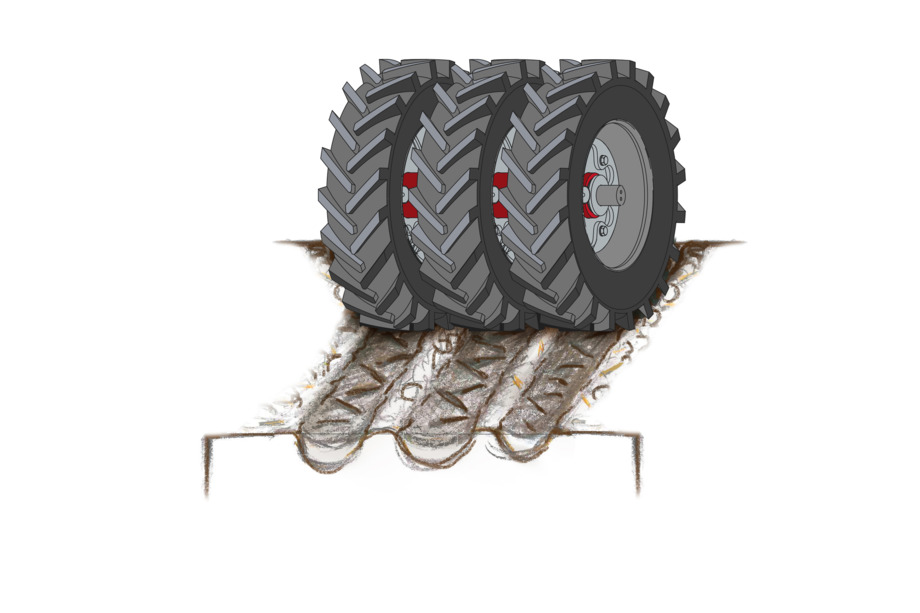

Tire packer Ø 65 cm - 185/65-15 AS

• Very good load-bearing capacity

• Low horsepower requirement due to large contact area and wide spacings

• Strip consolidation

The tyre packer is very well suited for light soils. Due to its wide contact area and ease of pulling, it is also ideal for very loose soils. In wet conditions, it does not sink as much and allows for extended operation.

Tyre packer 7.50-16 AS

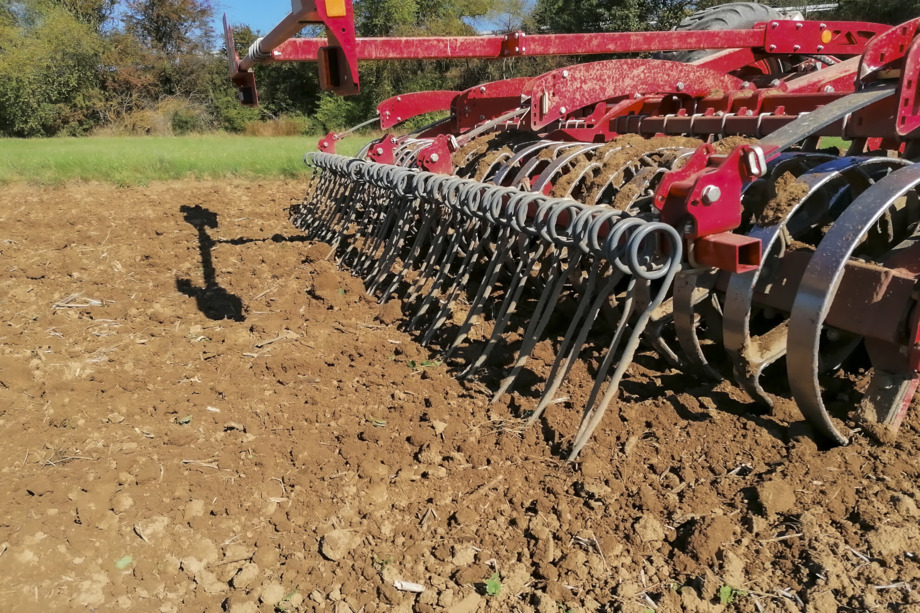

Harrow rear 1-row

• Comb out weeds and remove soil from the roots

• Places organic material loosely on the surface

• Level additionally.

The 1-row harrow reliably combs out weeds and loosely deposits them on the worked horizon. These can subsequently dry out and die. In addition, the harrow levels the surface again and ensures an additional fine soil content on the surface.

Optional with 1-row following harrow

TECHNICAL SPECIFICATIONS

Working width

4.00 m

Transport width

4.06 m

Transport height

2.05 m

Length

3.80 m

Weight shear bolt protection

2,250 kg

Weight TerraGrip

2,600 kg

Number of tines

Tine spacing in one row

88.20 cm

Tine spacing

29.40 cm

Frame height

850 mm

Horsepower requirement

115 – 180 kW / 160 – 250 hp

Implement attachment

3-point Cat. II / III

Working width

4.00 m

Transport width

3.00 m

Transport height

2.60 m

Transport height with optional transport wheels

3.10 m

Length

4.00 m

Length with optional transport wheels

7.10 m

Weight shear bolt protection

2,200 kg

Weight shear bolt protection with optional transport wheels

3,150 kg

Weight TerraGrip

2,740 kg

Weight TerraGrip with optional transport wheels

3,690 kg

Tyre size support wheels

10.0 / 75 – 15.3

Tyre size optional transport wheels

400 / 60 – 15.5

Number of tines

Tine spacing in one row

91.50 cm

Tine spacing

30.50 cm

Frame height

850 mm

DA control devices

1 / 2

Horsepower requirement

115 – 180 kW / 160 – 250 hp

Implement attachment

3-point Cat. II / III

Lower link linkage with optional transport wheels

Cat. III – III / IV – IV

Working width

5.00 m

Transport width

3.00 m

Transport height

3.10 m

Transport height with optional transport wheels

3.60 m

Length

4.00 m

Length with optional transport wheels

7.10 m

Weight shear bolt protection

3,000 kg

Weight shear bolt protection with optional transport wheels

3,900 kg

Weight TerraGrip

3,700 kg

Weight TerraGrip with optional transport wheels

4,600 kg

Tyre size support wheels

10.0 / 75 – 15.3

Tyre size optional transport wheels

400 / 60 – 15.5

Number of tines

Tine spacing in one row

93.00 cm

Tine spacing

31.00 cm

Frame height

850 mm

DA control devices

1 / 2

Horsepower requirement

150 – 220 kW / 205 – 300 hp

Implement attachment

3-point Cat. II / III – III / IV

Lower link linkage with optional transport wheels

Cat. III – III / IV – IV

Terrano FX

Terrano FX Walkaround with Steve Robertson

Due to the 3-bar and compact design, it can be used on every farm.

RollPack packer

TerraGrip II

Points and wings

TerraCut wing

MulchMix wing flat

MulchMix wing deep

MulchMix without wing

ULD points

LD points

RollFlex packer

RollCut packer

Cage drum roller Ø 64 cm

DoubleCage packer

RingFlex packer Ø 60 cm

SteelDisc packer Ø 58 cm

FarmFlex packer

DoubleCage packer

Tire packer Ø 65 cm - 185/65-15 AS

Harrow rear 1-row

TECHNICAL SPECIFICATIONS
