SHALLOW MIXING – DEEP LOOSENING

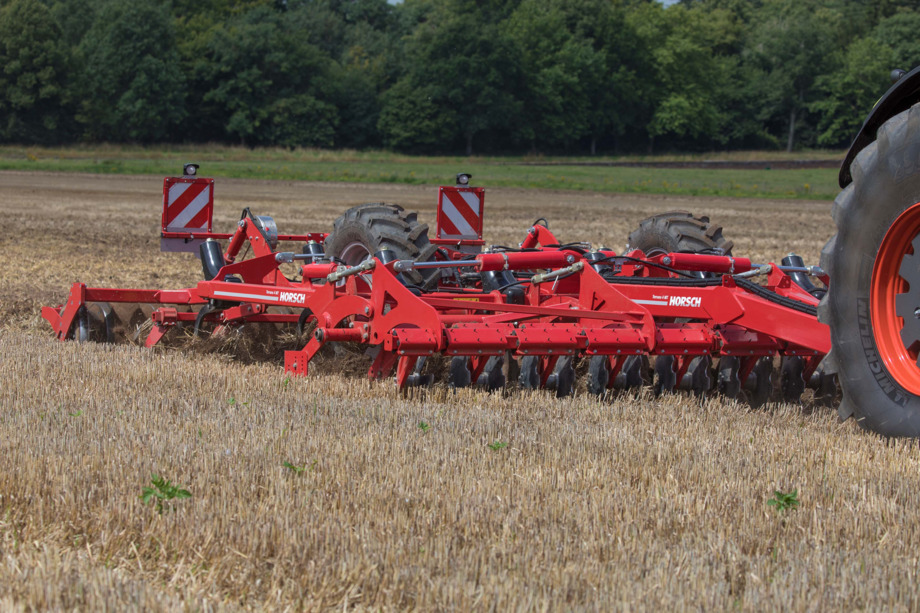

The HORSCH cultivator Terrano MT has been specially designed for the following range of use: “mixing on the top, loosening at the bottom”. The cultivator has a middle chassis and a 4-bar frame design (2 rows of discs + 2 rows of tines). It is particularly suitable for cultivating heavy soils that have to be loosened deeply, but where harvest residues can only be mixed in in a shallow way to prevent rough soil from being transported to the surface.
The 2-row DiscSystem allows for a shallow and intensively mixing cultivation and a clogging-free working even if there are difficult residues and high quantities of straw. The DiscSystem creates a lot of fine earth and the working depth can be adjusted hydraulically and steplessly.
The DiscSystem is followed by a 2-bar tine system. Due to the large tine spacing of 40 cm and the narrow (40 mm) LD (low disturbance) points the power demand for this system is relatively low.
A disc harrow is located in the first two rows of the Terrano MT followed by two rows of TerraGrip tines with narrow LD (low disturbance) coulters. For maximum consolidation it is equipped with the HORSCH SteelDisc packer .
It allows for an intensive loosening down to a depth of 30 cm with a low mixing effect. Almost no rough soil is transported to the surface and it runs below the disc harrow horizon. The new Ultra LD points increase drainage as they cultivate the soil but do not bring large clods to the surface.
Due to its middle chassis the Terrano MT is extremely manoeuvrable on the headlands and its roadability is excellent. Under for example wet conditions the chassis can be used additionally for depth control. Thus, less weight ist transferred to the packer – the HORSCH SteelDisc packer with a diameter of 58 cm and a weight of 175 kg/m working width for maximum consolidation. It is also ideal on most heavy soils and its packer elements leave a good soil structure. Additionally, the Terrano MT is equipped with two efficient double rollers. You can choose between a double RollFlex or a RollPack packer .

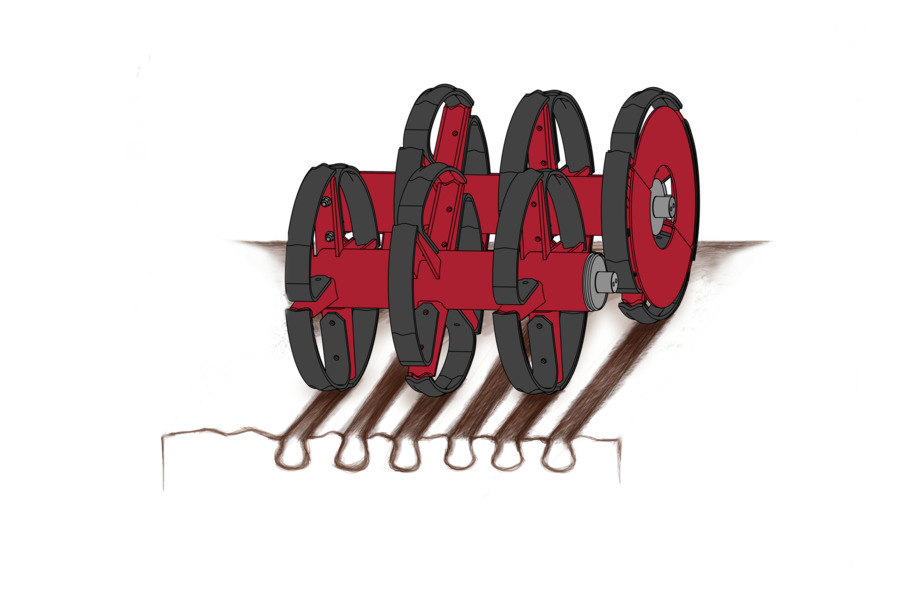

SteelDisc packer for optimum consolidation also on heavy soils
DiscSystem for intensive shallow mixing
TerraGrip tines with LD points for deep loosening of the soil
What are the excelling features of the Terrano MT?
- A combination of compact disc harrow and 2-bar cultivator
- Shallow mixing and deep loosening
- Manoeuvrable due to middle chassis
- DiscSystem can be adjusted independently of the working depth of the tines
- TerraGrip tines in the third and fourth row
- SteelDisc packer also for heavy soils
EXTREMELY LOW HORSEPOWER REQUIREMENT!
Terrano MT – Shallow mixing and deep loosening
The Terrano MT is the ideal machine for heavy soils that have to be loosened deeply, but where harvest residues should only be mixed in shallowly to avoid that rough soil is transported to the surface.
HORSCH Terrano MT
Working width (m)
|Transport width (m)||3.00||3.00|
|Transport height (m)||3.20||4.00|
|Length without drawbar (m)||9.25||9.25|
|Length with drawbar (m)||9.80||9.80|
|Weight (kg)*||6 730||7 950|
|Tyre size chassis||400 / 70 – 24||400 / 70 – 24|
|Tyre Ø chassis (cm)||120||120|
|Number of tines||11||15|
|Tine spacing (cm) in one row||80||80|
|Tine spacing (cm)||40||40|
|Width LD point (mm)||40||40|
|DiscSystem front discs Ø (cm)||52||52|
|DiscSystem disc size (mm)||6||6|
|Number of front discs DiscSystem||36||48|
|Cutting angle DiscSystem discs (degree)||17||17|
|Frame height (mm)||850||850|
|DA control devices lower linkage||3 (+1 with hydr. depth adjustment)||3 (+1 with hydr. depth adjustment )|
|DA control devices adjustable drawbar||4||4|
|Power demand (kW/hp)||150 – 200 / 180 – 250||200 – 270 / 270 – 370|
|Connection via lower link||Cat. III – III / IV – IV||Cat. III – III / IV – IV|
|Connection via adjustable drawbar||Hitch Ø 42 – 51 mm||Hitch Ø 42 – 51 – 71 mm|
|Connection via ball head||K 80||K 80|
* Weights of the machines with adjustable drawbar with minimum equipment and double RollFlex packer
HORSCH Milestone – Farming without a plough
During the 30-year-old company tradition HORSCH – like no other manufacturer – contributed to the breakthrough of tillage without a plough . In 2013, these efforts were awarded with the “ Milestone of Agricultural Engineering ” award. A lot of products, e. g. the Terrano, Tiger and Joker models and last but not least the universal seed drill Pronto DC, allow for farming without a plough on the highest level. According to the Federal Statistical Office by now 40 per cent of the arable land is cultivated without a plough. For wheat it amounts to even 60 per cent. 20 years ago no-one dared to believe that. HORSCH played an important part in getting this far. With this background other milestones in agricultural engineering will be developed.
Hydraulic depth limitation of the chassis for working without a packer
Hydraulic depth adjustment
Cultivation wing for all-over cutting
Fertiliser guide plate
Optional: harrow behind the packer
The TerraGrip is a very powerful tine with overload protection. The trip height amounts to 30 cm without triggering a shear bolt. This saves time and money. Due to the effective stone protection the tine moves quickly in case of overload and due to the spring force penetrates the soil again quickly and exactly – without the usual side movements.
When avoiding an obstacle, the force of the spring decreases from 500 kg to 175 kg. The force that acts on the frame is thus reduced considerably. The optimised spring kit allows for an exact point control in the desired working depth – even in heavy soils and large working depths. Due to high-quality material and large pivot points any greasing points become unnecessary.
TerraGrip II illustration
TerraGrip II 500 kg release force / 30 cm trip height.
When releasing the force decreases to 170 kg. This releases the stress on the frame.
POINT VERSIONS FOR ANY USE
The MulchMix point with its steep angle is designed for the intensive mixing of harvest residues and deep cultivation. Due to the large diameter (600 mm) of the HORSCH MulchMix point the soil is not pressed and its structure remains intact. Regardless of the working depth: The point never penetrates the soil vertically. This reduces the horse power requirement and saves valuable petrol. Even if there are high amounts of straw, it achieves an excellent mixing quality. The MulchMix points consist of three parts (point, guide plate, wing) which can be changed independently. For a very shallow stubble cultivation and all-over cutting the wings can be set to a shallow position. If deep loosening and at the same time an excellent mixing of the soil is desired, the wings can simply be dismantled.
FOR THE OPTIMUM RESULT
HORSCH can supply the appropriate packer version for deep as well as for shallow consolidation. The choice of the packer depends on the soil and HORSCH has a reasonable solution for any type of soil. Due to the consolidation excessively loose soil is compacted, clods are destroyed and an ideal environment with an optimum ratio of water- and air-bearing pores is created.
In addition to the SteelDisc packer with a ring spacing of 150 mm, another SteelDisc packer with a ring spacing of 200 mm is available for more flexibility in consolidation. The packer range is completed by two double packers: the double RollFlex packer and the double RollPack packer .
Double RollPack packer
The depth effects and the primary use of the different HORSCH packer versions .
Why is the appropriate packer so important for your machine?
- Central element to determine the work quality
- Depth control
- Different consolidation depending on the requirements
- Perfect work quality in wet and dry conditions
- Appropriate germination bed for volunteer crops and weeds
- Rough, loose soil structure for medium and heavy soils
- Final finishing of the seed horizon
