Sprinter ST

The Sprinter combines work processes and increases precision with regard to seed placement and fertilisation.

Working width

4 - 6 m

Transport width

3 m

Hopper capacity

5000 L

Horsepower requirement

90/120 - 160/230 kW/hp

Sprinter 12 - 18 NT

Sprinter SW

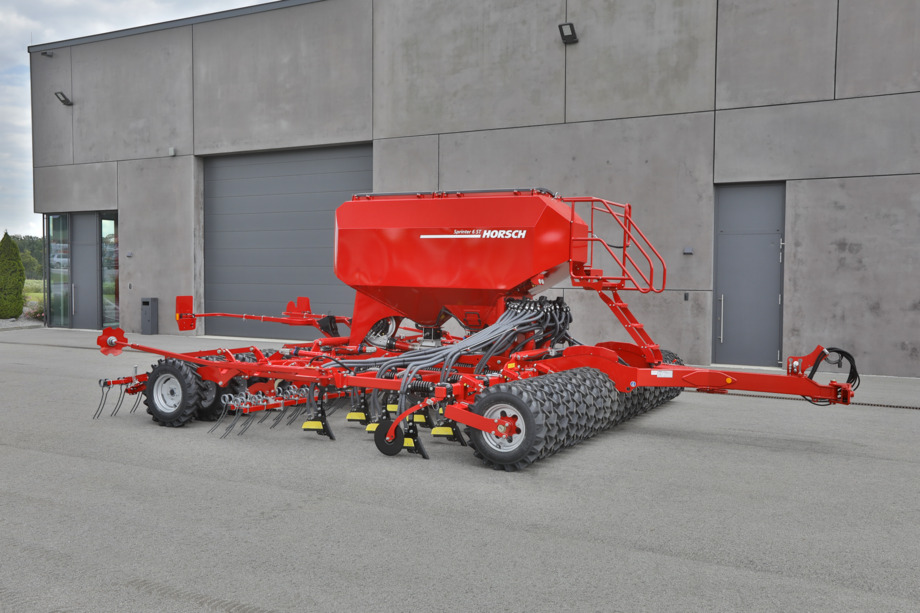

Sprinter ST

High efficiency in most different conditions – this is the excelling feature of the HORSCH Sprinter ST. Thus, a precise seed placement is possible in direct seeding as well as in mulch seeding conditions and also after the plough.

Sprinter ST

Direct seeding into the stubbles with the ThinEdge coulter

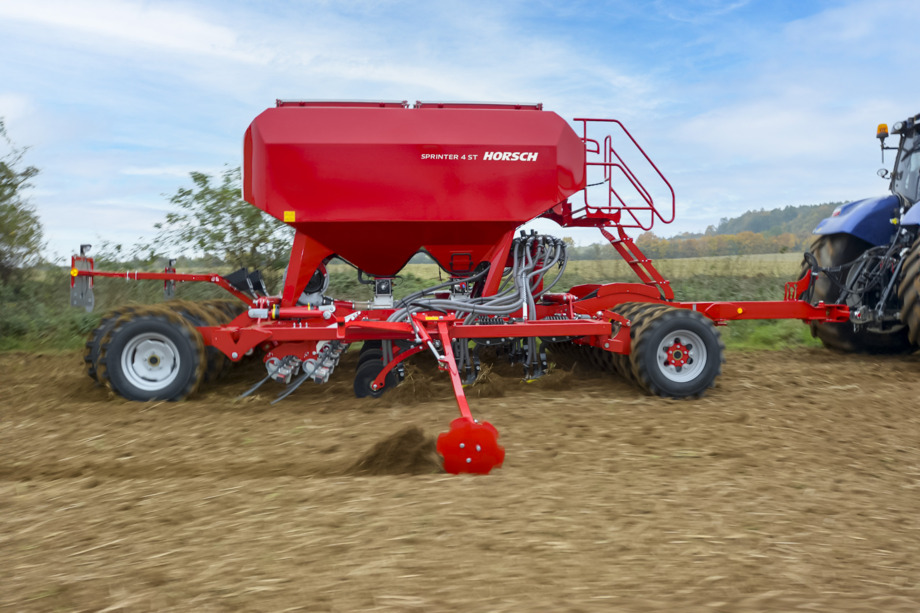

Sprinter ST in cultivated conditions

Highest work rate due to large working widths and reduced filling stops due to large hopper capacities

High efficiency
individually controlled tine seed coulter
High operational speed up to 15 km/h
Coulter pressure up to 350 kg per coulter

ThinEdge seed coulter

• Narrow tine seed coulter

• Ideal for sowing catch crops directly into stubble

• SingleShot and DoubleShot are possible

• Changing between ThinEdge and WideEdge point is possible

With 44 mm, the ThinEdge tine seed coulter is a very narrow coulter. It is ideal for sowing catch crops directly into stubble. Due to the narrow shape only little soil is moved and thus the water is kept in the soil. The little movement of the soil does not stimulate the germination of weeds. In addition, the tine point can be mounted on the WideEdge coulter.

Direct seeding into the stubbles with the ThinEdge coulter

Minimum opening of the soil with the ThinEdge coulter

WideEdge seed coulter

• Wide tine seed coulter for an approx. 7 cm wide band seeding

• SingleShot and DoubleShot are possible

• Switching between WideEdge and ThinEdge point is possible

The WideEdge tine seed coulter creates a seed band with a width of up to 7 cm. This ensures a wide distribution per seed row. The tine is used for removing of organic residues and thus ensures a clean seed furrow without residues. In addition, the point can be mounted on the ThinEdge coulter.

WideEdge coulter for an approx. 7 cm wide seed band

HORSCH metering system / HORSCH rotors

• Exact application

• Optimum seed distribution

• HORSCH rotor selection – find the optimum rotor for your machine quickly and easily

• Depending on the components, seed rate and operational speed, various options can be selected

• Easily accessible

• Rotor shafts can be replaced without any tools

HORSCH metering systems offer maximum flexibility through a range of interchangeable rotors tailored to specific seed rates, speeds, and machine configurations. For drills with double drop tubes, specialized rotors enable precise distribution and half-width shut-off, while an integrated valve system allows for quick rotor swaps without emptying the hopper. To ensure accuracy, HORSCH provides a rotor selection server for guidance, though a calibration test is always recommended to guarantee an optimum seed rate across the entire working width.

Metering unit – injector hopper system with valve

Pressurised hopper system with locking option

Pressurised hopper system with open valve

Metering unit – pressurised hopper system with valve

Standard metering unit hexagonal shaft drive

Fine metering insert kits

• Perfect for microgranular compounds and fine seeds

• Seed rates of 1.5 kg/ha to 60 kg/ha

• Can be used in every machine with a pressurised hopper

• Fine metering insert kit includes:

• A drive shaft with four possible drive pinions

• Three rotors with different sizes

• Individual spacers depending on the drive shaft

The HORSCH fine metering insert kit provides a precise, versatile solution for applying microgranular compounds and fine seeds across all HORSCH machines with pressurized hoppers. By utilizing a modular system of drive shafts, interchangeable rotors of various sizes, and specialized spacers, the kit allows for highly accurate application rates ranging from 1.5 kg/ha to 60 kg/ha. This simple yet flexible design is compatible with models like the Partner, MiniDrill, Pronto, and Focus, offering seamless integration for diverse agricultural needs.

Fine metering insert – rotor

Fine metering insert kits for standard metering unit hexagonal shaft

Fine metering insert kits for double metering unit spline shaft drive

Fine metering insert for double metering unit hexagonal shaft

Packer

• Each tyre rolls over one seed band

• Ensures optimum seed-soil contact

• AS profile ensures an erosion-reducing structure

• Rear packer and front packer or front support wheels ensure an optimum alignment of the machine

• Precise seed placement

• Even coverage of the seed

• High self-cleaning effect

The tandem or tyre packer consolidates the seed band, with air-filled tractor-profile tyres running precisely behind each seed coulter to ensure optimum seed-soil contact and precise depth control. Depending on the Sprinter model, the system utilizes specific packer configurations that feature a self-cleaning flexing effect in wet conditions and double as transport wheels for road travel. Furthermore, an optional front packer enhances soil crumbling and leveling for even seed coverage.

Depth control via front and rear packer

Harrow

• 2-row harrow levelling

• Front harrow row covers the last seed row with fine soil

• Rear harrow row is responsible for the finishing and improves levelling across the entire working width in front of the tyre packer

• The aggressiveness can be adjusted via pins

• The working depth of the harrow rows can be limited via the parallelogram suspension

A 2-row harrow at the Sprinter ensures an optimum covering of the seed behind the seed coulters and an even distribution of loose soil and harvest residues across the seed bands (for Sprinter 12 SW this is carried out via a disc levelling system). The height and the aggressiveness of the harrow can be adjusted.

Following harrow

The 2-row harrow ensures an optimum covering of the grain

2-row harrow levelling in front of the packer

Fertiliser and seed flow control

• For a complete monitoring of the seed and fertiliser hoses

• Warning if a pneumatic hose is blocked

• Sowing errors are avoided

• Monitoring of the pneumatic flow at the distribution tower

The fertiliser and seed flow control is a reasonable electronic solution to prevent sowing errors. The sensors control the flow directly behind the distribution tower and detect blockages. Thus, the individual pneumatic hoses are monitored and within seconds you get a notification in the terminal – both acoustic and visual.

Fertiliser and seed flow control – for a permanent monitoring of the seed and fertiliser hoses

Monitoring of the pneumatic flow at the distribution tower

Oil cooler

• Heats up the airflow in the pneumatic system

• Maintains the flowability of fertiliser in wet conditions, e.g. dew in the morning, for a longer period

• Lowers the oil temperature in the system and relieves the tractor's oil cooler

The optional oil cooler at the hydraulic fan heats up the air flow in the pneumatic system. This lowers the oil temperature in the system and relieves the tractor's oil cooler. Another very important advantage is that it maintains the flowability of the fertiliser in wet conditions, e.g. dew in the evening.

Oil cooling on the hydraulic fan – heats the air flow in the pneumatic system

Lowers the oil temperature in the system and relieves the tractor's oil cooler

Maintains the flowability of the fertiliser in wet conditions, like dew in the morning

Can be unfolded without tools for optimised accessibility in case of service

HorschConnect

• Digital solutions exactly where they make sense

• Straightforward out-of-the-box solution with already integrated SIM card, Wi-Fi modem and other interfaces

• HorschConnect Telematics to document the performance of the machine

• HorschConnect Telematics for complete transparency of the working quality, e.g. the application rate of all components

• Targeted and proactive service by remote access to error messages

• Control of machine functions via the smartphone app HORSCH Control: e.g. carrying out nozzle tests for individual sections

Prepare today for tomorrow. Easily control various machine functions via the HORSCH Control app – your smartphone complements the terminal! Gain comprehensive, transparent insight into work rate and work quality with HorschConnect Telematics.

With HorschConnect, telemetry solutions are making their way into the sectors seeding and crop care - exactly where they make sense

The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone

Success factor transparency: position-specific data of all relevant information like error messages, application rate, nozzle status or target area spacing

With the field boundaries import all data can be analysed over the season – even in a site-specific way

HorschConnect

The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone

eosT10/eosT10 Pro

• High-resolution 10" terminal for controlling all ISOBUS devices according to ISO 11783

• Reliable and powerful: high-performance hardware combined with intuitive, user-friendly operation in day or night mode

• Various layout options allow for a simultaneous display of several applications – for an optimum overview.

• Straightforward transfer of application maps with the wireless task data exchange

• A real-time transmission of the terminal display via Remote Support facilitates the technical support.

Due to the high resolution and the well-thought-out user navigation, even complex machine functions can be operated comfortably. The high efficiency and the large (working) memory allow for a smooth handling of large data quantities or application maps. In addition to the traditional import resp. export of data via a USB flash drive, the transfer can also take place easily and comfortably online directly between the PC and the terminal.

Due to its high resolution, the eosT10 offers a state-of-the-art user experience for all ISOBUS-compliant machines.

Due to the WIFI interface, field boundaries, application maps or order data can be exchanged directly between PC and terminal.

The lean design of the 10" display allows for perfect integration into any tractor cabin.

eosT10 – robust hardware with diverse interfaces

In portrait mode, two applications can be optimally displayed and operated.

By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.

TECHNICAL SPECIFICATIONS

Working width

6,00 m

Transport width

3,00 m

Transport height single hopper

3,35 m

Transport height double hopper

3,35 m

Length with lower link linkage

8,51 m

Weight with single hopper

5400 kg

Weight with double hopper

6020 kg

Seed hopper capacity

3500 l

Hopper capacity double hopper

5000 (40 : 60) l

Feed opening single hopper

1,00 x 2,40 m

Feed opening double hopper

0.66 x 1.22 each m

Filling height single hopper

2,69 m

Filling height double hopper

2,95 m

Tine spacing

27,30 cm

Number of seed coulters/coulter rows

22 / 3

Tyre size tandem packer

7.50 - 16 AS

Tyre packer tandem/rigid Ø

--- / 78 cm

Operational speed

8 - 15 km/h

Horsepower requirement

120 - 160 / 160 - 230 kW/hp

DA control devices

2 (+ 1 with hydraulic fill.)

Depressurized return flow (max. 5 bar)

Oil quantity hydraulic fan

20 - 25 / 35 - 45 (PPF-System)

Implement attachment lower link

Cat. II/III – III – III/IV
