Sprinter 12 - 18 NT

Precise tine seeding technology combined with maximum efficiency

Working width

12 - 18 m

Transport width

5,8 - 6,12 m

Hopper capacity

12000 - 21000 L

Horsepower requirement

220/300 - 370/500 kW/hp

Avatar 3.16 - 8.16 SD

High efficiency in most different conditions – this is what the HORSCH Sprinter NT stands for. Thus, a precise seed placement is possible even in mulch seeding and direct seeding conditions.

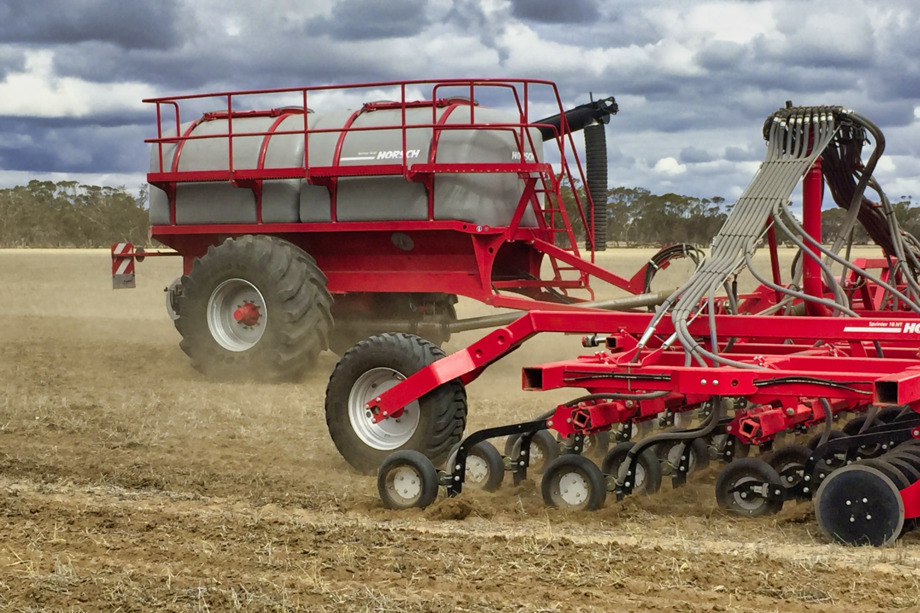

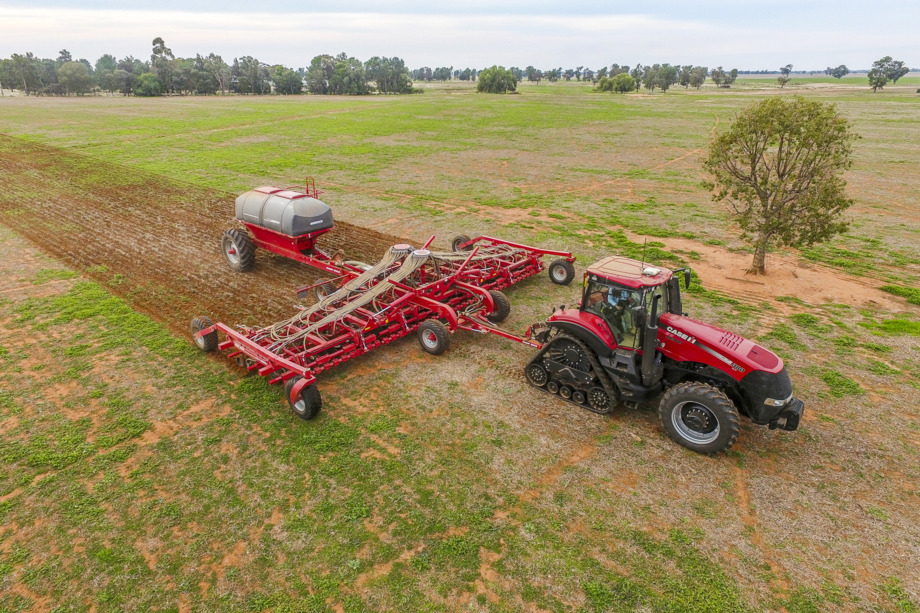

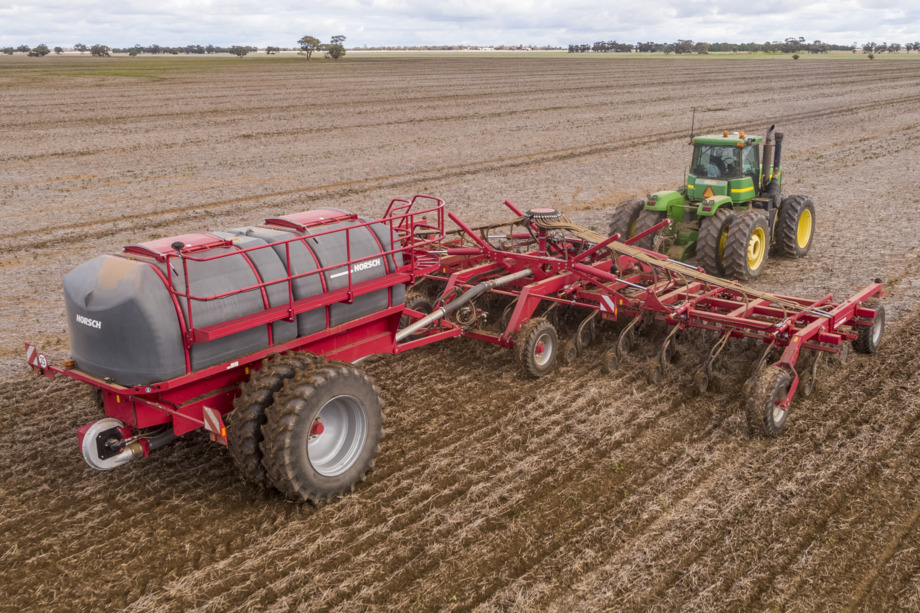

Direct seeding with the Sprinter NT

Sprinter 12 NT

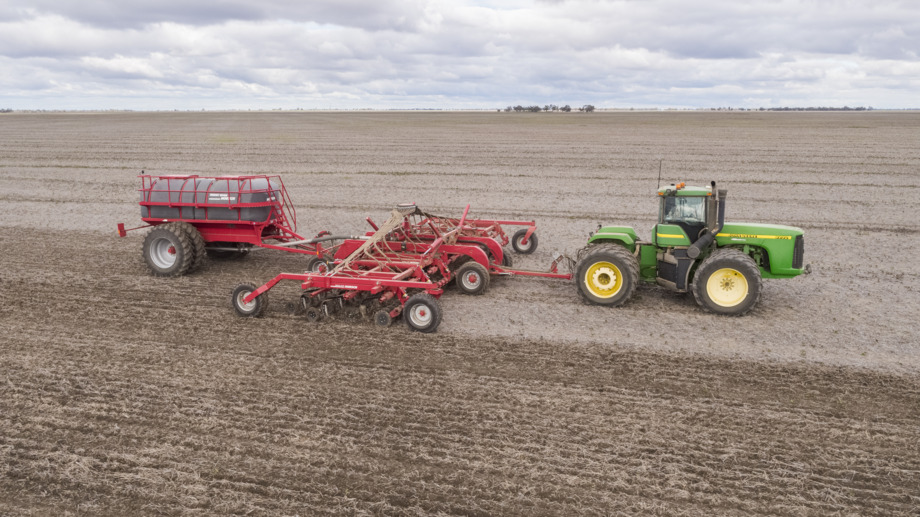

Direct seeding with the Sprinter 12 NT

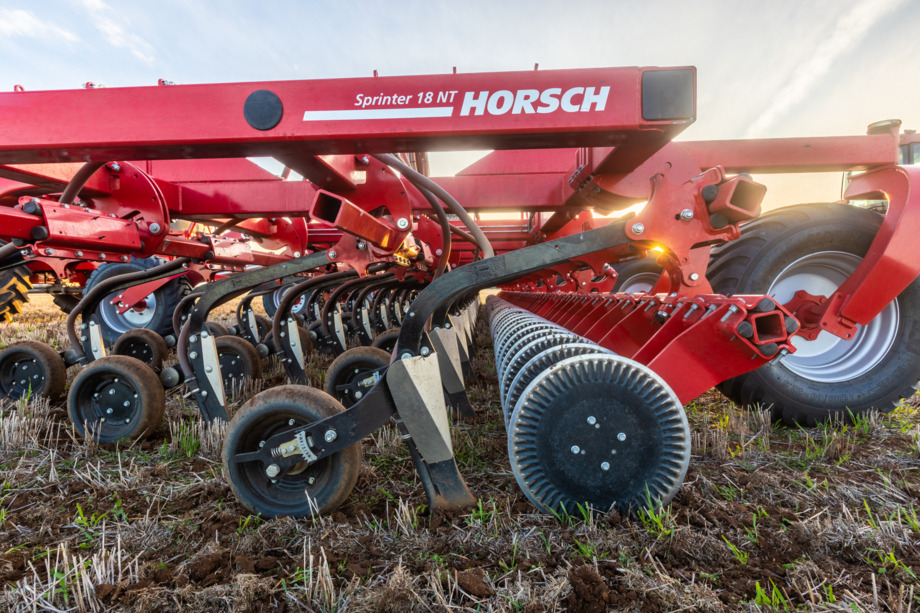

Sprinter 18 NT

Highest work rate due to large working widths and reduced filling stops due to large hopper capacities

High efficiency
individually controlled tine seed coulter
High operational speed up to 15 km/h
Coulter pressure up to 350 kg per coulter

Press wheels

• Press wheel round

• Press wheel wedge-shaped

• Press wheel pneumatic

Choose from three press wheel options designed for any condition: the round wheel for hard or stony ground, the wedge-shaped wheel for deep consolidation in dry, light soils, or the pneumatic wheel for wet conditions. The pneumatic option features a self-cleaning effect to prevent soil buildup while maintaining excellent contour following, even in dry spells.

1-bar design for even placement

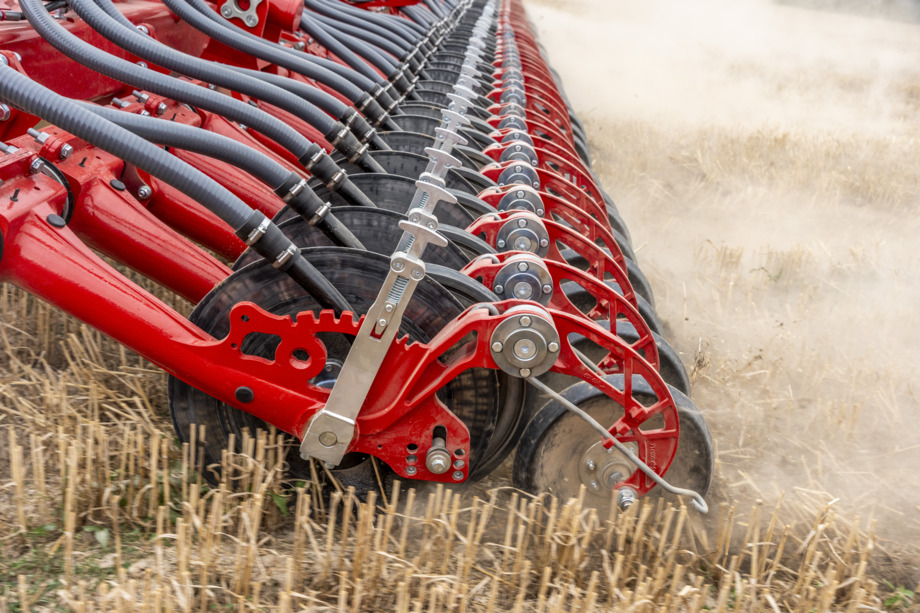

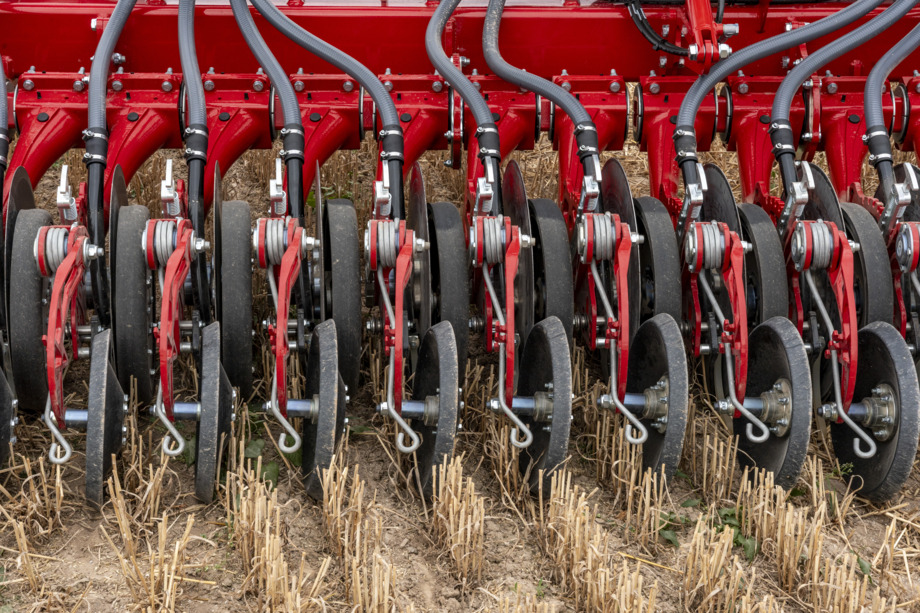

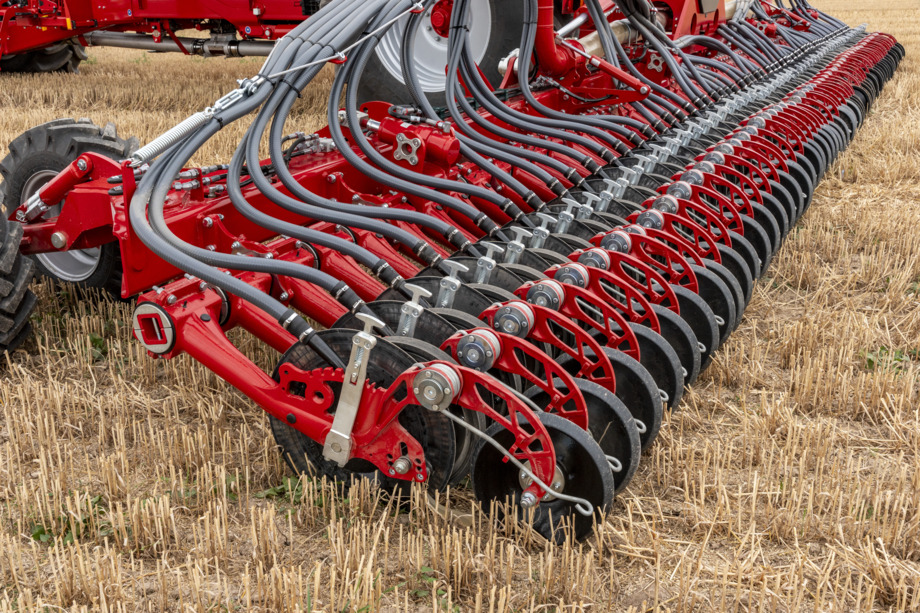

NarrowDisc single disc coulter with 20 cm row spacing

Individually depth controlled single disc coulter NarrowDisc

Tines and coulter points

• Carbide coating for maximum service life

• Narrow shape for minimum soil movement

• Adapted shape of the seed tube for a perfect seed placement

All Sprinter NT coulter points are carbide coated. This ensures a long service life even in hardest soils.

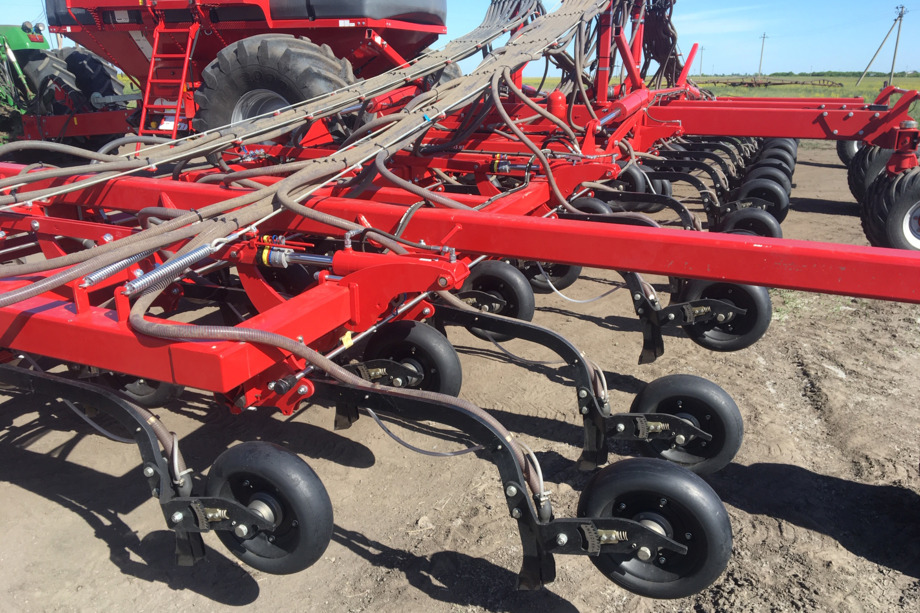

Sprinter NT tine with individual depth control

Minimum movement of the soil due to cutting disc and narrow tine

Utmost precision due to individual depth control

HORSCH metering system / HORSCH rotors

• Exact application

• Optimum seed distribution

• HORSCH rotor selection – find the optimum rotor for your machine quickly and easily

• Depending on the components, seed rate and operational speed, various options can be selected

• Easily accessible

• Rotor shafts can be replaced without any tools

HORSCH metering systems offer maximum flexibility through a range of interchangeable rotors tailored to specific seed rates, speeds, and machine configurations. For drills with double drop tubes, specialized rotors enable precise distribution and half-width shut-off, while an integrated valve system allows for quick rotor swaps without emptying the hopper. To ensure accuracy, HORSCH provides a rotor selection server for guidance, though a calibration test is always recommended to guarantee an optimum seed rate across the entire working width.

Metering unit – injector hopper system with valve

Pressurised hopper system with locking option

Pressurised hopper system with open valve

Metering unit – pressurised hopper system with valve

Standard metering unit hexagonal shaft drive

Cutting discs

• Cut the soil in front of the tine

• Harvest residues and clods are removed from the seed furrow

• The cuts of the discs reduce the movement of the soil

• Minimum horsepower requirement as only the area in front of the tines and not the whole area is cultivated

• Maintenance-free oil bath bearings and maintenance-free disc carriers with rubber elements

• Only available for Sprinter 12 NT and 18 NT

The Sprinters 12 NT and 18 NT can optionally be equipped with cutting discs in front of the tine seed coulters, they are hydraulically adjustable and cut into the soil in front of the tine zone. This removes brittle harvest residues and clods from the seed furrow. Another advantage of the cutting discs is the reduced soil movement due to the cuts of the discs, thus unnecessary additional water losses can be avoided.

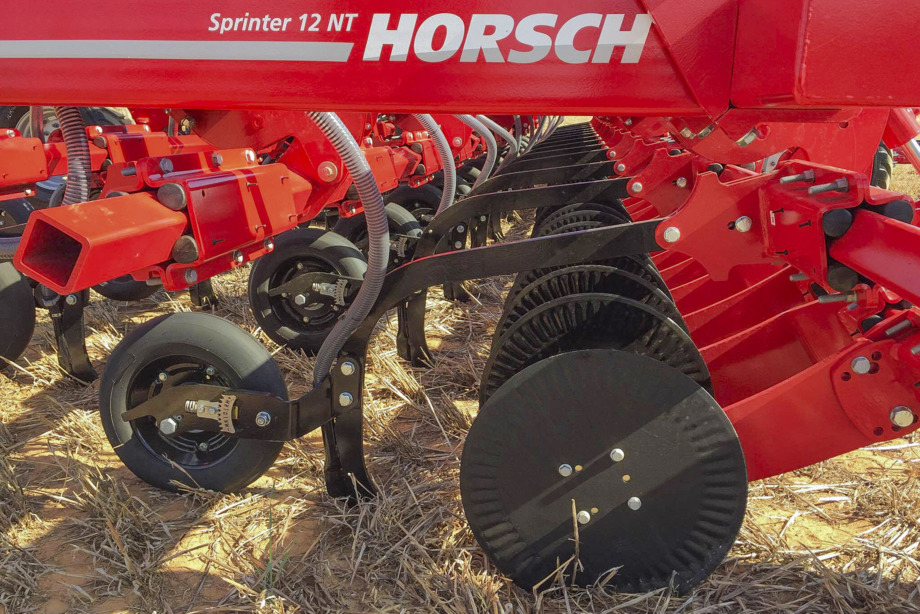

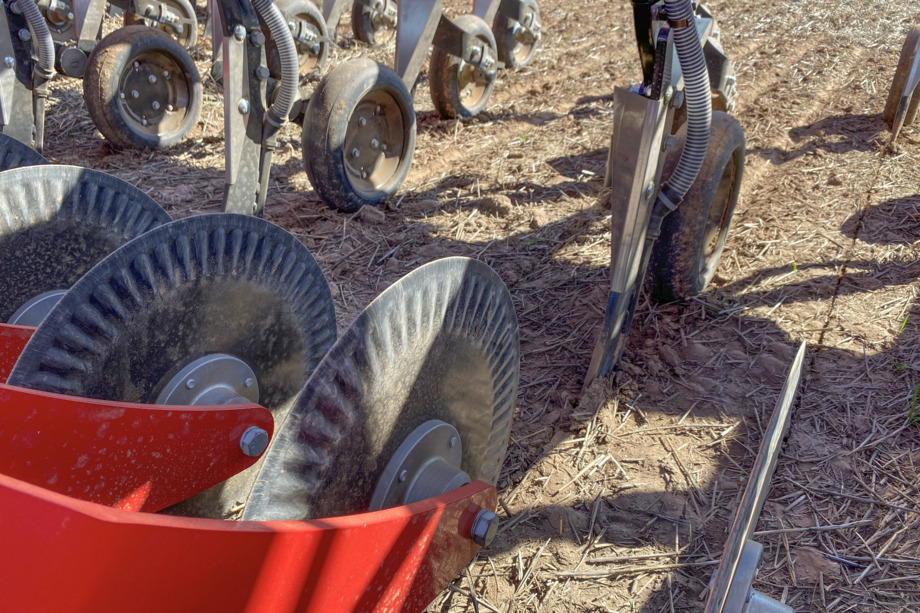

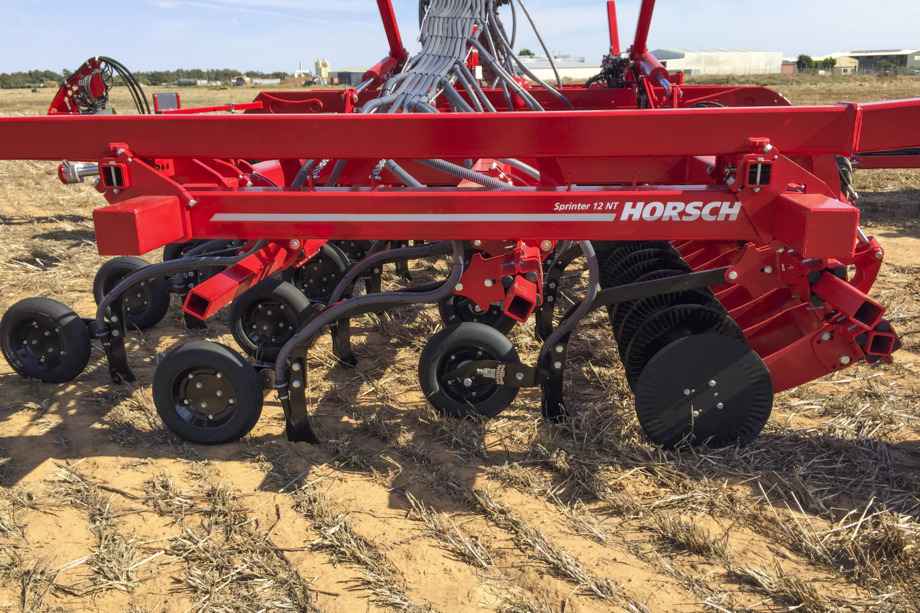

Cutting discs Sprinter 12 NT

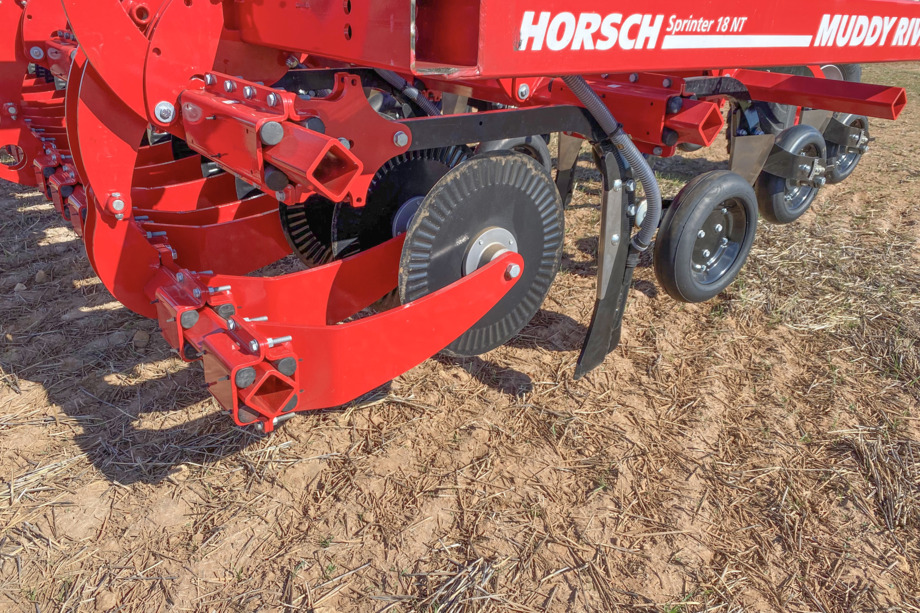

Front cutting discs

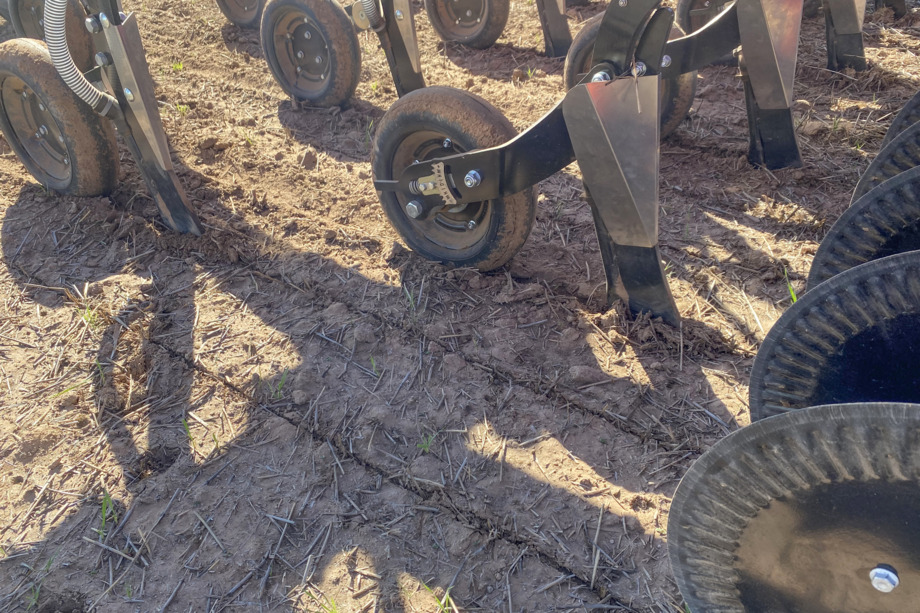

Low disturbance due to cutting discs

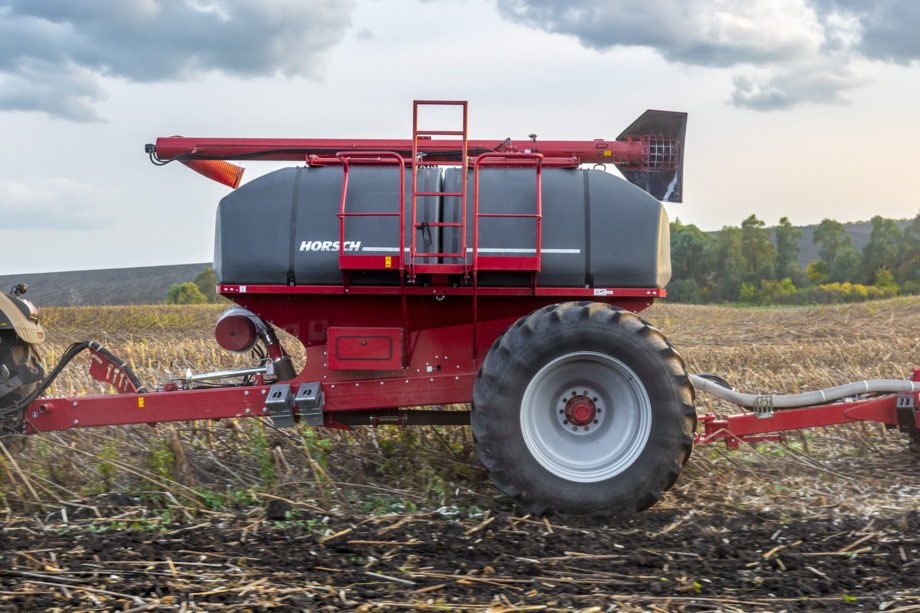

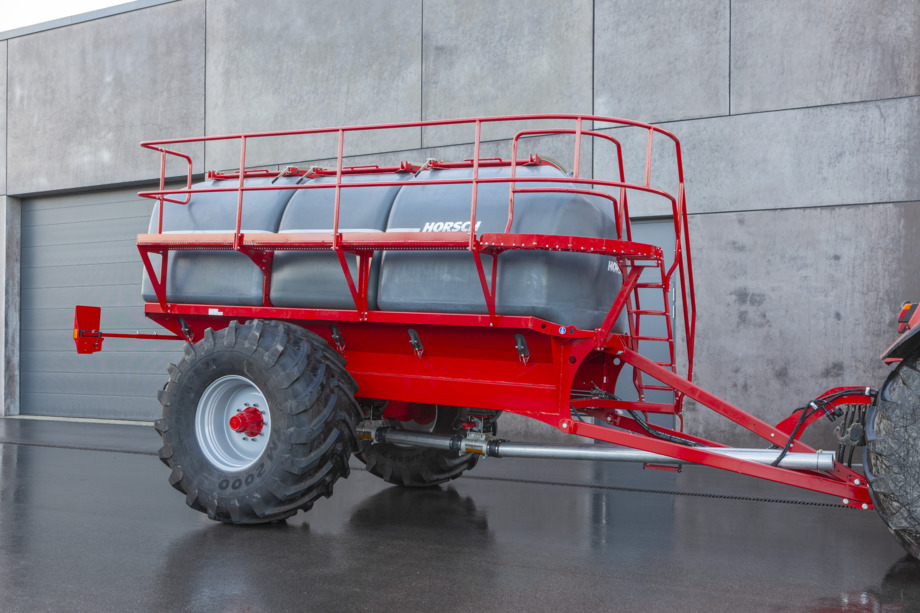

SW 12000/3

• Hopper capacity 12 000 l

• Double hopper a partition of 6 000 l : 6 000 l or triple tank with a partition of 4 000 l : 2 000 l : 6 000 l

• Reduction of filling stops due to the large hopper capacity

• Application of fertiliser and seed

• High work rate

• Large tyres reduce compaction

The HORSCH SW 12000 series offers a highly flexible, ISOBUS-compatible seed wagon solution designed for transporting large quantities of seed and fertilizer with minimal soil compaction. Available in liquid fertilizer versions with corrosion-resistant hoppers ranging from 4,000 to 6,000 liters, these wagons feature six hydraulic control units to integrate seamlessly with almost any mounted implement. This user-friendly system combines a sophisticated, self-explanatory design with excellent accessibility, clear level indicators, and a spacious toolbox to ensure efficient operation for farmers worldwide.

Double hopper a partition of 6 000 l : 6 000 l or triple tank with a partition of 4 000 l : 2 000 l : 6 000 l

Application of fertiliser and seed

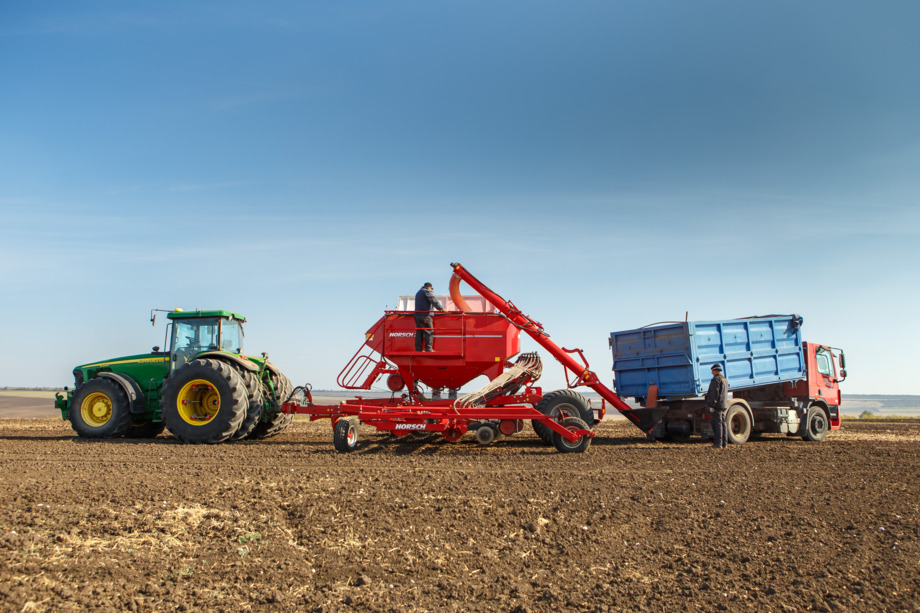

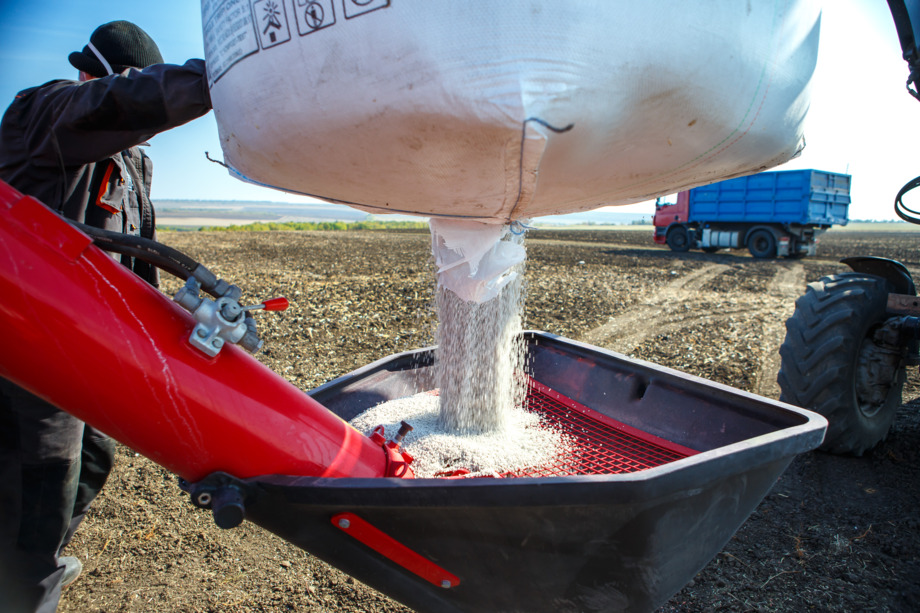

Hydraulic filling auger for an autarkic filling

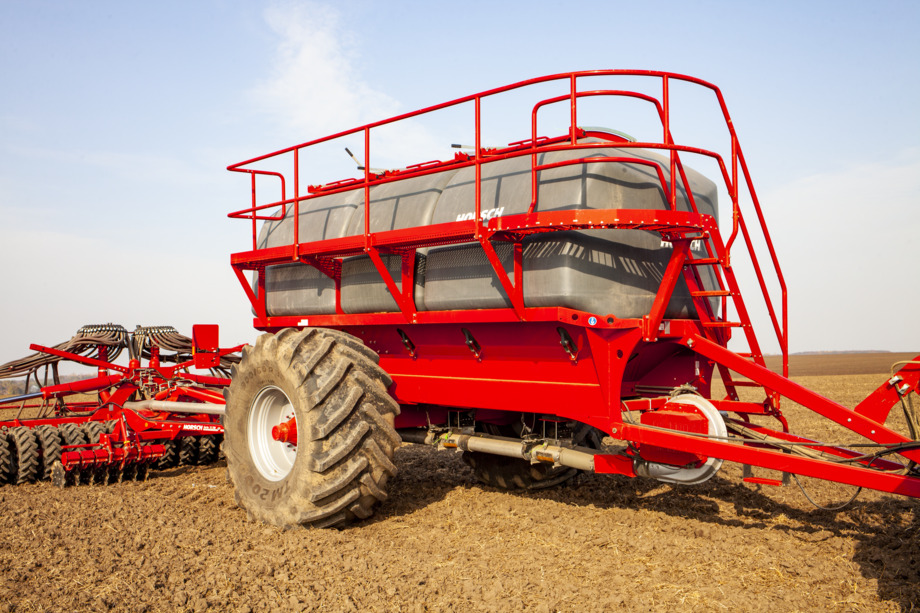

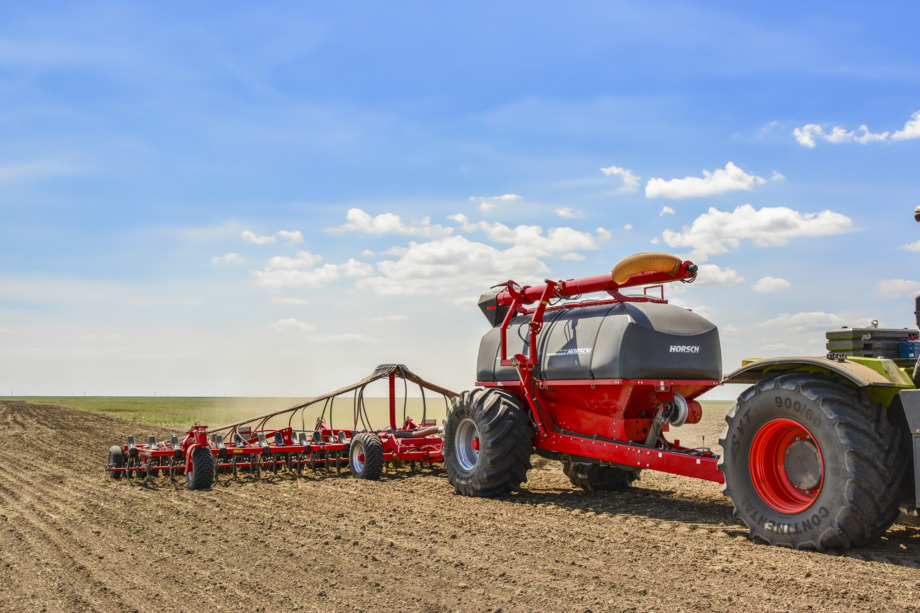

SW 17000/3

• Hopper capacity 17 000 l

• Double hopper with a partition of 8 500 l : 8 500 l or triple tank with a partition of 4 000 l : 6 500 l : 6 500 l

• Reduction of filling stops due to the large hopper capacity

• Application of fertiliser and seed

• High work rate

• Large tyres reduce compaction

The HORSCH SW 17000 and 17003 seed wagons combine proven components like corrosion-resistant plastic tanks with a sophisticated pneumatic system and an intuitive user interface for seamless operation. Available in double or triple hopper configurations, these wagons feature precise metering units for constant application rates across all soil conditions and can be customized with options like filling augers, specialized tires, or a 4,000-liter liquid fertilizer tank. This flexible design ensures high-capacity efficiency and reliable performance tailored to your specific seeding and fertilizing needs.

Double hopper with a partition of 8 500 l : 8 500 l or triple tank with a partition of 4 000 l : 6 500 l : 6 500 l

Large tyres reduce compaction

Reduction of filling stops due to the large hopper capacity

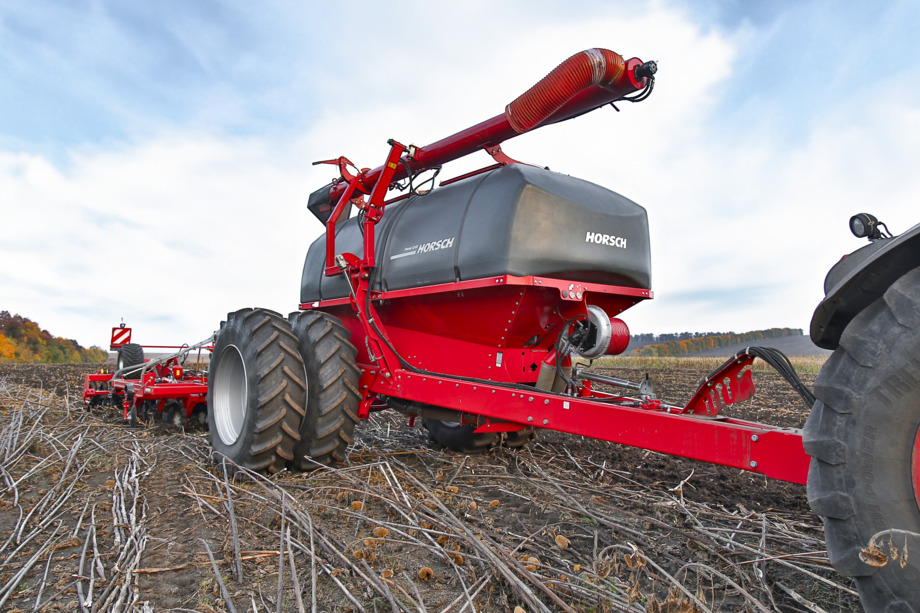

SW 21000

• Hopper capacity 21 000 l

• Triple tank with partition 8 500 l : 4 000 l : 8 500 l

• Reduction of filling stops due to the large hopper capacity

• Application of fertiliser and seed

• High work rate

• Large tyres reduce compaction

The HORSCH SW 21000 features a high-capacity triple-tank system designed for maximum efficiency and optimal distribution of seed and fertilizer. Its user-friendly design includes a spacious platform and large filling openings to minimize setup times, alongside corrosion-resistant tanks and high-precision metering rotors for consistent performance. To ensure versatility in all conditions, the wagon offers optional power tracks to reduce ground pressure in wet fields and a long drawbar for superior maneuverability, making it a highly productive and maneuverable solution for large-scale operations.

Double hopper with a partition of 8 500 l : 8 500 l or triple tank with a partition of 4 000 l : 6 500 l : 6 500 l

Large tyres reduce compaction

Reduction of filling stops due to the large hopper capacity

Oil cooler

• Heats up the airflow in the pneumatic system

• Maintains the flowability of fertiliser in wet conditions, e.g. dew in the morning, for a longer period

• Lowers the oil temperature in the system and relieves the tractor's oil cooler

The optional oil cooler at the hydraulic fan heats up the air flow in the pneumatic system. This lowers the oil temperature in the system and relieves the tractor's oil cooler. Another very important advantage is that it maintains the flowability of the fertiliser in wet conditions, e.g. dew in the evening.

Oil cooling on the hydraulic fan – heats the air flow in the pneumatic system

Lowers the oil temperature in the system and relieves the tractor's oil cooler

Maintains the flowability of the fertiliser in wet conditions, like dew in the morning

Can be unfolded without tools for optimised accessibility in case of service

Fertiliser and seed flow control

• For a complete monitoring of the seed and fertiliser hoses

• Warning if a pneumatic hose is blocked

• Sowing errors are avoided

• Monitoring of the pneumatic flow at the distribution tower

The fertiliser and seed flow control is a reasonable electronic solution to prevent sowing errors. The sensors control the flow directly behind the distribution tower and detect blockages. Thus, the individual pneumatic hoses are monitored and within seconds you get a notification in the terminal – both acoustic and visual.

Fertiliser and seed flow control – for a permanent monitoring of the seed and fertiliser hoses

Monitoring of the pneumatic flow at the distribution tower

HorschConnect

• Digital solutions exactly where they make sense

• Straightforward out-of-the-box solution with already integrated SIM card, Wi-Fi modem and other interfaces

• HorschConnect Telematics to document the performance of the machine

• HorschConnect Telematics for complete transparency of the working quality, e.g. the application rate of all components

• Targeted and proactive service by remote access to error messages

• Control of machine functions via the smartphone app HORSCH Control: e.g. carrying out nozzle tests for individual sections

Prepare today for tomorrow. Easily control various machine functions via the HORSCH Control app – your smartphone complements the terminal! Gain comprehensive, transparent insight into work rate and work quality with HorschConnect Telematics.

With HorschConnect, telemetry solutions are making their way into the sectors seeding and crop care - exactly where they make sense

The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone

Success factor transparency: position-specific data of all relevant information like error messages, application rate, nozzle status or target area spacing

With the field boundaries import all data can be analysed over the season – even in a site-specific way

HorschConnect

The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone

eosT10/eosT10 Pro

• High-resolution 10" terminal for controlling all ISOBUS devices according to ISO 11783

• Reliable and powerful: high-performance hardware combined with intuitive, user-friendly operation in day or night mode

• Various layout options allow for a simultaneous display of several applications – for an optimum overview.

• Straightforward transfer of application maps with the wireless task data exchange

• A real-time transmission of the terminal display via Remote Support facilitates the technical support.

Due to the high resolution and the well-thought-out user navigation, even complex machine functions can be operated comfortably. The high efficiency and the large (working) memory allow for a smooth handling of large data quantities or application maps. In addition to the traditional import resp. export of data via a USB flash drive, the transfer can also take place easily and comfortably online directly between the PC and the terminal.

Due to its high resolution, the eosT10 offers a state-of-the-art user experience for all ISOBUS-compliant machines.

Due to the WIFI interface, field boundaries, application maps or order data can be exchanged directly between PC and terminal.

The lean design of the 10" display allows for perfect integration into any tractor cabin.

eosT10 – robust hardware with diverse interfaces

In portrait mode, two applications can be optimally displayed and operated.

By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.

TECHNICAL SPECIFICATIONS

Working width

18,00 m

Transport width

5,80 m

Transport height

5,10 m

Length without seed wagon

9,00 m

Length with SW 12000 SD

17,50 m

Length with SW 17000 SD

18,90 m

Length with SW 21000 SD

18,50 m

Weight without SW from

17400 kg

Weight with SW 12000 SD

21900 kg

Weight with SW 17000 SD

23600 kg

Weight with SW 21000 SD

24250 kg

Hopper capacity seed waggon

Seed wagon SD l

Dimensions of the feed openings

0.99x0.72 each m

Filling height

3,55 m

Tine spacing

25 / 30 / 37,5 cm

Number of seed coulters

48 / 60 / 72

Casters ∅

40 cm

Casters/coulter pressure

5 - 120 kg

Tyre size transport wheels

550 / 45 - 22.5

Tyre size support wheels

400 / 60 - 22.5

Operational speed

7 - 10 km/h

Horsepower requirement

330 - 370 / 450 - 500 kW/hp

DA control devices

Depressurized return flow (max. 5 bar)

Oil quantity hydraulic fan

50 - 60

Implement attachment adjustable drawbar

Pin Ø 70 mm (tractor) mm

Implement attachment ball head

K 80
