Pronto AS

Precise and flexible

Working width

6 m

Transport width

2,95 m

Hopper capacity single hopper

3500 L

Hopper capacity double hopper

5000 L

Pronto AS

The HORSCH Pronto AS offers utmost flexibility with regard to the placement of the seed. Third generation TurboDisc seed coulters or a Maestro RV seedbar can be replaced quickly and easily.

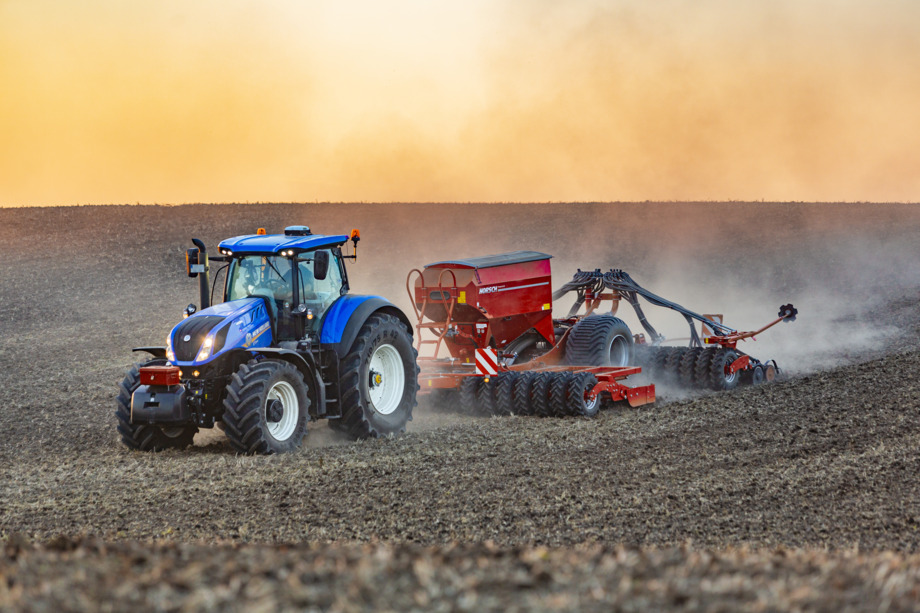

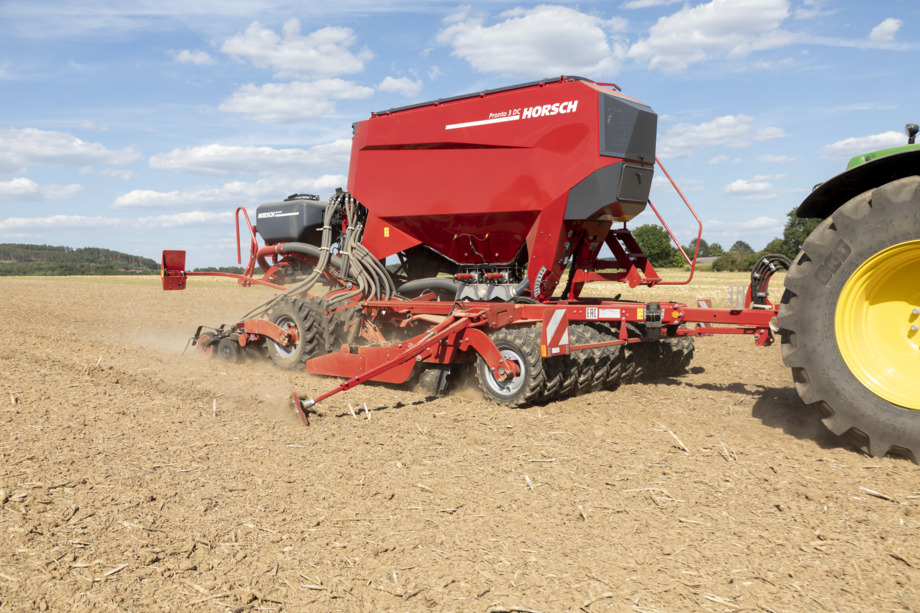

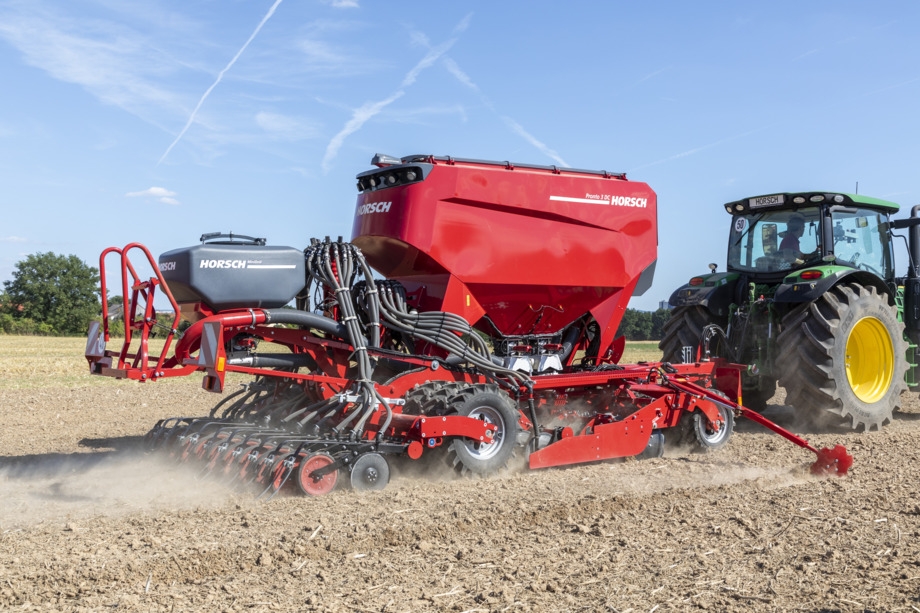

Pronto 6 AS with TurboDisc seed bar

Optimal utilisation of ideal sowing times due to maximum work rate and operational speeds of up to 20 km/h

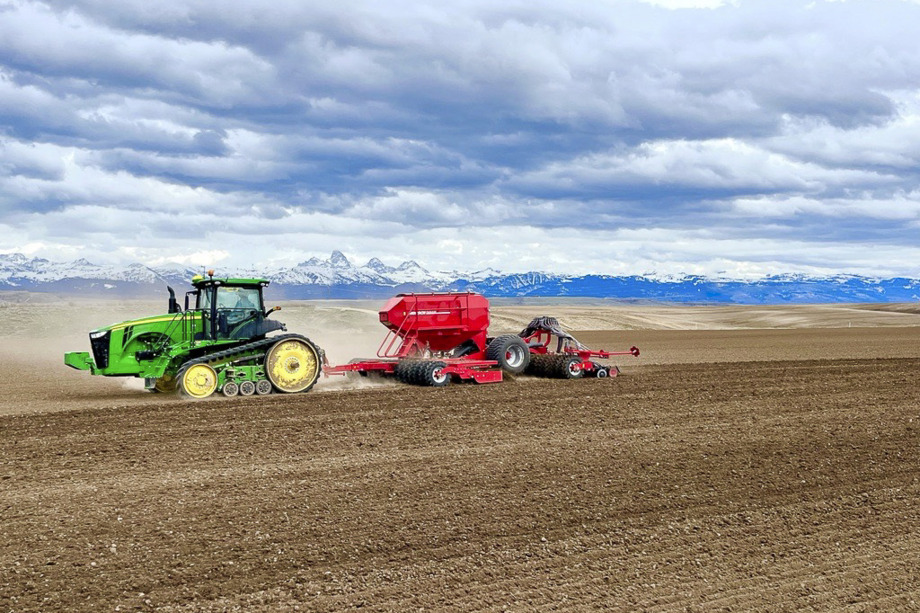

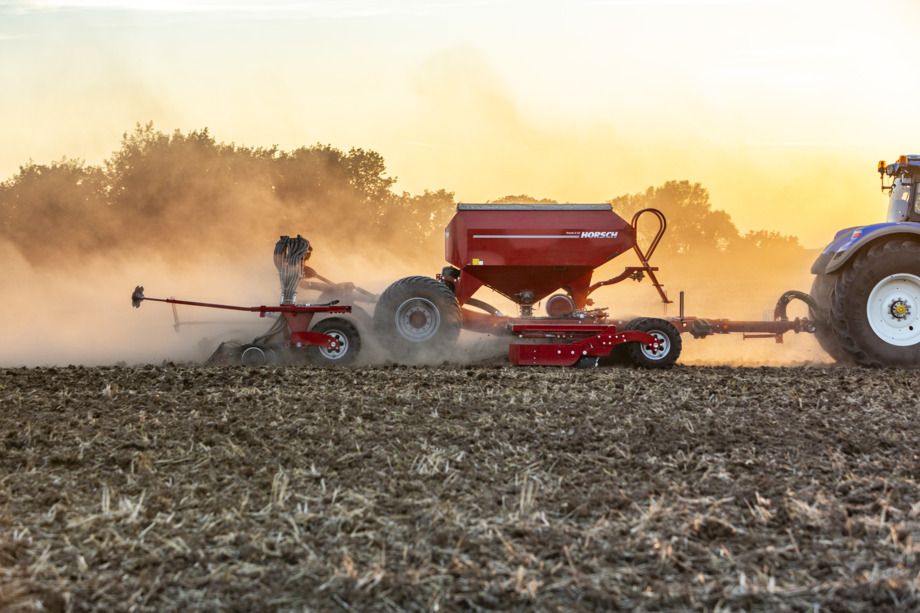

Pronto 6 AS while sowing wheat in North America

Reliability and operational safety at the highest level

Low horsepower requirement: low weight, possibility of intermediate and side packer mounted on the machine frame

Universal seeding technology for all conditions

Safe emergence due to perfect seed embedding
Optimal utilisation of ideal sowing times due to maximum work rate and operational speeds of up to 20 km/h
Maximum flexibility due to exchangeable seed bar

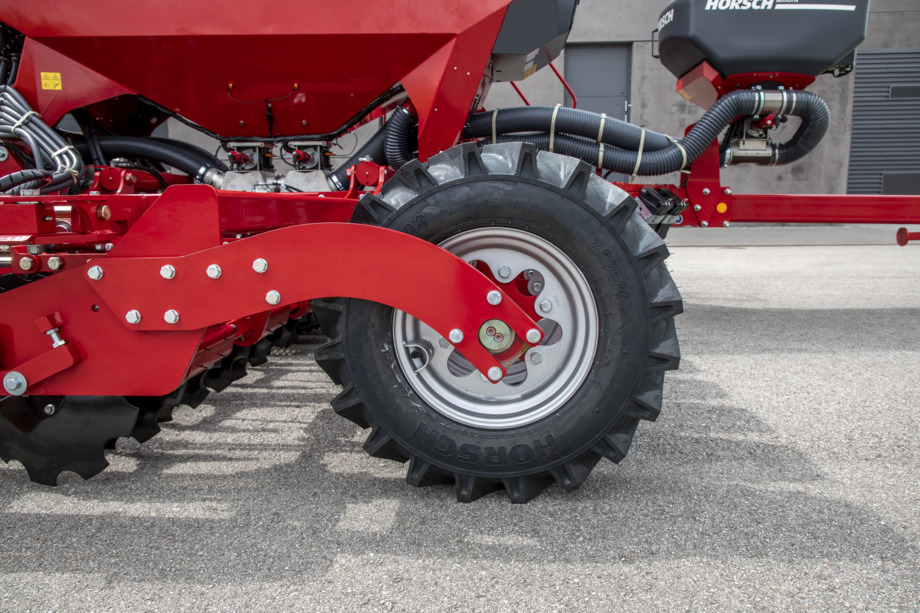

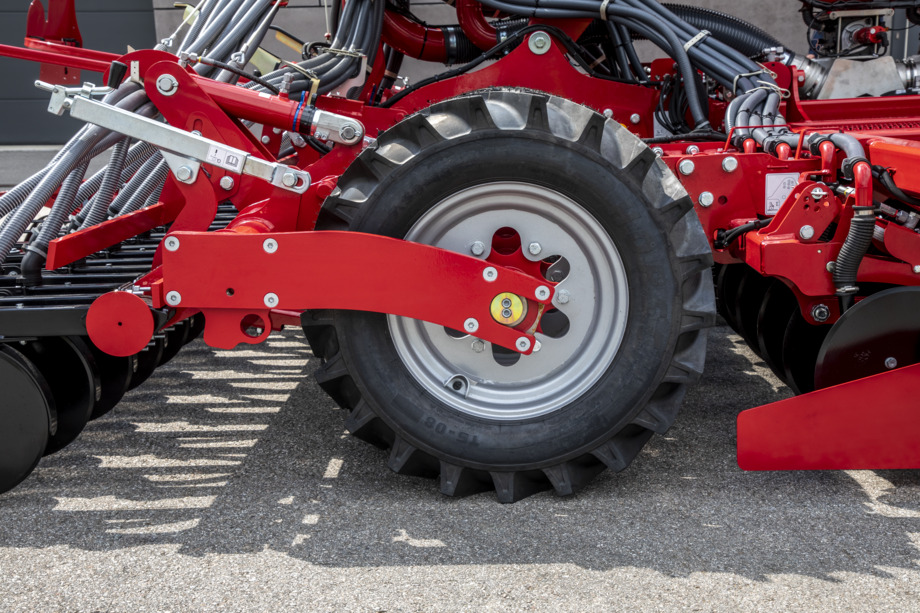

Large chassis tyres for road transport

DiscSystem

• Efficient crumbling and even levelling over the whole working width

• High clearance extends the range of applications and increases reliability

• Increasing quality of work with increasing operational speed

• Hydraulic depth adjustment, infinitely variable while driving

Hydraulic depth adjustment, infinitely variable while driving

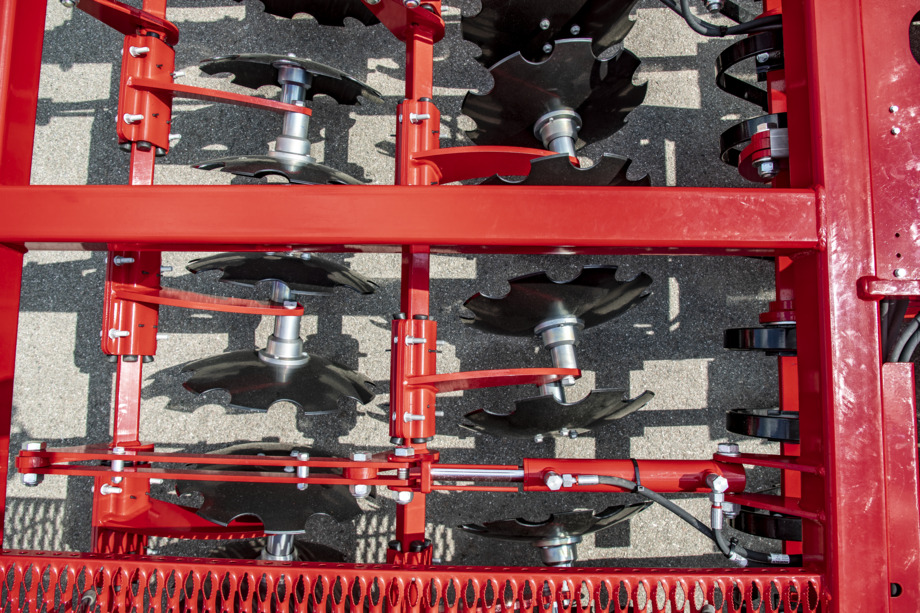

DiscSystem Pronto DC - 46 cm large discs with serrated profile

Efficient crumbling and even levelling over the whole working width

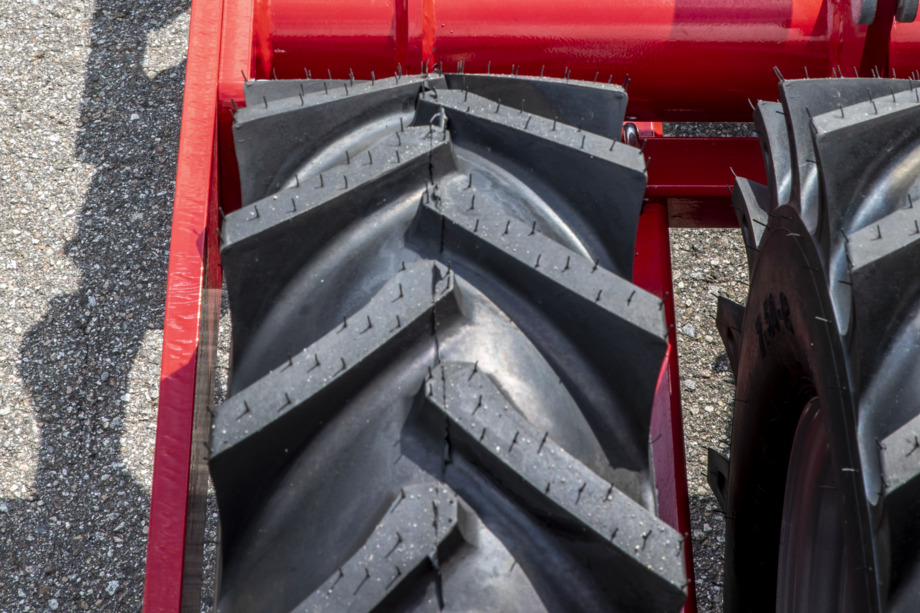

Tyre packer with AS profile

• Targeted and even levelling and consolidation in front of each seed coulter

• Straight tyre profile increases consolidation in the consolidation area

• Efficient consolidation below the seed horizon for better water distribution towards the seeds

• Low horsepower requirement due to large tyre diameter and no scrapers required

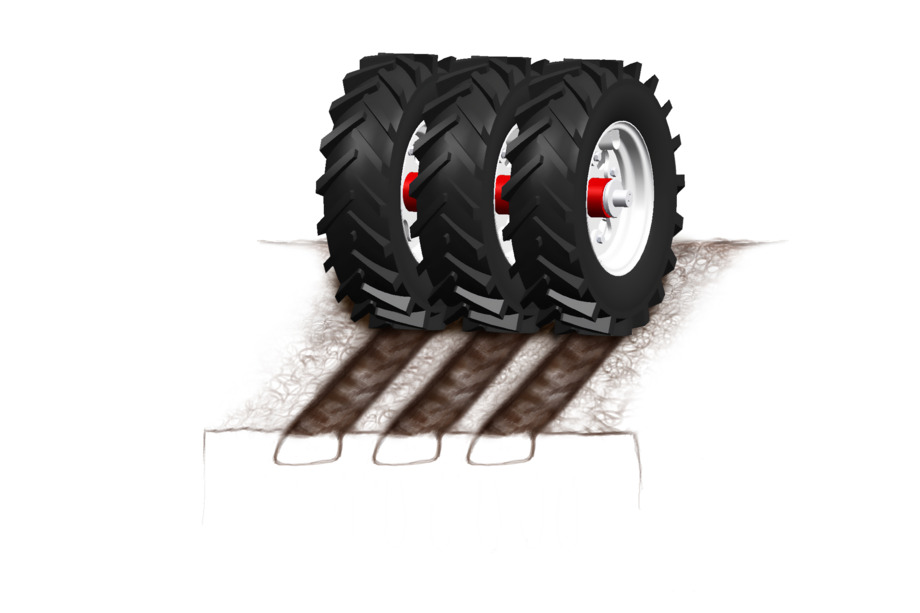

The HORSCH tyre packer ensures a targeted and even levelling and consolidation in front of every seed coulter The tyres are arranged in one line. Thus, clearance is optimum even on light soils. The straight tyre profile increases consolidation in the boundary area. The 10-ply special HORSCH tyres ensure a long service life. An efficient consolidation below the seed horizon guarantee a better water distribution towards the seeds The horsepower requirement is low due to large tyre diameter and no scrapers are required.

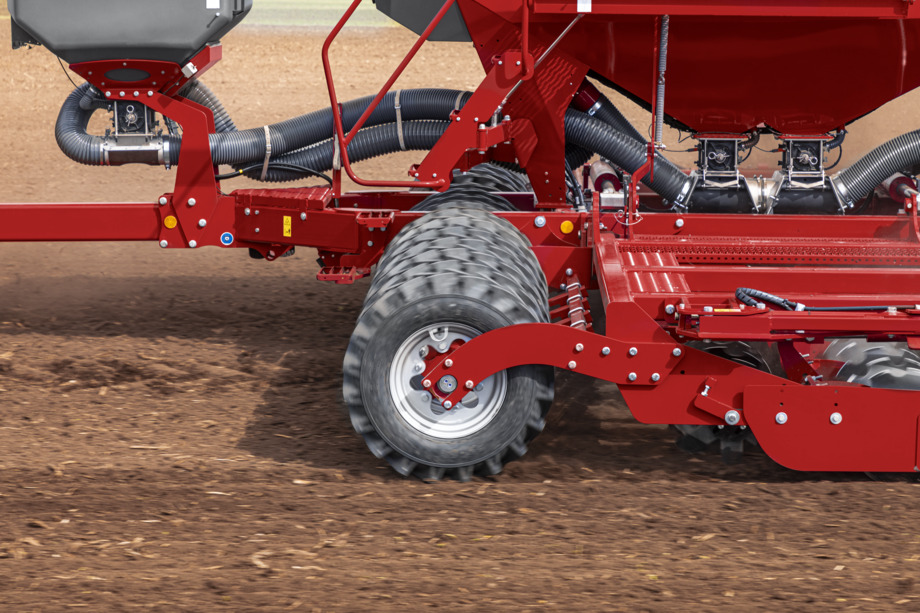

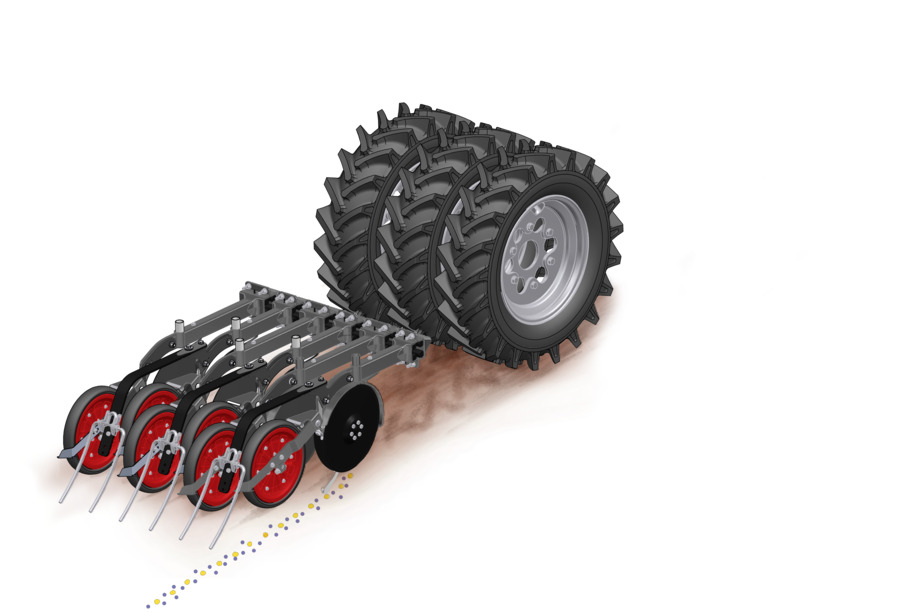

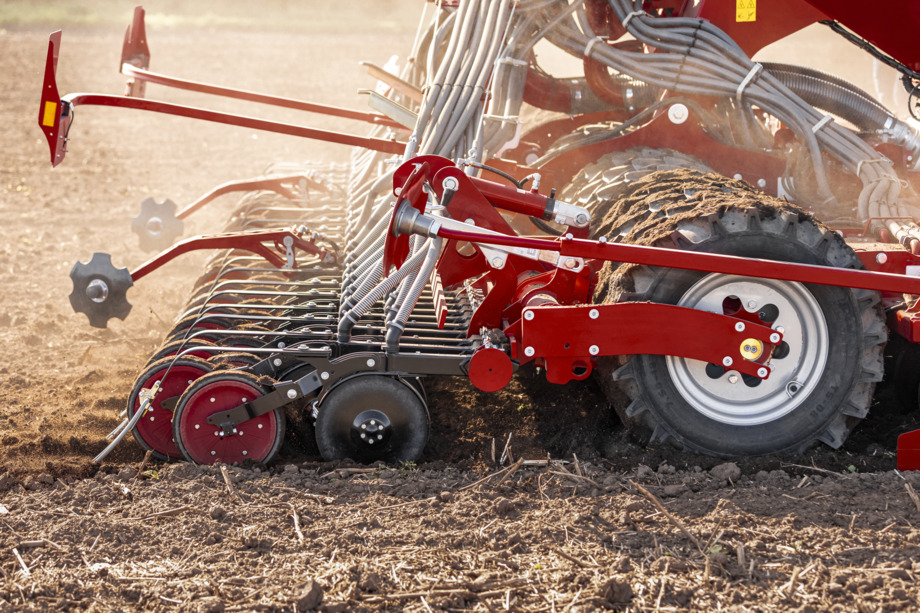

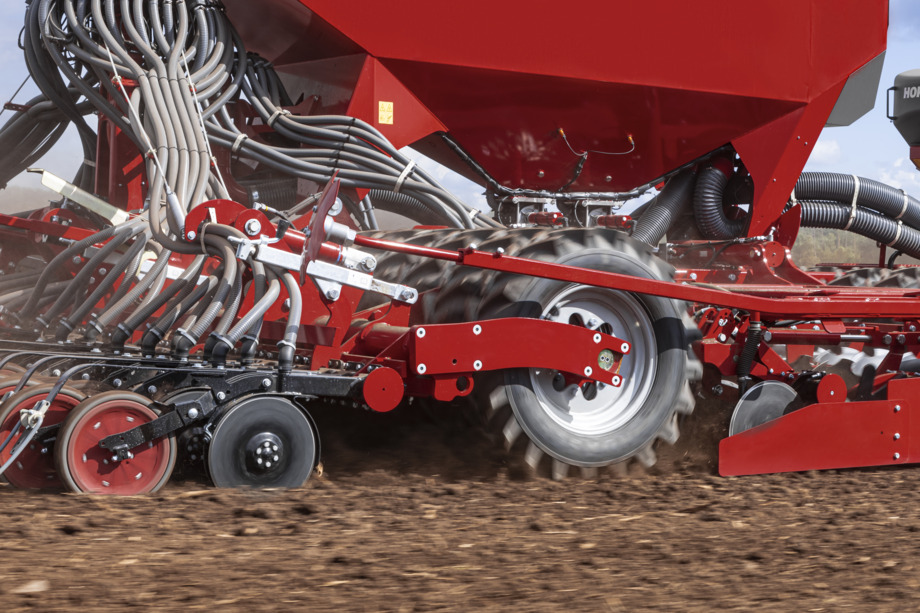

Tyre packer and TurboDisc seed coulters

Targeted and even levelling and consolidation in front of each seed coulter

Low horsepower requirement due to large tyre diameter and no scrapers required

Straight tyre profile increases consolidation in the consolidation area

Efficient consolidation below the seed horizon for better water distribution towards the seeds

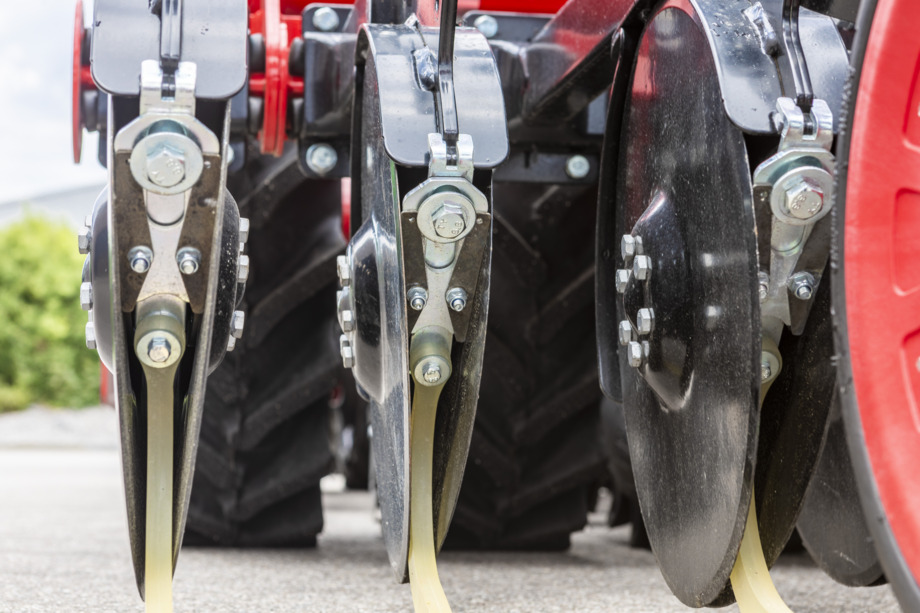

TurboDisc seed coulter

• Double disc coulter

• Creates a precise seed furrow

• Press wheel controlled (5 cm or 7.5 cm wide)

• Uniformer prevents the grains from bouncing

• Inside scraper prevents blocking and clogging of the coulters

• Coulter pressure up to 125 kg via rubber torsion

• Designed for precise seed placement at high operational speeds

• Allows for an even and safe emergence

The HORSCH TurboDisc double disc coulter ensures rapid, uniform emergence by maintaining precise seed-to-soil contact at speeds up to 20 km/h. Its press wheel-controlled design follows soil contours independently of pressure settings, while an integrated **Uniformer** secures each seed at the furrow's base. Featuring maintenance-free rubber bearings that provide up to 125 kg of pressure and stone protection, the system also utilizes carbide-coated scrapers to prevent clogging in wet conditions, guaranteeing consistent placement depth across various terrains.

Tyre packer and TurboDisc seed coulters

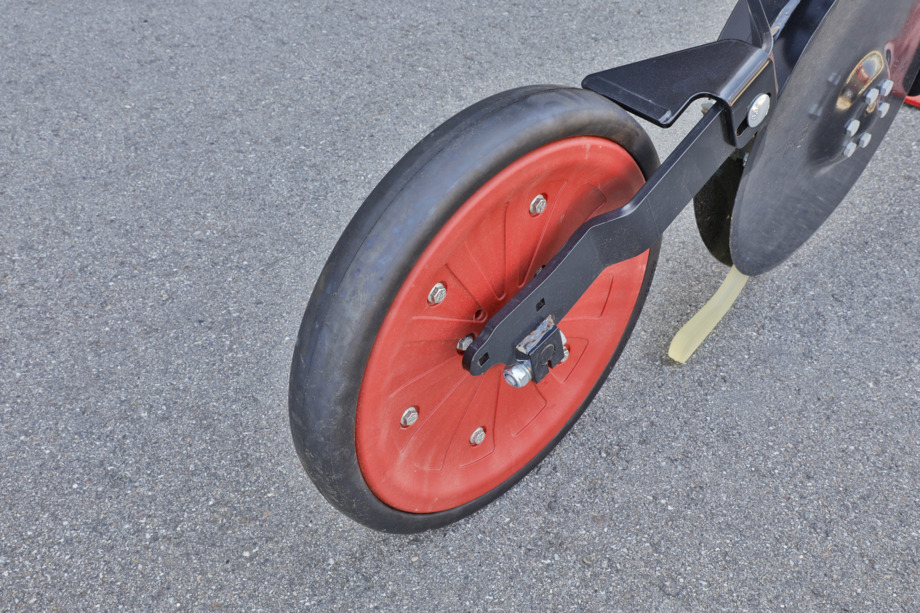

5 cm wide press wheel – ideal on medium and heavy soils

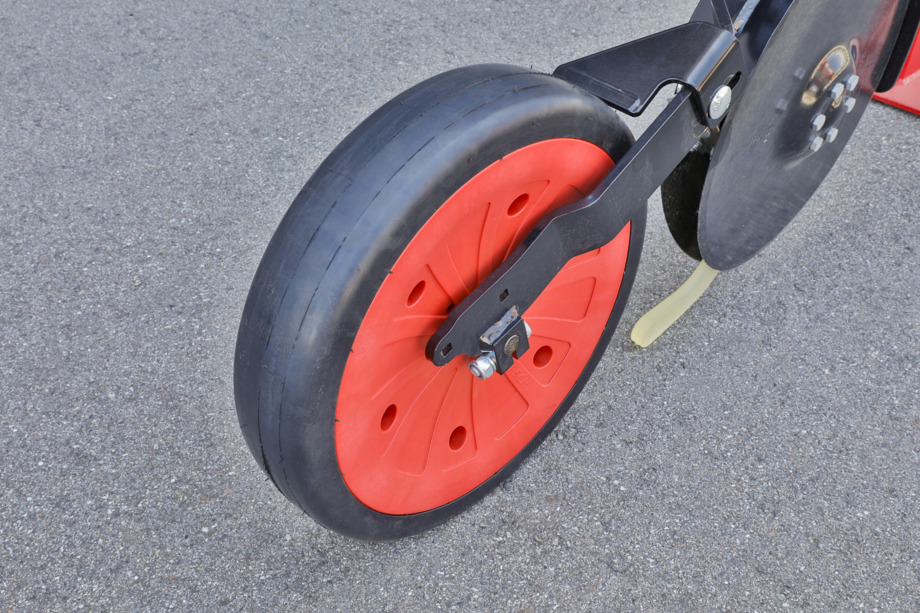

7.5 cm wide press wheel – ideal on light soils

The movable scraper ensures a high self-cleaning effect in wet conditions

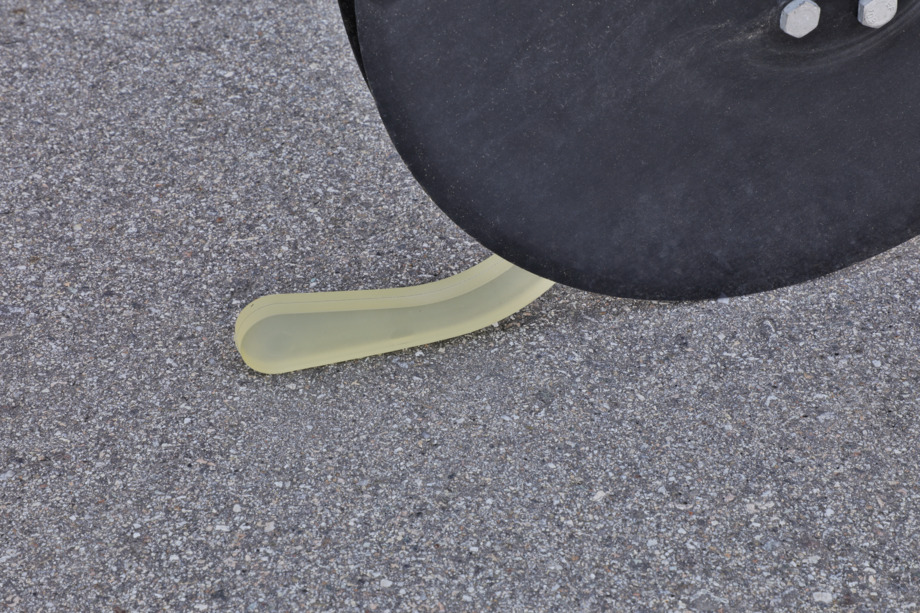

The HORSCH Uniformer ensures a precise fixing of the seed

The straight harrow - TurboDisc seed coulter harrow is controlled individually for a more efficient tillage

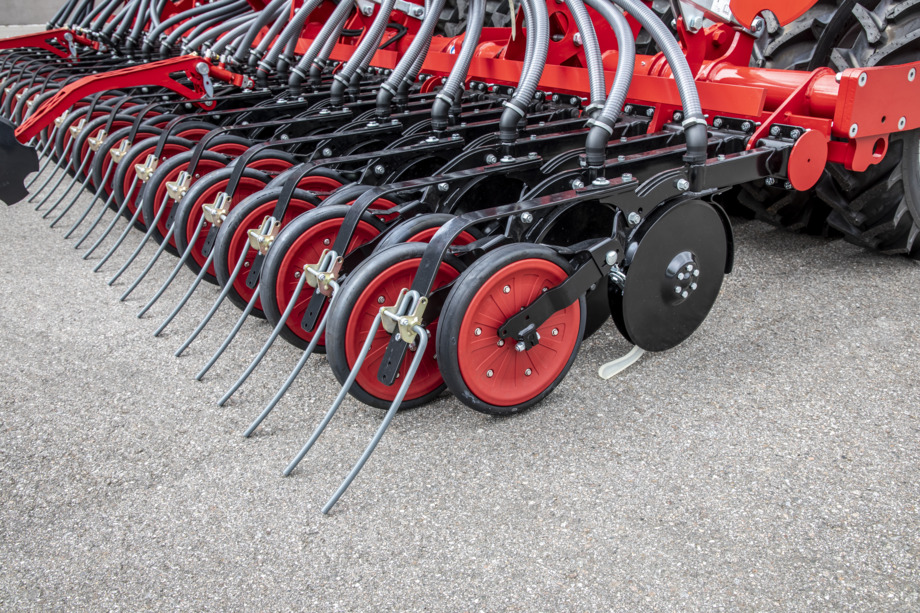

HORSCH TurboDisc seed coulter

Fall tube position in front of the mounting and moving inside scraper prevent blockage of the coulters in wet sowing conditions

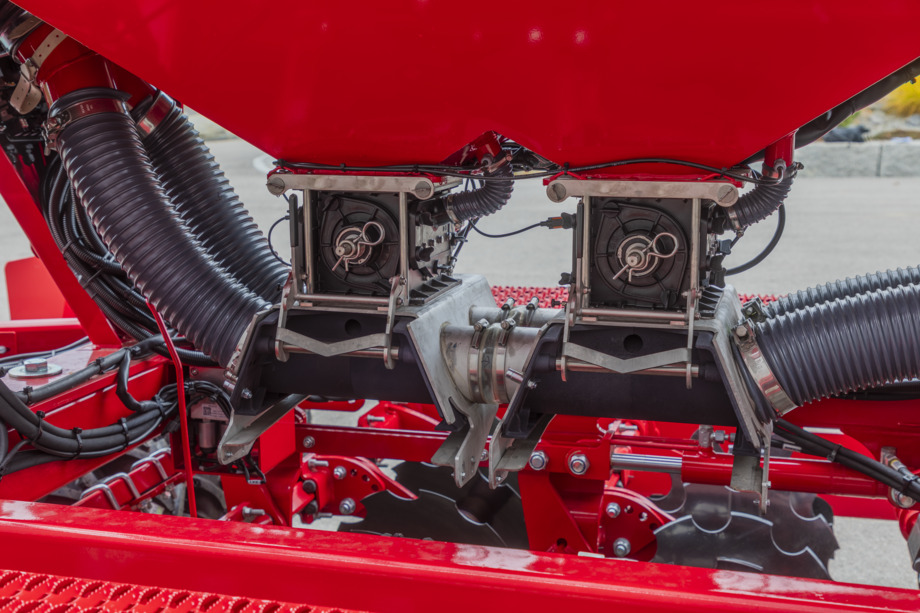

HORSCH metering system / HORSCH rotors

• Exact application

• Optimum seed distribution

• HORSCH rotor selection – find the optimum rotor for your machine quickly and easily

• Depending on the components, seed rate and operational speed, various options can be selected

• Easily accessible

• Rotor shafts can be replaced without any tools

HORSCH metering systems offer maximum flexibility through a range of interchangeable rotors tailored to specific seed rates, speeds, and machine configurations. For drills with double drop tubes, specialized rotors enable precise distribution and half-width shut-off, while an integrated valve system allows for quick rotor swaps without emptying the hopper. To ensure accuracy, HORSCH provides a rotor selection server for guidance, though a calibration test is always recommended to guarantee an optimum seed rate across the entire working width.

Tyre packer and TurboDisc seed coulters

Targeted and even levelling and consolidation in front of each seed coulter

Low horsepower requirement due to large tyre diameter and no scrapers required

Straight tyre profile increases consolidation in the consolidation area

Efficient consolidation below the seed horizon for better water distribution towards the seeds

Double hopper Grain & Fertiliser

• Both components are metered separately and are transported together via the distribution tower or the distribution towers into the seed coulter.

• The G&F double hopper system allows for the simultaneous application of seed and fertiliser as contact fertilisation.

• The fertiliser is immediately available to the young plant and thus contributes to a quick early growth. This system should only be used in appropriate climatic conditions and with the assistance of a crop production consultant.

• Not only seed and fertiliser, but also 2 different seeds can be transported, metered and sown separately.

The G&F double hopper system allows for the simultaneous application of seed and fertiliser as contact fertilisation. Both metering devices meter into one common distribution tower. Seed and fertiliser are thus placed together in one furrow. The fertiliser is immediately available to the young plant and thus contributes to a quick early growth. This system should only be used in appropriate climatic conditions and with the assistance of a crop production consultant. Not only seed and fertiliser, but also 2 different seeds can be transported, metered and sown separately.

Double hopper G&F - meter different components separately and place them together in the seed coulter

Double hopper Grain & Fertiliser - combined placement of two components via the TurboDisc seed coulter

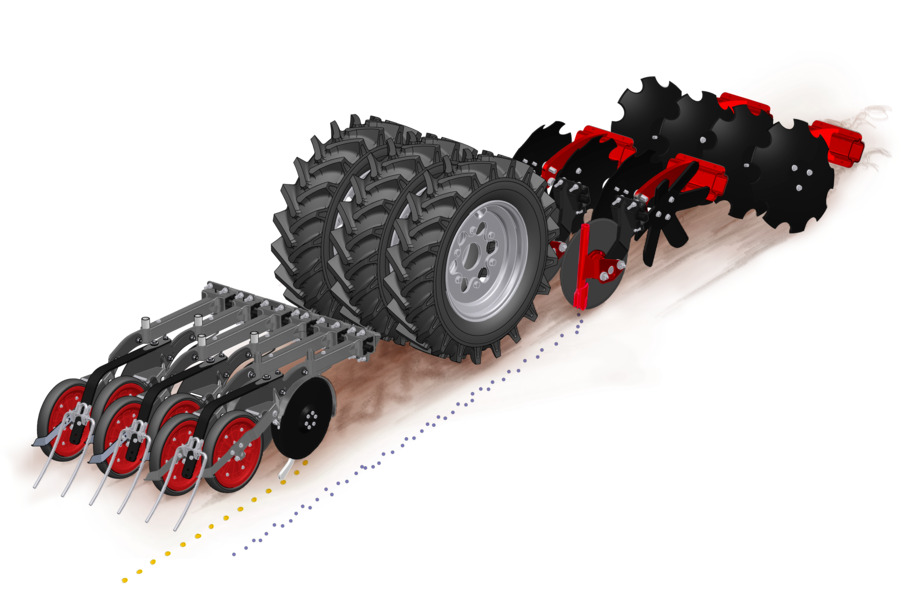

PPF-system

• Allows for applying 2 components in 2 horizons at the same time

• PPF disc system - separate single disc coulters allow for a placement under and between the seed coulters

• As seed and fertiliser are placed separately, high quantities can be applied in dry conditions.

• 100% control of the nozzle function – even with section control

• Thus, the created fertiliser depot can be used optimally by the plant and encourages the roots to grow downwards.

• When sowing catch crops, coarse-grained legumes for example can be applied in a deep seed horizon while another component is placed more shallowly via the TurboDisc seed coulters.

The PPF-system allows for simultaneously applying seed and fertiliser. Via separate fertiliser coulters, the fertiliser is placed a few centimetres below the seed furrow in the wet soil. As seed and fertiliser are placed separately, high quantities can be applied in dry conditions. Thus, the created fertiliser depot can be used optimally by the plant and encourages the roots to grow downwards. When sowing catch crops, coarse-grained legumes for example can be applied in a deep seed horizon while another component is placed more shallowly via the TurboDisc seed coulters.

Double hopper with PPF system – allows for simultaneously applying 2 components on 2 horizons

Oil cooler

• Heats up the airflow in the pneumatic system

• Maintains the flowability of fertiliser in wet conditions, e.g. dew in the morning, for a longer period

• Lowers the oil temperature in the system and relieves the tractor's oil cooler

The optional oil cooler at the hydraulic fan heats up the air flow in the pneumatic system. This lowers the oil temperature in the system and relieves the tractor's oil cooler. Another very important advantage is that it maintains the flowability of the fertiliser in wet conditions, e.g. dew in the evening.

Oil cooling on the hydraulic fan – heats the air flow in the pneumatic system

Lowers the oil temperature in the system and relieves the tractor's oil cooler

Maintains the flowability of the fertiliser in wet conditions, like dew in the morning

Can be unfolded without tools for optimised accessibility in case of service

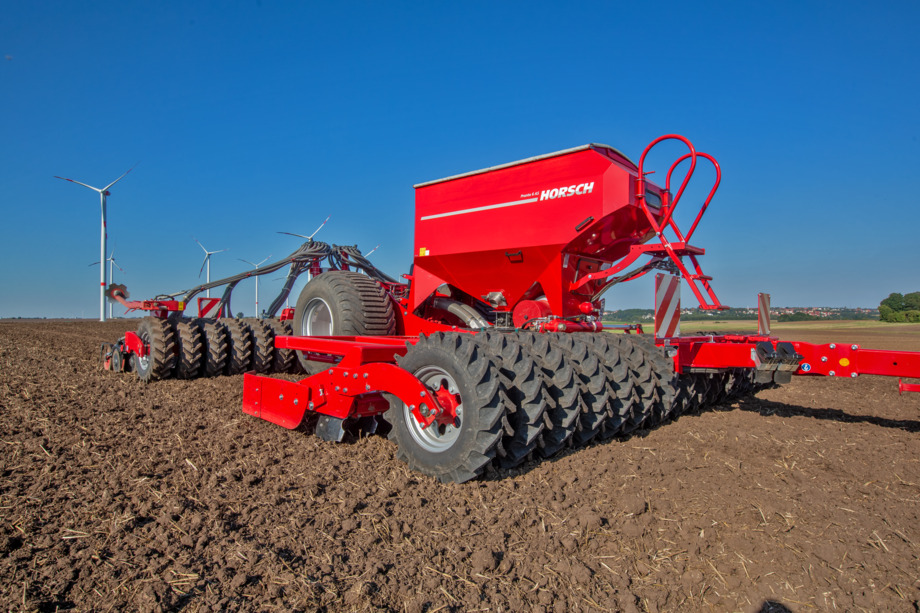

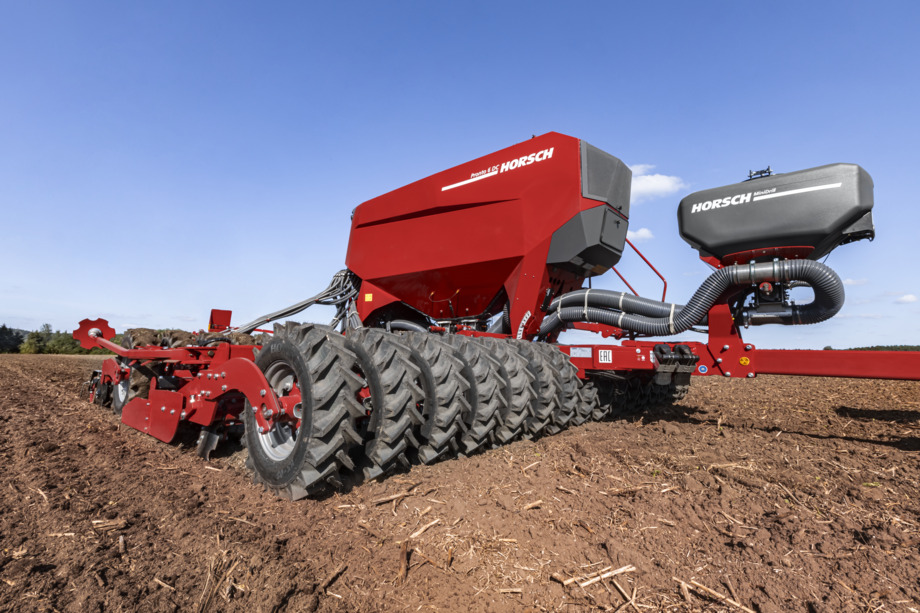

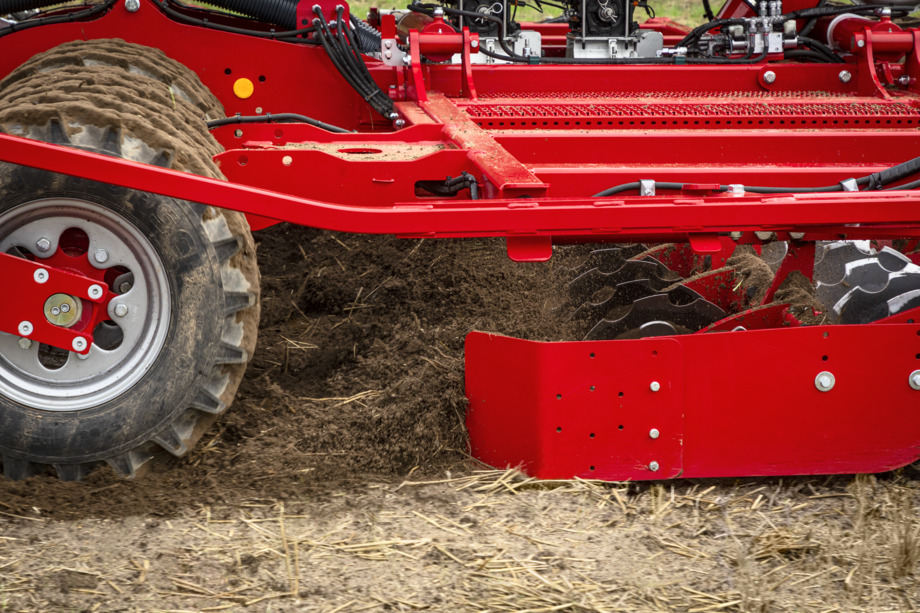

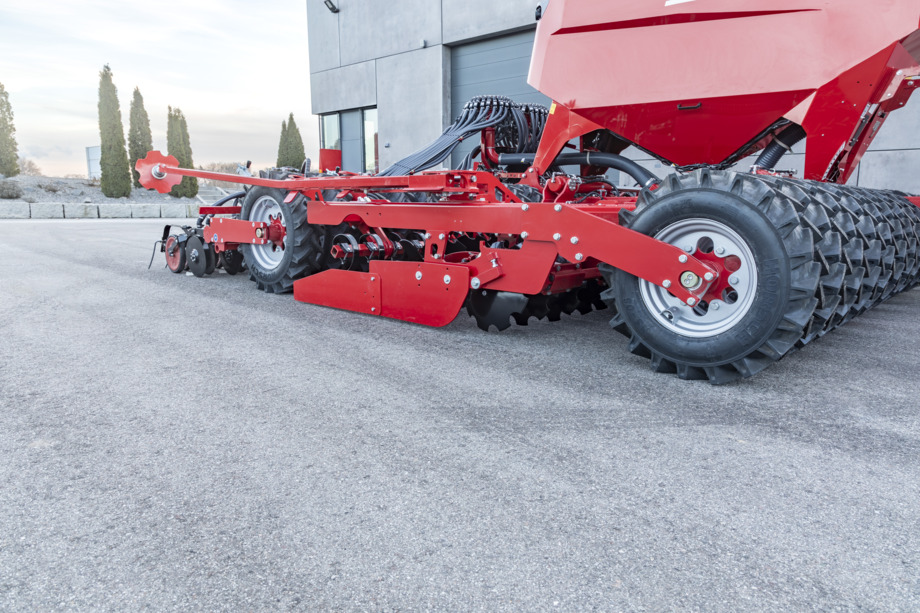

Intermediate axle packer & front packer

• Lowest possible track depths of the tractor in the seedbed

• Relieves extra load from the rear axle of the tractor

• Additional levelling of the surface

• Shallow working of the disc harrow is possible due to the lower track depths of the tractor

• Low horsepower requirement saves fuel

The smallest possible track depths of the tractor in the seedbed ensure good plant populations and contribute to the low horsepower requirement of the Pronto. The tyre packer that can be mounted additionally takes the weight of the machine, relieves the rear axle of the tractor and additionally levels the surface. This guarantees that the disc harrow can work more shallowly and this saves tractive power and fuel.

Front packer Pronto 6 DC – shallow working of the disc system is possible due to lower track depths of the tractor

Front packer - Pronto DC

Lowest possible track depths of the tractor in the seedbed

Low horsepower requirement saves fuel

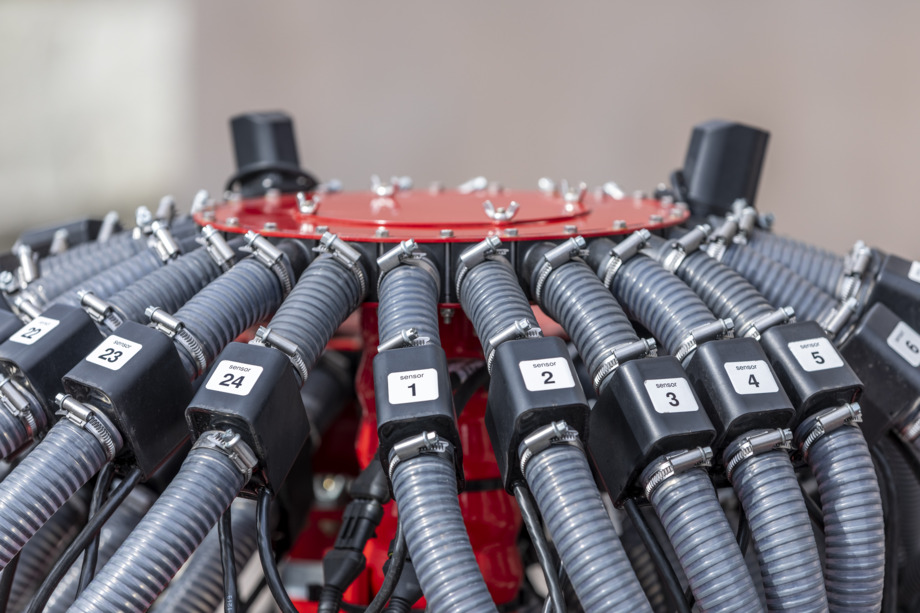

Fertiliser and seed flow control

• For a complete monitoring of the seed and fertiliser hoses

• Warning if a pneumatic hose is blocked

• Sowing errors are avoided

• Monitoring of the pneumatic flow at the distribution tower

The fertiliser and seed flow control is a reasonable electronic solution to prevent sowing errors. The sensors control the flow directly behind the distribution tower and detect blockages. Thus, the individual pneumatic hoses are monitored and within seconds you get a notification in the terminal – both acoustic and visual.

Fertiliser and seed flow control – for a permanent monitoring of the seed and fertiliser hoses

Monitoring of the pneumatic flow at the distribution tower

Spelt pneumatics

• Optimised pneumatic hosing for seeds with husks

• chamfered seed flow tubes prevent the husks from getting wedged

• Optional seed flow sensors support the prevention of gaps

Sowing spelt with husks always is a challenge for farmers. HORSCH developed a special pneumatic adaption for this crop which has been optimised over several years. To make sure that the spelt with husk does not wedge and cause blockings, all corners and edges in the pneumatic system are checked and rough edges are removed. For example, the seed tubes at the seed coulters are chamfered and the seed hoses are directly attached to the coulters with cable ties. The seed flow sensors that are recommended for sowing spelt are also chamfered. Thus, spelt can be transported smoothly through the pneumatics and gaps are prevented.

Spelt pneumatics for husk-bearing seeds

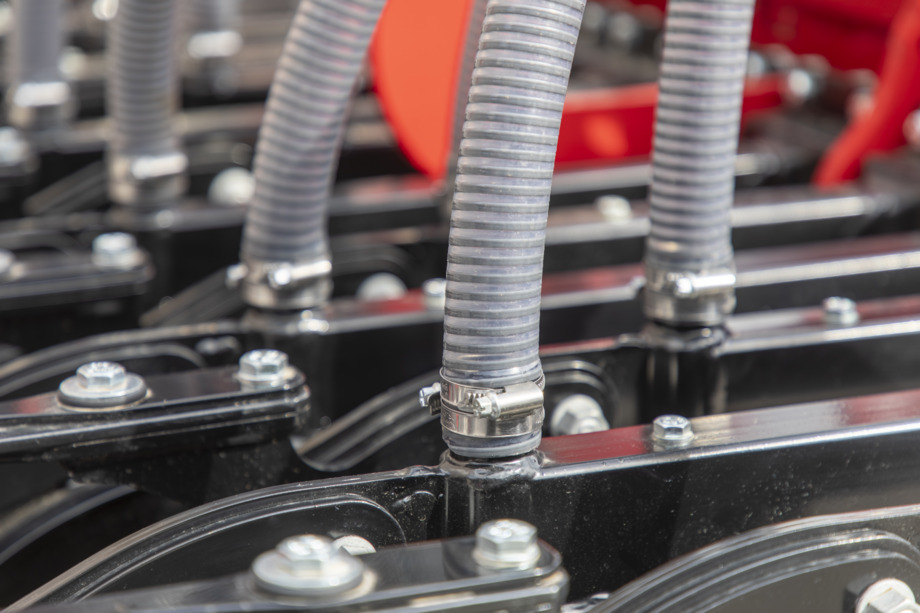

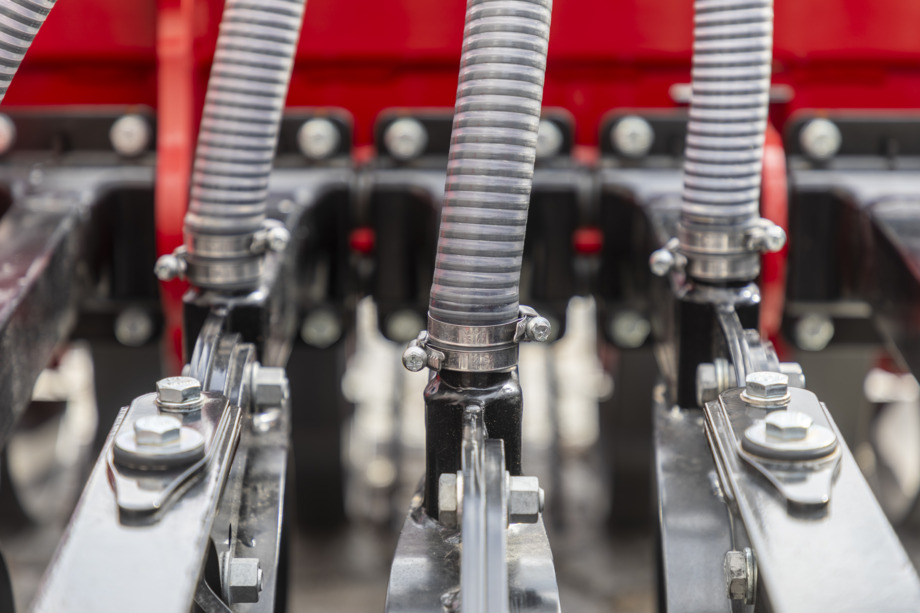

Optimised pneumatic hosing and chamfered seed tubes

Spelt pneumatics

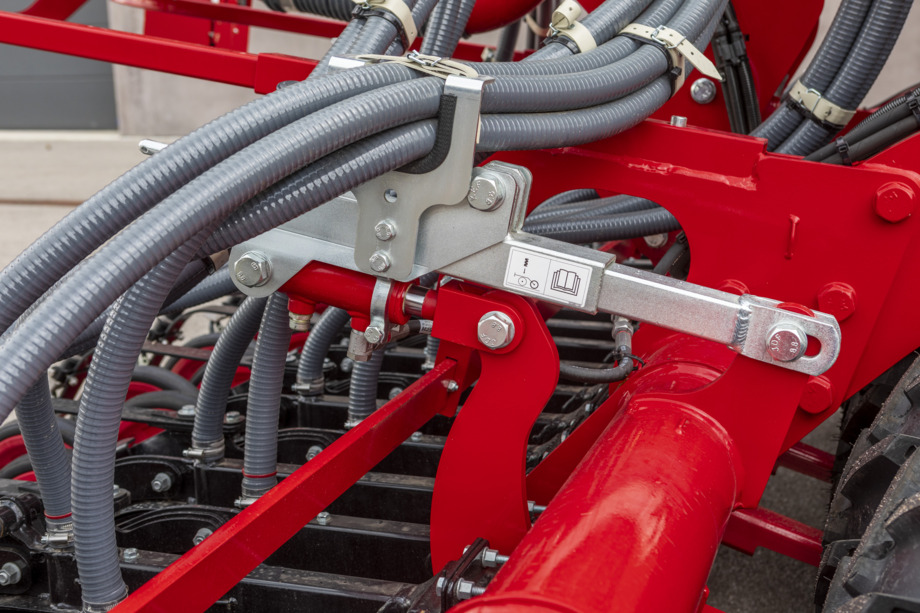

Hydraulic coulter pressure increase TurboDisc coulters

• Hydraulic coulter pressure increase via tractor control device

• 4-point cabin suspension

• Very high driving comfort on long working days and in unfavourable conditions

Due to the option of a hydraulic coulter pressure increase, the coulter pressure can be increased in the tractor cabin via a tractor control device when sowing in uneven soil conditions. The important feature is the easy handling of the system as from a plant production point of view an even emergence is the prerequisite for the customised and safe management of crop populations. If the coulter pressure is too high, compaction in the area of the seed furrow is increased. This has a negative influence on the development of the first germination roots. If the coulter pressure is too low, however, the sowing depth may vary.

The coulter pressure can be increased via the tractor control device

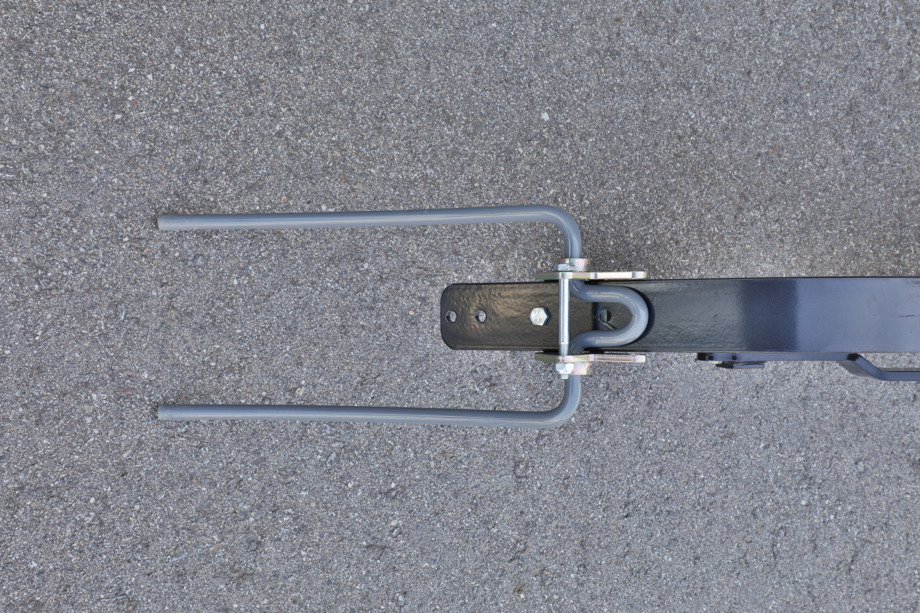

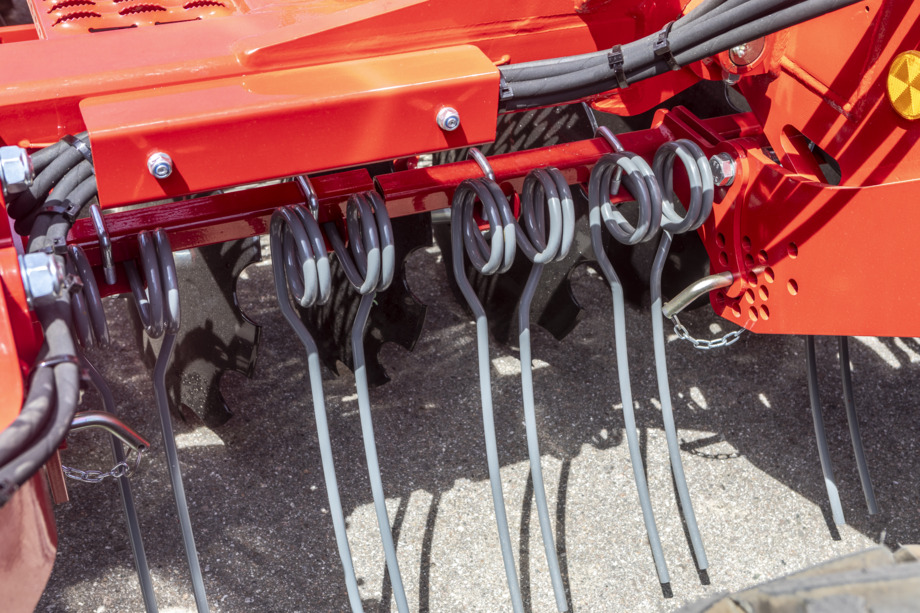

Spring-loaded track-eradicator tines

• Loosening compacted soil in the tractor track

• Fixing with a bolt in a hole system without tools

• For rotary harrows or disc harrow systems, a shallower cultivation depth is possible

• Leave an even field without tracks

The spring-loaded track eradicator tines allow for loosening the soil in the tractor track. They can be fixed without any tools with a bolt in a hole system. For seedbed preparation the working tool can be adjusted more shallowly as the tracks that have to be eliminated have already been loosened. The tines are suitable for mulch seed only to a limited extent as they may be prone to clogging in case of high amounts of harvest residues.

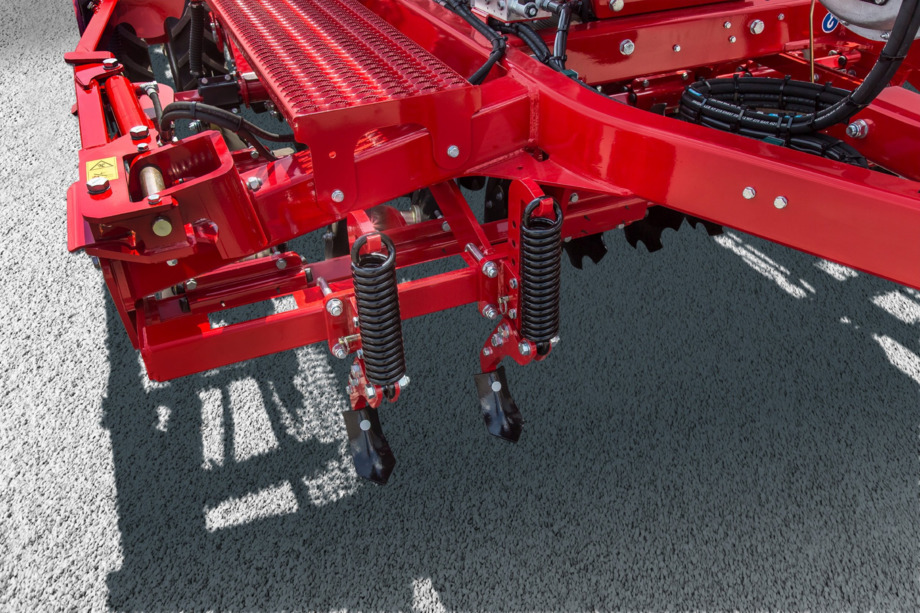

Spring-loaded track eradicator tines loosen soil compactions in the tractor track

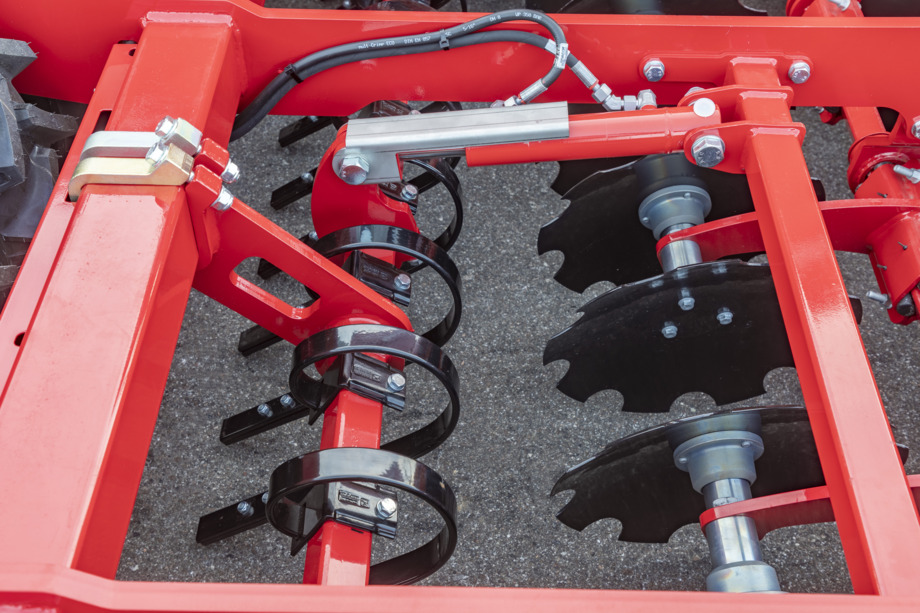

1-row Crossbar behind the DiscSystem

• The hydraulically adjustable 1-row crossbar directly behind the DiscSystem is the ideal solution on medium and heavy soils.

• It is placed between the DiscSystem and the tyre packer and the aggressiveness can be adjusted steplessly hydraulically.

• After a rough cultivation, this option may improve the production of fine soil.

• Thus, an even more even consolidation can be achieved.

The hydraulically adjustable 1-row Crossbar is the ideal solution on medium and heavy soils after rough cultivation. This option can improve seedbed preparation due to an optimised production of fine soil. This also ensures a more even consolidation.

The 1-row Crossbar directly behind the DiscSystem can be adjusted hydraulically.

The 1-row Crossbar improves levelling and fine soil production.

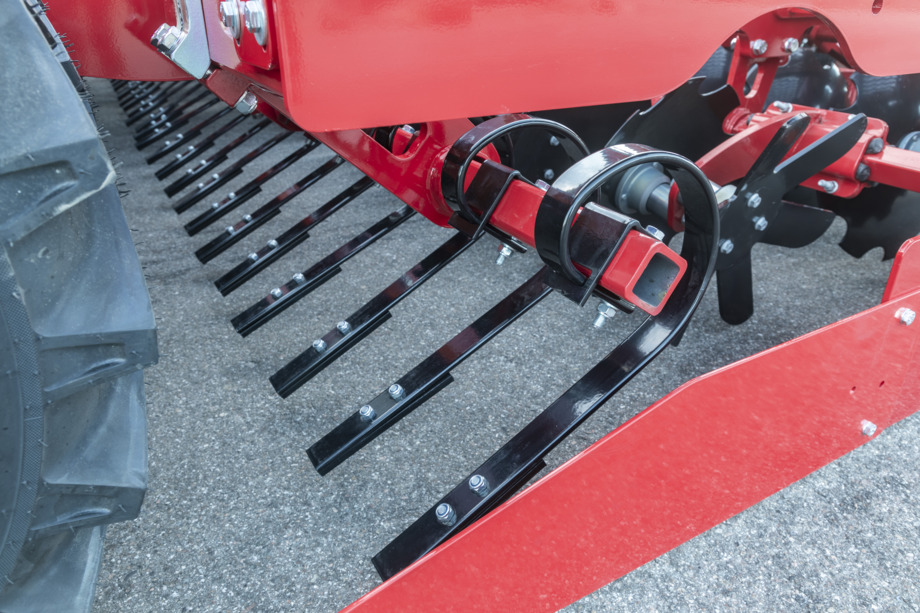

1-row harrow behind the DiscSystem

• The 1-row harrow breaks the earth flow created by the DiscSystem and thus supports crumbling and levelling in front of the packer. Recommended on light soils.

• It is placed between the DiscSystem and the tyre packer. The adjustment is carried out mechanically via a hole pattern.

The 1-row harrow behind the DiscSystem supports levelling on light and medium soils by smoothing the earth flow. The harrow is placed between the DiscSystem and the tyre packer. The adjustment is carried out mechanically via a hole pattern.

The harrow is placed between the DiscSystem and the tyre packer. The adjustment is carried out mechanically via a hole pattern.

Bout marker

• Automatic, electro-hydraulic control

• In normal operation, the machine is automatically controlled when lifting/lowering.

• Additional weights allow for marking the track in most difficult conditions.

• In transport position, the bout markers are secured by lock valves.

The hydraulic bout markers allow for driving track-on- track while seeding. Additional weights on the disc blades can help to mark the surface in difficult conditions.

eosT10/eosT10 Pro

• High-resolution 10" terminal for controlling all ISOBUS devices according to ISO 11783

• Reliable and powerful: high-performance hardware combined with intuitive, user-friendly operation in day or night mode

• Various layout options allow for a simultaneous display of several applications – for an optimum overview.

• Straightforward transfer of application maps with the wireless task data exchange

• A real-time transmission of the terminal display via Remote Support facilitates the technical support.

Due to the high resolution and the well-thought-out user navigation, even complex machine functions can be operated comfortably. The high efficiency and the large (working) memory allow for a smooth handling of large data quantities or application maps. In addition to the traditional import resp. export of data via a USB flash drive, the transfer can also take place easily and comfortably online directly between the PC and the terminal.

Due to its high resolution, the eosT10 offers a state-of-the-art user experience for all ISOBUS-compliant machines.

Due to the WIFI interface, field boundaries, application maps or order data can be exchanged directly between PC and terminal.

The lean design of the 10" display allows for perfect integration into any tractor cabin.

eosT10 – robust hardware with diverse interfaces

In portrait mode, two applications can be optimally displayed and operated.

By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.

TECHNICAL SPECIFICATIONS

Working width

6 m

Transport width

2,95 m

Transport height

4 m

Length to coulter end

9,50 m

Length incl. bout marker

10,50 m

Axle load

7800 / 9300 kg

Vertical load

350 / 1400 kg

Seed hopper capacity

3500 l

Hopper capacity double hopper

5000 (40:60) l

Hopper capacity microgranular compound unit

250 l

Feed opening single hopper

1,00 x 2,40 m

Feed opening double hopper

0,66 x 2,45 m

Filling height single hopper

2,70 m

Filling height double hopper

2,95 m

Number of seed coulters

Number of PPF coulters

Coulter pressure seed coulters

15 – 125 - up to max. 200 kg

Coulter pressure PPF coulters

max. 200 kg

Seed coulters/press wheels Ø

34/32 cm

Row spacing

15 cm

Tyres seed drill

800/45–26.5/12 TR

Tyre packer Ø

78 - 7.50/16 AS cm

Operational speed

10 - 20 km/h

Horsepower requirement

130/180 - 185/250 kW/hp

DA control devices

3 (each +1 for filling auger, coulter pressure adjustment, Crossbar)

Depressurised return flow (max. 5 bar)

Oil quantity hydr. fan single hopper

20 - 25 l/min

Oil quantity hydr. fan double hopper

35 - 45 l/min

Oil quantity hydraulic fan vacuum Maestro RV/RX

25 l/min

Implement attachment coulter bar 3-point

3-point Cat. II/III

Implement attachment lower link

Cat. II/III– III–III/IV

Implement attachment adjustable drawbar

Pin Ø 40–50 mm

Implement attachment ball head

K 80
