Pronto 8 - 9 DC

Universal seeding technology for all conditions

Working width

8,00 - 9,00 m

Transport width

2,99 m

Hopper capacity single hopper

4000 L

Hopper capacity double hopper

5000 L

Pronto 8 - 9 DC

With the HORSCH Pronto DC, precise seed placement is achieved at highest operational speed and at the same time low horsepower requirement.

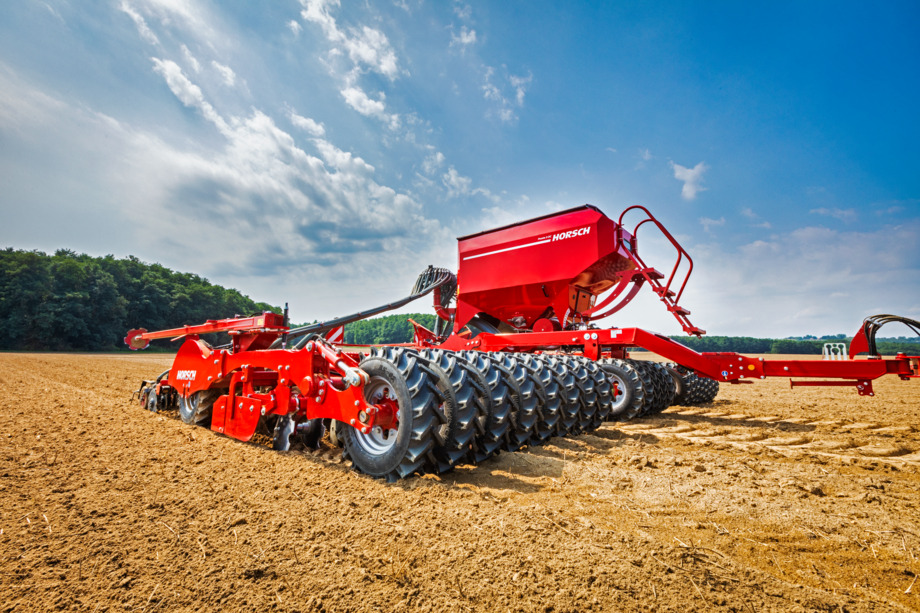

Pronto 9 DC while sowing wheat

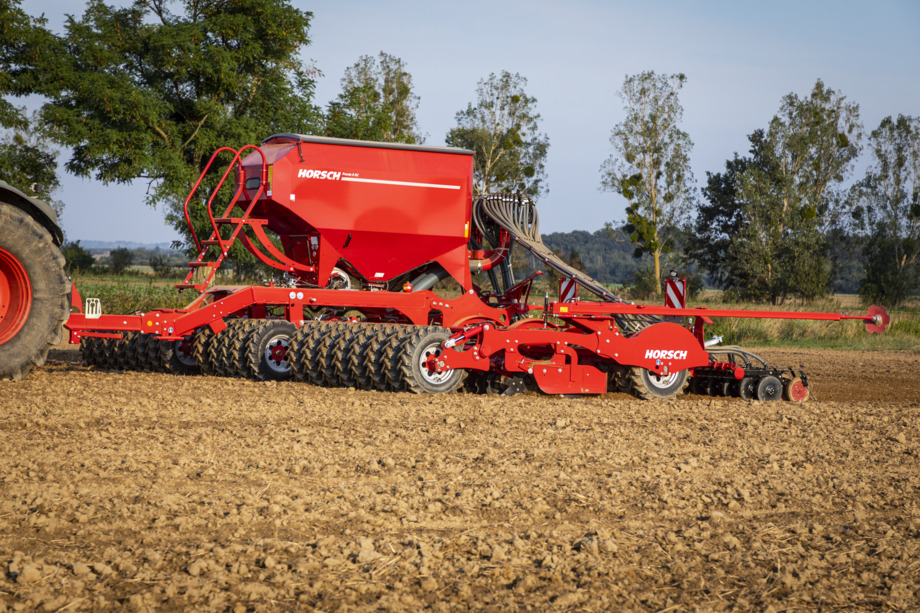

Pronto 9 DC with front packer – saving fuel due to optimised low horsepower requirement

Pronto 9 DC – single hopper with a capacity of 4 000 l

Faster - Simpler - Safer

Very easy, clear setting
Low horsepower requirement: low weight, possibility of intermediate and side packer mounted on the machine frame
DiscSystem as a front tool: 46 cm disc diameter with high circumferential speed for high fine soil production

DiscSystem

• Efficient crumbling and even levelling over the whole working width

• High clearance extends the range of applications and increases reliability

• Increasing quality of work with increasing operational speed

• Hydraulic depth adjustment, infinitely variable while driving

Hydraulic depth adjustment, infinitely variable while driving

DiscSystem Pronto DC - 46 cm large discs with serrated profile

Efficient crumbling and even levelling over the whole working width

Front tool cutting disc

• Targeted pre-cutting of the seed strip

• Removal of harvest residues and plant material from the seed furrow

• No tillage required due to the perfect clearing effect of the ondulated disc

• High operational reliability even in most challenging conditions

• Perfect combination of cutting disc and TurboDisc seed coulter

To adapt to volatile weather, the Pronto DC can be converted into a NoTill-compliant drill by replacing its standard disc system with corrugated cutting discs. These discs apply up to 160 kg of pressure to slice through harvest residues and pre-cut seed slots, enabling precise placement by the TurboDisc coulters without prior tillage. This direct seeding approach minimizes water loss, reduces fuel consumption, and preserves soil moisture for optimal germination across the Pronto 3, 4, 6, and 9 DC models.

Pronto DC with cutting disc

Large cutting disc with a diameter of Ø 18" for a safe penetration and cutting behaviour

Clearing and cutting the future seed slot

Tyre packer with AS profile

• Targeted and even levelling and consolidation in front of each seed coulter

• Straight tyre profile increases consolidation in the consolidation area

• Efficient consolidation below the seed horizon for better water distribution towards the seeds

• Low horsepower requirement due to large tyre diameter and no scrapers required

The HORSCH tyre packer ensures a targeted and even levelling and consolidation in front of every seed coulter The tyres are arranged in one line. Thus, clearance is optimum even on light soils. The straight tyre profile increases consolidation in the boundary area. The 10-ply special HORSCH tyres ensure a long service life. An efficient consolidation below the seed horizon guarantee a better water distribution towards the seeds The horsepower requirement is low due to large tyre diameter and no scrapers are required.

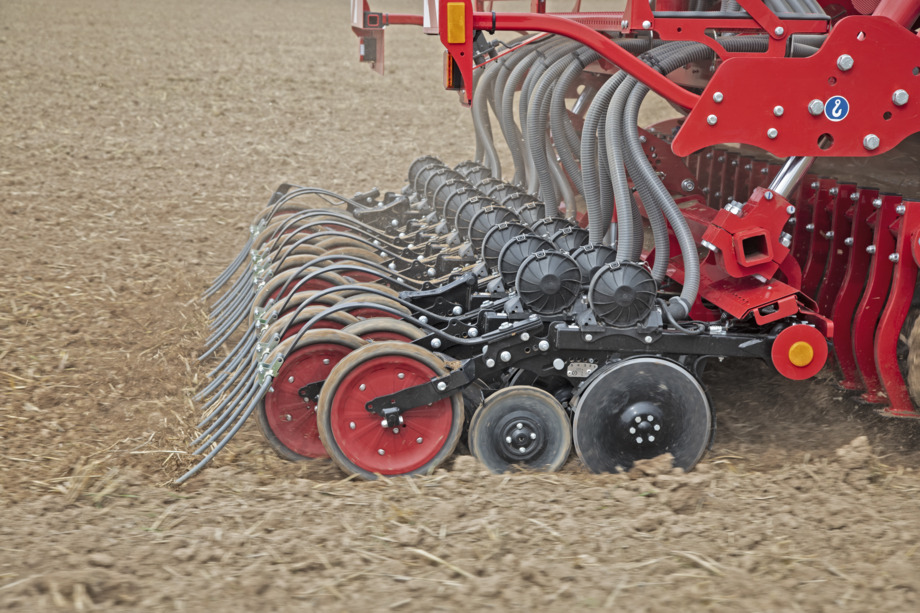

Tyre packer and TurboDisc seed coulters

Targeted and even levelling and consolidation in front of each seed coulter

Low horsepower requirement due to large tyre diameter and no scrapers required

Straight tyre profile increases consolidation in the consolidation area

Efficient consolidation below the seed horizon for better water distribution towards the seeds

TurboDisc seed coulter

• Double disc coulter

• Creates a precise seed furrow

• Press wheel controlled (5 cm or 7.5 cm wide)

• Uniformer prevents the grains from bouncing

• Inside scraper prevents blocking and clogging of the coulters

• Coulter pressure up to 125 kg via rubber torsion

• Designed for precise seed placement at high operational speeds

• Allows for an even and safe emergence

The HORSCH TurboDisc double disc coulter ensures rapid, uniform emergence by maintaining precise seed-to-soil contact at speeds up to 20 km/h. Its press wheel-controlled design follows soil contours independently of pressure settings, while an integrated **Uniformer** secures each seed at the furrow's base. Featuring maintenance-free rubber bearings that provide up to 125 kg of pressure and stone protection, the system also utilizes carbide-coated scrapers to prevent clogging in wet conditions, guaranteeing consistent placement depth across various terrains.

Tyre packer and TurboDisc seed coulters

5 cm wide press wheel – ideal on medium and heavy soils

7.5 cm wide press wheel – ideal on light soils

The movable scraper ensures a high self-cleaning effect in wet conditions

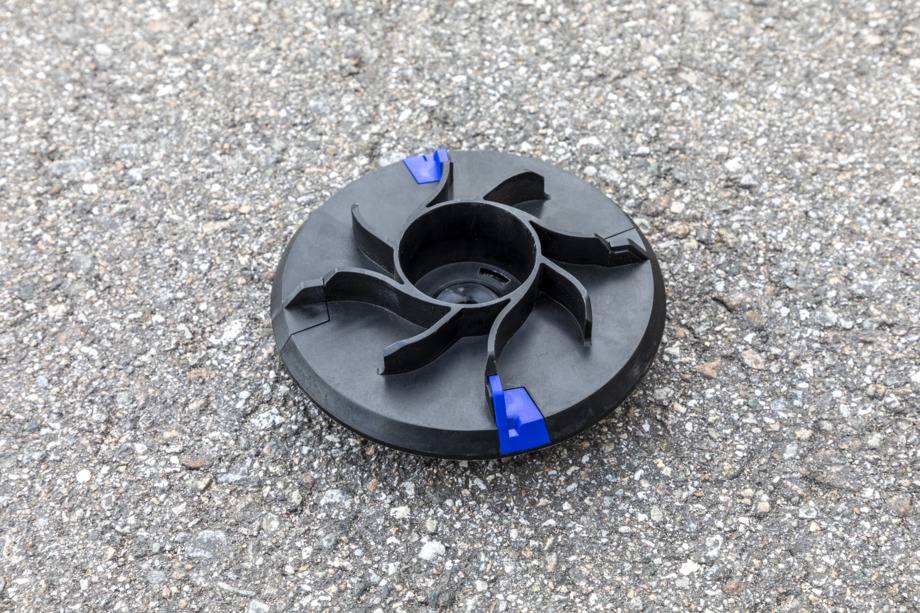

The HORSCH Uniformer ensures a precise fixing of the seed

The straight harrow - TurboDisc seed coulter harrow is controlled individually for a more efficient tillage

HORSCH TurboDisc seed coulter

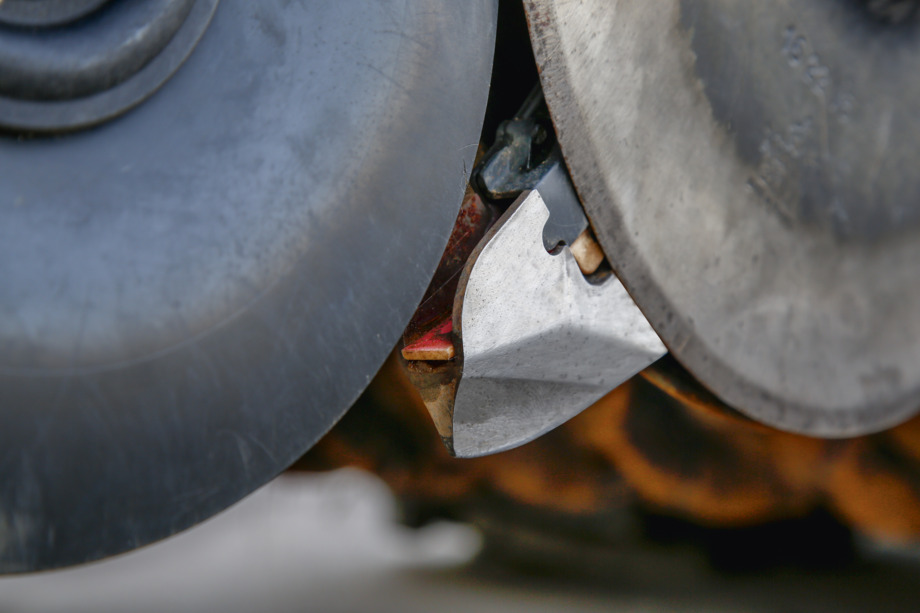

Fall tube position in front of the mounting and moving inside scraper prevent blockage of the coulters in wet sowing conditions

HORSCH metering system / HORSCH rotors

• Exact application

• Optimum seed distribution

• HORSCH rotor selection – find the optimum rotor for your machine quickly and easily

• Depending on the components, seed rate and operational speed, various options can be selected

• Easily accessible

• Rotor shafts can be replaced without any tools

HORSCH metering systems offer maximum flexibility through a range of interchangeable rotors tailored to specific seed rates, speeds, and machine configurations. For drills with double drop tubes, specialized rotors enable precise distribution and half-width shut-off, while an integrated valve system allows for quick rotor swaps without emptying the hopper. To ensure accuracy, HORSCH provides a rotor selection server for guidance, though a calibration test is always recommended to guarantee an optimum seed rate across the entire working width.

Tyre packer and TurboDisc seed coulters

Targeted and even levelling and consolidation in front of each seed coulter

Low horsepower requirement due to large tyre diameter and no scrapers required

Straight tyre profile increases consolidation in the consolidation area

Efficient consolidation below the seed horizon for better water distribution towards the seeds

Double hopper Grain & Fertiliser

• Both components are metered separately and are transported together via the distribution tower or the distribution towers into the seed coulter.

• The G&F double hopper system allows for the simultaneous application of seed and fertiliser as contact fertilisation.

• The fertiliser is immediately available to the young plant and thus contributes to a quick early growth. This system should only be used in appropriate climatic conditions and with the assistance of a crop production consultant.

• Not only seed and fertiliser, but also 2 different seeds can be transported, metered and sown separately.

The G&F double hopper system allows for the simultaneous application of seed and fertiliser as contact fertilisation. Both metering devices meter into one common distribution tower. Seed and fertiliser are thus placed together in one furrow. The fertiliser is immediately available to the young plant and thus contributes to a quick early growth. This system should only be used in appropriate climatic conditions and with the assistance of a crop production consultant. Not only seed and fertiliser, but also 2 different seeds can be transported, metered and sown separately.

Double hopper G&F - meter different components separately and place them together in the seed coulter

Double hopper Grain & Fertiliser - combined placement of two components via the TurboDisc seed coulter

HORSCH SingularSystem

• Singulation of cereals combined with a perfect placement precision due to the Funck metering device, the skid and the press roller

• Quick and flexible adaption of the singulation pockets depending on the crop and the seed rate

• The perfect distribution in the seeded area allows for an optimum water and nutrient supply of the plant and thus reduces competition.

• Easy switching between Funck metering device, bypass or stainless steel tube depending on the seed quality, the seed rate and the crop

The HORSCH SingularSystem enhances the proven TurboDisc coulter design by integrating a specialized skid and height-adjustable catching roller to ensure precise furrow formation and optimal seed-to-soil contact. Utilizing the electric-driven Funck metering device, the system mechanically singulates up to 100 grains per second based on crop-specific discs, though it requires clean, uniformly sized seed for peak performance (ideally up to 250 grains/m²). For higher application rates or non-uniform material, a bypass system allows the unit to function as a conventional seed drill while still benefiting from the superior seed embedding provided by the specialized coulter hardware.

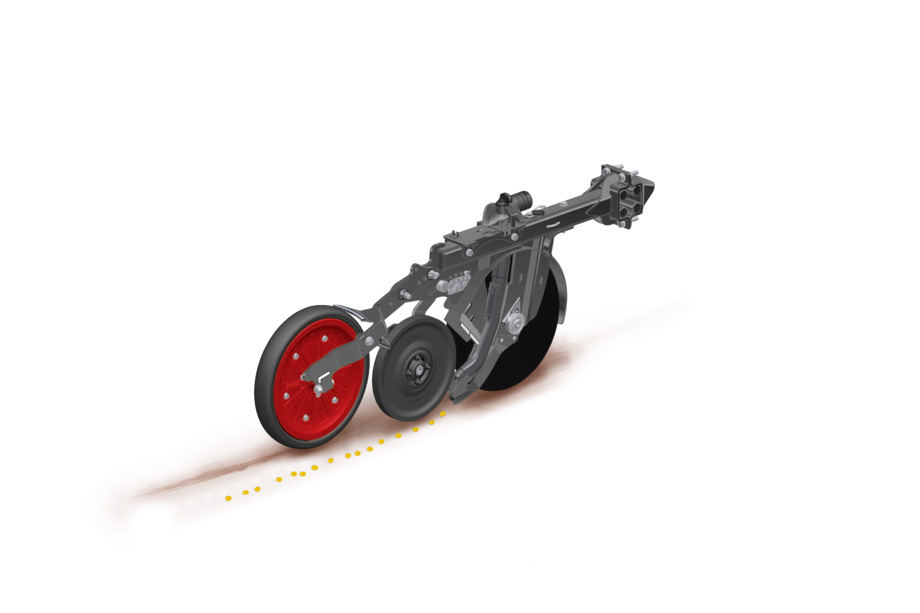

HORSCH SingularSystem

HORSCH SingularSystem - shaker box

HORSCH SingularSystem – bypass

HORSCH SingularSystem - coulter skid

Metering disc with pocket for wheat

Metering disc with pocket for canola

Metering disc with pocket for peas

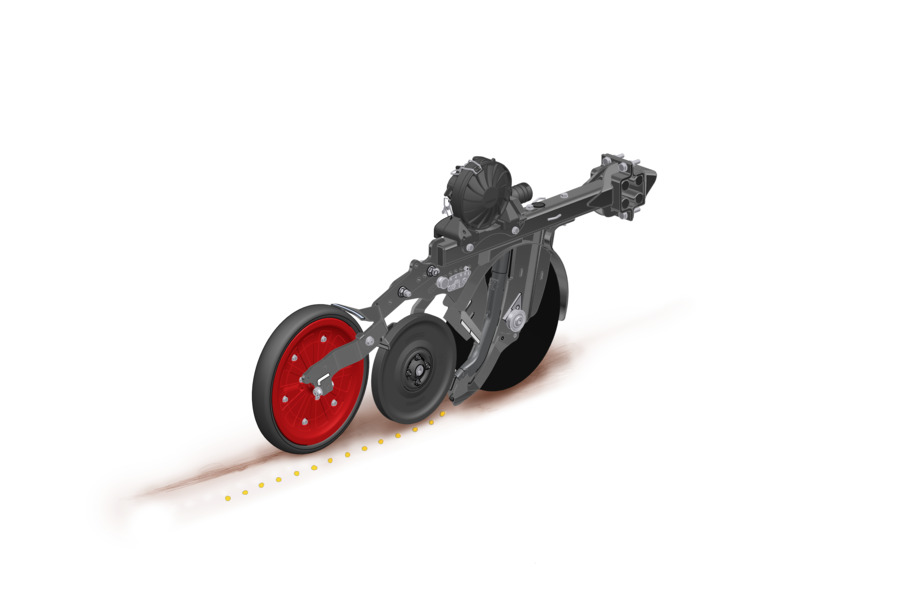

HORSCH SingularSystem – Funck metering device

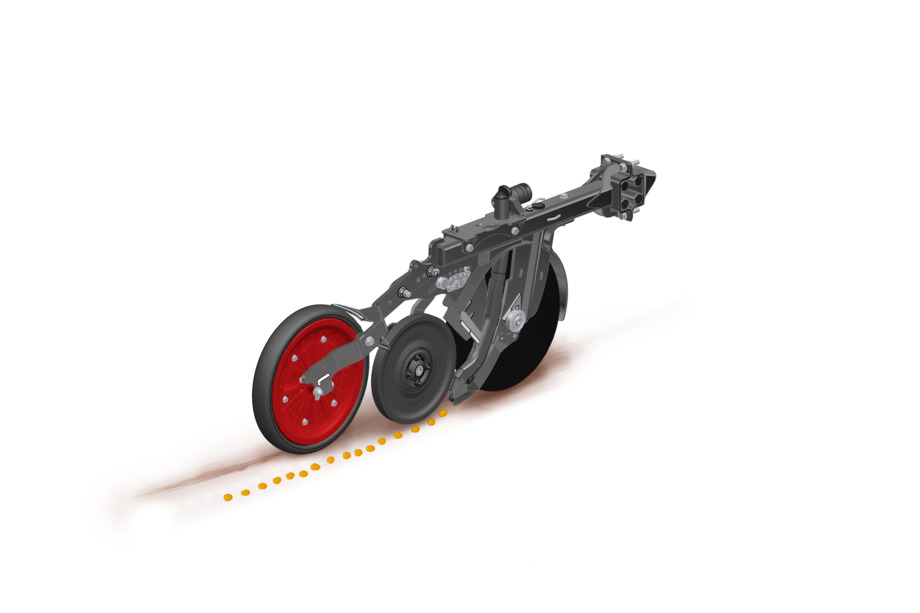

HORSCH SingularSystem coulter - bypass

HORSCH SingularSystem coulter - stainless steel drop tube

Fertiliser and seed flow control

• For a complete monitoring of the seed and fertiliser hoses

• Warning if a pneumatic hose is blocked

• Sowing errors are avoided

• Monitoring of the pneumatic flow at the distribution tower

The fertiliser and seed flow control is a reasonable electronic solution to prevent sowing errors. The sensors control the flow directly behind the distribution tower and detect blockages. Thus, the individual pneumatic hoses are monitored and within seconds you get a notification in the terminal – both acoustic and visual.

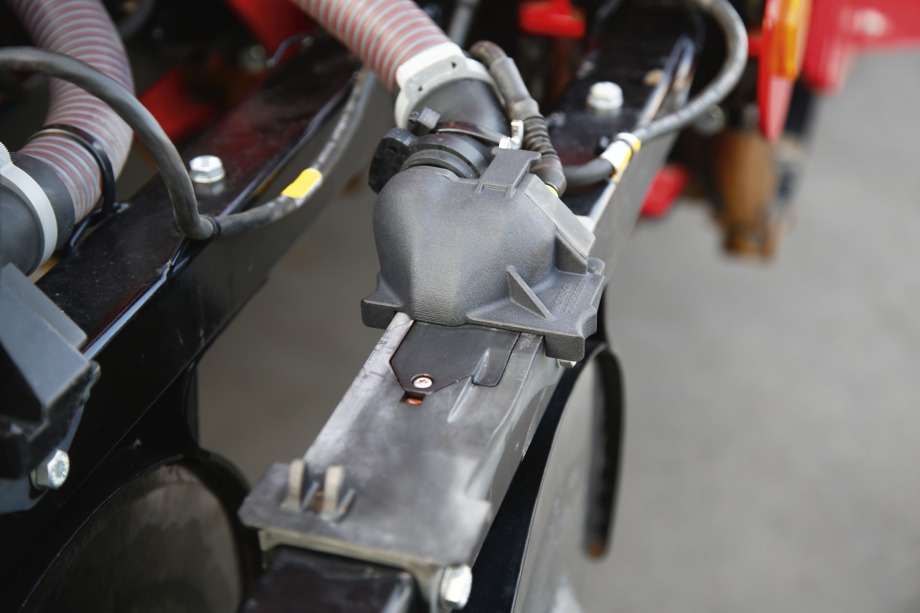

Fertiliser and seed flow control – for a permanent monitoring of the seed and fertiliser hoses

Monitoring of the pneumatic flow at the distribution tower

Spelt pneumatics

• Optimised pneumatic hosing for seeds with husks

• chamfered seed flow tubes prevent the husks from getting wedged

• Optional seed flow sensors support the prevention of gaps

Sowing spelt with husks always is a challenge for farmers. HORSCH developed a special pneumatic adaption for this crop which has been optimised over several years. To make sure that the spelt with husk does not wedge and cause blockings, all corners and edges in the pneumatic system are checked and rough edges are removed. For example, the seed tubes at the seed coulters are chamfered and the seed hoses are directly attached to the coulters with cable ties. The seed flow sensors that are recommended for sowing spelt are also chamfered. Thus, spelt can be transported smoothly through the pneumatics and gaps are prevented.

Spelt pneumatics for husk-bearing seeds

Optimised pneumatic hosing and chamfered seed tubes

Spelt pneumatics

Hydraulic coulter pressure increase TurboDisc coulters

• Hydraulic coulter pressure increase via tractor control device

• 4-point cabin suspension

• Very high driving comfort on long working days and in unfavourable conditions

Due to the option of a hydraulic coulter pressure increase, the coulter pressure can be increased in the tractor cabin via a tractor control device when sowing in uneven soil conditions. The important feature is the easy handling of the system as from a plant production point of view an even emergence is the prerequisite for the customised and safe management of crop populations. If the coulter pressure is too high, compaction in the area of the seed furrow is increased. This has a negative influence on the development of the first germination roots. If the coulter pressure is too low, however, the sowing depth may vary.

The coulter pressure can be increased via the tractor control device

Pre-emergence marker

• Fully automatic control via the tramline rhythm

• The aggressiveness of the pre-emergence marker is adjusted via a depth stop.

• Mounted directly on the seed coulter, precise depth control via the press wheel

• Easy activation and deactivation of the pre-emergence marker via ISOBUS

The pre-emergence markers are recommended for crops that require maintenance measures before the laid tramlines become visible. They are controlled fully automatically via the tramline rhythm of the terminal. The mounting on the seed coulter allows for a precise depth control via the press wheel. The aggressiveness of the pre-emergence marker is adjusted via a depth stop.

The aggressiveness of the pre-emergence marker is adjusted via a depth stop

Spring-loaded track-eradicator tines

• Loosening compacted soil in the tractor track

• Fixing with a bolt in a hole system without tools

• For rotary harrows or disc harrow systems, a shallower cultivation depth is possible

• Leave an even field without tracks

The spring-loaded track eradicator tines allow for loosening the soil in the tractor track. They can be fixed without any tools with a bolt in a hole system. For seedbed preparation the working tool can be adjusted more shallowly as the tracks that have to be eliminated have already been loosened. The tines are suitable for mulch seed only to a limited extent as they may be prone to clogging in case of high amounts of harvest residues.

Spring-loaded track eradicator tines loosen soil compactions in the tractor track

HorschConnect

• Digital solutions exactly where they make sense

• Straightforward out-of-the-box solution with already integrated SIM card, Wi-Fi modem and other interfaces

• HorschConnect Telematics to document the performance of the machine

• HorschConnect Telematics for complete transparency of the working quality, e.g. the application rate of all components

• Targeted and proactive service by remote access to error messages

• Control of machine functions via the smartphone app HORSCH Control: e.g. carrying out nozzle tests for individual sections

Prepare today for tomorrow. Easily control various machine functions via the HORSCH Control app – your smartphone complements the terminal! Gain comprehensive, transparent insight into work rate and work quality with HorschConnect Telematics.

With HorschConnect, telemetry solutions are making their way into the sectors seeding and crop care - exactly where they make sense

The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone

Success factor transparency: position-specific data of all relevant information like error messages, application rate, nozzle status or target area spacing

With the field boundaries import all data can be analysed over the season – even in a site-specific way

HorschConnect

The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone

Fine metering insert kits

• Perfect for microgranular compounds and fine seeds

• Seed rates of 1.5 kg/ha to 60 kg/ha

• Can be used in every machine with a pressurised hopper

• Fine metering insert kit includes:

• A drive shaft with four possible drive pinions

• Three rotors with different sizes

• Individual spacers depending on the drive shaft

The HORSCH fine metering insert kit provides a precise, versatile solution for applying microgranular compounds and fine seeds across all HORSCH machines with pressurized hoppers. By utilizing a modular system of drive shafts, interchangeable rotors of various sizes, and specialized spacers, the kit allows for highly accurate application rates ranging from 1.5 kg/ha to 60 kg/ha. This simple yet flexible design is compatible with models like the Partner, MiniDrill, Pronto, and Focus, offering seamless integration for diverse agricultural needs.

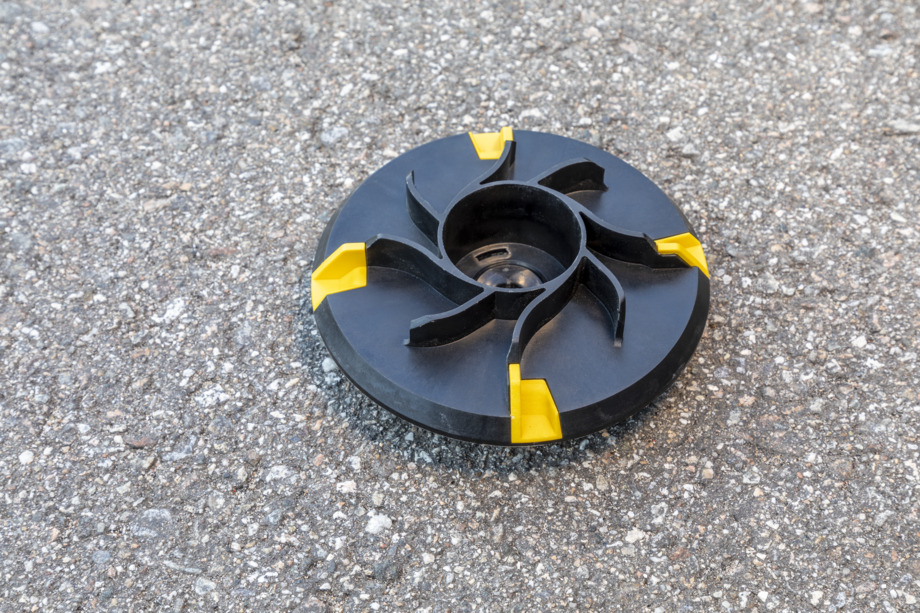

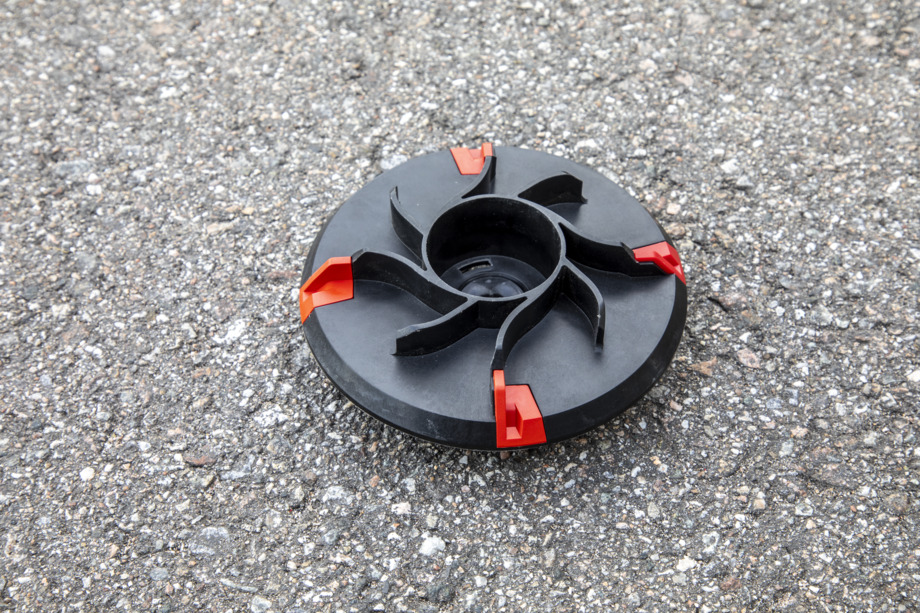

Fine metering insert – rotor

Fine metering insert kits for standard metering unit hexagonal shaft

Fine metering insert kits for double metering unit spline shaft drive

Fine metering insert for double metering unit hexagonal shaft

Bout marker

• Automatic, electro-hydraulic control

• In normal operation, the machine is automatically controlled when lifting/lowering.

• Additional weights allow for marking the track in most difficult conditions.

• In transport position, the bout markers are secured by lock valves.

The hydraulic bout markers allow for driving track-on- track while seeding. Additional weights on the disc blades can help to mark the surface in difficult conditions.

Electro-hydraulic drilling depth adjustment

• Depth adjustment via the application card is possible

• Sowing depth adjustment is possible via the terminal

• Optimum drilling depth depending on the soil conditions

• Two seed depths can be adjusted in a pre-setting way

The electro-hydraulic drilling depth adjustment allows for a perfect drilling depth in different soil types and conditions. Two drilling depths can be adjusted with clips. The driver determines whether he/her wants to adjust the drilling depth manually via the terminal or whether he/her can automatically use application cards. The double lifting cylinder can be extended by 15 mm via the terminal, thus, the seed depth can be adjusted.

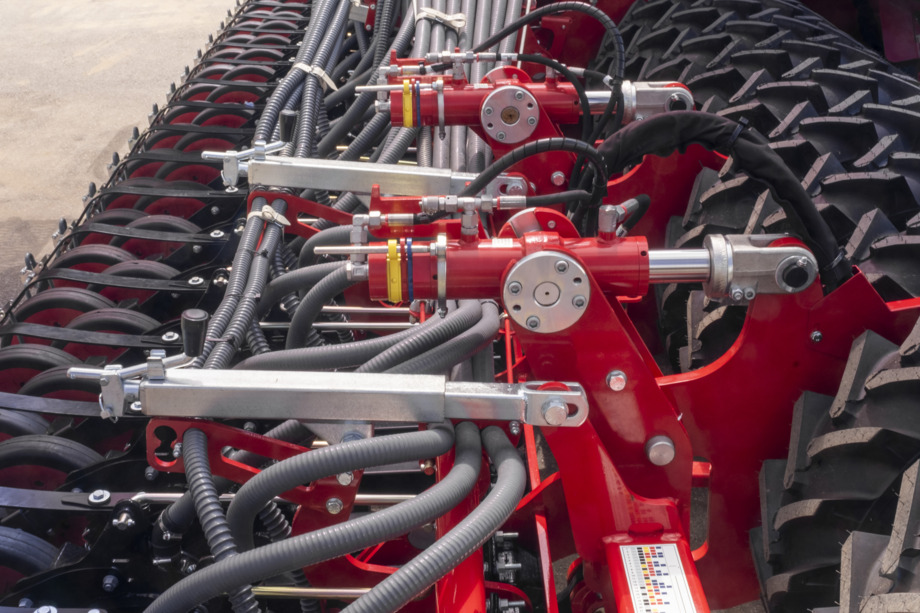

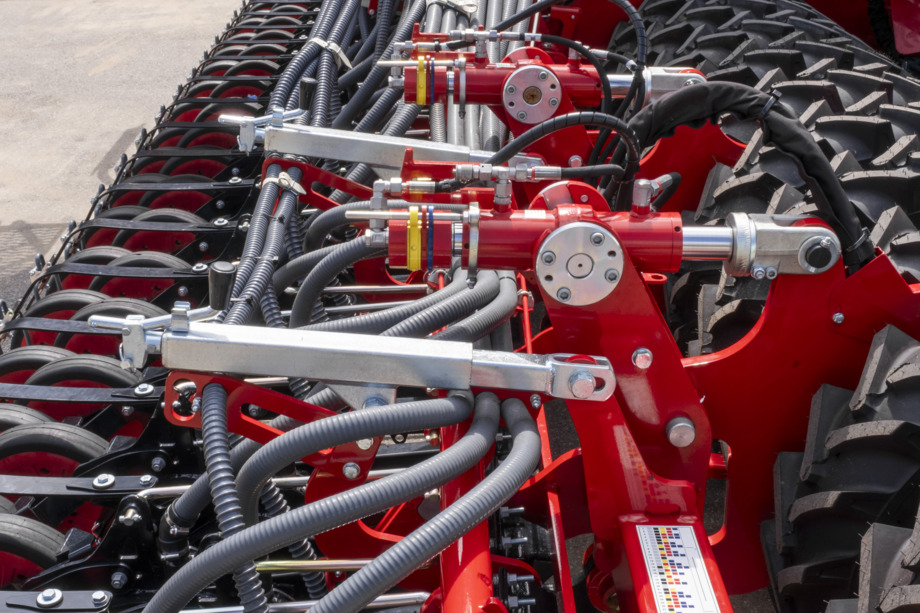

Hydraulic cylinder for electro-hydraulic seed depth adjustment - available for the Pronto 7 and 9 DC

The double lifting cylinder can be extended by 15 mm via the terminal, thus, the seed depth can be adjusted.

eosT10/eosT10 Pro

• High-resolution 10" terminal for controlling all ISOBUS devices according to ISO 11783

• Reliable and powerful: high-performance hardware combined with intuitive, user-friendly operation in day or night mode

• Various layout options allow for a simultaneous display of several applications – for an optimum overview.

• Straightforward transfer of application maps with the wireless task data exchange

• A real-time transmission of the terminal display via Remote Support facilitates the technical support.

Due to the high resolution and the well-thought-out user navigation, even complex machine functions can be operated comfortably. The high efficiency and the large (working) memory allow for a smooth handling of large data quantities or application maps. In addition to the traditional import resp. export of data via a USB flash drive, the transfer can also take place easily and comfortably online directly between the PC and the terminal.

Due to its high resolution, the eosT10 offers a state-of-the-art user experience for all ISOBUS-compliant machines.

Due to the WIFI interface, field boundaries, application maps or order data can be exchanged directly between PC and terminal.

The lean design of the 10" display allows for perfect integration into any tractor cabin.

eosT10 – robust hardware with diverse interfaces

In portrait mode, two applications can be optimally displayed and operated.

By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.

TECHNICAL SPECIFICATIONS

Working width

8,00 m

Transport width

2,99 m

Transport height

3,70 m

Length

8,25 m

Axle load

7800 - 10150 kg

Vertical load

750 - 1800 kg

Seed hopper capacity

4000 l

Hopper capacity double hopper

5000 (40 : 60) l

Dimension of feed opening

1,00 x 2,40 m

Feed opening double hopper

0,66 × 2,45 m

Filling height

3,10 m

Number of seed coulters

52 Piece

Coulter pressure seed coulters TurboDisc

15 - 125 kg

Seed coulters/press wheels Ø

34 / 32 cm

Row spacing

15,4 cm

Tyre packer size

7.50-16 AS

Tyre packer Ø

78 cm

Operational speed

10 - 20 km/h

Horsepower requirement

155/210 - 215/290 kW/hp

DA control devices

3 (each +1 for filling auger, front packer)

Depressurized return flow (max. 5 bar)

Oil quantity hydraulic fan

35 - 45 l/min

Implement attachment lower link

Cat. III – III/IV

Implement attachment adjustable drawbar

Pin Ø 40–50 mm mm

Implement attachment ball head

K 80

Working width

9,00 m

Transport width

2,99 m

Transport height

3,97 m

Length

8,50 m

Axle load

9200 - 11200 kg

Vertical load

750 - 1800 kg

Seed hopper capacity

4000 l

Hopper capacity double hopper

5000 (40 : 60) l

Dimension of feed opening

1,00 x 2,40 m

Feed opening double hopper

0,66 × 2,45 m

Filling height

3,10 m

Number of seed coulters

60 Piece

Coulter pressure seed coulters TurboDisc

15 - 125 kg

Coulter pressure seed coulters ParaDisc

25 - 150 kg

Seed coulters/press wheels Ø

34/32 cm

Number of PPF coulters

Coulter pressure PPF coulters

up to max. 200 kg

Row spacing

15,0 cm

Tyre packer size

7.50-16 AS

Tyre packer Ø

78 cm

Operational speed

10 - 20 km/h

Horsepower requirement

175/240 - 240/330 kW/hp

DA control devices

3 (each +1 for filling auger, front packer)

Depressurized return flow (max. 5 bar)

Oil quantity hydraulic fan

35 - 45 l/min

Implement attachment lower link

Cat. III – III/IV

Implement attachment adjustable drawbar

Pin Ø 40–50 mm mm

Implement attachment ball head

K 80
