Pronto 6 - 7 DC

Universal seeding technology for all conditions

Working width

6,00 - 7,20 m

Placement horizons

Hopper capacity single hopper

4000 L

Hopper capacity double hopper

5000 L

Pronto 6 - 7 DC

With the HORSCH Pronto DC, precise seed placement is achieved at highest operational speed and at the same time low horsepower requirement.

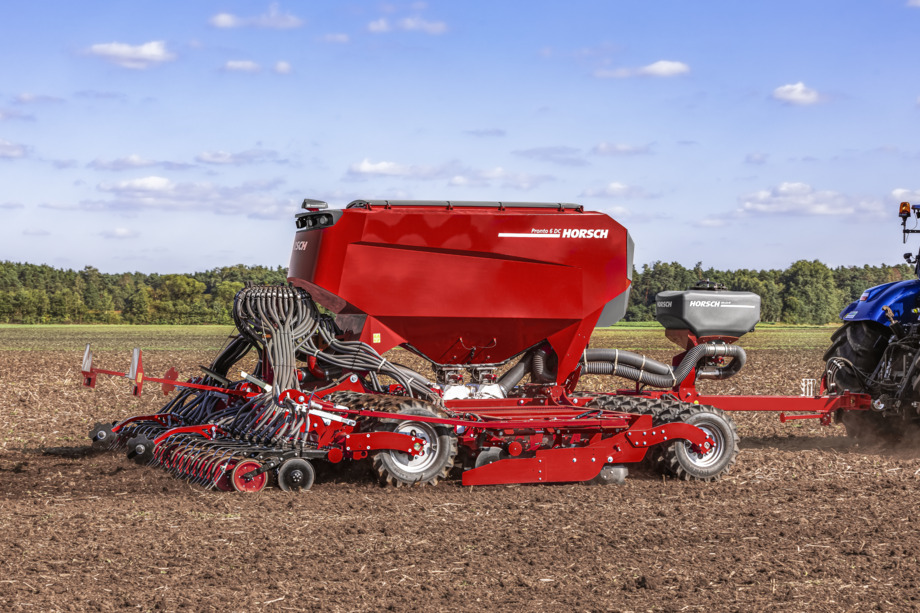

Pronto 6 DC – double hopper PPF with MiniDrill G&F

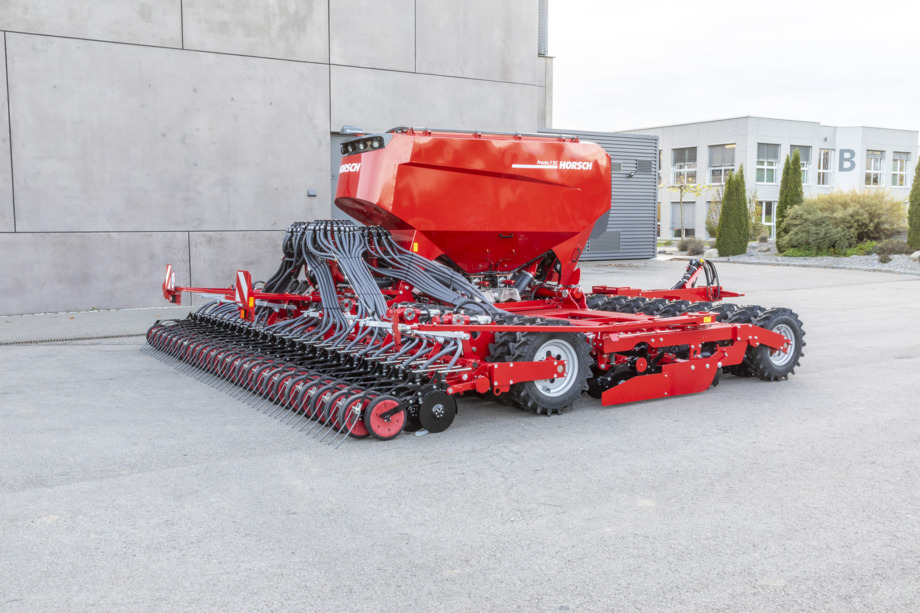

Pronto 7 DC with ParaDisc coulter

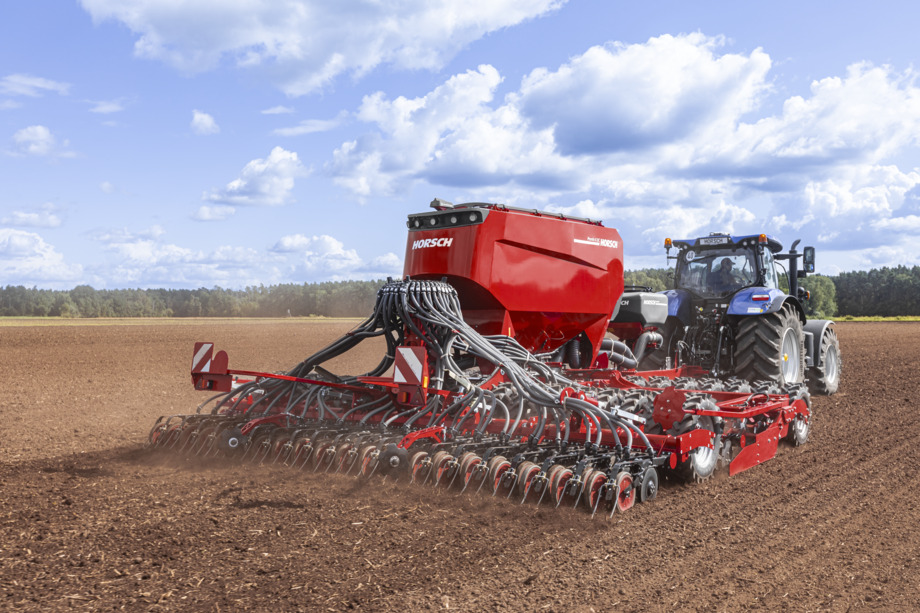

Pronto 6 DC with three different hoppers and a total capacity of 5 400 l

The double hopper system PPF allows for a separate metering and placing of 2 components in 2 horizons

Faster - Simpler - Safer

Low horsepower requirement: low weight, possibility of intermediate and side packer mounted on the machine frame
Up to three different components can be placed in three different horizons.
Optional MiniDrill versions are possible as a second or third component.
DiscSystem as a front tool: 46 cm disc diameter with high circumferential speed for high fine soil production

DiscSystem

• Efficient crumbling and even levelling over the whole working width

• High clearance extends the range of applications and increases reliability

• Increasing quality of work with increasing operational speed

• Hydraulic depth adjustment, infinitely variable while driving

• Electronic level indicator on the mixture tank

Hydraulic depth adjustment, infinitely variable while driving

DiscSystem Pronto DC - 46 cm large discs with serrated profile

Efficient crumbling and even levelling over the whole working width

Front tool cutting disc

• Targeted pre-cutting of the seed strip

• Removal of harvest residues and plant material from the seed furrow

• No tillage required due to the perfect clearing effect of the ondulated disc

• High operational reliability even in most challenging conditions

• Perfect combination of cutting disc and TurboDisc seed coulter

To adapt to volatile weather, the Pronto DC can be converted into a NoTill-compliant drill by replacing its standard disc system with corrugated cutting discs. These discs apply up to 160 kg of pressure to slice through harvest residues and pre-cut seed slots, enabling precise placement by the TurboDisc coulters without prior tillage. This direct seeding approach minimizes water loss, reduces fuel consumption, and preserves soil moisture for optimal germination across the Pronto 3, 4, 6, and 9 DC models.

Pronto DC with cutting disc

Large cutting disc with a diameter of Ø 18" for a safe penetration and cutting behaviour

Clearing and cutting the future seed slot

Tyre packer with AS profile

• Targeted and even levelling and consolidation in front of each seed coulter

• Straight tyre profile increases consolidation in the consolidation area

• Efficient consolidation below the seed horizon for better water distribution towards the seeds

• Low horsepower requirement due to large tyre diameter and no scrapers required

The HORSCH tyre packer ensures a targeted and even levelling and consolidation in front of every seed coulter The tyres are arranged in one line. Thus, clearance is optimum even on light soils. The straight tyre profile increases consolidation in the boundary area. The 10-ply special HORSCH tyres ensure a long service life. An efficient consolidation below the seed horizon guarantee a better water distribution towards the seeds The horsepower requirement is low due to large tyre diameter and no scrapers are required.

Tyre packer and TurboDisc seed coulters

Targeted and even levelling and consolidation in front of each seed coulter

Low horsepower requirement due to large tyre diameter and no scrapers required

Straight tyre profile increases consolidation in the consolidation area

Efficient consolidation below the seed horizon for better water distribution towards the seeds

TurboDisc seed coulter

• Double disc coulter

• Creates a precise seed furrow

• Press wheel controlled (5 cm or 7.5 cm wide)

• Uniformer prevents the grains from bouncing

• Inside scraper prevents blocking and clogging of the coulters

• Coulter pressure up to 125 kg via rubber torsion

• Designed for precise seed placement at high operational speeds

• Allows for an even and safe emergence

The HORSCH TurboDisc double disc coulter ensures rapid, uniform emergence by maintaining precise seed-to-soil contact at speeds up to 20 km/h. Its press wheel-controlled design follows soil contours independently of pressure settings, while an integrated **Uniformer** secures each seed at the furrow's base. Featuring maintenance-free rubber bearings that provide up to 125 kg of pressure and stone protection, the system also utilizes carbide-coated scrapers to prevent clogging in wet conditions, guaranteeing consistent placement depth across various terrains.

Tyre packer and TurboDisc seed coulters

5 cm wide press wheel – ideal on medium and heavy soils

7.5 cm wide press wheel – ideal on light soils

The movable scraper ensures a high self-cleaning effect in wet conditions

The HORSCH Uniformer ensures a precise fixing of the seed

The straight harrow - TurboDisc seed coulter harrow is controlled individually for a more efficient tillage

HORSCH TurboDisc seed coulter

Fall tube position in front of the mounting and moving inside scraper prevent blockage of the coulters in wet sowing conditions

ParaDisc seed coulter

• Parallelogram controlled double disc coulter

• Coulter pressure up to 150 kg is possible

• Ideal for difficult conditions

• Long service life due to massive components

The new HORSCH ParaDisc coulter is ideal for difficult conditions and ensures a safe seed placement with coulter pressures of up to 150 kg per individual row even in a dry hard seedbed. It is equipped with well-known HORSCH components like the Uniformer, a moving scraper and the well-proven bearing technology. The experiences from the Maestro single grain seed drills and the PowerDisc seed coulter of the Serto SC were included in the design.

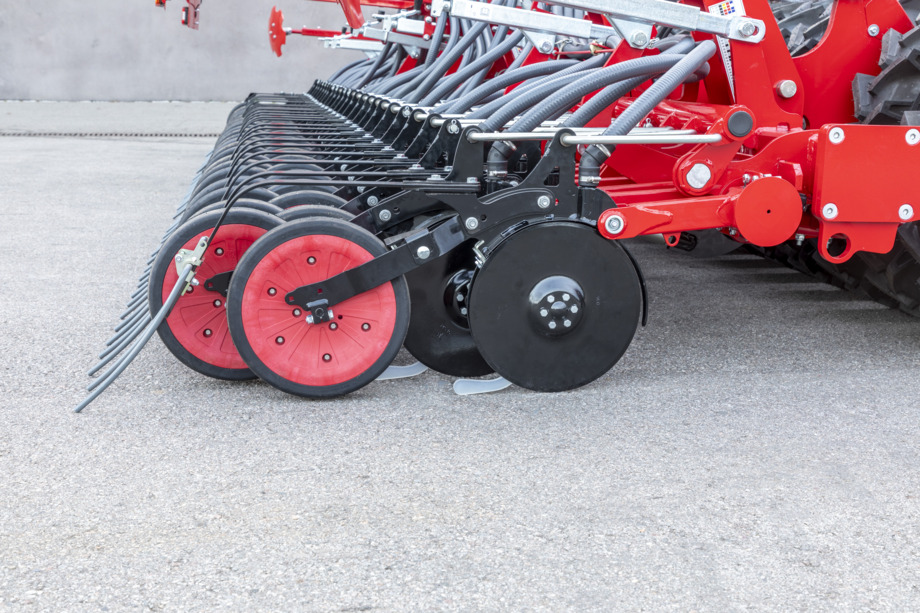

ParaDisc seed coulter – coulter pressure of up to 150 kg is possible

ParaDisc seed coulter – 7 cm wide press wheel

Pronto 7 DC with ParaDisc coulter

The HORSCH Uniformer ensures a precise fixing of the seed

HORSCH metering system / HORSCH rotors

• Exact application

• Optimum seed distribution

• HORSCH rotor selection – find the optimum rotor for your machine quickly and easily

• Depending on the components, seed rate and operational speed, various options can be selected

• Easily accessible

• Rotor shafts can be replaced without any tools

HORSCH metering systems offer maximum flexibility through a range of interchangeable rotors tailored to specific seed rates, speeds, and machine configurations. For drills with double drop tubes, specialized rotors enable precise distribution and half-width shut-off, while an integrated valve system allows for quick rotor swaps without emptying the hopper. To ensure accuracy, HORSCH provides a rotor selection server for guidance, though a calibration test is always recommended to guarantee an optimum seed rate across the entire working width.

Tyre packer and TurboDisc seed coulters

Targeted and even levelling and consolidation in front of each seed coulter

Low horsepower requirement due to large tyre diameter and no scrapers required

Straight tyre profile increases consolidation in the consolidation area

Efficient consolidation below the seed horizon for better water distribution towards the seeds

One-side folding

• Use of medium-sized loading technology

• Easier and safe filling of the machine

• Repositioning of a pin on the machine frame that does not require any tools allows for a safe, one-side folding

The Pronto 6 - 7 DC simplifies hopper filling via a one-side folding feature, allowing medium-sized loading equipment to easily reach the hopper without bridging the distance to the machine's center. By repositioning a single pin, users can fold one wing to reduce the required reach for BigPacks, providing a practical and height-accessible solution for smaller loading setups.

ParaDisc seed coulter – coulter pressure of up to 150 kg is possible

ParaDisc seed coulter – 7 cm wide press wheel

Pronto 7 DC with ParaDisc coulter

The HORSCH Uniformer ensures a precise fixing of the seed

Double hopper Grain & Fertiliser

• Both components are metered separately and are transported together via the distribution tower or the distribution towers into the seed coulter.

• The G&F double hopper system allows for the simultaneous application of seed and fertiliser as contact fertilisation.

• The fertiliser is immediately available to the young plant and thus contributes to a quick early growth. This system should only be used in appropriate climatic conditions and with the assistance of a crop production consultant.

• Not only seed and fertiliser, but also 2 different seeds can be transported, metered and sown separately.

The G&F double hopper system allows for the simultaneous application of seed and fertiliser as contact fertilisation. Both metering devices meter into one common distribution tower. Seed and fertiliser are thus placed together in one furrow. The fertiliser is immediately available to the young plant and thus contributes to a quick early growth. This system should only be used in appropriate climatic conditions and with the assistance of a crop production consultant. Not only seed and fertiliser, but also 2 different seeds can be transported, metered and sown separately.

Double hopper G&F - meter different components separately and place them together in the seed coulter

Double hopper Grain & Fertiliser - combined placement of two components via the TurboDisc seed coulter

Double hopper with PPF-system

• Allows for applying 2 components in 2 horizons at the same time

• PPF disc system - separate single disc coulters allow for a placement under and between the seed coulters

• As seed and fertiliser are placed separately, high quantities can be applied in dry conditions.

• 100% control of the nozzle function – even with section control

• Thus, the created fertiliser depot can be used optimally by the plant and encourages the roots to grow downwards.

• When sowing catch crops, coarse-grained legumes for example can be applied in a deep seed horizon while another component is placed more shallowly via the TurboDisc seed coulters.

The PPF-system allows for simultaneously applying seed and fertiliser. Via separate fertiliser coulters, the fertiliser is placed a few centimetres below the seed furrow in the wet soil. As seed and fertiliser are placed separately, high quantities can be applied in dry conditions. Thus, the created fertiliser depot can be used optimally by the plant and encourages the roots to grow downwards. When sowing catch crops, coarse-grained legumes for example can be applied in a deep seed horizon while another component is placed more shallowly via the TurboDisc seed coulters.

Pronto 6 DC with MiniDrill G&F and double hopper with PPF system

Double hopper with PPF system – allows for simultaneously applying 2 components on 2 horizons

Outside PPF distribution tower for optimum accessibility

Placement on a second horizon via single disc coulter

The optional double disc fertilizer coulters reduce the side draft compared to single disc fertilizer coulters

MiniDrill G & F options

• The MiniDrill can be used as a second or third hopper for seed, fertiliser or microgranular compounds. It can either meter into the seed coulters or into an optional PPF disc system.

• The MiniDrill with a capacity of 400 l

• Example- 400 l of canola in the MiniDrill allow for filling the other hoppers with mineral fertiliser.

• Filling stops are easily reduced, and you gain valuable time for sowing. Thus, when sowing rape, the efficiency of the machine almost doubles.

The MiniDrill can be used as a second or third hopper for seed, fertiliser or microgranular compounds. It can either meter into the seed coulters or into an optional PPF disc system. The MiniDrill with a capacity of 400 l, filled with rape seed, allows for filling the other hoppers with mineral fertiliser. Filling stops are easily reduced, and you gain valuable time for sowing. Thus, when sowing rape, the efficiency of the machine almost doubles.

MiniDrill in the front - Pronto DC

MiniDrill G & F options

MiniDrill version 3 with double hopper PPF – application into the seed coulter

MiniDrill version 4 with double hopper PPF – application into the PPF disc system

MiniDrill Variant 1 & 2 – Application into the seed coulter

MiniDrill Solo versions

• This further component is applied via deflector plates on the surface of the field.

• In this case, you can use the MiniDrill to take along microgranular compound, underseeds or slug pellets

• The solo versions of the MiniDrill are equipped with an own fan, an own pneumatic system with a separate distributor tower and baffles

• TThere are three options for the position of the baffles

• Between or behind the seed coulters or at the optional Crossbar in front of the tyre packer of the Pronto

The possibility to place three different components precisely on three different seed horizons makes the Pronto with double hopper PPF a perfect catch crop seed drill. Via the PPF discs in front of the tyre packer field beans for example can be placed deeply, on the normal horizon the seed coulters can sow vetches, and grass or clover are applied via the deflectors. The placement of catch crops in the optimum seed horizon, the application of microgranular compound or slug pellets as well as the possibility to sow underseeds illustrate the variety of uses of the MiniDrill mounted on the Pronto DC.

MiniDrill in the front - Pronto DC

The MiniDrill Solo versions are equipped with an own fan, an own pneumatic system and another placement horizon

MiniDrill option 9: application via baffles at the optional Crossbar. Ideal for applying underseeds as they are consolidated again by the tyre packer.

MiniDrill option 7: application via the baffles between the seed coulters

MiniDrill option 8: application via the baffles behind the coulters

Double hopper PPF combined with MiniDrill option 7 allows for placing 3 components on 3 horizons

Oil cooler

• Heats up the airflow in the pneumatic system

• Maintains the flowability of fertiliser in wet conditions, e.g. dew in the morning, for a longer period

• Lowers the oil temperature in the system and relieves the tractor's oil cooler

The optional oil cooler at the hydraulic fan heats up the air flow in the pneumatic system. This lowers the oil temperature in the system and relieves the tractor's oil cooler. Another very important advantage is that it maintains the flowability of the fertiliser in wet conditions, e.g. dew in the evening.

Oil cooling on the hydraulic fan – heats the air flow in the pneumatic system

Lowers the oil temperature in the system and relieves the tractor's oil cooler

Maintains the flowability of the fertiliser in wet conditions, like dew in the morning

Can be unfolded without tools for optimised accessibility in case of service

RowControl distribution tower

• Possibility of individual row switch-off to the last row

• Freely selectable tramlines

• Freely adjustable row spacings

• Optimum solution for different tramline rhythms in the contracting sector

• High savings on resources due to precise switching-off of the seed rows on the headlands and in case of obstacles

The RowControl distribution tower revolutionizes seed drills by enabling individual row switch-off while maintaining perfect lateral distribution. This innovative system maximizes efficiency and crop health by eliminating overlaps at headlands and obstacles, significantly reducing seed and fertilizer costs. Managed entirely through a digital terminal, it offers unprecedented flexibility with freely selectable tramline rhythms and adjustable row spacings (from 15 cm to 75 cm), making it an ideal, user-friendly solution for contractors and diverse population management needs.

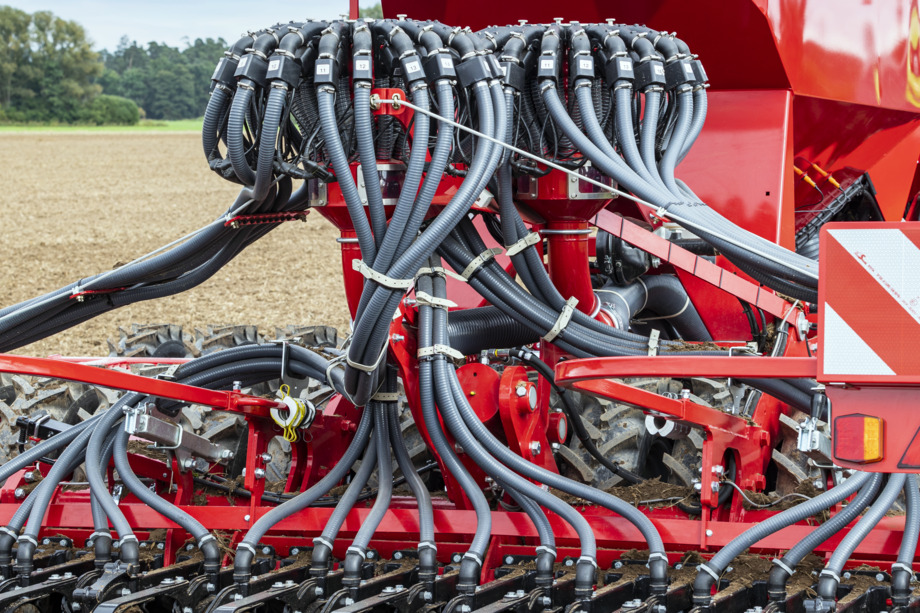

RowControl distribution tower - 2-tower version at the Pronto 6 & 7 DC

RowControl distribution tower

RowControl flap open: seed is transported to the coulter

RowControl flap closed: excess air escapes via the coulter, the seed is transported to the injector and supplied again to the distributor tower – no lateral distribution losses

Intermediate axle packer & front packer

• Lowest possible track depths of the tractor in the seedbed

• Relieves extra load from the rear axle of the tractor

• Additional levelling of the surface

• Shallow working of the disc harrow is possible due to the lower track depths of the tractor

• Low horsepower requirement saves fuel

The smallest possible track depths of the tractor in the seedbed ensure good plant populations and contribute to the low horsepower requirement of the Pronto. The tyre packer that can be mounted additionally takes the weight of the machine, relieves the rear axle of the tractor and additionally levels the surface. This guarantees that the disc harrow can work more shallowly and this saves tractive power and fuel.

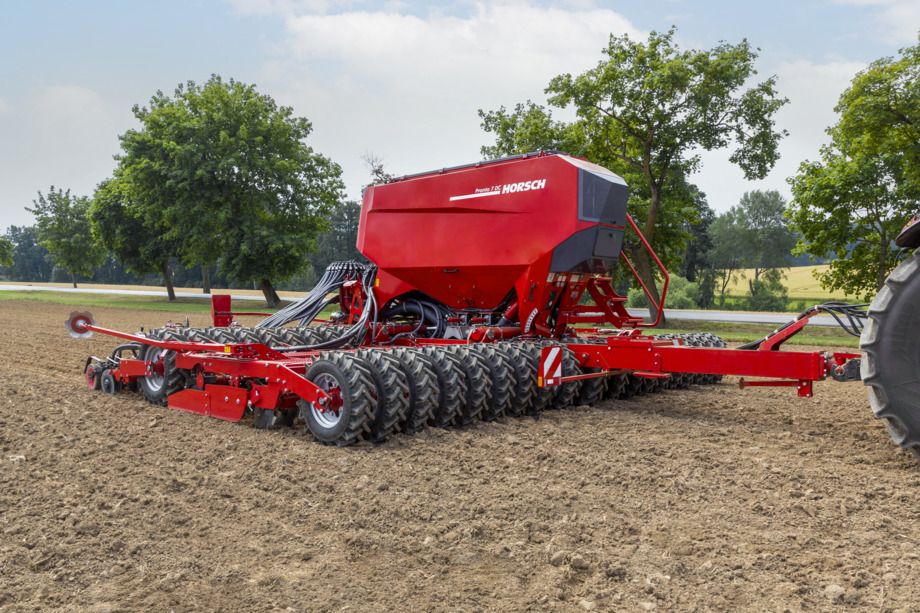

Front packer Pronto 6 DC – shallow working of the disc system is possible due to lower track depths of the tractor

Front packer - Pronto DC

Lowest possible track depths of the tractor in the seedbed

Low horsepower requirement saves fuel

Crossbar front

• Additional levelling

• Can be moved in or out hydraulically

• Fully integrated into the machine

The continuous Crossbar in front of the disc system of the Pronto DC is ideal for an additional levelling, for example on ploughed soils. Depending on the conditions, the Crossbar can be retracted or extended flexibly via hydraulic cylinders and the aggressiveness can be adjusted.

Crossbar in front of the disc zone

Levelling effect in front of the disc zone

WorkLight Pro

• Optimal illumination of the working surroundings at twilight and at night

• Flexibly rotatable LED headlights

• Can be switched on/off via the terminal

• Another headlight illuminates the metering unit

Flexibly adjustable LED headlights in the rear ensure an optimum illumination behind the seed drill combination. Flexibility plays an important role while sowing as you should choose the perfect sowing time for an optimum population. When sowing late or early, WorkLight Pro guarantees an optimum illumination of the area behind the seed drill combination. Another LED headlight perfectly illuminates the metering unit and ensures optimum visibility during the calibration process at a late hour.

WorkLight Pro

Flexibly rotatable LED headlights

Fertiliser and seed flow control

• For a complete monitoring of the seed and fertiliser hoses

• Warning if a pneumatic hose is blocked

• Sowing errors are avoided

• Monitoring of the pneumatic flow at the distribution tower

The fertiliser and seed flow control is a reasonable electronic solution to prevent sowing errors. The sensors control the flow directly behind the distribution tower and detect blockages. Thus, the individual pneumatic hoses are monitored and within seconds you get a notification in the terminal – both acoustic and visual.

Fertiliser and seed flow control – for a permanent monitoring of the seed and fertiliser hoses

Monitoring of the pneumatic flow at the distribution tower

Spelt pneumatics

• Optimised pneumatic hosing for seeds with husks

• chamfered seed flow tubes prevent the husks from getting wedged

• Optional seed flow sensors support the prevention of gaps

Sowing spelt with husks always is a challenge for farmers. HORSCH developed a special pneumatic adaption for this crop which has been optimised over several years. To make sure that the spelt with husk does not wedge and cause blockings, all corners and edges in the pneumatic system are checked and rough edges are removed. For example, the seed tubes at the seed coulters are chamfered and the seed hoses are directly attached to the coulters with cable ties. The seed flow sensors that are recommended for sowing spelt are also chamfered. Thus, spelt can be transported smoothly through the pneumatics and gaps are prevented.

Spelt pneumatics for husk-bearing seeds

Optimised pneumatic hosing and chamfered seed tubes

Spelt pneumatics

Hydraulic coulter pressure increase TurboDisc coulters

• Hydraulic coulter pressure increase via tractor control device

• 4-point cabin suspension

• Very high driving comfort on long working days and in unfavourable conditions

Due to the option of a hydraulic coulter pressure increase, the coulter pressure can be increased in the tractor cabin via a tractor control device when sowing in uneven soil conditions. The important feature is the easy handling of the system as from a plant production point of view an even emergence is the prerequisite for the customised and safe management of crop populations. If the coulter pressure is too high, compaction in the area of the seed furrow is increased. This has a negative influence on the development of the first germination roots. If the coulter pressure is too low, however, the sowing depth may vary.

The coulter pressure can be increased via the tractor control device

Pre-emergence marker

• Fully automatic control via the tramline rhythm

• The aggressiveness of the pre-emergence marker is adjusted via a depth stop.

• Mounted directly on the seed coulter, precise depth control via the press wheel

• Easy activation and deactivation of the pre-emergence marker via ISOBUS

The pre-emergence markers are recommended for crops that require maintenance measures before the laid tramlines become visible. They are controlled fully automatically via the tramline rhythm of the terminal. The mounting on the seed coulter allows for a precise depth control via the press wheel. The aggressiveness of the pre-emergence marker is adjusted via a depth stop.

The aggressiveness of the pre-emergence marker is adjusted via a depth stop

Spring-loaded track-eradicator tines

• Loosening compacted soil in the tractor track

• Fixing with a bolt in a hole system without tools

• For rotary harrows or disc harrow systems, a shallower cultivation depth is possible

• Leave an even field without tracks

The spring-loaded track eradicator tines allow for loosening the soil in the tractor track. They can be fixed without any tools with a bolt in a hole system. For seedbed preparation the working tool can be adjusted more shallowly as the tracks that have to be eliminated have already been loosened. The tines are suitable for mulch seed only to a limited extent as they may be prone to clogging in case of high amounts of harvest residues.

Spring-loaded track eradicator tines loosen soil compactions in the tractor track

HorschConnect

• Digital solutions exactly where they make sense

• Straightforward out-of-the-box solution with already integrated SIM card, Wi-Fi modem and other interfaces

• HorschConnect Telematics to document the performance of the machine

• HorschConnect Telematics for complete transparency of the working quality, e.g. the application rate of all components

• Targeted and proactive service by remote access to error messages

• Control of machine functions via the smartphone app HORSCH Control: e.g. carrying out nozzle tests for individual sections

Prepare today for tomorrow. Easily control various machine functions via the HORSCH Control app – your smartphone complements the terminal! Gain comprehensive, transparent insight into work rate and work quality with HorschConnect Telematics.

With HorschConnect, telemetry solutions are making their way into the sectors seeding and crop care - exactly where they make sense

The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone

Success factor transparency: position-specific data of all relevant information like error messages, application rate, nozzle status or target area spacing

With the field boundaries import all data can be analysed over the season – even in a site-specific way

HorschConnect

The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone

1-row Crossbar behind the DiscSystem

• The hydraulically adjustable 1-row crossbar directly behind the DiscSystem is the ideal solution on medium and heavy soils.

• It is placed between the DiscSystem and the tyre packer and the aggressiveness can be adjusted steplessly hydraulically.

• After a rough cultivation, this option may improve the production of fine soil.

• Thus, an even more even consolidation can be achieved.

The hydraulically adjustable 1-row Crossbar is the ideal solution on medium and heavy soils after rough cultivation. This option can improve seedbed preparation due to an optimised production of fine soil. This also ensures a more even consolidation.

The 1-row Crossbar directly behind the DiscSystem can be adjusted hydraulically.

The 1-row Crossbar improves levelling and fine soil production.

1-row harrow behind the DiscSystem

• The 1-row harrow breaks the earth flow created by the DiscSystem and thus supports crumbling and levelling in front of the packer. Recommended on light soils.

• It is placed between the DiscSystem and the tyre packer. The adjustment is carried out mechanically via a hole pattern.

The 1-row harrow behind the DiscSystem supports levelling on light and medium soils by smoothing the earth flow. The harrow is placed between the DiscSystem and the tyre packer. The adjustment is carried out mechanically via a hole pattern.

The harrow is placed between the DiscSystem and the tyre packer. The adjustment is carried out mechanically via a hole pattern.

Fine metering insert kits

• Perfect for microgranular compounds and fine seeds

• Seed rates of 1.5 kg/ha to 60 kg/ha

• Can be used in every machine with a pressurised hopper

• Fine metering insert kit includes:

• A drive shaft with four possible drive pinions

• Three rotors with different sizes

• Individual spacers depending on the drive shaft

The HORSCH fine metering insert kit provides a precise, versatile solution for applying microgranular compounds and fine seeds across all HORSCH machines with pressurized hoppers. By utilizing a modular system of drive shafts, interchangeable rotors of various sizes, and specialized spacers, the kit allows for highly accurate application rates ranging from 1.5 kg/ha to 60 kg/ha. This simple yet flexible design is compatible with models like the Partner, MiniDrill, Pronto, and Focus, offering seamless integration for diverse agricultural needs.

Fine metering insert – rotor

Fine metering insert kits for standard metering unit hexagonal shaft

Fine metering insert kits for double metering unit spline shaft drive

Fine metering insert for double metering unit hexagonal shaft

Bout marker

• Automatic, electro-hydraulic control

• In normal operation, the machine is automatically controlled when lifting/lowering.

• Additional weights allow for marking the track in most difficult conditions.

• In transport position, the bout markers are secured by lock valves.

The hydraulic bout markers allow for driving track-on- track while seeding. Additional weights on the disc blades can help to mark the surface in difficult conditions.

Electro-hydraulic drilling depth adjustment

• Depth adjustment via the application card is possible

• Sowing depth adjustment is possible via the terminal

• Optimum drilling depth depending on the soil conditions

• Two seed depths can be adjusted in a pre-setting way

The electro-hydraulic drilling depth adjustment allows for a perfect drilling depth in different soil types and conditions. Two drilling depths can be adjusted with clips. The driver determines whether he/her wants to adjust the drilling depth manually via the terminal or whether he/her can automatically use application cards. The double lifting cylinder can be extended by 15 mm via the terminal, thus, the seed depth can be adjusted.

Hydraulic cylinder for electro-hydraulic seed depth adjustment - available for the Pronto 7 and 9 DC

The double lifting cylinder can be extended by 15 mm via the terminal, thus, the seed depth can be adjusted.

eosT10/eosT10 Pro

• High-resolution 10" terminal for controlling all ISOBUS devices according to ISO 11783

• Reliable and powerful: high-performance hardware combined with intuitive, user-friendly operation in day or night mode

• Various layout options allow for a simultaneous display of several applications – for an optimum overview.

• Straightforward transfer of application maps with the wireless task data exchange

• A real-time transmission of the terminal display via Remote Support facilitates the technical support.

Due to the high resolution and the well-thought-out user navigation, even complex machine functions can be operated comfortably. The high efficiency and the large (working) memory allow for a smooth handling of large data quantities or application maps. In addition to the traditional import resp. export of data via a USB flash drive, the transfer can also take place easily and comfortably online directly between the PC and the terminal.

Due to its high resolution, the eosT10 offers a state-of-the-art user experience for all ISOBUS-compliant machines.

Due to the WIFI interface, field boundaries, application maps or order data can be exchanged directly between PC and terminal.

The lean design of the 10" display allows for perfect integration into any tractor cabin.

eosT10 – robust hardware with diverse interfaces

In portrait mode, two applications can be optimally displayed and operated.

By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.

TECHNICAL SPECIFICATIONS

Working width

6,00 m

Transport width

3,00 m

Transport height

2,99 m

Length

8,30 m

Axle load

5700 - 8900 kg

Vertical load

700 - 1600 kg

Seed hopper capacity

4000 l

Hopper capacity double hopper

5000 (40 : 60) l

Hopper capacity MiniDrill

400 l

Feed opening single hopper

0,75 x 2,40 m

Feed opening double hopper

0,66 x 2,40 m

Filling height single hopper

2,65 m

Filling height double hopper

2,90 m

Application rates of pressure tank system at the seed coulter at 10 - 15 km/h

Wheat 600 - 400 / Barley 480 - 320 / Oats 390 - 260 kg/ha

Application rate of PPF fertilizer coulters at 10 - 15 km/h

350 - 230 kg/ha

Application rates of the injector system at 10 - 15 km/h

Single tower: wheat 310 - 210 / barley 250 - 160 / oats 200 - 130, double tower: wheat 350 - 230 / barley 280 - 190 / oats 230 - 150 kg/ha

Number of PPF coulters

20 Piece

Coulter pressure PPF coulters

up to max. 200 kg

Number of seed coulters

40 Piece

Coulter pressure seed coulters TurboDisc

15 - 125 kg

Seed coulters/press wheels Ø TurboDisc

34 / 32 cm

Row spacing

15 cm

Tyre packer size

7.50 - 18 AS

Tyre packer Ø

85 cm

Operational speed

10 - 20 km/h

Horsepower requirement

120/160 - 185/250 kW/hp

DA control devices

3 (plus +1 each for filling auger, coulter pressure adjustment, crossbar)

Depressurized return flow (max. 5 bar)

Oil quantity hydraulic fan

20 - 25 single hopper / 35 - 45 double hopper l/min

Implement attachment lower link

Cat. II/III – III – III/IV

Implement attachment ball head

K 80

Working width

6,00 m

Transport width

2,98 m

Transport height

3,16 m

Length

8,50 m

Axle load

6000 - 9000 kg

Vertical load

750 - 2000 kg

Seed hopper capacity

4000 l

Hopper capacity double hopper

5000 (40:60) l

Hopper capacity MiniDrill

400 l

Feed opening single hopper

0,75 x 2,40 m

Feed opening double hopper

0,66 x 2,40 m

Filling height single hopper

3,10 m

Filling height double hopper

2,95 m

Application rate of PPF fertilizer coulters at 10 - 15 km/h

350 - 230 kg/ha

Number of PPF coulters

20 Piece

Coulter pressure PPF coulters

up to max. 200 kg

Number of seed coulters

40 Piece

Coulter pressure seed coulters TurboDisc

15 - 125 kg

Coulter pressure seed coulters ParaDisc

25 - 150 kg

Seed coulters/press wheels Ø TurboDisc

34 / 32 cm

Row spacing

15 cm

Tyre packer size

7.50 - 18 AS

Tyre packer Ø

85 cm

Operational speed

10 - 20 km/h

Horsepower requirement

120/160 -185/250 kW/hp

DA control devices

3 (each +1 for filling auger, coulter pressure adjustment, Crossbar)

Depressurized return flow (max. 5 bar)

Oil quantity hydraulic fan

20 - 25 (single hopper)/35 - 45 (double hopper) l/min

Implement attachment adjustable drawbar

Pin Ø 40 - 50 mm mm

Implement attachment ball head

K 80

Working width

7,20 m

Transport width

2,98 m

Transport height

3,93 m

Length

8,50 m

Axle load

7800 - 10000 kg

Vertical load

750 - 2000 kg

Seed hopper capacity

4000 l

Hopper capacity double hopper

5000 (40 : 60) l

Hopper capacity MiniDrill

400 l

Feed opening single hopper

0,75 × 2,40 m

Feed opening double hopper

0,66 × 2,40 m

Filling height single hopper

3,10 m

Filling height double hopper

2,95 m

Application rates of pressure tank system at the seed coulter at 10 - 15 km/h

Wheat 600 - 400 / Barley 480 - 320 / Oats 390 - 260 kg/ha

Application rate of PPF fertilizer coulters at 10 - 15 km/h

350 - 230 kg/ha

Number of PPF coulters

24 Piece

Coulter pressure PPF coulters

up to max. 200 kg

Number of seed coulters

48 Piece

Coulter pressure seed coulters TurboDisc

15 - 125 kg

Coulter pressure seed coulters ParaDisc

25 - 150 kg

Seed coulters/press wheels Ø TurboDisc

34 / 32 cm

Row spacing

15 cm

Tyre packer size

7.50 - 18 AS

Tyre packer Ø

85 cm

Operational speed

10 - 20 km/h

Horsepower requirement

145/200 - 205/280 kW/hp

DA control devices

3 (each +1 for filling auger, coulter pressure adjustment, Crossbar)

Depressurized return flow (max. 5 bar)

Oil quantity hydraulic fan

20 - 25 single hopper / 35 - 45 double hopper l/min

Implement attachment lower link

Cat. II/III – III – III/IV

Implement attachment adjustable drawbar

Pin Ø 40 – 50 mm

Implement attachment ball head

K 80
