Leeb Xeric FS
Efficiency and precision in fertilisation technology
Tank capacity
14000 L
Max. application rate
400 (at 15 km/h) kg/ha
Empty weight
11100 - 13500 kg
Working width
36 / 39 / 48 m

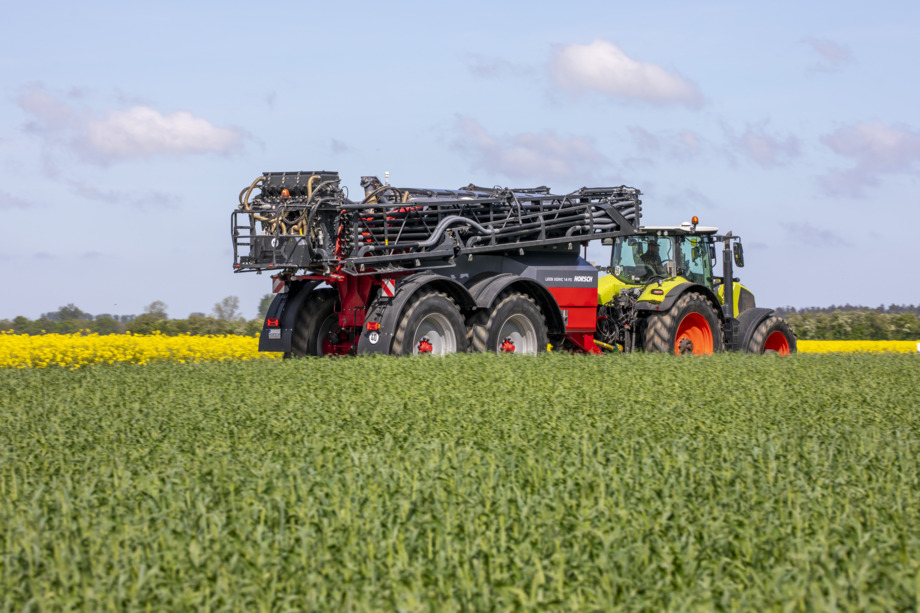

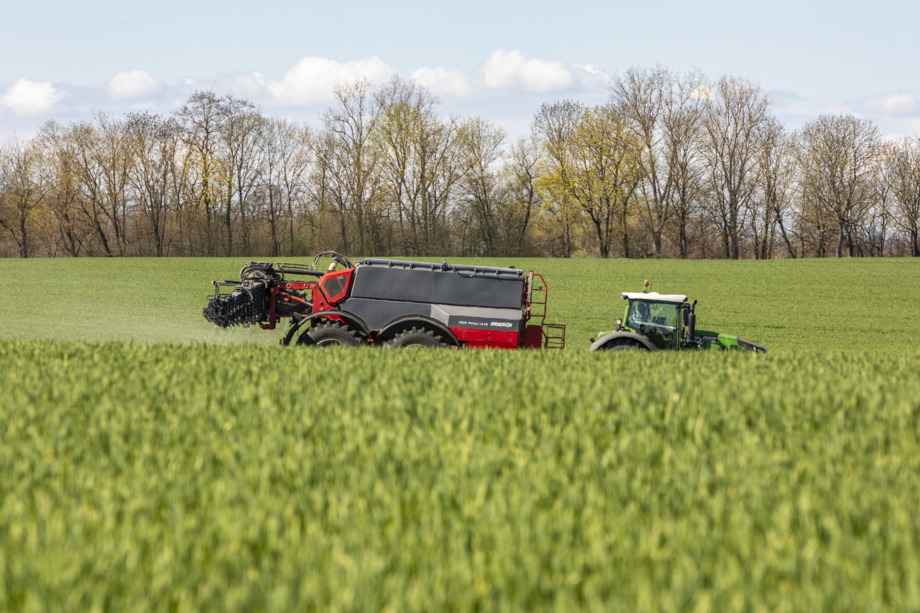

The HORSCH Leeb Xeric 14 FS fully meets the requirements for larger tank capacities while at the same time ensuring the protection of soil and material due to the innovative metering concept.
Intelligent metering concept with maximum efficiency and optimal distribution of the vertical load
High soil protection with tyres up to 2.19 m Ø
Precise distribution of fertiliser via the boom even with strong winds
Hydraulic suspension and kingpin steering with a steering angle of up to 28° for high driving comfort and maximum crop protection
Intelligence and efficiency
Perfect application in any terrain with BoomControl Pro
Efficiency with 14 m³ tank capacity
Large tank capacity of 14 000 l and unique metering and distribution concept
- Large tank capacity of 14 000 l
- Efficiency and high operational speed of up to 20 km/h
- Precision of a boom spreader, low susceptibility to wind, and precise shut-off at the boundaries
- Working widths of 36, 39, or 48 m
- Active boom control system BoomControl for optimal target area spacing and maintenance of the exact working height

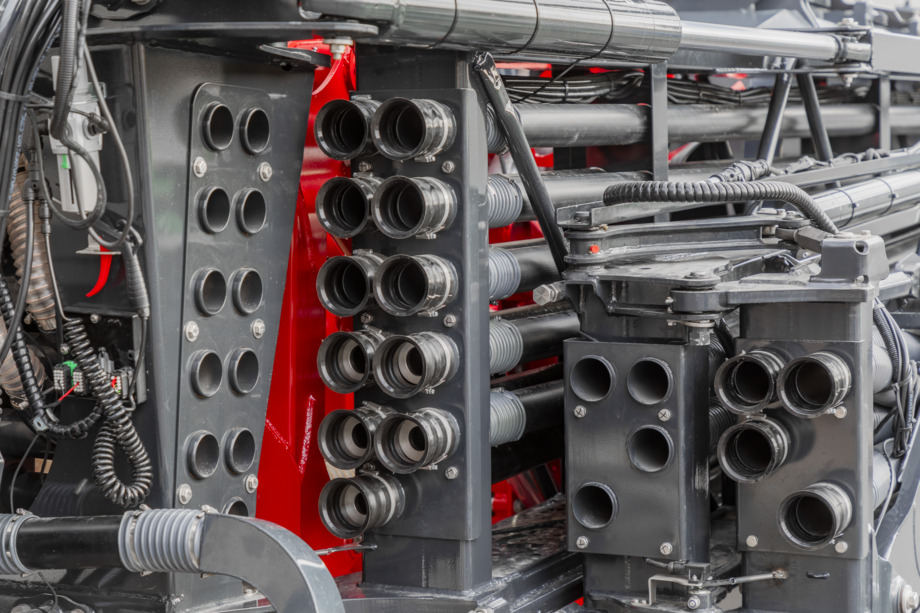

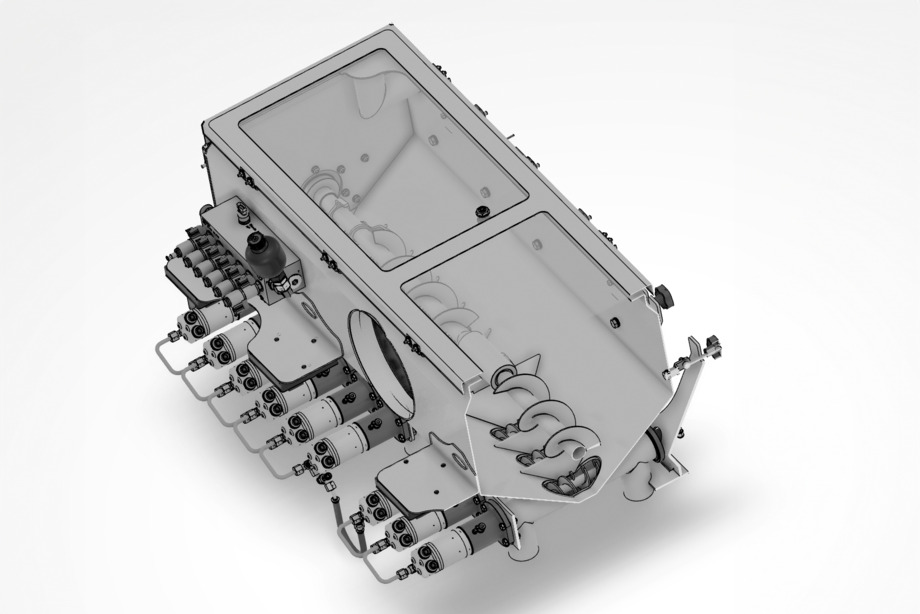

PrecisionCalibrationSystem
• 12 rotors meter the spreading material into the airflow directly above the middle part of the boom.
• Permanent monitoring of the application rate by active weighing and calibration to the spreading material
• VariableRate, VariableRate per section and curve compensation for a precise application
• Metering via gravity into the airlock, transport of the fertilizer with air only in the boom, thus requiring little air performance and resulting in very low wear.
• Low requirement on fertiliser quality
• User-friendly change of metering rotors, even for small application rates, with supplied tools
• Comfortable and safe platform for cleaning and maintenance work

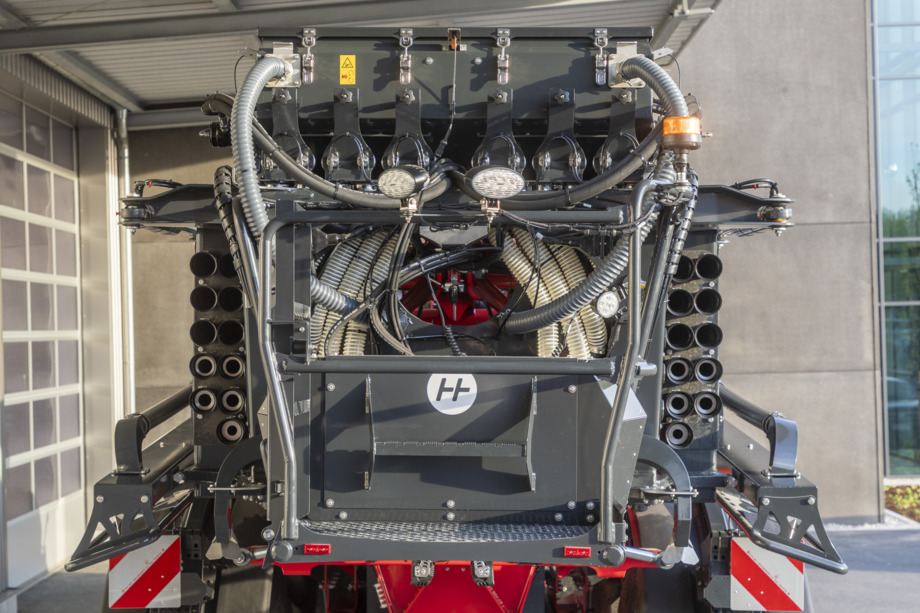

The HORSCH Leeb Xeric FS features the PrecisionCalibrationSystem (PCS), a centralized metering unit that ensures precise fertilizer distribution through continuous weighing and calibration. By utilizing gravity-fed metering rotors and low-pressure air, the system minimizes wear and energy consumption while remaining compatible with diverse materials. This design supports advanced section control, curve compensation, and variable-rate application, all housed in a user-friendly layout that simplifies maintenance via a safe, accessible platform.

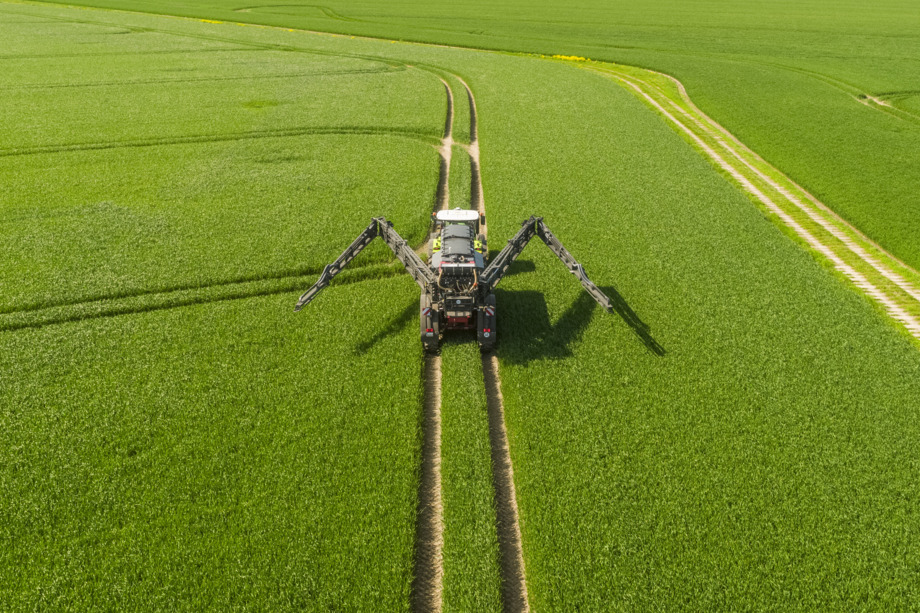

Active steering DynamicSteering
• Kingpin steering of both axles for precise following in the tractor tracks prevents track damage in the crop
• Maximum manoeuverability and stability in uneven terrain
• Two additional selectable steering modes ensure maximum tracking precision without scraping or provide highest material protection in tight turns
• Can be overriden via joystick in the cabin when manoeuvring
• Gyroscope directly on the axle: no calibration required
• Integrated in machine software

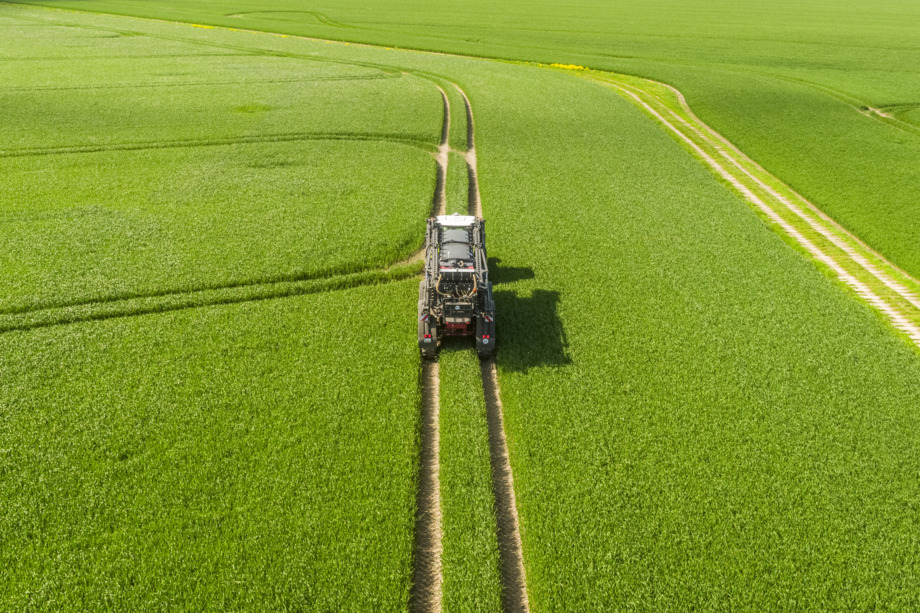

The HORSCH kingpin steering system provides high stability and precise track-following, utilizing a waisted frame to achieve 28° steering angles even with large, soil-protecting tires. Featuring a unique, sensor-free gyroscope design, the system offers selectable steering modes to minimize crop damage during tight turns and automatically centers during high-speed field work or road transport. This allows for extreme maneuverability and manual joystick overrides without the need for frequent calibration.
When the pump is running, a mixture circulates continuously in the boom (top) so that it is immediately available at the nozzle when spraying (bottom).

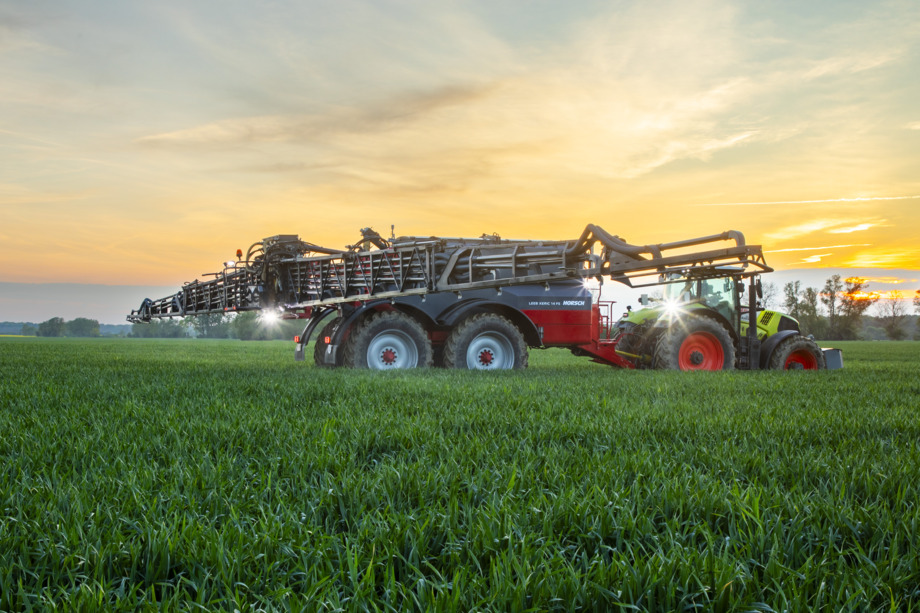

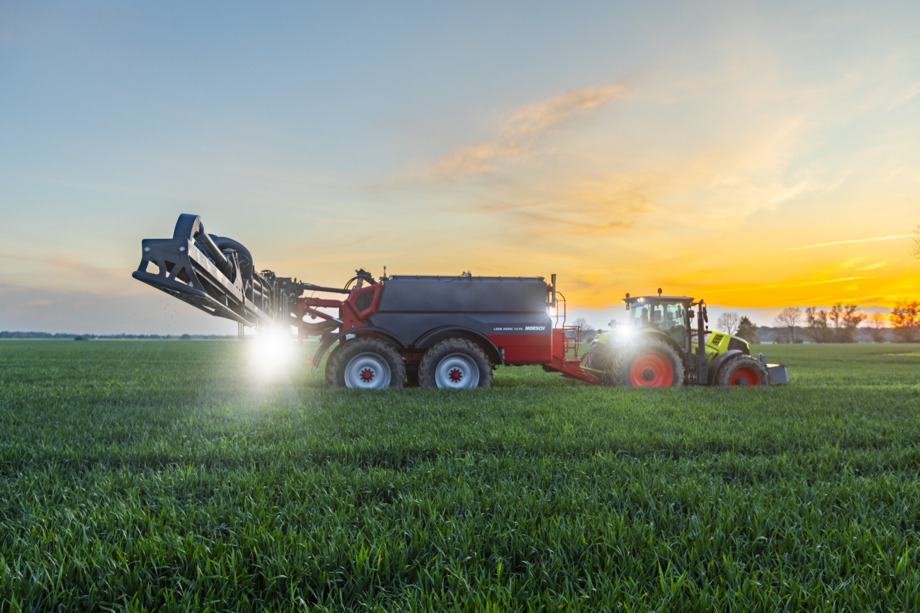

Boom
• Parallelogram suspension with BoomControl for stable boom position in all conditions
• Boom basic versions in working widths of 36 m, 39 m, and 48 m
• Wear-proof PE tubes for long service life

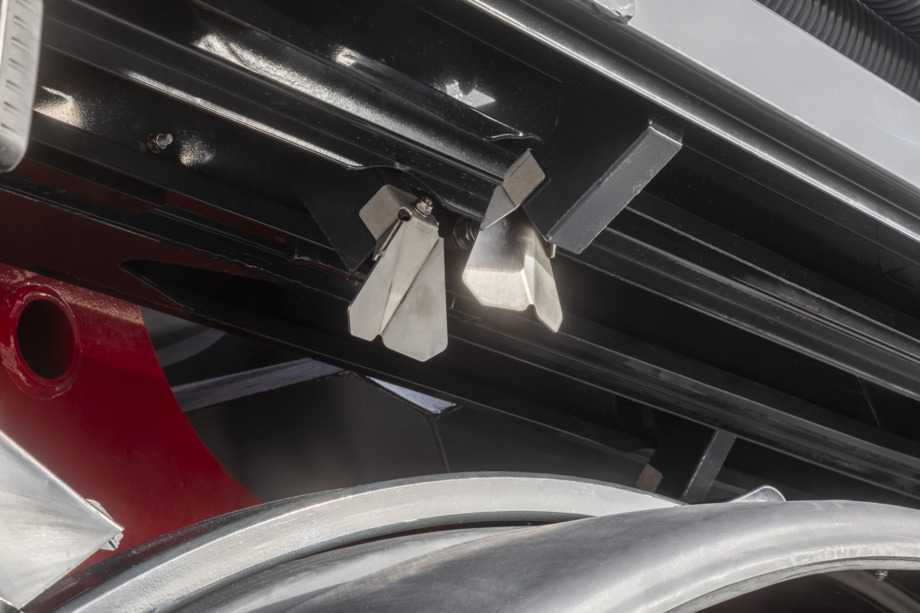

• Hardox deflector plates arranged at an angle for optimal longitudinal and cross distribution
• Overload protection and damping of the wings: collision protection

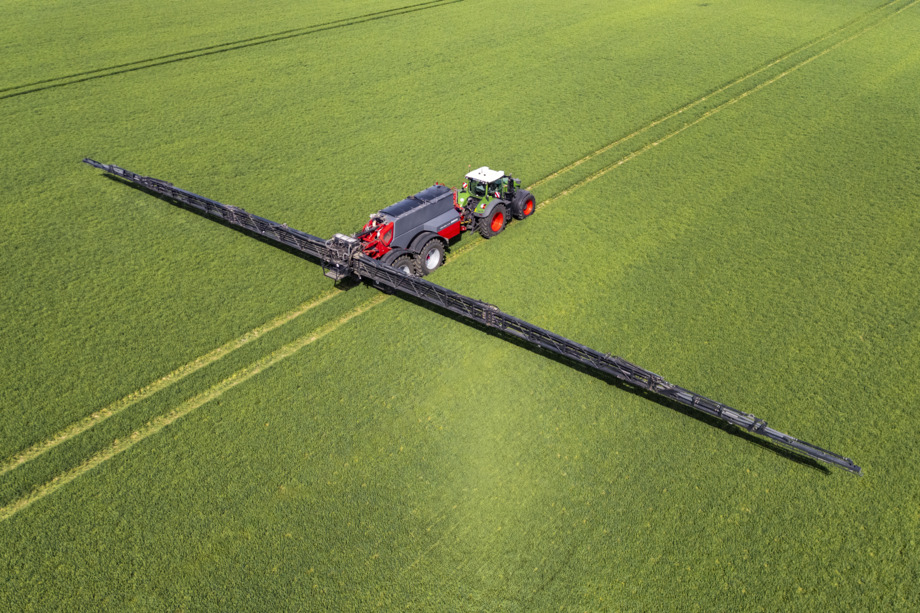

The HORSCH Leeb Xeric boom utilizes a parallelogram suspension and the BoomControl system to maintain stability at high speeds and in hilly terrain. Available in widths up to 48 m, the patented active suspension prevents dipping during turns, while overload protection and wear-resistant PE tubes ensure safe, efficient fertilizer transport. Additionally, offset Hardox deflector plates provide long-term durability and optimal distribution across the entire working width.
BoomControl
• Maintenance of the exact, lowest possible working height due to active boom control system
• Boom control with a target area spacing of 150 cm ensures an even distribution in all weather conditions.
• Active adaption of the boom to the terrain by means of two sensors
Active boom control system to maintain the precise, lowest possible working height even at high driving speeds in flat or slightly hilly terrain. The safe and stable boom control with a target area spacing of 150 cm creates good conditions for an exact cross distribution. The boom continuously adapts to the terrain by means of two ultrasonic sensors and is completely decoupled from the vehicle. No compromise between dampened and freely suspended boom.
BoomControl – active adaption of the boom to the terrain due to two sensors
BoomControl Pro
• Parallel angling of the outside wings of the boom outer and rotation of the middle section to adapt to the terrain
• Active adjustment of the boom to the terrain with 4 sensors
• The maintenance of the precise working height by active boom control with a target area spacing of 150 cm ensures precise cross distribution in all weather conditions.

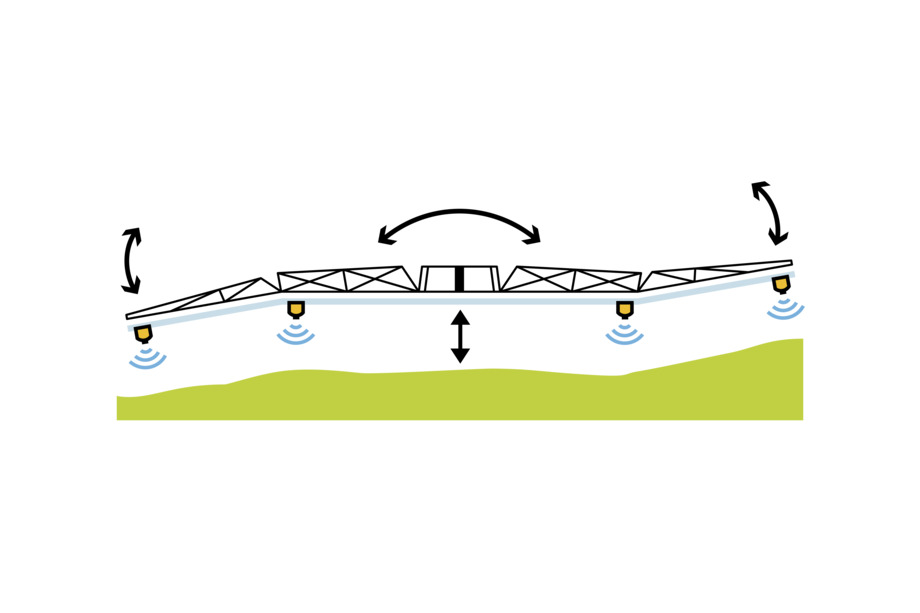

Equipped with four or six ultrasonic sensors, BoomControl Pro can both angle the boom parallelly and rotate it at the middle section to better adapt the boom control to uneven and slightly hilly terrain. This version of active boom control allows for maintaining, the precise, lowest possible working height even better at high driving speeds. The safe and stable boom control with a target area spacing of 150 cm creates optimum conditions for minimal drift. Active adjustment of the boom that is completely decoupled from the vehicle by means of the height control of the middle section.

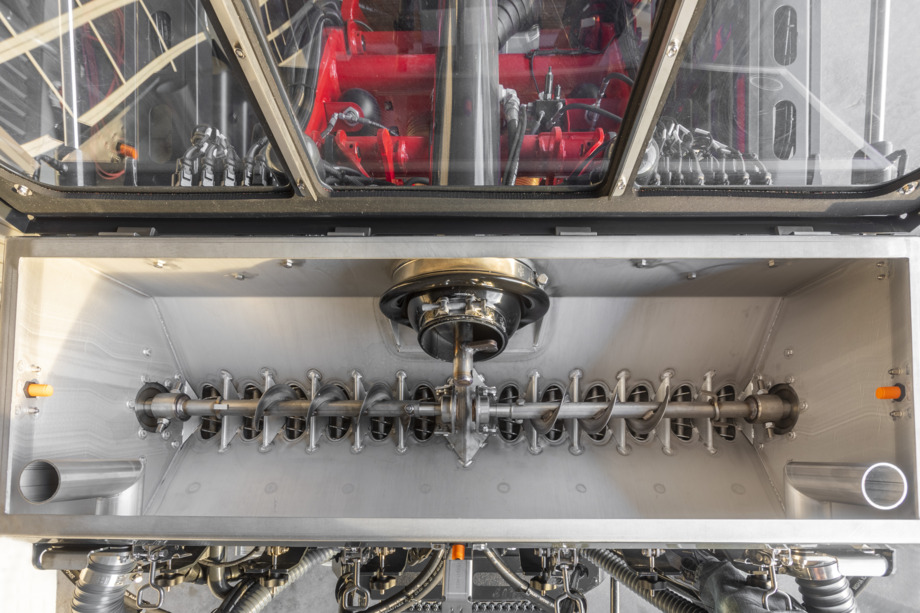

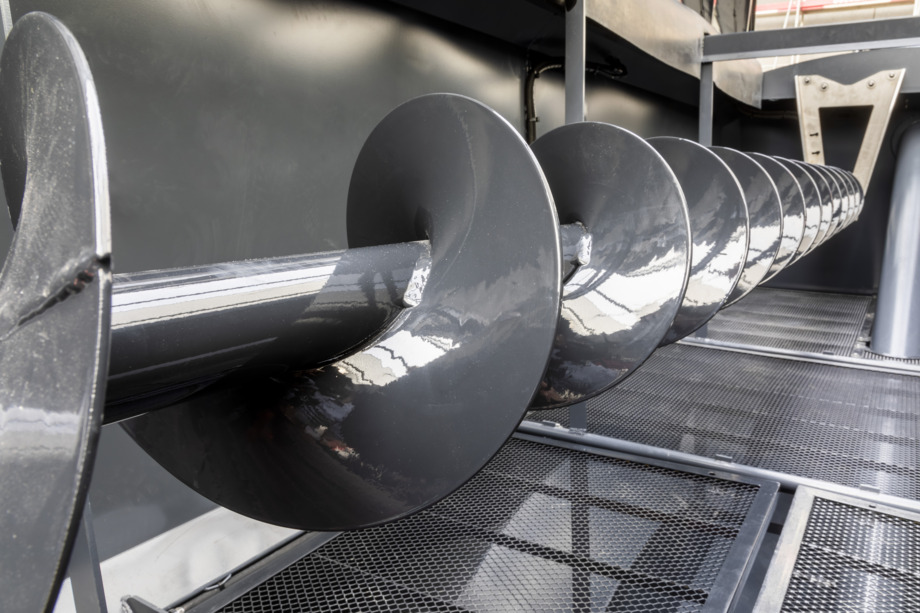

Auger
• Efficient filling of the tank without folding the boom in or out
• Utilisation of the complete capacity and safe distribution of the spreading material with even distribution in the entire tank.
• Optional: camera in the tank cover for monitoring the filling process

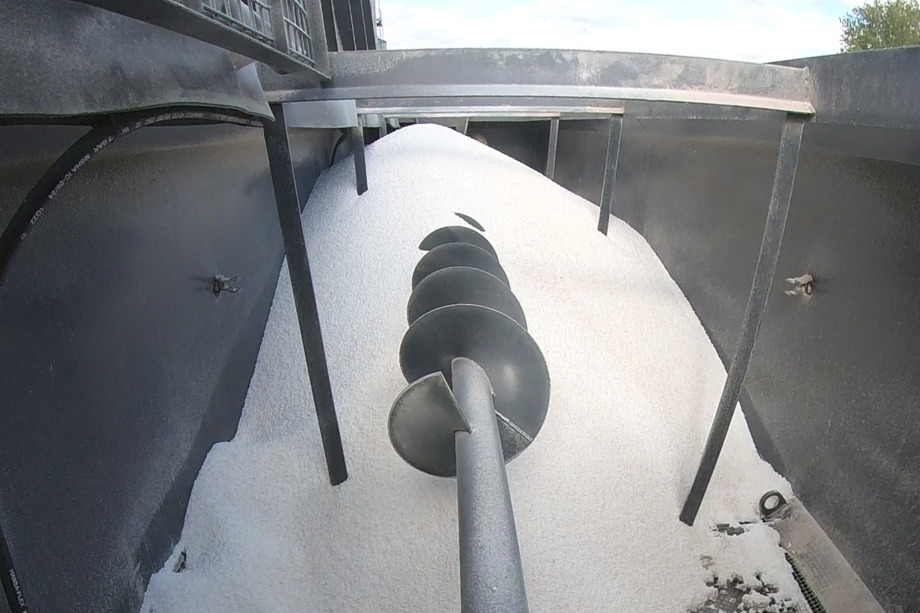

The HORSCH Leeb Xeric FS features an integrated auger that allows for efficient, high-capacity filling without unfolding the boom. Operated comfortably from the tractor seat, the system evenly distributes fertilizer to maximize tank capacity, whether filling via a loader on-site or a transfer vehicle directly in the field. This streamlined process saves time and optimizes logistics for high-volume operations.
PrecisionSpread Pro
• Activation for curve compensation for fertiliser application
• Adjustment of the quantity when cornering via the rotors of the PrecisionCalibrationSystem
• Reduction of underdose and overdosage and customised supply of the population
PrecisionSpread Pro is a separate activation for curve compensation for fertiliser application with the HORSCH Leeb Xeric. This allows for increasing the application rates on the outer sides of curves specifically via the rotors of the PrecisionCalibrationSystem when cornering. At the same time, the application rate is reduced by decreasing the speed of the rotors assigned to the sections on the inside of the curve. This ensures that PrecisionSpread Pro provides a homogeneous supply of the population even when cornering and along contours in the terrain.

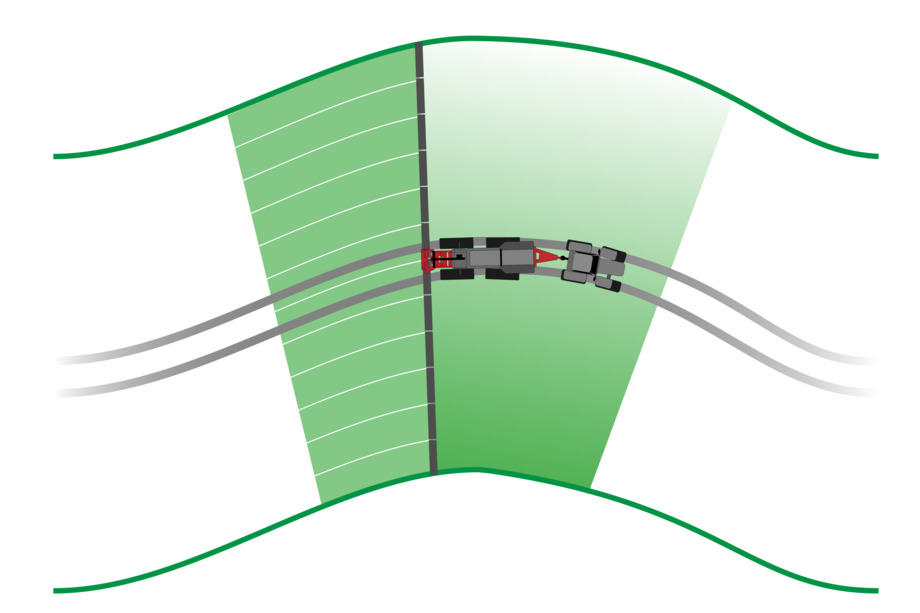

Prevention of underdose and overdosage by curve compensation
PrecisionSpread Pro Plus
• All functions of PrecisionSpread Pro
• Additionally: activation for VariableRate per section for fertiliser application
• Variable quantity adjustment by regulation of the metering rotors in the PrecisionCalibrationSystem within the boom width.
• Reduction of underdose and overdosage and customised supply of the population by means of application maps

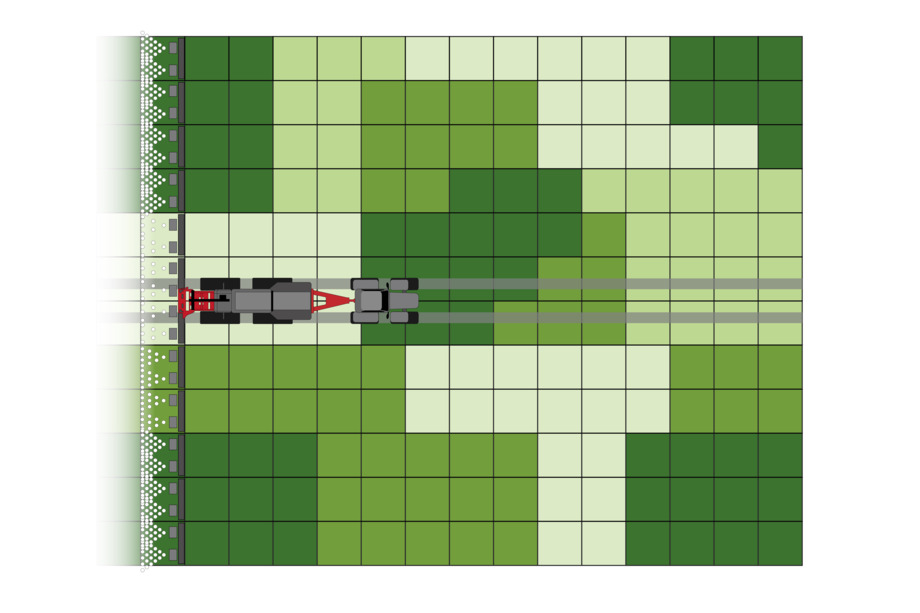

PrecisionSpread Pro Plus takes the HORSCH fertiliser application to the next level. The separate activation Variable Rate per section allows for adapting the application rates in an infinitely variable way by regulating the metering rotors in the PrecisionCalibrationSystem within the boom width in a variable way. Underdose and overdosage of the population are minimised, and operating resources are used effectively and economically.
Site-specific application by section for a precise supply of the population

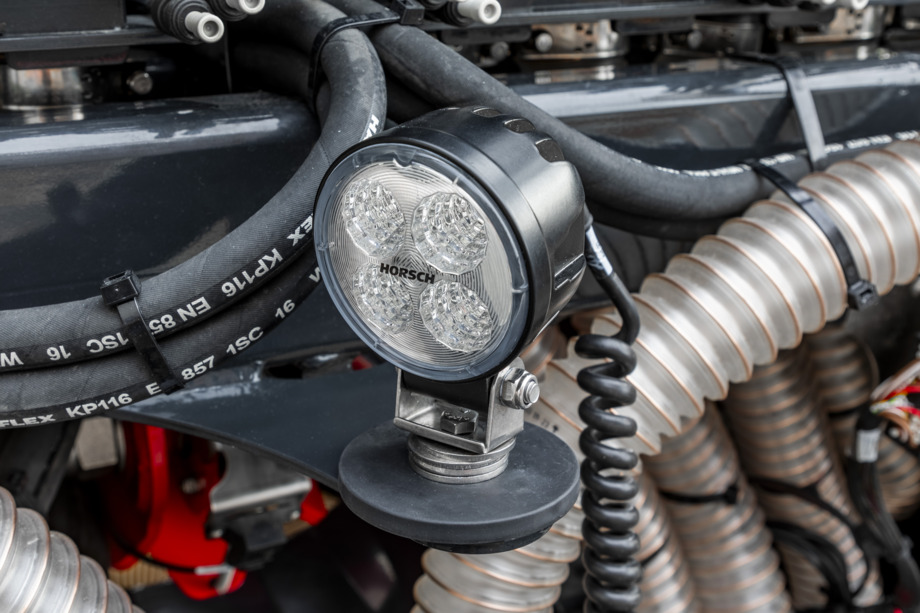

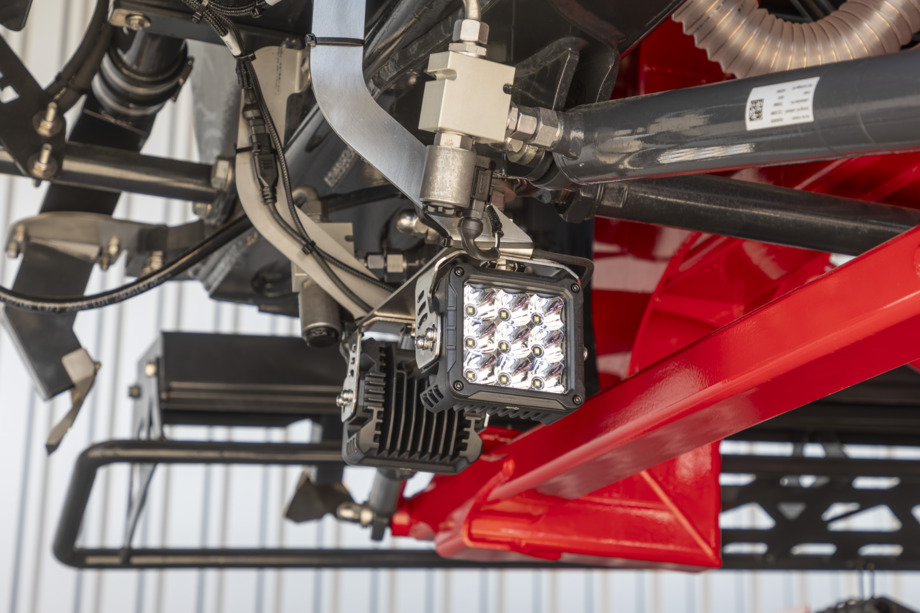

NightLight - LED Lighting
• Innovative LED technology ensures optimum illumination
• Strongly focused light penetrates all spraying cones.
• Optimal spraying control also at dusk and at night
• 100% control of the nozzle function – even with section control
• More safety and efficiency for spraying operations around the clock
• Optional: Choice between white or blue NightLight headlights
• Optional: LED rear lights on the boom middle section and boom apron lighting
• Optional: From 36 m boom width, 4 headlights with white or blue light for optimal illumination for larger working widths or in challenging terrain at night
Powerful, focused LED headlights provide optimum illumination across the entire spread pattern for increased safety and efficiency during night operations. Each boom side features adjustable spotlights in white or blue to monitor distribution, complemented by an automatic dimming function to prevent blinding others on headlands. For larger boom widths or challenging terrain, the system can be expanded to four headlights with optional apron and rear lighting to maximize visibility and reduce operator fatigue.
Adapted Tire Pressure Control
• Automatic regulation of tyre inside pressure
• Fully integrated into the ISOBUS software
• No compromises between tank capacity, working width, and soil protection
• Always the optimal tyre contact area in the field and on the road
On-time application in optimal weather conditions sometimes takes place in unfavorable soil conditions. To achieve maximum performance with large tank capacities and working widths while protecting the soil and avoiding compaction, the automatic tyre pressure adjustment Adapted Tyre Pressure Control (ATP) offers a fully ISOBUS software-integrated automatic regulation of the internal tyre pressure. This ensures that, depending on the filling level of the tank, the optimal contact area of the tyre is always achieved during road transport or in field mode so that no compromise between stability and soil protection has to be made. The possibilities of modern tyre technologies are optimally utilised.
HorschConnect
• Digital solutions exactly where they make sense
• Straightforward out-of-the-box solution with already integrated SIM card, Wi-Fi modem and other interfaces
• HorschConnect Telematics to document the performance of the machine
• HorschConnect Telematics for complete transparency of the working quality, e.g. the application rate of all components
• Targeted and proactive service by remote access to error messages
• Control of machine functions via the smartphone app HORSCH Control: e.g. carrying out nozzle tests for individual sections
Prepare today for tomorrow. Easily control various machine functions via the HORSCH Control app – your smartphone complements the terminal! Gain comprehensive, transparent insight into work rate and work quality with HorschConnect Telematics.
With HorschConnect, telemetry solutions are making their way into the sectors seeding and crop care - exactly where they make sense
The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone
Success factor transparency: position-specific data of all relevant information like error messages, application rate, nozzle status or target area spacing
With the field boundaries import all data can be analysed over the season – even in a site-specific way
HorschConnect
The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone
eosT10/eosT10 Pro
• High-resolution 10" terminal for controlling all ISOBUS devices according to ISO 11783
• Reliable and powerful: high-performance hardware combined with intuitive, user-friendly operation in day or night mode
• Various layout options allow for a simultaneous display of several applications – for an optimum overview.
• Straightforward transfer of application maps with the wireless task data exchange
• A real-time transmission of the terminal display via Remote Support facilitates the technical support.
Due to the high resolution and the well-thought-out user navigation, even complex machine functions can be operated comfortably. The high efficiency and the large (working) memory allow for a smooth handling of large data quantities or application maps. In addition to the traditional import resp. export of data via a USB flash drive, the transfer can also take place easily and comfortably online directly between the PC and the terminal.
Due to its high resolution, the eosT10 offers a state-of-the-art user experience for all ISOBUS-compliant machines.
Due to the WIFI interface, field boundaries, application maps or order data can be exchanged directly between PC and terminal.
The lean design of the 10" display allows for perfect integration into any tractor cabin.
eosT10 – robust hardware with diverse interfaces
In portrait mode, two applications can be optimally displayed and operated.
By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.
By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.
Weather station
• Speed and direction of the real wind relative to north
• Speed of gusts
• Temperature
• Humidity
• Delta T
The weather station displays current weather data on the ISOBUS terminal and records it. The data is integrated into HorschConnect Telematics and can be retrieved there. The weather station is only available in combination with HorschConnect.
TECHNICAL SPECIFICATIONS
Empty weight
11100 - 13500 kg
Maximum permissible total weight
24000 kg
Vertical load empty
600 - 1500 kg
Max. permissible vertical load
4000 kg
Axle load empty
5250 - 6000 kg
Max. permissible axle load
10000 kg
Total length max. (transport position)
10,50 m
Transport width
3,00 m
Transport height
4,00 m
Filling height
3,75 m
Track widths
2,00 / 2,25 m
Clearance
0,90 m
Tank capacity
14000 l
Hand wash tank
15 l
Working width
36 / 39 / 48 m
Sections
12 Piece
Working height
1,50 - 2,00 m
Operational speed
4 - 20 km/h
Max. application rate
400 (at 15 km/h) kg/ha
