Leeb VL
Flexibility and efficiency
Mixture tank
5000 - 8000 L
Fresh water tank
750 L
Pump output
1000 L/min
Working width
24 - 48 m

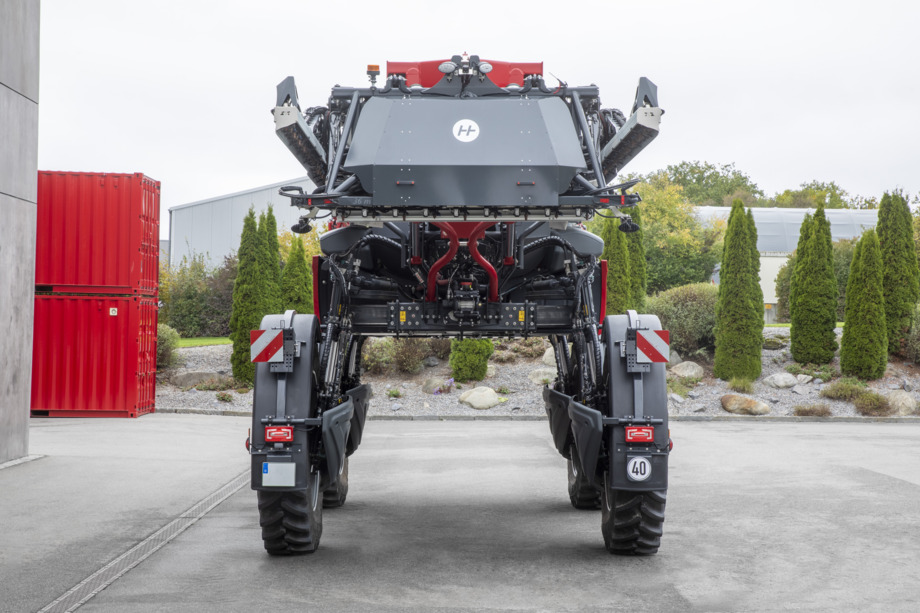

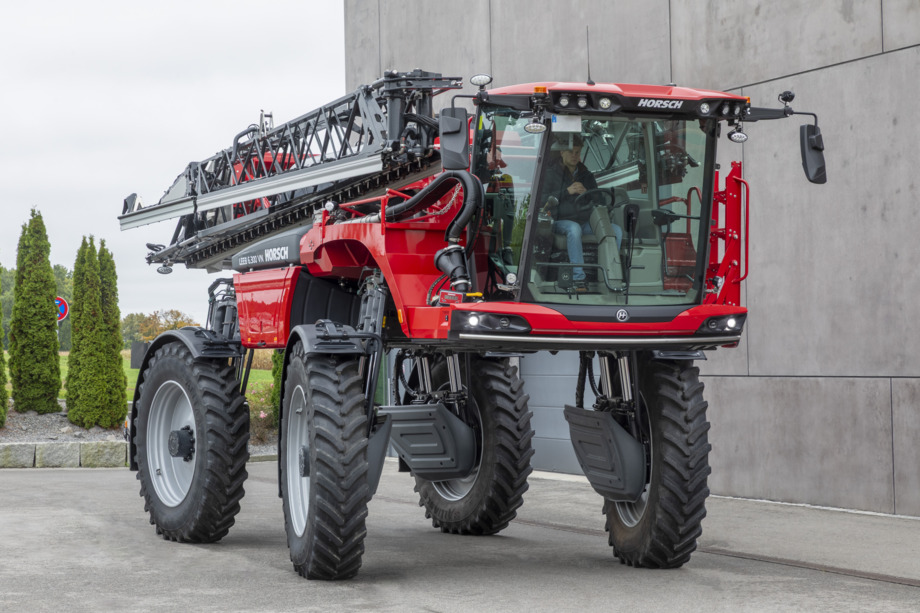

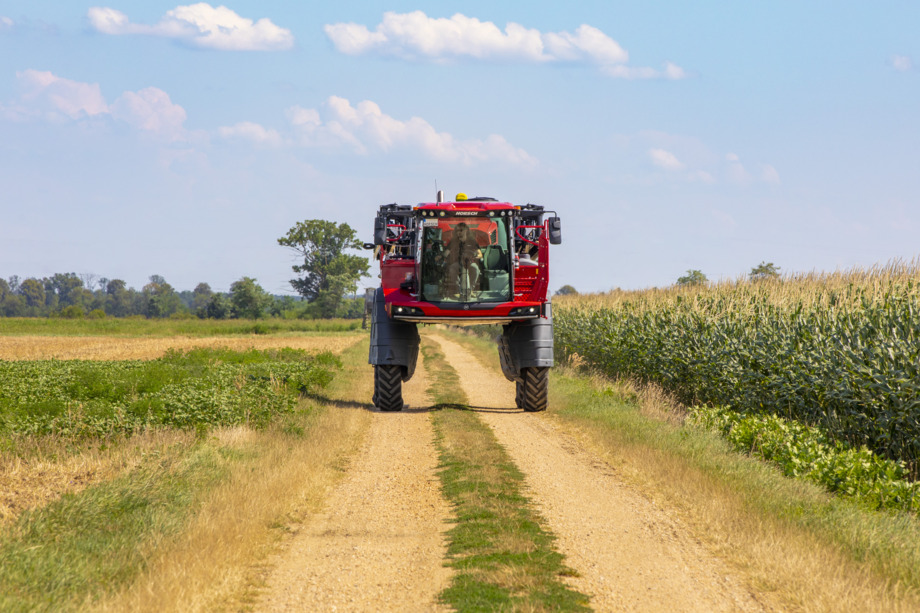

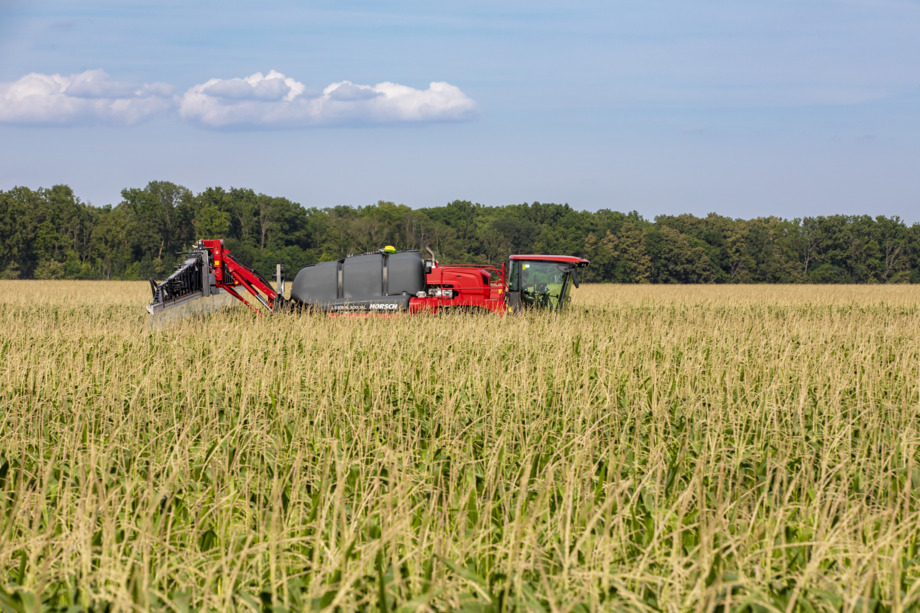

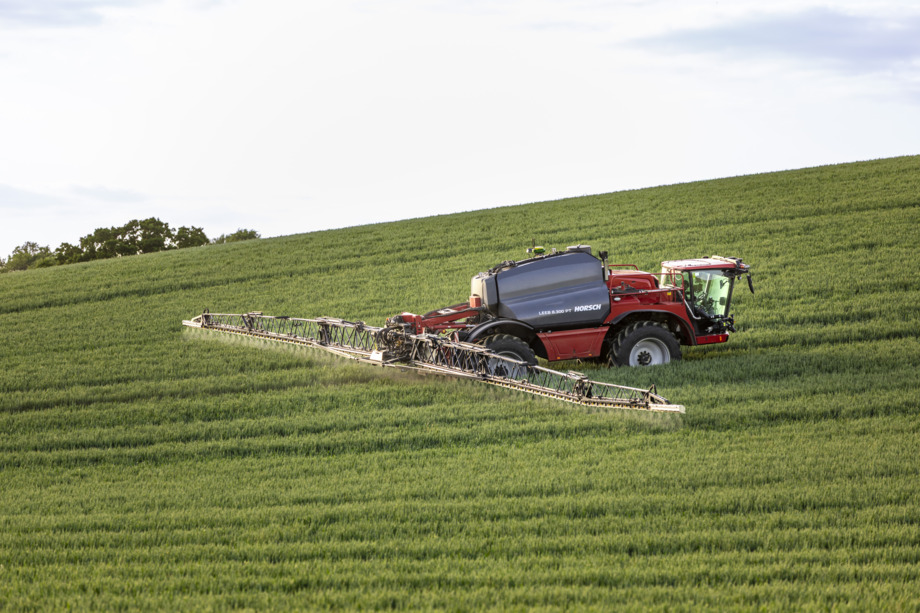

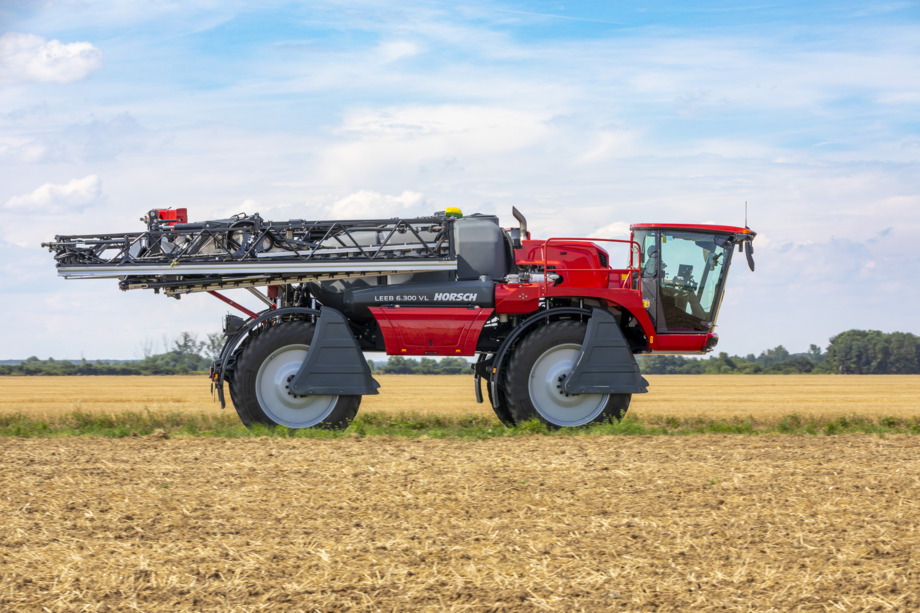

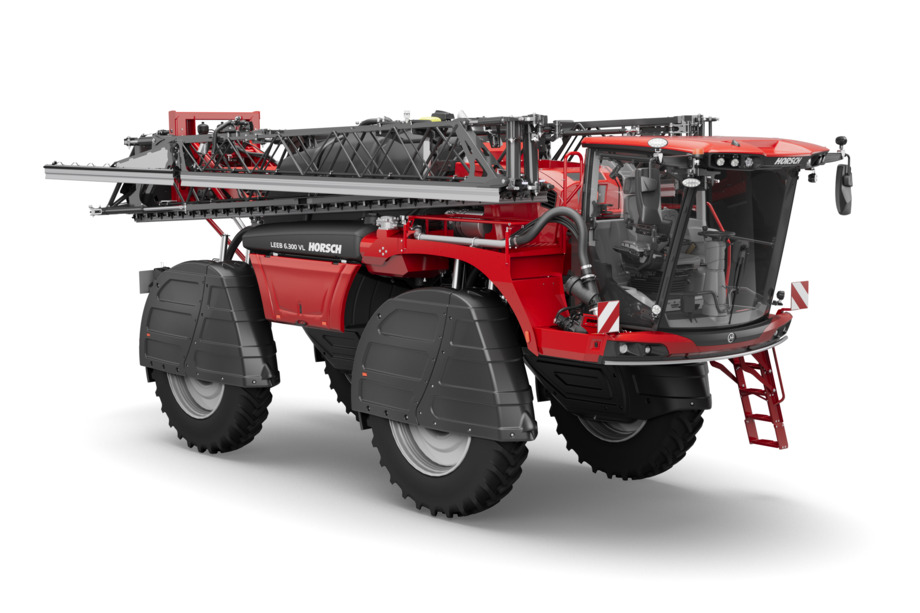

The HORSCH Leeb VL offers maximum clearance and a flexible track width. Thus, crops like maize, sunflowers or rape can be treated on time and in an optimum way. Due to the pneumatic suspension, the driving comfort is comparable to a car.

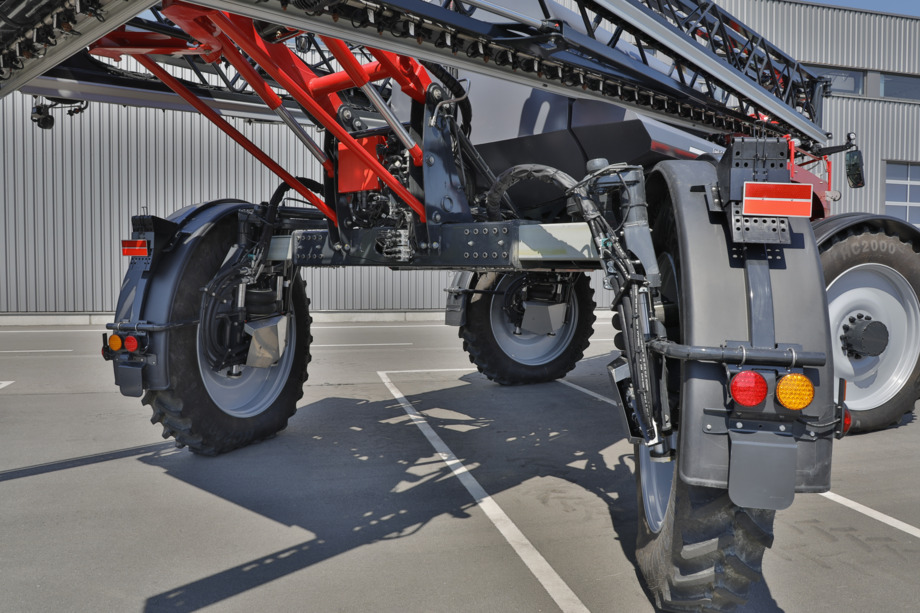

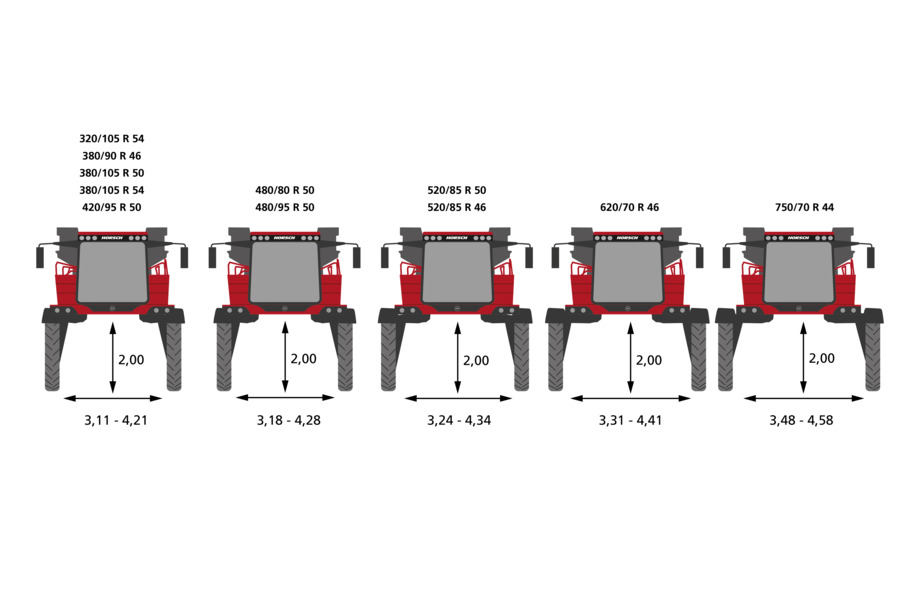

Variable track width and height adjustment
- Highest continuous clearance of up to 2.00 m in field mode even with 8 000 l mixture tank
- Optimum boom position even at high operational speeds due to individual wheel suspension and parallel suspension of the boom
- Practical control terminals and an ergonomic joystick for an intuitive operation, perfectly adapted to the application requirements
- Continuous inside cleaning CCS Pro with electrical valves and external control terminal, spraying and cleaning functions can be controlled in the cabin
Basic
• Rotary pump with a capacity of 1 000 l/min

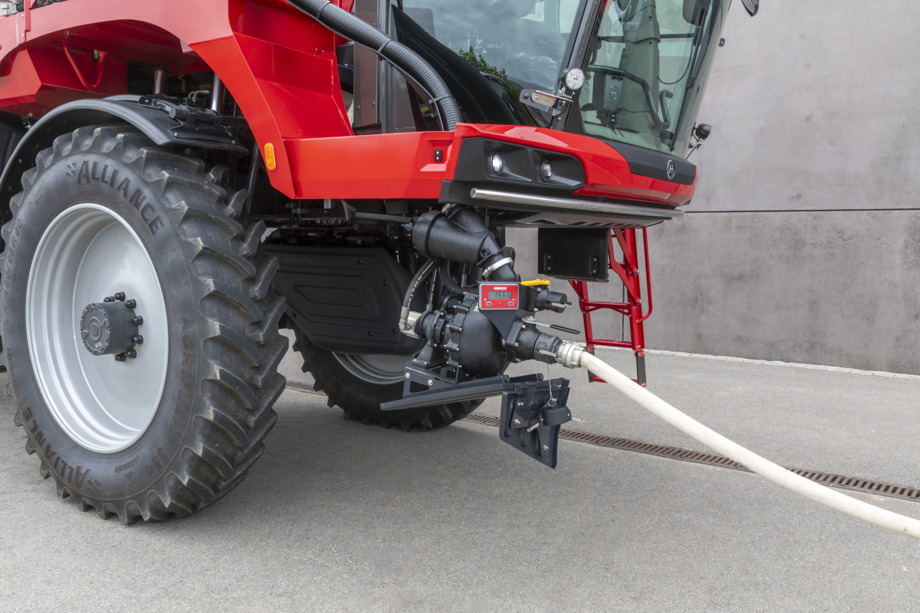

• Filling connection 3" from 5-way valve, 3" lines at the suction side
• Pressure sensor for monitoring the spraying pressure and pressure regulator for adjusting the flow rate
• Suction and pressure side can be operated manually
• Electronic level indicator on the mixture tank
In the Basic equipment line, the HORSCH Leeb VN and VL are equipped with a 1 000 l/min centrifugal pump (filling connection 3" from 5-way valve, 3" lines on the suction side). Suction and pressure side are operated via manual multi-way valves. The spraying pressure is monitored with a pressure sensor and a pressure regulator adjusts the flow rate. The tank is equipped with an electronic level indicator. A digital level indicator is available as an option in the terminal.
Water system Basic
CCS
• Safe and quick cleaning by displacing the mixture from the lines
• Quick cleaning process of the sprayer without having to get off
• Complete control of the cleaning process in the cabin
• Electronic level indicator at the mixture tank with automatic switch-off
• Fast, thorough, and water consumption-optimized cleaning
The CCS water system guarantees a continuous inside cleaning of tank, lines and boom. The additional CCS piston diaphragm pump for cleaning pumps clean water into the spray lines, the spraying pump removes the residual mixture from nozzles and the spray lines instead of diluting it. This allows the system to be cleaned quickly, thoroughly and with an optimised water consumption – without having to get off the machine directly from the cabin – and the sprayer is completely cleaned when leaving the field. To fill the machine, a powerful rotary pump with Load Sensing is used with manual operation for the suction and pressure side.
CCS Pro
• Continuous inside cleaning with several cleaning and rinsing programs, can be operated comfortable in the cabin
• Pressure sensors for pump, agitator, inside cleaning and boom, suction and pressure side electrically controlled
• Operation with a large external terminal with all important induction functions
• Quick cleaning process of the sprayer without having to get off
• Relaxed filling process due to the standard automatic two filling limits
• Automatic filling level dependent agitator performance and switch-off
The CCS Pro version offers convenient, cabin-controlled cleaning programs—including full rinsing, dilution, intensive washing, and automatic boom cleaning—alongside a background cleaning feature that prevents tank deposits during application. The system maximizes energy efficiency by using variable pump speeds to match fluid demand, while integrated electric level indicators automate washing cycles and ensure precise tank management.

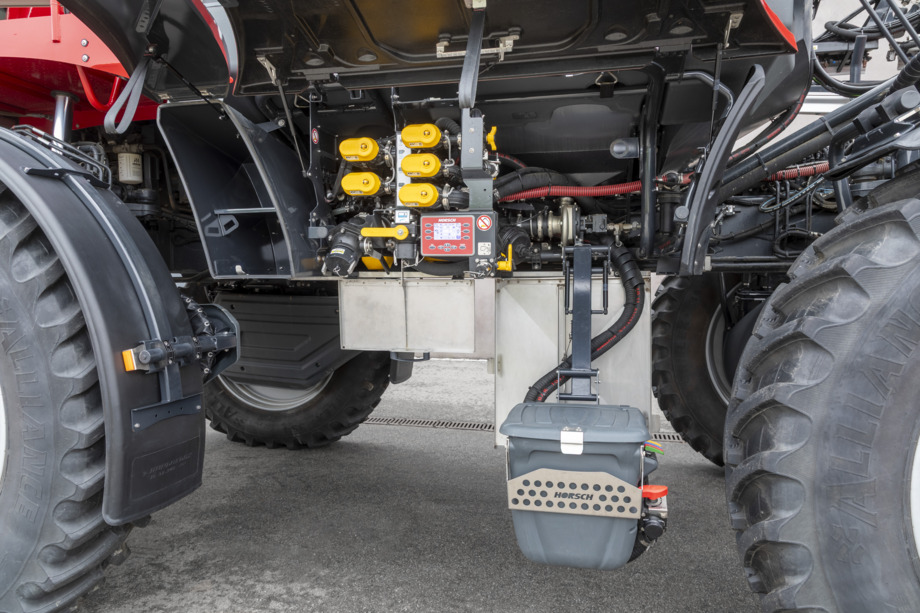

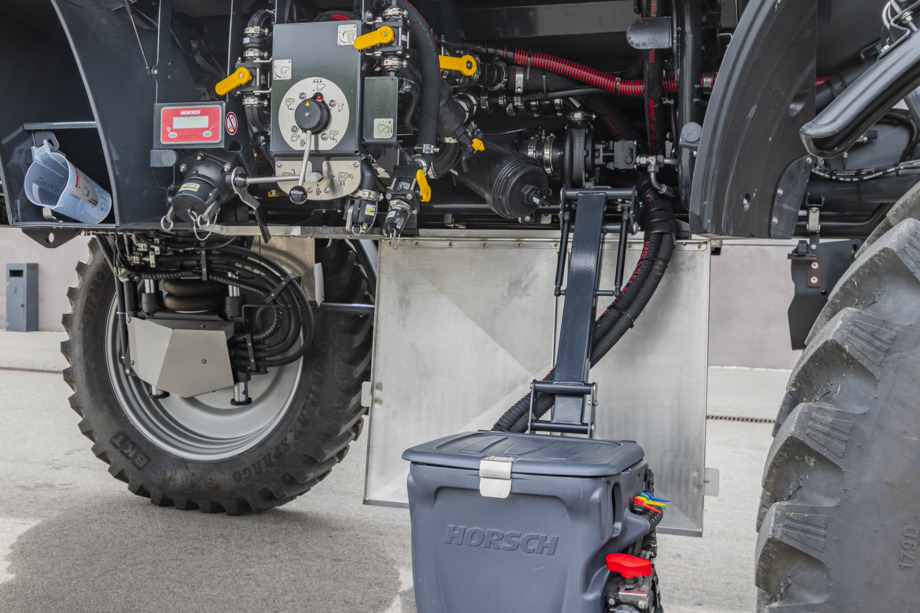

Distribution system and induction hopper
• Permanent circulation of the active ingredient solution
• Large tube and line cross sections for optimum circulation, no deposits and blockages
• Permanent spraying fluid at the nozzle, exact switching on and off
• Powerful induction hopper with convincing functions
• Safe cleaning: displacement of the mixture with fresh water

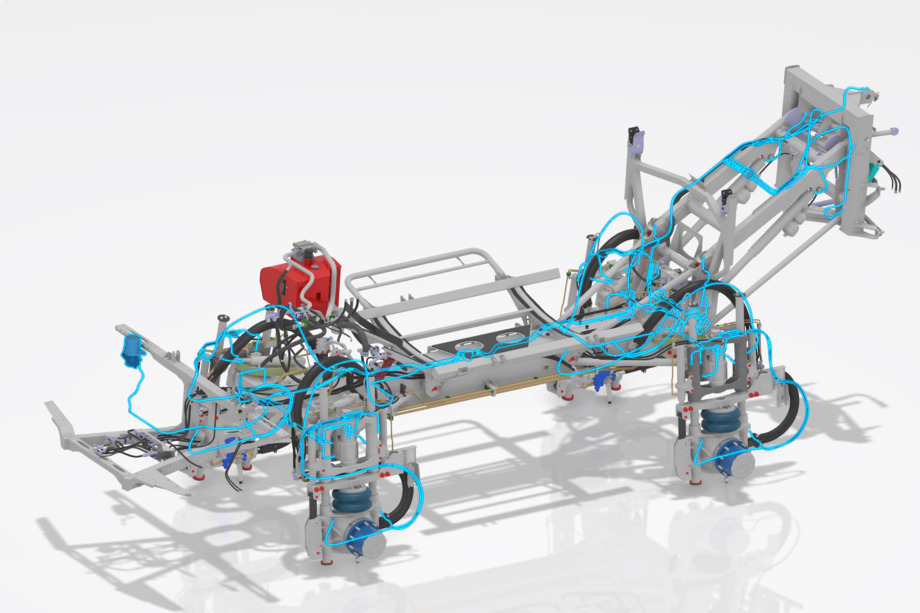

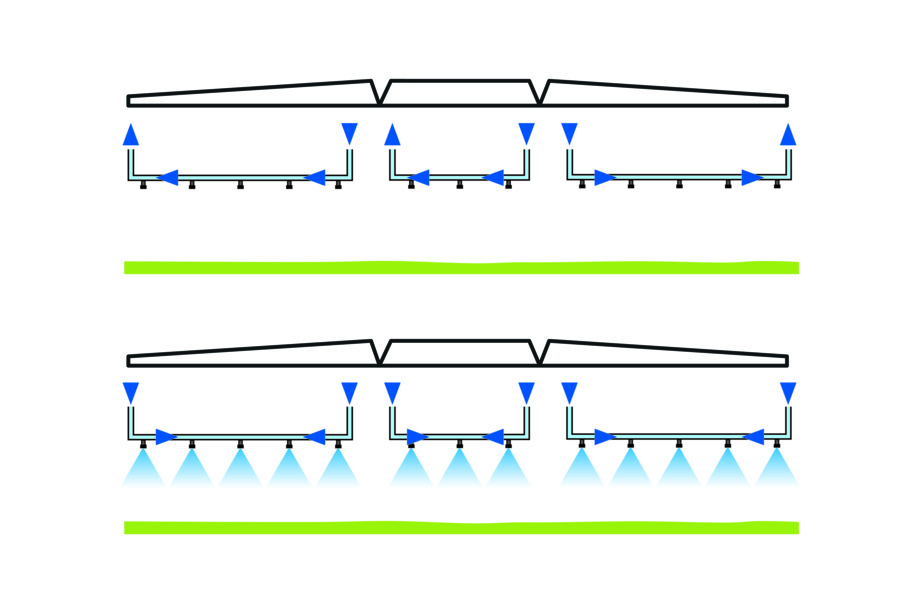

This streamlined distribution system utilizes a single-hose circulation design to minimize deposits and simplify maintenance across the boom. It features a swivelling induction hopper equipped with dual-nozzle vortex technology for fast liquid and granulate processing, integrated canister cleaning, and intuitive color-coded controls. Users can also upgrade to a 52-liter stainless steel hopper with an additional shock nozzle for enhanced mixing power.
When the pump is running, a mixture circulates continuously in the boom (top) so that it is immediately available at the nozzle when spraying (bottom).

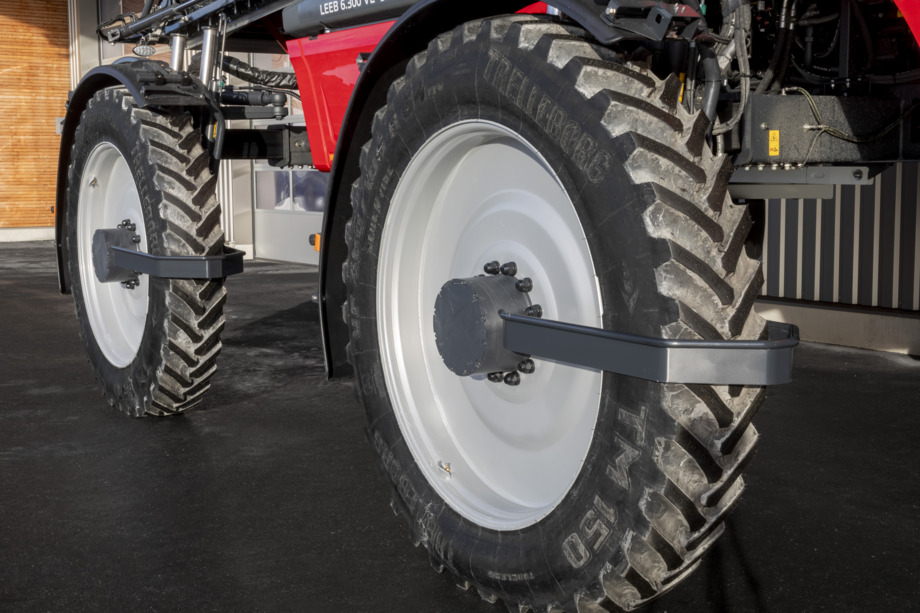

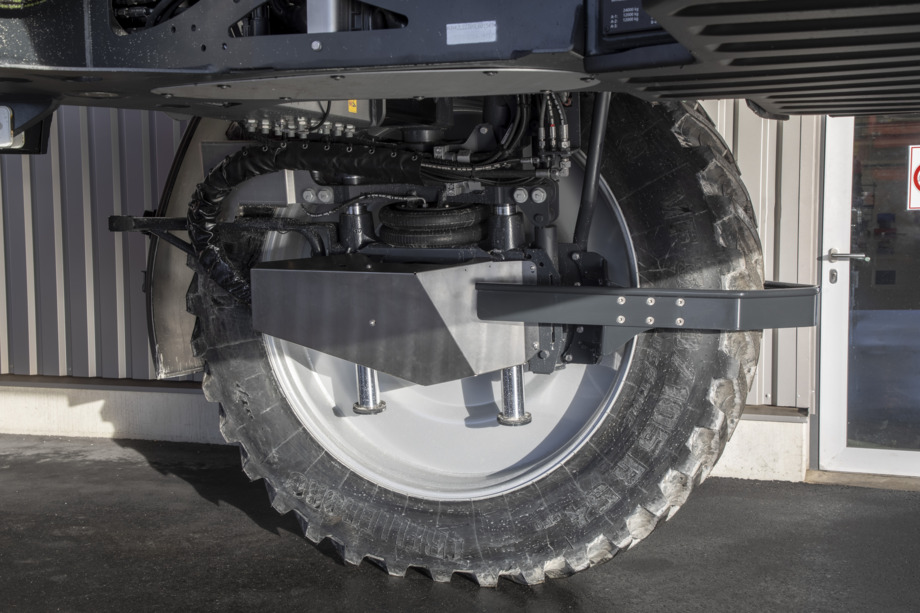

Wheel drive PowerGear
• Powerful all-wheel drive even in steep terrain and on slopes
• Degree of efficiency in the main working range has been specially optimised for the use in the crop care sector
• Selective traction control for every wheel
• Infinitely variable drive from 0 – 50 km/h
• With tyres up to Ø 2.19 m
• Up to 230 ccm displacement of the wheel motors
The drive PowerGear allows for optimum performance in the field and also on the road. Equipped with a standard anti-slip control and all-wheel drive, the vehicle operates effortlessly in any terrain. The efficiency factor that has specifically been optimised for the use in the crop care sector with larger wheel motors on the rear axle and the associated higher drive power distribute drive torques powerfully and efficiently in the speed range of 0 – 50 km/h with tyre options up to Ø 2.19 m. This drive is ideal in combination with the more powerful engines for machines with larger mixture tanks and large booms.
The all-wheel drive with traction control also impresses in steep terrain and on slopes.

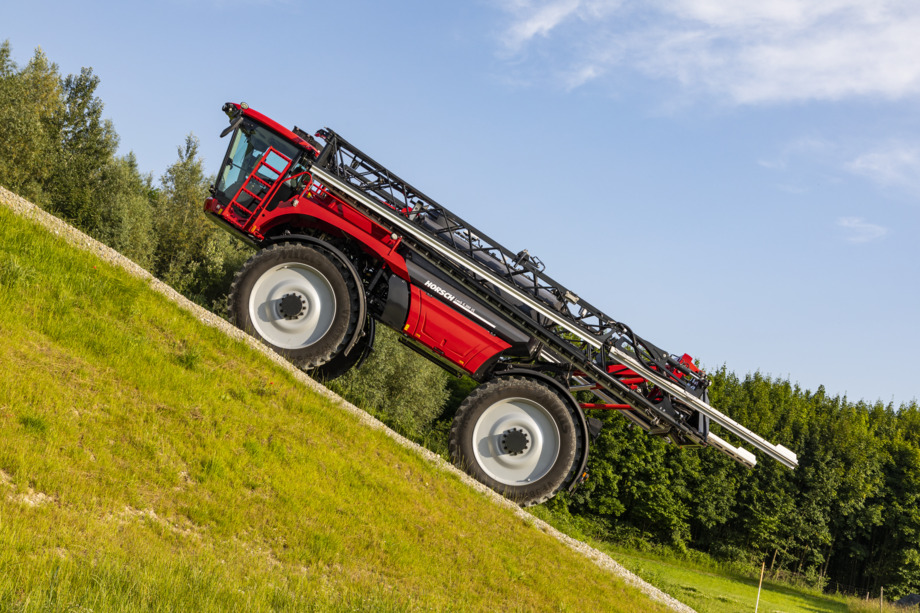

Wheel drive HighPowerGear
• Maximum torque at the wheel for highest requirements in the field
• Can cope with slopes up to 50 %
• Selective traction control for every wheel
• Infinitely variable drive from 0 – 50 km/h
• Degree of efficiency in the main working range has been specially optimised for the use in the crop care sector
• Up to 340 ccm displacement of the wheel motors
For farmers who want or have to push the limits, there is HighPowerGear: more driving power when starting, more reserves in wet conditions and more torque in the low-speed range for the highest requirements in the field. HighPowerGear shows its strength especially with low operational speed and extreme slopes of up to 50 %. When driving slowly below 8 km/h or if the machine is on the verge of getting stuck, HighPowerGear provides the required power reserves to manage the most difficult situations.
The HighPowerGear wheel drive provides the required power reserves to manage the most difficult situations

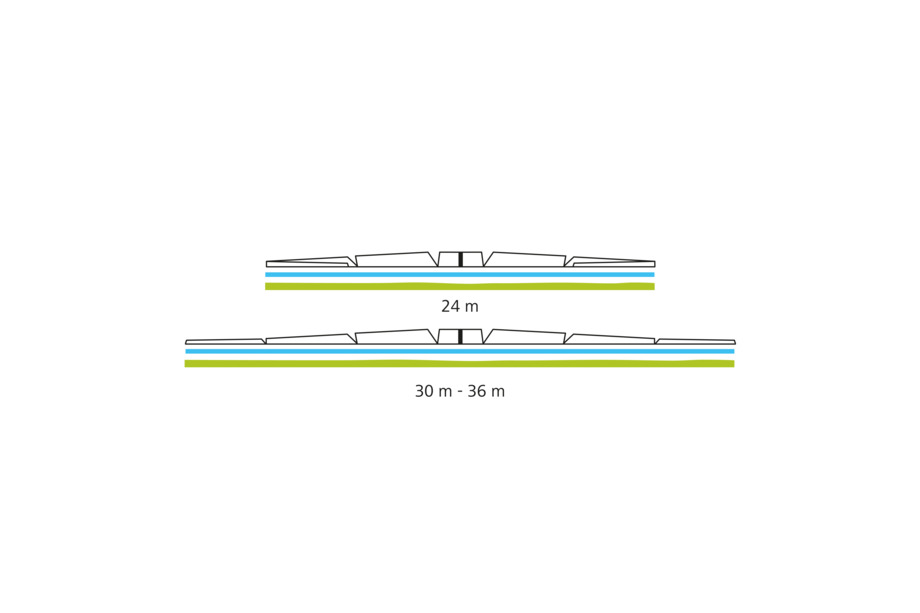

Boom options
• Parallelogram suspension with BoomControl for stable boom position in all conditions
• Patented suspension with active, hydraulic control of the middle section

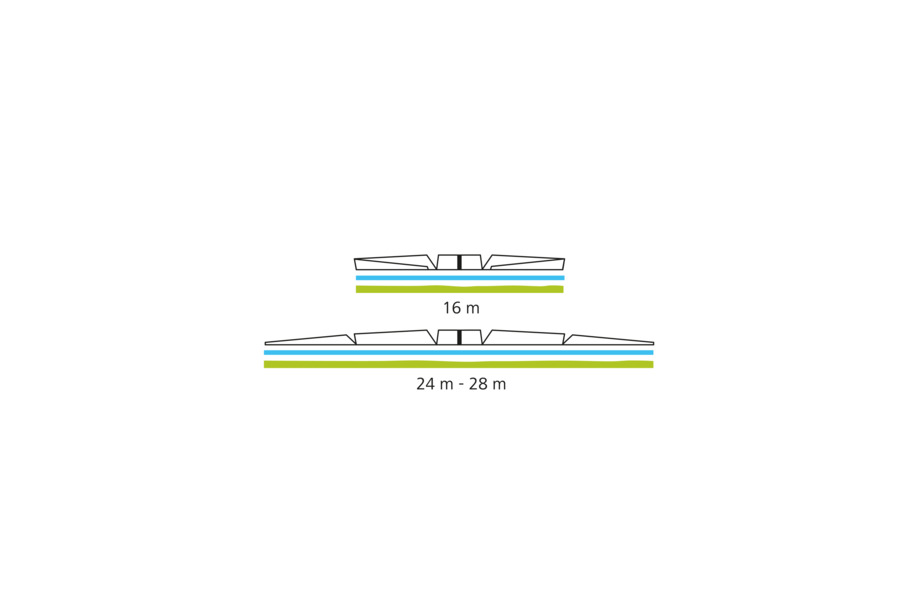

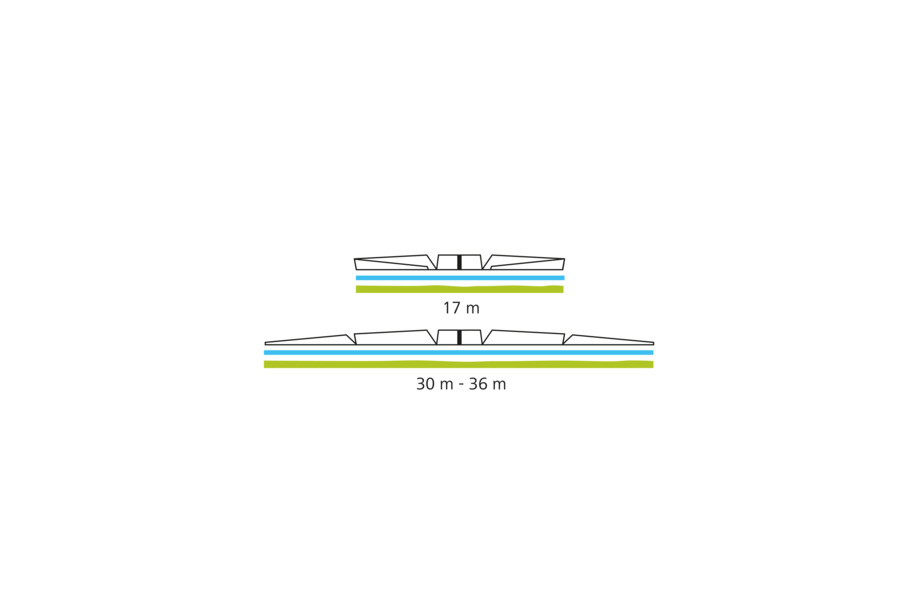

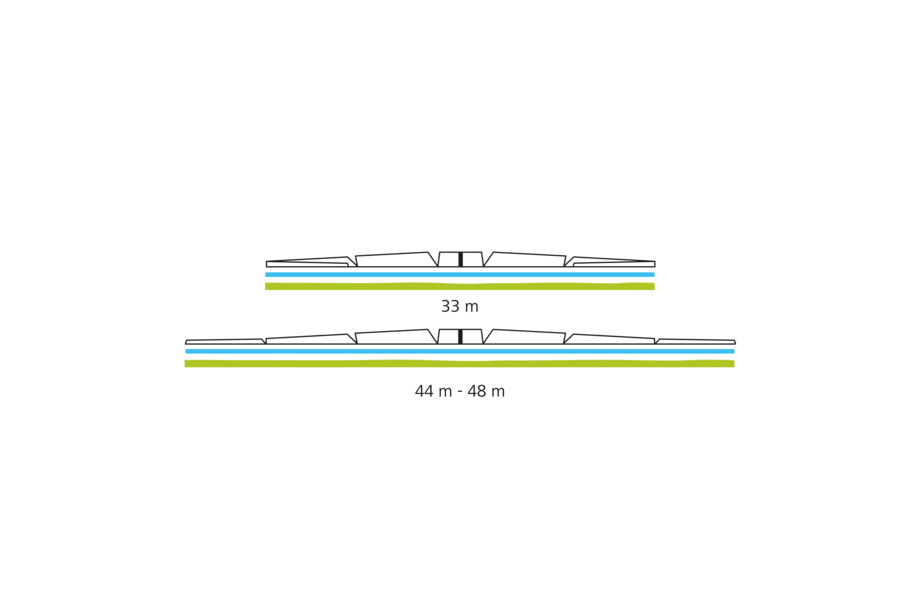

• 25 boom versions in working widths from 24 to 48 m
• Stable aluminium profile for safe protection of the nozzles, nozzle bodies and spray lines against damage
• Collision protection due to overload protection and damping of the wings
• Overload protection of the outside wings towards the rear, damping of the inside wings towards the front and rear
The HORSCH Main Tank Supply system, in short MTS system, is the central seed and fertiliser supply of the rows from a central hopper. The fertiliser is metered pneumatically via the distribution towers to the rows. The seed is transported by means of special MTS tubes to the row unit and then each single grain is metered with AirVac or AirSpeed. This facilitates and speeds up the MTS system for filling hoppers and irregular filling levels at the rows when using SectionControl and tramline control are prevented.
MotionControl
• Counteracts horizontal movements in the boom wings
• Effectively dampens horizontal vibrations

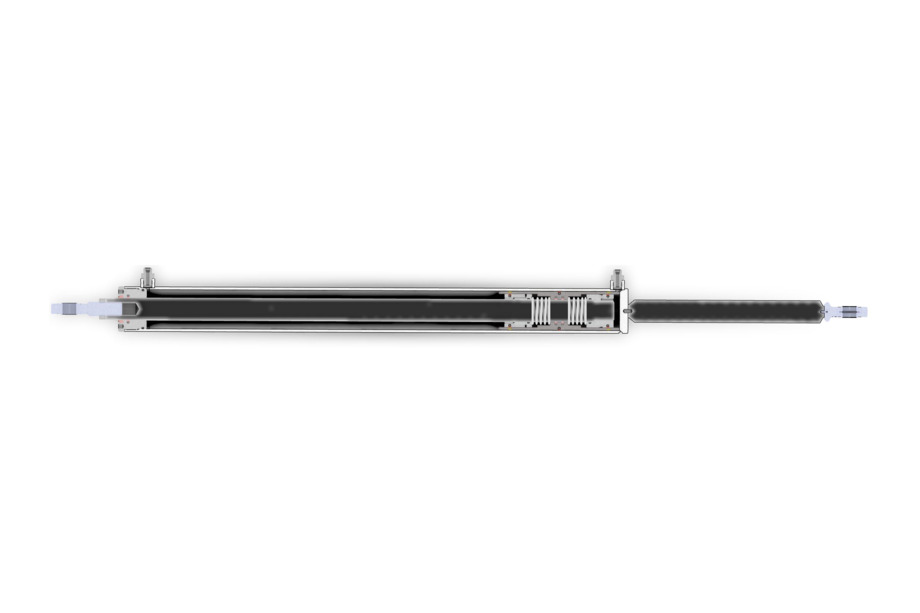

• Spring-loaded cylinder base of the folding cylinders
MotionControl dampens the horizontal movements in the boom wings. Due to the spring-loaded cylinder base of the folding cylinders, horizontal vibrations can be better dampened. MotionControl is standard equipment in all booms with coupling bar.
MotionControl to smooth the horizontal movements in the boom wings

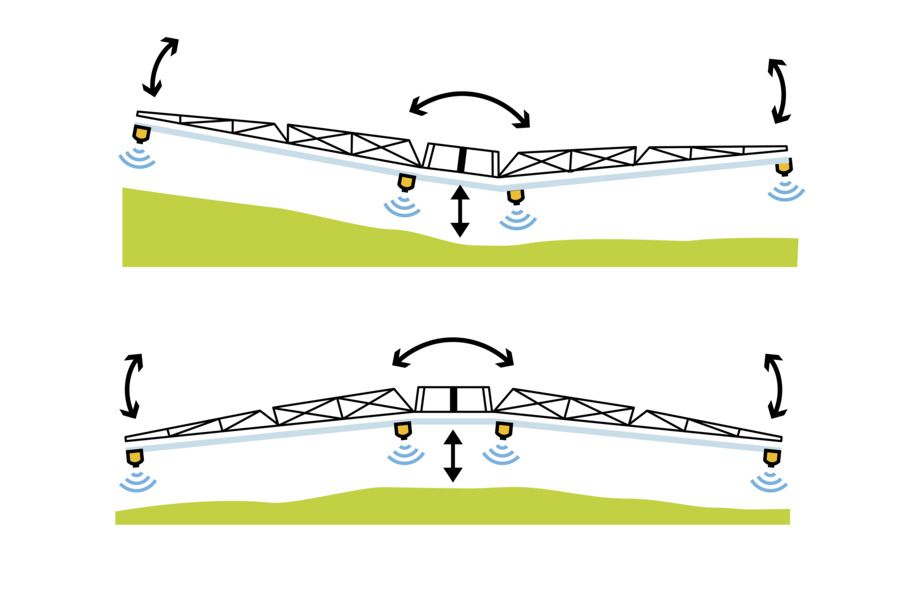

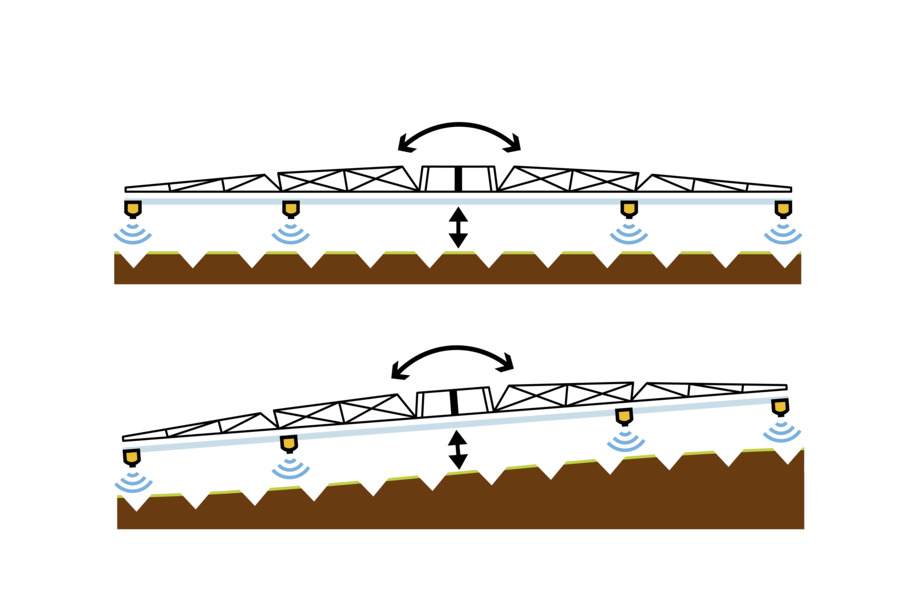

BoomControl Pro
• Independent angling of the boom arms and rotation of the middle section to adapt to the terrain
• Active adjustment of the boom to the terrain with 4 sensors
• Maintenance of the exact, lowest possible working height due to automatic boom control system
• Boom control system with a target area spacing of less than 40 cm ensures minimal drift
• Boom is completely decoupled from the vehicle
Equipped with four ultrasonic sensors, BoomControl Pro can both angle the boom and rotate it at the middle section to better adapt the boom control to uneven and slightly hilly terrain. Thus, this version of the automatic boom control system can even better maintain the exact, lowest possible working height even at high operational speeds. The safe and stable boom control system with a target area spacing of under 40 cm creates optimal conditions for minimum drift. Active adjustment of the boom that is completely decoupled from the vehicle by means of the height control of the middle section.

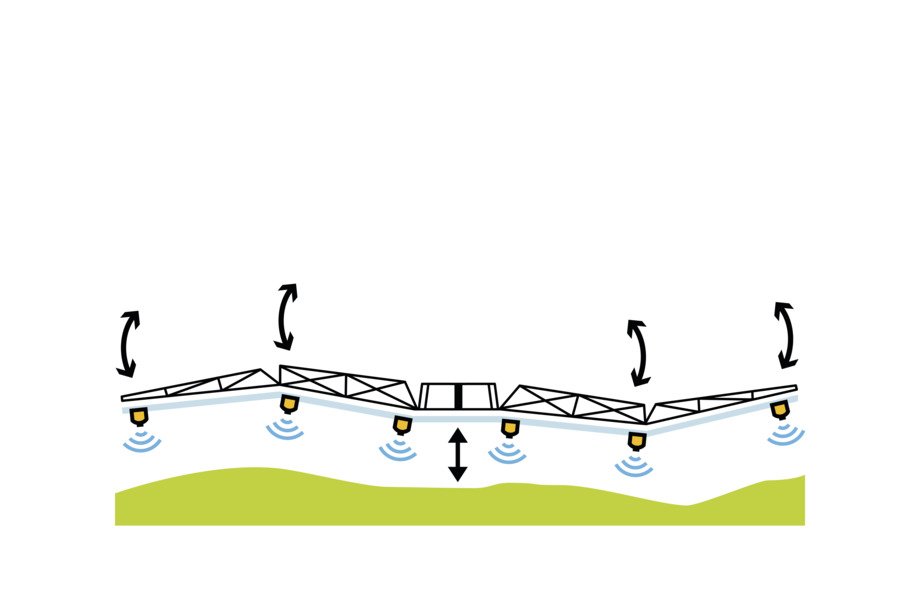

BoomControl Pro Plus
• Independent angling of the boom arms and rotation of the middle section to adapt to the terrain
• Angling (lifting and lowering) of the two outside wings
• Active adjustment of the boom to the terrain by via sensors
• Maintenance of the exact, lowest possible working height due to automatic boom control system
• Boom control system with a target area spacing of less than 40 cm ensures minimal drift

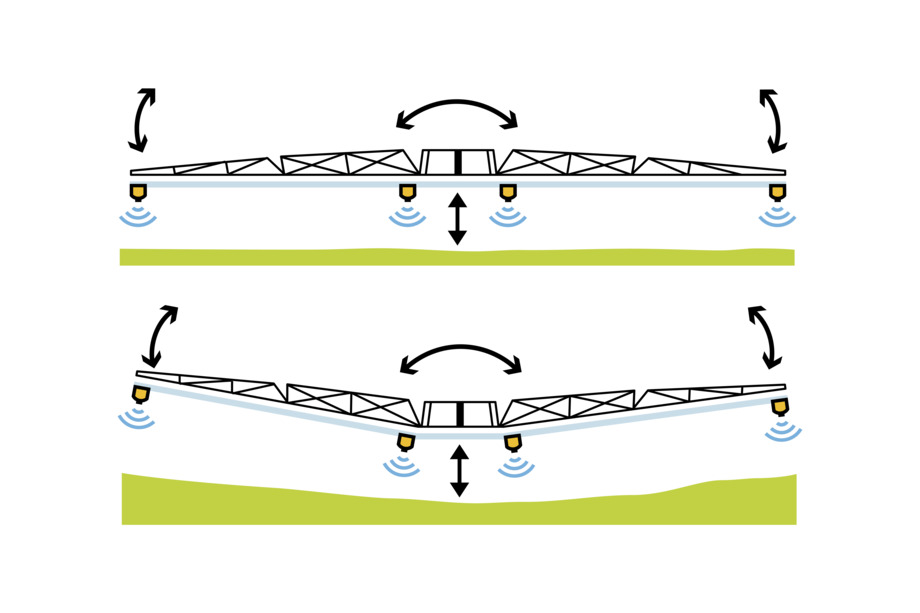

Due to the six ultrasonic sensors, BoomControl ProPlus can angle individual boom wings independently as well as rotate them at the middle section to optimally adapt the boom to uneven and hilly terrain. Thus, the top version of the automatic boom control system can adjust the exact, lowest possible working height very precisely to the topography of the field, even at maximum operational speed. The safe and stable boom control system with a target area spacing of less than 40 cm creates the best conditions for minimal drift. Active adjustment of the boom that is completely decoupled from the vehicle by means of the height control of the middle section.
BoomControl/BoomControl Pro
• Active adaption of the boom to the terrain by means of two additional sensors
• To extend the field of vision
• Ideal for ridge and row crops or for reduced working widths
The extension BoomControl adds two additional sensors to the basic version. Thus, the sprayer is better suited for ridge and row crops and for reduced working widths of the boom.
BoomControl/BoomContro Pro extension – extension of the field of vision is ideal for ridge and row crops
AutoSelect
• Control of nozzle size and combination while simultaneously adjusting the application rate and the operational speed
• Possibility to adjust not only the pressure range but also the target area spacing to comply with spacing requirements
• Optimal management of spacing requirements along waters and terrestrial structures
• Automatic adjustment of boom height based on the defined nozzle profiles
• Can be be switched on and off comfortably from the cabin
The AutoSelect system allows operators to store up to 16 nozzle profiles, which are automatically toggled from the cabin to maintain optimal pressure and application rates without interruption. By automatically adjusting boom height and nozzle levels based on speed and predefined spacings, the system ensures precision near sensitive ecological structures. This fully automated control provides high flexibility and comfort, allowing for seamless transitions between nozzle sizes to match changing operational requirements.
AutoSelect Pro
• All functions of AutoSelect
• Additionally: activation for curve compensation for pneumatic nozzle control
• Adjustment of quantity when cornering by combining profiles
• Reduction of over- and underdosage, reduction of resistances
AutoSelect Pro takes HORSCH's own nozzle control to the next level. The separate activation of curve compensation allows for combining profiles, thus specifically increasing the application rates on the outer sides of the curves when cornering. At the same time, the application rate is reduced by switching to a smaller nozzle size on the inside of the curve.

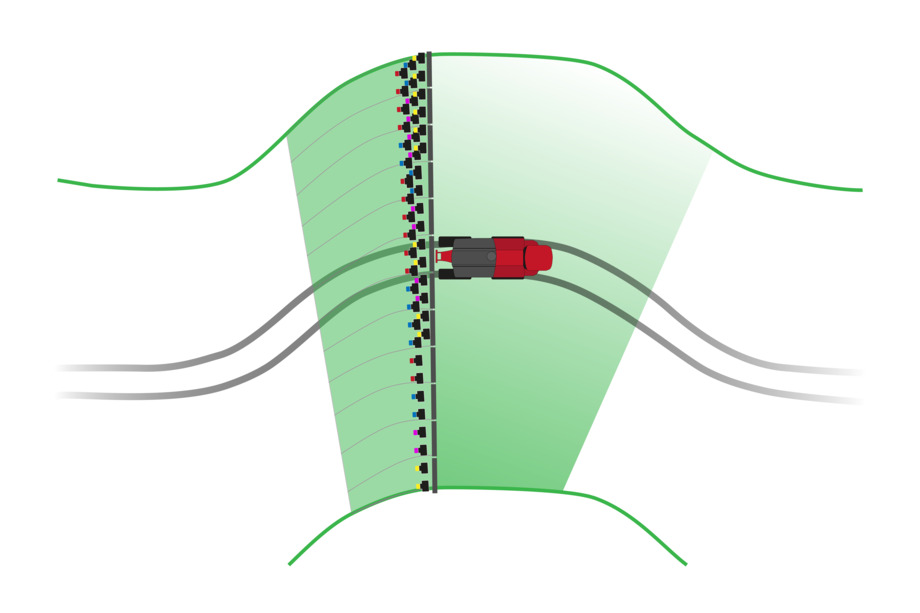

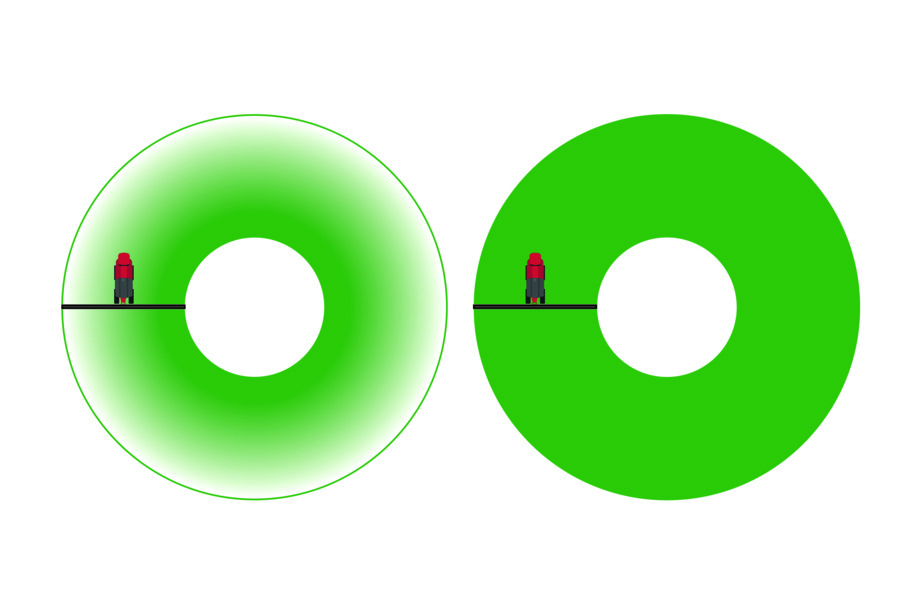

AutoSelect Pro: curve compensation

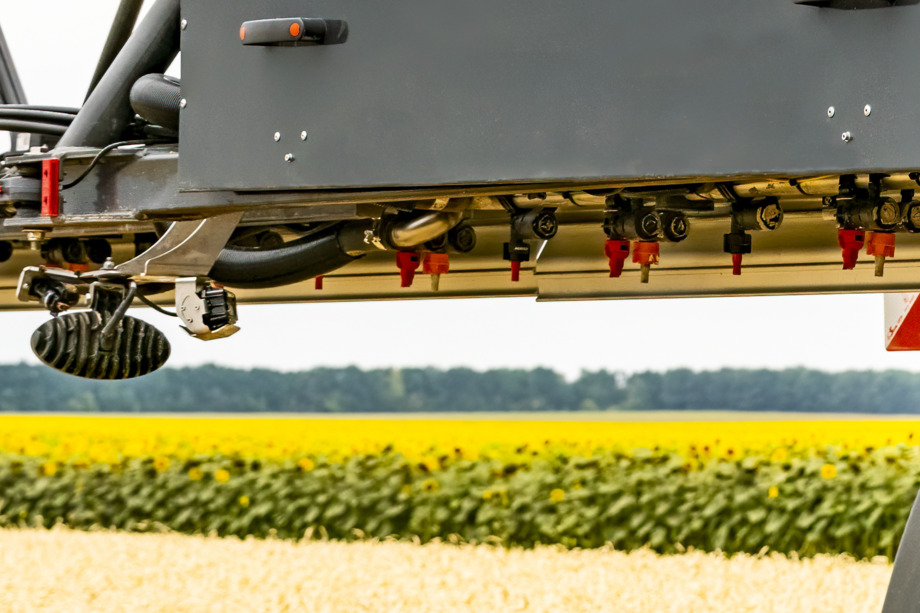

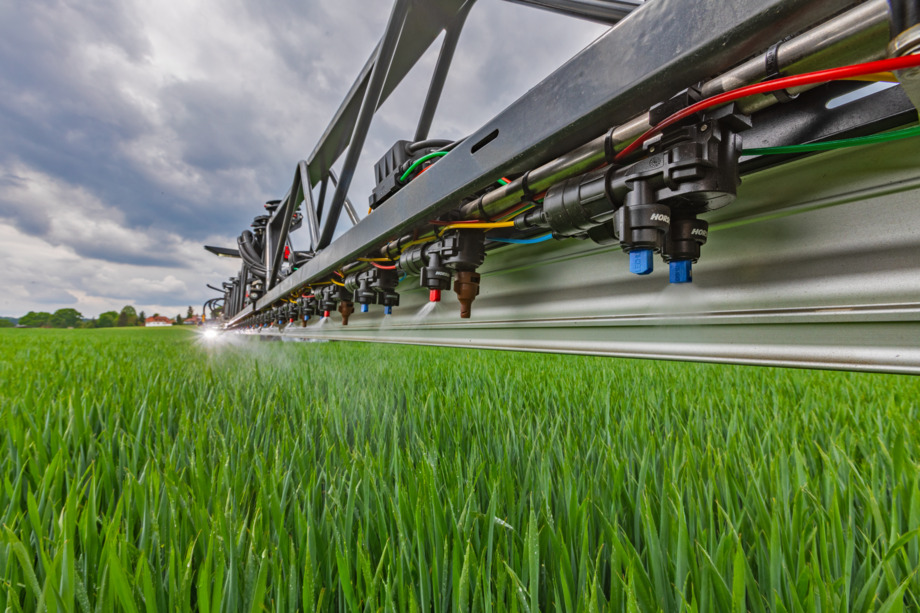

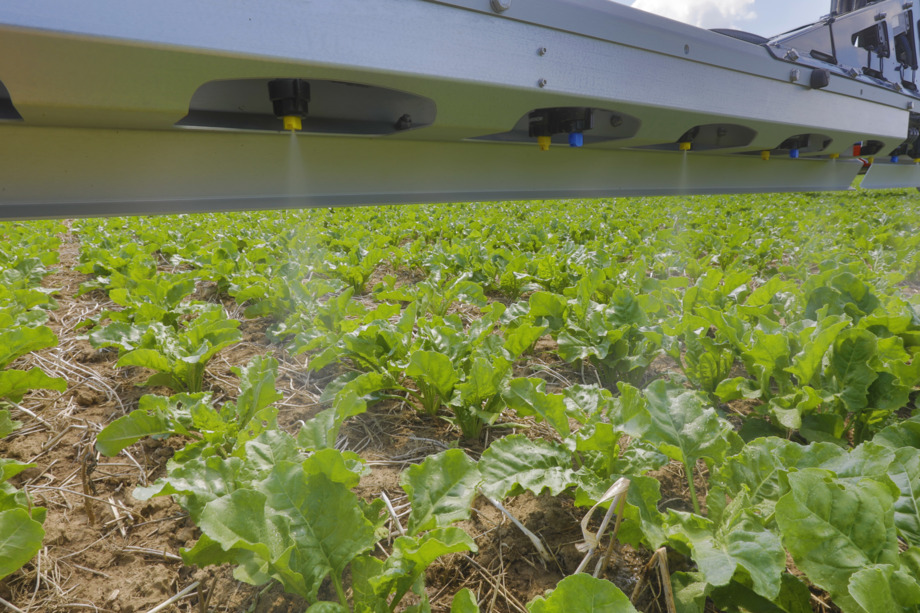

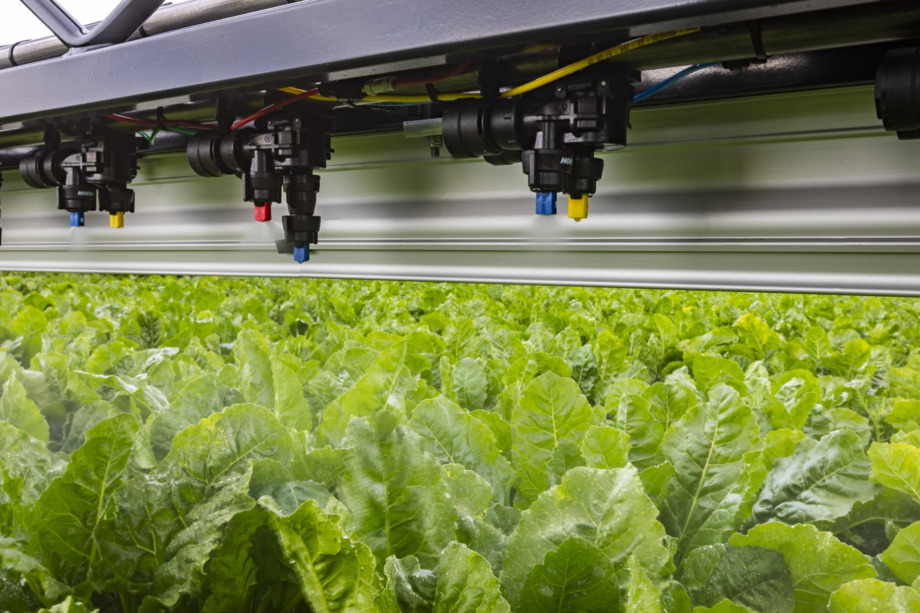

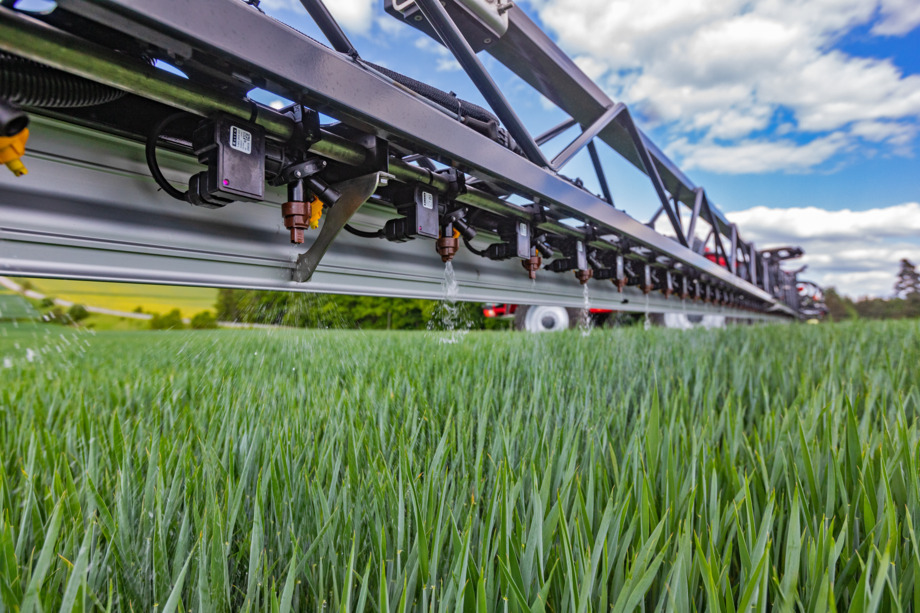

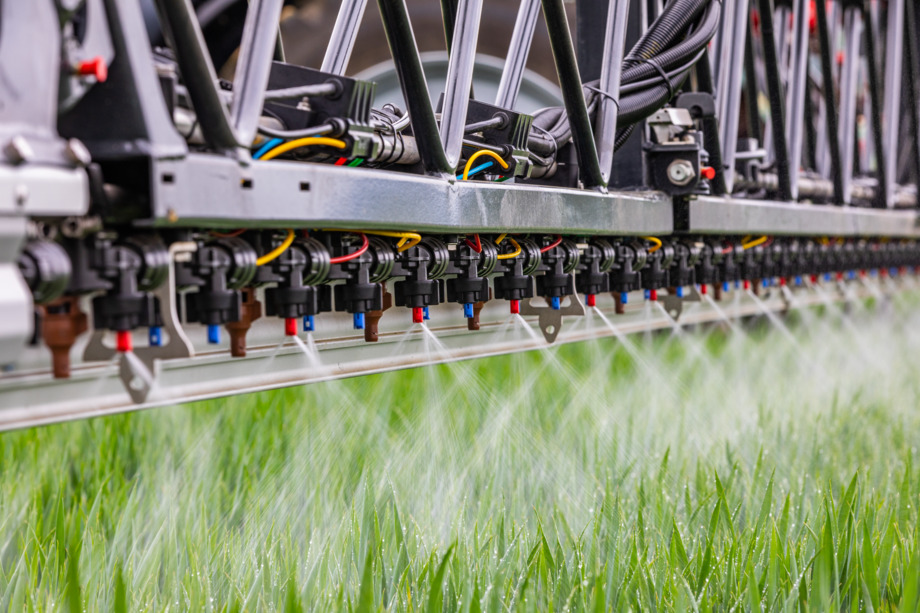

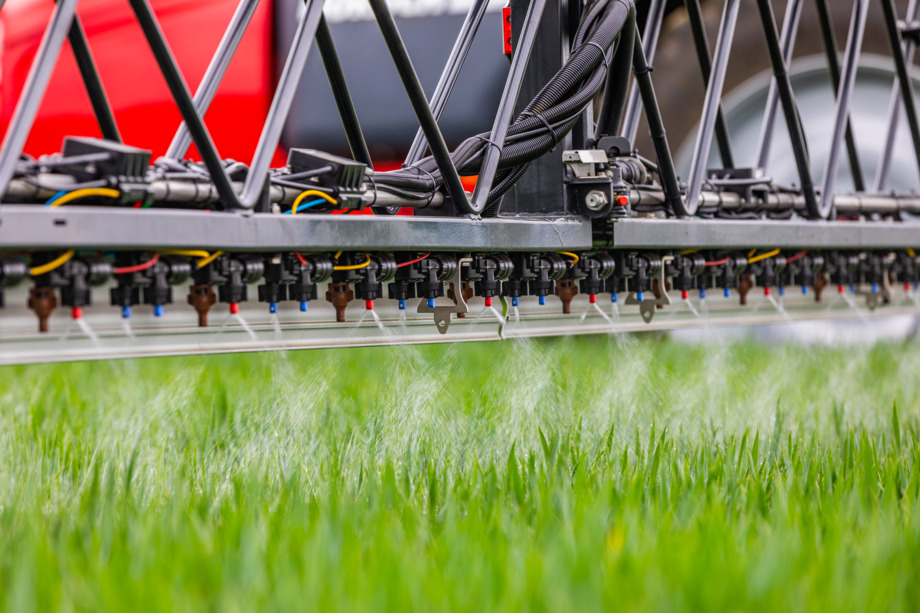

Pneumatic nozzle and section control
• Individually controlled nozzles, combined pneumatically in sections
• 6 to 42 possible sections (standard sections or individual configuration options)
• Excellent penetration and wetting of the population
• Optimum target area spacing with a nozzle spacing of 25 cm
• Allows for individual and intelligent application technologies
The pneumatic nozzle and section control system uses compressed air to provide precise, individual nozzle switching at 25 cm or 50 cm spacings. This setup enables intelligent, variable applications for optimal crop wetting while simplifying maintenance and error detection through its streamlined design. Integrated edge nozzle holders and wind-tunnel-tested configurations further enhance performance by significantly reducing drift based on target height.
Pneumatic nozzle control 2-2
Band spraying is also no problem for a 25 cm spacing
25 cm nozzle layout: more nozzles, more options, e.g., 3D application

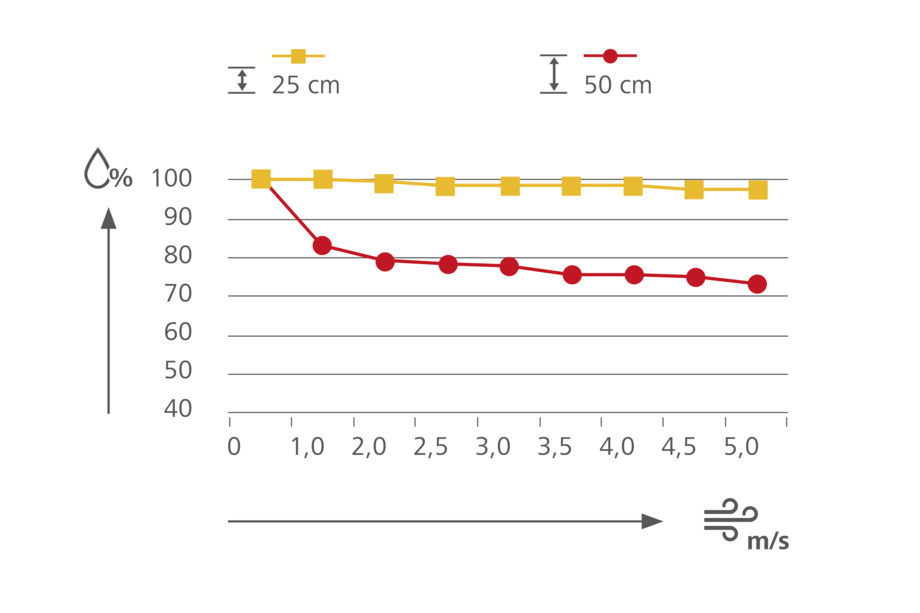

Drift comparison: wetting (in %) depending on the wind force (m/s) at a target area spacing of 25 and 50 cm
Pneumatic nozzle control 2-2 with 3D application
PrecisionSpray
• Infinitely variable adjustment of the flow rate at constant pressure and droplet size
• Constant drop spectrum when using a nozzle
• Fewer different nozzle sizes required
• Adjustment of the application rate without altering spraying characteristics
• Curve compensation and VariableRate per section
• Generally larger nozzle bodies that are less prone to clogging
The pneumatic nozzle and section control system uses compressed air to provide precise, individual nozzle switching at 25 cm or 50 cm spacings. This setup enables intelligent, variable applications for optimal crop wetting while simplifying maintenance and error detection through its streamlined design. Integrated edge nozzle holders and wind-tunnel-tested configurations further enhance performance by significantly reducing drift based on target height.

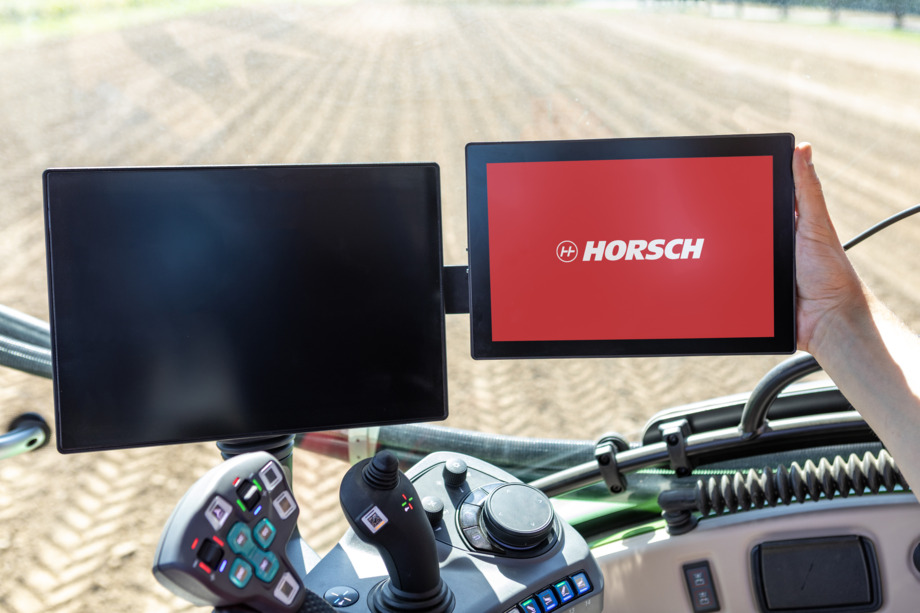

Ergonomic operating concept
• Automatic air-conditioning/heating, operation of the air-conditioning function and lighting integrated in the roof strip
• Control lever with multi-configurable keys integrated in an ergonomic control armrest

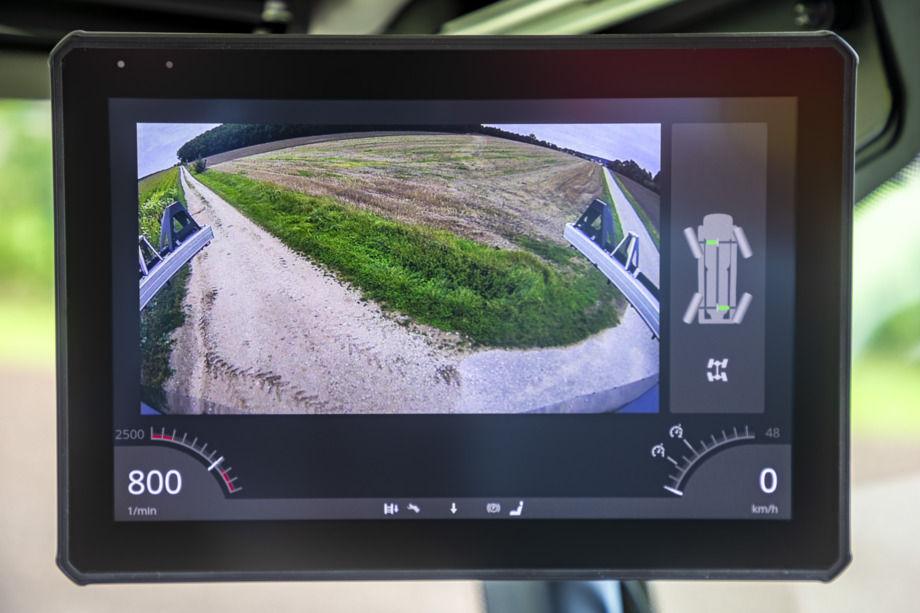

• 12" display in the A-column with customisable main page, machine, driving, and spraying data
• Armrest with new machine functions, e.g. "Sprayer Ready" - pump start + BoomControl
• Preparation for automatic Cat. IV cabin filtering (automatic control, fully integrated into cabin roof and roof ledge)

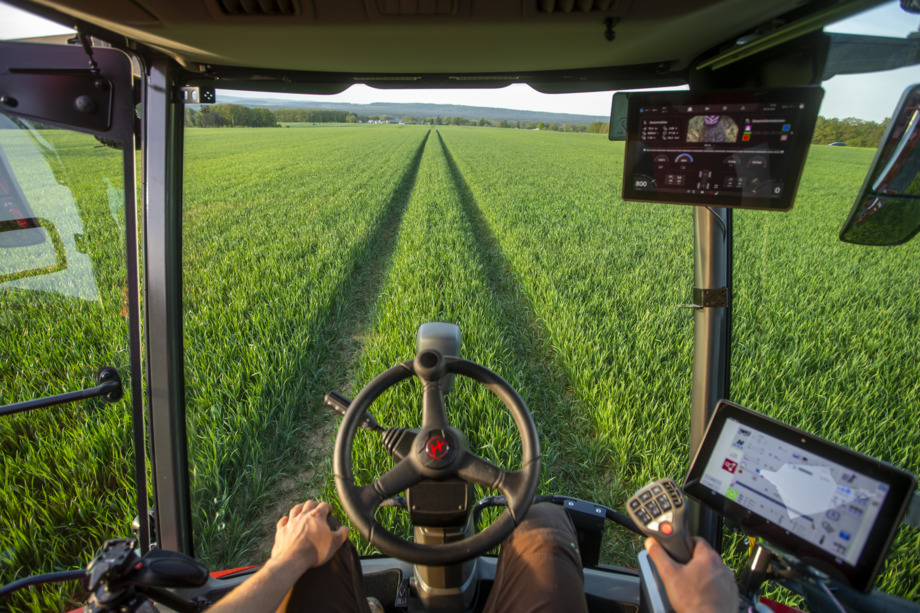

The HORSCH self-propelled sprayer cab prioritizes operator efficiency and comfort through an ergonomic design and an intuitive, integrated control system. Central to its operation is a high-resolution 12-inch display and a customizable joystick with 30 assignable buttons, supported by a "Sprayer Ready" softkey that activates essential functions with a single touch. The cabin is equipped with automatic folding steps to prevent crop damage, Category IV air filtration for safety, and luxury amenities like climate control, a 30-liter cool box, and inductive charging to sustain productivity during long shifts. With excellent visibility and optional 4-point pneumatic suspension, the workstation combines technical precision with a high-end automotive feel.

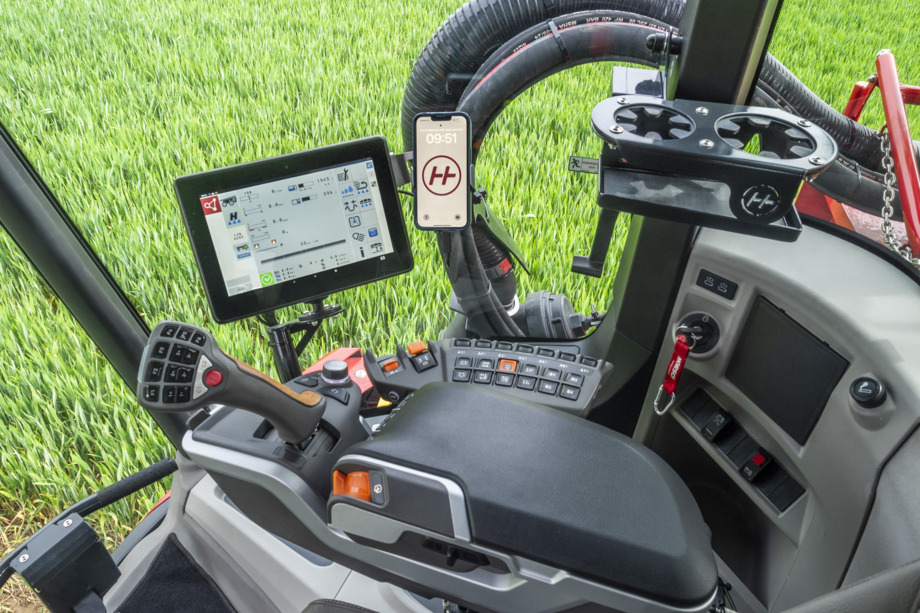

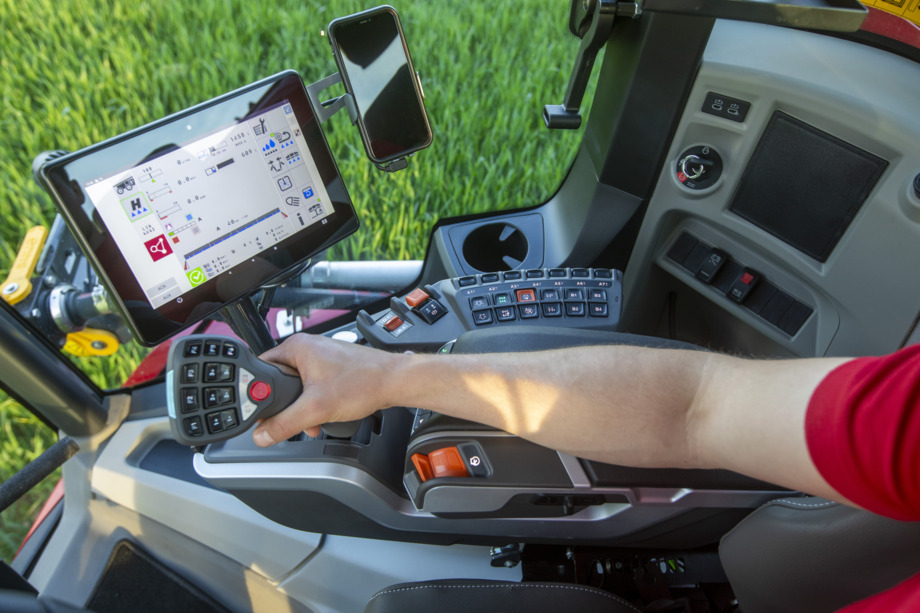

Ergonomic control lever and clearly arranged operating elements

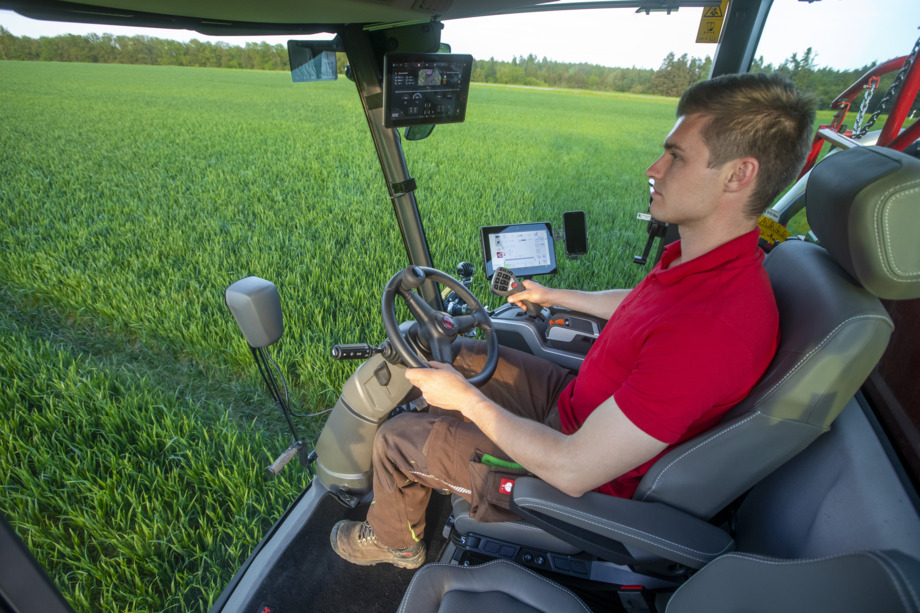

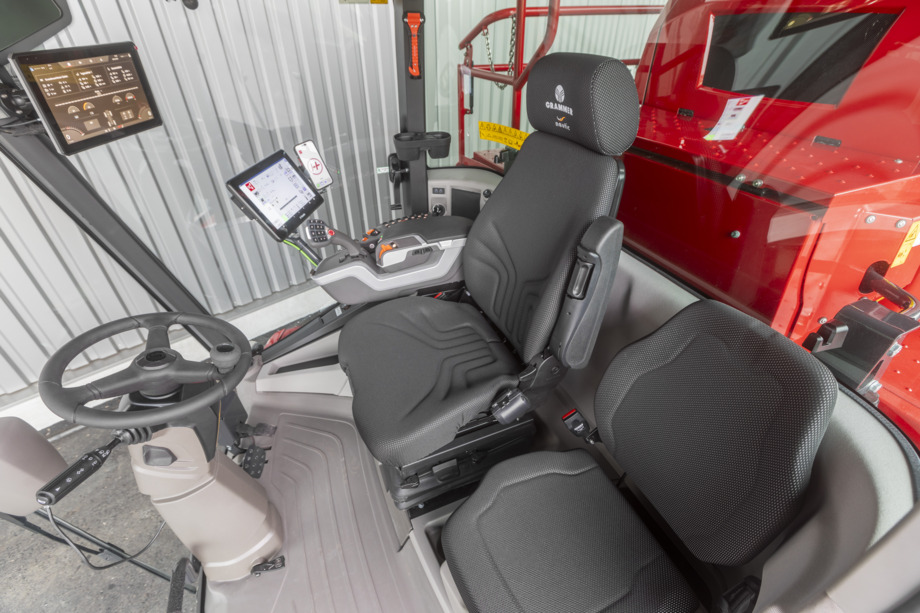

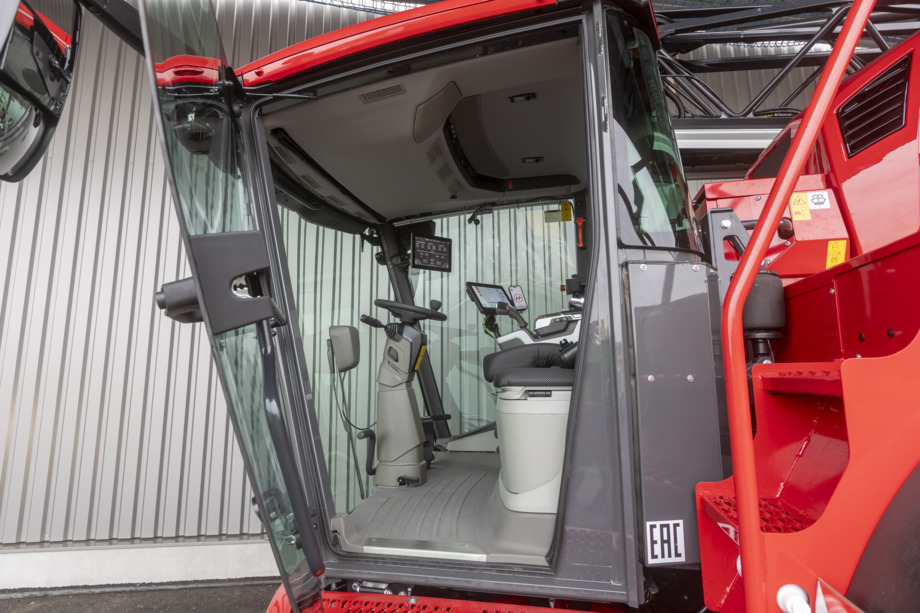

Comfortable and spacious cabin with joystick, mobile phone holder, and cup holder

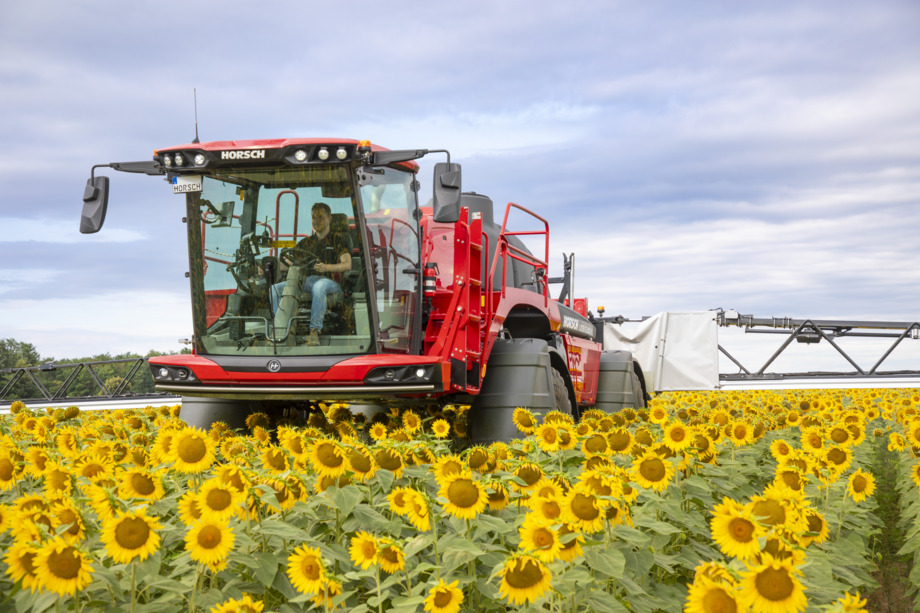

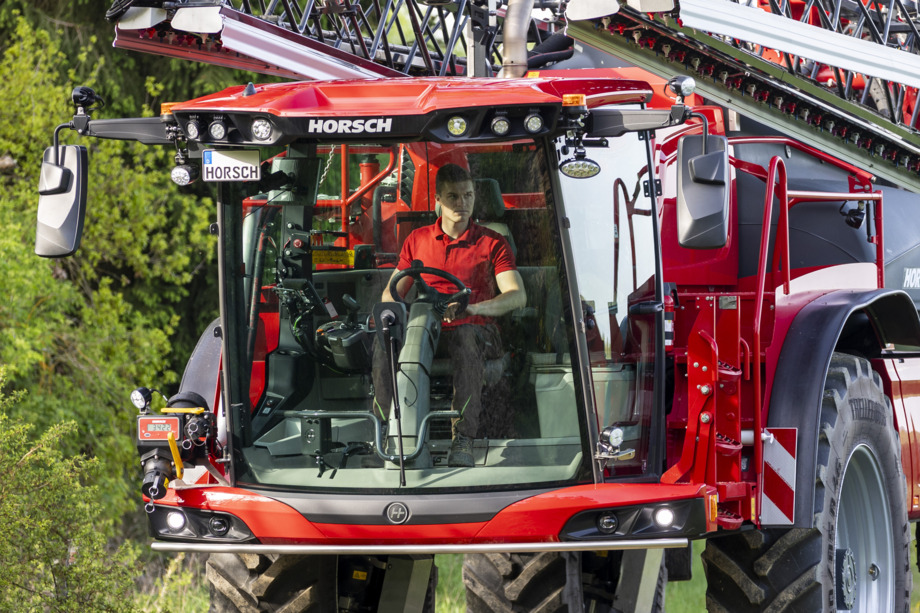

Comfort cabin for optimal working conditions

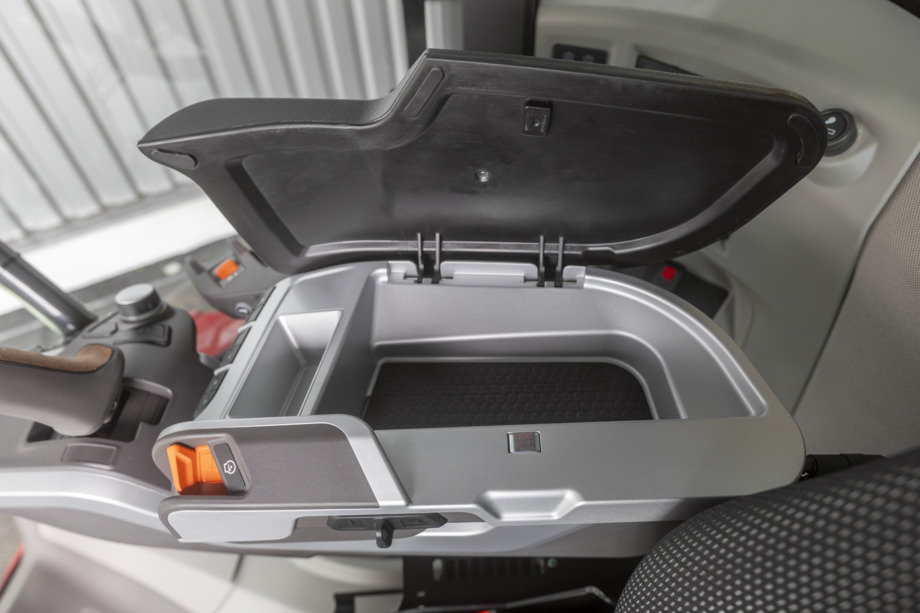

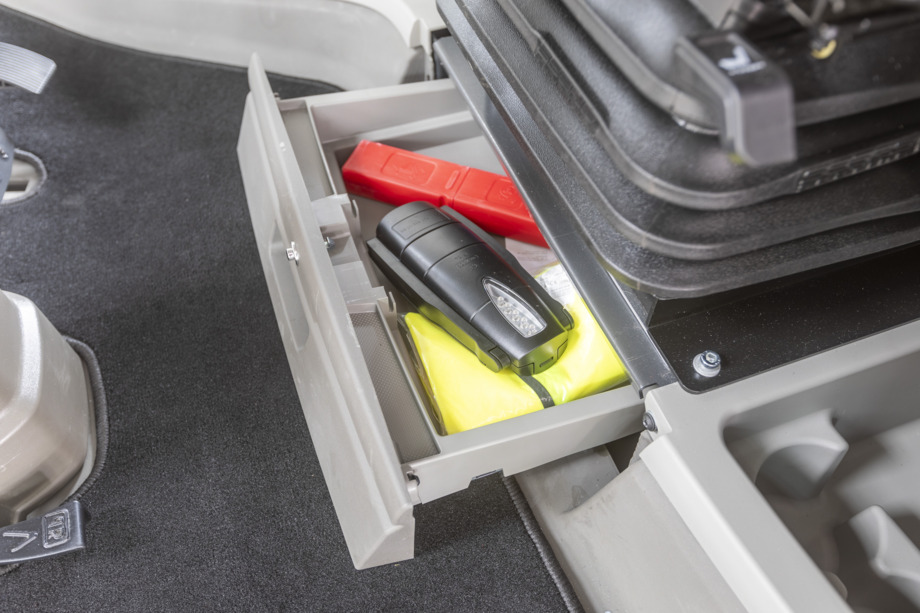

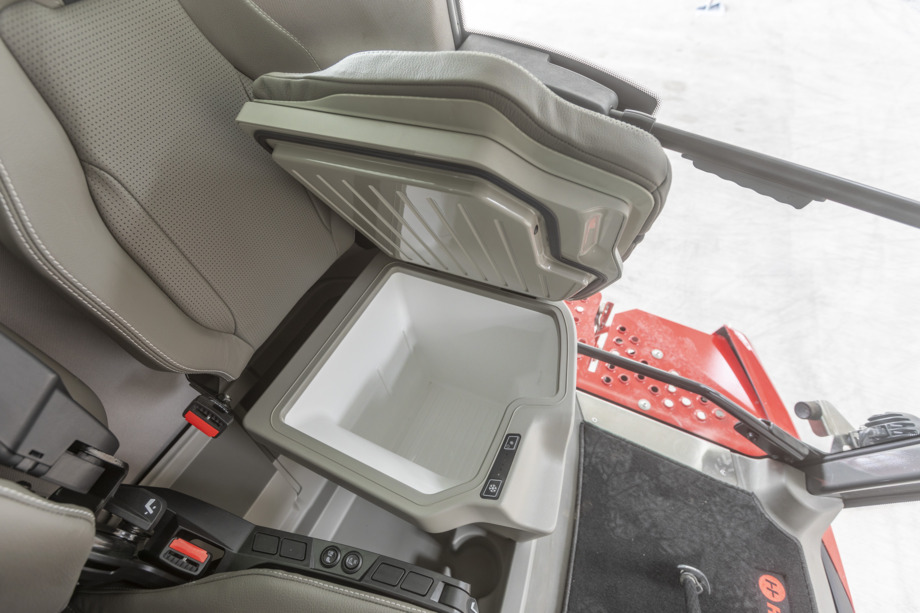

Practical storage compartments in the armrest

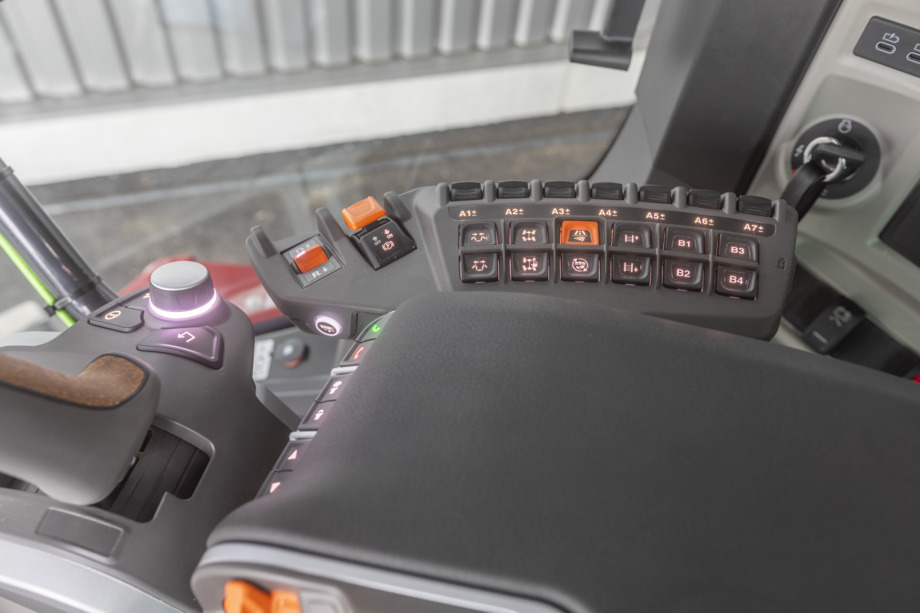

Comfortable operation of the functions compactly integrated into the armrest

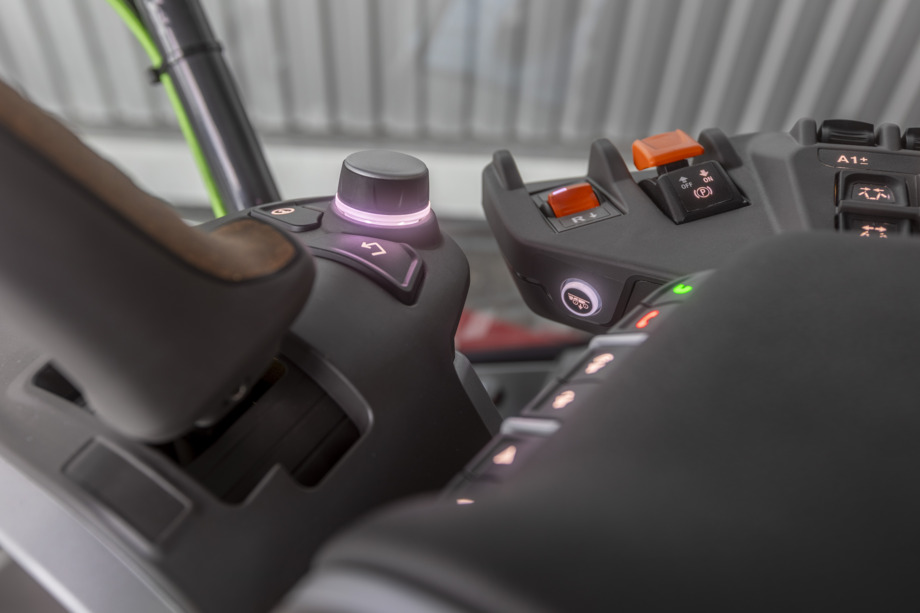

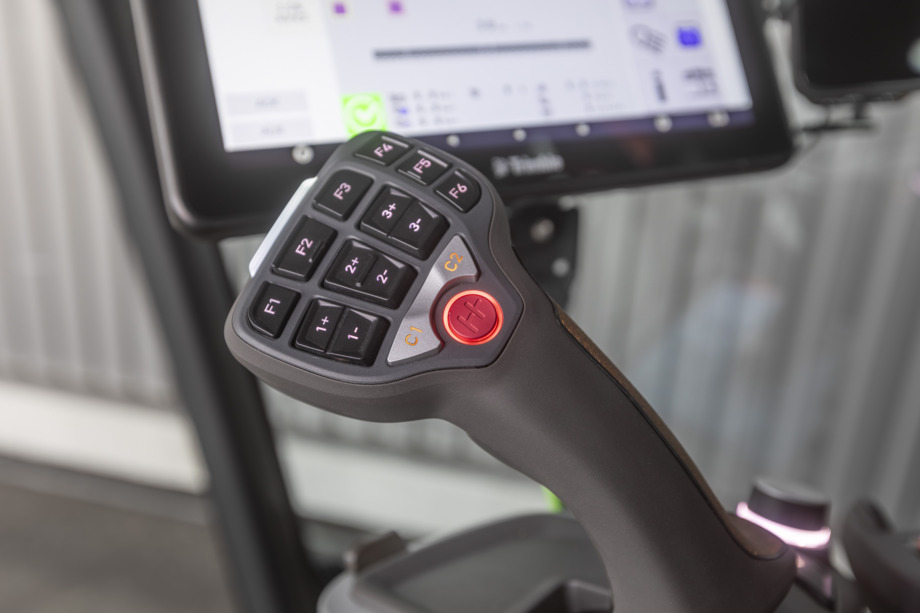

Ergonomic control lever with multiply assignable buttons
Safe operation of the A-column display: rotary/push functions

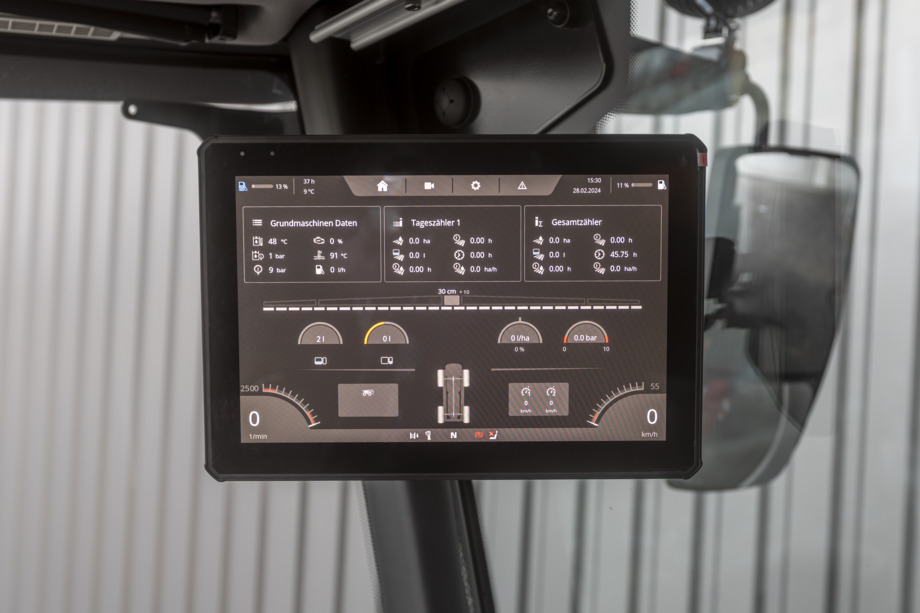

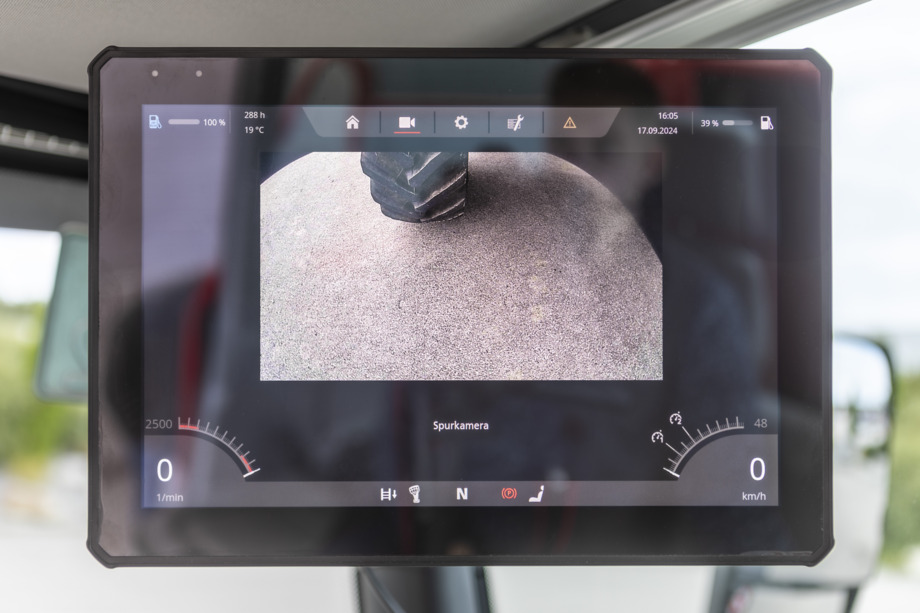

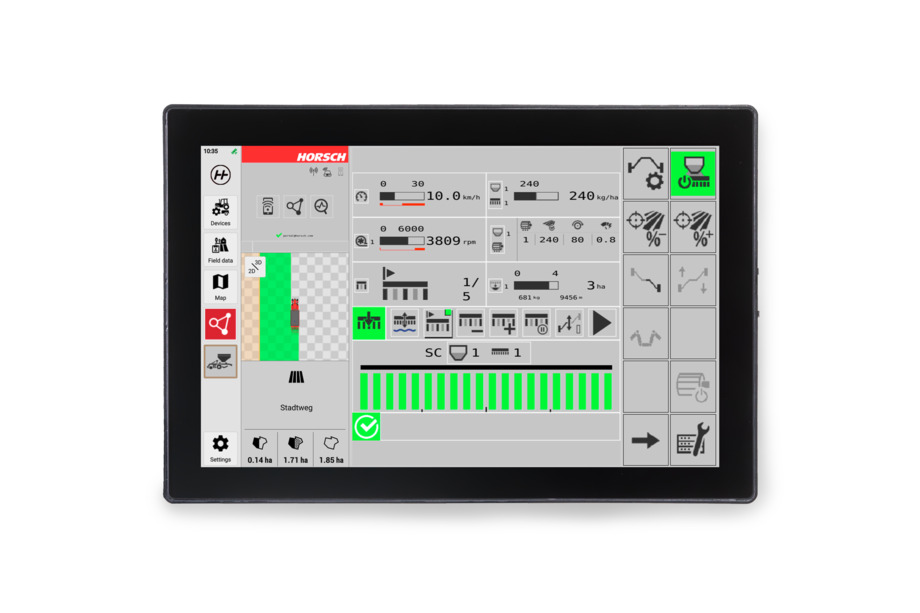

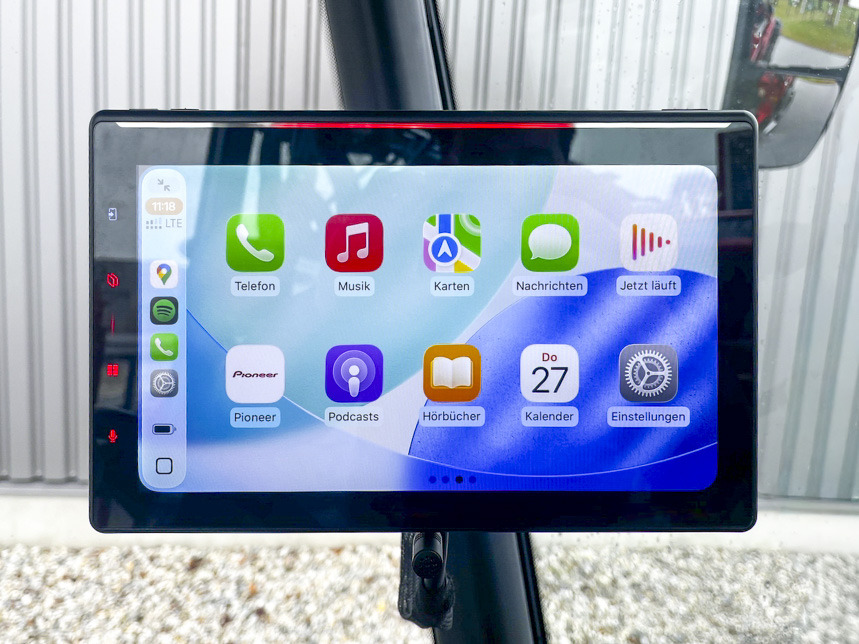

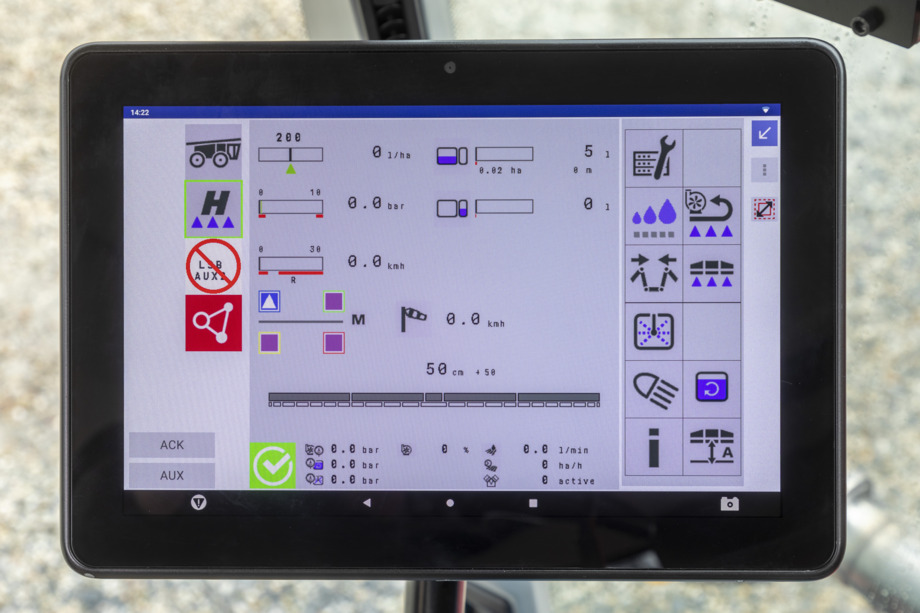

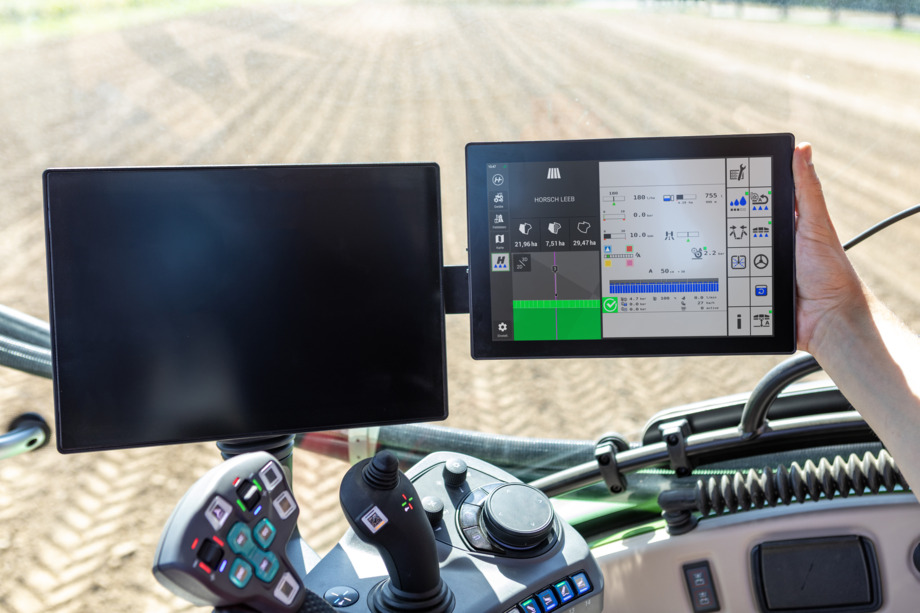

Standard 12" A-column display with customisable display options
Cabin Basic
• Fabric seat with various adjustment options

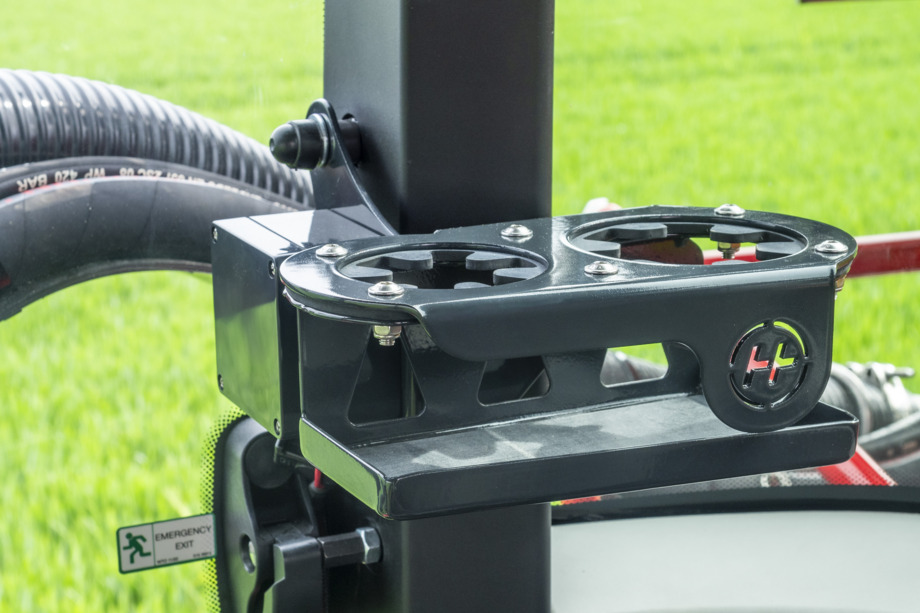

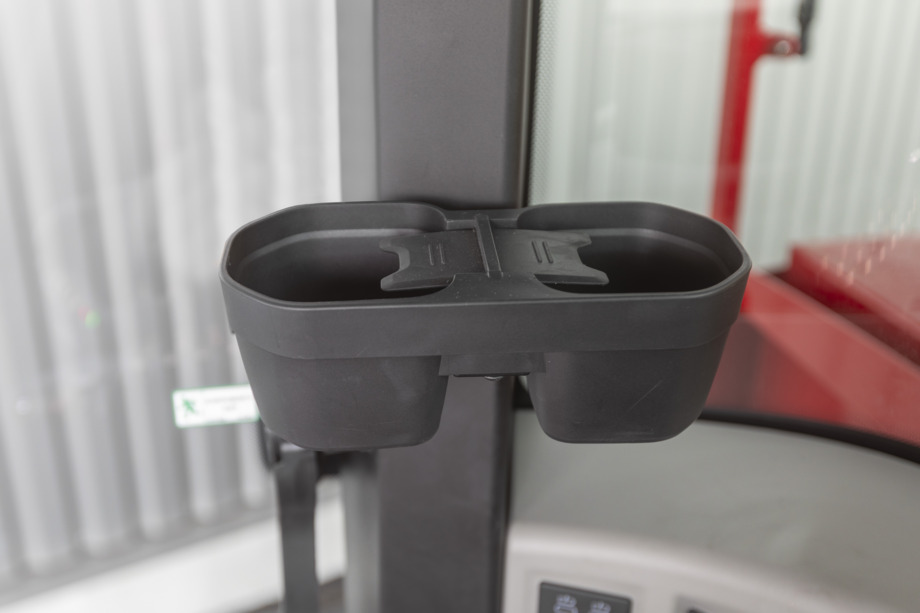

• Double cup holder made of plastic for long workdays
• Sun protection blinds on front and rear windows
The Basic equipment options offers the driver a length- and height-adjustable driver's seat covered with durable fabric and a passenger seat also covered with fabric. The spring-loaded and comfortably cushioned driver's seat has a backrest with an integrated lumbar support to relieve the spine and is equipped with an armrest on the left side. A double cup holder is integrated for long workdays. Sun protection blinds are mounted on the front and rear windows.

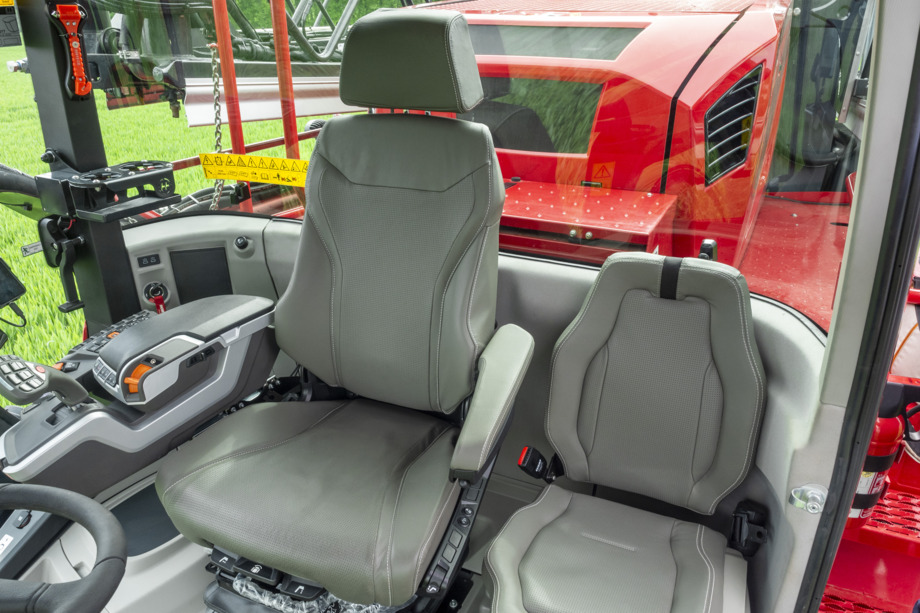

Cabin Pro
• Swivelling comfort seat with premium leather cover
• Seat heating and ventilation
• Triple cup holder for long workdays
• Sun protection blinds on front, rear and side window

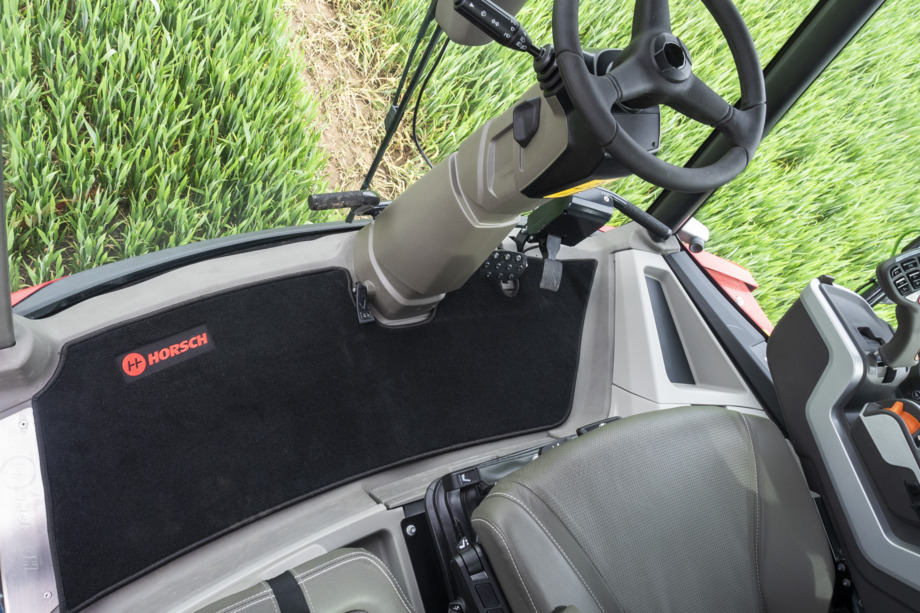

• Additionally, there is a foot mat and a terminal mounting rail.

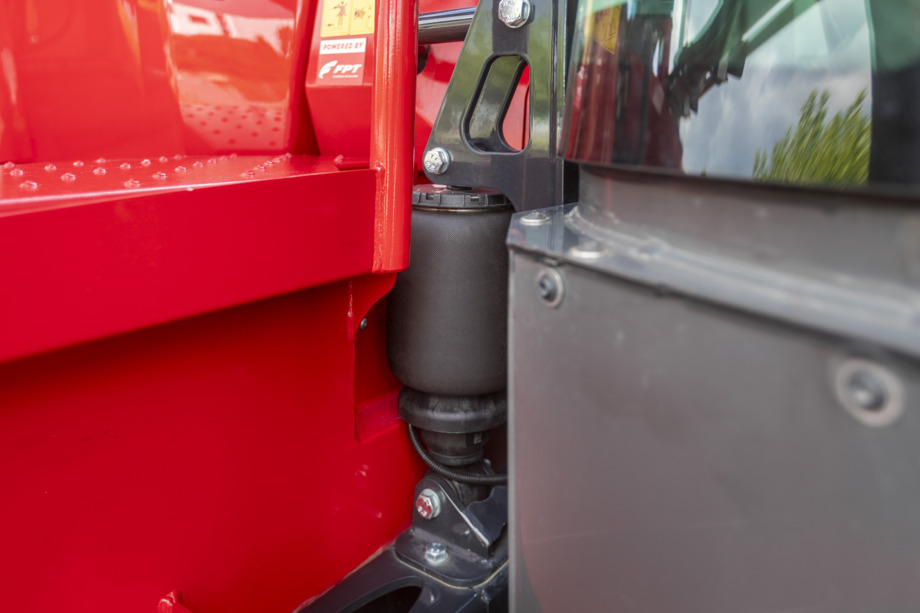

The Pro line upgrades the cabin with a premium air-suspended leather seat featuring heating, ventilation, and multi-way adjustable damping for maximum ergonomic support. The interior is further enhanced with a leather passenger seat, a velour floor mat, and a triple cup holder to sustain comfort during long shifts. To manage heat and light, integrated sun protection blinds are fitted to all windows, while a dedicated terminal mounting rail provides a professional workspace setup.

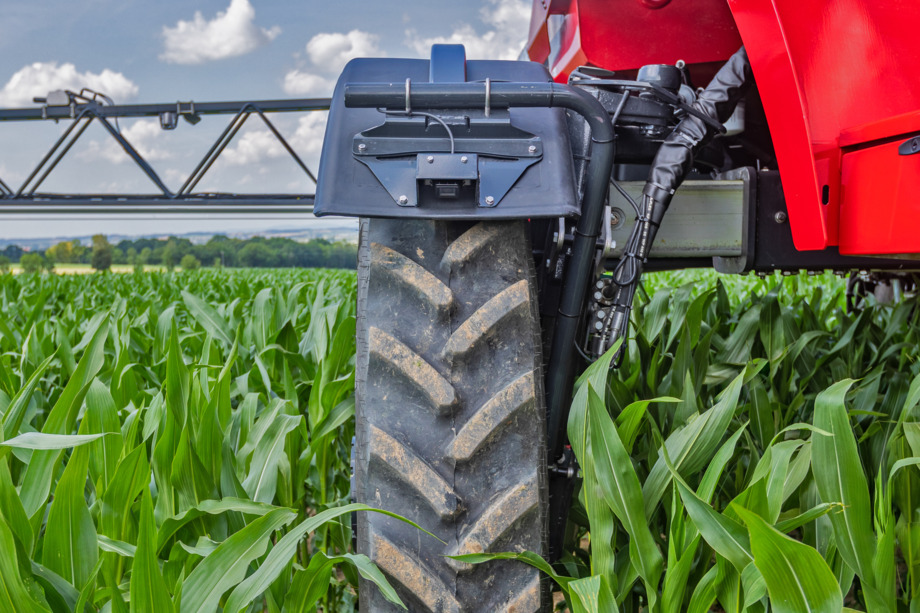

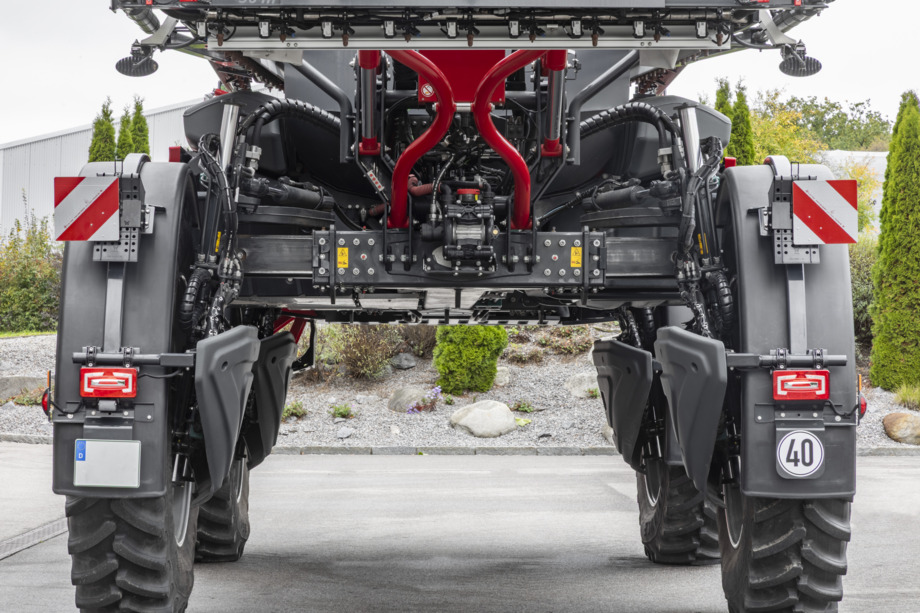

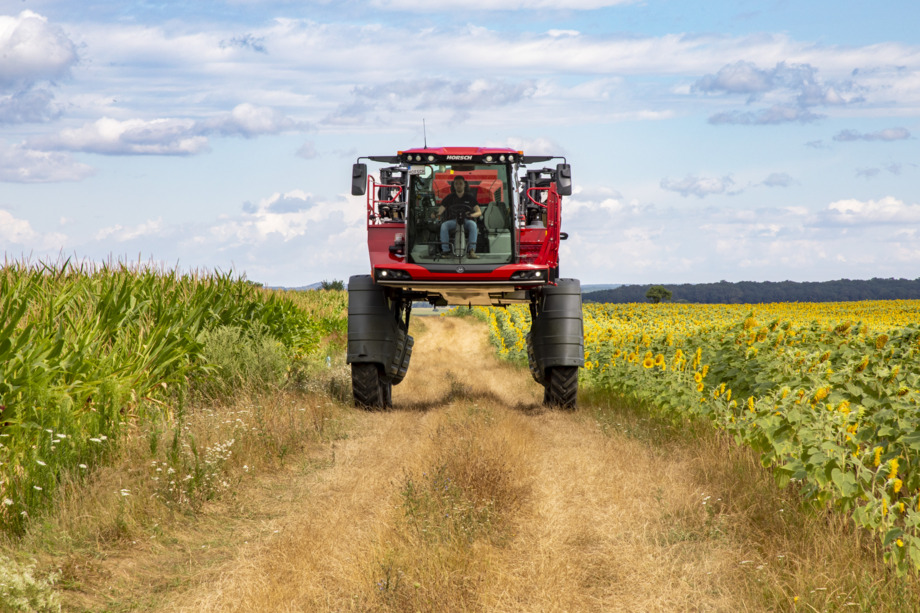

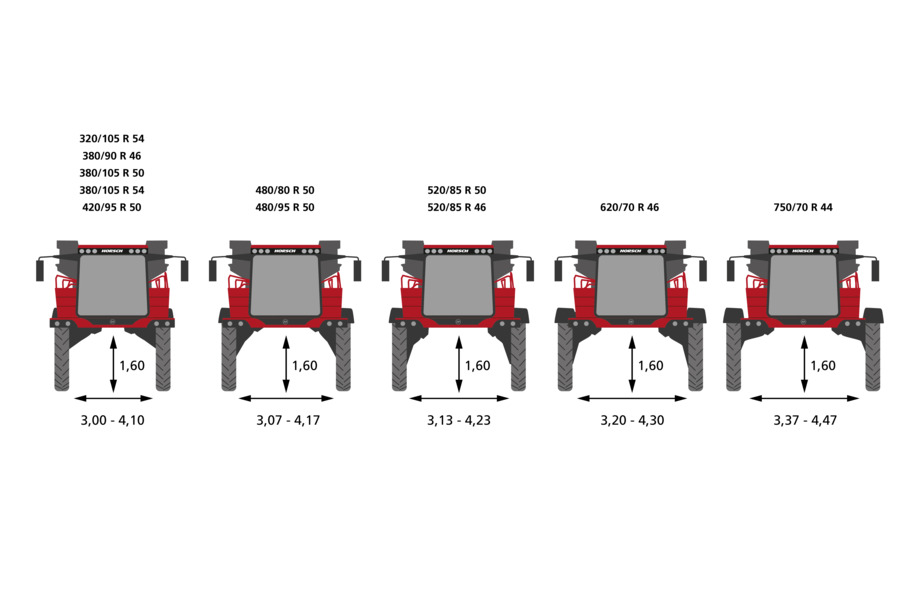

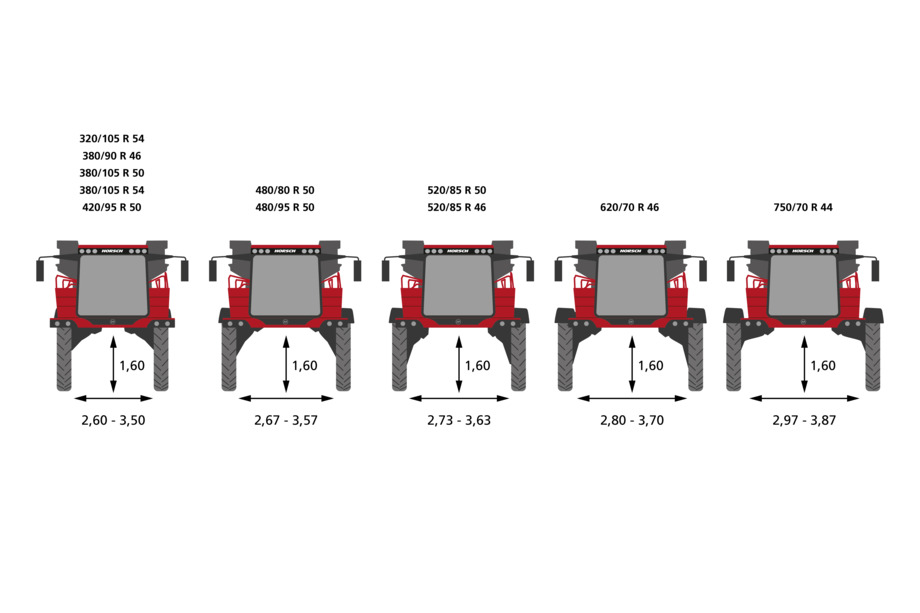

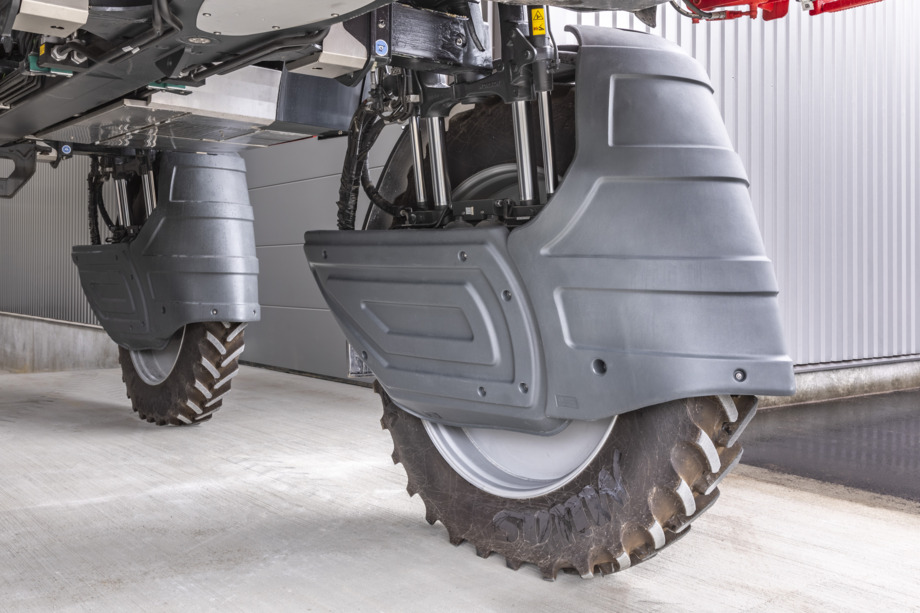

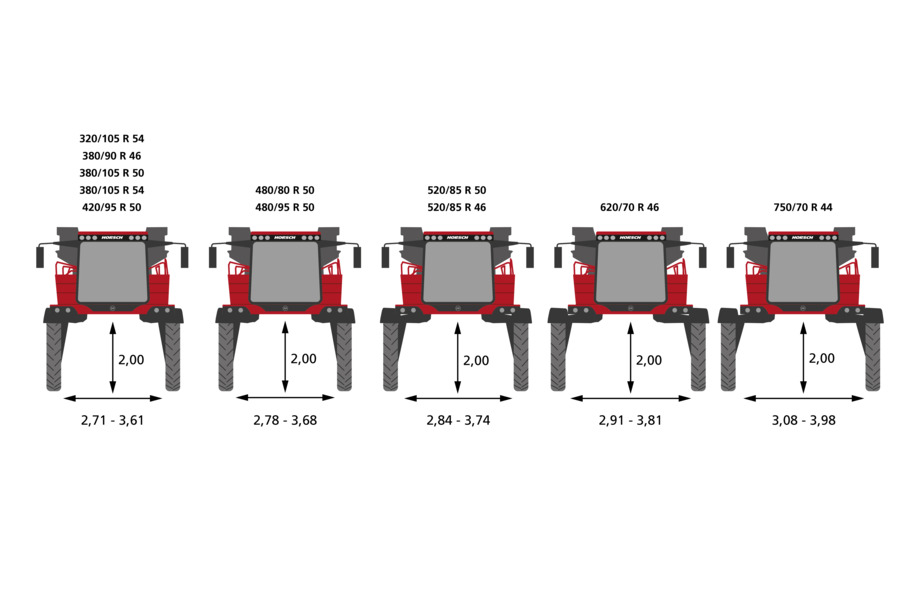

TrackControl
• Hydraulic adjustment of the track width in the cabin
• Adaption to different crops and row widths
• Track width 2.60 to 3.50 m resp. 3.00 to 4.00 m
The TrackControl hydraulic adjustment system allows the HORSCH Leeb VL to infinitely vary its track width between 2.60m and 4.00m to suit different crops and row widths. This flexibility enables operators to avoid tramline damage while significantly improving vehicle stability and driving characteristics during application.
HillControl
• Exact following in the tracks of the rear axle on side slopes
• Active hillside counter-steering, aggressiveness infinitely adjustable
• Easy operation, stored values are retrieved in each driving direction
• Safer trafficability on side slopes in demanding conditions
The HillControl system provides independent rear-axle control to ensure safe and stable operation on challenging side slopes. By actively overriding machine slippage and offering infinitely adjustable steering aggressiveness, the system maintains precise tracking in difficult terrain. It is designed for extreme ease of use, automatically storing steering adjustments for the entire field until the boom is folded.

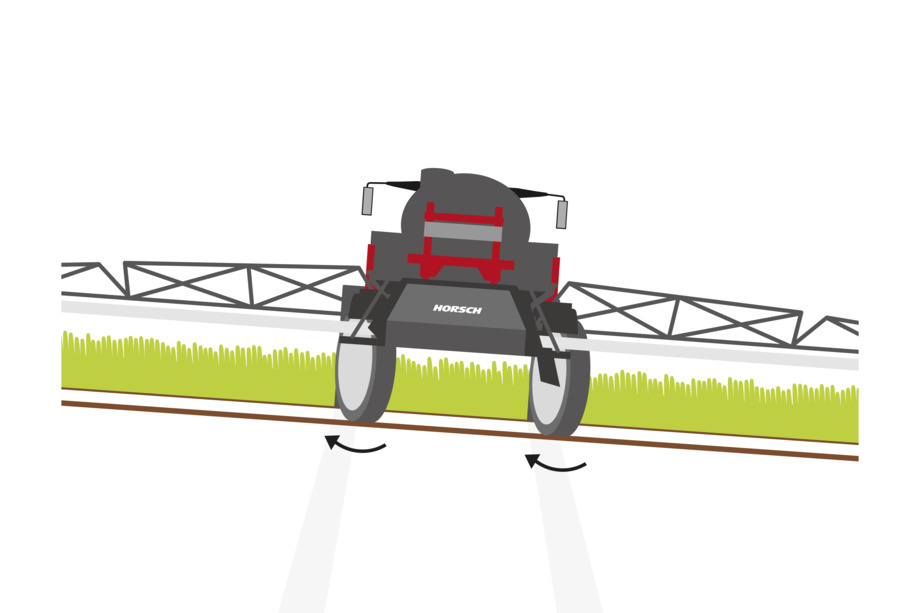

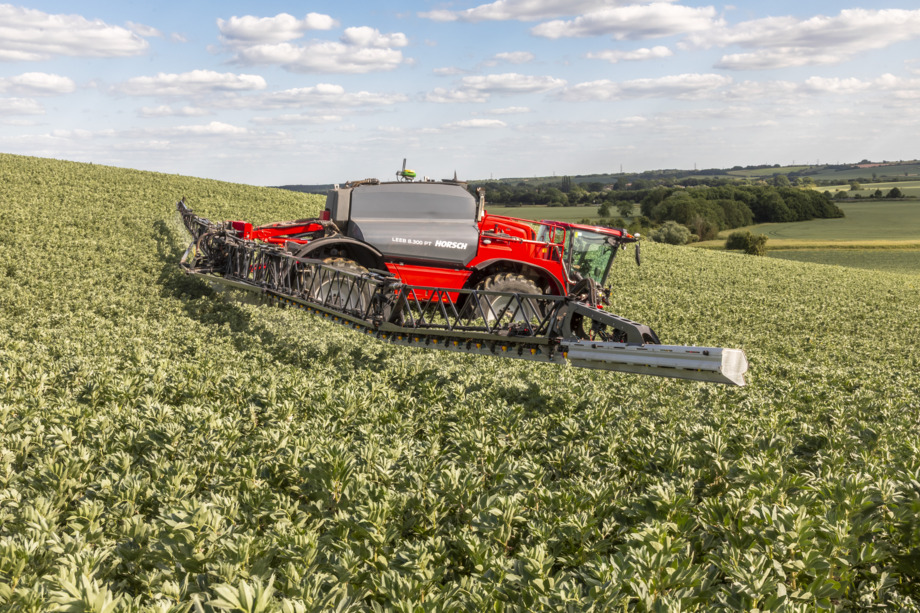

The active hillside counter-steering system HillControl compensates drift on side slopes and ensures a directionally stable following of the rear axle.
HillControl Pro
• Active compensation of the vehicle chassis on side slopes
• In combination with ClearanceControl, the vehicle chassis is permanently adjusted to the side slope
• Comfortable workplace in the cabin and optimum center of gravity of the machine in relation to the slope
• Only in combination with HillControl: rear axle precisely follows the tracks on side slopes
HillControl Pro elevates side-slope compensation by integrating with the ClearanceControl system to independently adjust vehicle height on each side by up to 400 mm. This responsive, fully automatic background function levels the chassis horizontally on lateral inclinations of 4% to 18% while simultaneously managing the rear axle for precise tracking. By stabilizing the machine’s center of gravity and maintaining a level workspace, the system ensures both operator comfort and superior machine stability in challenging terrain.
The active hillside counter-steering system HillControl compensates drift on side slopes and ensures a directionally stable following of the rear axle.

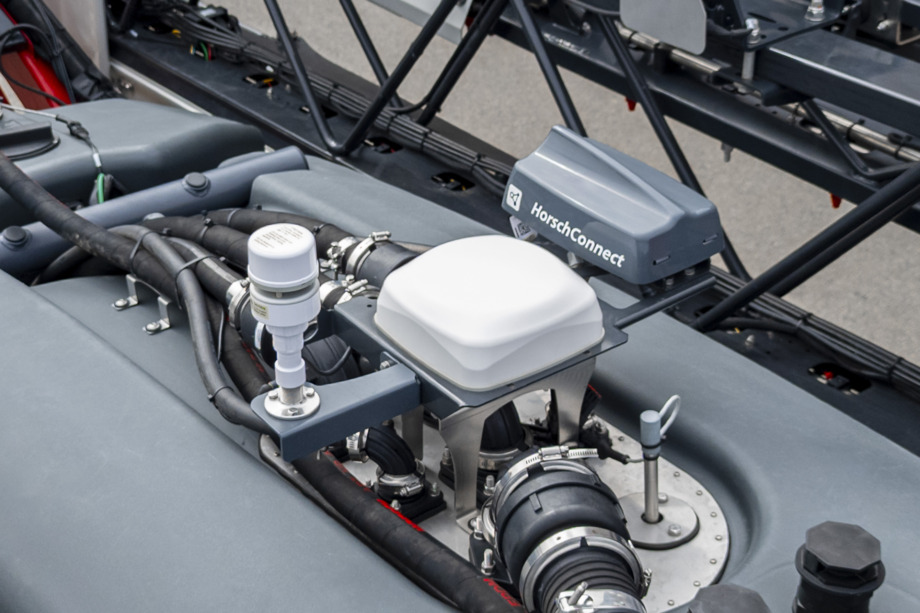

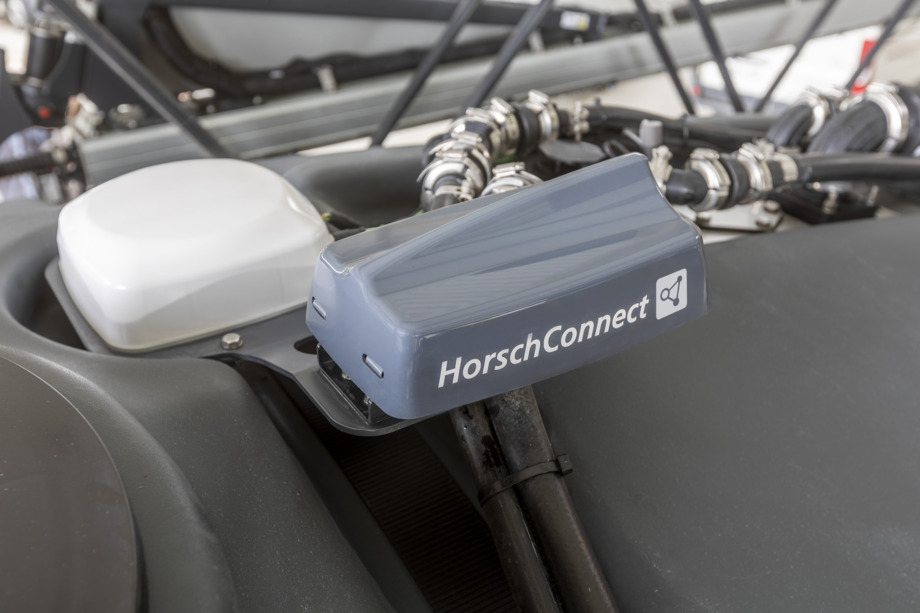

HorschConnect
• Digital solutions exactly where they make sense

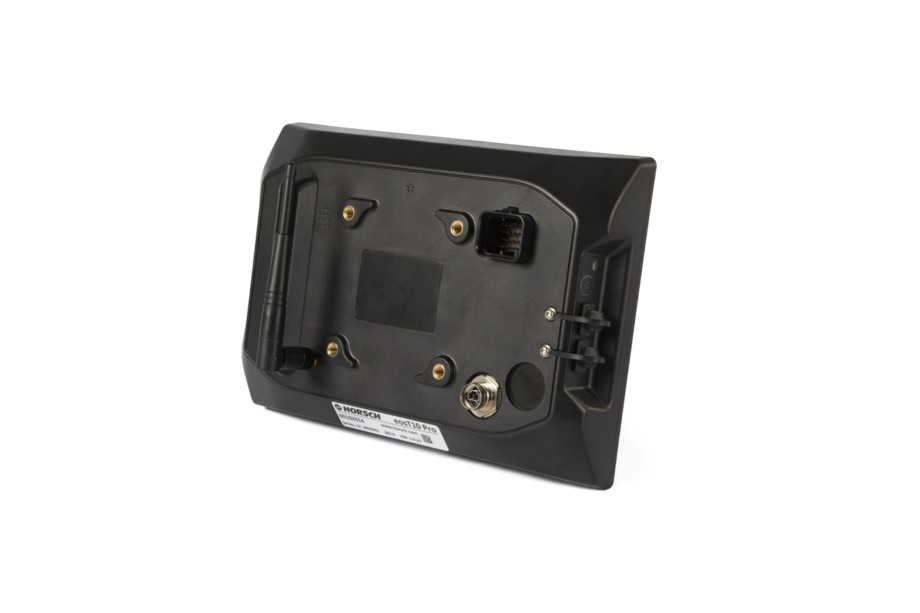

• Straightforward out-of-the-box solution with already integrated SIM card, Wi-Fi modem and other interfaces

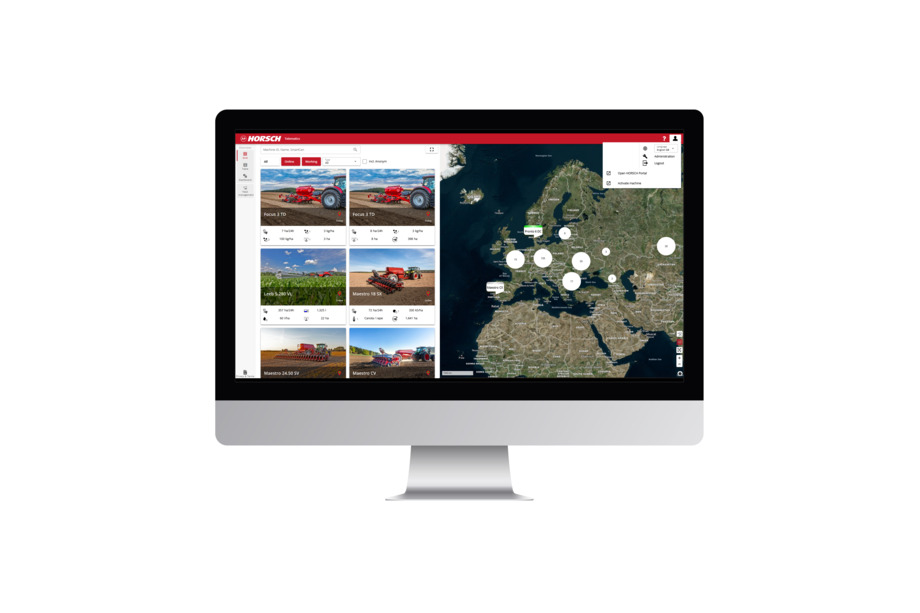

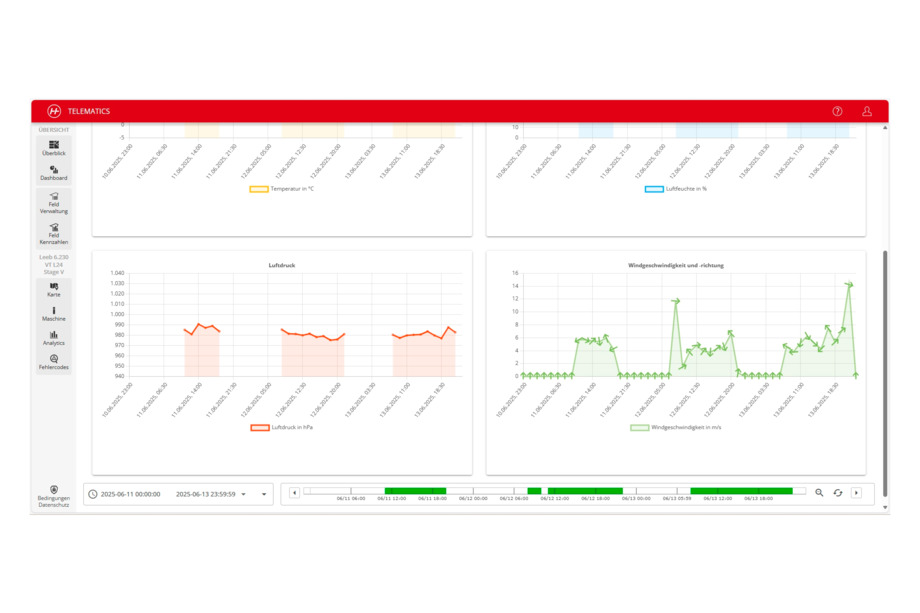

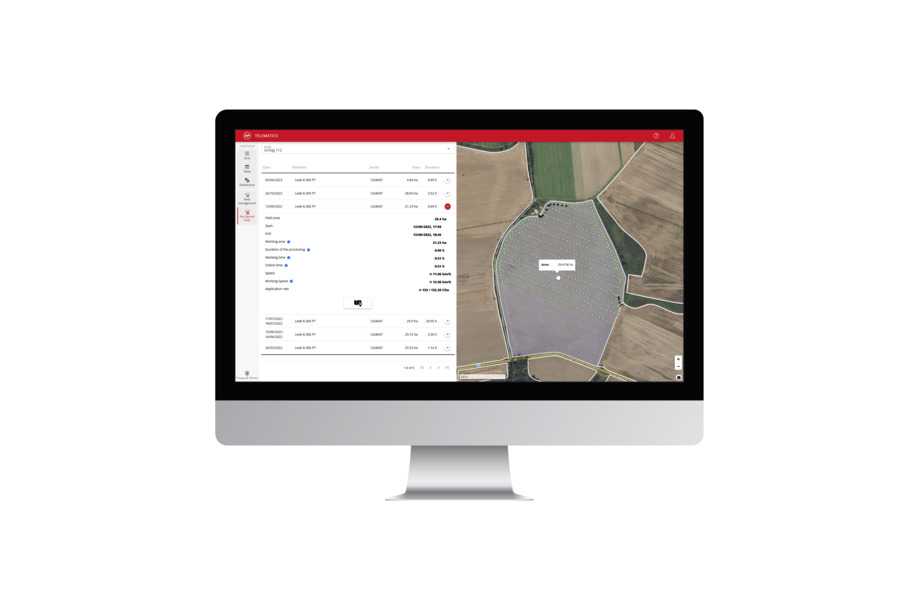

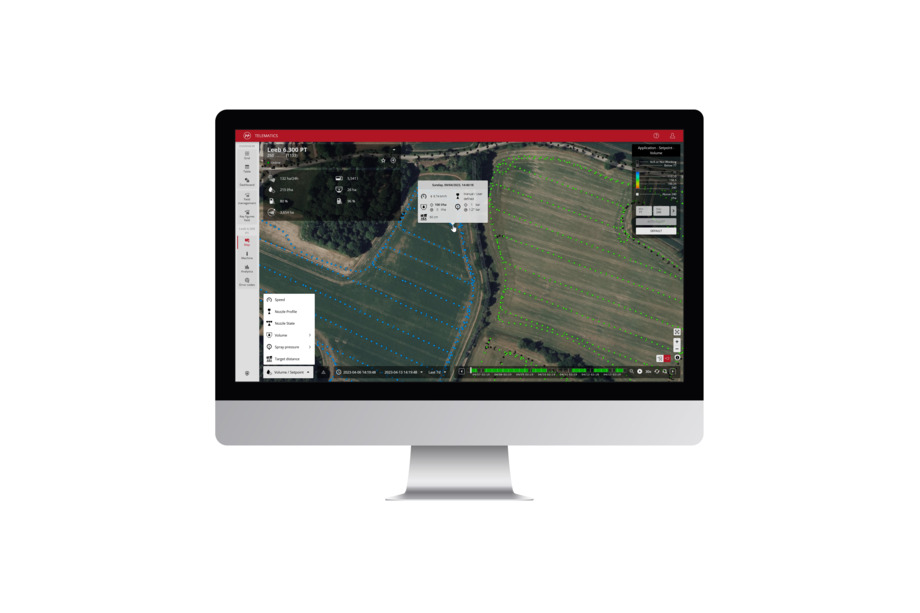

• HorschConnect Telematics to document the performance of the machine
• HorschConnect Telematics for complete transparency of the working quality, e.g. the application rate of all components
• Targeted and proactive service by remote access to error messages
• Control of machine functions via the smartphone app HORSCH Control: e.g. carrying out nozzle tests for individual sections
Prepare today for tomorrow. Easily control various machine functions via the HORSCH Control app – your smartphone complements the terminal! Gain comprehensive, transparent insight into work rate and work quality with HorschConnect Telematics.
With HorschConnect, telemetry solutions are making their way into the sectors seeding and crop care - exactly where they make sense

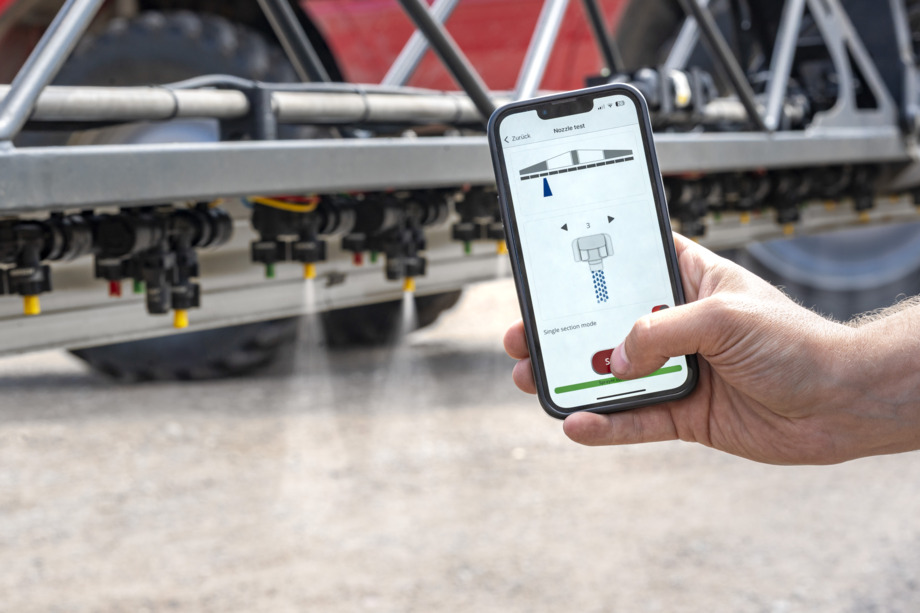

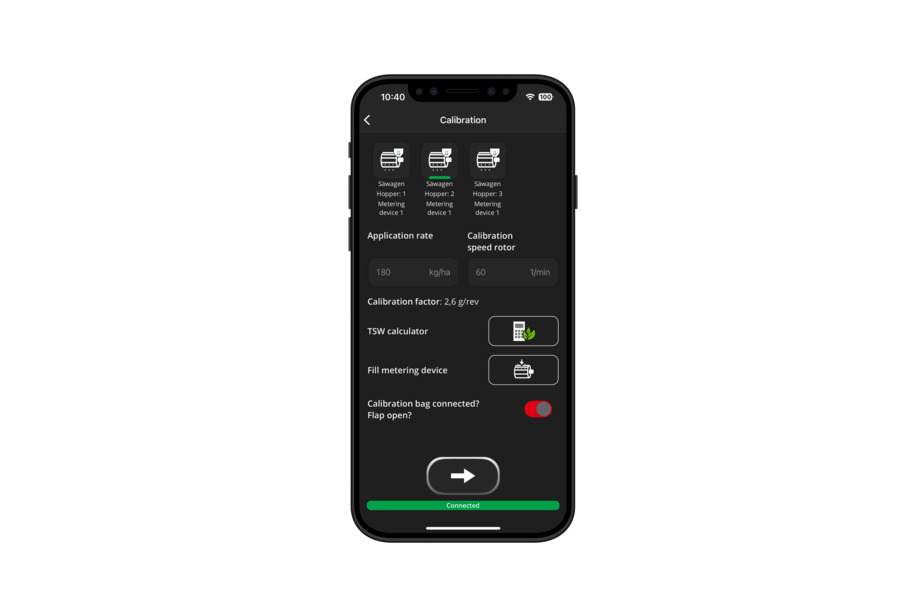

The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone
Success factor transparency: position-specific data of all relevant information like error messages, application rate, nozzle status or target area spacing

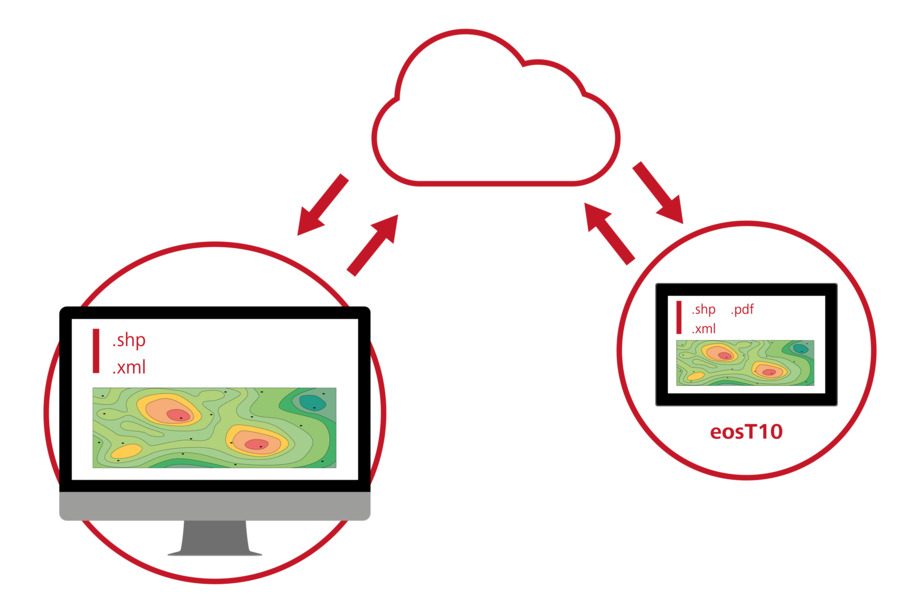

With the field boundaries import all data can be analysed over the season – even in a site-specific way

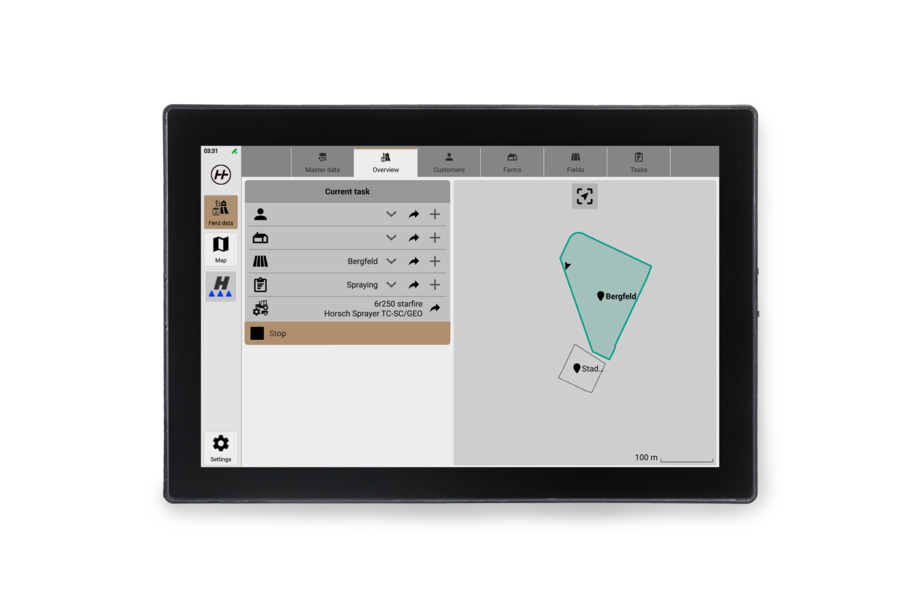

HorschConnect
The HORSCH Control app allows for controlling individual machine functions - comfortably with a smartphone

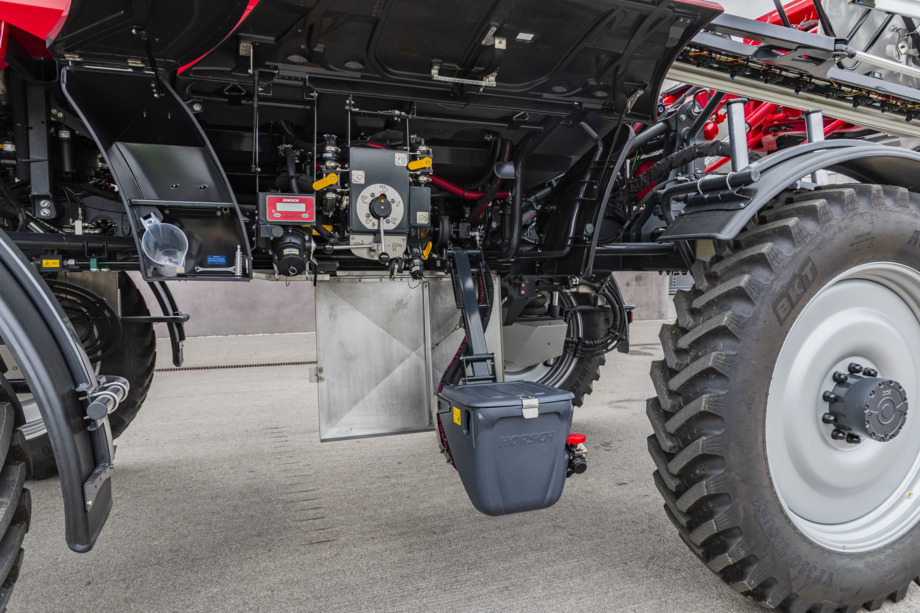

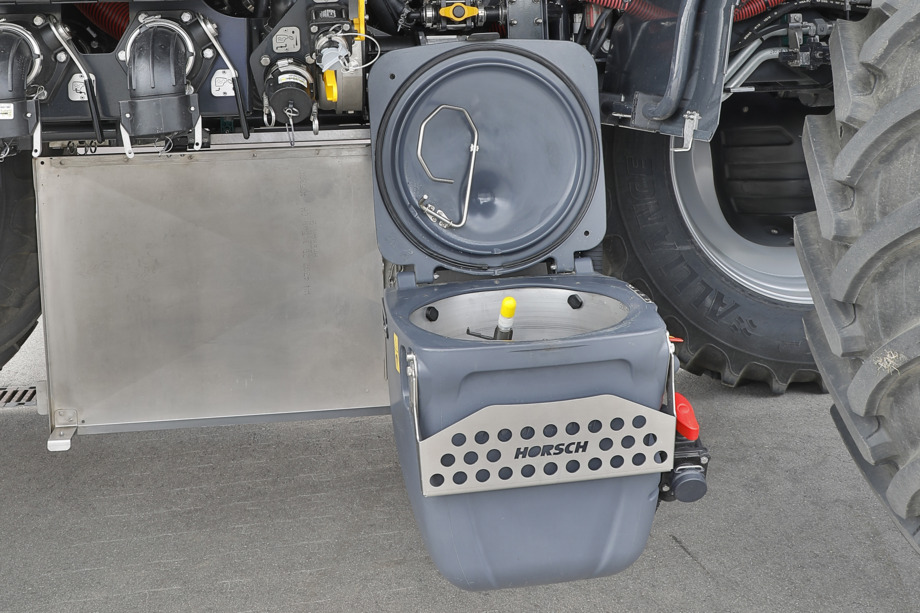

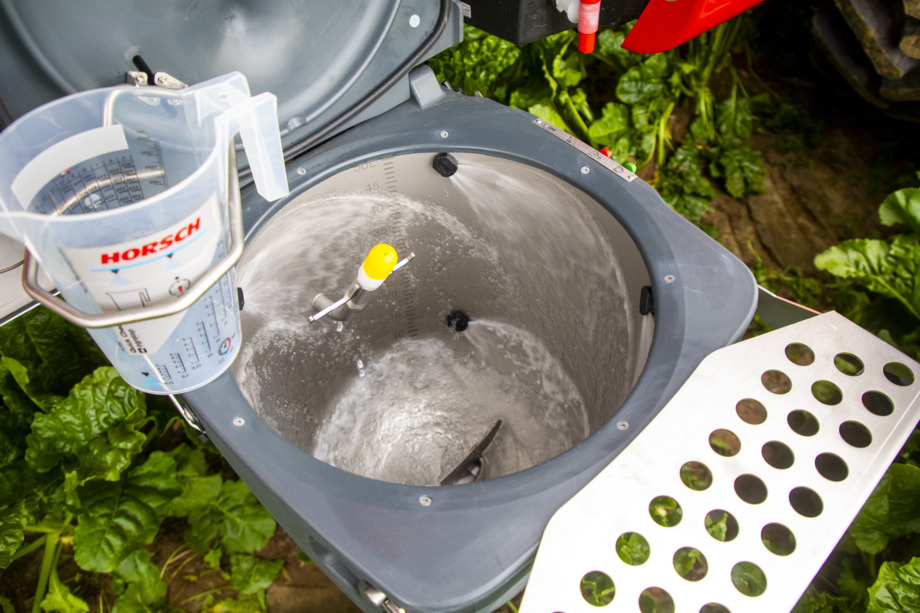

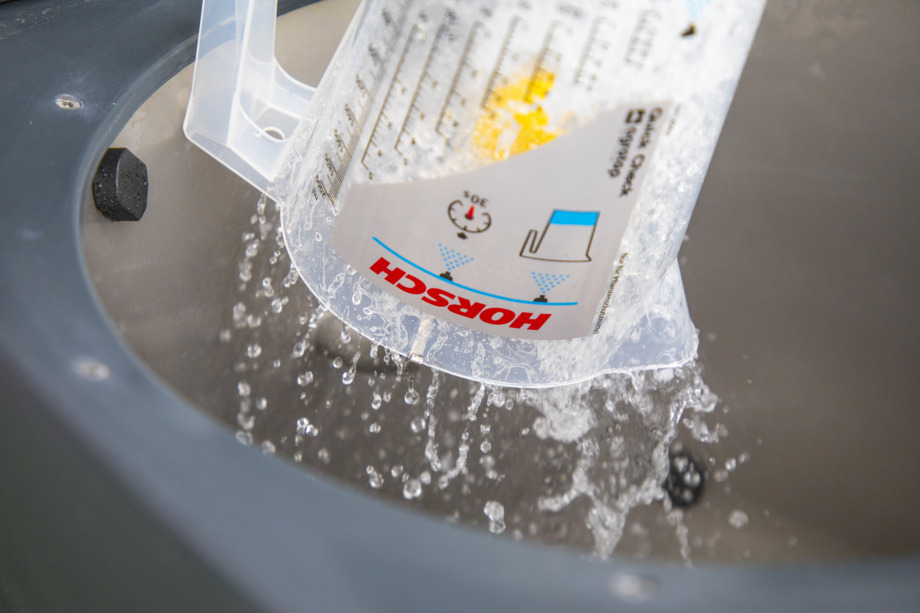

Induction hopper pot made of stainless steel
• Capacity: 52 l
• Additional impact nozzle for intensive use of powdered preparations
• High-performance injector filling
• Made of durable stainless steel and easy to clean
The swivelling and gas pressure-damped induction hopper pot with a capacity of 52 l is made of durable stainless steel and is therefore particularly easy to clean. The injector filling with upper and lower rinse nozzles ensures a whirl-like circulation and, in addition to liquids, is also ideal for granulate . The induction hopper is additionally equipped with an extra shock nozzle, a stainless steel legend and a toolbar with colored control levers.

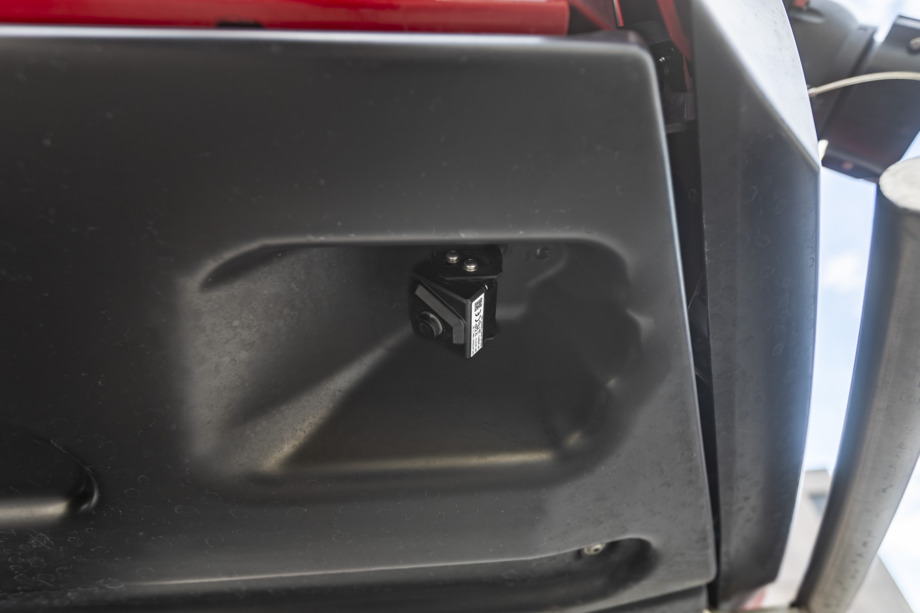

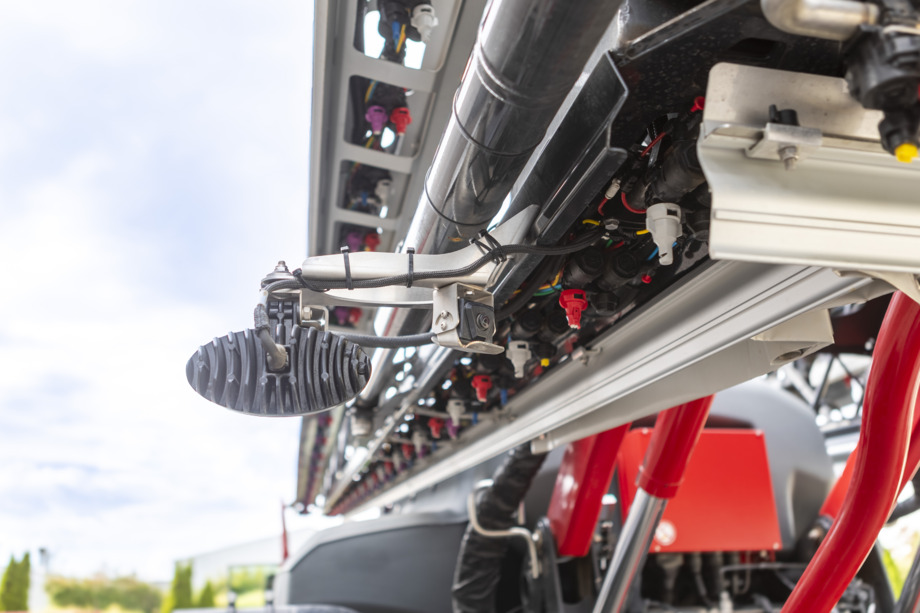

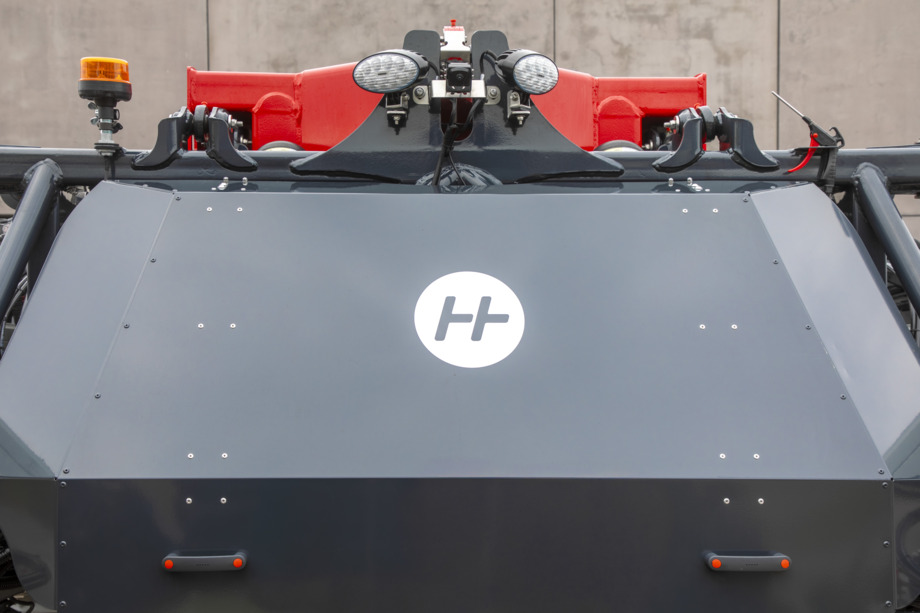

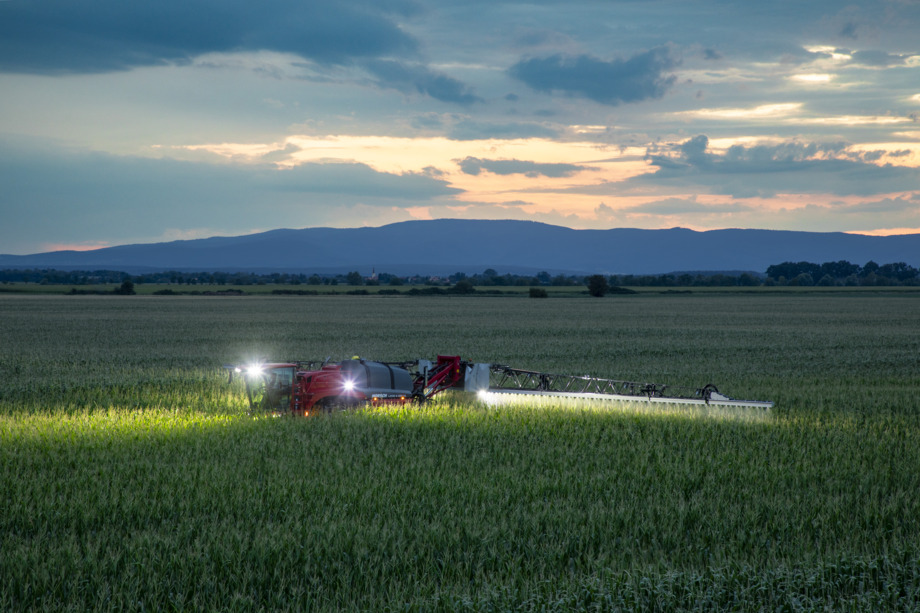

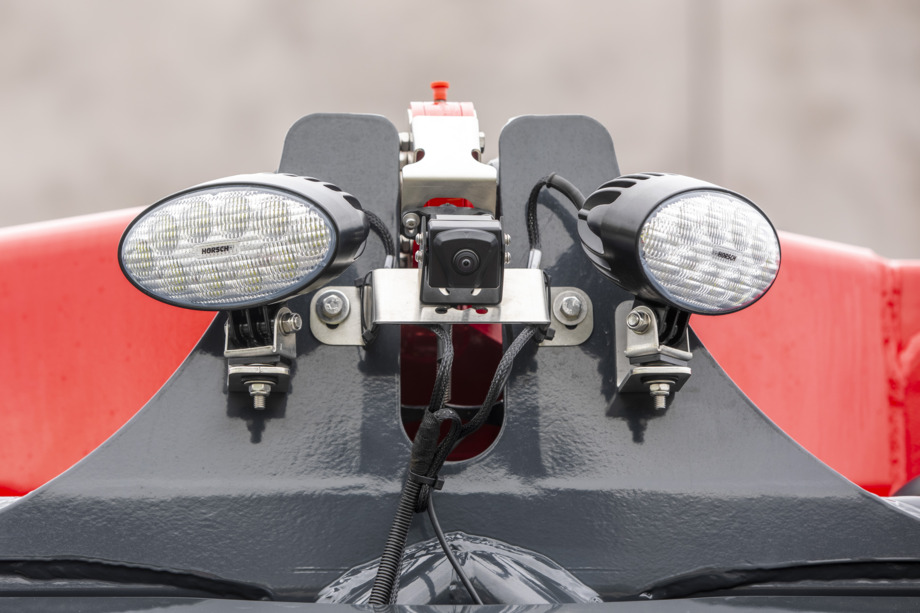

NightLight
• Innovative LED technology ensures optimum illumination
• Strongly focused light penetrates all spraying cones.
• Optimal spraying control also at dusk and at night
• 100% control of the nozzle function – even with section control
• More safety and efficiency for spraying operations around the clock
• Optional: NightLight with cleaning
• Optional: Choice between white or blue NightLight headlights
• Optional: From 30 m boom width or BoomControl Pro Plus, 4 headlights with white or blue light for optimal illumination for larger working widths or challenging terrain at night
• Optional: light bars at the induction centre and boom apron lighting
The NightLight system uses focused LED spotlights—available in white or blue—to penetrate spray cones and provide clear visibility of nozzle performance during nighttime operations. For enhanced safety and convenience, an automatic light function prevents blinding passers-by at headlands, while an optional washing system keeps the lenses free of dust and residue. Larger boom configurations can be equipped with up to four headlights to ensure uniform illumination across wide spans, supplemented by LED light strips at the induction center and apron for complete 360-degree visibility.
Hose with hose reel
• 1/2" hose and hose reel
• Mounted on the vehicle in an easily accessible way
• Quick and safe cleaning
Hose and hose reel are mounted stationary on the vehicle. The sprayer can easily be cleaned directly in the field from dirt caused by the spraying operation. You can easily remove dirt and spraying mixture residues from tyres and all machine parts that have been in contact with spraying mixture and spraying fog

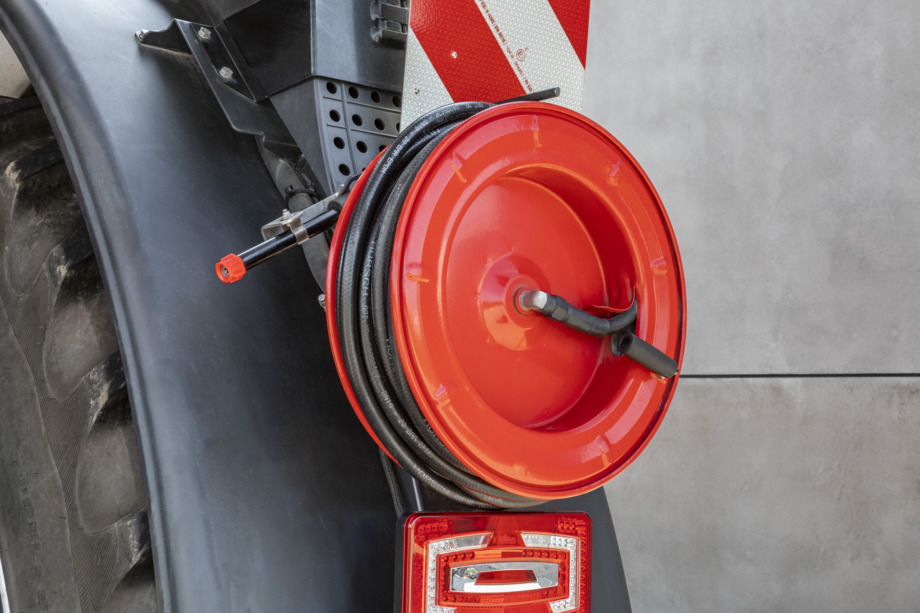

Hose reel for outside cleaning
Hydraulically operated high-pressure cleaner
• Powerful high-pressure cleaner
• Allows for cleaning directly in the field
• Hydraulically operated
The hydraulically operated high-pressure cleaner allows for cleaning directly in the field. Even heavy contamination from the spraying operations can be removed easily and effectively . Thus, the entire machine, from the tires to the machine parts that were come into contact with spraying mixture and mist, can be cleaned quickly of dirt and residue.
Hydraulically operated high-pressure cleaner

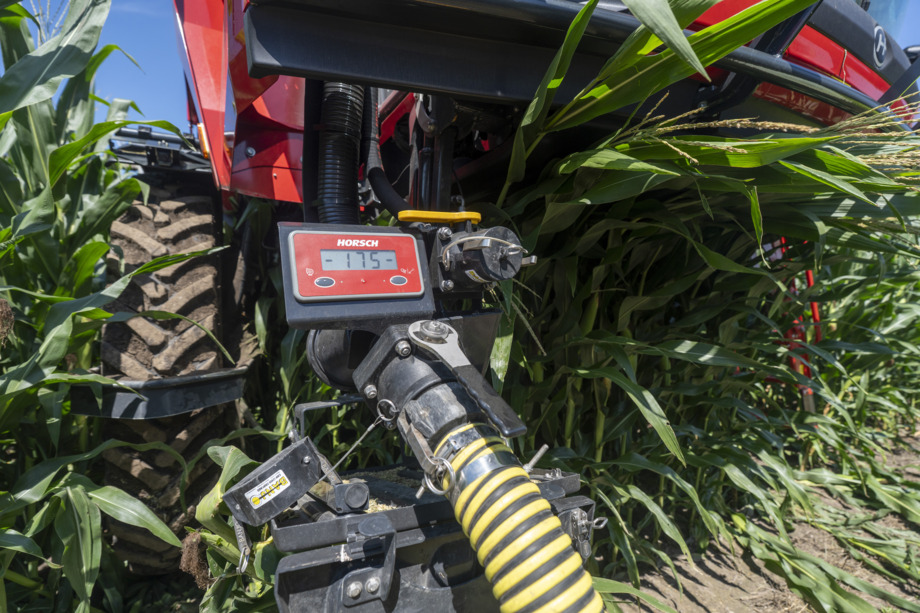

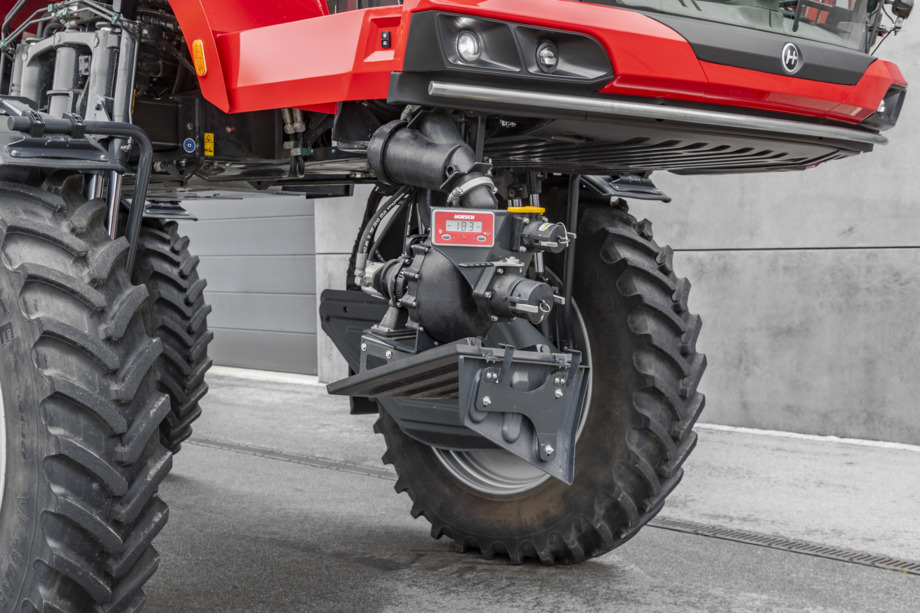

PowerFill filling pump
• Reduces travel, idle and filling times
• Powerful pump with filling capacity of up to 1 000 l/min
• Filling in the field with unfolded boom possible
• 3" filling connection for pre-mixed mixture
With the PowerFill filling pump, the sprayer can be filled directly in the field with unfolded boom within a very short time. The pre-mixed mixture is pumped directly from a carrier vehicle into the tank with a pump capacity of up to 1 000 l/min, minimizing filling times.

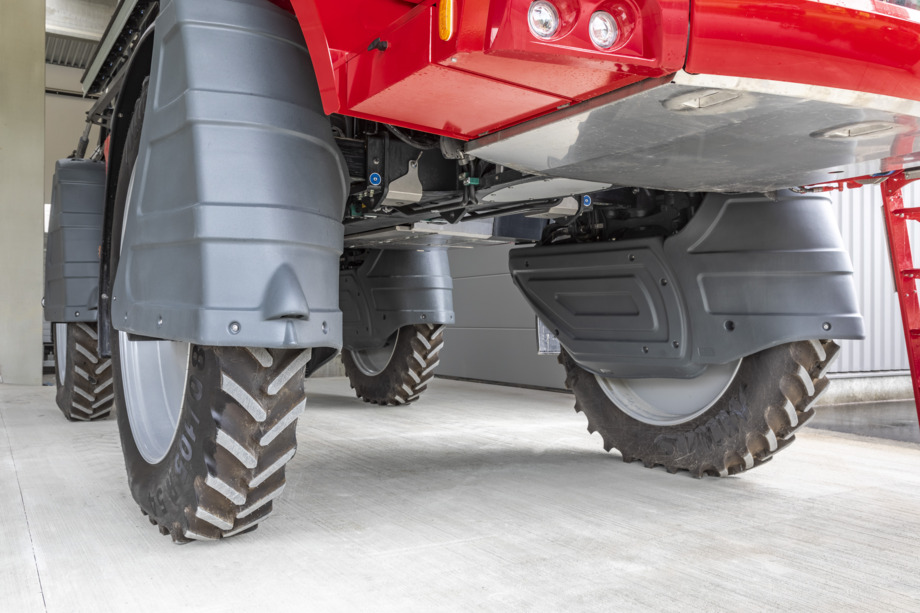

Wheel housings
• Fairing of the wheels up to the hub
• Optional: Extension as full wheel covering
• Optional: Stalk divider for precise plant separation
• Maximum protection for sensitive crops and high flexibility with regard to equipment
With the optional wheel covering, sensitive crops – such as the heads of sunflowers during applications in advanced growth stages – are maximally protected. The wheel housings completely cover the wheels of the sprayer from the top down to the wheel hub. Optionally, as an extension, a full wheel covering extending beyond the wheel hub or stalk dividers for precise plant separation, e.g., for maize, are available.
Wheel housings for sensitive crops, e.g., sunflowers
Wheel housings for sensitive crops, e.g., sunflowers
Wheel housing for sensitive crops
Wheel housings for maximum crop protection, optional extension as full wheel covering
Stalk divider for precise plant separation
Stable metal crop divider for tyre widths 380 and 420 mm

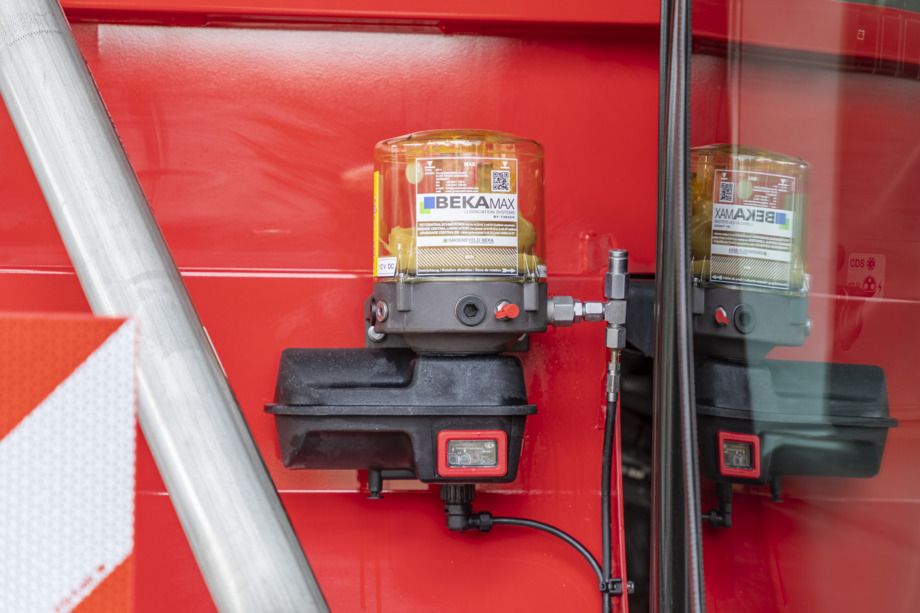

Central lubrication unit
• Reduces maintenance effort and maximizes operating comfort
• Shorter idle times
• Optimal lubrication
The central lubrication units facilitates and automates the maintenance and care of the chassis, telescopic axles and the parallelogram. This reduces the maintenance effort and shortens idle time.
Mechanical height adjustment
• Mechanical height adjustment
• Adjustment of the clearance height from 160 cm to 200 cm
• For gentle application in higher crops
With the mechanical height adjustment, clearance can be changed by 40 cm. The clearance height can be adjusted in the range of 160 cm to 200 cm, allowing for a gentle application even in high crops. This equipment is ideal for farms that have to adjust the clearance height less frequently throughout the year.
Hydraulic height adjustment ClearanceControl
• Stepless adjustment of the clearance
• Can be operated comfortably, fast and effectively in the cabin
• Clearance height adjustable from 1.60 to 2.00 m
• Highest clearance in the market
With ClearanceControl, the clearance can be adjusted hydraulically and steplessly to maintain the optimal spraying distance at all times and to protect the crops when passing. The clearance height can be comfortably adjusted directly in the cabin within the range of 1.60 m to 2.00 m. Thus, the sprayer can be quickly and effectively adjusted to changing crops and growth heights or optimally set for road transport.
Cabin suspension
• Pneumatic cabin suspension
• 4-point cabin suspension
• Very high driving comfort on long working days and in unfavourable conditions
With this comfortable cabin suspension, the driving comfort is even more balanced – especially during long working hours, at high operational speeds and in difficult soil conditions.
Pneumatic 4-point cabin suspension
Terminal technology & steering system
• Intuitive machine operation via the high-resultion Trimble Terminal 1060 or 1260
• Optional extension by a second terminal or optional control via different approved external terminals
• Fully integrated steering system with receiver Trimble Nav 900
• Additional activation of VariableRate for site-specific variable application by means of application maps
The Trimble 1060 and 1260 terminals offer high-resolution displays and intuitive navigation for comfortable control of complex machine functions. With high-efficiency processors and expanded memory, these displays easily manage large application maps and data sets for smooth, uninterrupted operation. When paired with an integrated steering system and **VariableRate** activation, the terminals provide maximum precision and reduced operator fatigue, even during long working days.
Camera system
• Integrated system with up to three cameras
• Rear view camera, camera with a view of the right front wheel, and camera lens for nozzle control
• Display of the various angles via the standard A-column terminal
• Wide angle and high light sensitivity for optimal visibility even in changing lighting conditions
The factory-integrated camera system utilizes three high-resolution lenses that feed directly into the 12-inch A-column display, providing real-time views tailored to operational needs. A rear-view camera automatically expands to full screen during reversing to assist with maneuvering, while a front-wheel camera ensures precise tracking to prevent crop damage. Additionally, a specialized nozzle-view camera allows the operator to monitor the performance of nozzles hidden behind the tank, ensuring complete oversight even when the boom is fully deployed.
Rear view camera for monitoring the area behind the vehicle

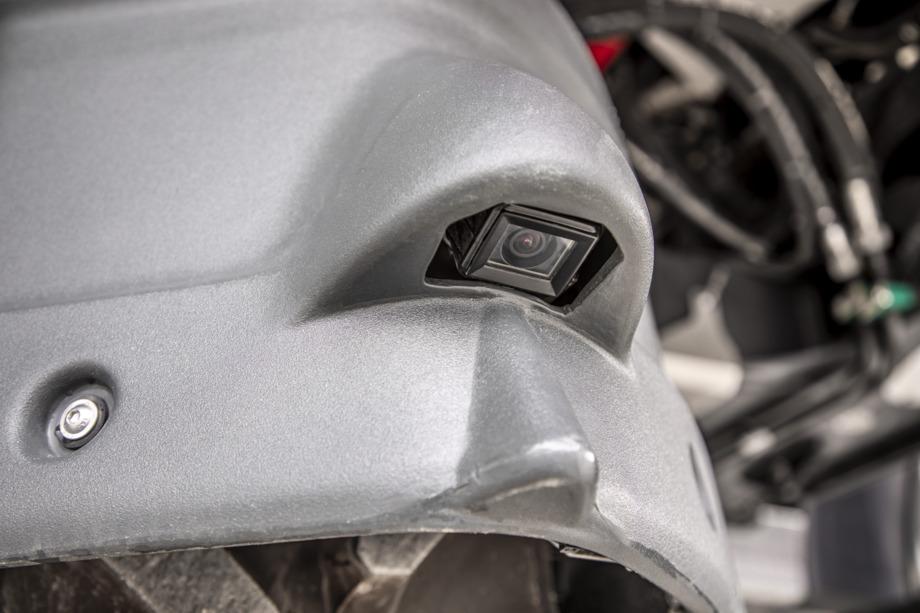

Camera integrated into the wheel housing
Camera lens with a view of the right front wheel
Optimal control of the nozzles behind the vehicle

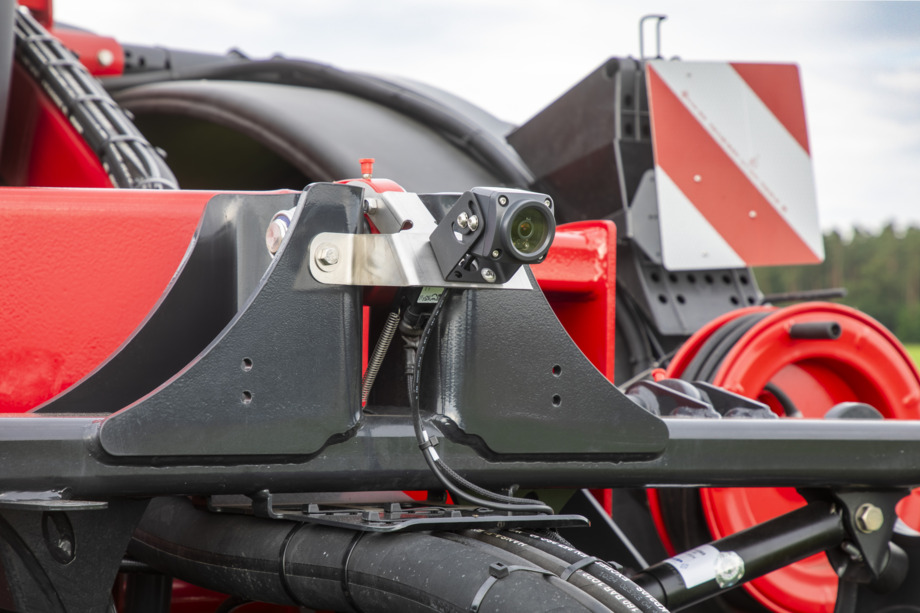

Camera for nozzle monitoring on the NightLight holder
Rear view camera for monitoring the area behind the vehicle
High-resolution, automatic display of the rearview camera in the A-column display
High-resolution, individual display of the track camera in the A-column display
Rearview camera for safely monitoring the surroundings
Camera lens with a view of the right front wheel

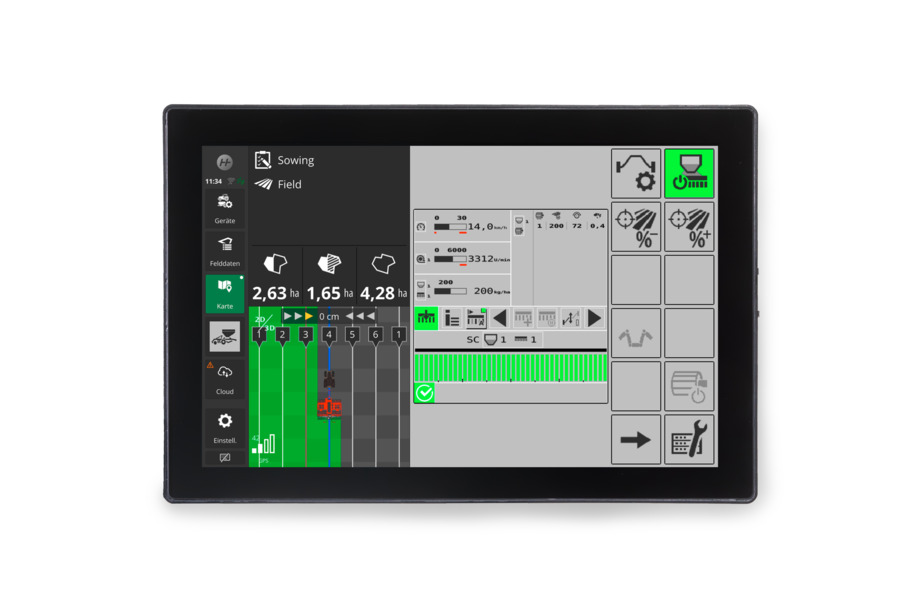

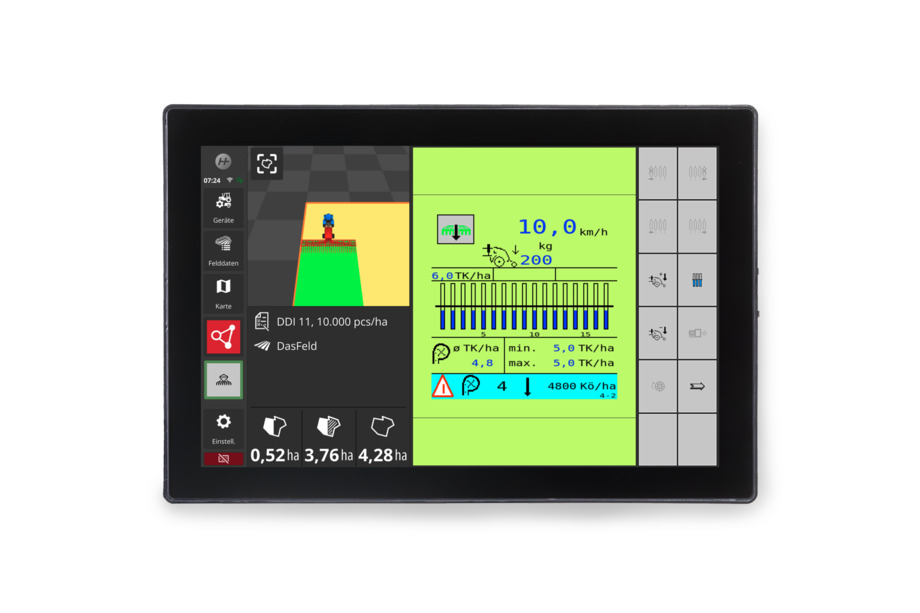

eosT10/eosT10 Pro
• High-resolution 10" terminal for controlling all ISOBUS devices according to ISO 11783
• Reliable and powerful: high-performance hardware combined with intuitive, user-friendly operation in day or night mode
• Various layout options allow for a simultaneous display of several applications – for an optimum overview.
• Straightforward transfer of application maps with the wireless task data exchange
• A real-time transmission of the terminal display via Remote Support facilitates the technical support.
Due to the high resolution and the well-thought-out user navigation, even complex machine functions can be operated comfortably. The high efficiency and the large (working) memory allow for a smooth handling of large data quantities or application maps. In addition to the traditional import resp. export of data via a USB flash drive, the transfer can also take place easily and comfortably online directly between the PC and the terminal.
Due to its high resolution, the eosT10 offers a state-of-the-art user experience for all ISOBUS-compliant machines.
Due to the WIFI interface, field boundaries, application maps or order data can be exchanged directly between PC and terminal.
The lean design of the 10" display allows for perfect integration into any tractor cabin.
eosT10 – robust hardware with diverse interfaces
In portrait mode, two applications can be optimally displayed and operated.
By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.
By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.
Weather station
• Speed and direction of the real wind relative to north
• Speed of gusts
• Temperature
• Humidity
• Delta T
The weather station displays current weather data on the ISOBUS terminal and records it. The data is integrated into HorschConnect Telematics and can be retrieved there. The weather station is only available in combination with HorschConnect.
Multimedia system
• Maximum comfort and optimised acoustics
• Always informed due to DAB+ digital radio reception
• Smartphone integration with Apple CarPlay and Android Auto
• Clear communication due to improved hands-free equipment
• Subwoofer for rich sound
The multimedia system offers maximum comfort due to a user-friendly interface and intuitive operation. The DAB+ radio allows for interference-free reception. The simple connection of the smartphone allows for accessing all Apple CarPlay or Android Auto functions. The installation of improved microphones and a separate subwoofer allow for crystal-clear conversations and a rich music experience.
Multimedia system with high-resolution 10" display for optimal operating comfort
TECHNICAL SPECIFICATIONS
Mixture tank nominal volume
5000 l
Water-cooled engine
FPT (Fiat Powertrain Technologies) N67
Nominal power (for rpm)
212 / 288 (2200) kW/hp
Maximum power (for rpm)
230 / 313 (2000) kW/hp
Cylinder number/cooling
6 / water / turbo with charge air cooling
Cylinder capacity
6700 cm³
Max. torque
1160 / 1500 Nm/Speed
Control
Electronic EMR
Tank capacity diesel/AdBlue
Approx. 450/45 l
Emission standard
Stage V
Working widths
24 - 48 m
Mixture tank nominal volume
6000 l
Water-cooled engine
FPT (Fiat Powertrain Technologies) N67
Nominal power (for rpm)
212 / 288 (2200) kW/hp
Maximum power (for rpm)
230 / 313 (2000) kW/hp
Cylinder number/cooling
6 / water / turbo with charge air cooling
Cylinder capacity
6700 cm³
Max. torque
1160 / 1500 Nm/Speed
Control
Electronic EMR
Tank capacity diesel/AdBlue
Approx. 450/45 l
Emission standard
Stage V
Working widths
24 - 48 m
Mixture tank nominal volume
8000 l
Water-cooled engine
FPT (Fiat Powertrain Technologies) N67
Nominal power (for rpm)
212 / 288 (2200) kW/hp
Maximum power (for rpm)
230 / 313 (2000) kW/hp
Cylinder number/cooling
6 / water / turbo with charge air cooling
Cylinder capacity
6700 cm³
Max. torque
1160 / 1500 Nm/Speed
Control
Electronic EMR
Tank capacity diesel/AdBlue
Approx. 450/45 l
Emission standard
Stage V
Working widths
24 - 48 m
Mixture tank nominal volume
6000 l
Water-cooled engine
FPT (Fiat Powertrain Technologies) Cursor 9
Nominal power (for rpm)
308 / 419 (2100) kW/hp
Maximum power (for rpm)
338 / 460 (2000) kW/hp
Cylinder number/cooling
6 / water / turbo with charge air cooling
Cylinder capacity
8700 cm³
Max. torque
1800 / 1500 Nm/Speed
Control
Electronic EMR
Tank capacity diesel/AdBlue
Approx. 720/72 l
Emission standard
Stage V
Working widths
24 - 48 m
Mixture tank nominal volume
8000 l
Water-cooled engine
FPT (Fiat Powertrain Technologies) Cursor 9
Nominal power (for rpm)
308 / 419 (2100) kW/hp
Maximum power (for rpm)
338 / 460 (2000) kW/hp
Cylinder number/cooling
6 / water / turbo with charge air cooling
Cylinder capacity
8700 cm³
Max. torque
1800 / 1500 Nm/Speed
Control
Electronic EMR
Tank capacity diesel/AdBlue
Approx. 720/72 l
Emission standard
Stage V
Working widths
24 - 48 m
