Joker RT

Precise and quick stubble cultivation, incorporation of catch crops or organic fertilisers

Working width

5,15 - 12,25 m

DiscSystem disc Ø

52 - 58 cm

DiscSystem disc thickness

6 mm

Cutting angle DiscSystem discs

17 °

Joker CT

Joker RT

Joker RT+

Joker HD

Videos

See the full playlist on YouTube

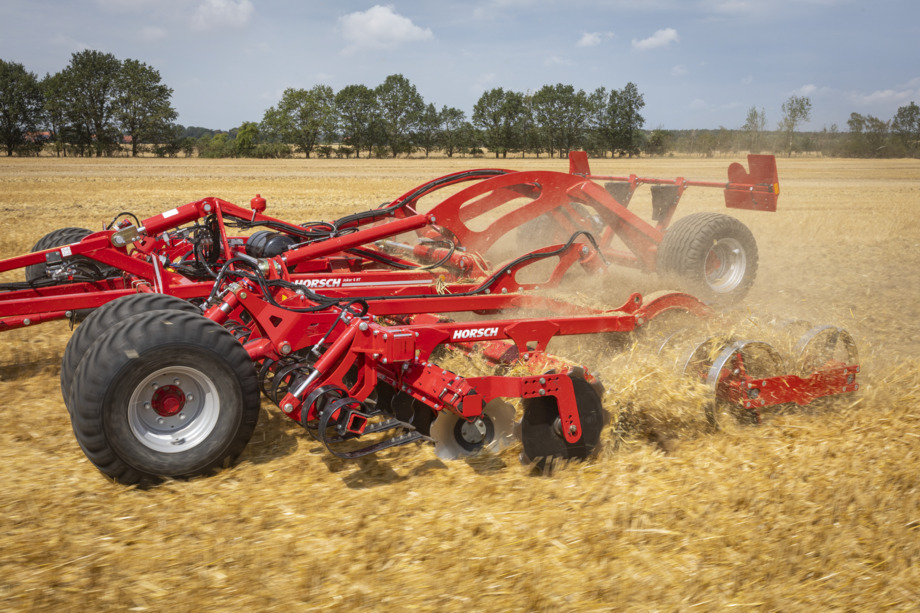

The HORSCH Joker RT is a compact disc harrow which is ideal for stubble cultivation, incorporating catch crops, seedbed preparation, or incorporating organic fertilisers.

SoftRide suspension prevents the machine from bouncing

Ideal distance in the disc zone and to the packer for perfect soil flow

High operational speeds up to 20 km/h

Wide selection of packers for various site conditions

Highest work rate with minimal wear

Compact disc harrow with high clearance due to the arrangement of two discs on one arm with rubber mounting

Produces a high amount of fine soil in the germination horizon
Efficient consolidation in the germination horizon
Low susceptibility to damage in case of long harvest residues and shallow cultivation
Highest clearance with arrangement of disc elements in pairs
Optimum penetration behaviour due to aggressively serrated hollow discs and high machine weight

Joker Rt with Steve robertson

See the full playlist on YouTube

Disc serrated Ø 52 cm

• Disc serrated Ø 52 cm

• Excellent penetration of the soil

• Intensive mixing

• Different hardness grades in one disc

The serrated disc with a diameter of 52 cm can be used in different situations. For working depths up to 15 cm, it reliably penetrates the soil. Large amounts of straw are well incorporated into the soil by drivers at the tines. The serrated profile almost completely prevents the discs from stopping even in very light soils. Small disc diameter for high rotational speeds and a high production of fine soil.

Disc serrated Ø 52 cm

Disc serrated Ø 58 cm

• Disc serrated Ø 58 cm

• Excellent penetration of the soil

• Intensive mixing

• Different hardness grades in one disc

The serrated disc with a diameter of 58 cm can be used in different situations. For working depths up to 15 cm, it reliably penetrates the soil. Large amounts of straw are well incorporated into the soil by the serrated profile. The serrated profile almost completely prevents the discs from stopping even in very light soils.

Disc serrated Ø 58 cm

RollFlex packer Ø 60 cm

• Deep consolidation with loose soil surface

• High levelling capacity due to intermediate springs

• Self-cleaning, without scrapers

• Weight per m/working width: 195 kg

The RollFlex packer ensures a high reliability on changing soils even in wet conditions. Due to the deep consolidation, loose soil is compacted, clods are crushed and an optimum environment with an optimum ratio of water-bearing and air-ducting pores are created.

RollFlex packer Ø 60 cm

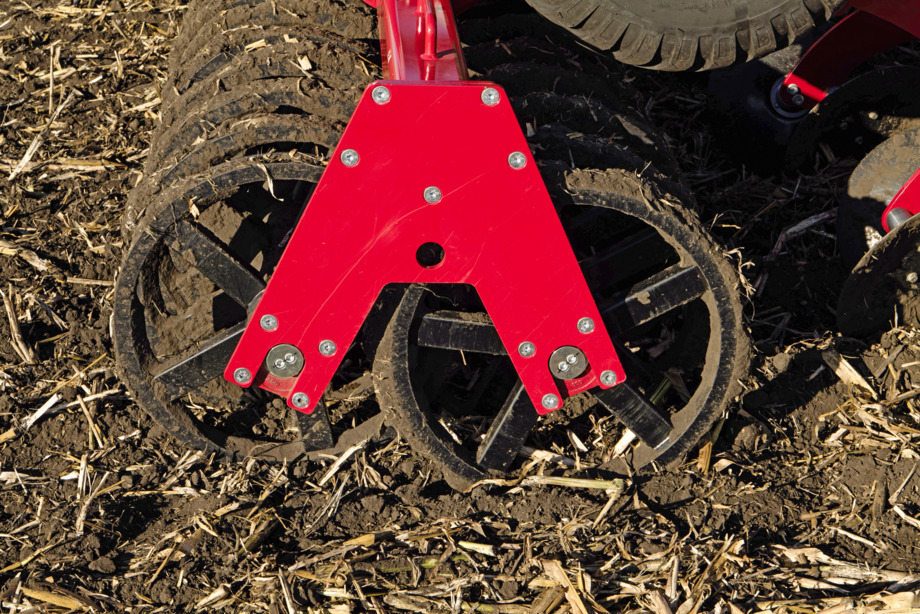

RingFlex packer Ø 60 cm

• Large contact area due to 7 cm wide ring elements

• Organic matter is mixed in additionally

• Can be retrofitted to a winter packer

• Weight per m working width: 120 kg

The RingFlex packer convinces due its excellent load-bearing capacity on light and medium soils. Moreover, it ensures good consolidation. Depending on the conditions of use, it can also be used as a winter packer by removing individual rings.

RingFlex packer

SteelDisc packer Ø 58 cm

• High machine weight for intensive consolidation

• Breaks clods

• Encourages capillarity action

• Weight per meter working width: 175 kg

The SteelDisc packer is ideal for hardest conditions, stony soils, large clods and fields that require deep consolidation. Due to its cutting rings and the high packer weight, it guarantees an excellent consolidation.

SteelDisc packer

Double SteelDisc packer Ø 58 cm

• Deep consolidation due to narrow contact area and high overall weight

• Improves the structure of the capillaries

• Organic matter is mixed in additionally

• Weight per m/working width: 365 kg

The double SteelDisc packer is particularly ideal for heavy and cloddy conditions. When used in seedbed preparation, it ensures a rapid formation of capillarity due to deep consolidation. Additionally, the packer removes long plant material from the seed horizon.

Double SteelDisc packer Ø 58 cm

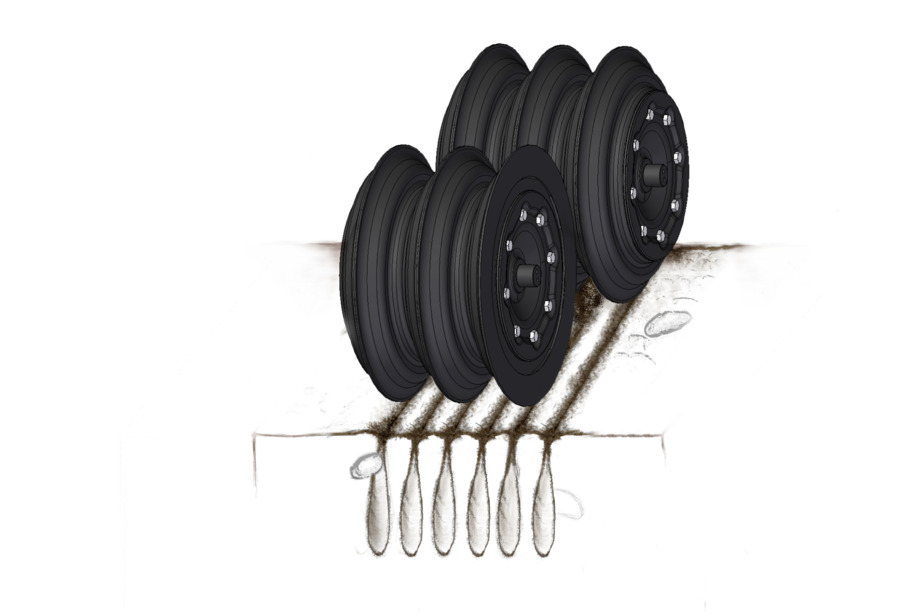

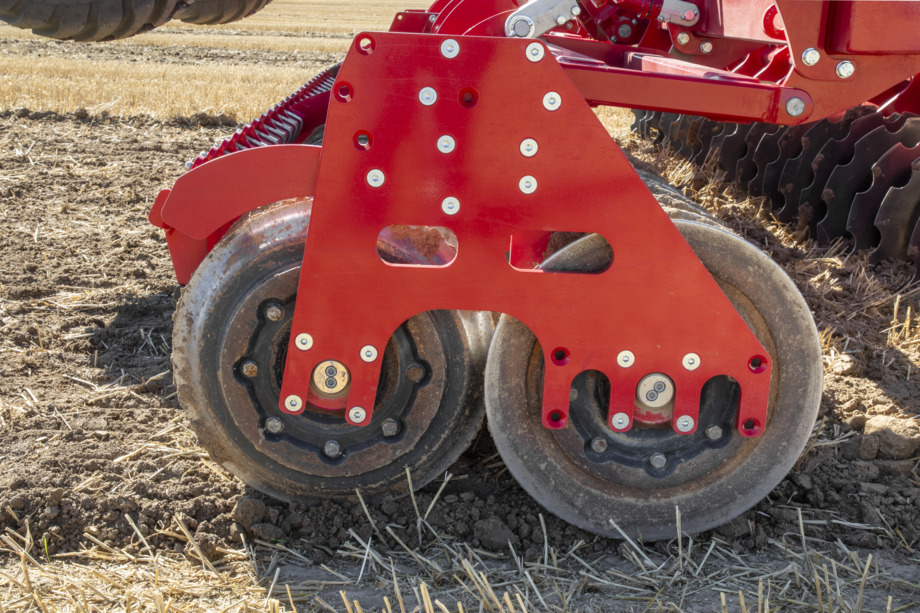

OptiRoll packer Ø 61 cm

• Ideal for changing sites and conditions

• Strip consolidation in the area of the rings

• Closed design with scraper

• Low horsepower requirement due to excellent rolling characteristics

• Weight per m working width: 200 kg

The OptiRoll packer is particularly ideal for targeted, strip consolidation and works reliably in varying soil and moisture conditions. While the roller creates consolidated strips with a capillary effect and the spaces in between remain loosened, individually adjustable scrapers always ensure reliable self-cleaning.

OptiRoll packer Ø 73 cm

OptiRoll packer Ø 61 cm

Packer frame

• Swinging double packer frame: optimal contour following and large contact area

• Rigid double packer frame: high self-cleaning effect and adjustable packer spacing

If the Joker RT is equipped with a double packer, you can choose between a swinging or a rigid packer frame. The swinging packer frame ensures optimal contour following and a large contact area. The rigid packer frame is particularly convincing in wet conditions as the two interlocked packers achieve a high self-cleaning effect.

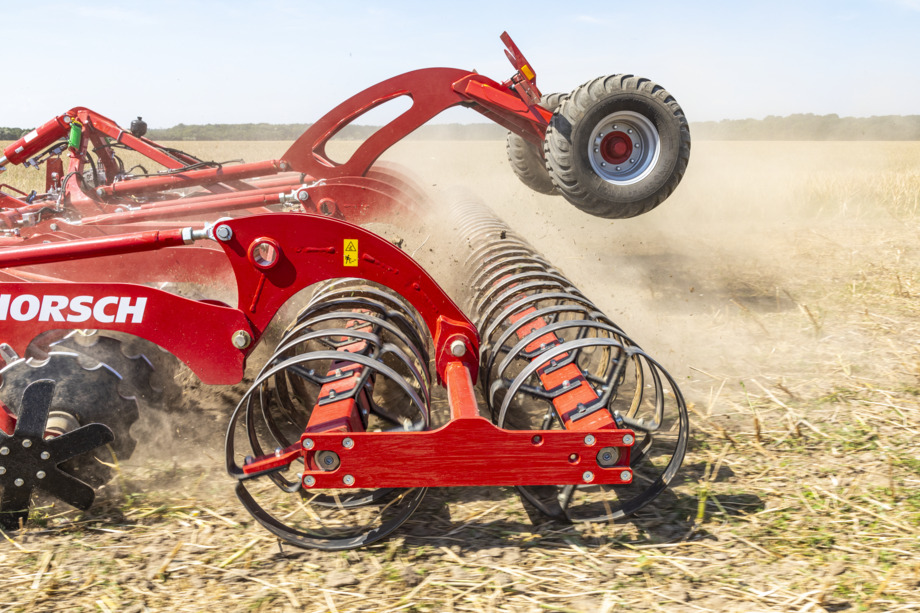

Swinging double packer frame for optimal contour following

Rigid double packer frame with high self-cleaning effect

Rigid double packer frame with adjustable packer spacing

Crossbar

• Additional levelling in front of the disc zone

• Crushing of soil clods

• Can be moved in or out hydraulically

• Completely integrated in the machine

The end-to-end Crossbar in front of the discs of the Joker RT is ideal for an additional levelling for example when preparing the seedbed. Depending on the conditions, the Crossbar can be retracted or extended flexibly via hydraulic cylinders and the aggressiveness can be adjusted.

Optional with 1-row following harrow

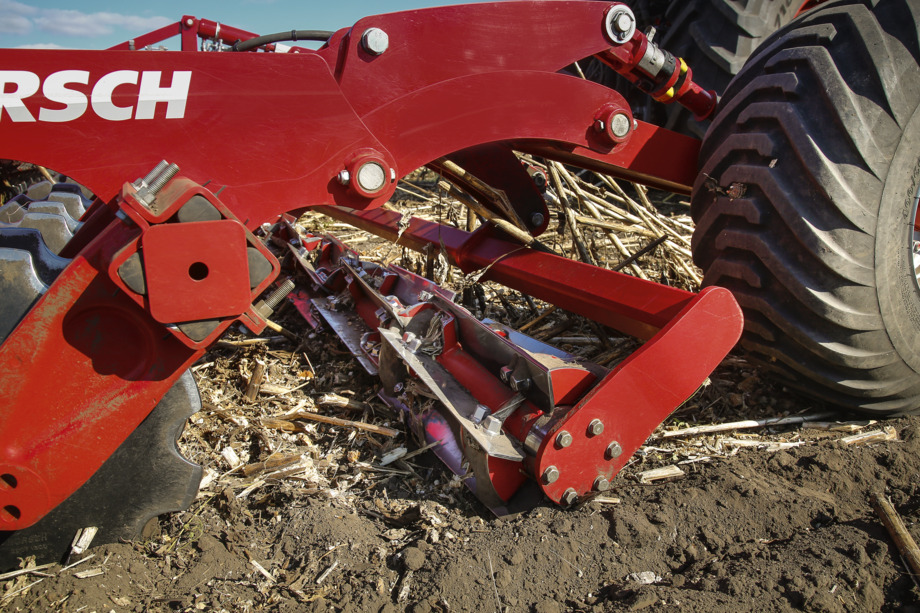

Knife roller

• Additional crushing of organic material

• 6 coiled knives on a 30 cm rotor

• Fixed knives for maximum stability

• Hydraulically pre-stressed, overload protection

The knife roller of the Joker RT ensures a safe cutting across the direction of travel. The risk of breaking the knives is reduced to a minimum as the knives rest against the shaft. Even stony conditions are no problem due to the hydraulic pre-tensioning and the overload protection.

Optional with hydraulically pre-tensioned knife roller for an additional crushing effect.

TECHNICAL SPECIFICATIONS

Working width

5.15 m

Transport width

3.00 m

Transport height

3.18 m

Length

6.96 / 7.56 m

Axle load

3,300 – 5,500 kg

Vertical load

1,500 – 3,200 kg

Tyre size support wheels

400 / 60 – 15.5

Tyre size chassis

19.0 / 45 – 17

Disc diameter

52 cm

Disc thickness

6 mm

Number of discs

Disc angle

17°

DA control devices

3 (+1 per option)

Horsepower requirement

120 – 160 kW / 160 – 220 hp

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar linkage

Hitch Ø 42 – 51 mm

Adjustable drawbar ball hitch linkage

K 80

Working width

6.15 m

Transport width

3.00 m

Transport height

3.60 m

Length

6.96 / 7.56 m

Axle load

3,600 – 6,000 kg

Vertical load

1,800 – 3,600 kg

Tyre size support wheels

400 / 60 – 15.5

Tyre size chassis

19.0 / 45 – 17

Disc diameter

52 cm

Disc thickness

6 mm

Number of discs

Disc angle

17°

DA control devices

3 (+1 per option)

Horsepower requirement

140 – 185 kW / 190 – 250 hp

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar linkage

Hitch Ø 42 – 51 mm

Adjustable drawbar ball hitch linkage

K 80

Working width

7.15 m

Transport width

3.00 m

Transport height

4.00 m

Length

6.96 / 7.56 m

Axle load

4,200 – 6,600 kg

Vertical load

2,200 – 4,100 kg

Tyre size support wheels

400 / 60 – 15.5

Tyre size chassis

520 / 50 – 17

Disc diameter

52 cm

Disc thickness

6 mm

Number of discs

Disc angle

17°

DA control devices

3 (+1 per option)

Horsepower requirement

175 – 235 kW / 240 – 320 hp

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar linkage

Hitch Ø 42 – 51 – 71 mm

Adjustable drawbar ball hitch linkage

K 80

Working width

8.15 m

Transport width

3.00 m

Transport height

4.00 m

Length

6.96 / 7.56 m

Axle load

5,500 – 8,000 kg

Vertical load

3,400 – 4,700 kg

Tyre size support wheels

400 / 60 – 15.5

Tyre size chassis

520 / 50 – 17

Disc diameter

52 cm

Disc thickness

6 mm

Number of discs

Disc angle

17°

DA control devices

4 (+1 per option)

Horsepower requirement

205 – 280 kW / 280 – 380 hp

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar linkage

Hitch Ø 42 – 51 – 71 mm

Adjustable drawbar ball hitch linkage

K 80

Working width

9.75 m

Transport width

3.00 m

Transport height

4.00 m

Length

7.70 m

Axle load

8,600 – 9,500 kg

Vertical load

2,300 – 2,750 kg

Tyre size support wheels

400 / 60 – 15.5

Tyre size chassis

445 / 65 – 22.5

Disc diameter

52 cm

Disc thickness

6 mm

Number of discs

Disc angle

17°

DA control devices

Horsepower requirement

220 – 310 kW / 300 – 420 hp

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar linkage

Hitch Ø 51 – 71 mm

Adjustable drawbar ball hitch linkage

K 80

Working width

12.25 m

Transport width

3.00 m

Transport height

4.00 m

Length

7.70 m

Axle load

9,700 – 10,400 kg

Vertical load

2,400 – 3,000 kg

Tyre size support wheels

400 / 60 – 15.5

Tyre size chassis

445 / 65 – 22.5

Disc diameter

52 cm

Disc thickness

6 mm

Number of discs

Disc angle

17°

DA control devices

Horsepower requirement

265 – 350 kW / 360 – 480 hp

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar linkage

Hitch Ø 51 – 71 mm

Adjustable drawbar ball hitch linkage

K 80

Joker RT

Videos

Compact disc harrow with high clearance due to the arrangement of two discs on one arm with rubber mounting

Joker Rt with Steve robertson

Disc serrated Ø 52 cm

Disc serrated Ø 58 cm

CoverCrush disc Ø 52 cm

Double RingFlex packer Ø 60 cm

Double RollPack packer Ø 55 cm

RollFlex packer Ø 60 cm

RingFlex packer Ø 60 cm

SteelDisc packer Ø 58 cm

Cage drum roller Ø 64 cm

Double SteelDisc packer Ø 58 cm

OptiRoll packer Ø 61 cm

Front support wheels

Packer frame

Crossbar

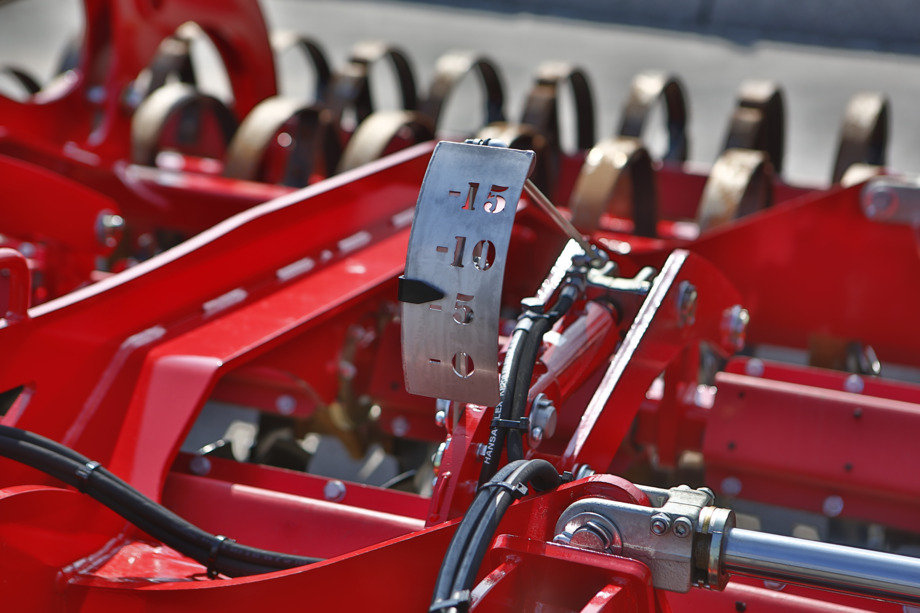

Hydraulic depth adjustment
