JOKER CT

With 3-point linkage the working widths range from 3 to 7 m
Produces high quantities of fine soil within the germination zone
Efficient consolidation in the germination zone
No problems with long residues and shallow cultivation. High clearance because of mountings in pairs.
Improved operational results with increased speed
High working performance with little draft requirement
High working speed in general
Good penetration with aggressive, serrated discs and maximum machine weight
In combination with the deep loosening device Mono TG: deep loosening and shallow mixing with the Joker CT
Available in 3, 3.5 and 4 m (rigid version) working width

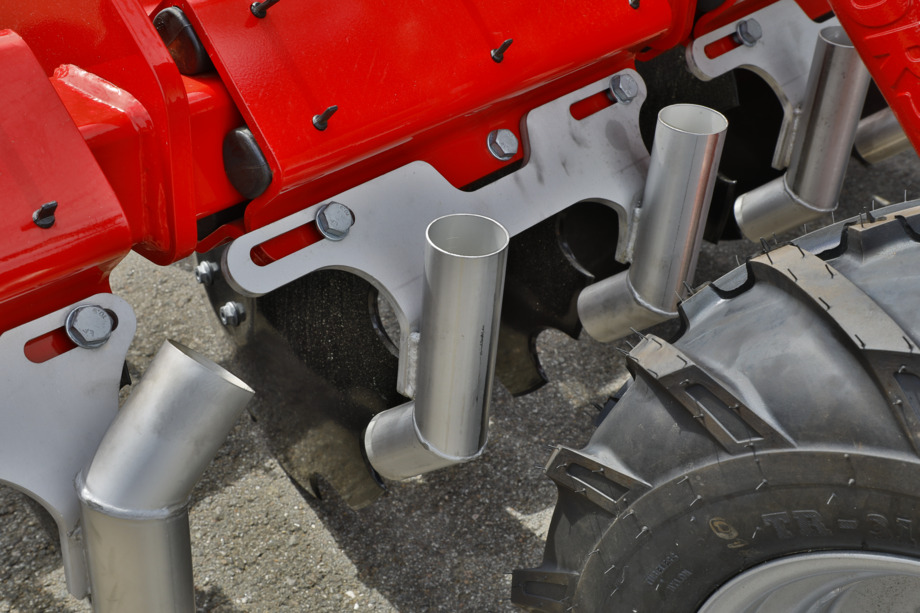

In combination with the optional Vogelsang ExaCut kit theJoker CTis ideal for incorporating organic fertiliser / liquid manure.

In which working conditions does the Joker perform well?

Shallow and fast stubble cultivation for quick germination of lost grain, interrupting capillary and ensuring incorporation of straw
Effective seed bed preparation after plough or cultivator
Incorporation of long straw and difficult residues (cover crops, corn stubble)
Smooth incorporation of organic fertilisers (manure, cover crops)

The Joker prepares a fine and consolidated seed bed with good conditions for germination.

Full-width working in hardest conditions

Optimised edge disc stops soil ridging for precise driving

JOKER CT

PRECISE AND QUICK STUBBLE CULTIVATION

The Joker is ideally suited for shallow stubble cultivation to stimulate the germination of volunteer crops, to interrupt capillarity, to mix in harvest residues and for a shallow seed bed preparation. It produces a high ratio of fine soil in the germination horizon and is resistant to high amounts of straw, organic fertilizers or catch crops.

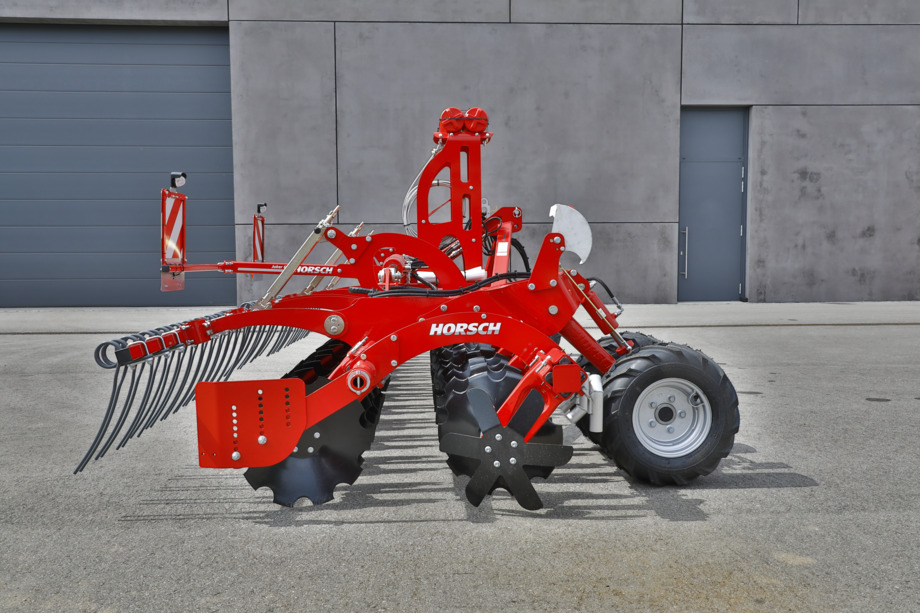

The compact disc harrow Joker CT is available for 3-point linkage. Operational speeds up to 20 km/h allow for a high hectare output.
A 1-bar deep loosener Mono TG is available as an additional option for the Joker 3, 3.5 and 4 CT rigid. It is particularly suitable for the use on heavy sites where the soil has to be loosened deeply and the harvest residues, however, only have to be mixed in a shallow way.

Full-width working at working depths of 4 cm is possible

The Joker prepares a fine and consolidated seed bed with good conditions for germination.

Full-width working in hardest conditions

Optimised edge disc stops soil ridging for precise driving

DiscSystem

INNOVATIVE AND RELIABLE

Your advantages include

High clearance because of mounting the discs in pairs
Good contour-following qualities and effective stonerelease system with maintenance-free rubber suspension
Long intervals of exchanging parts
Maintenance-free and low-wear disc bearings with permanent lubrication
Good penetration into the soil with aggressive, serrated discs and maximum machine weight
Excellent crumbling of the soil due to fast turning discs with a diameter of 52 cm
Stable disc angle through wide disc mountings, with no side play
Surface-hardened discs for minimum wear in hardest conditions

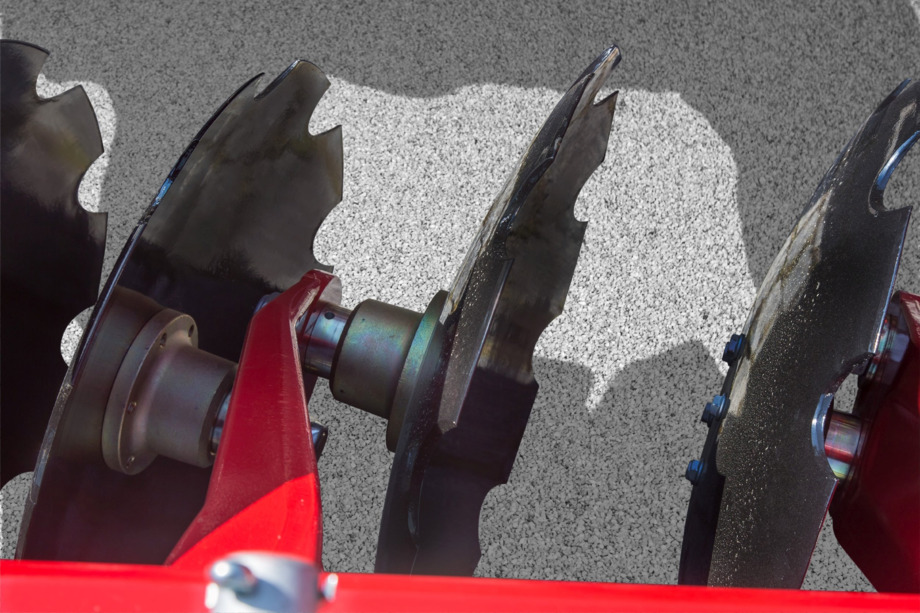

The serrated disc is more aggressive and penetrates better into the soil

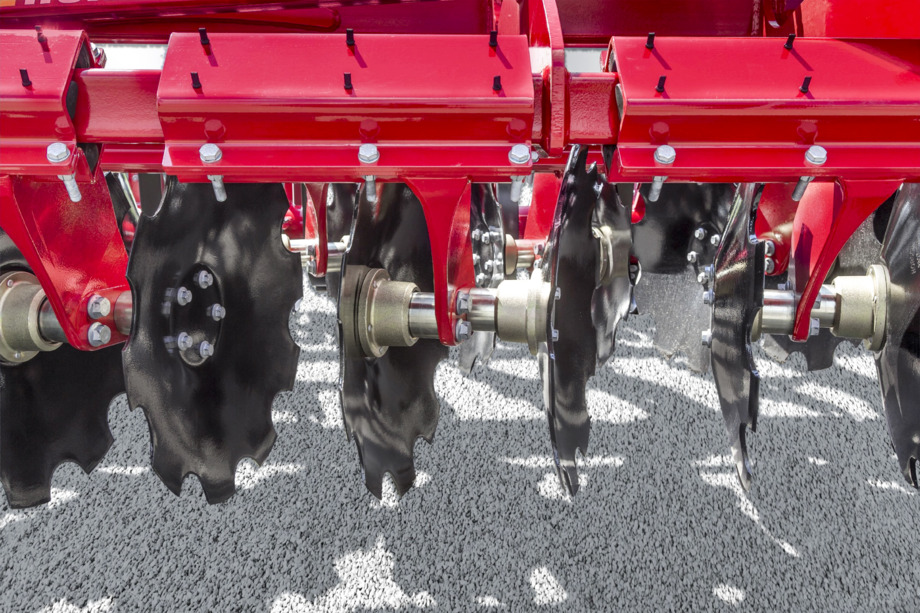

Mounting in pairs increases the clearance

Large and robust bearing – shaft diameter of 35 mm with maintenance-free oil-bath bearing

Large rubber suspension ensures good contour-following qualities, stable disc angle and low wear and tear

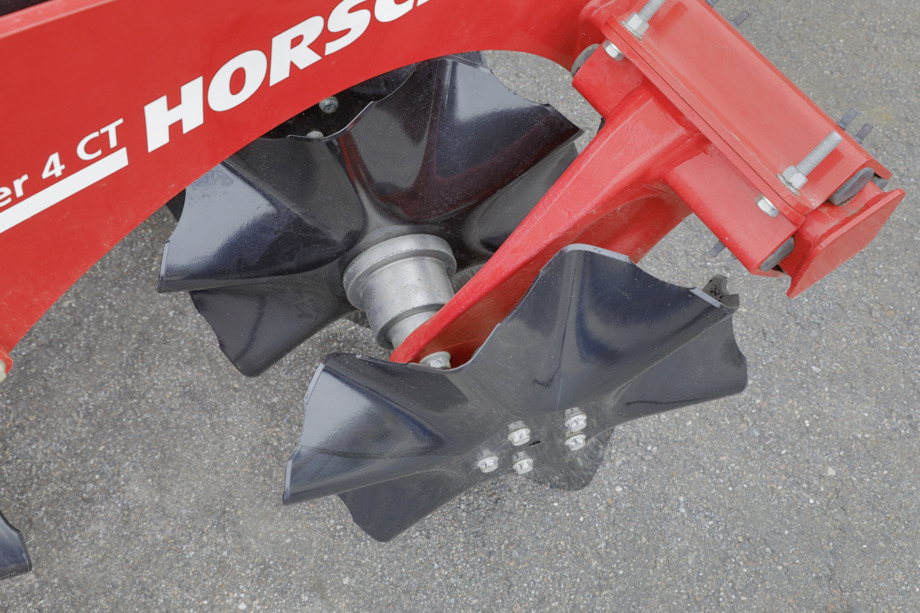

Spade discs at the outer end ensure level conditions between passes

Easy setting of working depth with AluClip spacers

ALWAYS A TRUMP CARD IN YOUR HAND

Shallow and intensive mixing stubble cultivation
Ultimate efficiency
Simple handling
Solid design
Various packer versions of all types of soil

TECHNICAL SPECIFICATIONS

HORSCH Joker

3 CT

3.5 CT

4 CT

4 CT rigid

5 CT

6 CT

7 CT

HORSCH Joker

Working width (m)	3.00	3.50	4.00	4.00	5.00	6.00	7.00
Transport width (m)	3.00	3.50	2.95	4.08	2.95	2.95	2.95
Transport height (m)	1.90	1.90	2.80	1.90	3.25	3.70	4.00
Length (m)	2.50	2.50	2.90	2.50	2.90	2.90	2.90
Length incl. Mono TG (m)	3.70	3.70	---	3.48	---	---	---
Weight (kg)*	1 600 – 2 600	1 800 – 2 850	2 400 – 3 100	200 – 3 400	2 800 – 3 500	300 – 3 900	3 500 – 4 550
Weight incl. Mono TG (kg)	2 300 – 2 600	2 500 – 2 850	---	2 900 – 3 400	---	---	---
DiscSystem-diameter Ø (cm)	52	52	52	52	52	52	52
DiscSystem disc size (mm)	6	6	6	6	6	6	6
Number of DiscSystem discs	24	28	32	32	40	48	56
Disc angle (degree)	17	17	17	17	17	17	17
DA control devices	0 (+1 with hydr. depth adjustment)	0 (+1 with hydr. depth adjustment)	1 (+1 with hydr. depth adjustment)	0 (+1 with hydr. depth adjustment)	1 (+1 with hydr. depth adjustment)	1 (+1 with hydr. depth adjustment)	1 (+1 with hydr. depth adjustment)
Horsepower requirement (kW/hp)	65 – 90 / 90 – 120	75 – 100 / 100 – 140	90 – 120 / 120 – 160	90 – 120 / 120 – 160	110 – 150 / 150 – 200	130 – 175 / 180 – 240	205 – 260 / 280 – 350
Horsepower requirement incl. Mono TG (kW/hp)	from 140 / 190	from 160 / 220	---	from 180 / 245	---	---	---
Number of tines Mono TG	5	6	---	8	---	---	---
Tine spacing Mono TG (cm)	60	59	---	50	---	---	---
3-point linkage Joker CT	3-point Cat. II / III	3-point Cat. II / III	3-point Cat. III / IV	3-point Cat. II / III	3-point Cat. III / IV	3-point Cat. III / IV	3-point Cat. III / IV
3-point linkage Mono TG	3-point Cat. III	3-point Cat. III	---	3-point Cat. III	---	---	---

Working width (m)

Transport width (m)

Transport height (m)

Length (m)

Length incl. Mono TG (m)

Weight (kg)*

Weight incl. Mono TG (kg)

DiscSystem-diameter Ø (cm)

DiscSystem disc size (mm)

Number of DiscSystem discs

Disc angle (degree)

DA control devices

Horsepower requirement (kW/hp)

Horsepower requirement incl. Mono TG (kW/hp)

Number of tines Mono TG

Tine spacing Mono TG (cm)

3-point linkage Joker CT

3-point linkage Mono TG

* Weights of the machines with minimum / maximum equipment

HORSCH Joker liquid manure version

4 CT*

5 CT*

6 CT

7 CT

Working width (m)	4.00	5.00	6.00	7.00
Overall length (m)	2.30	2.30	2.40	2.40
Weight with liquid manure mounting without packer (kg)	approx . 2 480	approx . 3 000	approx . 2 900	approx . 3 350
Number of outlets	16	20	24	28

* Only available with packer

FEATURES

Packing systems

VERSATILE FOR OPTIMUM RESULTS

DoubleCage packer

Double packer for an even finer surface
Oscillatingly suspended
Combination of a 400-mm-wide tubular cage drum and a 300-mm-wide flat bar roller
Exact depth control

FarmFlex packer

Closed hard rubber packer
All-over consolidation
For light and medium soils

RingFlex packer

Can be converted into a packer for wet conditions
High clearance
Closed contour, therefore relatively resistant to stones
High operational reliability

SteelDisc packer

Deep consolidation with compact soil surface
Good crumbling quality with cutting packer rings
Optimised scrapers ensure good performance
Good performance in heavy and stony soils

Tyre packer

All-over consolidation with an even consolidated surface
High levelling capacity due to tyres with AS-profile
Reliable operation even in stony soils

Cage drum roller

Leaves a fine-crumbly surface
Exact depth control
Flexible operating conditions

RollCut packer

Excellent, deep consolidation
Leaves a good surface structure
For medium and heavy soils

RollFlex packer

Deep consolidation with loose soil surface
Good levelling qualities with levelling tines
Self-cleaning qualities without scraper
Good all-round performance

RollPack packer

Steel ring roller with a diameter of 55 cm
Deep strip consolidation
Flexible conditions of use

Closed SteelDisc packer with cutting packer rings

Cage drum roller

Levelling tines between packer rings ensure good levelling of soil surface.

The FarmFlex packer disposes of effective and robust scrapers for trouble-free functioning

RollCut packer - Good surface structure on medium-heavy soils without stones

Flexible tyre packer with tires with AS-profile

The depth effects and the primary use of the different HORSCH packer versions.

LD Plus coulter for Mono TG

LD coulter for Mono TG

ULD Plus coulter for Mono TG

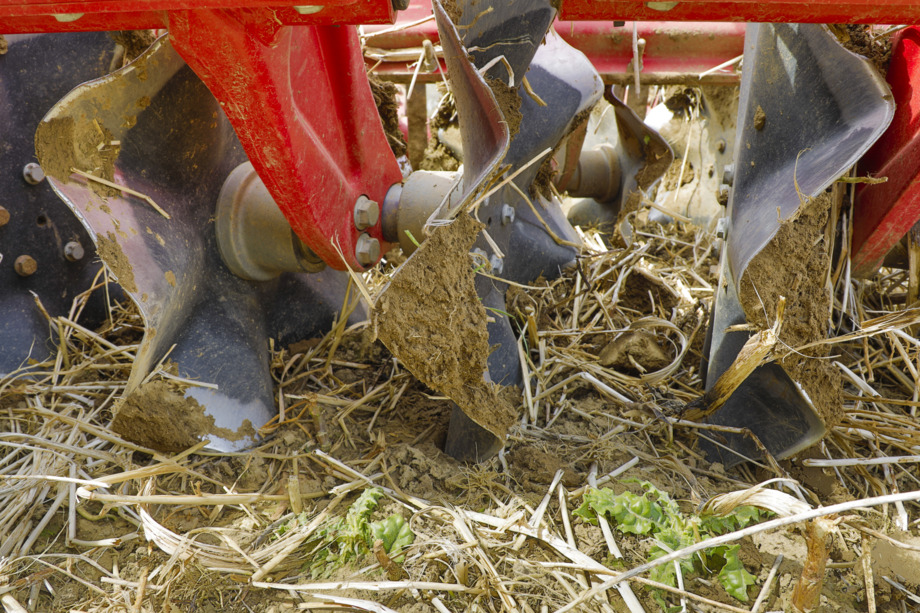

CoverCrush disc 52 cm

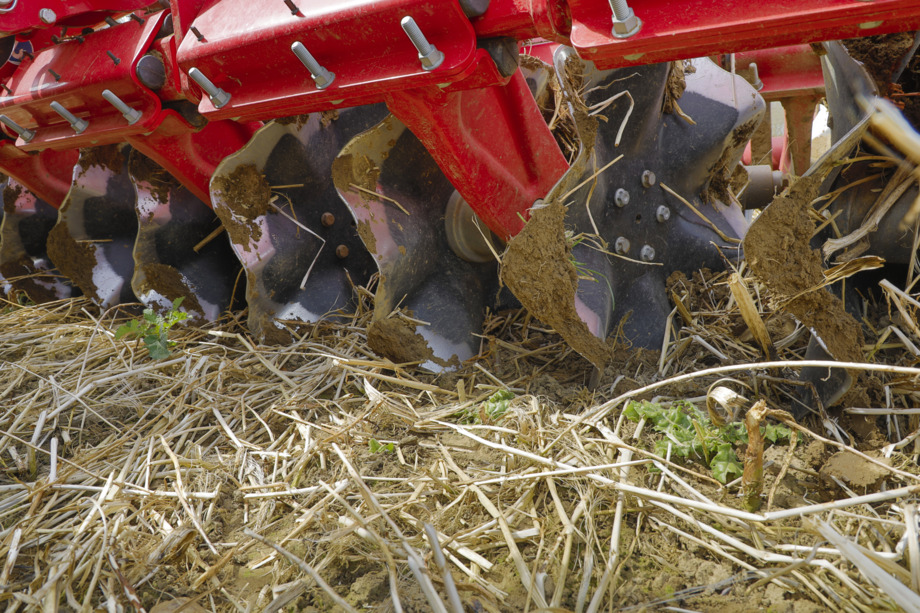

Discs are arranged in pairs for maximum clearance

Additional weights Joker 3 / 3.5 CT 360 kg, Joker 4 / 5 / 6 CT 400 kg

ADDITIONAL FEATURES

Optional harrow behind the packer

Side limit for an exact working on the edges

Mono TG

Mono TG: Ideal for deep loosening. TerraGrip tines with narrow LD (low disturbance) coulters deeply loosen soil without transporting rough lumps to the surface.

MiniDrill Accurate efficiency for catch crops and Greening

The MiniDrill is a completely new HORSCH development. The hopper capacity is 400 l and is equipped with the well-proven metering unit of the Pronto. The seed is injected directly into the distribution system. It is available for all Joker CT.

To guarantee an excellent lateral distribution there are six evenly distributed outlets in front of or behind the packer for 3 m machines and twelve outlets for 4 m working width upward.
