Joker HD

Precise and fast incorporation of harvest residues and organic fertilisers at a maximum working depth of 20 cm
Working width
4,15 - 6,15 m
DiscSystem disc Ø
62 / 68 cm
DiscSystem disc thickness
6 mm
Cutting angle DiscSystem discs
17 °
Joker CT
Joker RT
Joker RT+
Joker HD

Videos

See the full playlist on YouTube

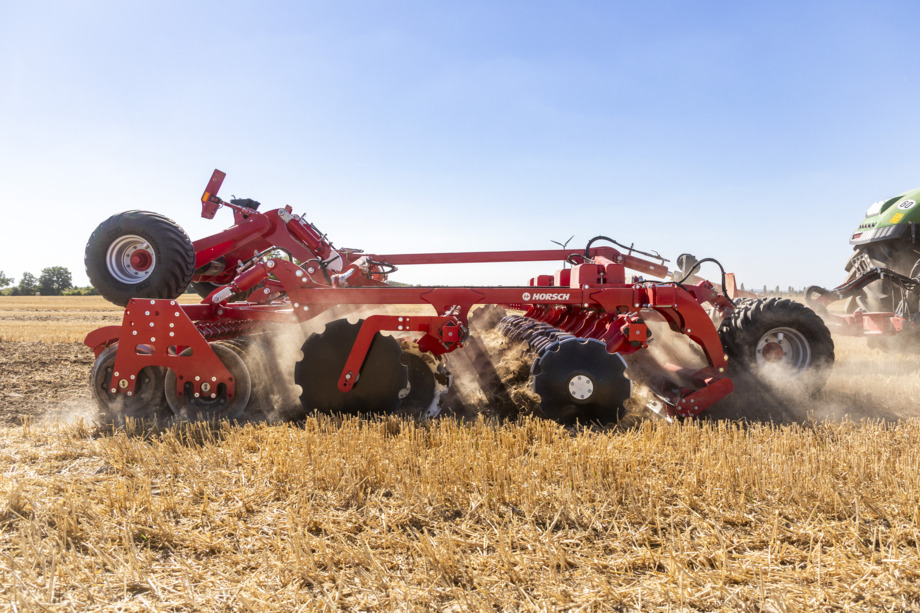

    If a large amount of organic matter has to be incorporated quickly and cost-effectively, the HORSCH Joker HD shows its advantages.

    Maximum clearance even with a lot of organic material


    Wide selection of double and single packers


    Very intensive mixing due to new disc angle

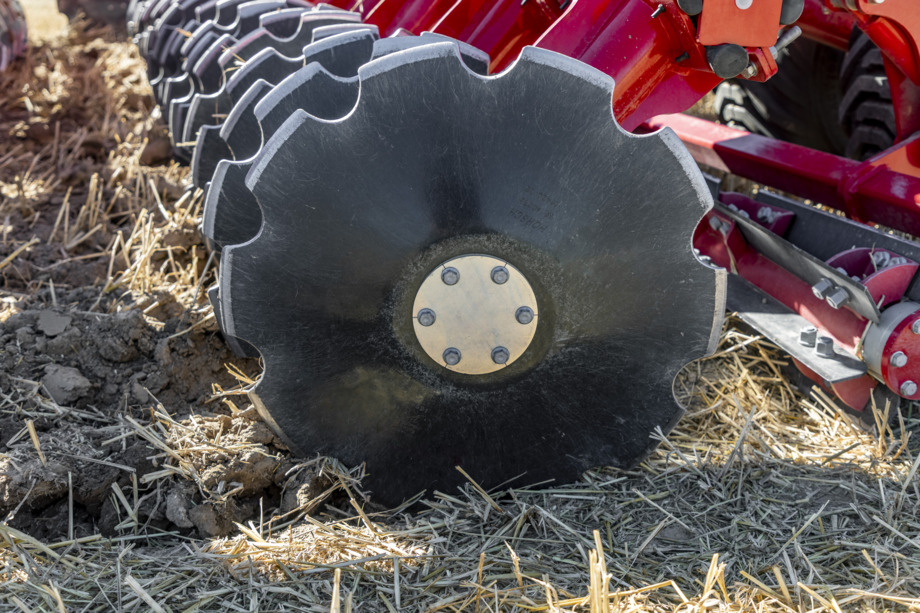

      Due to the maximum disc size of 680 mm and a disc angle of 17°, there are no more compromises with regard to work quality and working depth.

      • Intensive and deep incorporation of harvest residues and organic material
      • Two selectable disc sizes for working depths from 15 cm to a maximum of 20 cm
      • Two discs on one arm for maximum clearance and optimal control of the discs in operation

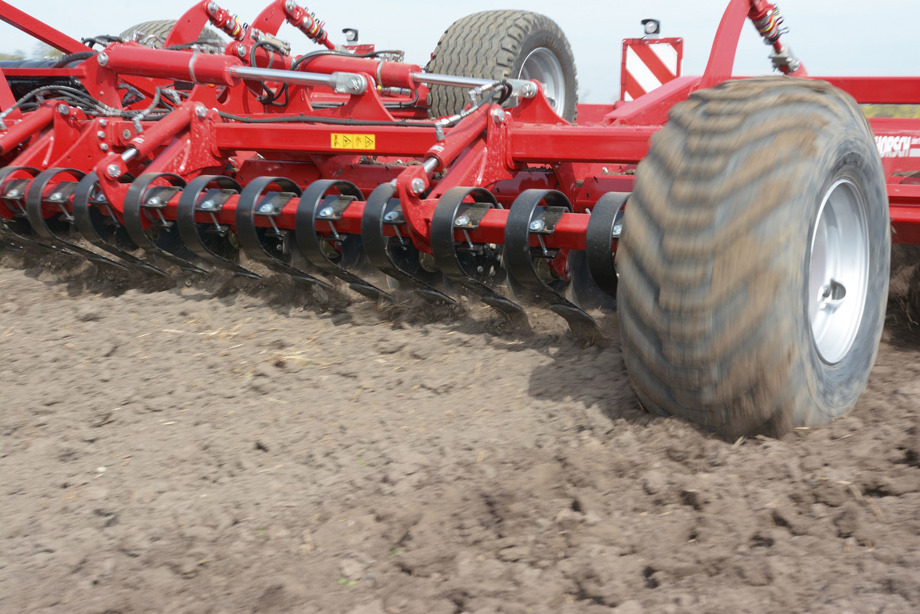

      • Many options such as knife roller, Crossbar, single or double packer or MiniDrill

      Joker 6 HD with Steve Robertson

      TECHNICAL SPECIFICATIONS

      Working width

      4.15 m

      Transport width

      3.00 m

      Transport height

      3.01 m

      Length

      8.50 m

      Axle load

      3,300 – 5,700 kg

      Vertical load

      1,900 – 3,900 kg

      Tyre size support wheels

      400 / 60 – 15.5

      Tyre size transport wheels

      520 / 50 – 17

      Disc diameter

      62 – 68 cm

      Disc thickness

      6 mm

      Number of discs

      34

      Disc angle

      17°

      DA control devices

      3 (+1 per option)

      Horsepower requirement

      145 – 255 kW / 200 – 350 hp

      Lower link linkage

      Cat. III – III / IV – IV

      Adjustable drawbar linkage

      Towing eye Ø 42 – 51 – 71 mm

      Adjustable drawbar ball hitch linkage

      K 80
