Partner FT

Hopper systems for various requirements

Hopper capacity

1600 - 2500 L

Transport width

2,50 - 2,80 m

Weight with basic equipment

700 - 940 kg

Oil quantity hydraulic fan

20 - 35 L/min

Partner HT

Partner FT

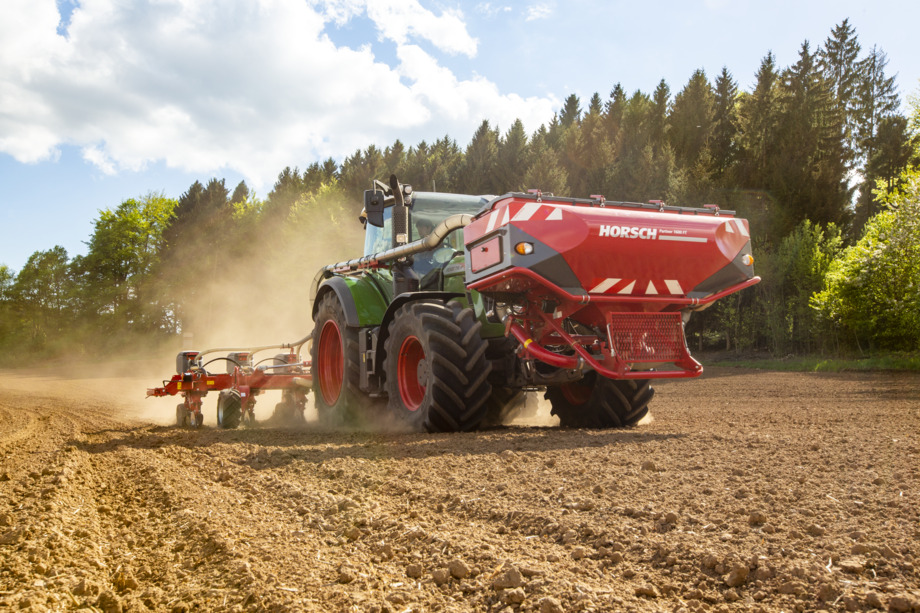

The HORSCH Partner line offers utmost flexibility with regard to combination options with HORSCH implements to apply different components, e. g. seed and fertiliser.

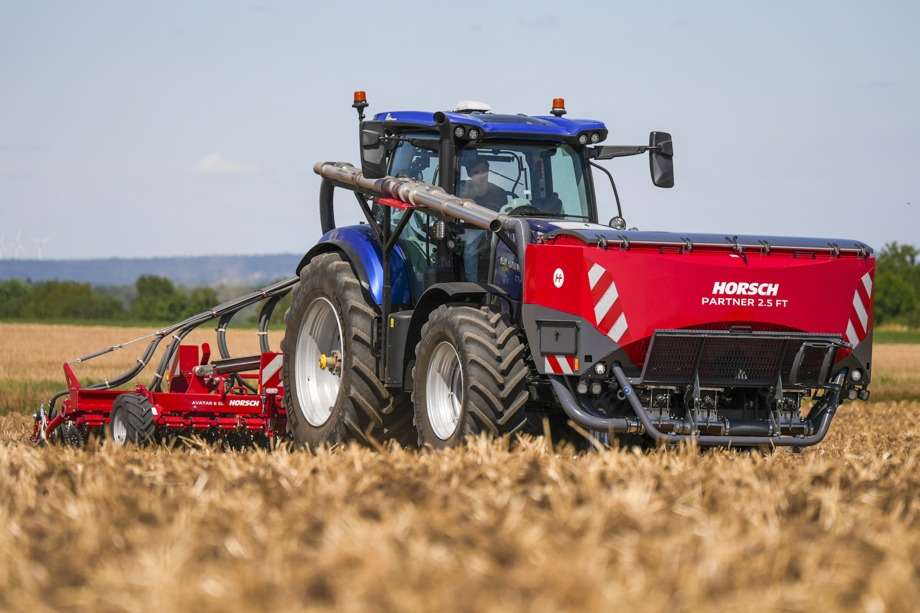

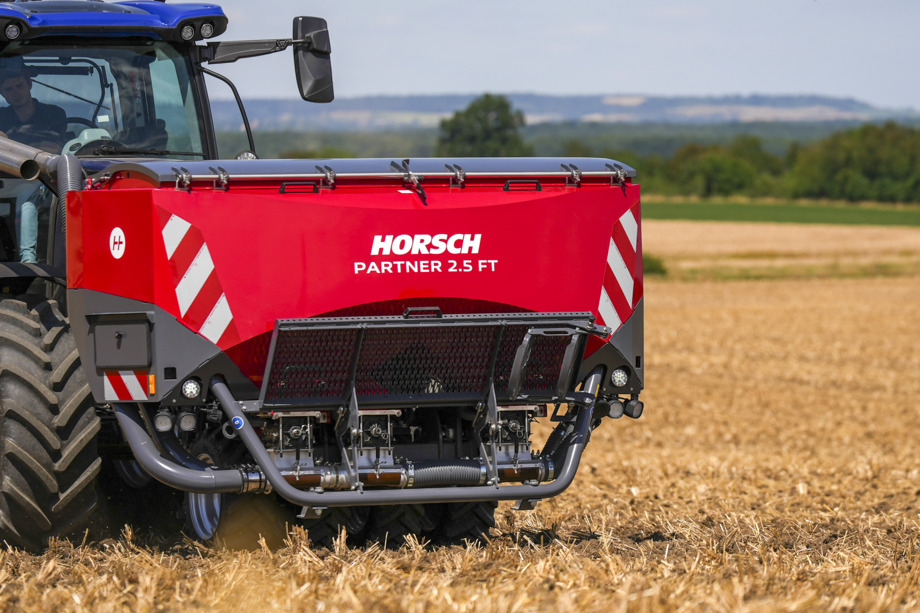

Partner 2.5 FT with 2 500 l triple tank

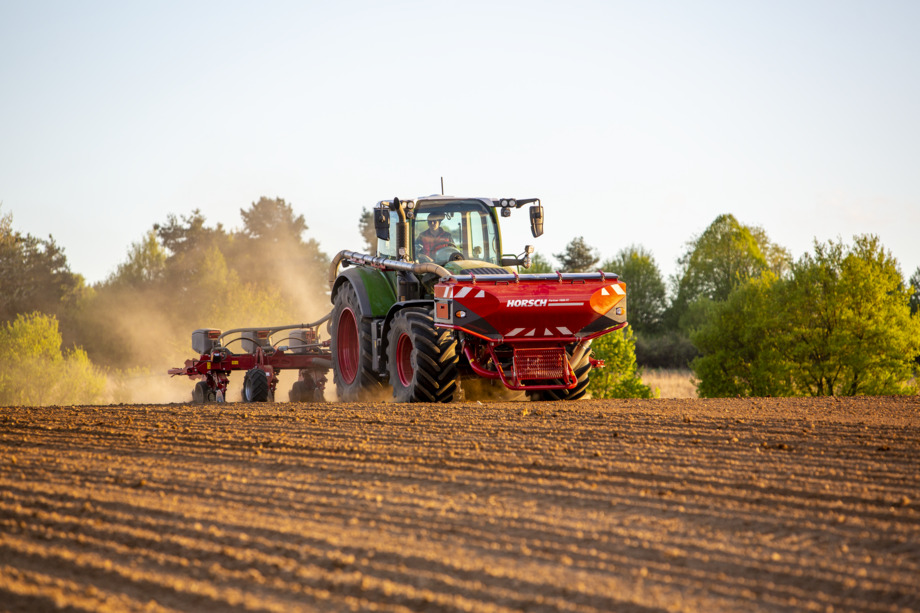

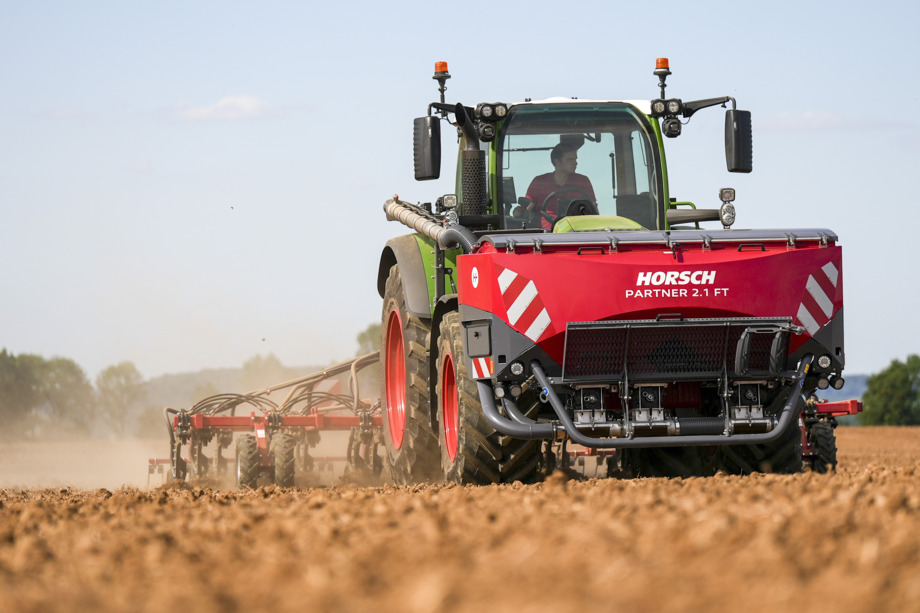

Partner 2.1 FT

At blind spots like field and farm exits, the risk of accidents is reduced due to the optional camera system

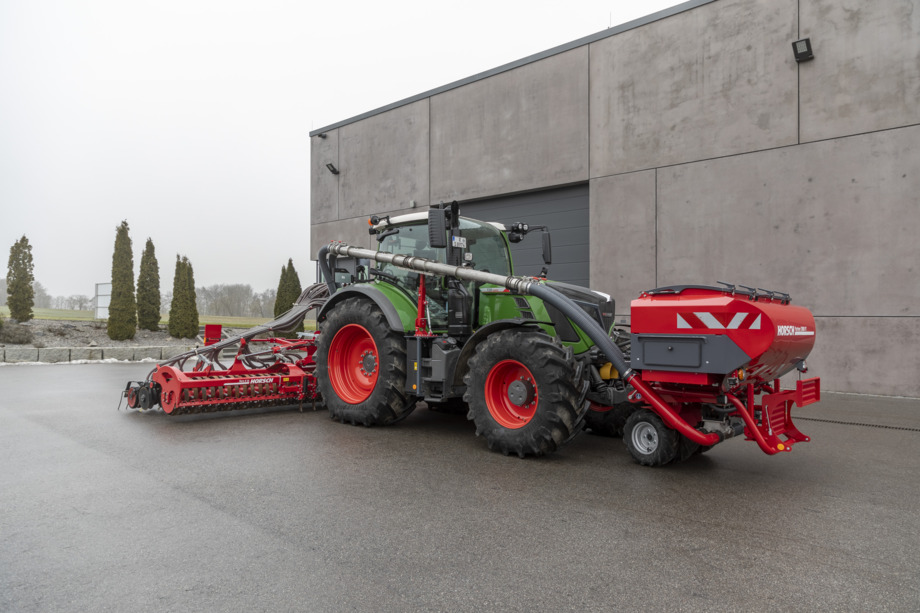

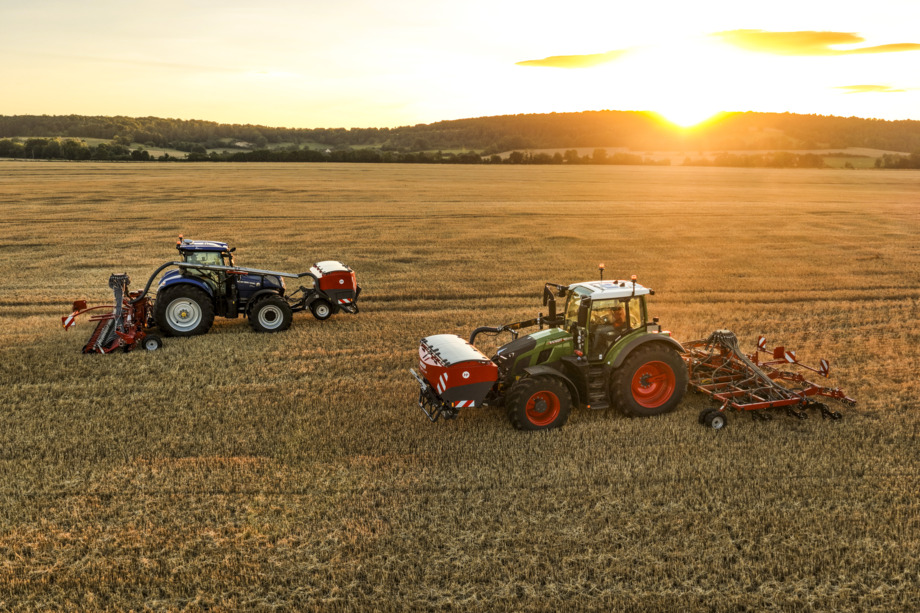

Maximum combination possibilities with the Partner FT

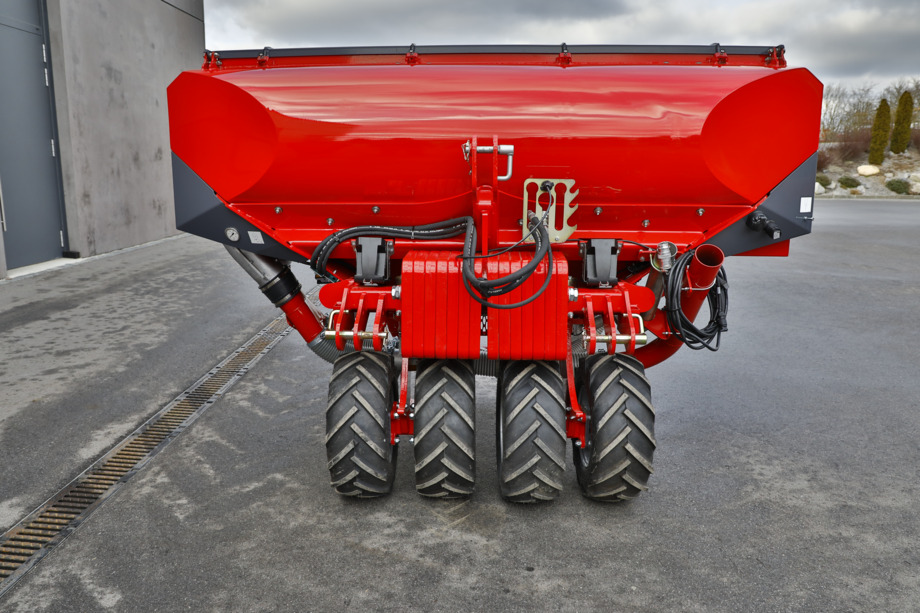

Partner 2000 FT – 1.30 m wide contact area by means of 4 tyres and additional weights

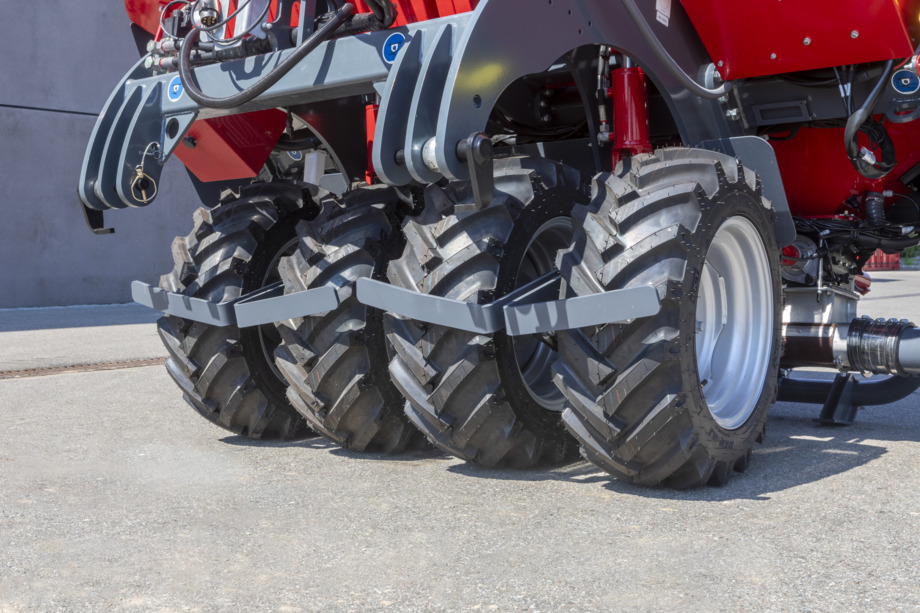

Partner 2.5 FT with hydraulic tyre packer

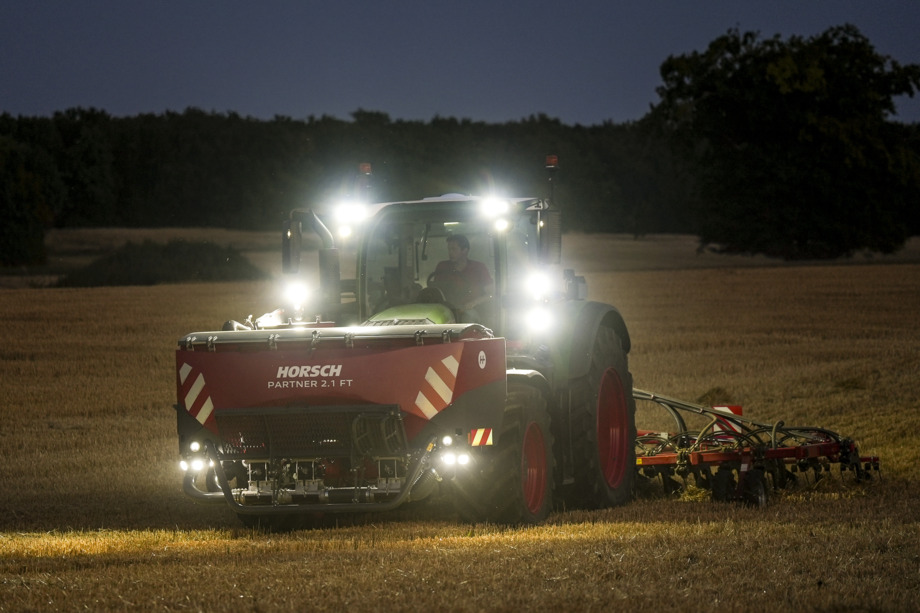

Perfect visibility due to WorkLight Pro

Flexibility and variety

Single, double or triple tank
Capacity: 1 700 to 2 500 l
Excellent manoeuvrability due to compact, clearly arranged design
Pressurised hopper prevents any release of dust in the front of the tractor

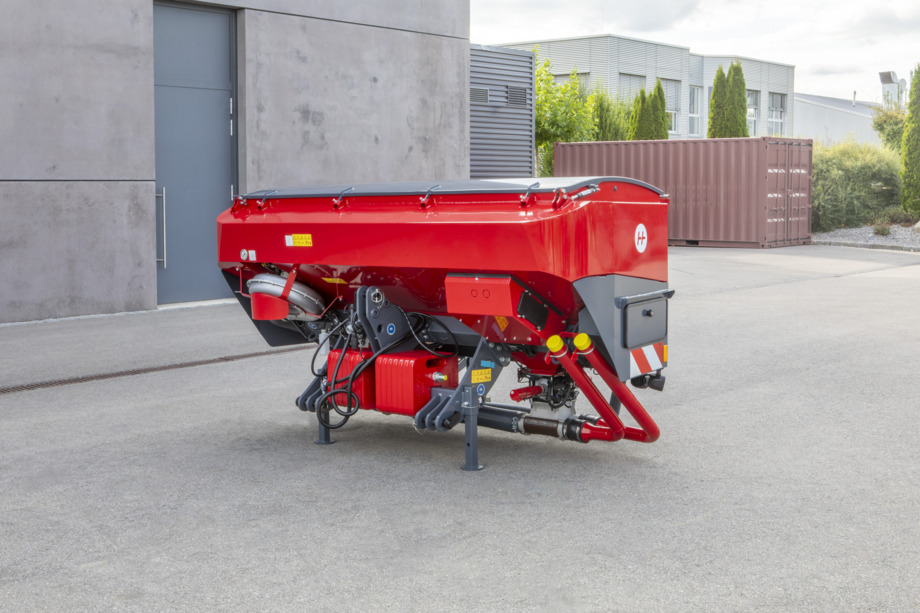

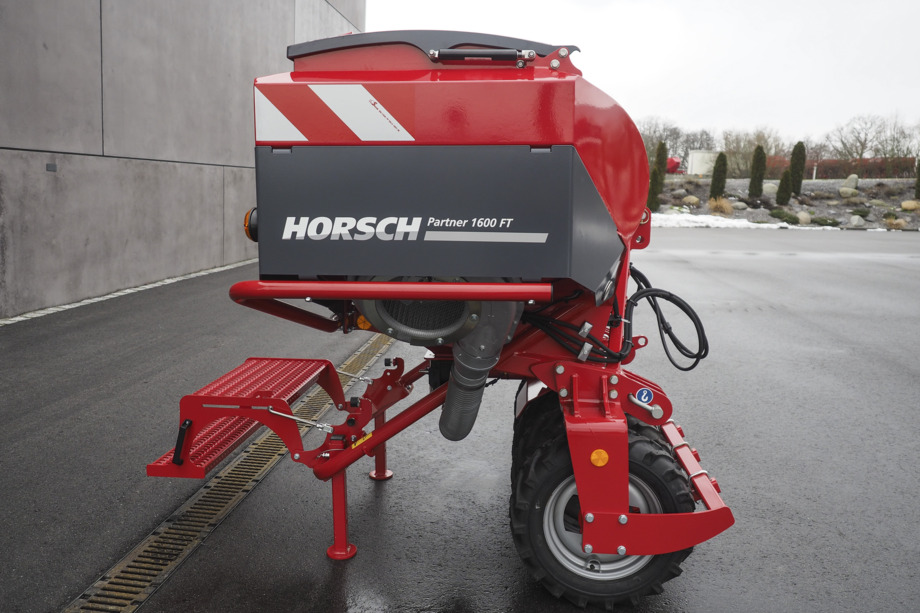

Partner 1600 FT

• Can be combined with tillage tools and seed drills

• Single hopper with a capacity of 1 600 l

• Optimum weight distribution

• High manoeuvrability

• Pressurised hopper prevents any release of dust in the front of the tractor

• Compact, clearly arranged front tank

• Large hopper opening

The Partner FT is a versatile 1,600-liter front hopper designed for seamless integration with seeding, tillage, and hybrid farming equipment. Its compact design ensures excellent visibility and easy filling, with optional weights and packers available to maintain ideal tractor balance and soil consolidation. Featuring a pressurized system to handle high throughput without creating dust, it provides a clean and efficient solution for high-speed fertilizer and seed application.

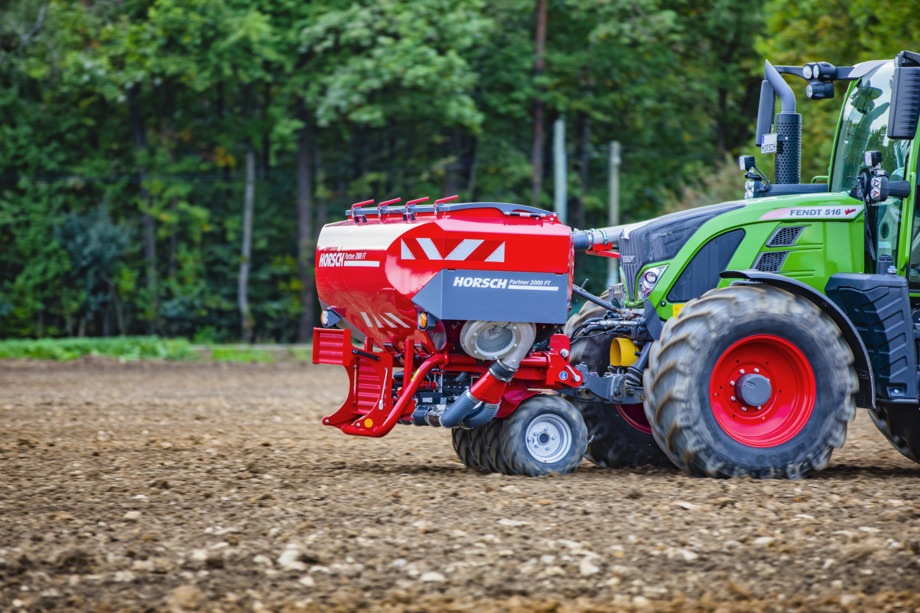

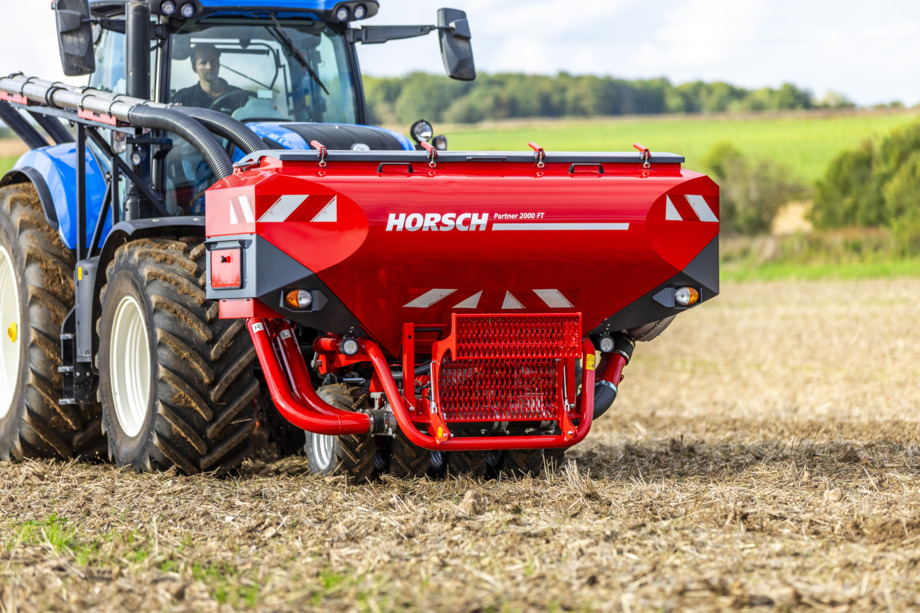

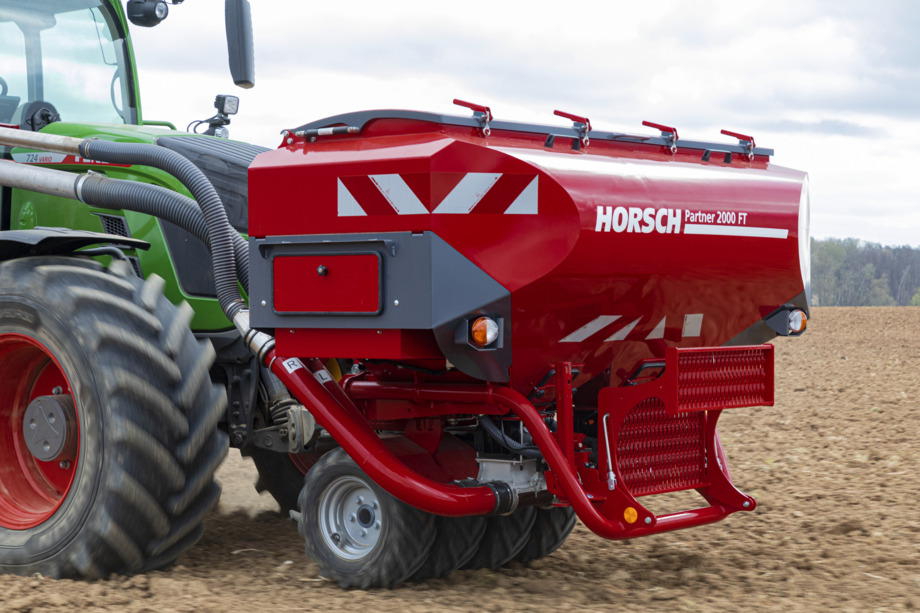

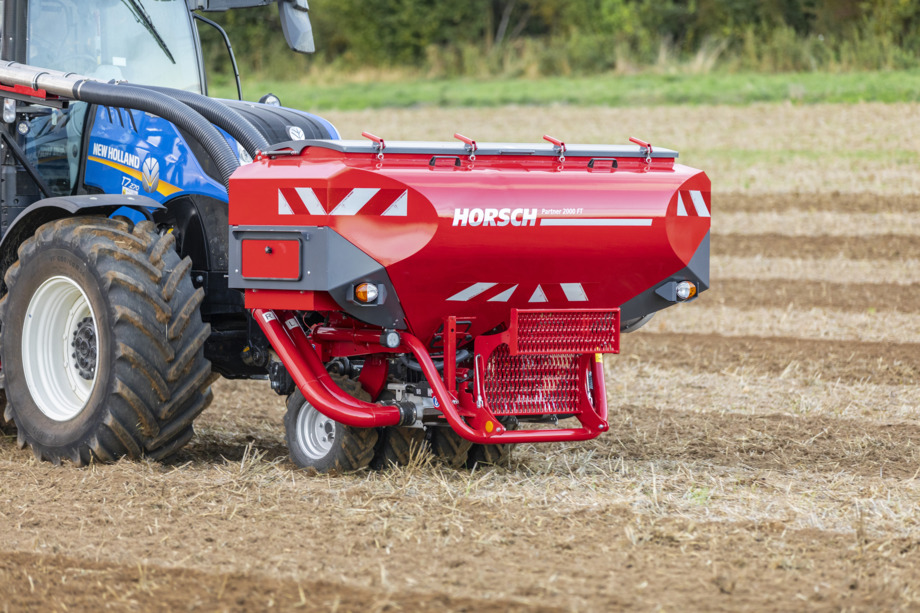

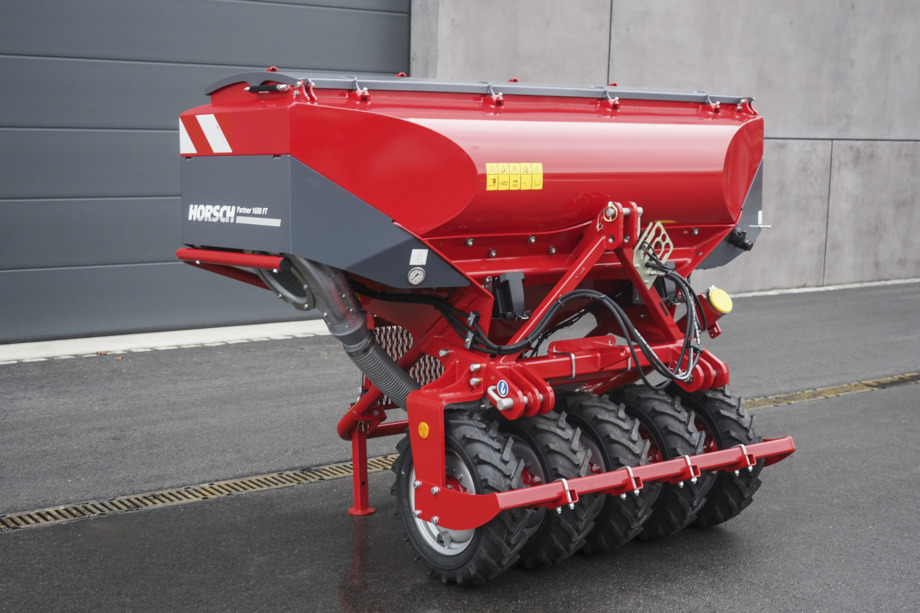

Partner 2000 FT with packer

Single hopper with a capacity of 1 600 l

Can be combined with tillage tools and seed drills

Compact, clearly arranged front tank

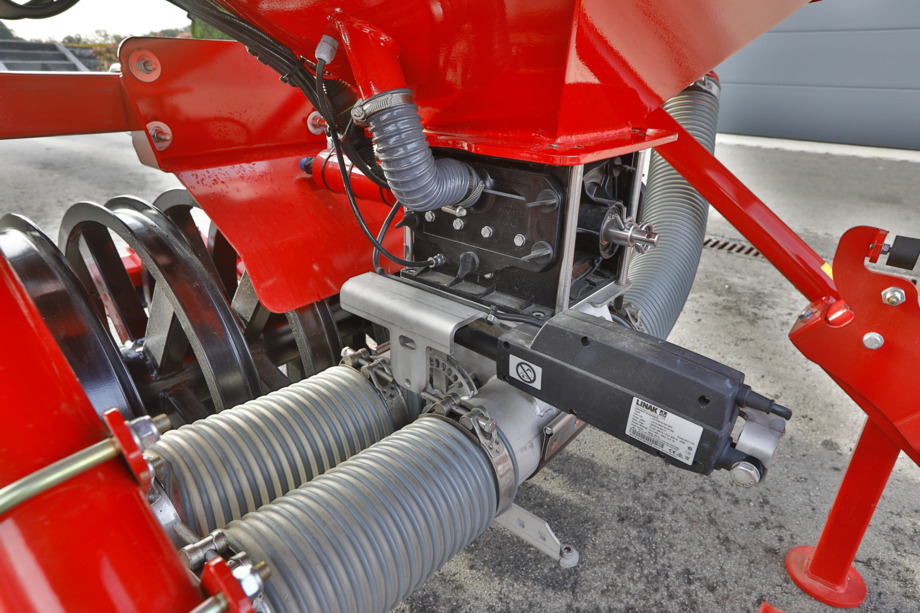

Partner 1600 FT with electric half-width shut-off

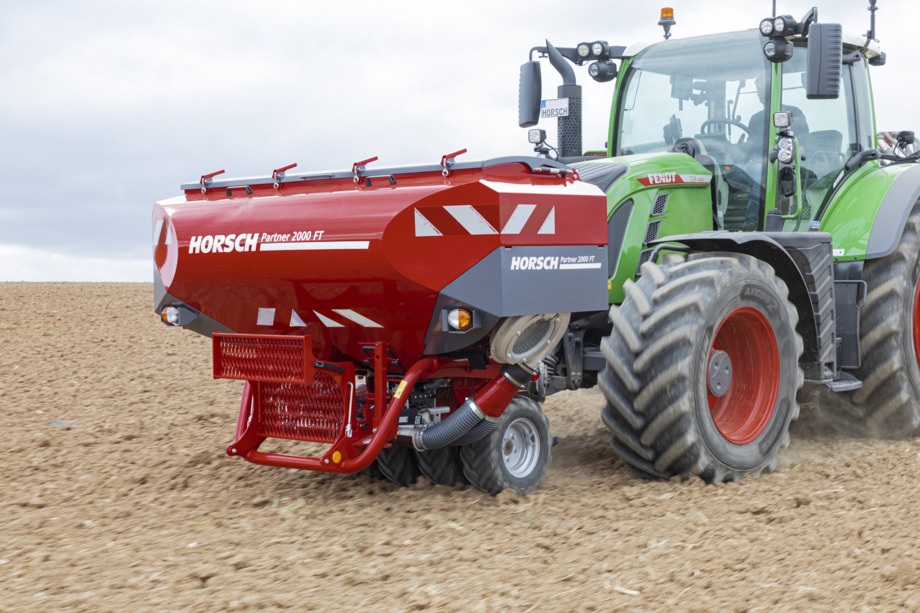

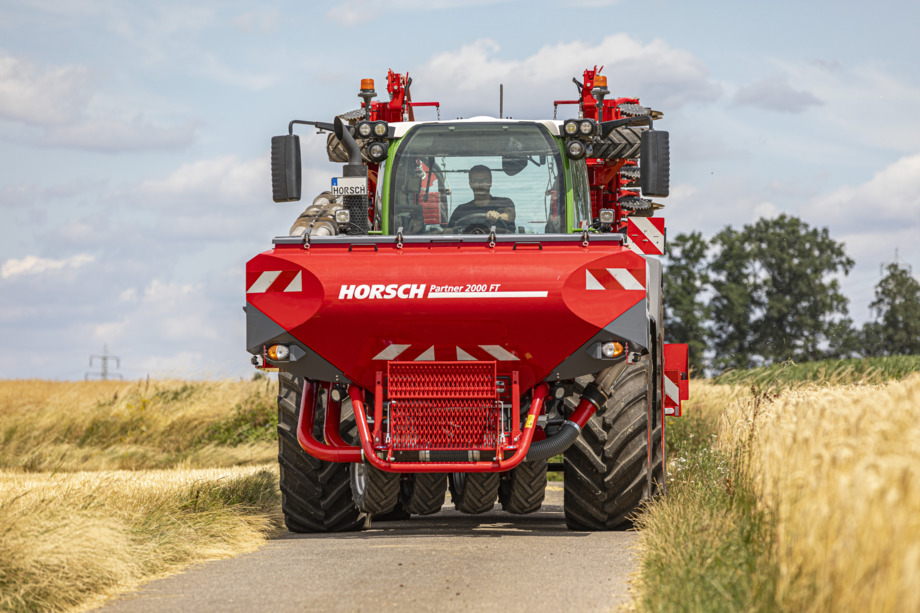

Partner 2000 FT

• Double hopper with a capacity of 2 200 l

• Can be combined with tillage tools and seed drills

• Double tank version for Grain & Fertiliser or microgranular fertilisation

• Easy entry into the sector of placed fertilisation

• Application of seed and fertiliser

• Optimum weight distribution

• High manoeuvrability

• Pressurised hopper prevents any release of dust in the front of the tractor

• Compact, clearly arranged front tank

• Large hopper opening

The Partner 2000 FT is a 2,200-liter double hopper available in two partitions (60:40 or 75:25), allowing for the flexible application of seed, fertilizer, or microgranules. This pressurized system supports high throughput speeds without dust interference, ensuring a clean, closed-loop transport of materials. With an 800 kg base weight and options for additional ballasting or a passively steered tire packer, it provides the ideal balance and versatility for complex seeding and tillage operations requiring two distinct components.

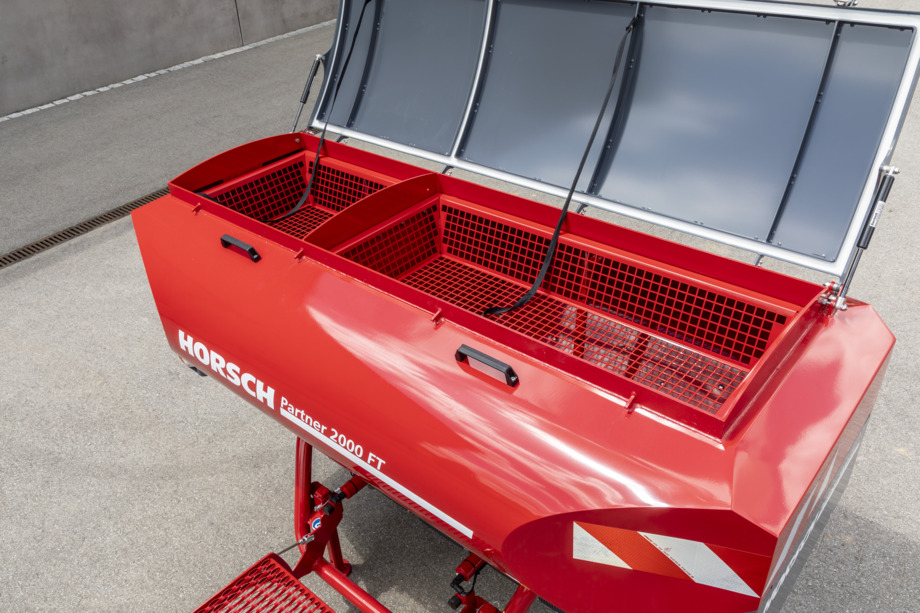

Partner 2000 FT: double hopper with a capacity of 2 200 l

Partner 2000 FT with 60:40 partition allows for applying seed and fertiliser, 2 x seed or two different fertilisers

Partner 2000 FT with 75:25 partition: large hopper for seed or granulated fertiliser and an additional 550 l for microgranular compounds

Partner 2000 FT with packer

Partner 1.7 FT

• 1 700 l capacity as a single or double tank (90:10)

• Can be combined with tillage tools and seed drills

• Easy entry into the sector of placed fertilisation

• Application of seed and fertiliser and other components

• Optimal weight distribution, high manoeuverability

• Pressurised hopper prevents any release of dust in the front of the tractor

• Large hopper opening

The Partner 1.7 FT with a capacity of 1 700 l is available as a single tank or as a double tank with a 90:10 partition. Due to the large tank opening, filling is easy and comfortable.

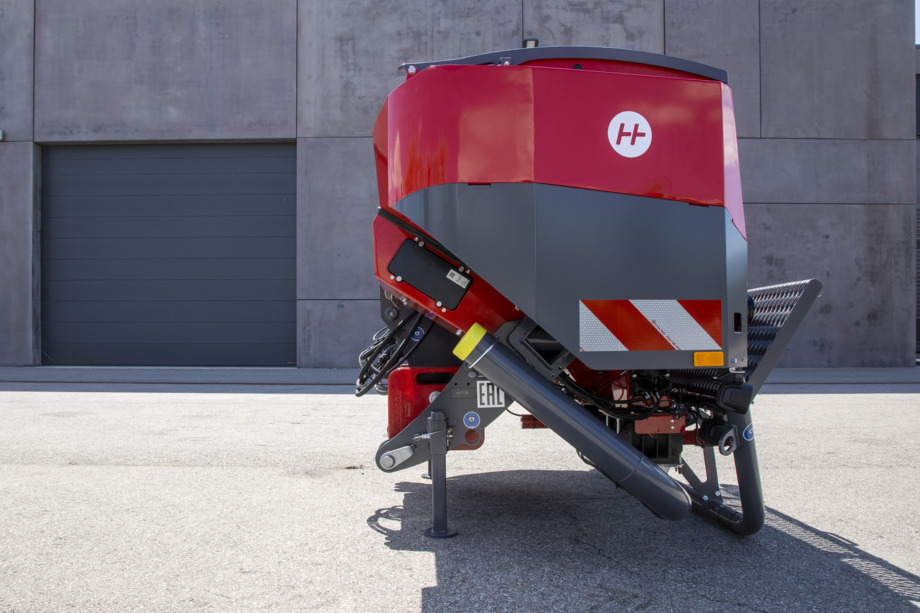

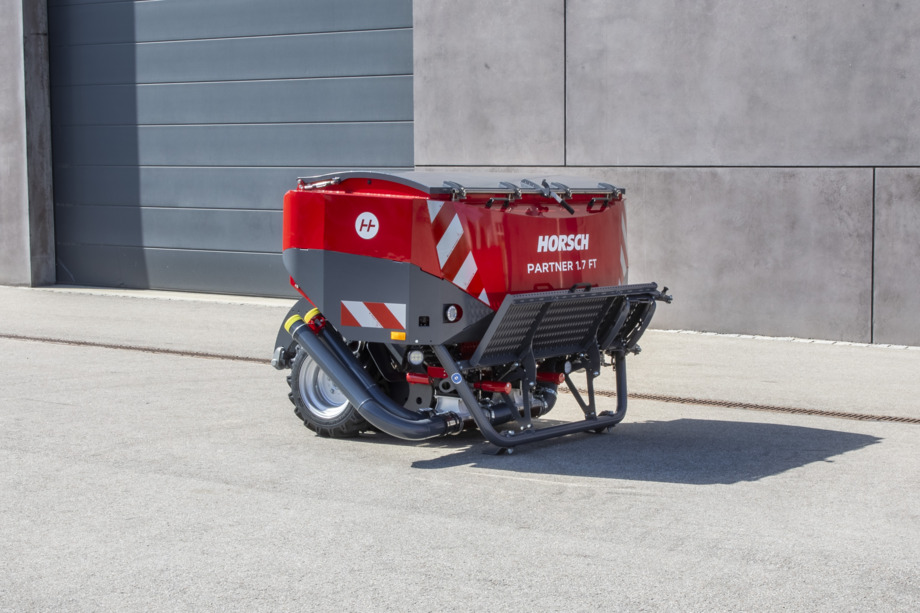

Partner 1.7 FT

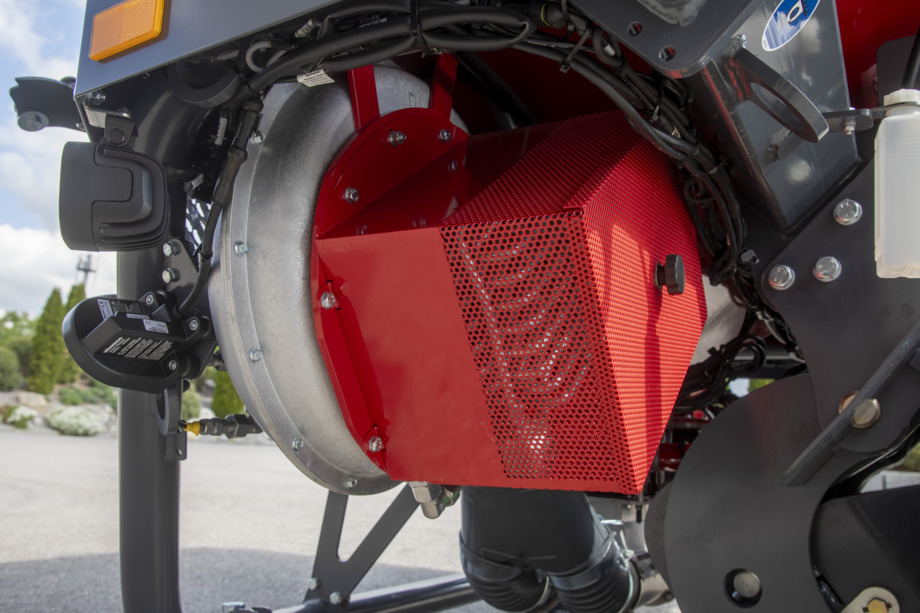

Optional oil cooler for warming the intake air

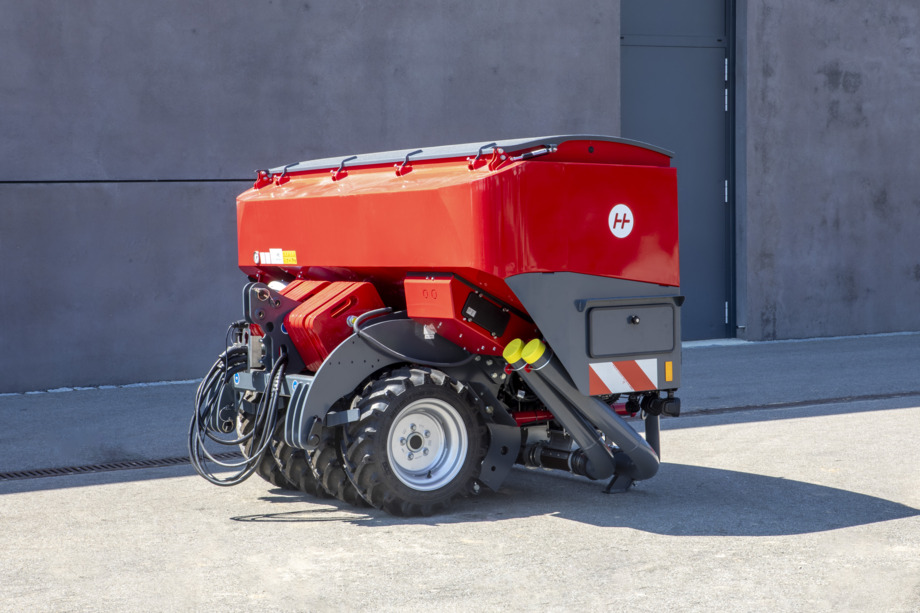

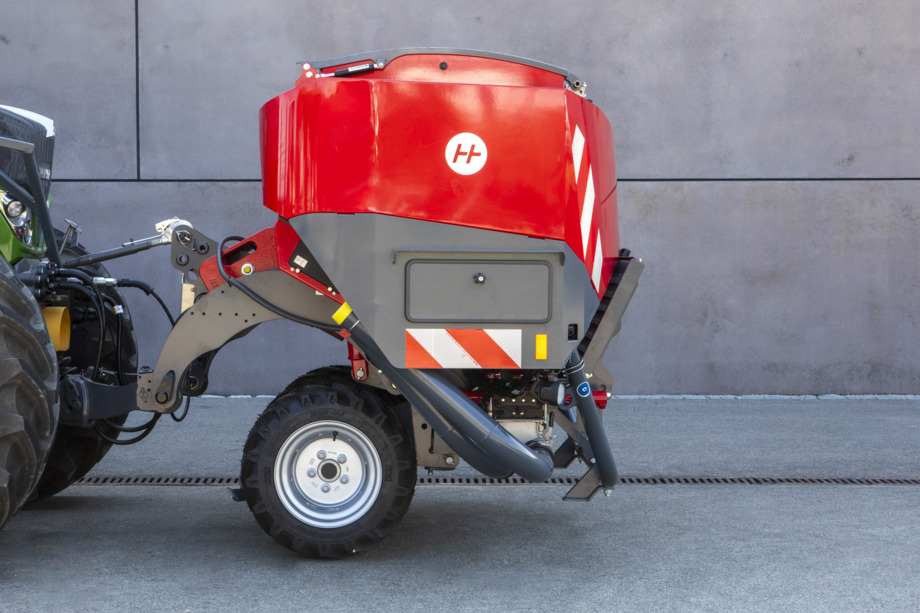

Partner 1.7 FT without front packer

Partner 1.7 FT double tank

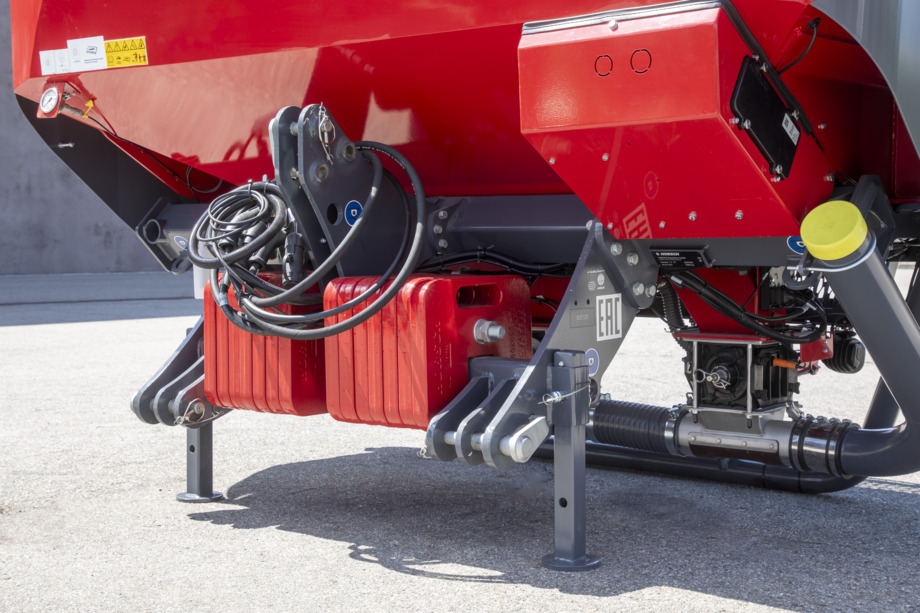

Perfectly balanced due to additional weights

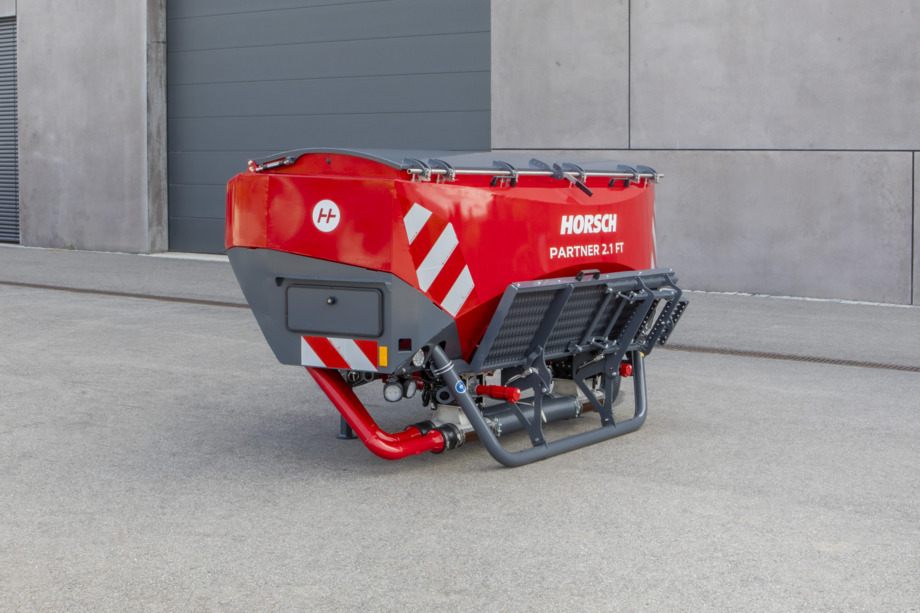

Partner 2.1 & 2.5 FT

• Double tank or triple tank options

• 2 100 or 2 500 l capacity can be selected

• Up to three tanks for maximum flexibility of the components that are to be applied

• Can be combined with tillage tools and seed drills

• Easy entry into the sector of placed fertilisation

• Application of seed and fertiliser and other components

• Optimal weight distribution, high manoeuverability

• Pressurised hopper prevents any release of dust in the front of the tractor

• Large hopper opening

The Partner 2.1 and 2.5 FT models offer 2,100 or 2,500 liters of capacity with either a double (60:40) or triple (60:30:10) tank partition, perfect for complex applications requiring multiple components like seed, fertilizer, and microgranules. These pressurized hoppers ensure high-speed throughput and dust-free operation by transporting materials through a closed system. Whether used for seeding or tillage, their flexible configurations and precise fine-metering kits provide a highly adaptable solution for modern, multi-component agricultural tasks.

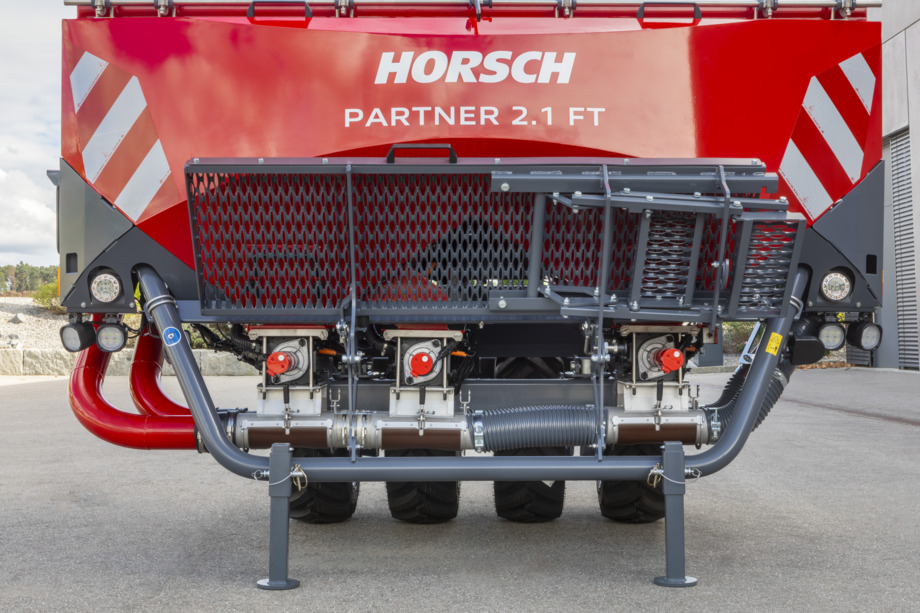

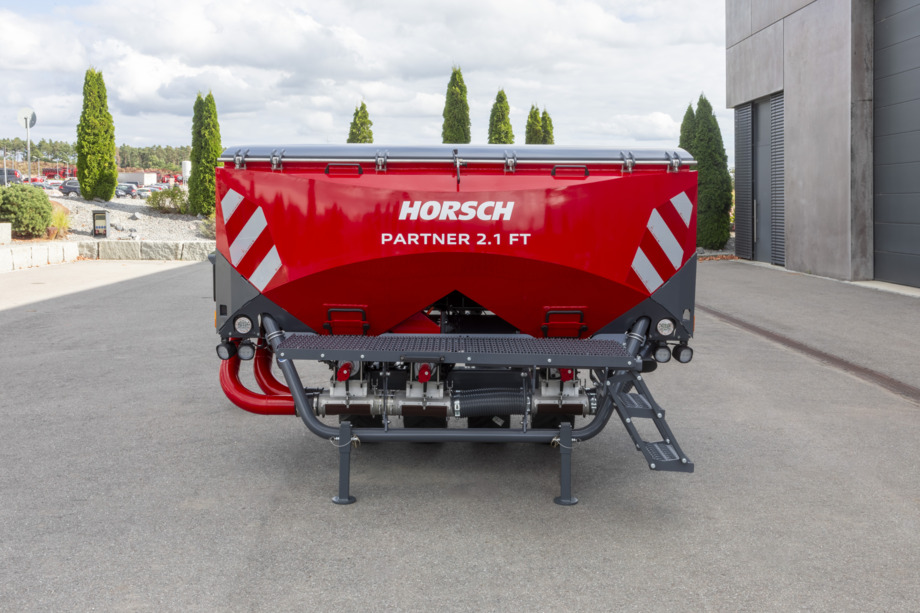

Partner 2.1 FT double tank with a 60:40 partition

Partner 2.1 FT with additional weights

Partner 2.1 & 2.5 FT with triple tank: 3 independent metering devices for up to 3 components

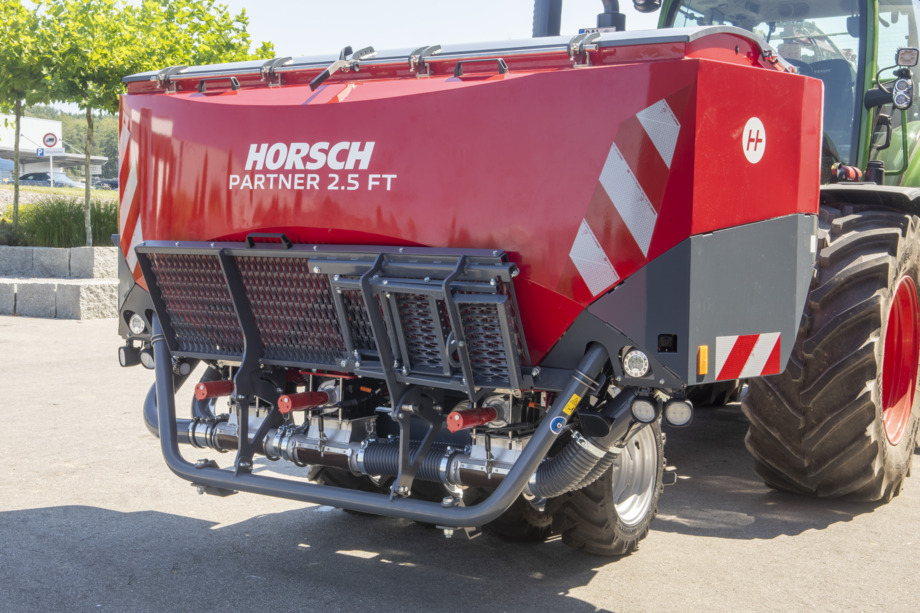

Partner 2.5 FT with triple tan

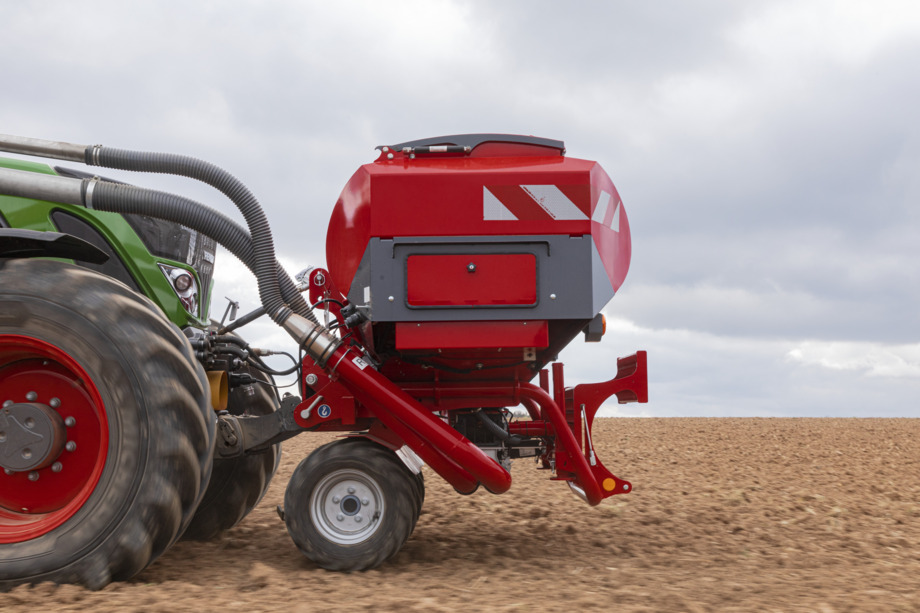

Additional weights and a passively steered intermediate packer with hydraulic lifting are optionally available

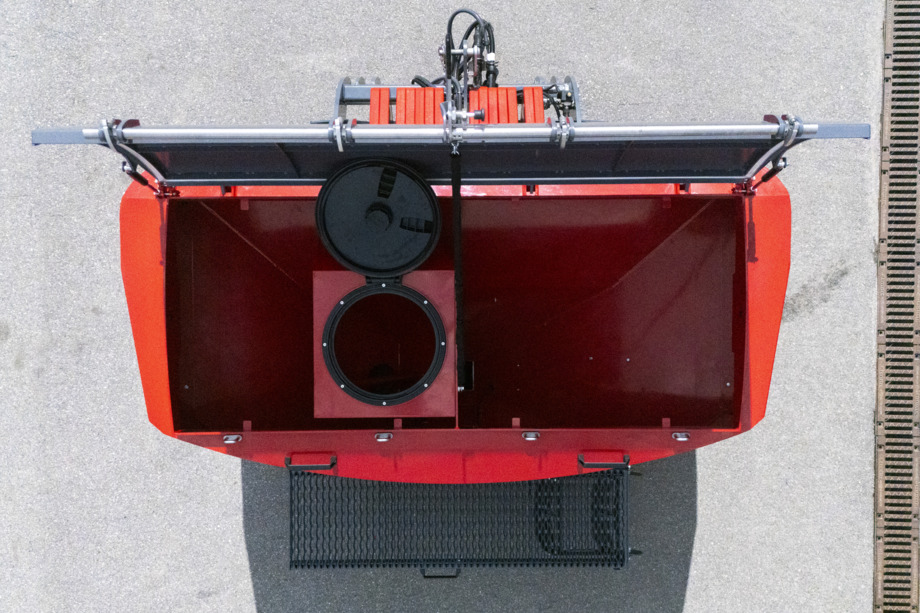

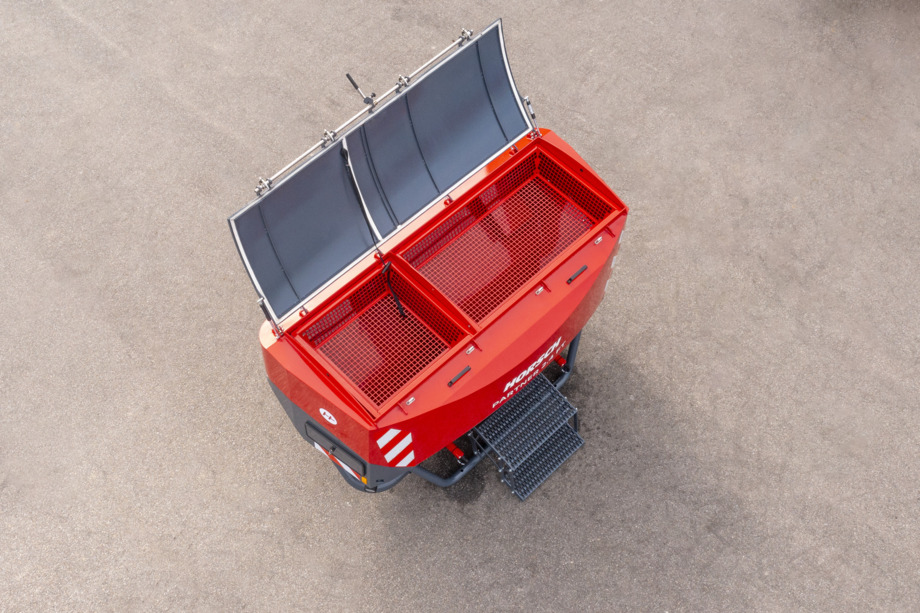

Large hopper opening

Comfortable tread for maximum filling comfort

Tyre packer and additional weights ensure optimal weight distribution for heavy 3-point mounted implements in the rear

HORSCH metering system / HORSCH rotors

• Exact application

• Optimum seed distribution

• HORSCH rotor selection – find the optimum rotor for your machine quickly and easily

• Depending on the components, seed rate and operational speed, various options can be selected

• Easily accessible

• Rotor shafts can be replaced without any tools

HORSCH rotors provide high flexibility and precision for pneumatic seed drills, offering various configurations to match specific seed rates and machine setups. A dedicated selection server helps identify the correct rotor, while integrated valves allow for quick, tool-free replacements even when the hopper is full. To ensure optimum distribution and accuracy, HORSCH recommends performing a calibration test for all seeding operations.

Metering unit – injector hopper system with valve

Pressurised hopper system with locking option.

Pressurised hopper system with open valve

Metering unit – pressurised hopper system with valve

Standard metering unit hexagonal shaft drive

Partner quick coupling systems

• Easy handling without tools

• Quick couplings help a fast coupling and decoupling between front hopper, tractor console and implement

• High quality stainless steel components avoid corrosion

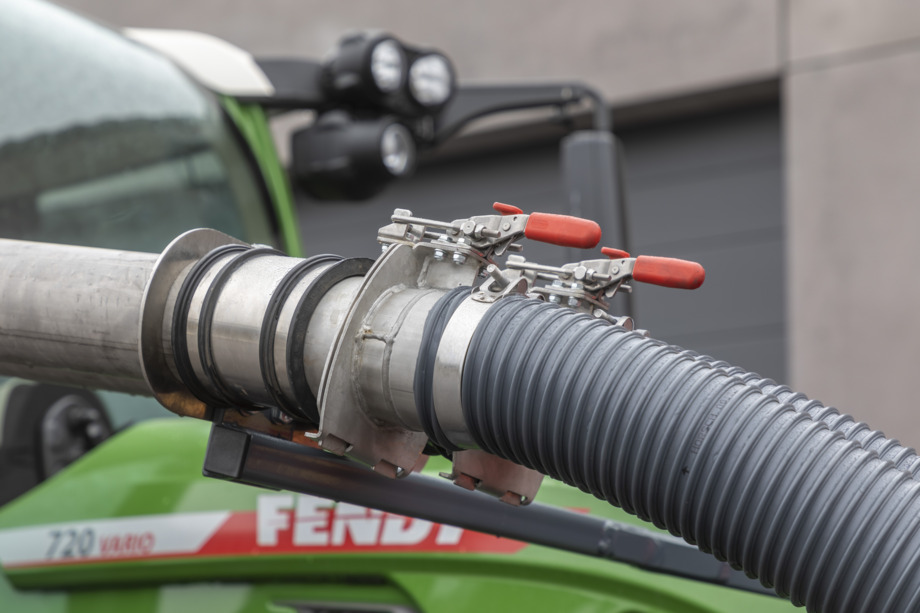

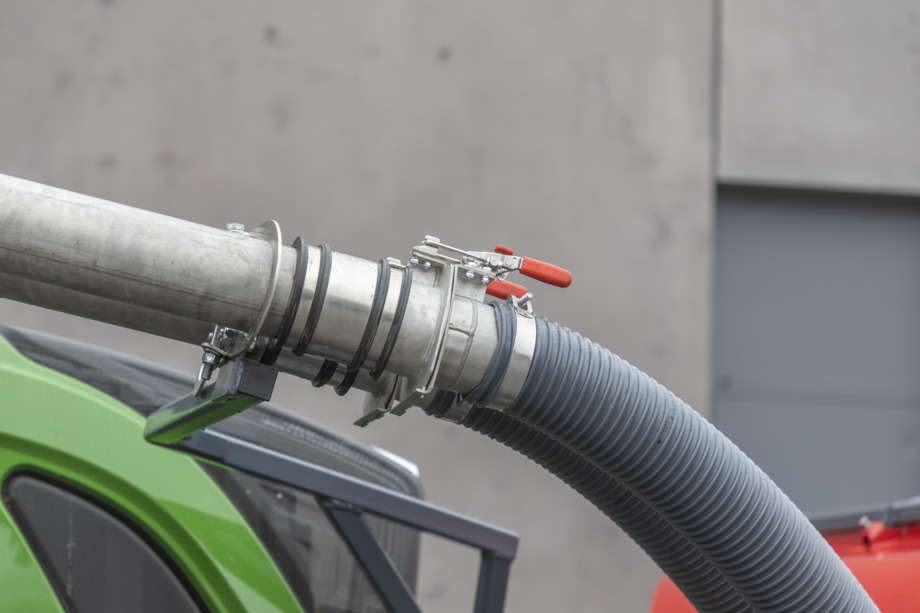

The HORSCH quick coupling device for the pneumatic tubes of the front hopper FT make the mounting and dismantling of the pneumatic hoses of mounted implements and the front hopper very easy. The tool-free and easy handling saves time when attaching and detaching different implements like a Taro 6 SL, Express 4 KR or a HORSCH Maestro RV/RX.

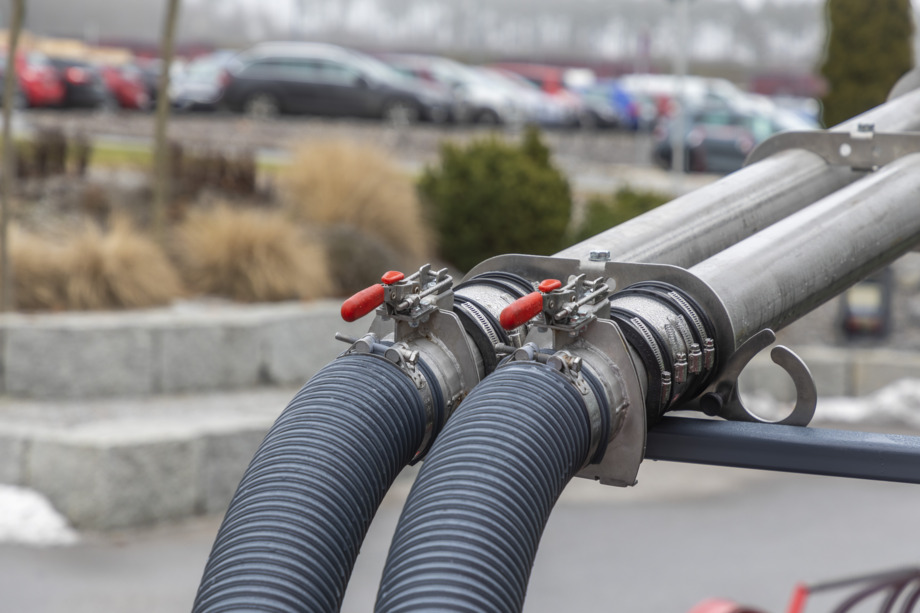

Easy handling of the pneumatic tubing without tools

The Partner FT quick couplings consist of high-quality stainless steel which avoids corrosion

Quick couplings help a fast coupling and decoupling between front hopper, tractor console and implement

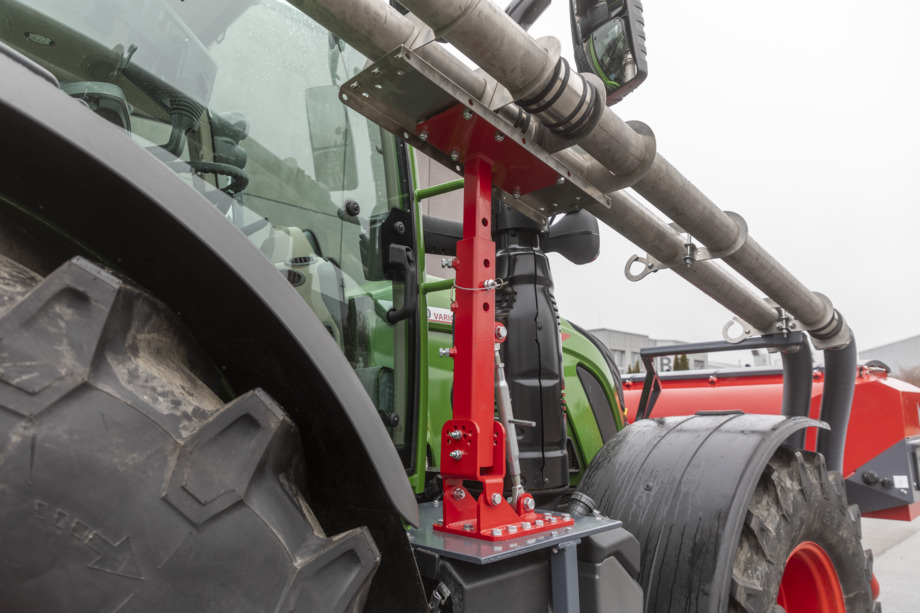

Holder kit for pneumatic tubing

• Stable and safe attachment arm of the Partner pneumatic components

• The angle of the attachment arm for the pneumatic lines of a HORSCH front hopper can be adjusted in two directions

• Horizontal tubing attachment to reduce visibility restriction

• Height-adjustable attachment arm – depending on tractor brand and tractor size

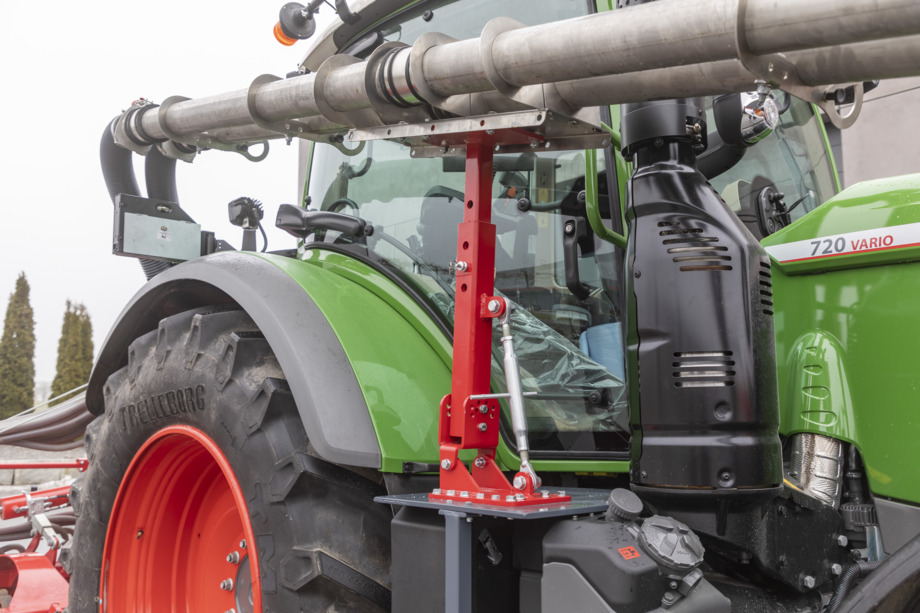

The HORSCH Partner holder kit for pneumatic tubing on standard tractors consists of a flexible attachment arm that fixes and holds the pneumatic tubing. The height and angle of the arm can be adjusted flexibly depending on the tractor used. The high-quality stainless steel components can be mounted with the support kit both horizontally and vertically.

Holder kit for pneumatic tubing

Stable and safe attachment arm of the Partner FT pneumatic components

Horizontal tubing attachment ensures minimum visibility restrictions

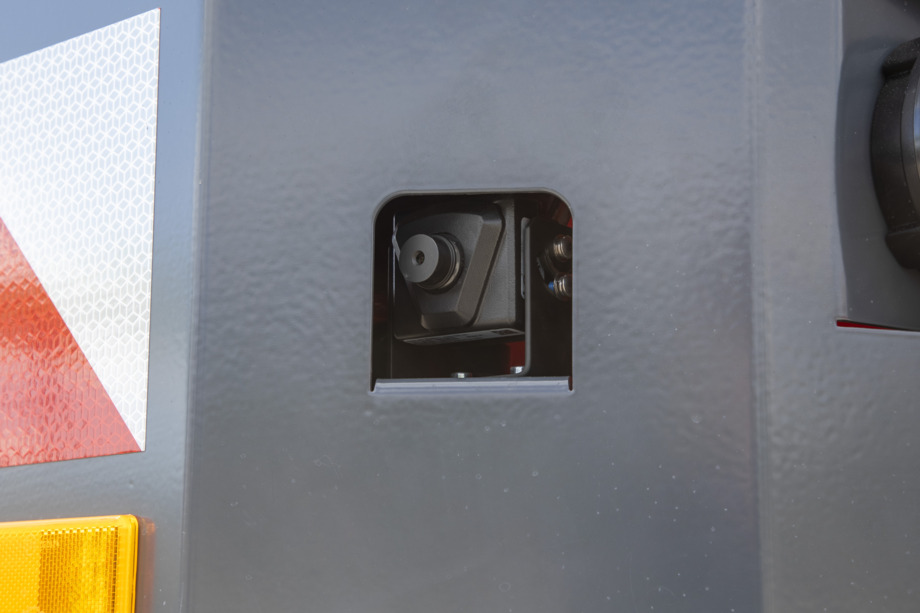

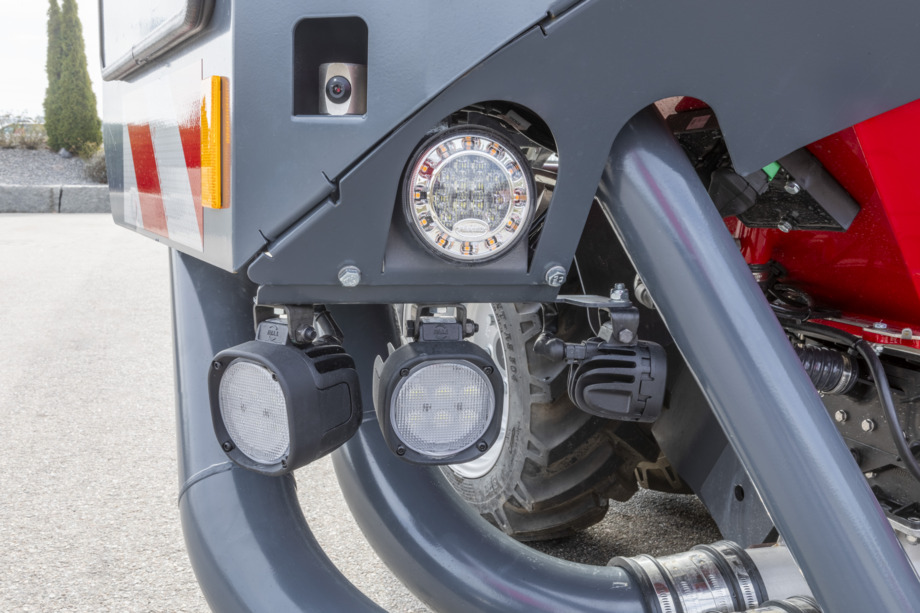

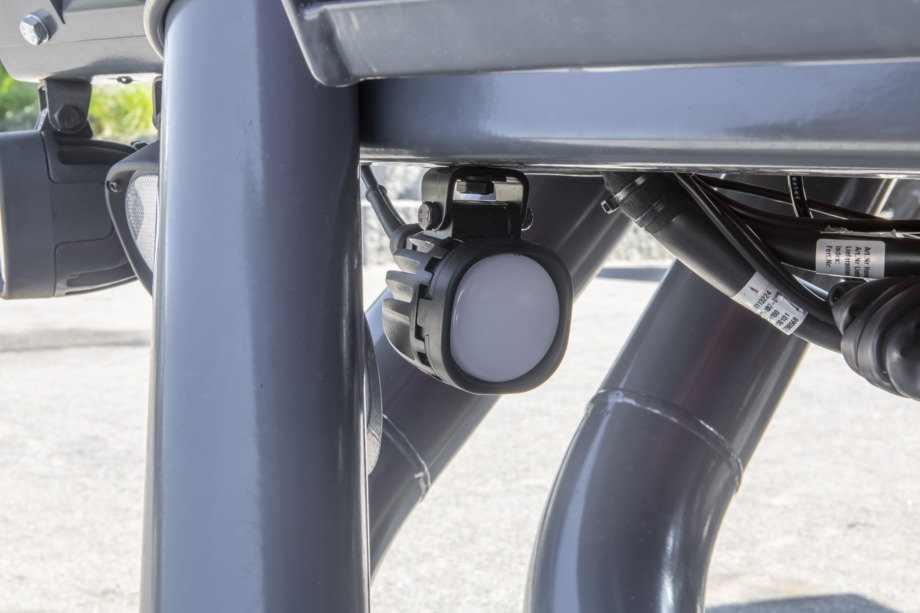

Camera system for HORSCH front tanks

• 2 objectives at the front right and left of the front tank for optimal visibility of cross traffic

• Separate monitor for secure image output

• This risk of accidents is reduced at confusing junctions like field and farm exits.

• Dust-, pressure-, and waterproof camera system

Confusing field and farm exits increase the risk of overlooking something in traffic. The camera system on the HORSCH front tanks allows for an optimal monitoring of the cross traffic when leaving these critical areas. Due to the two cameras on the right and left of the front hopper and the divided screen, the driver sees all that is happening to the right and to the left side of the front hopper. This reduces the tension for the driver and increases road safety.

Partner FT with camera system

Camera system for more safety

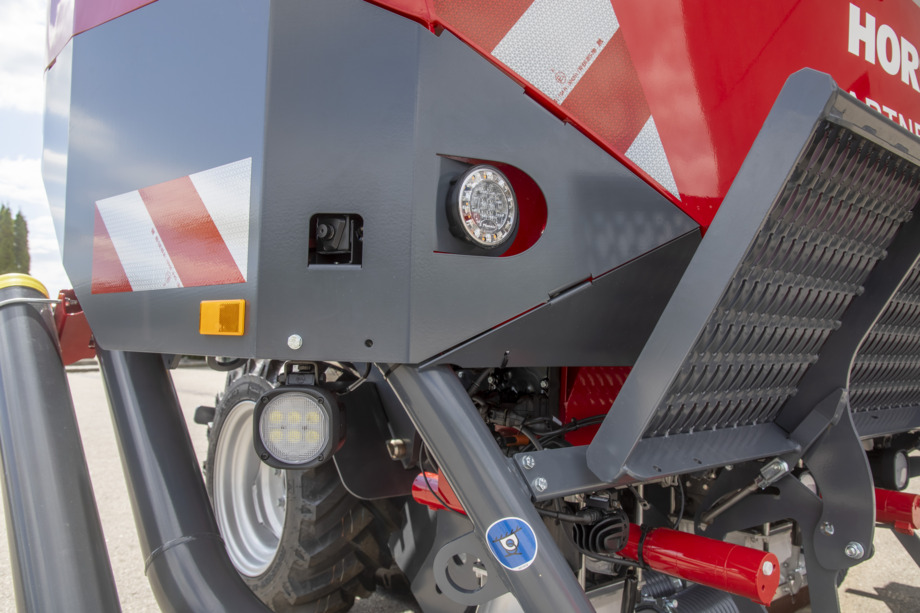

WorkLight Pro

• Optimal illumination of the working surroundings at twilight and at night

• Flexibly rotatable LED headlights

• Can be switched on/off via the terminal

• Very good illumination with low energy consumption

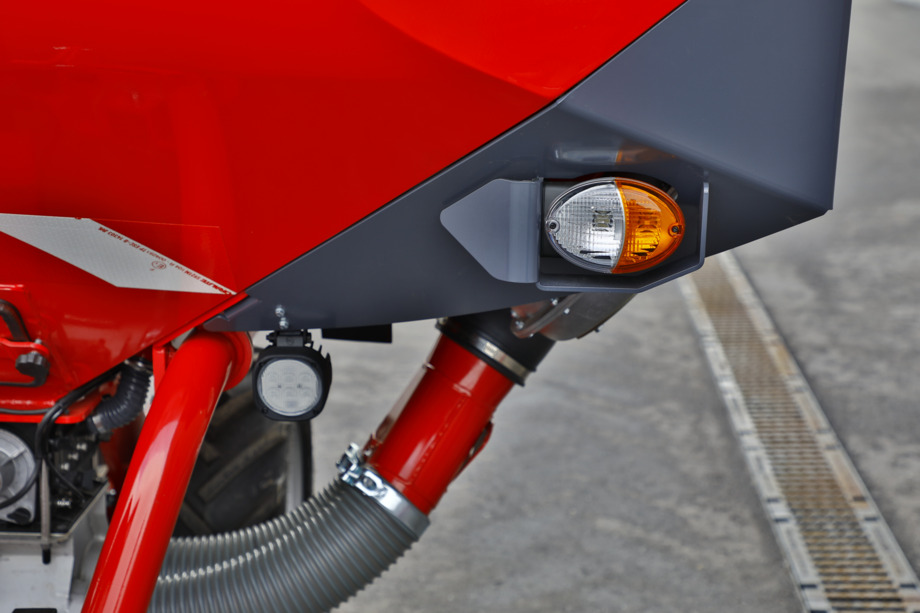

Two flexibly adjustable LED headlights in the front guarantee optimum lighting in front of the front hopper. Flexibility plays an important role while sowing as you should choose the perfect sowing time for an optimum population. When sowing late or early, WorkLight Pro ensures optimal illumination of the area in front of the Partner combination.

Optimal illumination of the working surroundings at twilight and at night

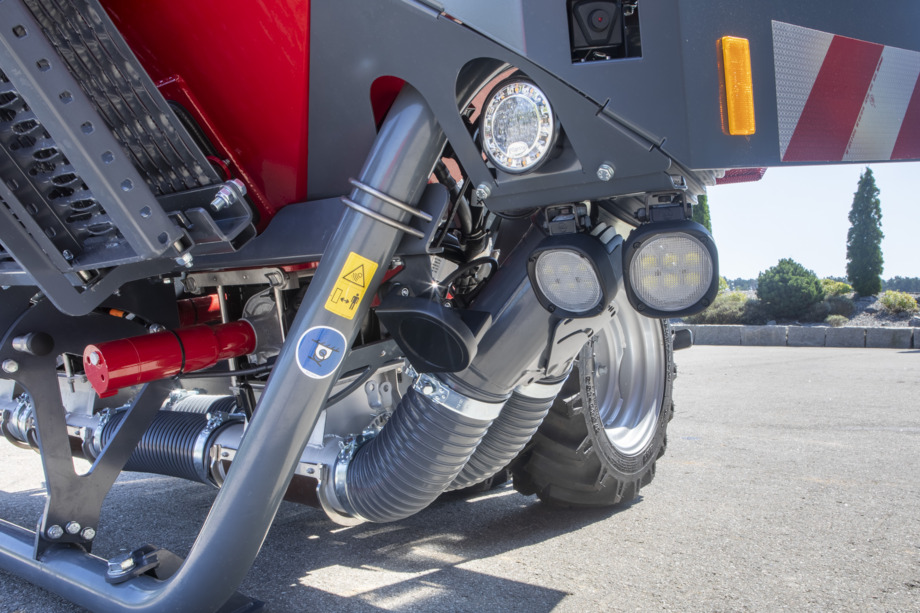

Flexibly rotatable LED headlights Partner 1600 FT & Partner 2000 FT

Flexibly rotatable LED headlights

Perfect visibility in the dark

Illumination of the metering unit for comfortable calibration

Perfect visibility due to WorkLight Pro

Packer options Partner 1600 FT

• You can choose between two different packer options.

• Allow for an optimum soil protection in the field

• The RollPack packer ensures a deep strip consolidation

• The tyre packer guarantees even and consolidated conditions

• Pressing and crushing of clods

• Three rotors with different sizes

For an optimum soil presentation the front hopper can be equipped with an intermediate packer. A RollPack packer with 280 kg and a tyre packer with an additional weight of 350 kg are available. Due to this additional ballasting, the tractor is ideally balanced even if the front hopper is empty.

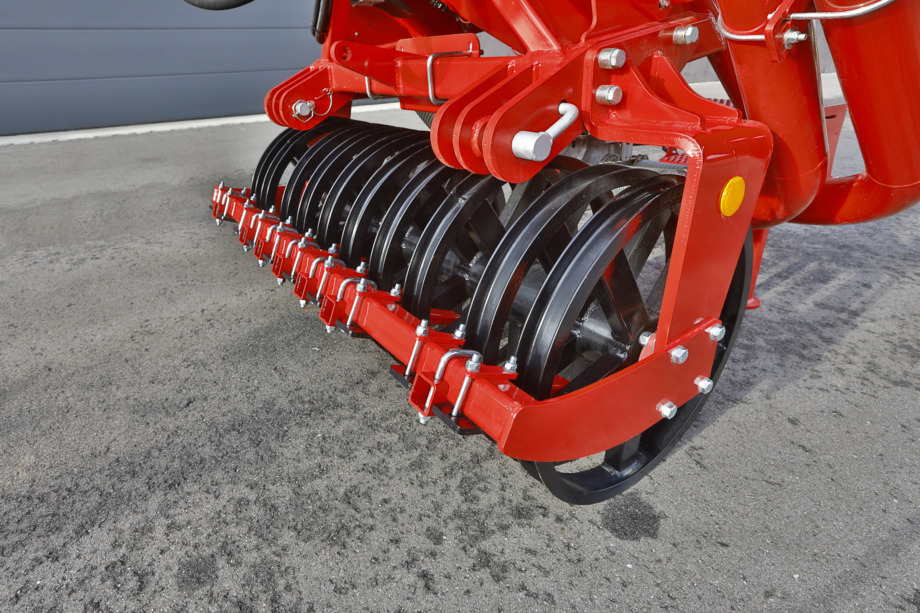

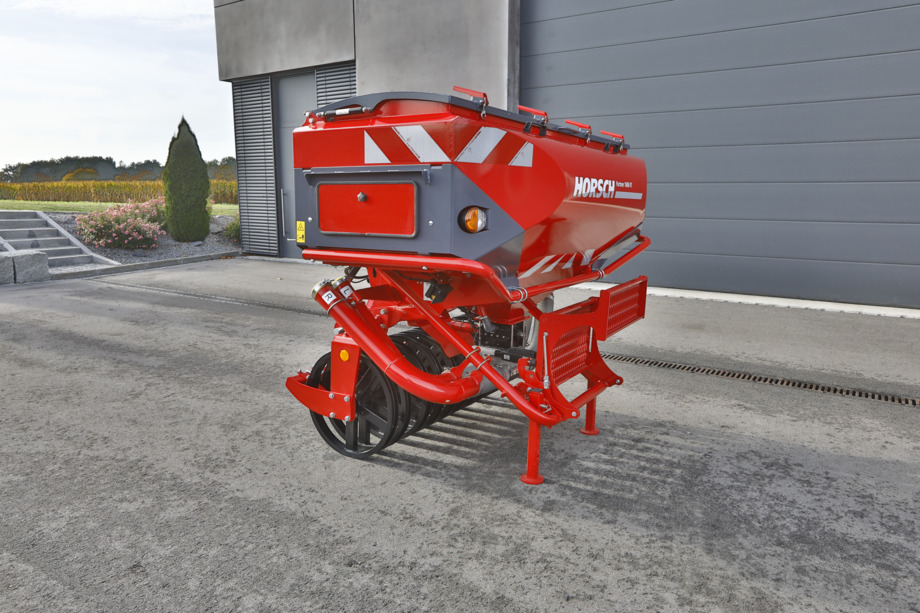

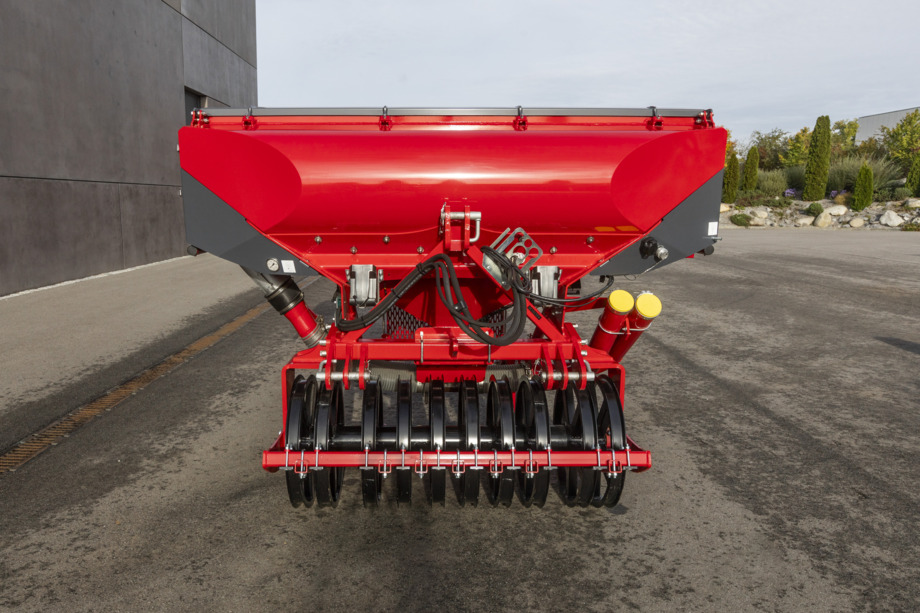

Packer version RollPack Packer Partner 1600 FT

The RollPack packer ensures a deep strip consolidation

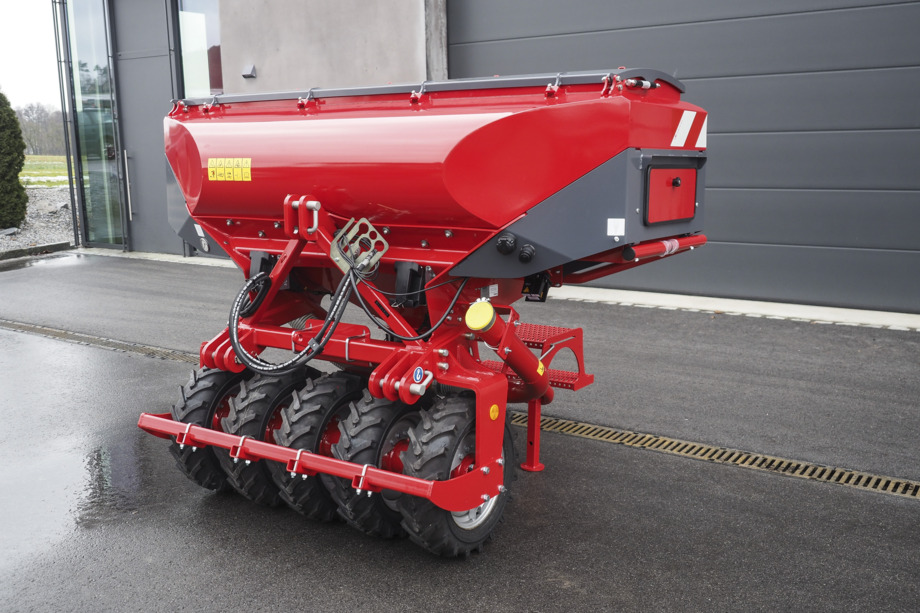

Packer option, tyre packer Partner 1600 FT

The tyre packer guarantees even and consolidated conditions

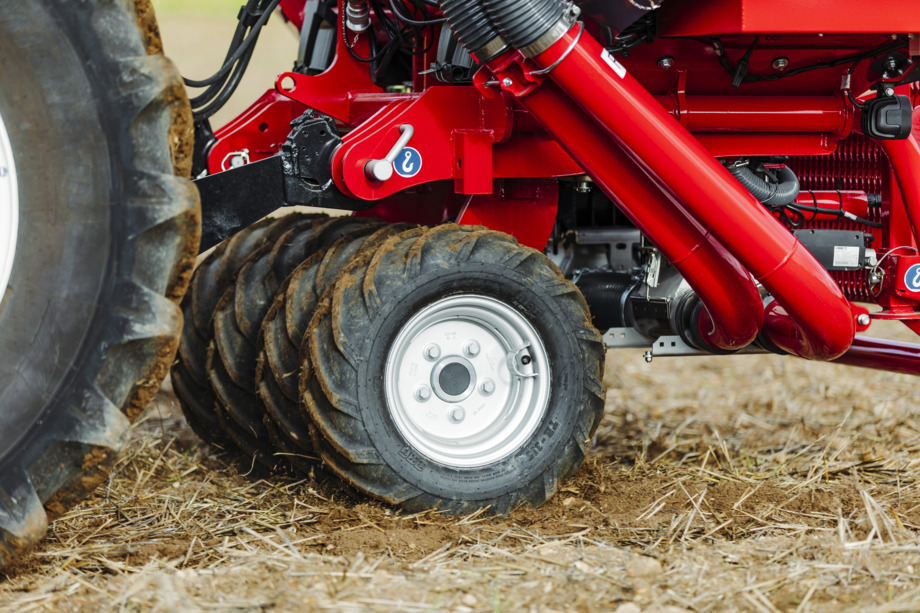

In the field, the tyre packer allows for an optimum soil presentation

Packer option Partner 2000 FT

• Allows for an optimum soil presentation in the field

• Pressing and crushing of clods

• 20° passively controlled tyre packer

• 1.30 m wide contact area over 4 tyres

The Partner 2000 FT weighs 800 kg (basic equipment) and can be equipped with an additional weight of 360 kg for an optimal ballast. If the front hopper is used for sowing, the passively controlled tyre packer makes sense to distribute the total weight over a width of 1.30 m. In the field, the passively controlled tyre packer allows for an optimum soil presentation.

In the field, the tyre packer allows for an optimum soil presentation

20° passively controlled tyre packer

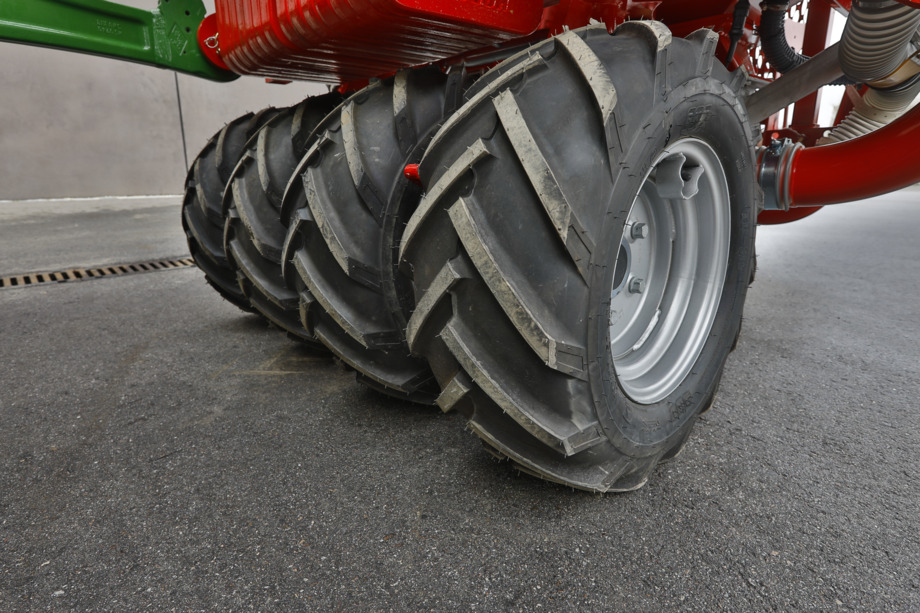

1.30 m wide contact area over 4 tyres and additional weights

The tyre packer allows for pressing and crushing clods

Packer options Partner 1.7, 2.1 & 2.5 FT

• Passively steered tyre packer with or without hydraulic lifting system

• Allow for an optimum soil protection in the field

• Pressing and crushing of clods

• Intermediate packer with a very wide contact area of 1.30 m due to four tyres

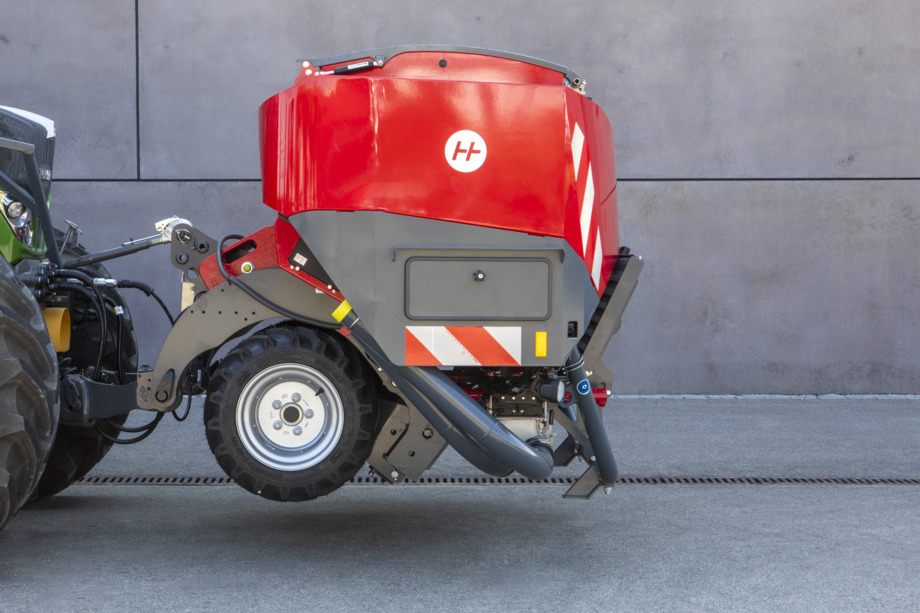

The passively steered intermediate packer is available without or with hydraulic lifting. The hydraulic lifting system allows for lifting the tyres during road transport without an additional lifting of the front tank. This improves the field of view from the cabin and increases clearance during road transport. In the field, the passively controlled tyre packer allows for an optimum soil presentation.

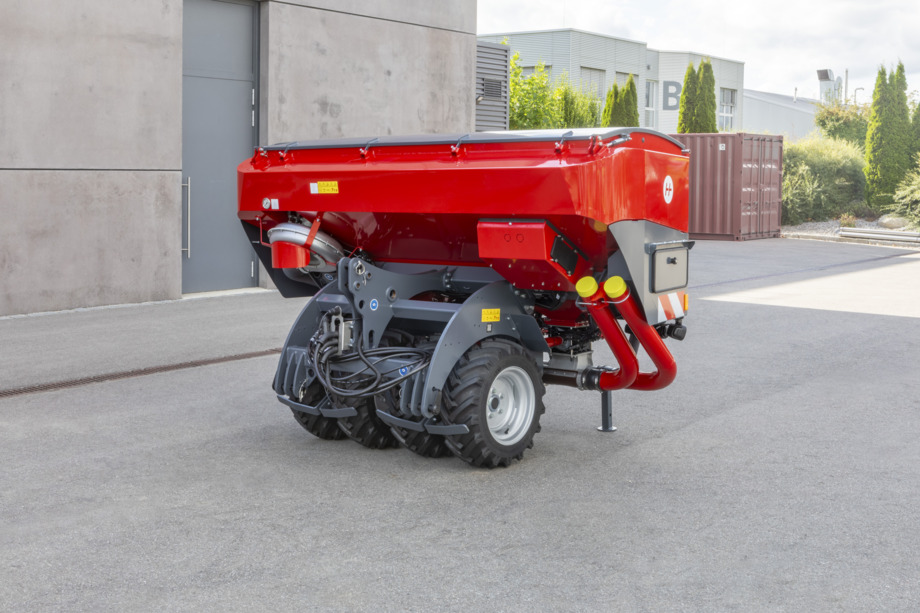

Passively steered intermediate packer with hydraulic lifting system

Intermediate packer with hydraulic lifting system in field position

Intermediate packer with hydraulic lifting system in road transport position

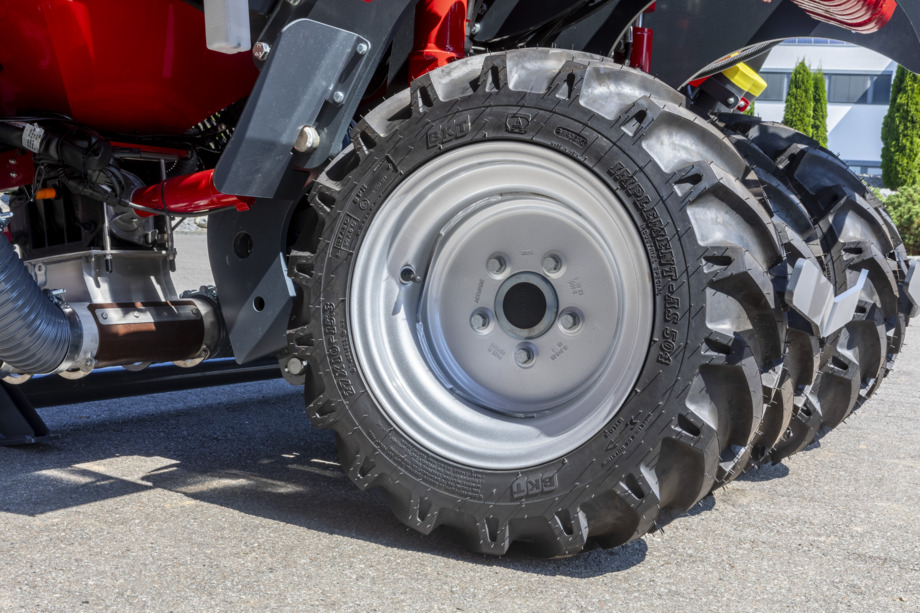

4 tyres 27 x 10 – 15.3 8PR

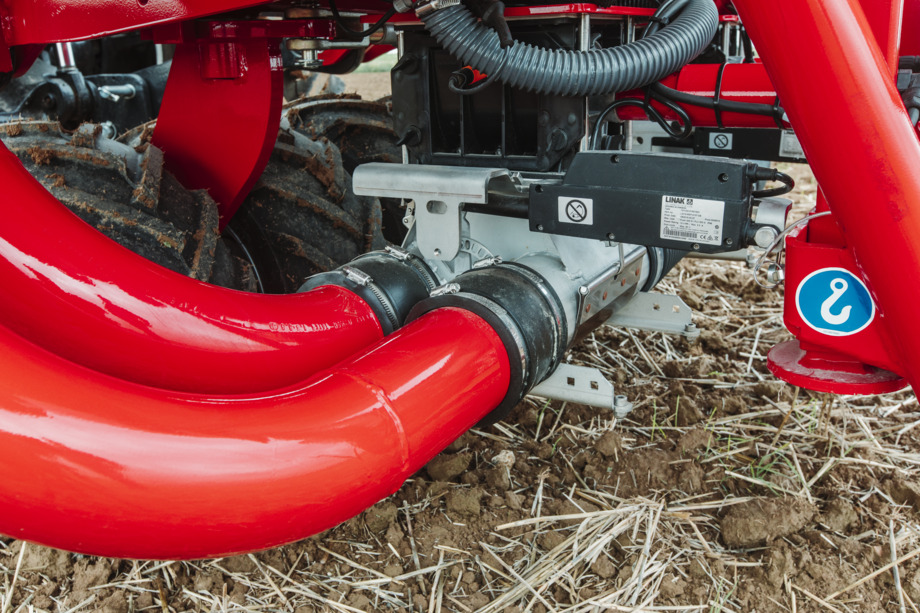

Electric half-width shut-off

• Saving of product being used like seed and fertiliser

• Overlaps on the headlands, on wedges or obstacles are avoided

• Switching the half-width on and off easily via a button in the terminal

• The electric half-width shut-off can be automated with a SectionControl activation.

HORSCH offers optional electric half-width control to complement standard mechanical systems, enabling significant savings on seed and fertilizer. By integrating with SectionControl for full automation, the system eliminates overlaps and overfertilization on headlands and wedges. Whether using one or two distribution towers, this technology optimizes input distribution and reduces operational costs.

Electric half-width shut-off – switching the half-width on and off easily via a button in the terminal

The electric half-width shut-off can be automated with a SectionControl activation.

Avoiding overlaps on the headlands, on wedges or obstacles improves the development of the individual plant and reduces the disease and competitive pressure in these areas

Fine metering insert kits

• Perfect for microgranular compounds and fine seeds

• Seed rates of 1.5 kg/ha to 60 kg/ha

• Can be used in every machine with a pressurised hopper

• Fine metering insert kit includes:

• A drive shaft with four possible drive pinions

• Three rotors with different sizes

• Individual spacers depending on the drive shaft

The HORSCH fine metering insert kit offers a flexible, modular solution for precisely applying fine seeds and microgranules across all machines with pressurized hoppers. By swapping interchangeable rotors, spacers, and pinions, users can easily adjust application rates from 1.5 kg/ha to 60 kg/ha, ensuring universal compatibility and simple operation for models like the Partner, MiniDrill, Pronto, and Focus.

Fine metering insert – rotor

Fine metering insert kits for standard metering unit hexagonal shaft

Fine metering insert kits for double metering unit spline shaft drive

Fine metering insert for double metering unit hexagonal shaft

TECHNICAL SPECIFICATIONS

Transport width

2,50 m

Height

1,56 m

Length (without/with tyre packer)

1.44 (without additional weight)/1.67 m

Weight with basic equipment

700 kg

Weight with packer

980 (with RollPack packer) / 1050 (with tyre packer with PU filling) kg

Additional weight

360 kg

Hopper capacity

1600 l

Dimensions of the feed openings

2,30 x 0,67 m

Filling height

1,56 m

DA control devices

Depressurized return flow (max. 5 bar)

Oil quantity hydraulic fan

20 - 35 l/min

Implement attachment tractor-side

3-point Cat. II and III

Transport width

2,71 m

Height

1.65 (without tyre packer) / 1.90 (with tyre packer) m

Length (without/with tyre packer)

1,66 / 1,70 m

Weight with basic equipment

800 kg

Weight with packer

1080 kg

Additional weight

360 kg

Hopper capacity

2 200 (divided tank 60:40 or 75:25) l

Dimensions of the feed openings

0.83 x 0.66 (small chamber) / 1.45 x 0.66 (large chamber) m

Filling height

1.57 (without tyre packer) / 1.82 (with tyre packer) m

DA control devices

Depressurized return flow (max. 5 bar)

Oil quantity hydraulic fan

20 - 35 l/min

Implement attachment tractor-side

3-point Cat. II and III

Transport width

2,58 m

Height

1.60 (without packer/packer retracted) / 1.80 (with packer/packer extended) m

Length (without/with tyre packer)

1,55 / 1,93 m

Weight with basic equipment

850 kg

Weight with packer

1 520 (packer swivelling)/1 385 (packer rigid) kg

Additional weight

390 kg

Hopper capacity

Single tank 1 700/double tank 1 700 (90:10) l

Dimensions of the feed openings

2,10 x 0,86 m

Filling height

1.51 (without packer/packer retracted) / 1.71 (with packer/packer extended) m

DA control devices

Depressurized return flow (max. 5 bar)

Oil quantity hydraulic fan

20 - 35 l/min

Implement attachment tractor-side

3-point Cat. II and III

Transport width

2,80 m

Height

1.60 (without packer/packer retracted) / 1.80 (with packer/packer extended) m

Length (without/with tyre packer)

1,70 / 1,92 m

Weight with basic equipment

920 kg

Weight with packer

1 590 (swivelling packer) / 1 455 (rigid packer) kg

Additional weight

390 kg

Hopper capacity

Double tank 2 100 (60:40) / triple tank 2 100 (60:30:10) l

Dimensions of the feed openings

0.86 x 0.93 (small chamber) / 0.86 x 1.50 (large chamber) m

Filling height

1.51 (without packer/packer retracted) / 1.71 (with packer/packer extended) m

DA control devices

Depressurized return flow (max. 5 bar)

Oil quantity hydraulic fan

20 - 35 l/min

Implement attachment tractor-side

3-point Cat. II and III

Transport width

2,80 m

Height

1.72 (without packer/packer retracted) / 1.92 (with packer/packer extended) m

Length (without/with tyre packer)

1,70 / 1,92 m

Weight with basic equipment

940 kg

Weight with packer

1 610 (swivelling packer) / 1 475 (rigid packer) kg

Additional weight

390 kg

Hopper capacity

Double tank 2 500 (60:40) / triple tank 2 500 (60:30:10) l

Dimensions of the feed openings

0.86 x 0.93 (small chamber) / 0.86 x 1.50 (large chamber) m

Filling height

1.63 (without packer/packer retracted) / 1.83 (with packer/packer extended) m

DA control devices

Depressurized return flow (max. 5 bar)

Oil quantity hydraulic fan

20 - 35 l/min

Implement attachment tractor-side

3-point Cat. II and III
