Maestro RV / RX

Versatile and precise single grain seed drill with 3-point linkage

Number of rows

6 - 12

Row width

45 - 80 cm

Seed capacity

per row 70 L

Fertiliser capacity

with Partner FT 1700 - 2500 L

Maestro RV / RX

The Maestro RV/RX excels due to its compact design, its universal suitability for all crops and the reliable, precise singulation while at the same time it is easy to handle.

With the Maestro 9 RX, the rows are not driven over due to an uneven number of rows

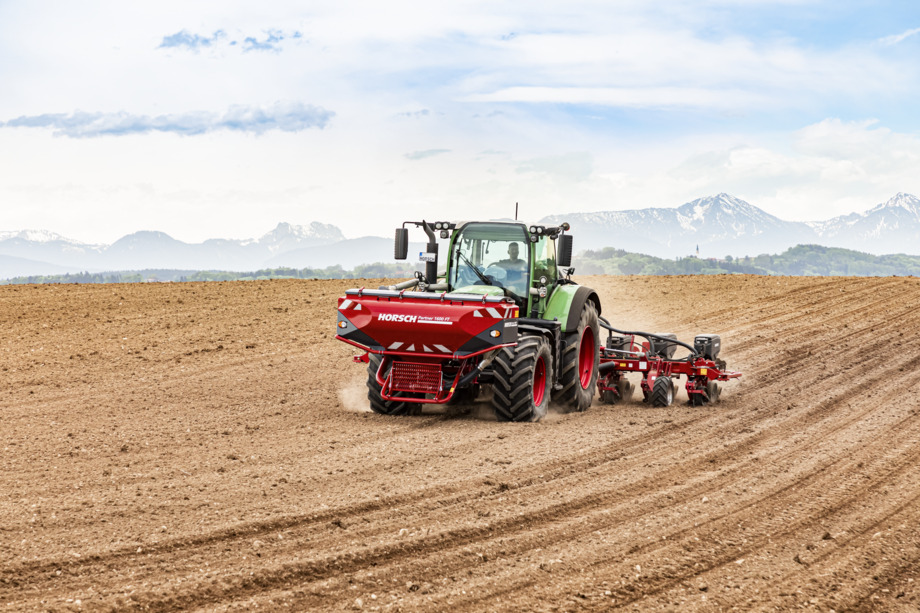

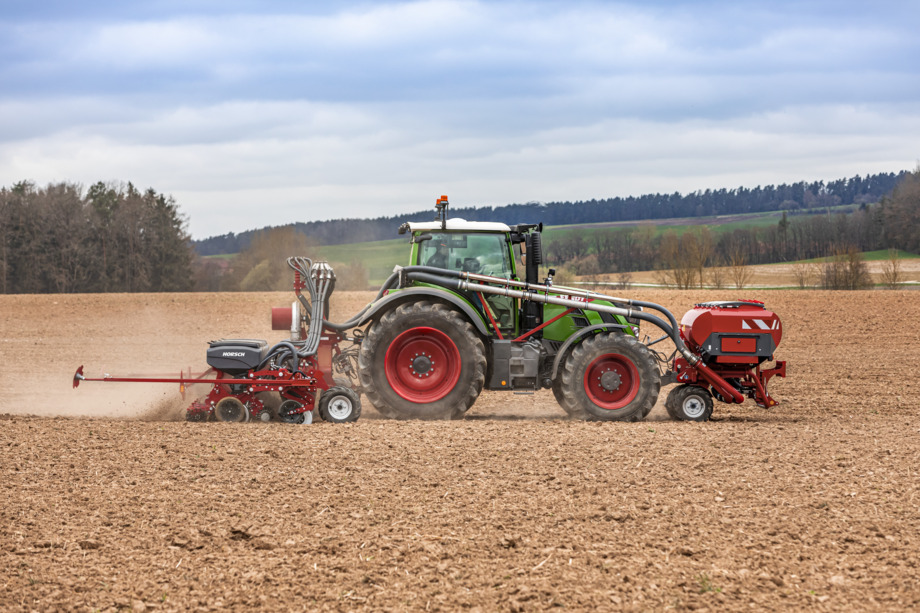

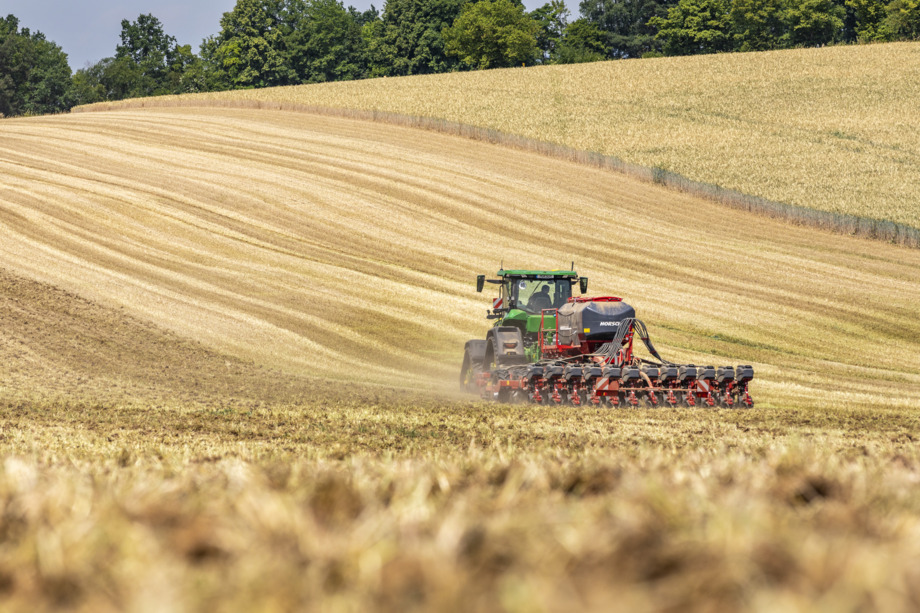

Manoeuvrable combination of Partner FT and Maestro

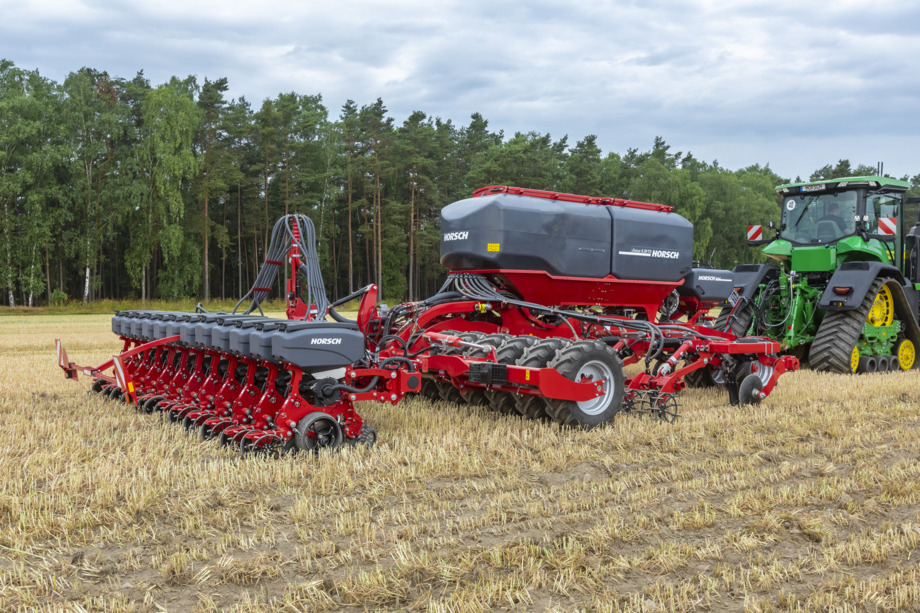

Partner 1600 FT with Maestro 8 RV

StripTill seeding with the Maestro RV combined with the Focus TD 3-point

Seeding maize as a second crop after the whole crop harvest in only one pass

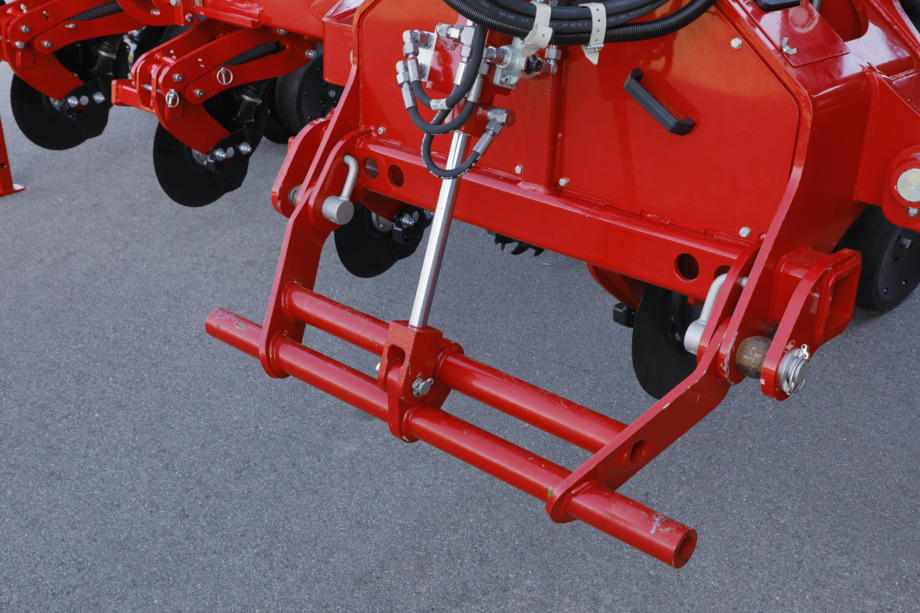

Professional technology for 3-point linkage

Versatile single grain seed drill for: maize, sunflowers, sugar beet, sorghum, canola, soybeans and other bean species
Rugged and reliable technology – heavy parallelogram and row unit for highest demands
Coulter pressures up to 350 kg for optimal sowing even in most difficult conditions or automatic soil-dependent coulter pressure adjustment AutoForce
High work rate due to a high range in combination with the HORSCH Partner FT models
Compact unit with low demands on the tractor

AirVac and AirSpeed

Advantages at a glance

• Can be used universally for different crops

• Easy to use: no adjustment of the separator required

• Reliable singulation of different grain sizes

• Electric drive as a basis for: SectionControl, VariableRate, tramline control

AirVac

• Operational speeds up to 12 km/h

• Utmost flexibility for all crops and optimum embedding of the grain

AirSpeed

• Operational speeds up to 15 km/h

• Maximum efficiency with safe embedding of the grain

The AirVac and AirSpeed systems offer high-precision, electric-driven singulation for diverse crops using a universal singulator that requires no manual adjustment. The primary distinction lies in seed delivery: AirVac utilizes a gravity drop tube, while AirSpeed uses overpressure to accelerate seeds into the furrow via an air current. Both units feature integrated sensors to monitor spacing and accuracy, supporting advanced functions like VariableRate and SectionControl for maximum sowing efficiency.

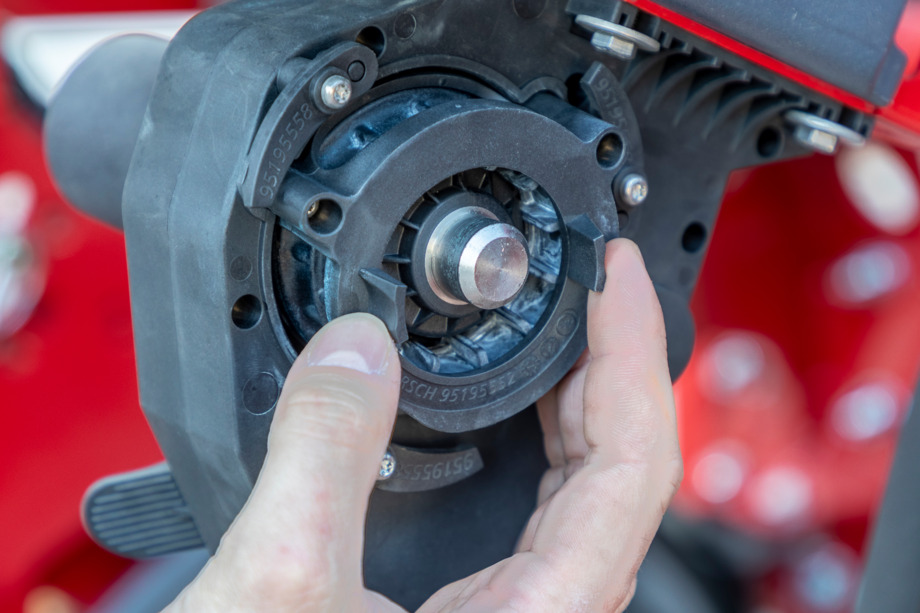

Open AirSpeed metering device with metering disc 30 x 5.0 mm for maize

The universal singulator does not have to be adjusted

Easily accessible AirVac metering device

SectionControl allows for automatic row shut-off and activation via GPS.

SectionControl control system for sugar beet

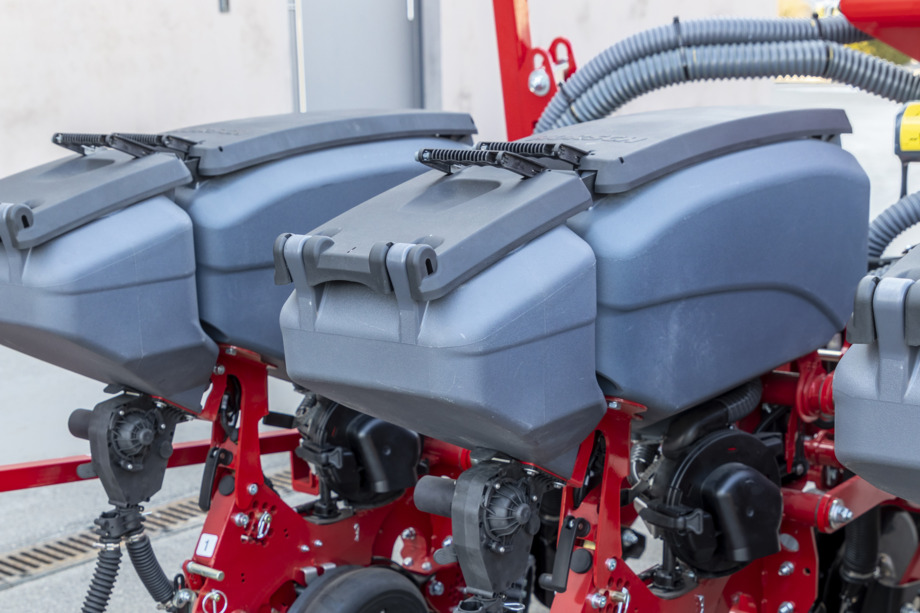

Row unit hoppers

• Capacity of 70 l per row

• Rubber cover seal for pressure and water tightness

• Handle with push-button for opening/closing

• High latching position of the cover and large filling opening for easy filling

The row tank of the Maestro has a capacity of 70 l for seed and is air- and watertight. The working height of the large feed opening is easily accessible and the high snap-in position of the cover allows for an easy and quick filling of the tank.

Row unit hopper with a capacity of 70 l

Lock row container

Cover seal row unit hopper

Large feed opening

Row unit hopper with a capacity of 70 l

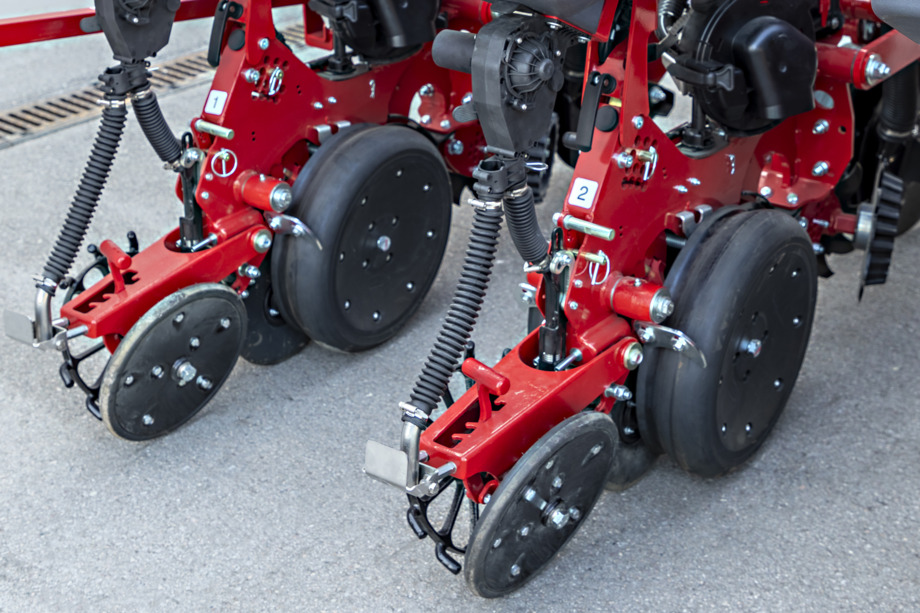

Row unit

• Hydraulic coulter pressure up to 350 kg

• Various front tools

• Closing wheel options for all soils

• Durable and low-wear design

Built for longevity, the heavy-duty Maestro row units feature a wide, stable parallelogram and maintenance-free bushes designed to absorb high lateral forces and navigate uneven terrain. Using a hydraulic system to apply up to 350 kg of pressure, these units offer precise depth control from 1.5 to 9 cm and include standard catching rollers and V-closing wheels for reliable seed placement and furrow closure.

Robust Maestro row unit

V-press wheels

Rubber and profiled press wheel

• Rubber closing wheels for light sandy conditions

• The profiled wheels are recommended for fine seeds.

• The profile additionally creates fine earth and can better prevent silting.

Finger and spike press wheel:

• The finger press wheel is optimal for heavy and medium soils.

• Spike press wheel for medium to light sites

• Per row, there is one finger/spike press wheel and one standard wheel to control the depth and to prevent the grains from moving.

• However, the wheels are not suitable for shallow seeding.

• If the furrow wall gets compacted because of the DoubleDisc seed coulters, it is broken by the finger / spike wheel – the furrow is removed.

• No opening of the seed furrow after seeding in dry conditions, especially on heavy, clayey sites

• Development of the maize root is encouraged

The closing of the seed furrow is the last time when you can influence emergence. Depending on the type of soil, the sowing method, sowing depth and the crop, the requirements differ. Therefore, the Maestros can be equipped with different press wheels and press wheel combinations to be able to achieve an optimum work result for all crops in all conditions.

V press wheels narrow: for normal conditions

V-press wheels wide: for lighter sites

V-press wheels wide, profiled: for light soils and fine seeds (beet and rapeseed)

Spike wheel: for medium and lighter soils

Finger wheel: for medium and heavy soils

V press wheels wide

Spike wheel

Finger wheel

AutoForce

• Stony soils require more coulter pressure to place the seed at a consistent depth. If the coulter pressure is too low the coulter body would not move smoothly and the seed would germinate irregularly and with different speed.

• Light conditions or pressure-sensitive soils need less coulter pressure so that the soil is not compacted. Too much coulter pressure compacts the soil and slows down the development of the roots although all seed was placed at the same depth.

• There rarely are fields that are completely even. In every part of the field the coulter pressure has to be adapted.

• This is why AutoForce has been available for the Maestro line since 2016.

AutoForce guarantees an always consistent embedding of the grains in changing conditions. Thus, more regular emergence and populations are achieved. The contact pressure of the row unit is measured with a sensor at the two support wheels. This pressure (= nominal value) is previously set in the terminal. Three pressure levels are available: 25 kg, 50 kg and 80 kg (the values can also be adapted individually). With changing soil conditions, the row needs more or less power to be able to keep up the set placement depth. The contact pressure would change. The sensor detects this, and the system regulates the contact pressure in such a way that it always corresponds to the nominal value that has been set. This is possible due to the design of the machine which allows for transferring weight to the seed bar. The coulter pressure automatically varies between 150 kg and 350 kg. The grain embedding is always carried out at the same level. Too shallow placement as well as soil compactions can be avoided.

With AutoForce: optimum pressure – optimum seed depth

Without AutoForce: constant pressure – uneven placement

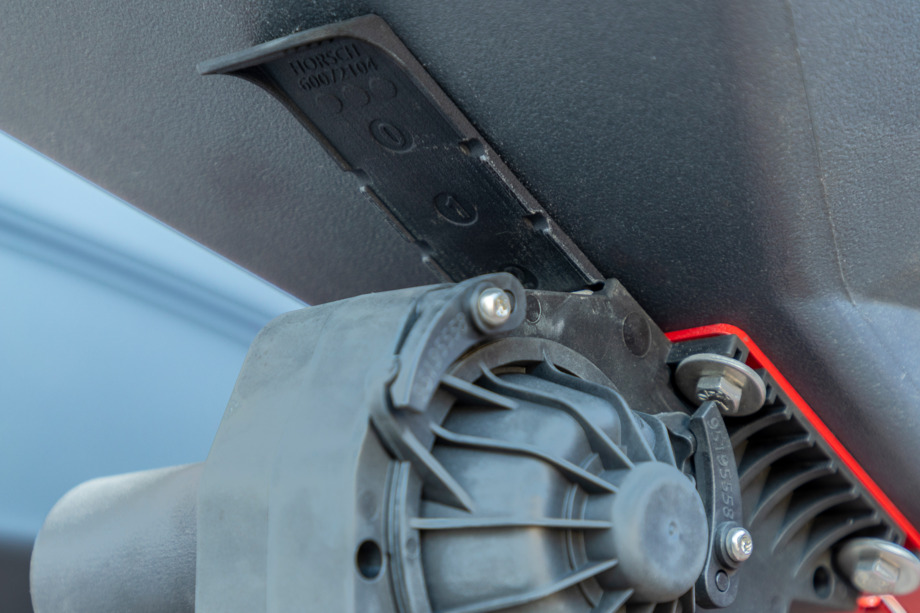

Depth control system with Piezo sensor for measuring the contact pressure for AutoForce

The Piezo sensor in detail

Hydraulic coulter pressure cylinder

AutoForce Pro

• AutoForce Pro is the extension of AutoForce and additionally relieves the row unit by up to 50 kg.

• Recommended for very light, intensively prepared or pressure-sensitive soils in sensitive crops, e.g. sugar beets.

• Excessive coulter pressure can slow down root development of the plant despite optimal placement and embedding.

• The coulter pressure automatically varies from 50 to 350 kg.

AutoForce Pro offers the same features as AutoForce with identical functionality. The special feature of AutoForce Pro is the automatic row relief in addition to the coulter pressure. On very light or pressure-sensitive soils, the weight of the row unit is sometimes too high, and this can lead to soil compaction. Therefore, AutoForce was developed further to additionally relieve the row unit with AutoForce Pro by up to 50 kg. The coulter pressure automatically varies from 50 kg to 350 kg. The relieved weight is evenly distributed to the frame of the machine. Thus, the embedding of the seed is always carried out at the same level, even on varying soils. A too shallow or too deep placement as well as soil compaction can be avoided - even in loose and intensively prepared conditions. Especially with sensitive crops, e.g. sugar beets, AutoForce Pro shows its strengths with regard to ideal seed embedding in changing conditions.

Depth control system with Piezo sensor for measuring the contact pressure for AutoForce

Hydraulic coulter pressure cylinder

Double disc fertiliser coulter

• Attachment and depth control of the fertiliser coulter via the flange plate on the row unit

• Placement of the fertiliser at the same level as the grains or 3 or 5 cm below the seed depth

• Coulter pressure for the fertiliser coulter is generated by the hydraulic cylinder of the row

• Only available for Maestros with AirVac metering

The fertilizer tank can be efficiently and autonomously filled with fertilizer using the hydraulically operated filling auger.

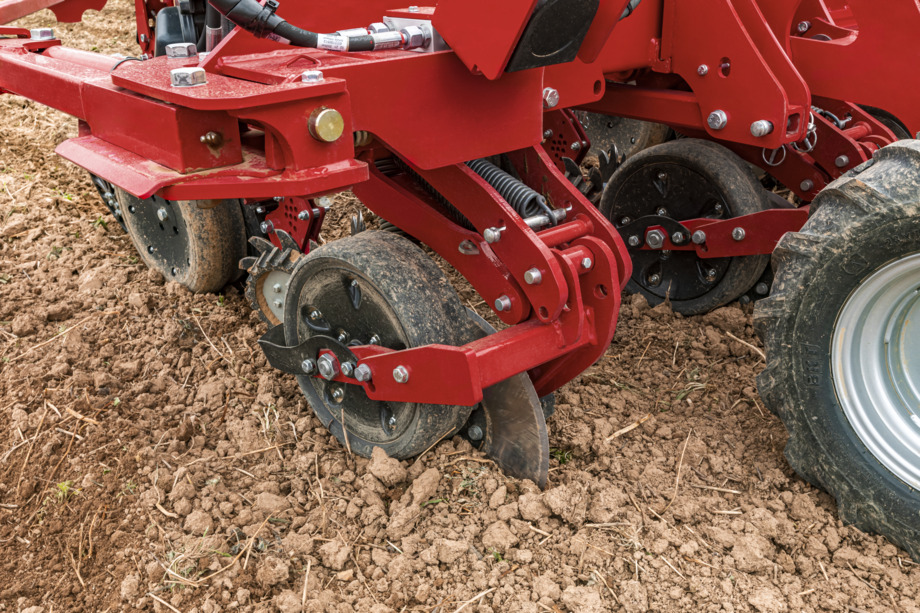

Double disc fertiliser coulter controlled via the seed unit

Press wheel holders

Standard press wheel holder (standard equipment)

• Pressure adjustment in four steps (from 8 to 55 kg)

• Adjustment of the roll spacing with spacer sleeves

• Offsetting the rollers in relation to each other for higher clearance is possible

Press wheel holder with angle adjustment (option)

• Same adjustment options as for the standard holder

• In addition: six steps for the angle adjustment

• Forming of a ridge as the wheels earth up more soil

• Recommended for fine seeds (sugar beet, canola)

The closing of the seed furrow is the last time when you can influence emergence. Depending on the type of soil, the sowing method, sowing depth and the crop, the requirements differ. Therefore, the Maestros can be equipped with different press wheel holders and press wheel combinations to be able to achieve an optimum work result for all crops in all conditions.

Wide tyres 710/50 R 26.5

Twin tyres 270/95 R 36

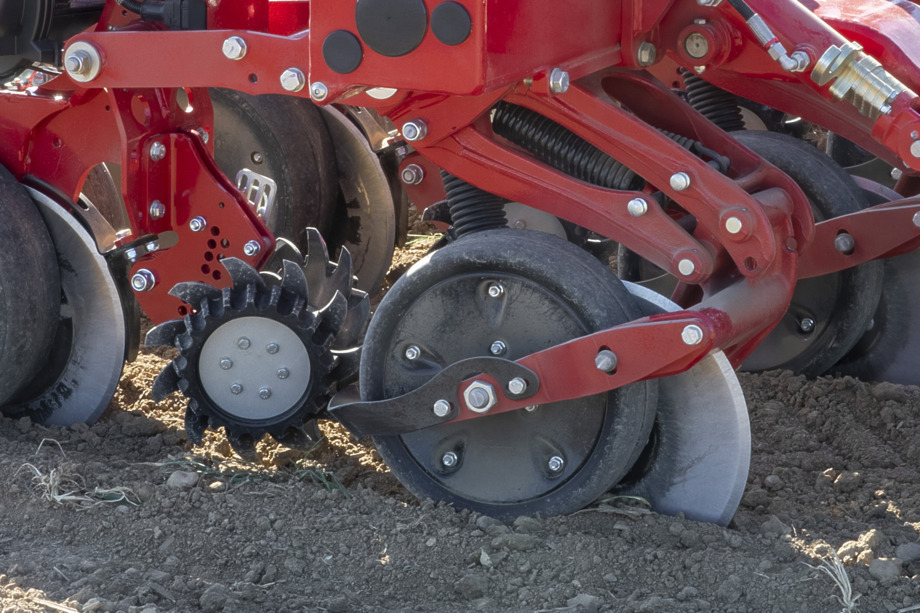

Single disc fertiliser coulter

• The SingleDisc fertiliser coulter is suspended independently of the seed row

• Placement depth adjustable from 5 to 9 cm

• Quick, tool-free adjustment of the coulter pressure from 40 to 130 kg

• Deactivation is possible without tools by lifting the unit out of work

In addition to a precise placement of the grains the exact positioning of fertilisers or plant protection agents is very important for single grain sowing. The rows of the Maestros, thus, can be equipped with different components to provide an optimum solution for all requirements and demands.

Single disc fertiliser coulter

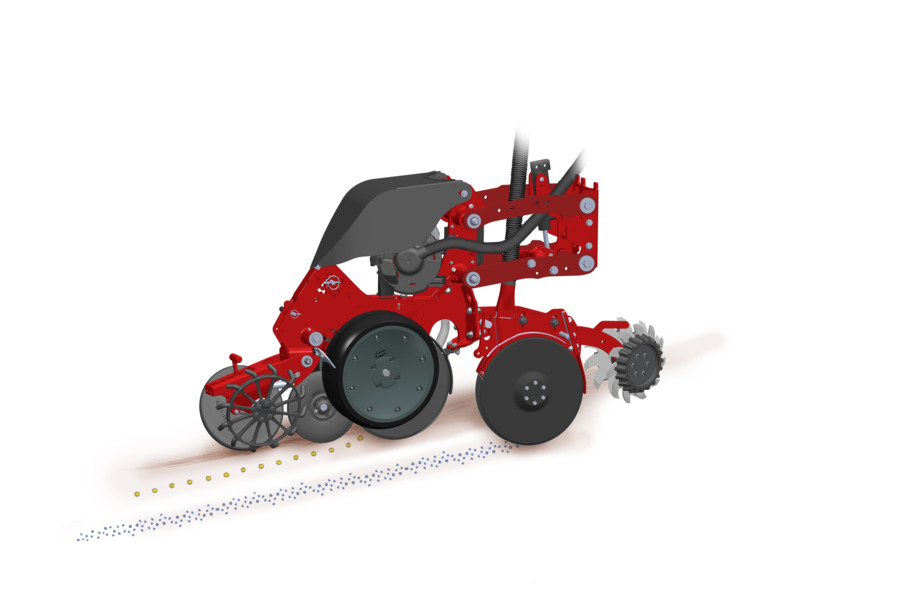

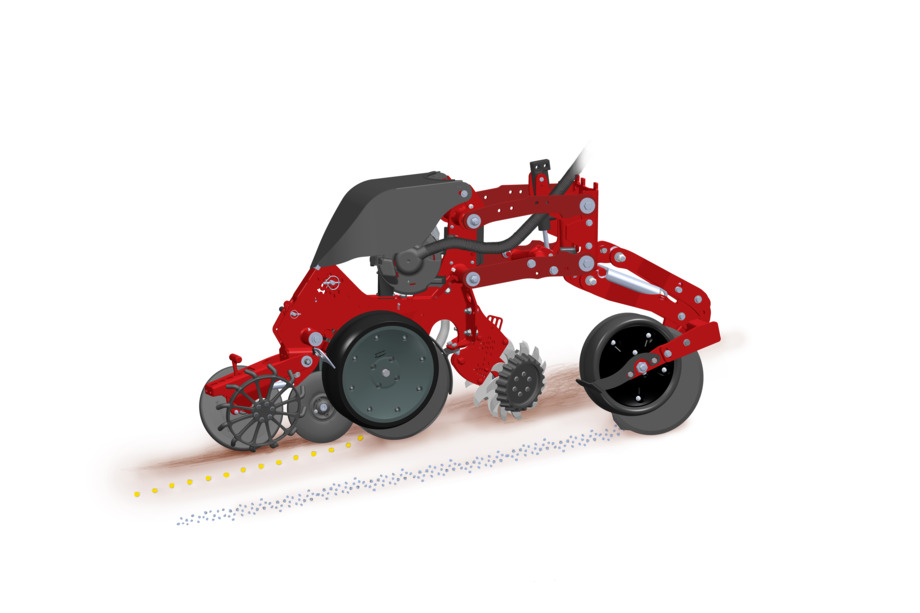

Single disc fertiliser coulter controlled via its own parallelogram

Single disc fertiliser coulter

Catching roller

Rigid catching roller (standard equipment):

• Soft catching roller construction

• Adaption of the seed furrow

• Flexing of the catching roller

• Excellent self-cleaning effect

• Depth adjustment is possible with four positions

• 5 mm pre-stressing of the seed depth is recommended

• Deactivation of the catching roller possible by dismantling it without any tools

Spring-loaded catching roller (option):

• Excellent adaptation of the catching roller due to spring pre-tension

• Recommended for fine seeds (sugar beet, canola) with AirVac and AirSpeed

• Different pre-sets can be adjusted with pins

• Shallow seeding: low pre-tension recommended

• Deeper seeding: higher pre-tension recommended

• Catching roller can be locked firmly

The catching roller is an elementary component of single grain seeding. It ensures even plant spacings and enough capillarity at the grain for optimum germination. To meet the requirements on embedding quality, pressures and consolidation, two different trap rollers are available for the Maestros to apply for all sowing conditions and crops.

Wide tyres 710/50 R 26.5

Twin tyres 270/95 R 36

Application of micro-granular compound

• Two application points are possible at the row unit

• Release position in the seed furrow for fertiliser granulate and crop care agents for good contact to the seedling

• Release option behind the row via baffles, for large, shallow distribution of underseed or slug pellets

Pneumatic application IN the row

Pneumatic application ON the row

Pneumatic application IN the row

Pneumatic application ON the row

Micro-granular unit on the row

• Microgranular row containers with a capacity of 18 l each

• Application of fertiliser granulate, crop care agents like insecticides or slug pellets, inoculations or underseed

• Metering via special granulate metering wheels

• Individual SectionControl is possible due to electronic drive

• Possible application rate: approximately 2 - 40 kg/ha (depending on operational speed, row spacing, and metering insert)

The microgranular unit on the row is located behind the seed row container. Each row unit is individually driven electrically. This allows for SectionControl for each individual row and for saving granulate. With the unit, granulate can be placed in the row or on the surface via a baffle.

Microgranular row container with a capacity of 18 l

Granulate metering unit with metering insert

Stop valve granulate metering

Mechanical micro-granular compound application

• Two application points are possible at the row unit

• Release position in the seed furrow for fertiliser granulate and crop care agents for good contact to the seedling

• Release option behind the row via baffles, for large, shallow distribution of underseed or slug pellets

In addition to a precise placement of the seed, the exact positioning of fertiliser or plant protection agents is very important for single grain seeding. The rows of the Maestros, thus, can be equipped with different components to provide an optimum solution for all requirements and demands.

Application ON the row

Application IN the row

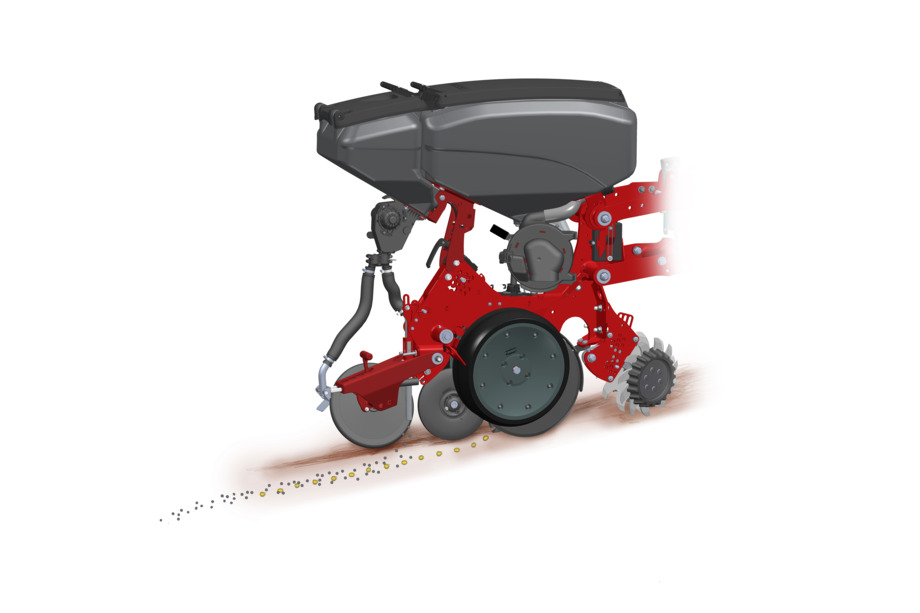

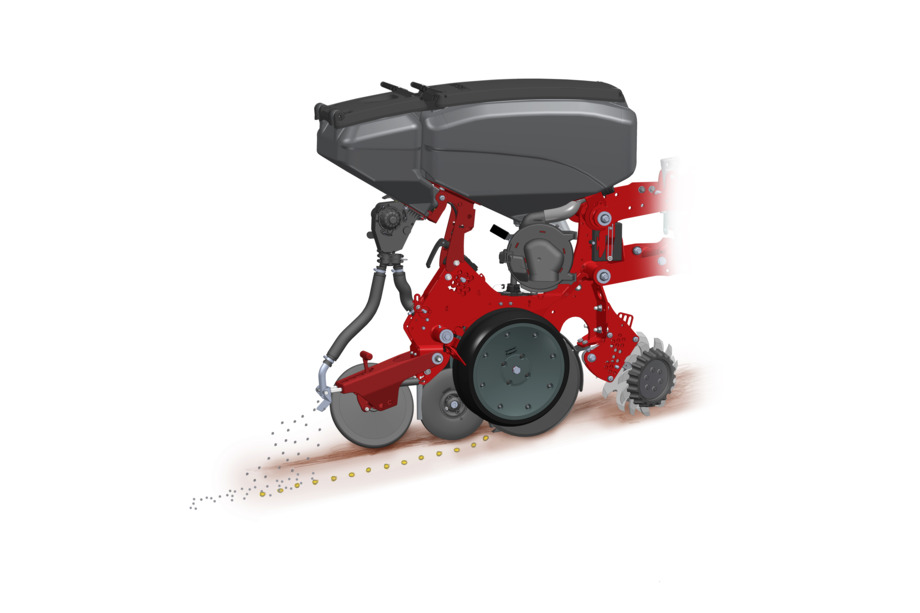

Micro-granular unit on the row with both application spots

Trash Wheels

• Contour following depth control

• Stop bottom for depth limitation

• Stop at the top for working more aggressively

• Fix detent possible

The trash wheels prepare the seed furrow immediately before sowing. Stones, clods and organic matter like straw or mulch residues are removed from the area of the seed furrow. The objective is to obtain a clean seed furrow area with enough fine earth. The trash wheels are mainly used in a floating position with a downward depth limitation. Thus, they cannot work too aggressively or too deeply and they auto-control the height due to the integrated depth limiter.

Optional trash wheels, floating with depth control

Skids for seed furrow

• Recommended for fine seeds (sugar beet, canola)

• Post-processing of the seed furrow for optimum embedding

• With carbide coating for long service-life

After having been opened by the disc blades, the seed furrow is additionally pre-processed with skids. The bed of the seed furrow is again cultivated superficially and levelled so that special crops with very high requirements on embedding, e.g. sugar beet and rape, can be placed optimally. By means of a quick-change system, the skid is replaced with the standard scraper which mainly acts as a scraper and as a protection for the drop tube.

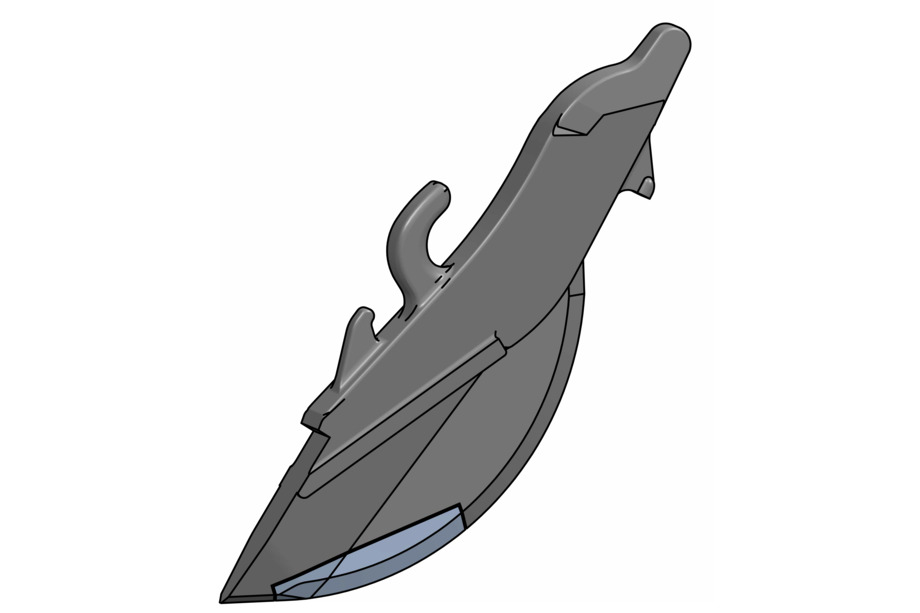

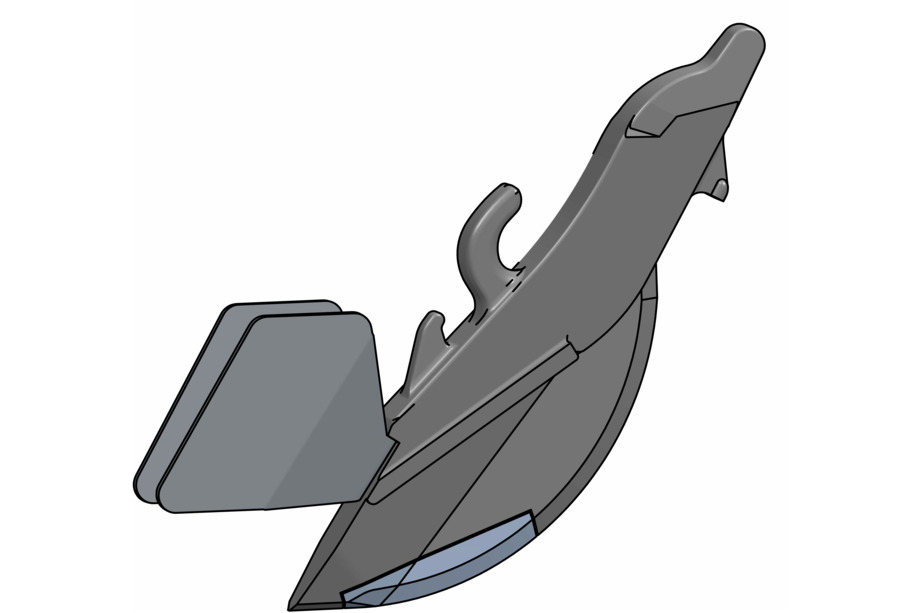

Skid AirVac with wing

Skid AirSpeed

Depth control wheels

Depth control wheel with closed rim:

• Ideal for normal conditions

• Curved shape of the wheel for even weight distribution

Depth control wheel RID with closed rim

• RID = Reduced Inner Diameter

• More intensely curved shape of the wheel

• Contact point further to the outside

• Less consolidation directly at the row

• Easier closing of the seed furrow in heavy conditions

• Recommended for direct seeding, heavy or wet soils

Spoke depth control roll

• Open spoke rim for intensive self-cleaning

• Only for very sticky, clayey soils (e.g. black earth soils)

• Not suitable in case of stones

Different types of soil and sowing methods make different demands on the depth control wheel. Wet, pressure-sensitive soils with a high clay content react sensitively to too high coulter pressures and compaction. On light, very flowable sandy soil, the wheels will sink deeper, so the requirements on the depth guide wheel will differ. For a safe sowing in adhesive soils mainly the self-cleaning effect of the wheel is crucial. These are the reasons why three different depth control wheel versions are available for the Maestros.

RID wheel reduces soil compaction directly at the seed slot in very hard or direct seeding conditions

Spokes depth control wheel

Standard depth control wheel

RID depth control wheel

Standard depth control wheel

Standard depth control wheel for normal soils

Spokes depth control wheel: better self-cleaning, thus ideal on black earth soils

HorschConnect

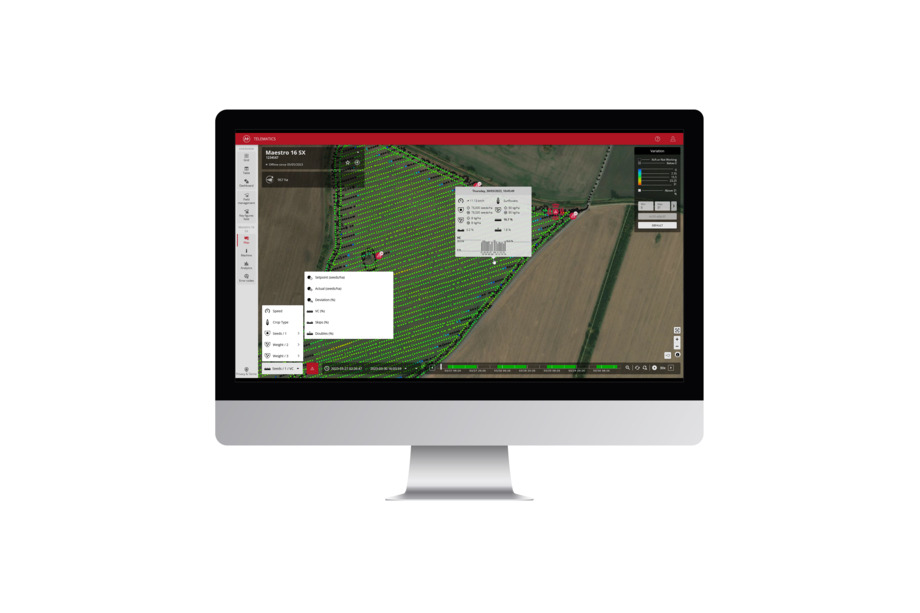

• HorschConnect Telematics to document the performance of the machine

• HorschConnect Telematics for complete transparency of the working quality, e.g. the application rate of all components

• Targeted and proactive service by remote access to error messages

• Control of machine functions via the HORSCH Control smartphone app: e.g. calibration of all metering devices and control of the individual rows to check the singulation quality before starting seeding or in between

Prepare today for tomorrow. Easily control various machine functions via the HORSCH Control app – your smartphone complements the terminal! Gain comprehensive, transparent insight into work rate and work quality with HorschConnect Telematics.

With HorschConnect, telemetry solutions are making their way into the sectors seeding and crop care - exactly where they make sense

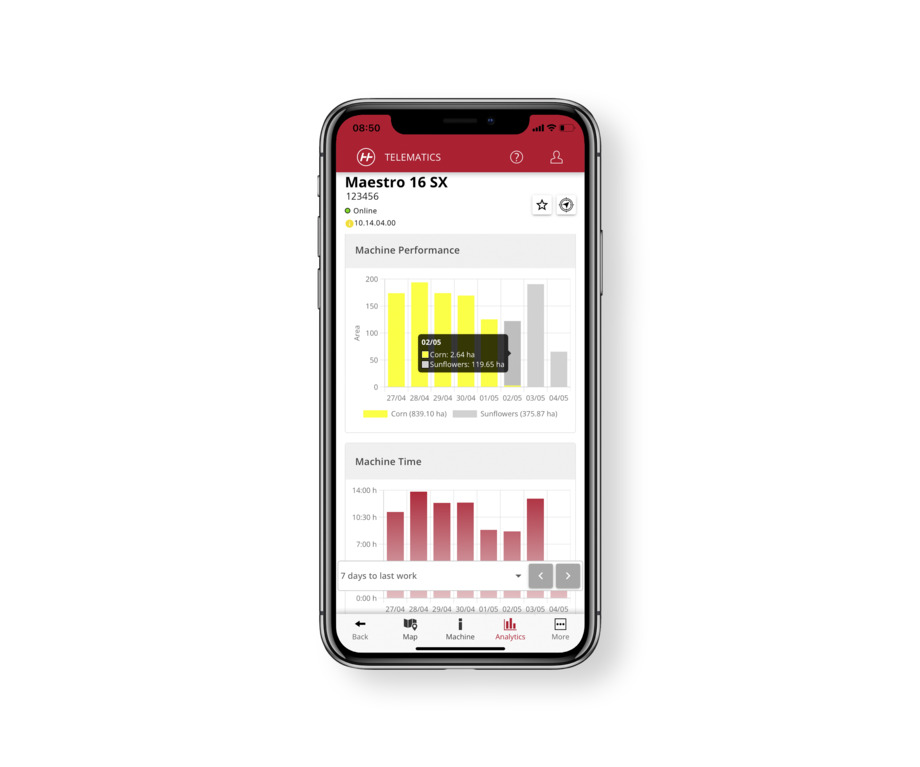

Success factor transparency: position-related data of all relevant information like error messages, operational speed or singulation quality

By means of the HORSCH Control app, a test of the most important parameters of singulation quality can be carried out at any time on a individual row basis

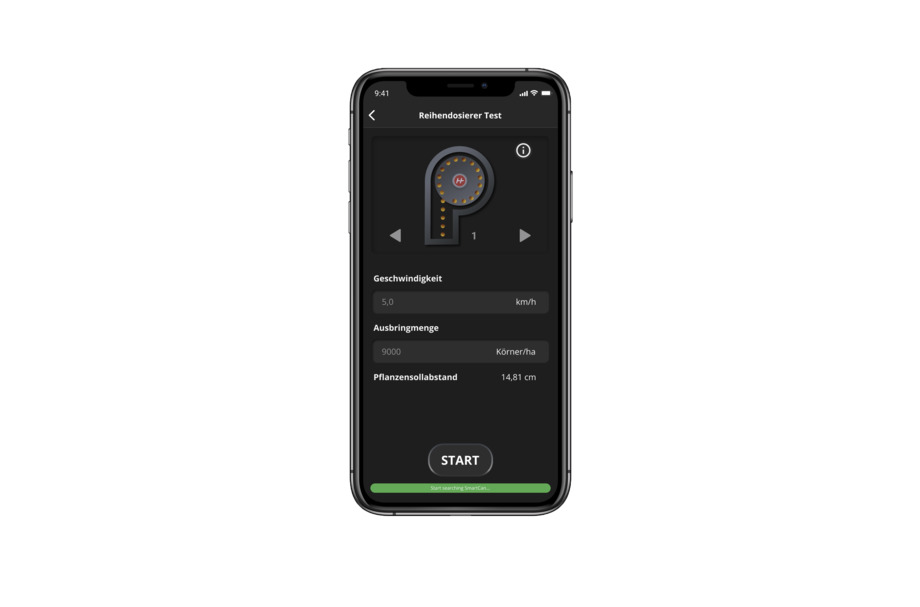

Quick and easy calibration or testing of the machine's singulation quality via smartphone with the HORSCH Control app

eosT10/eosT10 Pro

• High-resolution 10" terminal for controlling all ISOBUS devices according to ISO 11783

• Reliable and powerful: high-performance hardware combined with intuitive, user-friendly operation in day or night mode

• Various layout options allow for a simultaneous display of several applications – for an optimum overview.

• Straightforward transfer of application maps with the wireless task data exchange

• A real-time transmission of the terminal display via Remote Support facilitates the technical support.

Due to the high resolution and the well-thought-out user navigation, even complex machine functions can be operated comfortably. The high efficiency and the large (working) memory allow for a smooth handling of large data quantities or application maps. In addition to the traditional import resp. export of data via a USB flash drive, the transfer can also take place easily and comfortably online directly between the PC and the terminal.

Due to its high resolution, the eosT10 offers a state-of-the-art user experience for all ISOBUS-compliant machines.

Due to the WIFI interface, field boundaries, application maps or order data can be exchanged directly between PC and terminal.

The lean design of the 10" display allows for perfect integration into any tractor cabin.

eosT10 – robust hardware with diverse interfaces

In portrait mode, two applications can be optimally displayed and operated.

By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.

Hydraulic weight transfer

• Weight transfer from the tractor to the frame of the machine

• Increase of the possible coulter pressure up to 350 kg depending on the number of rows and machine width

• Complete integraton into the coulter pressure hydraulics

• No adjustments have to be carried out at the weight transfer system

The integrated hydraulic weight transfer on the Maestro transfers weight from the tractor to the frame of the seeding machine. This allows working with a coulter pressure of up to 350 kg, depending on the number of rows. Due to the complete integraton of the system into the coulter pressure hydraulics, you do not have to carry out any adjustments. The hydraulic weight transfer is recommended especially in hard and heavy conditions as well as for direct seeding.

Hydraulic weight transfer at a Maestro 9 RX

TECHNICAL SPECIFICATIONS

Transport width

3,00 m

Transport height

3,10 m

Length without seed wagon

2.90 (3.50 including microgranular tank) m

Weight without seed wagon

1600 kg

Capacity seed container

70 l

Number of rows

Max. coulter pressure hydr. tractor attachment

150 - 220 kg

Max. coulter pressure hydr. with optional weight transfer tractor attachment

150 - 280 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

70 / 75 / 80 / 30" cm

Sowing depth

1,5 - 9 cm

Drop height seed

45 cm

Operational speed

2 - 12 km/h

Horsepower requirement

74 / 100 kW/hp

Implement attachment 3-point

3-point Cat. II/III

Transport width

3,00 m

Transport height

3,90 m

Length without seed wagon

2.90 (3.50 including bout marker or microgranular tank) m

Transport length with Pronto 6 AS

10,85 m

Transport length with Focus TD 3-point

10,70 m

Transport length with Focus ST 3-point

11,15 m

Weight without seed wagon

2000 kg

Weight with Pronto 6 AS

6700 kg

Weight with Focus TD 3-point

12900 kg

Weight with Focus ST 3-point

11500 kg

Capacity seed container

70 l

Number of rows

Max. coulter pressure hydr. tractor attachment

150 - 200 kg

Max. coulter pressure hydr. with optional weight transfer tractor attachment

150 - 245 kg

Max. coulter pressure hydr. with seed waggon

150 - 350 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

70 / 75 / 80 / 30" cm

Sowing depth

1,5 - 9 cm

Drop height seed

45 cm

Operational speed

2 - 12 km/h

Horsepower requirement

110 / 150 kW/hp

Horsepower requirement Pronto 6 AS without DiscSystem

125 / 170 kW/hp

Horsepower requirement Pronto 6 AS with DiscSystem

147 / 200 kW/hp

Horsepower requirement Focus TD 3-point

221 / 300 kW/hp

Horsepower requirement Focus ST 3-point

184 / 250 kW/hp

Implement attachment 3-point

3-point Cat. II/III

Transport width

3,00 m

Transport height

4,00 m

Length without seed wagon

2.90 (3.50 incl. bout marker) m

Weight without seed wagon

2200 kg

Capacity seed container

70 l

Number of rows

Max. coulter pressure hydr. tractor attachment

150 - 200 kg

Max. coulter pressure hydr. with optional weight transfer tractor attachment

150 - 240 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

60 / 70 / 75 / 30" cm

Sowing depth

1,5 - 9 cm

Drop height seed

45 cm

Operational speed

2 - 12 km/h

Horsepower requirement

118 / 160 kW/hp

Implement attachment 3-point

3-point Cat. II/III

Transport width

3,00 m

Transport height

4,00 m

Length without seed wagon

2.90 (3.75 including microgranular tank) m

Weight without seed wagon

2500 kg

Capacity seed container

70 l

Number of rows

Max. coulter pressure hydr. tractor attachment

150 - 180 kg

Max. coulter pressure hydr. with optional weight transfer tractor attachment

150 - 230 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

50 / 55 / 60 cm

Sowing depth

1,5 - 9 cm

Drop height seed

45 cm

Operational speed

2 - 12 km/h

Horsepower requirement

125 / 170 kW/hp

Implement attachment 3-point

3-point Cat. II/III

Transport width

3,00 m

Transport height

3,90 m

Length without seed wagon

2.90 (3.50 including bout marker or microgranular tank) m

Transport length with Pronto 6 AS

10,85 m

Transport length with Focus TD 3-point

10,70 m

Transport length with Focus ST 3-point

11,15 m

Weight without seed wagon

2700 kg

Weight with Pronto 6 AS

7500 kg

Weight with Focus TD 3-point

13500 kg

Capacity seed container

70 l

Number of rows

Max. coulter pressure hydr. tractor attachment

150 - 180 kg

Max. coulter pressure hydr. with optional weight transfer tractor attachment

150 - 225 kg

Max. coulter pressure hydr. with seed waggon

150 - 350 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

45 / 50 cm

Sowing depth

1,5 - 9 cm

Drop height seed

45 cm

Operational speed

2 - 12 km/h

Horsepower requirement

125 / 170 kW/hp

Horsepower requirement Pronto 6 AS without DiscSystem

140 / 190 kW/hp

Horsepower requirement Pronto 6 AS with DiscSystem

184 / 250 kW/hp

Horsepower requirement Focus TD 3-point

257 / 350 kW/hp

Implement attachment 3-point

3-point Cat. II/III

Transport width

3,00 m

Transport height

3,90 m

Length without seed wagon

3.30 (3.75 including bout marker or microgranular tank) m

Transport length with Pronto 6 AS

10,95 m

Weight without seed wagon

2300 kg

Weight with Pronto 6 AS

7000 kg

Capacity seed container

70 l

Number of rows

Max. coulter pressure hydr. tractor attachment

150 - 220 kg

Max. coulter pressure hydr. with optional weight transfer tractor attachment

150 - 290 kg

Max. coulter pressure hydr. with seed waggon

150 - 350 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

70 / 75 / 80 / 30" cm

Sowing depth

1,5 - 9 cm

Operational speed

6 - 15 km/h

Horsepower requirement

118 / 160 kW/hp

Horsepower requirement Pronto 6 AS without DiscSystem

132 / 180 kW/hp

Horsepower requirement Pronto 6 AS with DiscSystem

162 / 220 kW/hp

Implement attachment 3-point

3-point Cat. II/III

Transport width

3,00 m

Transport height

4,00 m

Length without seed wagon

3.30 (3.75 including bout marker) m

Weight without seed wagon

2450 kg

Capacity seed container

70 l

Number of rows

Max. coulter pressure hydr. tractor attachment

150 - 220 kg

Max. coulter pressure hydr. with optional weight transfer tractor attachment

150 - 280 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

60 / 70 / 75 / 30" cm

Sowing depth

1,5 - 9 cm

Drop height seed

45 cm

Operational speed

6 - 15 km/h

Horsepower requirement

125 / 170 kW/hp

Implement attachment 3-point

3-point Cat. II/III

Transport width

3,00 m

Transport height

4,00 m

Length without seed wagon

3.30 (3.75 including bout marker) m

Weight without seed wagon

2800 kg

Capacity seed container

70 l

Number of rows

Max. coulter pressure hydr. tractor attachment

150 - 200 kg

Max. coulter pressure hydr. with optional weight transfer tractor attachment

150 - 250 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

50 / 55 / 60 cm

Sowing depth

1,5 - 9 cm

Operational speed

6 - 15 km/h

Horsepower requirement

132 / 180 kW/hp

Implement attachment 3-point

3-point Cat. II/III

Transport width

3,00 m

Transport height

3,90 m

Length without seed wagon

3.30 (3.75 including bout marker or microgranular tank) m

Transport length with Pronto 6 AS

10,95 m

Weight without seed wagon

3000 kg

Weight with Pronto 6 AS

7800 kg

Capacity seed container

70 l

Number of rows

Max. coulter pressure hydr. tractor attachment

150 - 200 kg

Max. coulter pressure hydr. with optional weight transfer tractor attachment

150 - 240 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

45 / 50 cm

Sowing depth

1,5 - 9 cm

Operational speed

6 - 15 km/h

Horsepower requirement

132 / 180 kW/hp

Horsepower requirement Pronto 6 AS without DiscSystem

147 / 200 kW/hp

Horsepower requirement Pronto 6 AS with DiscSystem

184 / 250 kW/hp

Implement attachment 3-point

3-point Cat. II/III
