Maestro CV / CX

The Maestro CV/CX impresses with its compact design, universal suitability for all crops, and reliable, precise singulation while maintaining easy handling.

Number of rows

8 - 18

Row width

45 - 80 cm

Seed capacity

800 - or per row 70 L

Fertiliser capacity

3000 L

Maestro CV/CX

The Maestro CV/CX impresses with its compact design, universal suitability for all crops, and reliable, precise singulation while maintaining easy handling.

Maestro 8 CX with row container for maize sowing

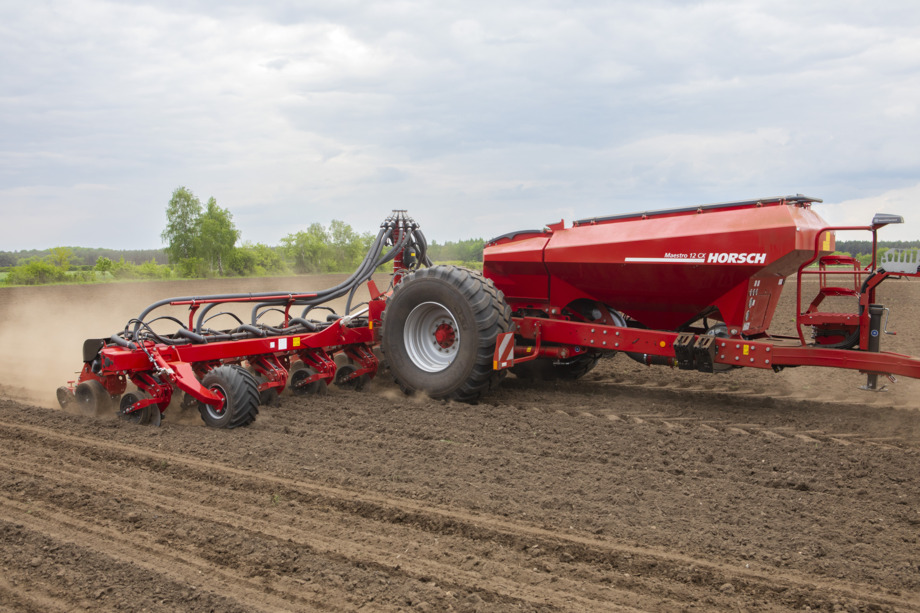

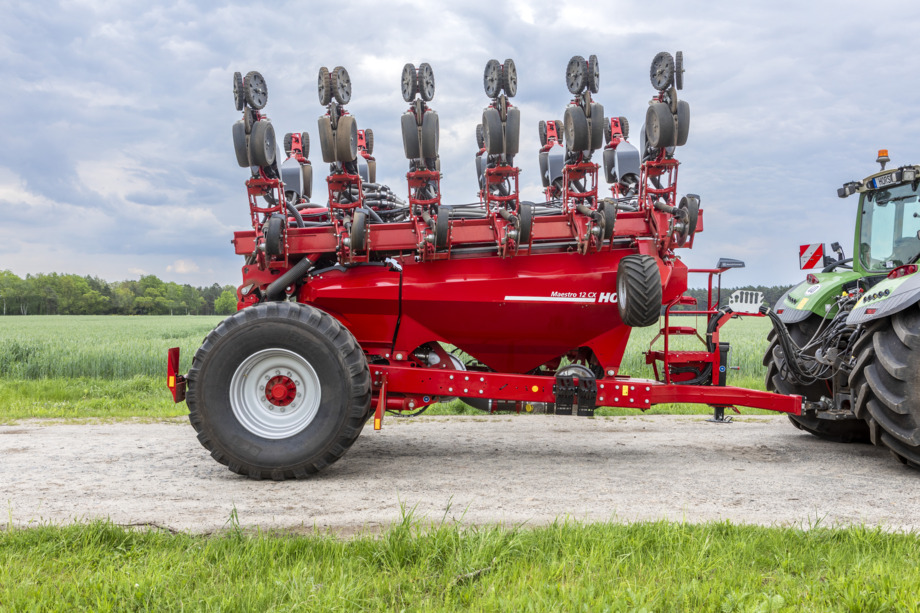

Maestro 12 CX – 9 m version with 12 rows and 75 cm row spacing

Maestro CX during road transport

Reliable even under tough sowing conditions thanks to the coulter pressure of up to 350 kg

The compact mid-size planter

Versatile single grain seed drill for: maize, sunflowers, sugar beet, sorghum, canola, soybeans and other bean species
Rugged and reliable technology – heavy parallelogram and row unit for highest demands
Coulter pressures up to 350 kg for optimal sowing even in most difficult conditions or automatic soil-dependent coulter pressure adjustment AutoForce
High hectare output due to high capacities for fertiliser and seed, optionally with the central seed system Main Tank Supply (MTS)

AirVac and AirSpeed

Advantages at a glance

• Can be used universally for different crops

• Easy to use: no adjustment of the separator required

• Reliable singulation of different grain sizes

• Electric drive as a basis for: SectionControl, VariableRate, tramline control

AirVac

• Operational speeds up to 12 km/h

• Utmost flexibility for all crops and optimum embedding of the grain

AirSpeed

• Operational speeds up to 15 km/h

• Maximum efficiency with safe embedding of the grain

The AirVac and AirSpeed systems offer high-precision, electric-driven singulation for diverse crops using a universal singulator that requires no manual adjustment. The primary distinction lies in seed delivery: AirVac utilizes a gravity drop tube, while AirSpeed uses overpressure to accelerate seeds into the furrow via an air current. Both units feature integrated sensors to monitor spacing and accuracy, supporting advanced functions like VariableRate and SectionControl for maximum sowing efficiency.

Open AirSpeed metering device with metering disc 30 x 5.0 mm for maize

The universal singulator does not have to be adjusted

Easily accessible AirVac metering device

SectionControl allows for automatic row shut-off and activation via GPS.

SectionControl control system for sugar beet

Tyre options

Large wide tires:

• 710/50 R 26.5

• 500/85 R 24 (3.00 m transport dimension only with 9 CV/CX, tyre runs between rows)

• 650/65 R 30.5

Twin tyres to prevent row crossing:

• 270/95 R 36

• 320/85 R 34

• 300/85 R 42

AirSpeed

• Operational speeds up to 15 km/h

• Maximum efficiency with safe embedding of the grain

Wide tyres 710/50 R 26.5

Twin tyres 270/95 R 36

Double disc fertiliser coulter

• Attachment and depth control of the fertiliser coulter via the flange plate on the row unit

• Placement of the fertiliser at the same level as the grains or 3 or 5 cm below the seed depth

• Coulter pressure for the fertiliser coulter is generated by the hydraulic cylinder of the row

• Only available for Maestros with AirVac metering

In addition to a precise placement of the grains the exact positioning of fertilisers or plant protection agents is very important for single grain sowing. The rows of the Maestros, thus, can be equipped with different components to provide an optimum solution for all requirements and demands.

Double disc fertiliser coulter controlled via the seed unit

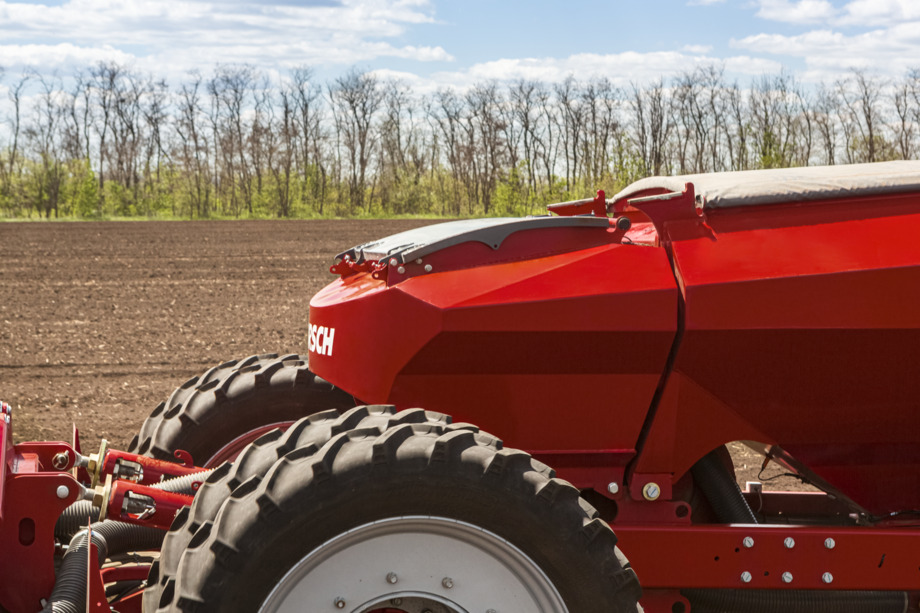

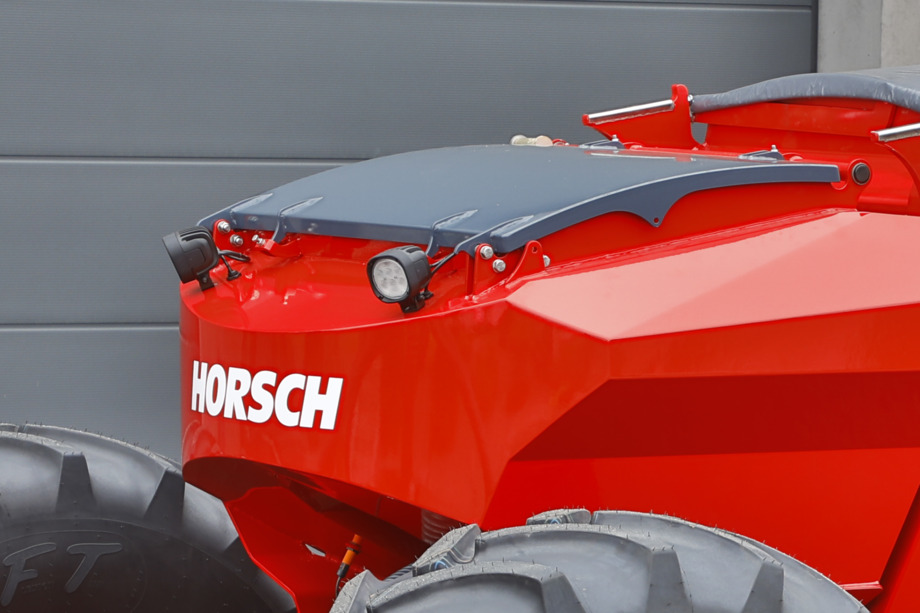

Fertilizer and seed tank

• Large-volume 3,000 l central tank for fertilizer

• 70 L row container or central 800 L seed tank with MTS system

• Seed-only variant with a 3,000 L central seed tank (without fertilizer equipment)

The Maestro CV/CX features two configurations: a Single Tank for 3,000 liters of fertilizer or seed, or the Double Tank MTS system, which holds 3,000 liters of fertilizer and 800 liters of seed. While the single-tank version uses individual 70-liter row boxes for seeds, the MTS technology centralizes seed supply by continuously transporting it to the metering units for faster filling. Both variants integrate HORSCH metering technology to ensure precise underfoot fertilization and high placement accuracy.

Central fertilizer and seed tank

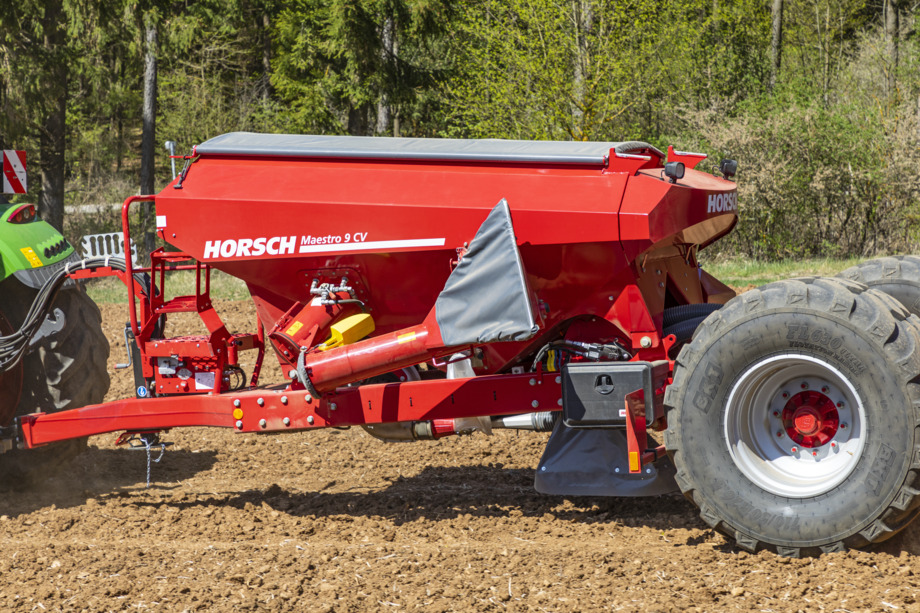

Seed-only version with 3,000 l seed capacity

Single disc fertiliser coulter

• The SingleDisc fertiliser coulter is suspended independently of the seed row

• Placement depth adjustable from 5 to 9 cm

• Quick, tool-free adjustment of the coulter pressure from 40 to 130 kg

• Deactivation is possible without tools by lifting the unit out of work

Single disc fertiliser coulter

Single disc fertiliser coulter controlled via its own parallelogram

Single disc fertiliser coulter

Main Tank Supply System

• Quick and easy filling of the hoppers with for example BigBags/telehandler

• No physical stress when filling the machine

• Increase of daily work rate due to short filling times

• No irregular seed filling levels at the row due to SectionControl or tramline control

The HORSCH Main Tank Supply system, in short MTS system, is the central seed and fertiliser supply of the rows from a central hopper. The fertiliser is metered pneumatically via the distribution towers to the rows. The seed is transported by means of special MTS tubes to the row unit and then each single grain is metered with AirVac or AirSpeed. This facilitates and speeds up the MTS system for filling hoppers and irregular filling levels at the rows when using SectionControl and tramline control are prevented.

MTS distribution box

Main Tank Supply System

MTS hopper with a capacity of 800 l

Main Tank Supply System

Row unit hoppers

• Capacity of 70 l per row

• Rubber cover seal for pressure and water tightness

• Handle with push-button for opening/closing

• High latching position of the cover and large filling opening for easy filling

The row tank of the Maestro has a capacity of 70 l for seed and is air- and watertight. The working height of the large feed opening is easily accessible and the high snap-in position of the cover allows for an easy and quick filling of the tank.

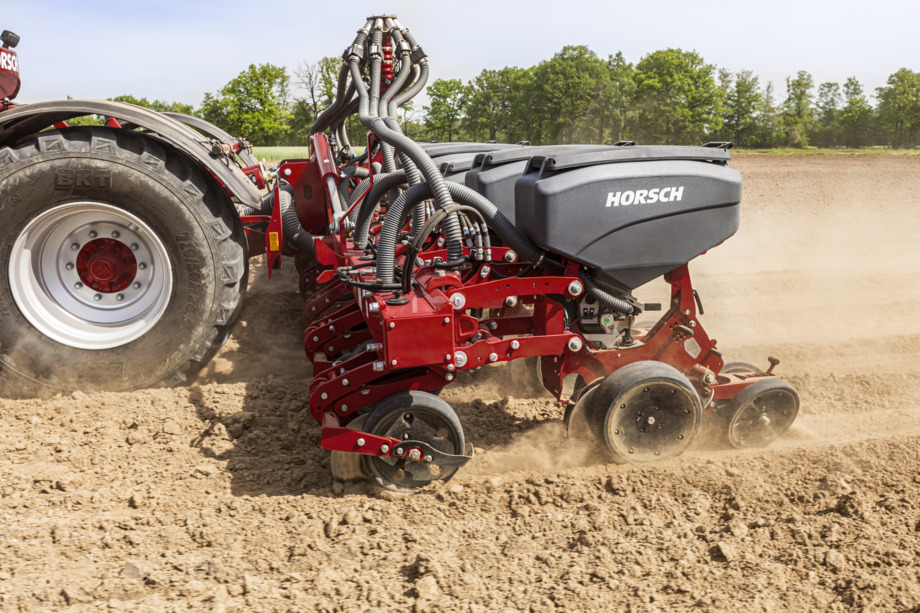

Row unit hopper with a capacity of 70 l

Lock row container

Cover seal row unit hopper

Large feed opening

Row unit hopper with a capacity of 70 l

Row unit

• Hydraulic coulter pressure up to 350 kg

• Various front tools

• Closing wheel options for all soils

• Durable and low-wear design

Built for longevity, the heavy-duty Maestro row units feature a wide, stable parallelogram and maintenance-free bushes designed to absorb high lateral forces and navigate uneven terrain. Using a hydraulic system to apply up to 350 kg of pressure, these units offer precise depth control from 1.5 to 9 cm and include standard catching rollers and V-closing wheels for reliable seed placement and furrow closure.

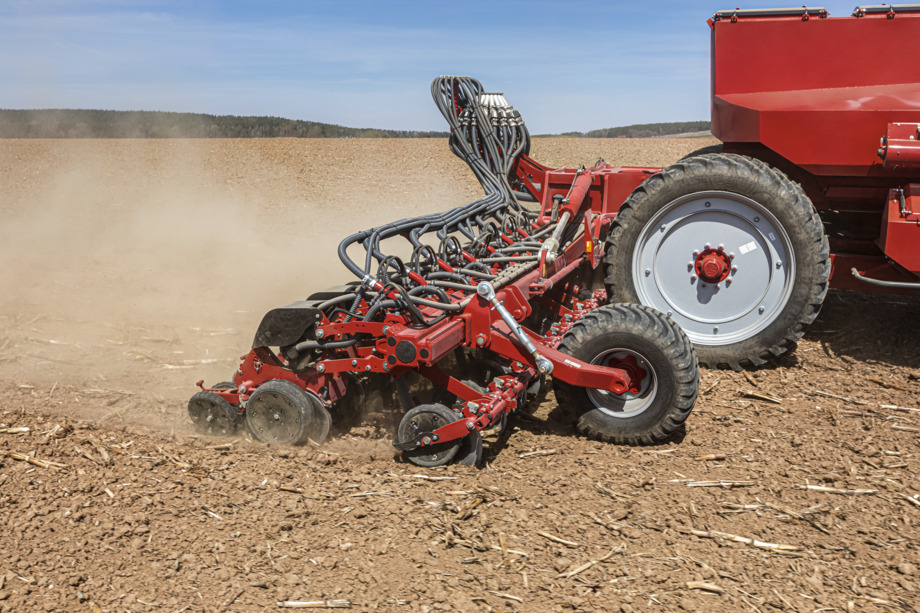

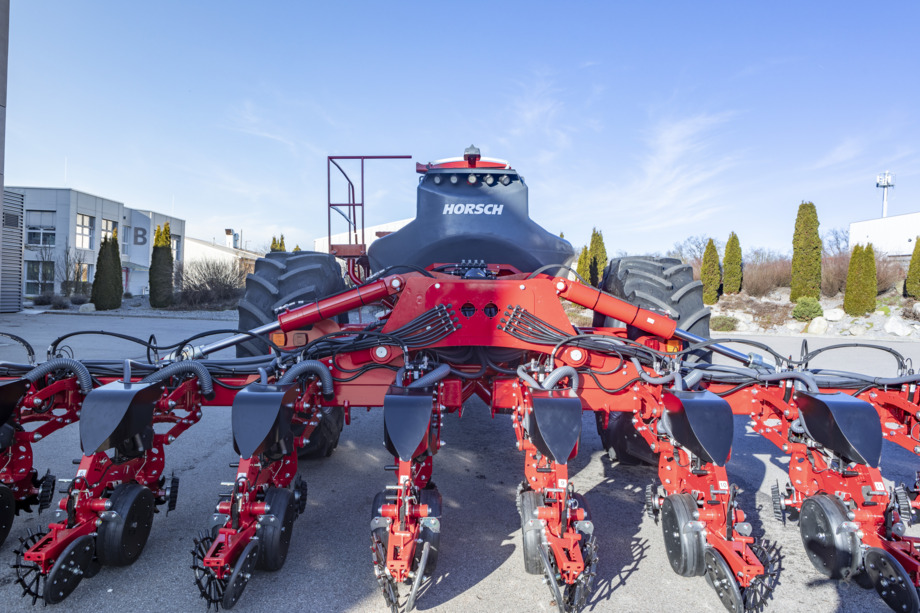

Robust Maestro row unit

Row unit hoppers

• Two application points are possible at the row unit

• Rubber cover seal for pressure and water tightness

• Handle with push-button for opening/closing

• High latching position of the cover and large filling opening for easy filling

Row unit hopper with a capacity of 70 l

Lock row container

Cover seal row unit hopper

Large feed opening

Row unit hopper with a capacity of 70 l

V-press wheels

Rubber and profiled press wheel

• Rubber closing wheels for light sandy conditions

• The profiled wheels are recommended for fine seeds.

• The profile additionally creates fine earth and can better prevent silting.

Finger and spike press wheel:

• The finger press wheel is optimal for heavy and medium soils.

• Spike press wheel for medium to light sites

• Per row, there is one finger/spike press wheel and one standard wheel to control the depth and to prevent the grains from moving.

• However, the wheels are not suitable for shallow seeding.

• If the furrow wall gets compacted because of the DoubleDisc seed coulters, it is broken by the finger / spike wheel – the furrow is removed.

• No opening of the seed furrow after seeding in dry conditions, especially on heavy, clayey sites

• Development of the maize root is encouraged

The closing of the seed furrow is the last time when you can influence emergence. Depending on the type of soil, the sowing method, sowing depth and the crop, the requirements differ. Therefore, the Maestros can be equipped with different press wheels and press wheel combinations to be able to achieve an optimum work result for all crops in all conditions.

V press wheels narrow: for normal conditions

V-press wheels wide: for lighter sites

V-press wheels wide, profiled: for light soils and fine seeds (beet and rapeseed)

Spike wheel: for medium and lighter soils

Finger wheel: for medium and heavy soils

V press wheels wide

Spike wheel

Finger wheel

AutoForce

• Stony soils require more coulter pressure to place the seed at a consistent depth. If the coulter pressure is too low the coulter body would not move smoothly and the seed would germinate irregularly and with different speed.

• Light conditions or pressure-sensitive soils need less coulter pressure so that the soil is not compacted. Too much coulter pressure compacts the soil and slows down the development of the roots although all seed was placed at the same depth.

• There rarely are fields that are completely even. In every part of the field the coulter pressure has to be adapted.

• This is why AutoForce has been available for the Maestro line since 2016.

AutoForce guarantees an always consistent embedding of the grains in changing conditions. Thus, more regular emergence and populations are achieved. The contact pressure of the row unit is measured with a sensor at the two support wheels. This pressure (= nominal value) is previously set in the terminal. Three pressure levels are available: 25 kg, 50 kg and 80 kg (the values can also be adapted individually). With changing soil conditions, the row needs more or less power to be able to keep up the set placement depth. The contact pressure would change. The sensor detects this, and the system regulates the contact pressure in such a way that it always corresponds to the nominal value that has been set. This is possible due to the design of the machine which allows for transferring weight to the seed bar. The coulter pressure automatically varies between 150 kg and 350 kg. The grain embedding is always carried out at the same level. Too shallow placement as well as soil compactions can be avoided.

With AutoForce: optimum pressure – optimum seed depth

Without AutoForce: constant pressure – uneven placement

Depth control system with Piezo sensor for measuring the contact pressure for AutoForce

The Piezo sensor in detail

Hydraulic coulter pressure cylinder

AutoForce Pro

• AutoForce Pro is the extension of AutoForce and additionally relieves the row unit by up to 50 kg.

• Recommended for very light, intensively prepared or pressure-sensitive soils in sensitive crops, e.g. sugar beets.

• Excessive coulter pressure can slow down root development of the plant despite optimal placement and embedding.

• The coulter pressure automatically varies from 50 to 350 kg.

AutoForce Pro offers the same features as AutoForce with identical functionality. The special feature of AutoForce Pro is the automatic row relief in addition to the coulter pressure. On very light or pressure-sensitive soils, the weight of the row unit is sometimes too high, and this can lead to soil compaction. Therefore, AutoForce was developed further to additionally relieve the row unit with AutoForce Pro by up to 50 kg. The coulter pressure automatically varies from 50 kg to 350 kg. The relieved weight is evenly distributed to the frame of the machine. Thus, the embedding of the seed is always carried out at the same level, even on varying soils. A too shallow or too deep placement as well as soil compaction can be avoided - even in loose and intensively prepared conditions. Especially with sensitive crops, e.g. sugar beets, AutoForce Pro shows its strengths with regard to ideal seed embedding in changing conditions.

Depth control system with Piezo sensor for measuring the contact pressure for AutoForce

Hydraulic coulter pressure cylinder

Press wheel holders

Standard press wheel holder (standard equipment)

• Pressure adjustment in four steps (from 8 to 55 kg)

• Adjustment of the roll spacing with spacer sleeves

• Offsetting the rollers in relation to each other for higher clearance is possible

Press wheel holder with angle adjustment (option)

• Same adjustment options as for the standard holder

• In addition: six steps for the angle adjustment

• Forming of a ridge as the wheels earth up more soil

• Recommended for fine seeds (sugar beet, canola)

The closing of the seed furrow is the last time when you can influence emergence. Depending on the type of soil, the sowing method, sowing depth and the crop, the requirements differ. Therefore, the Maestros can be equipped with different press wheel holders and press wheel combinations to be able to achieve an optimum work result for all crops in all conditions.

Wide tyres 710/50 R 26.5

Twin tyres 270/95 R 36

Fertiliser flow control

• Monitoring of the fertiliser flow per row at the distribution tower

• Warning if a fertiliser line is blocked

• Warning in case of a quantity variance of one row from the average

The fertilizer flow monitoring system provides early warnings in case of quantity deviations and blockages in the fertilizer system. Especially if the machine is used on several farms, this option provides more safety and control if a lot of different fertilisers and quantities are to be applied.

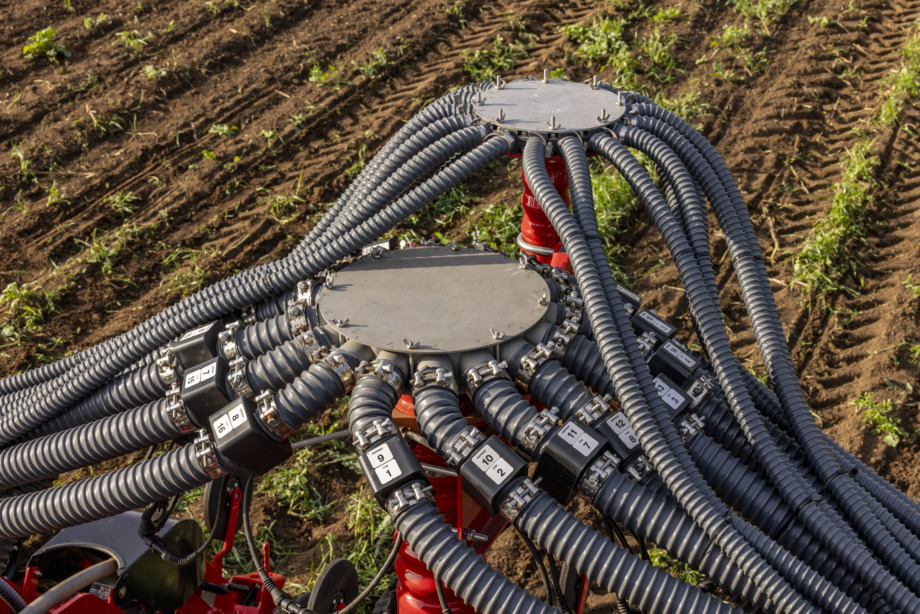

Fertiliser flow monitoring at a Maestro 18 SV

Fertiliser flow monitoring at a Maestro 8 CX

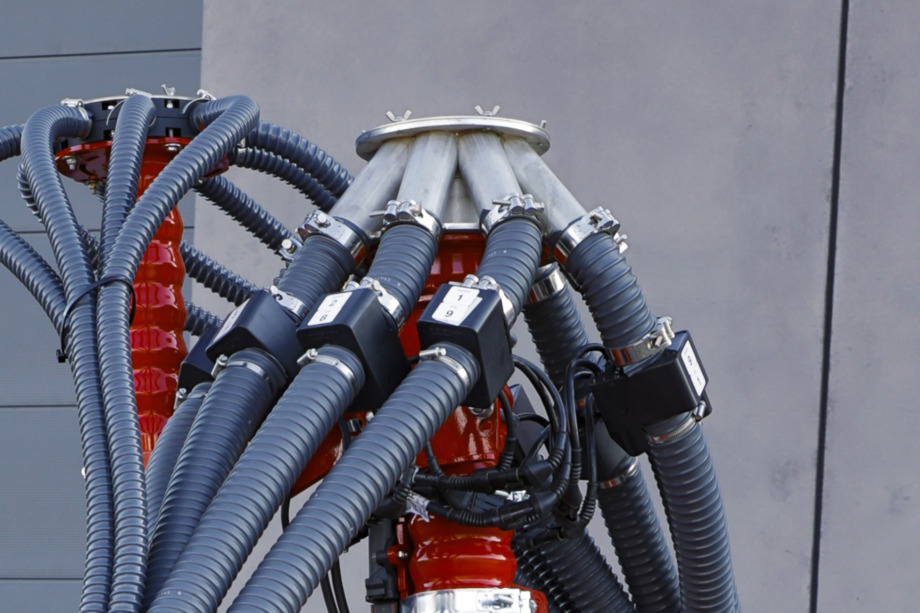

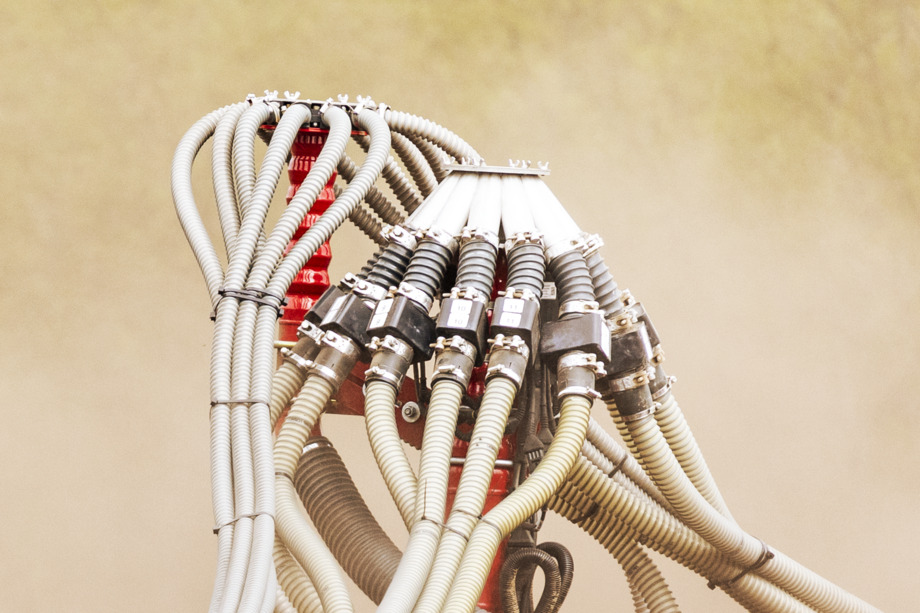

Pneumatic distribution tower with fertiliser flow sensors

Catching roller

Rigid catching roller (standard equipment):

• Soft catching roller construction

• Adaption of the seed furrow

• Flexing of the catching roller

• Excellent self-cleaning effect

• Depth adjustment is possible with four positions

• 5 mm pre-stressing of the seed depth is recommended

• Deactivation of the catching roller possible by dismantling it without any tools

Spring-loaded catching roller (option):

• Excellent adaptation of the catching roller due to spring pre-tension

• Recommended for fine seeds (sugar beet, canola) with AirVac and AirSpeed

• Different pre-sets can be adjusted with pins

• Shallow seeding: low pre-tension recommended

• Deeper seeding: higher pre-tension recommended

• Catching roller can be locked firmly

The catching roller is an elementary component of single grain seeding. It ensures even plant spacings and enough capillarity at the grain for optimum germination. To meet the requirements on embedding quality, pressures and consolidation, two different trap rollers are available for the Maestros to apply for all sowing conditions and crops.

Wide tyres 710/50 R 26.5

Twin tyres 270/95 R 36

Application of micro-granular compound

• Two application points are possible at the row unit

• Release position in the seed furrow for fertiliser granulate and crop care agents for good contact to the seedling

• Release option behind the row via baffles, for large, shallow distribution of underseed or slug pellets

Pneumatic application IN the row

Pneumatic application ON the row

Pneumatic application IN the row

Pneumatic application ON the row

Microgranular unit

• Central microgranular tank with a capacity of 300 l

• Application of fertiliser granulate, crop care agents like insecticides or slug pellets, inoculations or underseed

• Metering via auger metering device

• Pneumatic distribution via separate microgranular distribution tower

• Possible application rate: approx. 2 - 60 kg/ha (depending on operational speed, working width and metering auger size)

The microgranular tank is a pressurised tank. Thus, no dust can escape from the tank when metering. The auger metering device allows for a safe and regular application of the products. This is crucial especially in case of heavy granulate with a high density. If application rates are high, a second micro-granular hopper can be mounted as an option which doubles the capacity by another 300 l.

Central microgranular unit with a capacity of 300 l

Trash Wheels

• Contour following depth control

• Stop bottom for depth limitation

• Stop at the top for working more aggressively

• Fix detent possible

The trash wheels prepare the seed furrow immediately before sowing. Stones, clods and organic matter like straw or mulch residues are removed from the area of the seed furrow. The objective is to obtain a clean seed furrow area with enough fine earth. The trash wheels are mainly used in a floating position with a downward depth limitation. Thus, they cannot work too aggressively or too deeply and they auto-control the height due to the integrated depth limiter.

Optional trash wheels, floating with depth control

Agitator shaft fertiliser hopper

• Prevention of bridge building in the fertiliser hopper

• Safe fertiliser application even if the fertiliser quality is low

• No additional hydraulic oil required while working

The agitator shaft ensures the application of the fertiliser. It prevents bridging and is designed in such a way that it does not permanently consume oil.

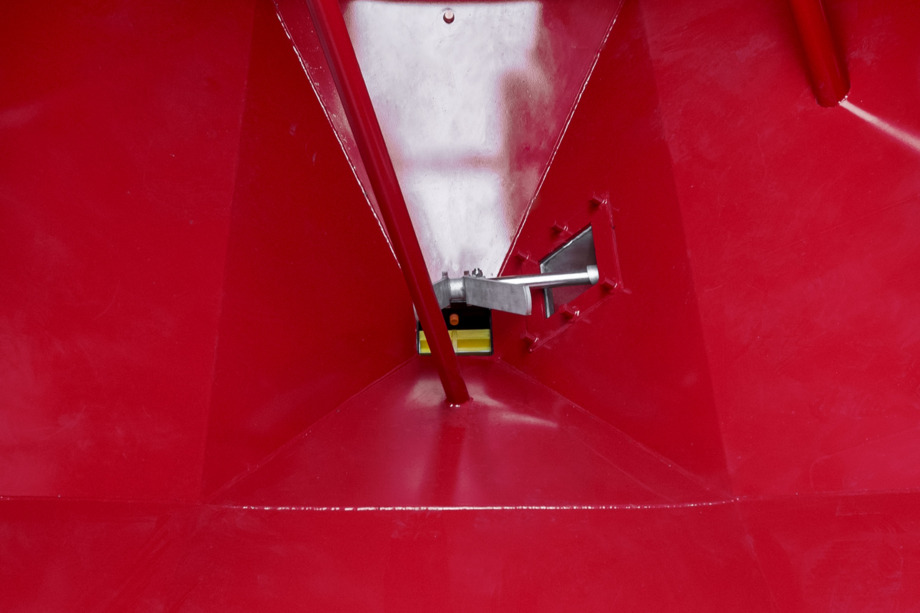

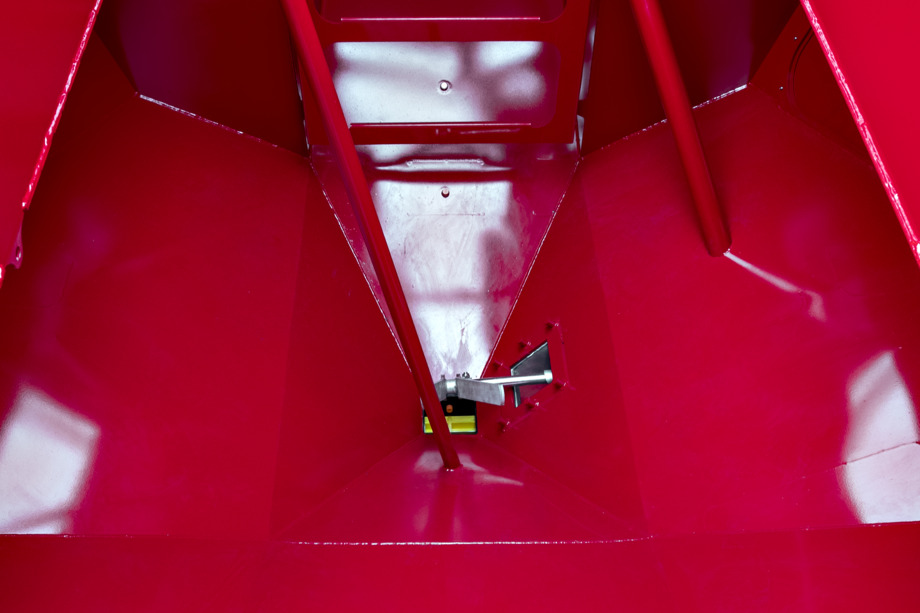

Agitator shaft fertiliser hopper inside

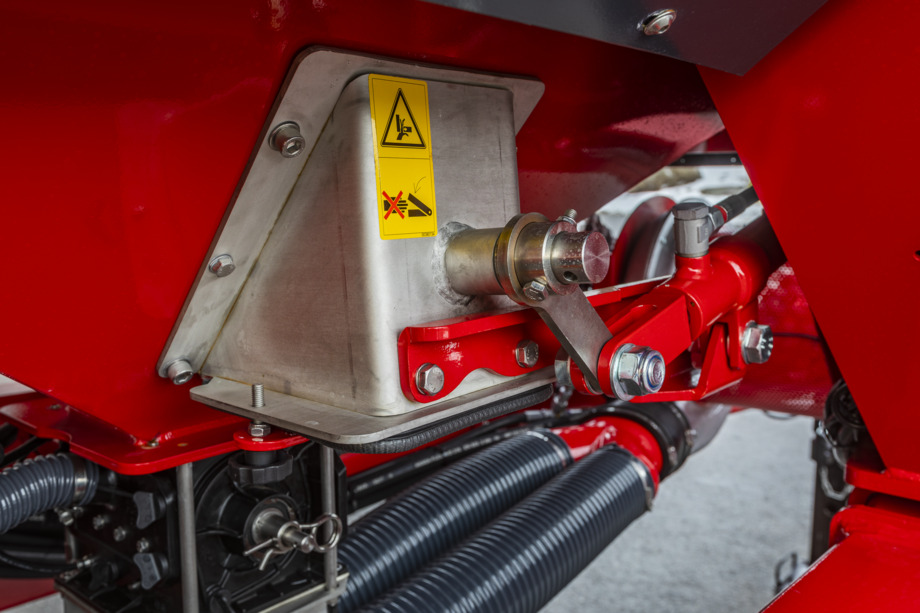

Agitator shaft fertiliser tank external

Skids for seed furrow

• Recommended for fine seeds (sugar beet, canola)

• Post-processing of the seed furrow for optimum embedding

• With carbide coating for long service-life

After having been opened by the disc blades, the seed furrow is additionally pre-processed with skids. The bed of the seed furrow is again cultivated superficially and levelled so that special crops with very high requirements on embedding, e.g. sugar beet and rape, can be placed optimally. By means of a quick-change system, the skid is replaced with the standard scraper which mainly acts as a scraper and as a protection for the drop tube.

Skid AirVac with wing

Skid AirSpeed

Depth control wheels

Depth control wheel with closed rim:

• Ideal for normal conditions

• Curved shape of the wheel for even weight distribution

Depth control wheel RID with closed rim

• RID = Reduced Inner Diameter

• More intensely curved shape of the wheel

• Contact point further to the outside

• Less consolidation directly at the row

• Easier closing of the seed furrow in heavy conditions

• Recommended for direct seeding, heavy or wet soils

Spoke depth control roll

• Open spoke rim for intensive self-cleaning

• Only for very sticky, clayey soils (e.g. black earth soils)

• Not suitable in case of stones

Different types of soil and sowing methods make different demands on the depth control wheel. Wet, pressure-sensitive soils with a high clay content react sensitively to too high coulter pressures and compaction. On light, very flowable sandy soil, the wheels will sink deeper, so the requirements on the depth guide wheel will differ. For a safe sowing in adhesive soils mainly the self-cleaning effect of the wheel is crucial. These are the reasons why three different depth control wheel versions are available for the Maestros.

RID wheel reduces soil compaction directly at the seed slot in very hard or direct seeding conditions

Spokes depth control wheel

Standard depth control wheel

RID depth control wheel

Standard depth control wheel

Standard depth control wheel for normal soils

Spokes depth control wheel: better self-cleaning, thus ideal on black earth soils

WorkLight Pro

• Optimal illumination of the work environment with LED worklights at night

• Illumination of the seed wagon component for good visibility when calibrating or filling the hopper

Adjustable LED spotlights at the rear ensure optimal illumination of the coulter bar, even at night. Another LED headlight perfectly illuminates the hopper surroundings and ensures optimum visibility when filling and calibrating the machine in the dark.

WorkLight Pro for the Maestro CV/CX

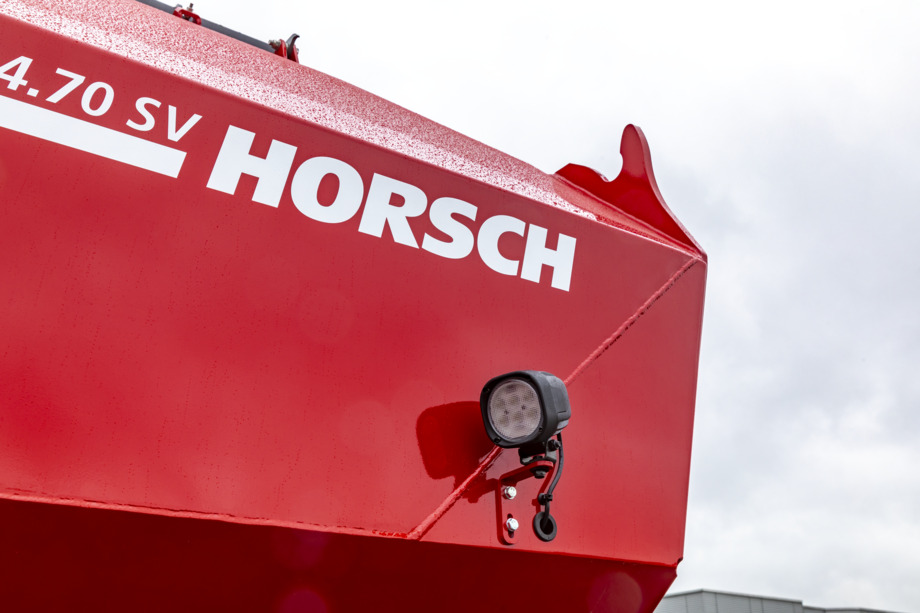

One of the side headlights of a Maestro SV/SX

WorkLight Pro at the Maestro 16 SX L

HorschConnect

• HorschConnect Telematics to document the performance of the machine

• HorschConnect Telematics for complete transparency of the working quality, e.g. the application rate of all components

• Targeted and proactive service by remote access to error messages

• Control of machine functions via the HORSCH Control smartphone app: e.g. calibration of all metering devices and control of the individual rows to check the singulation quality before starting seeding or in between

Prepare today for tomorrow. Easily control various machine functions via the HORSCH Control app – your smartphone complements the terminal! Gain comprehensive, transparent insight into work rate and work quality with HorschConnect Telematics.

With HorschConnect, telemetry solutions are making their way into the sectors seeding and crop care - exactly where they make sense

Success factor transparency: position-related data of all relevant information like error messages, operational speed or singulation quality

By means of the HORSCH Control app, a test of the most important parameters of singulation quality can be carried out at any time on a individual row basis

Quick and easy calibration or testing of the machine's singulation quality via smartphone with the HORSCH Control app

eosT10/eosT10 Pro

• High-resolution 10" terminal for controlling all ISOBUS devices according to ISO 11783

• Reliable and powerful: high-performance hardware combined with intuitive, user-friendly operation in day or night mode

• Various layout options allow for a simultaneous display of several applications – for an optimum overview.

• Straightforward transfer of application maps with the wireless task data exchange

• A real-time transmission of the terminal display via Remote Support facilitates the technical support.

Due to the high resolution and the well-thought-out user navigation, even complex machine functions can be operated comfortably. The high efficiency and the large (working) memory allow for a smooth handling of large data quantities or application maps. In addition to the traditional import resp. export of data via a USB flash drive, the transfer can also take place easily and comfortably online directly between the PC and the terminal.

Due to its high resolution, the eosT10 offers a state-of-the-art user experience for all ISOBUS-compliant machines.

Due to the WIFI interface, field boundaries, application maps or order data can be exchanged directly between PC and terminal.

The lean design of the 10" display allows for perfect integration into any tractor cabin.

eosT10 – robust hardware with diverse interfaces

In portrait mode, two applications can be optimally displayed and operated.

By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.

TECHNICAL SPECIFICATIONS

Transport width

3,00 m

Transport height

4,00 m

Transport length

6,30 m

Axle load

3800 - 5400 kg

Vertical load

1200 - 1500 kg

Hopper capacity seed waggon

3000 l

Filling opening seed drill injector tank

0,80 x 2,40 m

Filling opening seed drill pressure tank

0,70 x 2,30 m

Capacity seed container

70 / 800 / 3000 l

Number of rows

Coulter pressure hydraulic

150 - 350 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

70 / 75 / 80 / 90 cm / 30 / 36 Inch

Sowing depth

1,5 - 9 cm

Drop height seed

45 cm

Operational speed

2 - 12 km/h

Horsepower requirement

110/150 kW/hp

Tyre size seed waggon

500/85 R 24.0, 710/50 R 26.5, twin tyres 270/95 R 36, twin tyres 320/85 R 34

Depressurized return flow (max. 5 bar)

1 (0 with PTO drive without MTS) Piece

DA control device direct drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser/MTS with adjustable flow rate, 1 DA hydr. fan direct drive vacuum with adjustable flow rate, 1 DA hydr. filling auger single hopper

DA control devices pto-shaft drive

1 DA hydraulic functions, 1 DA hydraulic fan direct drive vacuum with adjustable flow rate (only for MTS!), 1 DA hydraulic filling auger single hopper

Oil quantity hydr. fan vacuum

25 l

Oil quantity hydraulic fan overpressure

25 l

Oil quantity hydraulic fan fertilizer without MTS

30 l

Oil quantity for hydraulic fan fertilizer with MTS

50 l

Power requirement during operation

30 A

Adjustable drawbar linkage with ring hitch ball joint

Pin Ø 32, 42 or 51 mm

Adjustable drawbar coupling hitch

Pin Ø 40 mm

Implement attachment ball head

K 80

Transport width

3,00 m

Transport height

4,00 m

Transport length

6,60 m

Axle load

4000 - 5500 kg

Vertical load

1200 - 1500 kg

Hopper capacity seed waggon

3000 l

Filling opening seed drill injector tank

0,80 x 2,40 m

Filling opening seed drill pressure tank

0,70 x 2,30 m

Capacity seed container

70 / 800 / 3000 l

Number of rows

Coulter pressure hydraulic

150 - 350 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

60 / 70 / 75 cm / 30 Inch

Sowing depth

1,5 - 9 cm

Drop height seed

45 cm

Operational speed

2 - 12 km/h

Horsepower requirement

118/160 kW/hp

Tyre size seed waggon

500/85 R 24.0, 710/50 R 26.5, twin tyres 270/95 R 36, twin tyres 320/85 R 34

Depressurized return flow (max. 5 bar)

1 (0 with PTO drive without MTS) Piece

DA control device direct drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser/MTS with adjustable flow rate, 1 DA hydr. fan direct drive vacuum with adjustable flow rate, 1 DA hydr. filling auger single hopper

DA control devices pto-shaft drive

1 DA hydraulic functions, 1 DA hydraulic fan direct drive vacuum with adjustable flow rate (only for MTS!), 1 DA hydraulic filling auger single hopper

Oil quantity hydr. fan vacuum

25 l

Oil quantity hydraulic fan fertilizer without MTS

30 l

Oil quantity for hydraulic fan fertilizer with MTS

50 l

Power requirement during operation

30 A

Adjustable drawbar linkage with ring hitch ball joint

Pin Ø 32, 42 or 51 mm

Adjustable drawbar coupling hitch

Pin Ø 40 mm

Implement attachment ball head

K 80

Transport width

3,00 m

Transport height

3,90 m

Transport length

6,30 m

Axle load

4500 - 6400 kg

Vertical load

1300 - 1800 kg

Hopper capacity seed waggon

3000 l

Filling opening seed drill injector tank

0,80 x 2,40 m

Filling opening seed drill pressure tank

0,70 x 2,30 m

Capacity seed container

70 / 800 / 3000 l

Number of rows

Coulter pressure hydraulic

150 - 350 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

45 / 50 cm

Sowing depth

1,5 - 9 cm

Drop height seed

45 cm

Operational speed

2 - 12 km/h

Horsepower requirement

132/180 kW/hp

Tyre size seed waggon

710/50 R 26.5, twin tyres 270/95 R 36

Depressurized return flow (max. 5 bar)

1 (0 with PTO drive without MTS) Piece

DA control device direct drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser/MTS with adjustable flow rate, 1 DA hydr. fan direct drive vacuum with adjustable flow rate, 1 DA hydr. filling auger single hopper

DA control devices pto-shaft drive

1 DA hydraulic functions, 1 DA hydraulic fan direct drive vacuum with adjustable flow rate (only for MTS!), 1 DA hydraulic filling auger single hopper

Oil quantity hydr. fan vacuum

25 l

Oil quantity hydraulic fan fertilizer without MTS

30 l

Oil quantity for hydraulic fan fertilizer with MTS

50 l

Power requirement during operation

35 A

Adjustable drawbar linkage with ring hitch ball joint

Pin Ø 32 or 42 mm

Adjustable drawbar coupling hitch

Pin Ø 40 mm

Implement attachment ball head

K 80

Transport width

3,00 m

Transport height

4,00 m

Transport length

6,30 m

Axle load

4600 - 6600 kg

Vertical load

1850 - 2150 kg

Hopper capacity seed waggon

3000 l

Filling opening seed drill pressure tank

0,70 x 2,30 m

Capacity seed container

70 / 800 / 3000 l

Number of rows

Coulter pressure hydraulic

150 - 350 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

70 / 75 / 80 cm / 30 Inch

Sowing depth

1,5 - 9 cm

Drop height seed

45 cm

Operational speed

2 - 12 km/h

Horsepower requirement

132/180 kW/hp

Tyre size seed waggon

650/65 R 30.5, twin tyres 300/85 R 42

Depressurized return flow (max. 5 bar)

1 Piece

DA control device direct drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser/MTS with adjustable flow rate, 1 DA hydr. fan direct drive vacuum with adjustable flow rate, 1 DA hydr. filling auger single hopper

DA control devices pto-shaft drive

1 DA hydraulic functions, 1 DA hydraulic fan direct drive vacuum with adjustable flow rate (only for MTS!), 1 DA hydraulic filling auger single hopper

Oil quantity hydr. fan vacuum

25 l

Oil quantity hydraulic fan fertilizer without MTS

30 l

Oil quantity for hydraulic fan fertilizer with MTS

50 l

Power requirement during operation

45 A

Adjustable drawbar linkage with ring hitch ball joint

Pin Ø 32 or 42 mm

Adjustable drawbar coupling hitch

Pin Ø 40 mm

Implement attachment ball head

K 80

Transport width

3,00 m

Transport height

4,00 m

Transport length

6,30 m

Axle load

6000 - 7400 kg

Vertical load

2000 - 2700 kg

Hopper capacity seed waggon

3000 l

Filling opening seed drill pressure tank

0,70 x 2,30 m

Capacity seed container

70 / 800 / 3000 l

Number of rows

Coulter pressure hydraulic

150 - 350 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

45 / 50 cm

Sowing depth

1,5 - 9 cm

Drop height seed

45 cm

Operational speed

2 - 12 km/h

Horsepower requirement

155/210 kW/hp

Tyre size seed waggon

650/65 R 30.5, twin tyres 300/85 R 42

Depressurized return flow (max. 5 bar)

1 Piece

DA control device direct drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser/MTS with adjustable flow rate, 1 DA hydr. fan direct drive vacuum with adjustable flow rate, 1 DA hydr. filling auger single hopper

DA control devices pto-shaft drive

1 DA hydraulic functions, 1 DA hydraulic fan direct drive vacuum with adjustable flow rate (only for MTS!), 1 DA hydraulic filling auger single hopper

Oil quantity hydr. fan vacuum

25 l

Oil quantity hydraulic fan fertilizer without MTS

30 l

Oil quantity for hydraulic fan fertilizer with MTS

50 l

Power requirement during operation

55 A

Adjustable drawbar linkage with ring hitch ball joint

Pin Ø 32, 42 or 51 mm

Adjustable drawbar coupling hitch

Pin Ø 40 mm

Implement attachment ball head

K 80

Transport width

3,00 m

Transport height

4,00 m

Transport length

6,30 m

Axle load

3800 - 5400 kg

Vertical load

1200 - 1500 kg

Hopper capacity seed waggon

3000 l

Filling opening seed drill

0,70 x 2,30 m

Capacity seed container

70 / 800 / 3000 l

Number of rows

Coulter pressure hydraulic

150 - 350 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

70 / 75 / 80 cm / 30 Inch

Sowing depth

1,5 - 9 cm

Operational speed

6 - 15 km/h

Horsepower requirement

125/170 kW/hp

Tyre size seed waggon

500/85 R 24.0, 710/50 R 26.5, twin tyres 270/95 R 36, twin tyres 320/85 R 34

Depressurized return flow (max. 5 bar)

1 Piece

DA control device direct drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser with adjustable flow rate, 1 DA hydr. fan direct drive overpressure/MTS with adjustable flow rate, 1 DA hydr. filling auger single hopper

DA control devices pto-shaft drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser with adjustable flow rate, 1 DA hydr. filling auger single hopper

Oil quantity hydr. fan vacuum

25 l

Oil quantity hydraulic fan overpressure

50 l

Oil quantity hydraulic fan fertiliser

30 l

Oil quantity for hydraulic fan fertilizer with MTS

50 l

Power requirement during operation

30 A

Adjustable drawbar linkage with ring hitch ball joint

Pin Ø 32 or 42 mm

Adjustable drawbar coupling hitch

Pin Ø 40 mm

Implement attachment ball head

K 80

Transport width

3,00 m

Transport height

4,00 m

Transport length

6,60 m

Axle load

4000 - 5500 kg

Vertical load

1200 - 1500 kg

Hopper capacity seed waggon

3000 l

Filling opening seed drill

0,70 x 2,30 m

Capacity seed container

70 / 800 / 3000 l

Number of rows

Coulter pressure hydraulic

150 - 350 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

60 / 70 / 75 cm / 30 Inch

Sowing depth

1,5 - 9 cm

Operational speed

6 - 15 km/h

Horsepower requirement

132/180 kW/hp

Tyre size seed waggon

500/85 R 24.0, 710/50 R 26.5, twin tyres 270/95 R 36, twin tyres 320/85 R 34

Depressurized return flow (max. 5 bar)

1 Piece

DA control device direct drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser with adjustable flow rate, 1 DA hydr. fan direct drive overpressure/MTS with adjustable flow rate, 1 DA hydr. filling auger single hopper

DA control devices pto-shaft drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser with adjustable flow rate, 1 DA hydr. filling auger single hopper

Oil quantity hydraulic fan overpressure

50 l

Oil quantity hydraulic fan fertiliser

30 l

Power requirement during operation

30 A

Adjustable drawbar linkage with ring hitch ball joint

Pin Ø 32 or 42 mm

Adjustable drawbar coupling hitch

Pin Ø 40 mm

Implement attachment ball head

K 80

Transport width

3,00 m

Transport height

3,90 m

Transport length

6,30 m

Axle load

4500 - 6400 kg

Vertical load

1300 - 1800 kg

Hopper capacity seed waggon

3000 l

Filling opening seed drill

0,70 x 2,30 m

Capacity seed container

70 / 800 / 3000 l

Number of rows

Coulter pressure hydraulic

150 - 350 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

45 / 50 cm

Sowing depth

1,5 - 9 cm

Operational speed

6 - 15 km/h

Horsepower requirement

147/200 kW/hp

Tyre size seed waggon

710/50 R 26.5, twin tyres 270/95 R 36

Depressurized return flow (max. 5 bar)

1 Piece

DA control device direct drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser with adjustable flow rate, 1 DA hydr. fan direct drive overpressure/MTS with adjustable flow rate, 1 DA hydr. filling auger single hopper

DA control devices pto-shaft drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser with adjustable flow rate, 1 DA hydr. filling auger single hopper

Oil quantity hydraulic fan overpressure

50 l

Oil quantity hydraulic fan fertiliser

30 l

Power requirement during operation

35 A

Adjustable drawbar linkage with ring hitch ball joint

Pin Ø 32 or 42 mm

Adjustable drawbar coupling hitch

Pin Ø 40 mm

Implement attachment ball head

K 80

Transport width

3,00 m

Transport height

4,00 m

Transport length

6,30 m

Axle load

4600 - 6600 kg

Vertical load

1850 - 2150 kg

Hopper capacity seed waggon

3000 l

Filling opening seed drill

0,70 x 2,30 m

Capacity seed container

70 / 800 / 3000 l

Number of rows

Coulter pressure hydraulic

150 - 350 kg

Depth control wheel Ø

40 cm

Press wheels Ø

30 / 33 cm

Catching roller

Standard

Row spacing

70 / 75 / 80 cm / 30 Inch

Sowing depth

1,5 - 9 cm

Operational speed

6 - 15 km/h

Horsepower requirement

147/200 kW/hp

Tyre size seed waggon

650/65 R 30.5, twin tyres 300/85 R 42

Depressurized return flow (max. 5 bar)

1 Piece

DA control device direct drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser with adjustable flow rate, 1 DA hydr. fan direct drive overpressure/MTS with adjustable flow rate, 1 DA hydr. filling auger single hopper

DA control devices pto-shaft drive

1 DA hydr. functions, 1 DA hydr. fan direct drive fertiliser with adjustable flow rate, 1 DA hydr. filling auger single hopper

Oil quantity hydraulic fan overpressure

50 l

Oil quantity hydraulic fan fertiliser

30 l

Power requirement during operation

45 A

Adjustable drawbar linkage with ring hitch ball joint

Pin Ø 32 or 42 mm

Adjustable drawbar coupling hitch

Pin Ø 40 mm

Implement attachment ball head

K 80
