Tiger MT

The solution for most difficult conditions

Working width

3,00 - 8,00 m

Transport width

3,00 m

Tine spacing

43 - 48 cm

Frame height

850 mm

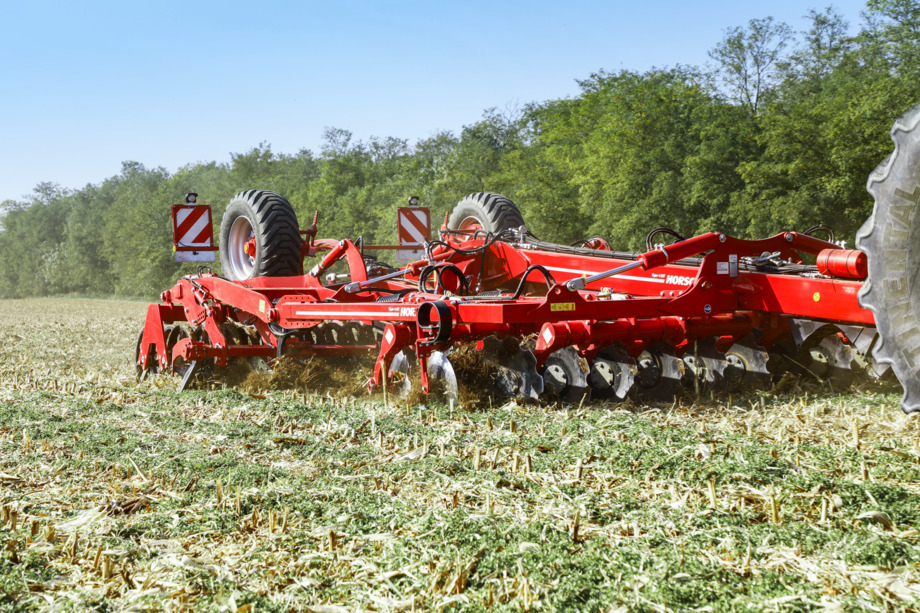

The HORSCH Tiger MT is ideal for mixing in harvest residues and also for a deep loosening at a depth of 35 cm. It breaks plough soles and simultaneously mixes organic matter reliably across the entire working horizon.

Optimum mixing of organic material

Intensive tillage due to discs and tines

Perfect for incorporating catch crops

Ideal after grain maize and sunflowers

A heavy cultivator for deep tillage up to max. 35 cm with a robust design and the objective to perfectly incorporate organic material.

DiscSystem and tine system in combination for high amounts of organic matter
Robust design for hardest operating conditions and long service life
Wide selection of packer options for intensive consolidation
Maintenance-free disc system and TerraGrip tine system with a release force of 770 kg and a very long service life

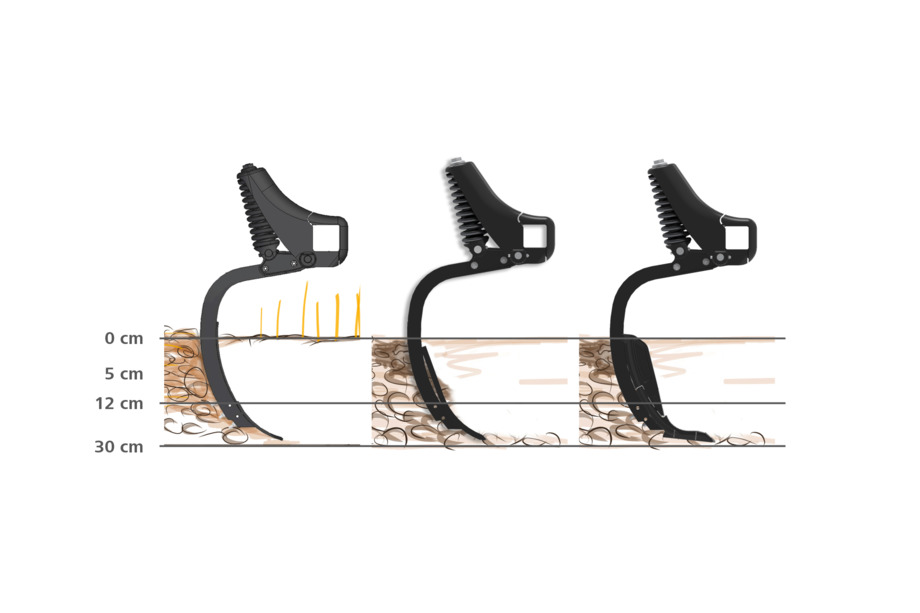

TerraGrip III

• Release force from 500 to 550 kg (depending on the model)

• Flexible mounting of point and wing options

• Low horsepower requirement due to curved tine design

• Optimum residue mixing even at shallow working depths

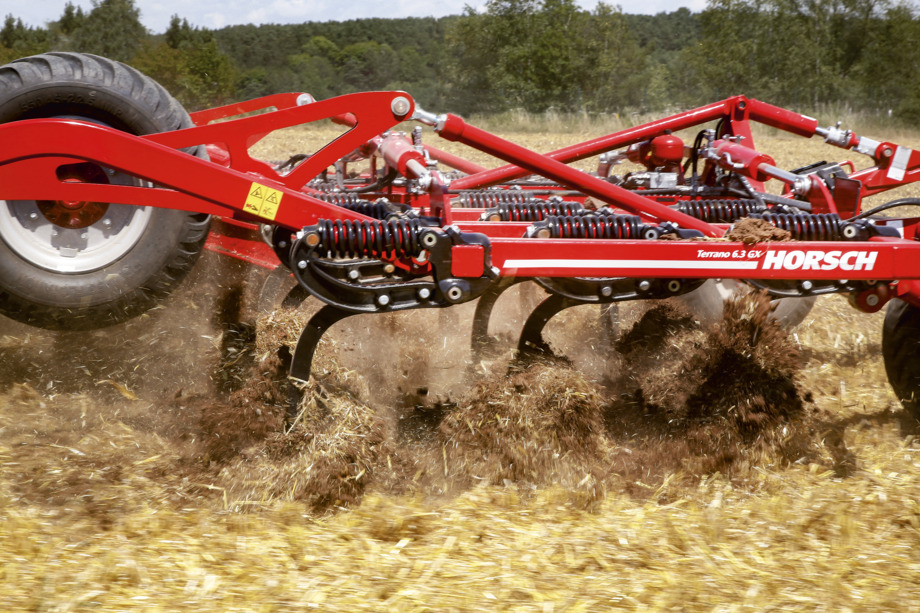

The TerraGrip tine system impresses due to its flexibility with regard to the various point and wing options. The low horsepower requirement and the excellent mixing characteristics are due to the curved shape and the low angle of the point.

TerraGrip III

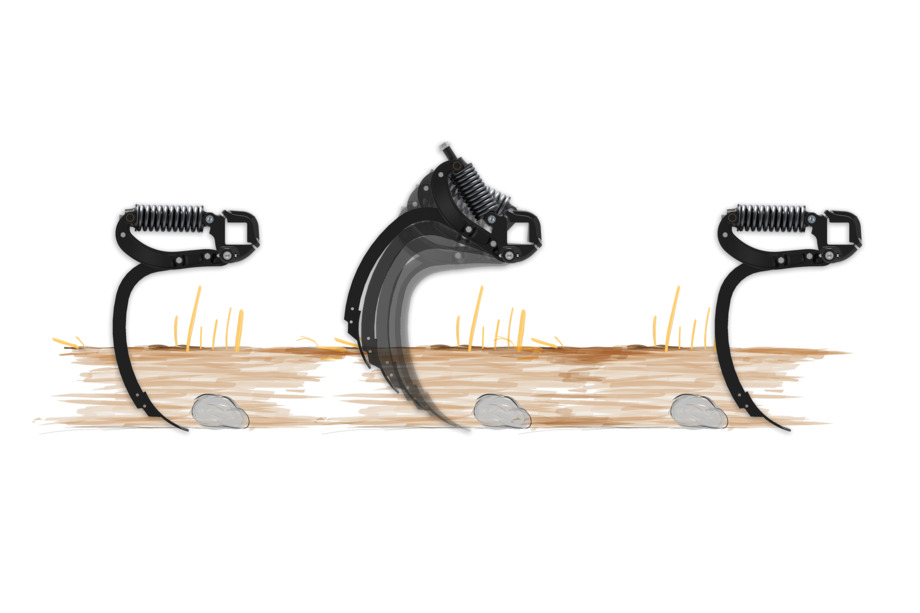

TerraGrip III – release effect

MulchMix without wing

• Deep loosening and intensive mixing of the soil

• Working depths: 15 to 30 cm

• Various carbide versions

The MulchMix point is used without wings if you want to work deeper than 15 cm and achieve an intensive mixing. Organic matter is mixed over the whole cultivation depth. The MulchMix points are available in different carbide versions to meet the most different requirements.

MulchMix point without wing

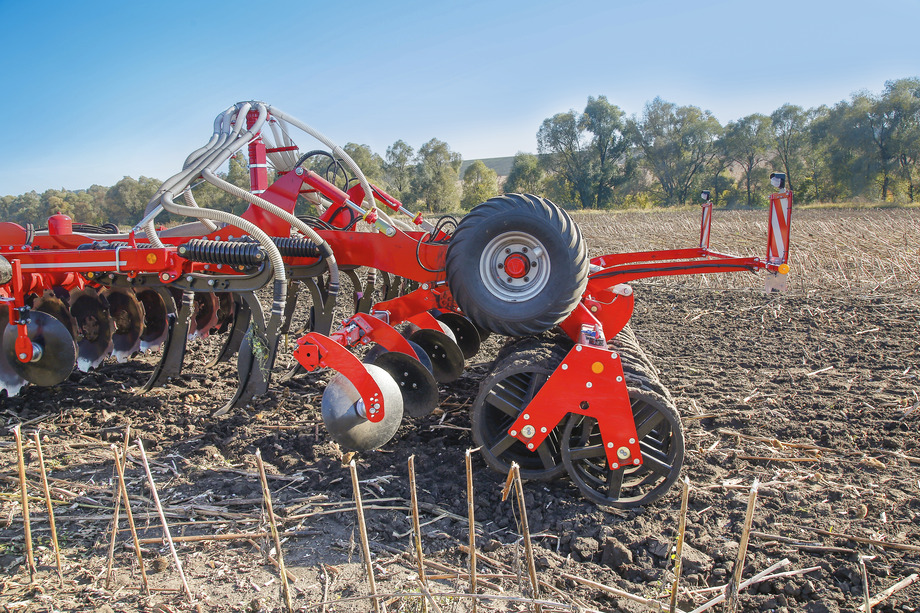

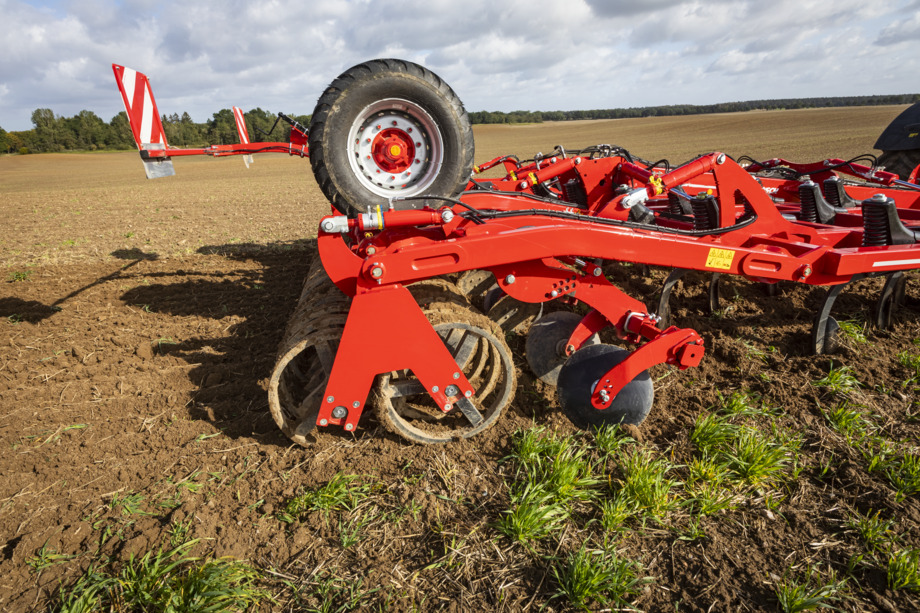

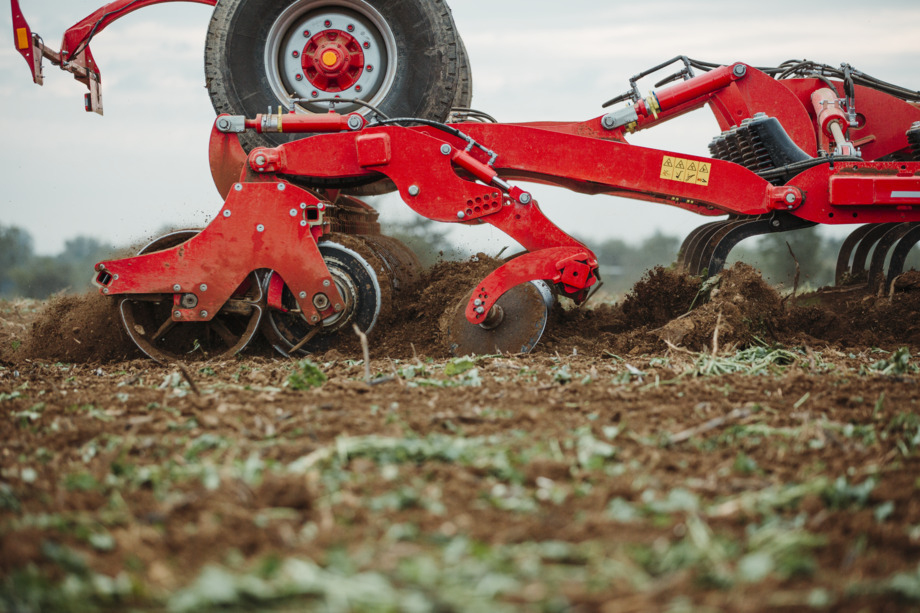

Tyre packer 7.50-16 AS

• Excellent load-carrying capacity on all soil types

• Low horsepower requirement due to large contact area and wide spacings

• Strip consolidation

• Packer swivels out of work to lower transport wheels

The tyre packer is responsible for consolidation but also serves as the transport wheels. For light sites where standard packers tend to sink in. Gentle turning on the headlands as the weight is distributed over the whole working width. Simple and robust design of the entire machine.

Tyre packer 7.50-16 AS

Tyre packer 210/95-24 AS

• Excellent load-carrying capacity on light soils due to large tyre diameter

• Low horsepower requirement due to large contact area and wide spacings

• Strip consolidation

• Packer swivels out of work to lower transport wheels

The tyre packer is responsible for consolidation but also serves as the transport wheels. For particularly light fields where standard packers tend to sink in. Gentle turning on the headlands as the weight is distributed over the whole working width. Simple and robust design of the entire machine.

Tyre packer 210/95-24 AS

SteelDisc packer Ø 58 cm

• High machine weight for intensive consolidation

• Breaks clods

• Encourages capillarity action

• Weight per meter working width: 175 kg

The SteelDisc packer is ideal for hardest conditions, stony soils, large clods and fields that require deep consolidation. Due to its cutting rings and the high packer weight, it guarantees an excellent consolidation.

SteelDisc packer

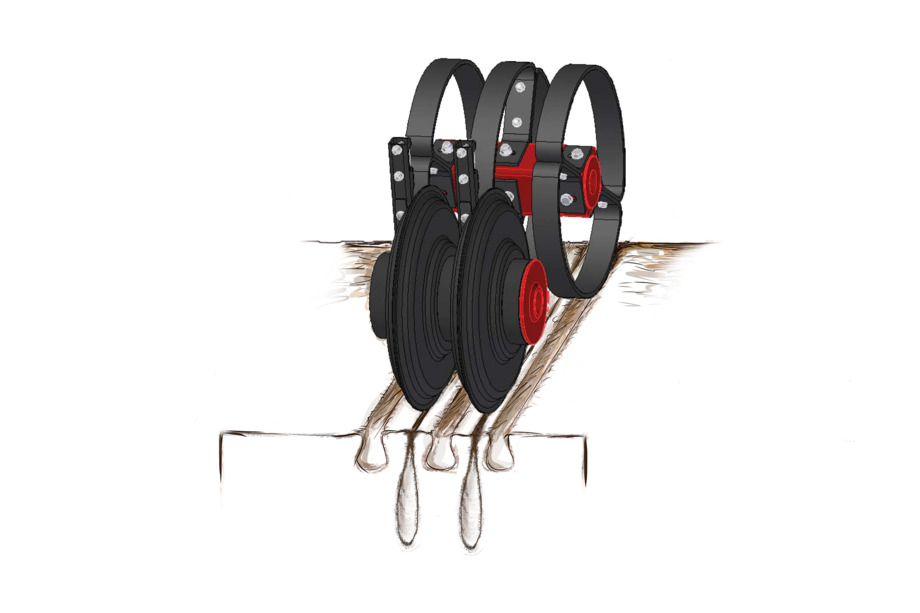

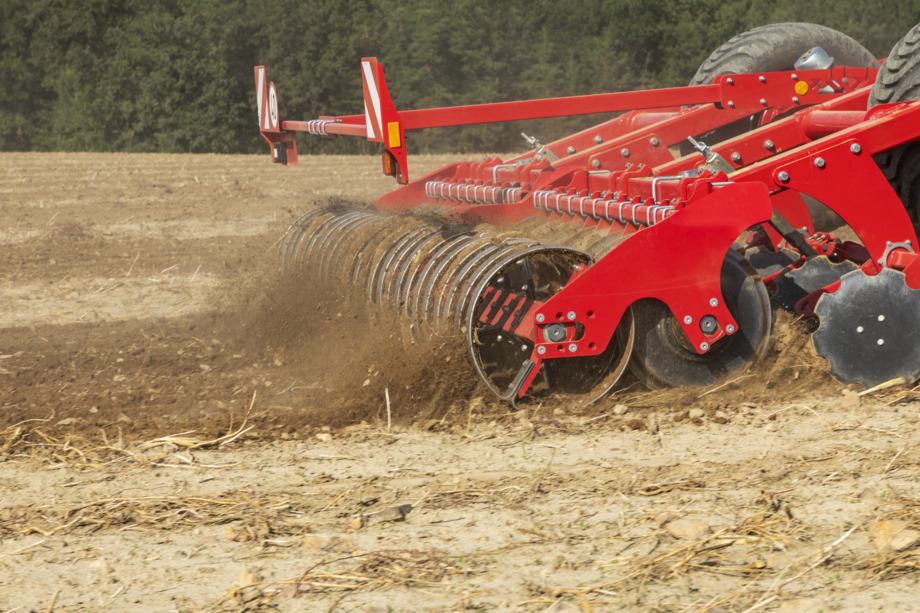

SteelFlex packer

• SteelDisc packer 58 cm Ø for deep consolidation

• RingFlex packer 60 cm Ø for fine soil production on the surface

• Weight per m working width: 442 kg

The SteelFlex packer is ideal for medium and heavy soils. It combines deep consolidation after an intensive loosening with a fine-crumbly finish on the surface. Its strengths are particularly evident in primary soil cultivation.

SteelFlex packer

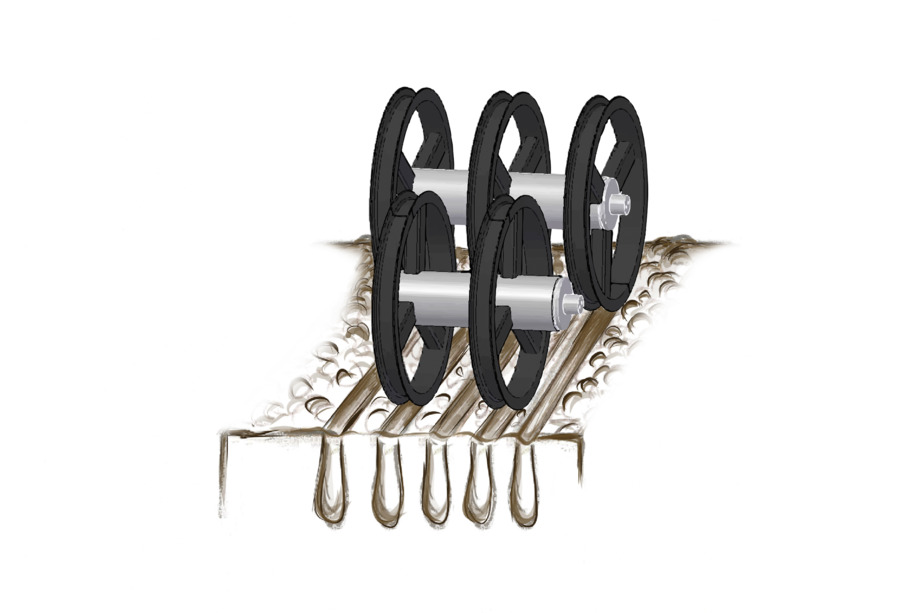

Double RollPack packer Ø 62 cm

• Steel ring roller with a diameter of 62 cm

• Deep strip consolidation

• Can be used in all situations

• Also available as a carbide version

The double RollPack packer is ideal for light and medium sites. Due to the wide rings and the low machine weight, the contact area is rather large ensuring excellent consolidation For sandy soils, it is also available as a carbide version.

Double RollPack packer Ø 62 cm

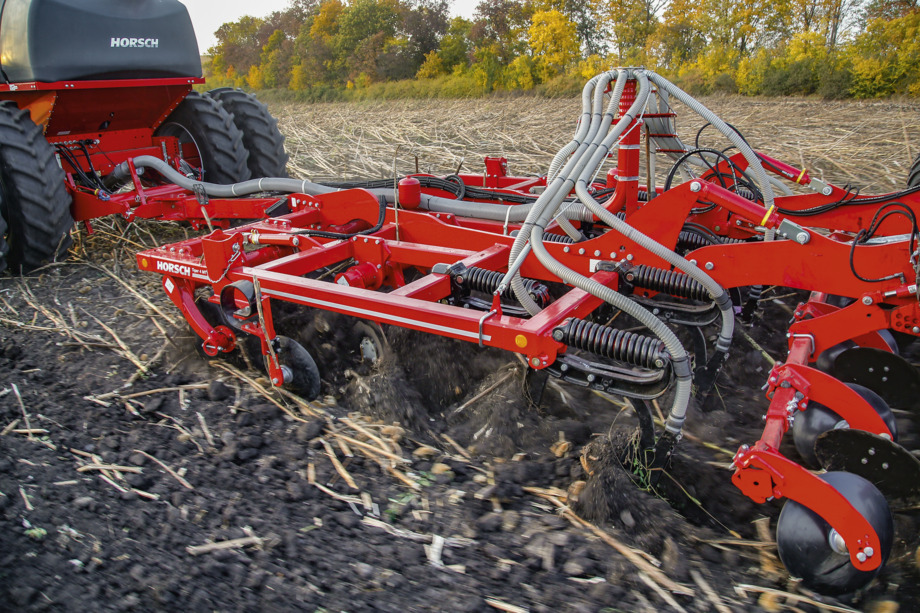

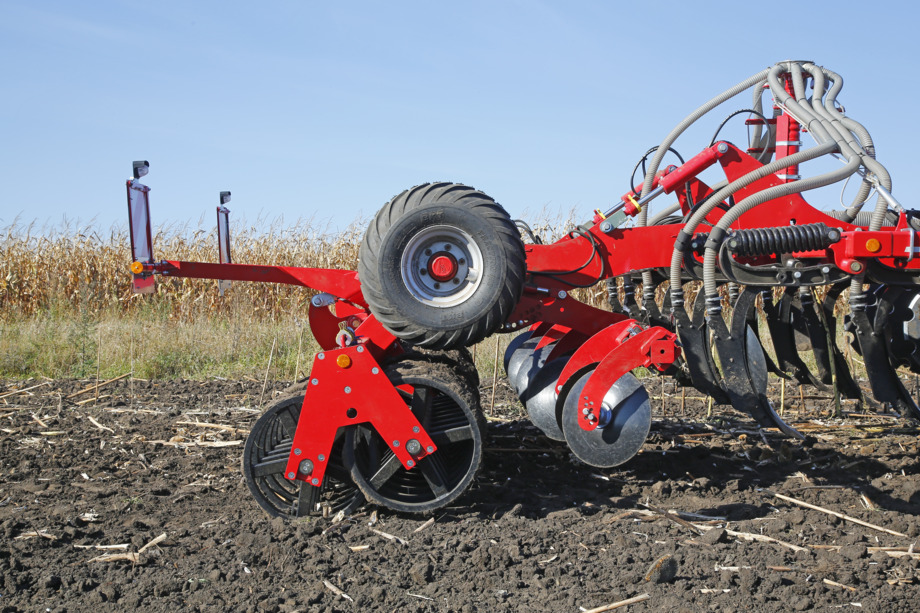

Fertiliser distributor

• Ideal for local fertilisation via the cultivator points

• The user can decide how to apply the fertiliser

• 100 % on the surface, 50 % at depth, 50 % on the surface or 100 % at depth

• Can be combined with the front tank Partner FT

The fertiliser distributor is ideal to apply fertiliser direct to where the plant needs it. The user can decide where he wants to apply the fertiliser – on the surface, at depth or both.

Fertiliser distribution tower combined for example with a Partner FT

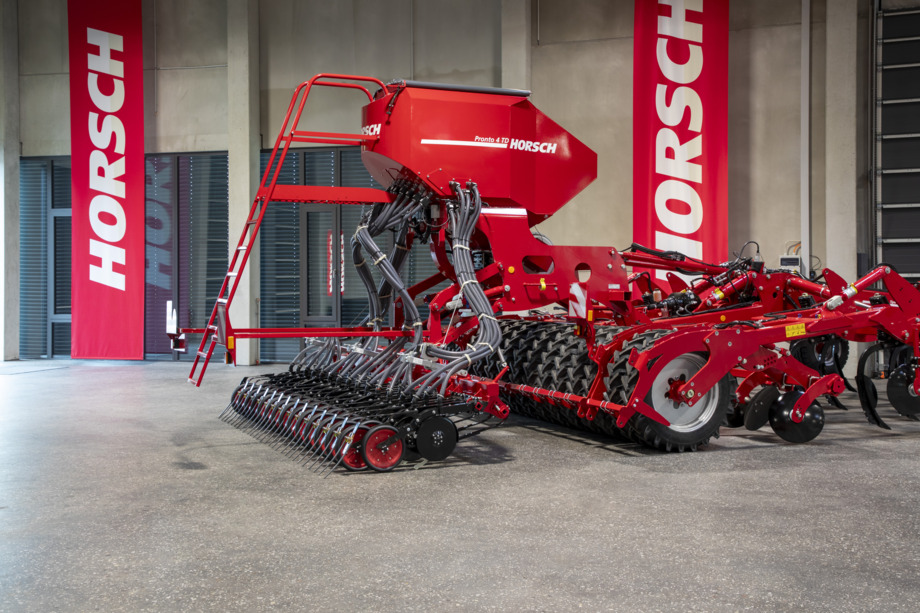

Pronto TD as an additional equipment for the Tiger

• Seed drill that can be fitted on the Tiger

• Well-proven TurboDisc seed coulters

• Saves additional passes

• Optimal for sowing directly after tillage

With the Pronto TD, HORSCH offers a seed drill that can be fitted on the Tiger models – ideal for sowing the following crop directly after tillage. Thus, water can be saved efficiently, and ideal emergence is guaranteed.

Pronto TD to combine primary soil cultivation and sowing

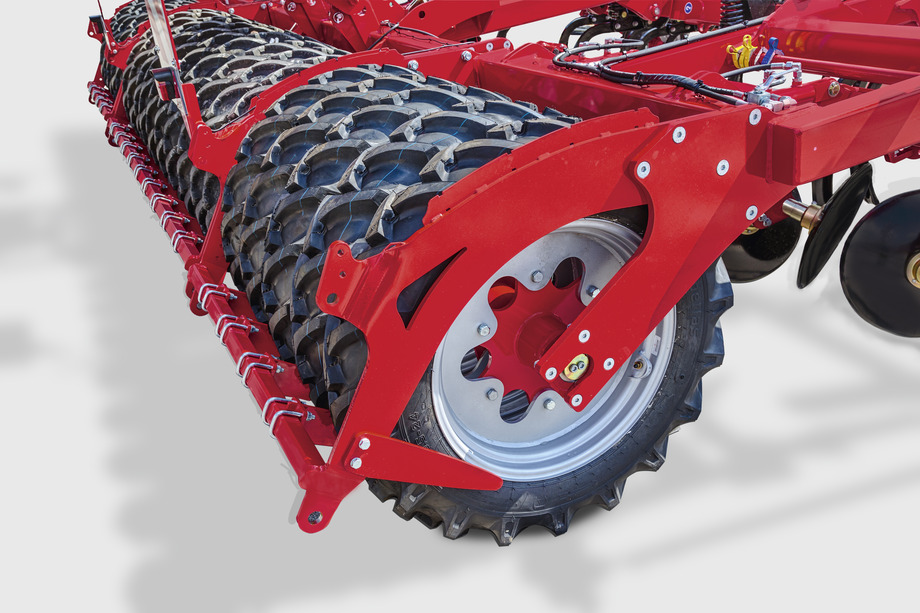

TopRing packer with tyre packer

• Additional packer behind the tyre packer

• Can be swivelled in hydraulically

• Cast iron packer elements guarantee a consolidation between the tyres

• All-over consolidation

The TopRing packer guarantees an even consolidation over the whole working width of the Tiger. If desired, it can be moved in or out hydraulically. On the headlands, the TopRing packer automatically moves upwards for more clearance. Only in combination with tyre packers.

Pronto TD to combine primary soil cultivation and sowing

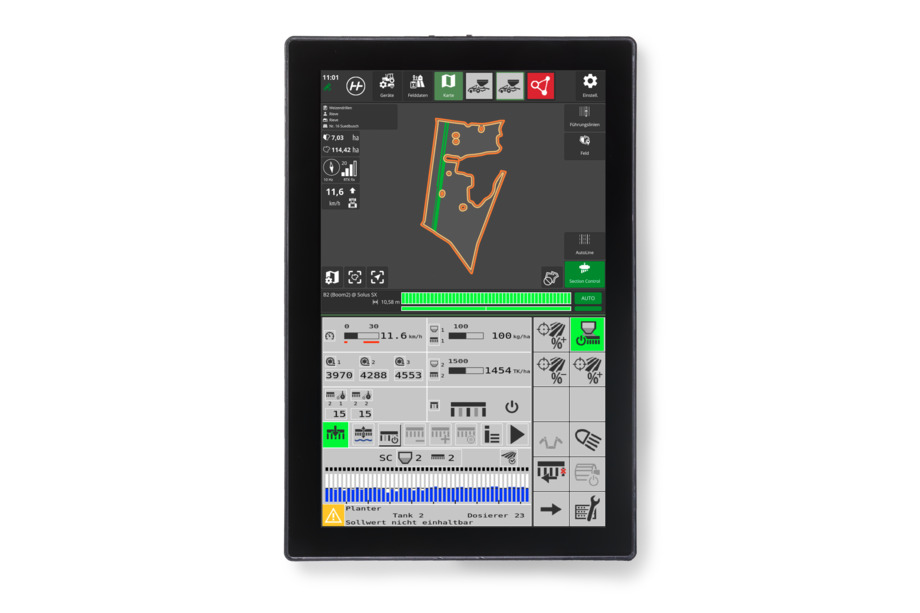

eosT10/eosT10 Pro

• High-resolution 10" terminal for controlling all ISOBUS devices according to ISO 11783

• Reliable and powerful: high-performance hardware combined with intuitive, user-friendly operation in day or night mode

• Various layout options allow for a simultaneous display of several applications – for an optimum overview.

• Straightforward transfer of application maps with the wireless task data exchange

• A real-time transmission of the terminal display via Remote Support facilitates the technical support.

Due to the high resolution and the well-thought-out user navigation, even complex machine functions can be operated comfortably. The high efficiency and the large (working) memory allow for a smooth handling of large data quantities or application maps. In addition to the traditional import resp. export of data via a USB flash drive, the transfer can also take place easily and comfortably online directly between the PC and the terminal.

Due to its high resolution, the eosT10 offers a state-of-the-art user experience for all ISOBUS-compliant machines.

Due to the WIFI interface, field boundaries, application maps or order data can be exchanged directly between PC and terminal.

The lean design of the 10" display allows for perfect integration into any tractor cabin.

eosT10 – robust hardware with diverse interfaces

In portrait mode, two applications can be optimally displayed and operated.

By displaying up to 3 widgets in addition to the main working screen, the user can keep track of several applications at the same time.

TECHNICAL SPECIFICATIONS

Working width

3.00 m

Transport width

3.00 m

Transport height

2.40 m

Transport height with MiniDrill

3.50 m

Length with tyre packer 7.50-16

8.30 m

Length with tyre packer 210/95-24

8.70 m

Length with double RollPack packer

9.00 m

Axle load tyre packer

2900 - 4700 kg

Vertical load tyre packer

1500 - 2200 kg

Axle load swivel transport wheels

3500 - 4000 kg

Vertical load swivel transport wheels

1400 - 1900 kg

Number of DiscSystem discs

Disc spacing

38 cm

Number of tines

Tine spacing in one row

86 cm

Tine spacing

43 cm

Frame height

850 mm

DA control devices lower link

2 (+ 1 per option)

DA control devices adjustable drawbar

3 (+ 1 per option)

Horsepower requirement

110 - 220 kW / 150 - 300 hp

Tyre packer size Ø

7.50-16 AS / 78 cm or 210/95-24 AS / 100 cm

Tyre size swivel transport wheels Ø

400/60-15.5 / 89 cm

Double RollPack packer Ø

62 cm

SteelFlex packer Ø

58 / 60

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar coupling hitch

Pin Ø 50 mm

Adjustable drawbar linkage hitch ball joint

Towing eye Ø 51 mm

Adjustable drawbar linkage ball head

K 80

Working width

4.00 m

Transport width

4.05 m

Transport height

2.40 m

Transport height with MiniDrill

3.50 m

Length with tyre packer 7.50-16

8.60 m

Length with tyre packer 210/95-24

8.70 m

Length with double RollPack packer

9.30 m

Axle load tyre packer

4200 - 6900 kg

Vertical load tyre packer

1900 - 2700 kg

Axle load swivel transport wheels

5600 - 6700 kg

Vertical load swivel transport wheels

1500 - 2500 kg

Number of DiscSystem discs

Disc spacing

40.5 cm

Number of tines

Tine spacing in one row

94 cm

Tine spacing

47 cm

Frame height

850 mm

DA control devices lower link

2 (+ 1 per option)

DA control devices adjustable drawbar

3 (+ 1 per option)

Horsepower requirement

150 - 270 kW / 200 - 370 hp

Tyre packer size Ø

7.50-16 AS / 78 cm

Tyre size swivel transport wheels Ø

400/60-15.5 / 89 cm

Double RollPack packer Ø

62 cm

SteelFlex packer Ø

58 / 60

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar coupling hitch

Pin Ø 50 mm

Adjustable drawbar linkage hitch ball joint

Towing eye Ø 51 mm

Adjustable drawbar linkage ball head

K 80

Working width

4.00 m

Transport width

3.00 m

Transport height

2.90 m

Transport height with MiniDrill

3.50 m

Length with tyre packer 7.50-16

8.60 m

Length with tyre packer 210/95-24

9.00 m

Length with double RollPack packer

9.30 m

Axle load tyre packer

4600 - 7200 kg

Vertical load tyre packer

2200 - 2800 kg

Axle load swivel transport wheels

6000 - 7000 kg

Vertical load swivel transport wheels

1800 - 2600 kg

Number of DiscSystem discs

Disc spacing

40 cm

Number of tines

Tine spacing in one row

94 cm

Tine spacing

47 cm

Frame height

850 mm

DA control devices lower link

3 (+ 1 per option)

DA control devices adjustable drawbar

4 (+ 1 per option)

Horsepower requirement

150 - 270 kW / 200 - 370 hp

Tyre packer size Ø

7.50-16 AS / 78 cm or 210/95-24 AS / 100 cm

Tyre size swivel transport wheels Ø

400/60-22.5 / 107 cm

Double RollPack packer Ø

62 cm

SteelFlex packer Ø

58 / 60

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar coupling hitch

Pin Ø 50 mm

Adjustable drawbar linkage hitch ball joint

Towing eye Ø 51 mm

Adjustable drawbar linkage ball head

K 80

Working width

4.80 m

Transport width

3.00 m

Transport height

3.20 m

Transport height with MiniDrill

3.50 m

Length with tyre packer 7.50-16

8.60 m

Length with tyre packer 210/95-24

9.00 m

Length with double RollPack packer

9.30 m

Axle load tyre packer

4900 - 7400 kg

Vertical load tyre packer

2600 - 3200 kg

Axle load swivel transport wheels

6800 - 7800 kg

Vertical load swivel transport wheels

2200 - 3000 kg

Number of DiscSystem discs

Disc spacing

39 cm

Number of tines

Tine spacing in one row

91 cm

Tine spacing

45.5 cm

Frame height

850 mm

DA control devices lower link

3 (+ 1 per option)

DA control devices adjustable drawbar

4 (+ 1 per option)

Horsepower requirement

185 - 295 kW / 250 - 400 hp

Tyre packer size Ø

7.50-16 AS / 78 cm or 210/95-24 AS / 100 cm

Tyre size swivel transport wheels Ø

400/60-22.5 / 107 cm

Double RollPack packer Ø

62 cm

SteelFlex packer Ø

58 / 60

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar coupling hitch

Pin Ø 50 – 70 mm

Adjustable drawbar linkage hitch ball joint

Towing eye Ø 51 – 71 mm

Adjustable drawbar linkage ball head

K 80

Working width

6.00 m

Transport width

3.00 m

Transport height

3.60 m

Length with tyre packer 7.50-16

8.60 m

Length with tyre packer 210/95-24

9.00 m

Length with double RollPack packer

9.30 m

Axle load tyre packer

5900 - 8500 kg

Vertical load tyre packer

2800 - 3700 kg

Axle load swivel transport wheels

7400 - 8500 kg

Vertical load swivel transport wheels

2800 - 3200 kg

Number of DiscSystem discs

Disc spacing

42 cm

Number of tines

Tine spacing in one row

96 cm

Tine spacing

48 cm

Frame height

850 mm

DA control devices lower link

3 (+ 1 per option)

DA control devices adjustable drawbar

4 (+ 1 per option)

Horsepower requirement

220 - 400 kW / 300 - 550 hp

Tyre packer size Ø

7.50-16 AS / 78 cm or 210/95-24 AS / 100 cm

Tyre size swivel transport wheels Ø

400/60-22.5 / 107 cm

Double RollPack packer Ø

62 cm

SteelFlex packer Ø

58 / 60

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar coupling hitch

Pin Ø 50 – 70 mm

Adjustable drawbar linkage hitch ball joint

Towing eye Ø 51 – 71 mm

Adjustable drawbar linkage ball head

K 80

Working width

7.50 m

Transport width

3.00 m

Transport height

4.00 / 4.15 m (with levelling discs 2-row Ø 46 cm)

Length with tyre packer 7.50-16

8.60 m

Length with tyre packer 210/95-24

9.00 m

Length with double RollPack packer

9.30 m

Axle load tyre packer

7000 - 10000 kg

Vertical load tyre packer

3900 - 4200 kg

Axle load swivel transport wheels

8500 - 10000 kg

Vertical load swivel transport wheels

3000 - 3700 kg

Number of DiscSystem discs

Disc spacing

41 cm

Number of tines

Tine spacing in one row

90 cm

Tine spacing

45 cm

Frame height

850 mm

DA control devices adjustable drawbar

Horsepower requirement

275 - 440 kW / 375 - 600 hp

Tyre packer size Ø

7.50-16 AS / 78 cm or 210/95-24 AS / 100 cm

Tyre size swivel transport wheels Ø

400/60-22.5 / 107 cm

Double RollPack packer Ø

62 cm

Lower link linkage

Cat. III – III / IV – IV

Adjustable drawbar coupling hitch

Pin Ø 70 mm

Adjustable drawbar linkage hitch ball joint

Towing eye Ø 71 mm

Adjustable drawbar linkage ball head

K 80

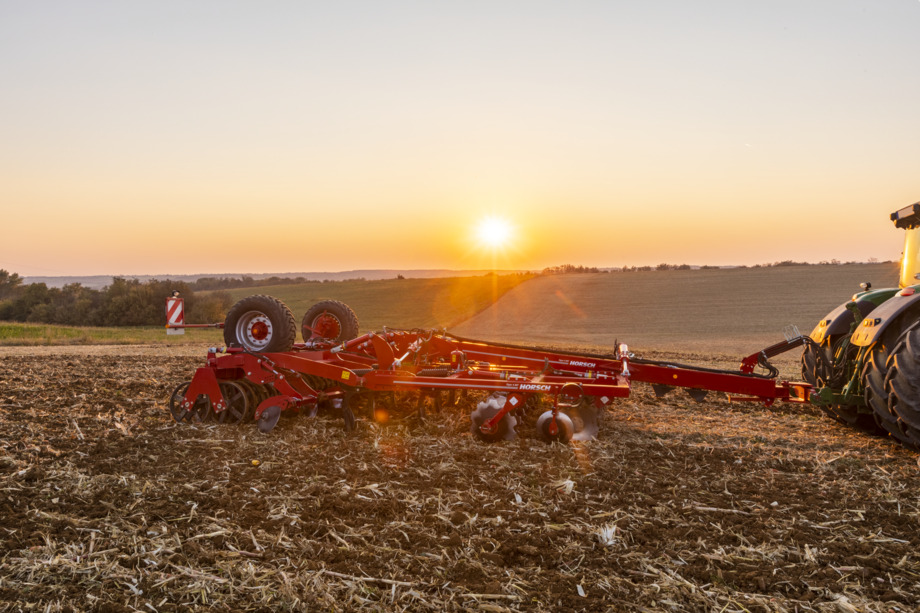

Tiger MT

A heavy cultivator for deep tillage up to max. 35 cm with a robust design and the objective to perfectly incorporate organic material.

TerraGrip III

Points

MulchMix without wing

ULD points

LD points

Levelling discs

Tyre packer 7.50-16 AS

Tyre packer 210/95-24 AS

SteelDisc packer Ø 58 cm

SteelFlex packer

Double RollPack packer Ø 62 cm

Swivel chassis

Fertiliser distributor

FertiProf Tiger 4 MT rigid

Pronto TD as an additional equipment for the Tiger

TopRing packer with tyre packer

eosT10/eosT10 Pro

TECHNICAL SPECIFICATIONS
