Seed Wagon
Manoeuvrability and large hopper capacity with minimum ground pressure
The HORSCH Seed Wagon line is marked by its simple calibration, the quick and safe filling due to the large feed openings and comfortable gangways. Short set-up times and capacities ranging from 12 000 to 21 000 litres guarantee maximum efficiency for large farms. Due to the option to choose between a double or a triple tank as well as the liquid fertiliser option the farmer disposes of a perfect fertiliser and seed combination for sowing.
Various pneumatic systems allow for coupling the seed wagons to various HORSCH seed drills and cultivators.
Especially in the HORSCH seed drill sector the triple tank seed wagons excel due to their highly variable use of the tanks. They allow for a precise placement of fertiliser (PPF system) below the seed row and for the placement of a starter application of fertiliser together with the seed (G & F).
Summary of the possible combinations of seed wagons and mounted implements
SW 12000/12003
The SW 12000 is the flexible solution for transporting and applying large quantities of fertiliser and seed. Depending on the desired components and their number the HORSCH seed wagon SW 12003 provides a triple tank solution. Both seed wagons are optionally available as a liquid fertiliser version. The large tyres guarantee a maximum protection of the soil.
Due to the six possible hydraulic control devices, the ISOBUS line, the electronic and pneumatic lines that lead through the seed wagon the seed wagon can be used with almost any mounted implement.
SW 17000 / 17003
The seed wagons SW 17000 and SW 17003 consist of the well-proven HORSCH components like the corrosion-resistant polyethylene tanks, a sophisticated pneumatic system with half-width shut-off and the well-known and popular HORSCH user interface in the terminal.
The exact calibration of the metering unit guarantees a precise and homogeneous application rate of the components for any seed and any fertiliser in all conditions.
Depending on the number of components that are to be applied you can choose between a double tank or a triple tank version. Various additional equipment is available for both versions like a filling auger, different tyres and a power track chassis.
SW 21000
8 500 L / 4 000 L / 8 500 L
The HORSCH Seed Wagon 21000 is characterised by its triple tank system that allows for an optimum distribution of seed and fertiliser components to achieve utmost efficiency. The easily accessible, large platform as well as the large feed openings of the individual tanks re-duce set-up times and, thus, additionally increase the productivity of the whole rig. Well-proven HORSCH components, corrosion-resistant polyethylene tanks, the very precise calibration of the metering rotors and the large tank capacity complete the simple, clearly arranged and powerful SW 21000 concept.
The optionally available power track chassis with a contact area of 4.2 m² reduces ground pressure and allows for sowing longer in wet conditions. Despite the size of the rig the long drawbar with the clearly arranged cabinet makes the rig extremely manoeuvrable.

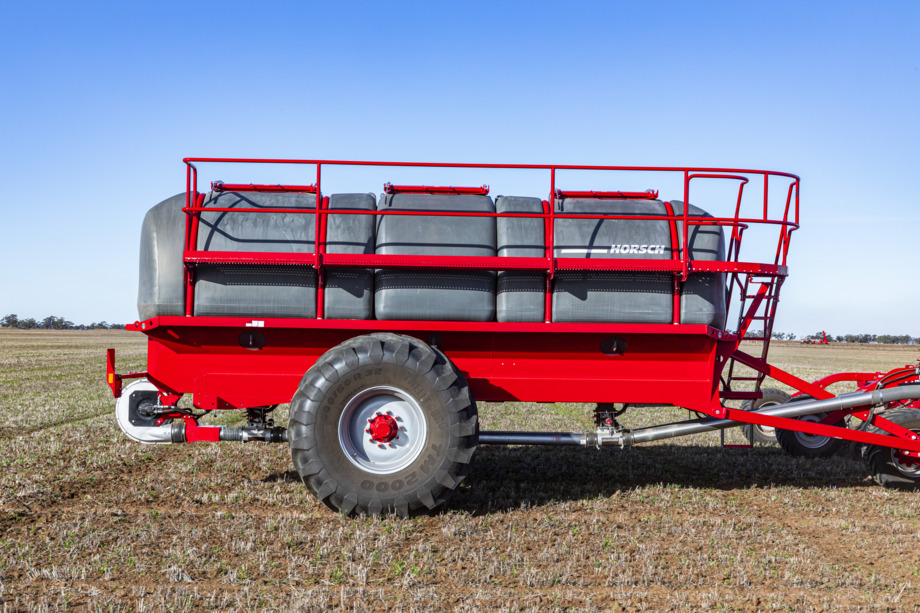

Liquid Fertiliser
For the seed wagons SW 12000, SW 12003 and SW 17003 HORSCH offers a liquid fertiliser version as an option.
The seed wagon 12000 is equipped with a 6 000 litre tank, the seed wagons 12003 and 17003 are equipped with a 4 000 litre tank made of corrosion-resistant polyethylene. A clearly arranged control element and the clearly visible level indicator at the side of the seed wagon as well as a large toolbox guarantee clarity and the well-known HORSCH user friendliness.
This simple and well-thought out liquid fertiliser system with the comfortable accessibility and the self-explanatory handling is highly appreciated among farmers all over the world.
TECHNICAL SPECIFICATIONS
Transport width with tyres 650 / 65 R 38 (m)
3.00
Transport width with tyres 900 / 60 R 32 (m)
3.35
Transport width with twin tyres 520 / 85 R 42 (m)
4.30
Transport width with power track chassis (m)
---
Transport height (m)
3.67
Transport height with filling auger (m)
3.93
Transport length (m)
7.50 (SW 7.22 / NT 7.00)
Transport length with filling auger (m)
---
Weight (kg) (SW 12000 tyres: 650, rest: double tyres)
4 500
Axle load (kg)
3 550
Vertical load (kg)
950
Hopper capacity (l)
6 000 / 6 000
Filling height (m)
3.40
Feed opening tank 1 (mm)
per 0.99 x 0.75
Feed opening tank 2 (mm)
per 0.99 x 0.75
Feed opening tank 3 (mm)
per 0.99 x 0.75
DA control devices direct drive
1 x (+ 1 x with 2. fan)
Linkage to tractor
Adjustable drawbar for bolt Ø 50 – 55 and 60 – 70 or ball head linkage K 80
Linkage NT version
Connecting eye for a coupling directly via the frame of the seed unit
Oil quantity fan 8 ccm
70 – 90 l/min
