CULTRO TC - FAST, STURDY, EFFICIENT

THE DOUBLE KNIFE ROLLER MINIMUM EFFORT FOR MAXIMUM HECTARE OUTPUT

What are the excelling features of the Cultro TC?

Minimum effort for maximum acreage performance
Operational speed up to 20 km/h
When used in the field, the weight of the machine is completely on the knife roller
Hydraulically adjustable heavy harrow to produce fine earth or to distribute organic matter

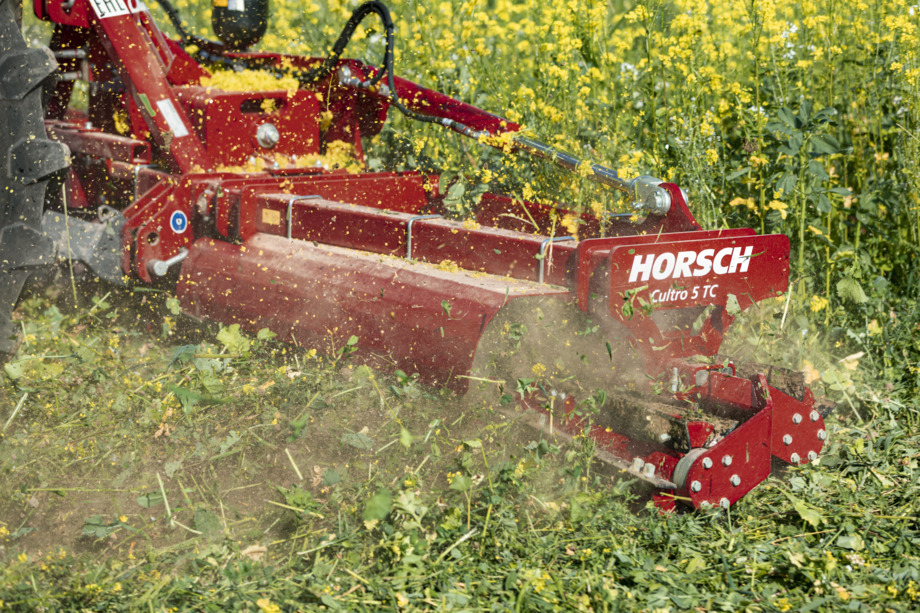

The Cultro is ideal for crushing catch crop populations in spring or autumn as well as for ultra-shallow stubble cultivation in rape and in sunflowers.
Extended range of use in silage maize stubble to fight the corn borer
Counter-rotating arrangement of the rollers creates a cross-shaped working pattern
The rollers are arranged over the whole working width. The diameter is 300 mm with 6 knives per roller for a very high rotational speed. This additionally increases the crushing effect.
The knives are arranged diagonally on the roller to guarantee a constant distribution of the force.
The knives rest against the rotor to guarantee highest stability.
The whole system of the Cultro 12 TC is pretensioned hydraulically with up to 100 bar and hydraulically protected against overload
As an overload protection the knife rollers are cushioned with rubber buffers.
The double knife roller elements are oscillatingly suspended via a wide rubber bearing for an optimum adaption to the soil.
Different configuration options like RingFlex packer or heavy harrow for Cultro 12 and 18 TC
Different packer options for rear attachment for the Cultro 3 TC like RollFlex packer and RollPack packer
Options for front and rear attachment for Cultro 3, 5 and 6 TC

Additional weight Cultro 3 TC

RingFlex packer

Transport position Cultro 12 TC

Efficient corn borer control in one pass

Aggressive and massive baffle plate arrangement

Cultro TC

ULTIMATE EFFICIENCY

Cultro TC – the double knife roller Minimum effort for maximum hectare output

The range of use of the double knife roller Cultro TC is very wide while the horsepower requirement is very low. The knives provide an intensive cutting result, e. g. in rape or maize stubbles and in catch crops. When working in the field, the complete weight of the frame rests on the roller bodies. The advantages with regard to the crushing quality of organic matter are considerable.

THESE ARE THE EXCELLING FEATURES

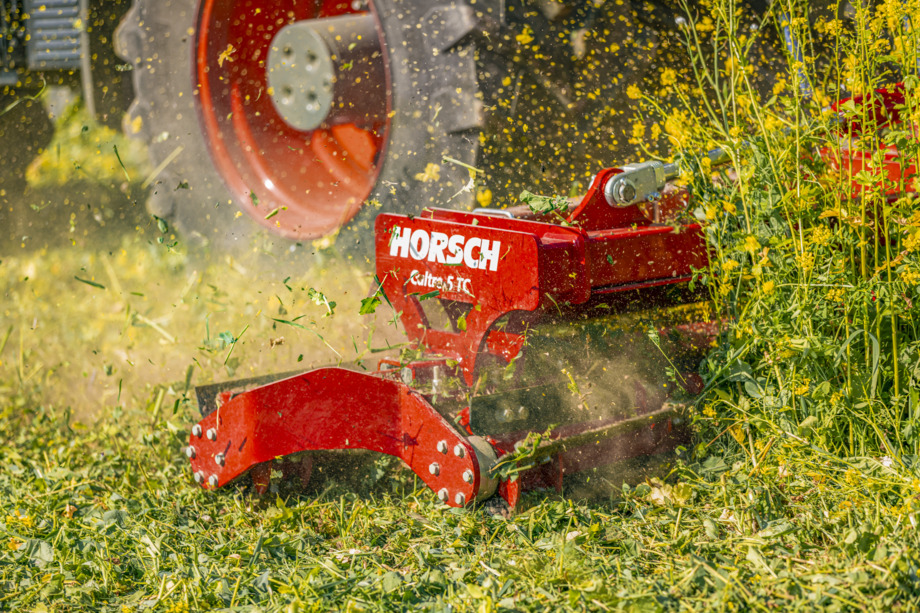

Flexibility with 3-point linkage. The Cultro 3, 5 and 6 TC can either be attached at the front or in the rear.

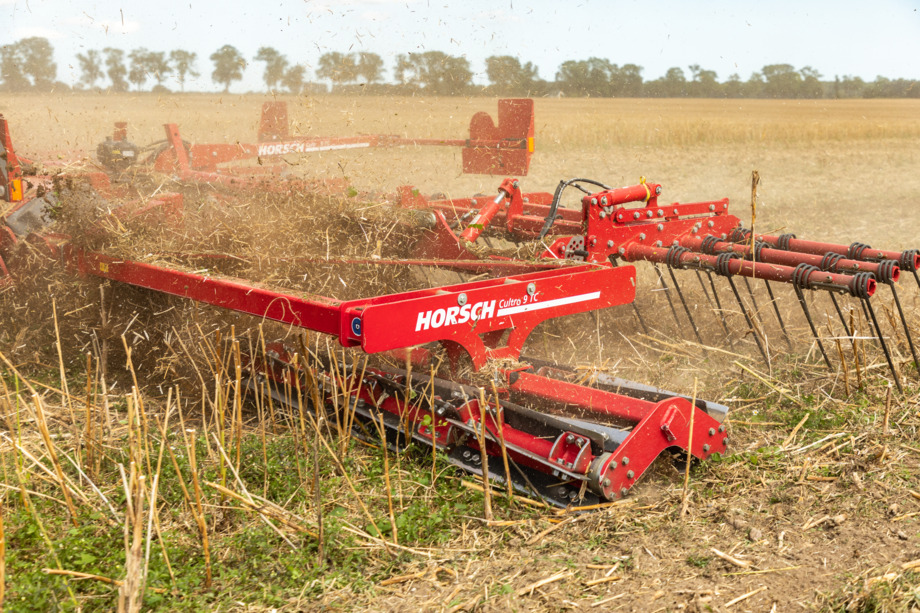

3-row heavy harrow to distribute organic matter, to produce fine earth or to comb out weeds. Available for Cultro 5, 6, 9, 12 and 18 TC
Closed rotor design
300 m roller bodies for maximum rotational speeds
Cultro 9 TC = 3-part folding for optimum adaption to the soil
Hydraulic pressurisation, nitrogen bubbles absorb pressure peaks
Due to diagonally offset roller, there are no uncultivated areas between the segments.

Cultro TC

AGRONOMIC BENEFIT

Low horsepower requirement 240 hp for 12 m working width and an operational speed of 14 km/h

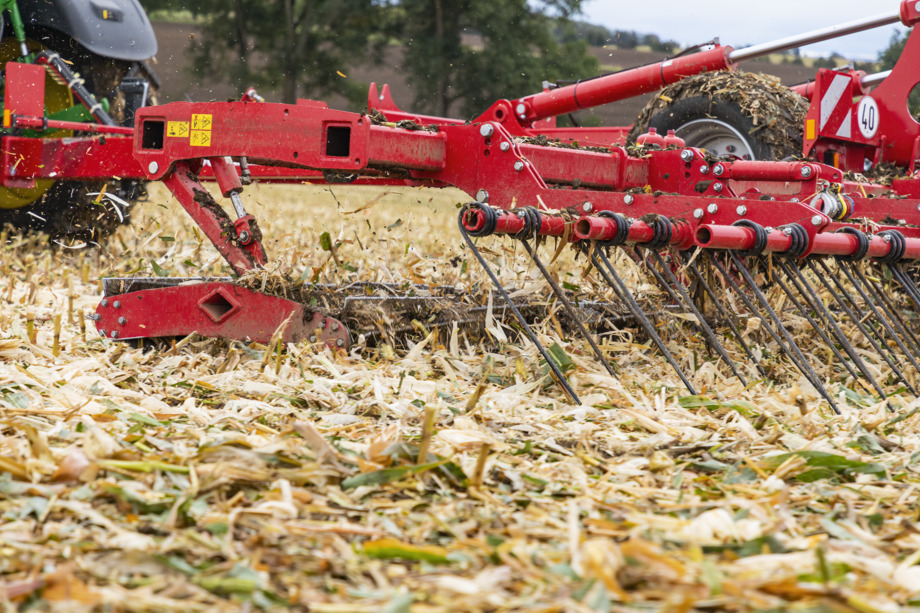

Unique work results when crushing maize stubbles
Ideal for crushing rape and sunflower stubbles
Catch crop crushing

Enough clearance between the two disc rows

TECHNICAL SPECIFICATIONS

Mounting in pairs increases the clearance

Large and robust bearing

Large rubber suspension

HORSCH Cultro TC

3 TC

5 TC

6 TC

9 TC

12 TC

18 TC

HORSCH Cultro TC

Working width (m)	2.90	4.60	5.70	8.90	12.20	18.20
Transport width (m)	2.99	2.35	2.35	2.98	2.99	2.99
Transport height (m)	1.21	2.64	3.25	---	---	---
Machine height (m)	---	---	---	3.76	3.35*	3.60 / 3.75 with triple harrow*
Length (m)	---	---	---	3.42	7.90	11.01
Length rear attachment with packer (m)	2.10	1.02	---	3.41	---	---
Length front attachment (m)	1.09	1.02	1.02	---	---	---
Weight front attachment (kg)**	950 – 1 300	---	---	---	---	---
Weight rear attachment (kg)*	1 800 – 2 100*	2 300 – 2 700	2 400 – 2 900	3 300 – 3 900	---	---
Axle load (kg)**		---	---	---	5 700 – 6 600	8 200 – 8 700
Vertical load (kg)**		---	---	---	1 700 – 2 200	2 500 – 2 900
Tyre size support wheels	---	---	---	---	10.0 / 75 – 15.3	10.0 / 75 – 15.3
Tyre size chassis	---	---	---	---	550 / 45 – 22.5	550 / 45 – 22.5
Knife roller Ø (cm)	30	30	30	30	30	30
DA control devices	---	1	1	3	4	4
Horsepower requirement as of (kW/hp)	60 – 110 / 80 – 150	95 – 147 / 130 – 200	110 – 160 / 150 – 220	140 – 210 / 190 – 290	200 – 255 / 270 – 350	235 – 330 / 320 – 450
3-point (linkage)	3-point Cat. ll / lll	3-point Cat. ll / lll	3-point Cat. ll / lll	3-point Cat. ll / lll	---	---
Linkage with ring hitch	---	---	---	---	Ø 46 – 58 mm	Ø 46 – 58 mm
Linkage with hitch (ball joint)	---	---	---	---	Ø 42 – 51 mm	Ø 42 – 51 mm
Linkage with ball head coupling					K 80	K 80
